Product Type	Air Fryer
Brand	WestBend
Model	AFWB5QBK13
Capacity	4.7 L (5 quarts)
Power Supply	120 V ~ 60 Hz (polarized plug)
Power	Estimated 1500 W (not specified in manual)
Display	Digital screen with touch controls
Cooking Presets	Air Fry, Bake, Chicken, Fries, Frozen, Keep Warm, Preheat, Reheat, Roast, Vegetables
Manual Settings	Temperature (170-400 °F / 77-204 °C) and time (1-120 min)
Coating	Diamond Shield™ non-stick, PTFE-free
Basket Material	Non-stick coated metal
Removable Grill	Yes, with non-stick coating
Dishwasher Safe	Basket and grill are dishwasher safe (top rack)
Safety	Polarized plug, automatic shut-off at end of cycle, hot surfaces, do not immerse
Warranty	1 year limited warranty on parts and labor
Spare Parts	Available at www.westbend.com
Maintenance	Clean after each use; basket and grill washable; wipe exterior; clean heating element
Use	Household use only, on a stable, heat-resistant surface, away from walls (15 cm / 6 inches)
Weight (estimated)	Approximately 4.5 kg
Dimensions (estimated)	Approximately 32 x 32 x 32 cm

Frequently Asked Questions - AFWB5QBK13 WestBend

How to preheat the WestBend air fryer?

Press the Preheat button (preheat). The default temperature appears, then the time. Adjust if necessary, then press Start. Once preheating is complete, the appliance turns off. Open the basket, place the food, then select the desired cooking function and press Start.

Do I need to shake or turn the food during cooking?

Yes, for some foods like fries, an audible reminder prompts you to shake or turn the food halfway through cooking for even cooking. Small foods particularly benefit from this action.

Can the basket and grill be washed in the dishwasher?

Yes, the basket and grill are dishwasher safe, on the top rack. You can also wash them by hand with hot soapy water.

What is the maximum amount of fries to cook at once?

For optimal results, do not exceed 500 g (16 oz) of fries at a time. This ensures even and crispy cooking.

How to make homemade fries with this fryer?

Peel and cut potatoes into sticks, soak them in water for 30 minutes, dry them, then toss with 1/2 tablespoon of olive oil. Remove excess oil, place in the basket and use the Fries preset (about 18-25 min at 350°F / 180°C), shaking halfway through.

Can I use oil in the air fryer?

Yes, but in very small amounts. For homemade fries, a little oil improves crispiness. Avoid very fatty foods like sausages. The appliance works with minimal oil for healthy cooking.

How to clean the heating element?

After cooling, clean the heating element with a cleaning brush and hot soapy water to remove food residue. Do not use metal or abrasive utensils.

What to do if the fryer emits smoke or an odor during first use?

This is normal. Ensure adequate ventilation around the appliance. This phenomenon disappears after a few uses.

What is the warranty duration and how to activate it?

The limited warranty is 1 year from the date of purchase. Keep your receipt as proof of purchase. If you have a problem, contact customer service at www.westbend.com. Product registration is not required to activate the warranty.

Does the fryer have an automatic shut-off?

Yes, the appliance turns off automatically at the end of the programmed cooking cycle. You can also turn it off manually with the power button.

USER MANUAL AFWB5QBK13 WestBend

Register this and other West Bend products through our website: http://registerproductsonline

Product registration is not required to activate warranty.

Important Safeguards 2-3
Polarized Plug. 3
Product Diagram. 4
Before Use. 4
Preset Guide. 5
Using Your Air Fryer 6
Cleaning Your Air Fryer 7
Helpful Hints 7-8
Temperature Guide 8-9
Warranty 10

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following:

1. Read all instructions before using this product.
2. This appliance generates heat during use. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electric shock, do not place or immerse cord, plugs, or appliance in water or other liquid.
4. This appliance is not intended for use by children or by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance. Keep the appliance and its cord out of reach of children.
5. Unplug from outlet when not in use, before putting on or taking off parts and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning. To disconnect, turn any control to OFF, then unplug power cord from outlet. Do not disconnect by pulling on cord.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Do not attempt to replace or splice a damaged cord. Return appliance to the manufacturer (see warranty) for examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8. Do not use outdoors or for commercial purposes.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near wet surfaces, or heat sources such as a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
12. The heating base is subject to residual heat from cooking cycle. Do not touch heating base immediately after using. Allow to cool before handling.
13. Use caution when pulling out the basket during or after a cooking cycle. Escaping steam can cause burns.
14. Do not use appliance for other than intended use. Misuse can cause injuries.
15. Intended for household countertop use only. Keep 6 inches (152 mm) clear from the wall and on all sides. Always use appliance on a dry, stable, level surface.
16. Never operate this appliance by means of an external timer or separate remote-control system.
17. WARNING: Spilled food can cause serious burns. Keep appliance and cord away from children. Never drape cord over edge of counter and never use outlet below counter.

SAVE THESE INSTRUCTIONS

HOUSEHOLD USE ONLY

POLARIZED PLUG

North American models with polarized plugs:

This appliance has a polarized plug, (one blade is wider than the other). As a safety feature to reduce the risk of electrical shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to

defeat this safety feature or modify the plug in any way. If the plug fits loosely into the AC outlet or if the AC outlet feels warm do not use that outlet.

POWER CORD INSTRUCTIONS:

A short power-supply cord or detachable power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. If a long detachable power-supply cord or extension cord is used on short-cord models:

a. The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance;
b. When the product is of the grounded type, the extension cord shall be a grounding type 3-wire cord; and
c. The longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over unintentionally.

Do not pull, twist or otherwise abuse the power cord.

NOTICES

1. Some countertop and table surfaces are not designed to withstand the prolonged heat generated by certain appliances. Do not set the heated unit on a finished wood table. We recommend placing a hot pad or trivet under your air fryer to prevent possible damage to the surface.
2. During initial use of this appliance, some slight smoke and/or odor may be detected. This is normal with many heating appliances and will not recur after a few uses.

Congratulations on your purchase of a West Bend Air Fryer!

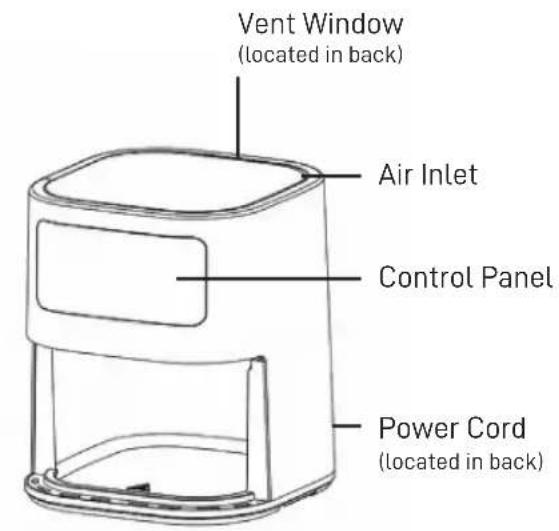

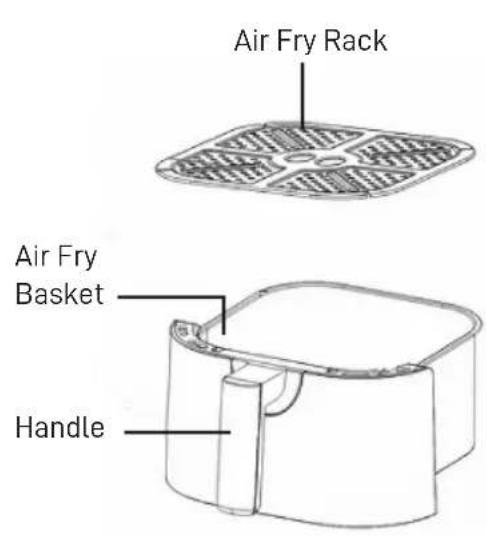

PRODUCT DIAGRAM

BEFORE USE

Thank you for buying this top quality air fryer. You will now be able to cook a wide assortment of food in a healthier manner – with little or no oil!

The air fryer uses hot air, in combination with high-speed air circulation, and a top grill to prepare your dishes quickly and easily. The ingredients are heated from all sides, at once, and there is no need to add oil in most cases.

Before using your new appliance, follow these instructions:

1. Remove all packing material.
2. Remove any stickers or labels from the appliance - other than the rating label.
3. Thoroughly clean the appliance parts using warm water, some liquid washing soap, and a non-abrasive sponge.
4. Wipe the inside and outside of the appliance with a moist cloth.
5. Place the appliance on a stable, horizontal and level surface that is also heat resistant.
6. Place the rack in the frying tray properly.

Do not fill the frying tray with oil or any other liquid.

Do not put anything on top of the appliance. This disrupts the airflow and affects the air-frying result.

PRESETGUIDE

PRESETS		DEFAULT TIME (MIN)	DEFAULT TEMPERATURE (°F)	SHAKE/TURN REMARKER
32	Air Fry 20 (1-60) 400 (170-400)
	Bake 25 (1-120) 320 (170-400)
	Chicken 22 (1-60) 400 (170-400)			√
	Fries 16 (1-60) 400 (170-400)			√
	Frozen 20 (1-60) 140 (90-200)
	Keep Warm 30 (1-480) 200 (150-200)
	Preheat 3 (1-60) 360 (170-400)
	Reheat 15 (1-60) 300 (170-400)
	Roast 30 (1-120) 400 (170-400)			√
	Vegetables 10 (1-60) 320 (170-400)			√

USING YOUR AIR FRYER

Note: When using the Air Fryer for the first time, a little smoke or odor may be emitted. If this happens, ensure there is sufficient ventilation around the appliance.

1. Place the appliance on a dry, stable, heat-resistant surface, away from any edge.
2. Place the Air Fry Rack in the Air Fry Basket.
3. Plug the power cord into wall outlet. The Air Fryer will beep, and the power light will illuminate. The Air Fryer will remain on standby mode until the power button is pressed. Press the power button to turn on the Air Fryer.

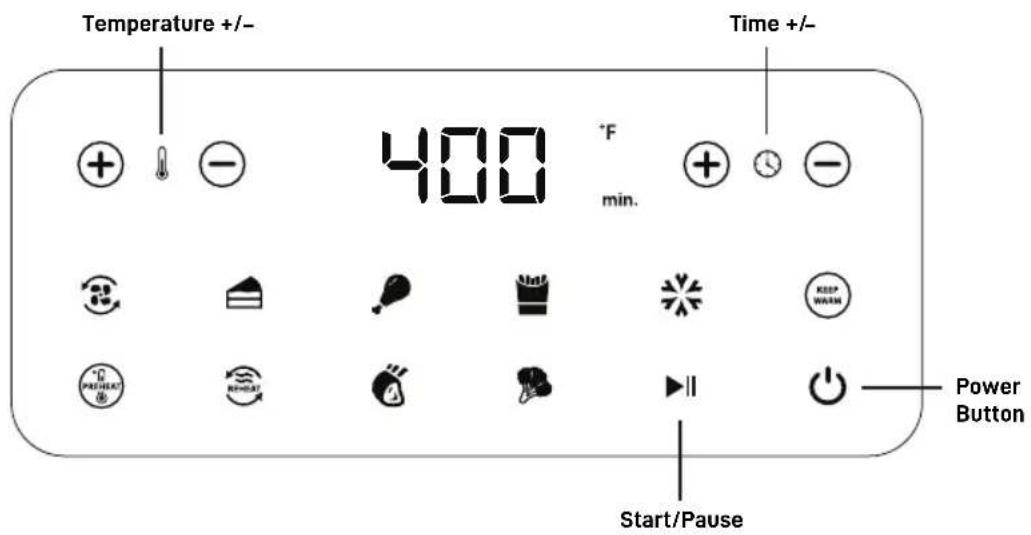

4. Select the type of food you want to cook by touching any of the one touch presets. Depending on your selection, the cooking temperature and time will automatically be set to the default values.
5. The default temperature will appear on the screen, then flash to display the default to time. The default time and temperature can be adjusted by pressing the +/- buttons associated with the time or temperature.
6. The unit can also be used manually by setting the desired time and temperature without selecting one of the preset functions.
7. Once the desired preset has been selected and desired cooking temperature and time set, the selected preset icon will blink and the icon of Pause/Start will also blink, press the start button , the button will stop blinking, and an audible alert will sound indicating the cooking cycle has begun.
8. When its time to shake or turn the food, the unit will beep 3 times.
9. During the cooking cycle, you can adjust the time and temperature by pressing the +/- buttons associated with the time or temperature. Once the cooking cycle is complete, pull the basket using the easy grip handle to check on doneness.

Note: you can check on progress mid cycle by simple pulling out the Air Fry basket. To resume cooking, press the start button

1. The air fryer also features a preheat preset. To preheat the unit before cooking, press the preheat icon. The default temperature will appear on the screen, then flash to display the default to time. Press the start button.
   11.Once preheat is complete, the unit will go back to standby mode. Open the basket and place the food on the rack, then push the basket back in the unit. Select one of the preset that best correspond to the type of food in the Air Fry Basket. Once the desired preset has been selected and the desired cooking temperature and time set, press the start button . The button will stop blinking, and an audible alert will sound indicating that the cooking cycle has begun.
2. Using kitchen tongs, empty the contents of the tray into a bowl or onto a plate.

CLEANING YOUR AIR FRYER

Clean the air fryer after each use. Air Fry Rack and Air Fry Basket are coated with a PTFE free Diamond Shield™ non stick coating for enhanced durability and easy clean up. Do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the coating.

1. Unplug the unit from the wall outlet
2. Let the unit cool down.
3. Wipe the outside of the appliance with a damp cloth.
4. Wash the Air Fry Rack and Air Fry Basket in hot soapy water. Rinse and dry thoroughly.

Note: These parts can also be washed in the top rack of your dishwasher.

1. Clean the heating element with hot soapy water and a cleaning brush to remove food residue.

Tip: If food residue has adhered to the air fry rack or the bottom of the air fry basket, fill the air fry basket with hot soapy water. Place the air fry rack in the air fry basket and soak for approximately 10 minutes.

This appliance has no user serviceable parts. Any servicing beyond that described in the Cleaning Section should be performed by an Authorized Service Representative only. See warranty available online.

HELPFUL HINTS

Tips:

• Smaller food usually require a slightly shorter preparation time than larger food.
• Shaking smaller foods halfway through the cooking time improves the end result and can help prevent unevenly fried ingredients.
• Lightly coat fresh potatoes with a little oil for a crispier result.
• Do not air fry extremely greasy ingredients such as sausages in the air fryer.
• Snacks that can be prepared in an oven can also be prepared in the air fryer.
• For optimal result, we recommend air frying up to 500 grams (16oz) of fries at a time.
• Use pre-made dough to prepare filled snacks quickly and easily. Pre-made dough also requires a shorter preparation time than home-made dough.
• The air fryer can also be used to reheat food. To reheat food, simply press the reheat preset. The default temperature will appear on the screen, then flash to display the default to time. The default time and temperature can be adjusted by pressing the +/- buttons associated with the time or temperature.

HOME-MADE FRIES: For the best results, pre-baked fries are recommended. If you want to make home-made fries, follow the steps below:

1. Peel the potatoes and cut them into sticks.
2. Soak the potato sticks in a bowl of water for at least 30 minutes. Then remove the sticks from the water, and dry them on paper towels.
3. Pour 12 tablespoon of olive oil in a bowl, add the potato sticks, and mix until the sticks are coated with oil.
4. Remove the potato sticks from the bowl with kitchen tongs or other utensil so that excess oil stays behind in the bowl. Put the sticks in the tray.

Note: To prevent excess oil from collecting at the bottom of the frying tray, do not tilt the bowl to pour all the sticks into the tray at once.

1. Fry the potato sticks according to the instructions provided in the Temperature Guide below.

TEMPERATURE GUIDE

Default Cooking Times & Temperatures

Note: We recommend preheating the air fryer before cooking.

1. To preheat the air fryer, press the preheat button.
2. The temperature and time will automatically be set to the default values.
3. The default temperature will appear on the screen, then flash to display the default to time.
4. The default time and temperature can be adjusted by pressing the +/- buttons associated with the time or temperature
5. Press the start button. The button will blink, and an audible alert will sound indicating that the Preheat cycle has begun.
6. Once preheat is complete, the air fryer will turn off.
7. Press the power button to turn off the appliance, then select your desired cooking function.

Time (min.) Temperature Shake Extra information

Potatoes & fries

Thin frozen fries 12-16 400°F / 200°C Shake
Thick frozen fries 12-20 400°F / 200°C Shake
Home-made fries (8x8mm)	18-25 350°F / 180°C Shake add	1/2 tbsp of oil
Home-madepotato wedges	18-22 350°F / 180°C Shake add	1/2 tbsp of oil
Home-made potato cubes	12-18 400°F / 200°C Shake add	1/2 tbsp of oil
Rösti 15-18 350°F / 180°C
Potato gratin 18-22 350°F / 180°C

Meat & Poultry

Steak 8-12 350°F / 180°C
Pork chops 10-14 350°F /	180°C
Hamburgers	7-14	350°F / 180°C
Sausage roll	13-15 400	F/200°C
Drumsticks	18-22 350	F/180°C
Chicken breast	10-15 350	F/180°C

Snacks

Spring rolls	8-10 400	F / 200°C	Shake
Frozen chicken nuggets	6-10 400	F / 200°C	Shake
Frozen fish sticks	6-10 400	F / 200°C
Frozen breaded cheese sticks	10	400°F / 200°C
Stuffed vegetables	10	325°F / 160°C

PRODUCT WARRANTY

Appliance 1 Year Limited Warranty

West Bend ("the Company") warrants this appliance from failures in the material and workmanship for one (1) year from the date of original purchase with proof of purchase, provided that the appliance is operated and maintained in conformity with the Instruction Manual. Any failed part of the appliance will be repaired or replaced without charge at the Company's discretion. This warranty applies to indoor household use only.

This warranty does not cover any damage, including discoloration, to any non-stick surface of the appliance. This warranty is null and void, as determined solely by the Company, if the appliance is damaged through accident, misuse, abuse, negligence, scratching, or if the appliance is altered in any way.

THIS WARRANTY IS IN LIEU OF ALL IMPLIED WARRANTYES, INCLUDING WARRANTYES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE, OR OTHERWISE, WHICH ARE HEREBY EXCUSED. IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, FORSEEABLE, CONSEQUENTIAL, OR SPECIAL ASING OUT OF OR IN CONNECTION WITH THIS APPLIANCE.

If you think the appliance has failed or requires service within its warranty period, please contact the Customer Care Department through our website at www.westbend.com

"Support" -> "Contact Us". A receipt proving the original purchase date will be required for all warranty claims, hand written receipts are not accepted. You may also be required to return the appliance for inspection and evaluation. Return shipping costs are not refundable. The Company is not responsible for returns lost in transit.

Valid only in USA and Canada

REPLACEMENT PARTS

Replacement parts, if available, may be ordered online at www.westbend.com.

This manual contains important and helpful information regarding the safe use and care of your product. For future reference, attach dated sales receipt for warranty proof of purchase and record the following information:

Date purchased or received as gift:

Where purchased and price, if known:

Item number and Date Code (shown bottom/back of product):

WESTBEND

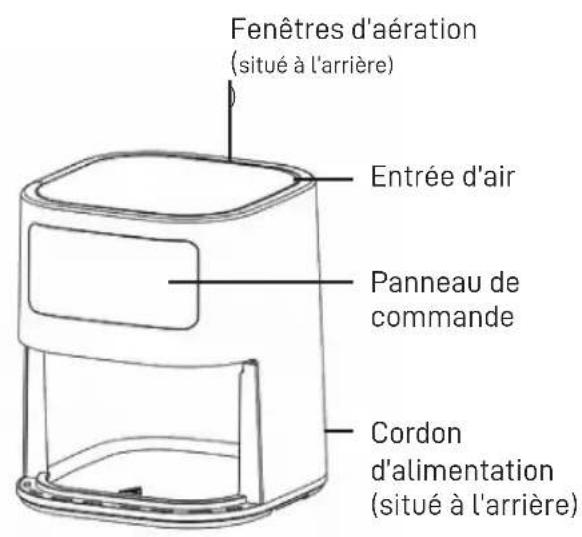

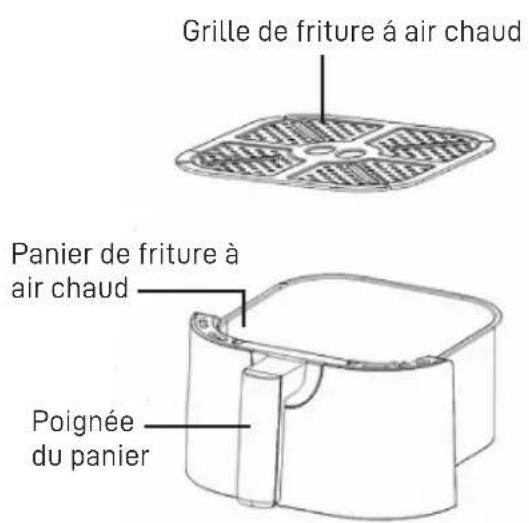

DIAGRAMME DU PRODUIT

AVANT L'UTILISATION

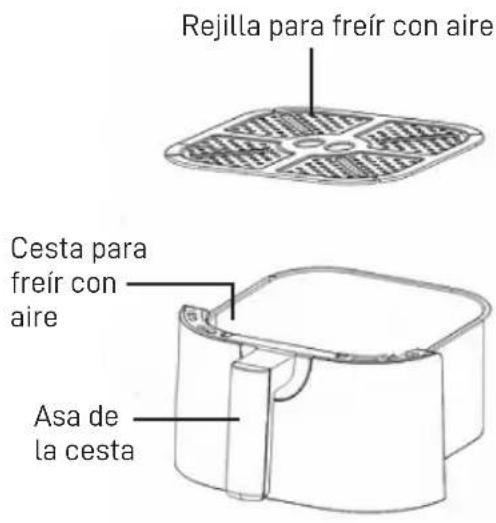

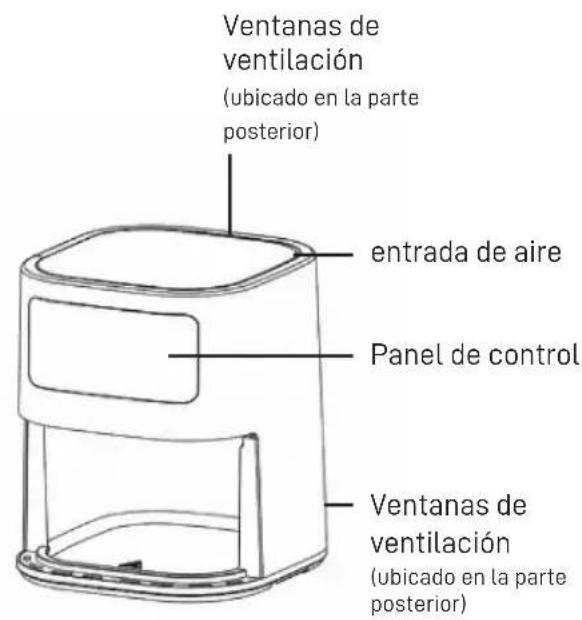

DIAGRAMA DEL PRODUCTO

ANTES DE USAR

Prop. 65 Warning for California Residents

WARNING: CANCER AND REPRODUCTIVE HARM -

www.P65Warnings.ca.gov
