USER MANUAL Breezy Clip 86680 UNOLD

This symbol indicates potential hazards that may result in injury or damage to the appliance. Please read the following instructions and keep them on hand for later reference. Instructions for persons in the household

1. This appliance can be used by children 8 years and older, as

well as by persons with reduced physical, sensory or mental abilities or with lack of experience and/or knowledge, if they are supervised or if they have been instructed with regard to safe use of the appliance and have understood the dangers that can result from use of the appliance.

2. Children must not play with the appliance.

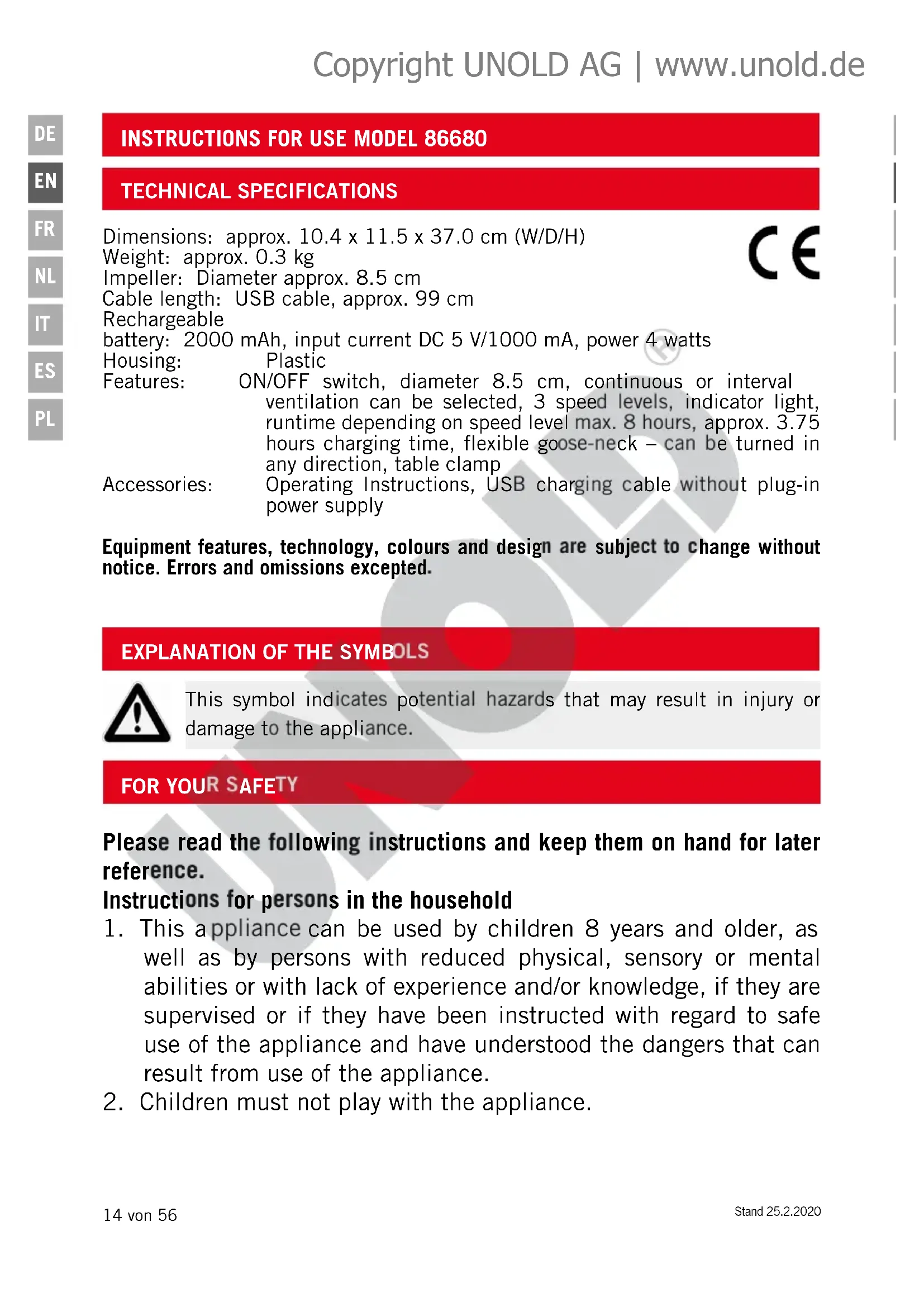

Dimensions: approx. 10.4 x 11.5 x 37.0 cm (W/D/H) Weight: approx. 0.3 kg Impeller: Diameter approx. 8.5 cm Cable length: USB cable, approx. 99 cm Rechargeable battery: 2000 mAh, input current DC 5 V/1000 mA, power 4 watts Housing: Plastic Features: ON/OFF switch, diameter 8.5 cm, continuous or interval ventilation can be selected, 3 speed levels, indicator light, runtime depending on speed level max. 8 hours, approx. 3.75 hours charging time, flexible goose-neck – can be turned in any direction, table clamp Accessories: Operating Instructions, USB charging cable without plug-in power supply Equipment features, technology, colours and design are subject to change without notice. Errors and omissions excepted. Copyright UNOLD AG | www.unold.deStand 25.2.2020 15 von 56

3. Children are not allowed to perform cleaning and user

maintenance, unless they are 8 years of age or older and are supervised.

4. Keep the appliance and the power cord out of the reach of

children under 8 years of age.

5. Keep the appliance out of the reach of children.

Note: The appliance is delivered without plug-in power supply/USB charger. However, to charge the appliance it must be connected to the mains supply via a USB charger. In this regard the following instructions for dealing with electricity apply:

6. Strictly comply with the safety operating instructions for the res

pective USB charger.

When connecting the USB charger, ensure that the mains vol- tage meets the specified requirements of the charger.

The USB charger must not be operated with an external timer or a remote control system.

9. Only charge the appliance with the USB charger indoors.

10. Protect USB charger from wetness, heat and direct sunlight.

11. Always ensure that the charging cable is laid out its entire length

to prevent damage due to overheating.

12. Unplug the charging cable from the electrical outlet only by gra

sping and unplugging the plug-in power supply. Do not, under any circumstances, pull directly on the charging cable.

Unplug the USB charger from the mains supply, when it is not required.

14. When you put the appliance away for storage purposes, do not,

under any circumstances wrap the charging cable around the appliance. Wrapping the power cord around the appliance can damage the power cord. Disconnect the charging cable from the appliance when the appliance is completely charged.

15. As long as the plug-in power supply of the USB charger is in the

electrical outlet, even if the appliance is switched off, the appli

ance poses a hazard in the vicinity of water.

Do not, under any circumstance, touch the plug-in power sup- plies with wet hands.

Do not insert any objects into the appliance. There is danger of electric shock due to appliance damage. Copyright UNOLD AG | www.unold.de16 von 56 Stand 25.2.2020

18. Ensure that you do not damage the rechargeable battery in the

appliance, e.g. through falling, impact or vibration. Do not conti- nue to use a damaged rechargeable battery. If in doubt, contact our customer service organisation.

Recharge the battery on a regular basis to avoid deep discharge, and thus a possible appliance defect.

20. Attention: The provided charging cable is not suitable for data

21. If liquid should escape from the rechargeable battery, put on

protective gloves immediately before handling the appliance. Do not continue to use the appliance. Avoid contact with skin and eyes. Should skin or eye contact nevertheless occur, seek medi

cal attention immediately. The appliance is intended for perso- nal use only; it is not designed for commercial requirements. Safety instructions for safe operation of the appliance

Do not use the appliance in rooms that are extremely dusty or in the vicinity of flammable substances.

23. Do not, under any circumstances, operate or charge the appli

ance if it has been brought from a cold environment into a war- mer environment. In such a situation condensation can occur that can damage the appliance. W ait until the appliance has reached room temperature before using it.

Never open the housing of the appliance. This could damage the rechargeable battery.

25. The appliance is intended for household use only, or for similar

areas of use, such as, in kitchenettes in businesses, offices or other workplaces, for use by guests in hotels, motels or other lodgings, in private guest houses or holiday homes.

26. To avoid damage to the charging cable, ensure that it is not

pinched or pulled over corners.

27. Do not, under any circumstances, stick fingers or objects, such

as needles, pins, etc. through the basket grille into the interior of the appliance – danger of injury!

28. Ensure that long hair cannot be caught by the impeller.

29. Check the appliance, the plug and the charging regularly for

wear or damage. If the charging cable or other parts are dama

ged, please send the appliance for inspection and repair to our customer service organisation. Unauthorised repairs can result in serious hazards for the user and void the warranty.

30. To avoid damage, do not use the appliance with accessories of

other manufacturers or brands.

31. Unplug the mains plug of the charger after use and before

cleaning. Do not, under any circumstances, leave the appliance unattended when the mains plug is plugged in. Do not, under any circumstances, stick fingers or objects, such as needles, pins, etc. through the openings into the interior of the appliance – danger of injury! The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

PLACING IN SERVICE AND CHARGING

1. Remove all packaging materials and transport safeguards. Keep the

packaging material, such as plastic bags or Styrofoam away from small children – danger of suffocation!

2. Ensure that the appliance is switched off.

3. Using the table clamp, place the fan on the edge of a table, for example,

and check that the appliance is stable.

4. Connect the changing cable on the charging connection of the appliance.

5. Connect the other end of the charging cable to a USB charger.

6. Plug the plug of the USB charging cable into an electrical outlet (220-

7. Ensure that all cables are correctly connected, otherwise the appliance

cannot be correctly charged.

8. The indicator light on the appliance illuminates red; it indicates that the

appliance is being charged. As soon as the charging process is concluded (duration approx. 3.75 h) the indicator light will go out.

9. To prevent damage of the rechargeable battery, the appliance should not be

charged longer than 12 hours.

10. You can use the appliance on level 1 for approx. 8 h, level 2 for approx.

4 h and level 3 for approx. 2 h, before it must be recharged. The maximum Copyright UNOLD AG | www.unold.de18 von 56 Stand 25.2.2020

capacity of the rechargeable battery is only achieved after multiple charging processes.

11. Only recharge the appliance when the rechargeable battery is completely

discharged. Thus the full capacity of the rechargeable battery remains intact for a longer period of time.

12. Tips: The appliance can also be charged with a different USB charging cable,

as long as the USB charging cable meets the technical specifications. If in doubt, contact our technical customer service organisation.

13. It is also possible to connect the supplied charging cable to a USB port

of a computer or power bank and charge the appliance in this manner. However, for technical reasons this charging process can take a very long time; consequently we recommend charging with a USB charger. When using a power bank for charging: Comply with all manufacturer instructions and technical specifications of the power bank manufacturer.

1. Ensure that the appliance is charged.

2. Attach the fan to the edge of a table, for example, and check to ensure that

the appliance is securely attached.

3. The appliance can also be used while it is being charged.

4. Switch on the appliance via the ON/OFF switch on the right side of appli-

5. Use the „ “ button to select the desired speed level. Three speed levels

are available (low, medium, high). Press 1x: Level 1, low speed Press 2x: Level 2, medium speed Press 3x: Level 3, high speed Press 4x: Switches off the fan function. Button M: A gust of wind with a duration of 10 seconds alternates with appliance standstill for 5 seconds. This function is possible in every speed level. To use the function, a speed must first be selected on the appliance and then the M button must be pressed. If you want to deactivate the function, press the M button again

6. The indicator light illuminates blue and shows that the appliance is in ope-

Switch off the appliance. Wait until the appliance has come to a complete standstill. Do not, under any circumstances, immerse the appliance in water. The motor or electrical components of the appliance must not get wet.

1. Never use any abrasive scouring agents, steel wool, metal objects, hot

cleaning agents or disinfectants.

2. Wipe off the housing and grille of the fan with a slightly damp cloth.

3. Store the fan in a dry, safe place so that it is protected from dust, impact,

heat and moisture. We recommend that you store the original packaging and stow the appliance in the original packaging when the appliance is not needed.

7. Note: If the indicator light is flashing blue, it means that the battery must

be recharged. Recharge the battery as soon as possible.

8. Switch off the appliance via the ON/OFF switch, when you are not using it.

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic prod- ucts. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment. Do not dispose of used batteries as household waste. Dispose of this product via your appliance dealer or take it to the municipal collection point. GUARANTEE CONDITIONS We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workman- ship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. You can print out a return receipt on our website www.unold.de/ruecksendung. (only for entries from Germany and Austria). The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty. The instruction booklet is also available for download: www.unold.de Copyright UNOLD AG | www.unold.deStand 25.2.2020 21 von 56
