Fruitberry - Juicer Klarstein - Free user manual and instructions

Frequently Asked Questions - Fruitberry Klarstein

USER MANUAL Fruitberry Klarstein

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 10

Before first Use 11

Device Overview 11

Commissioning and Operation 12

Cleaning and Care 14

Disposal Considerations 14

Manufacturer & Importer (UK) 14

TECHNICAL DATA

Item number 10029377, 10029378
Power supply 220-240 V ~ 50-60 Hz
Power consumption 400 W

SAFETY INSTRUCTIONS

• Always check that the power supply corresponds to the voltage on the rating plate.
• Always unplug from mains supply when not in use. Do not abuse or damage the power cord. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Do not immerse appliance in water or supply cord in water. Do not use with wet hands or use in damp situations.
• Do not use outdoors. Do not use directly below a socket outlet. This appliance is not intended to be operated by means of an external timer or separate remote-control system. This appliance is designed exclusively for private, domestic use and is not suitable for commercial or industrial use. Do not use this appliance for anything other than its intended use. Only use the appliance on a stable, level, heat-resistant surface.

CAUTION

Risk of injury! Avoid contact with all moving parts. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

• Always inspect your appliance before use. Check parts are correctly attached. Do not use this appliance if it has been damaged, dropped, left outdoors or dropped in water. Return it to an authorised service dealer for examination and repair.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

BEFORE FIRST USE

• Carefully wipe the exterior of the appliance to remove any dust that may have accumulated. Dry with a dry towel. Do not use harsh abrasive cleaners.
• Remove any label or stickers. Wash the accessories in warm soapy water, dry with a dry towel. Do not immerse the supply cord or motor part of this appliance in water or any other liquids.

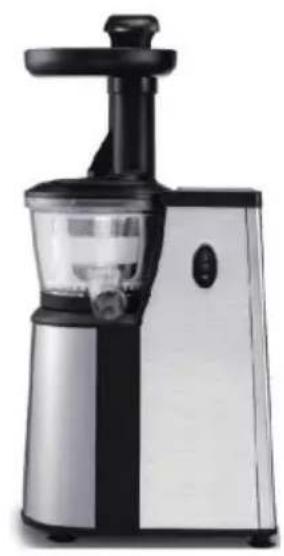

DEVICE OVERVIEW

1 Feed hopper
2 Feeding screw
3 Filter
4 Filter holder with cleaning brush
5 Cup
6 Pulp outlet
7 Juice outlet

COMMISSIONING AND OPERATION

1. Place the beaker (5) on the base of the unit and ensure that it locks into place and cannot be moved.
2. Insert the filter holder (4) into the tumbler.
3. Insert the filter (3) into the filter holder.
4. Insert the feed screw (2) into the filter.
5. Place the feed funnel (1) on the container and turn it until it clicks into place.
6. Place the juice container under the juice outlet. Place the pulp container under the pulp outlet.
7. Slide the slider into the feed chute.

Important: If the cup and accessories have not been assembled correctly, the juicer will not start for safety reasons. In this case, press the "R" button lightly to stop the juicer. Do not press the button too hard to avoid damaging the motor. Do not let the juicer idle, but start it only when you put fruits and vegetables in it.

How to operate the juicer

• The juicer is suitable for celery, spinach, carrots, apples, bananas, tomatoes, cucumber, pears and all fruits and vegetables that do not contain starch. Sugar cane is not suitable for this device.
• Clean fruits and vegetables carefully before juicing. If you are juicing fruits with hard stones or seeds, loosen the pulp from the stone or core beforehand. Remove the hard, inedible peel from melon, pineapple or mango before juicing the fruit. The same applies to the peel of citrus fruits.
• Cut the fruit small enough to fit into the feed chute.
• Make sure the safety clips on the feed chute are engaged.
• Switch on the juicer.
• Use the pusher to push the pieces of fruit and vegetables into the feed chute. Do not push the pieces down too quickly or they will not be juiced properly.

Caution: Do not put your fingers or any other object than the pusher into the feed chute.

• The fruit juice flows directly into the fruit container, while the pulp is collected in the pulp container.
• When you are done, turn the unit off and unplug it from the power outlet.

Now you can take the unit apart. If the cup is stuck and will not release from the base, press the „R“ (Reverse) button for 3-5 seconds. Rotate the cup and then pull it upward.

Disassemble the juicer

1. Remove the pusher
2. Remove the feed hopper
3. Remove the auger
4. Remove the filter and the filter holder
5. Remove the cup

Tips and hints for juicing

• To get the most juice out of fruits and vegetables, cut them into small pieces. Do not put ice or frozen fruit into the juicer.
• If pieces get stuck in the feed chute, use the pusher. Gradually add the pieces to the feed chute. Do not push them in too quickly.
• When juicing leafy greens or wheatgrass, mix them with fruits or hard vegetables for best results. Juice nuts only with other foods, such as soaked soybeans or liquids.
• Use only fresh and ripe fruits and vegetables for juicing. Fresh and ripe ingredients are more flavorful and contain more juice than unripe ones. If possible, consume the juice immediately after juicing, as it contains the most vitamins and minerals at this time.

CLEANING AND CARE

• When not in use or before cleaning, always disconnect the appliance from the mains supply.
• Wash removable parts in warm, soapy water then rinse and dry all parts. Regularly clean the outside of the appliance with a soft damp cloth and dry with a dry towel. To prevent damage to the appliance do not use harsh solvents, alkaline cleaning agents, abrasive cleansers or scouring agents of any kind when cleaning. Do not immerse the motor unit or supply cord in water.
• Always check that the appliance is in good working order and that all removable parts are secure. Check the power supply cord and plug regularly for cuts or damage.
• When not in use store your appliance and all its accessories and instruction manual in a safe and dry place.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

Estimado cliente:

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

Cher client,

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

Gentile clientele,

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germania.

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

KLARSTEIN
