USER MANUAL Maxify GX5040 CANON

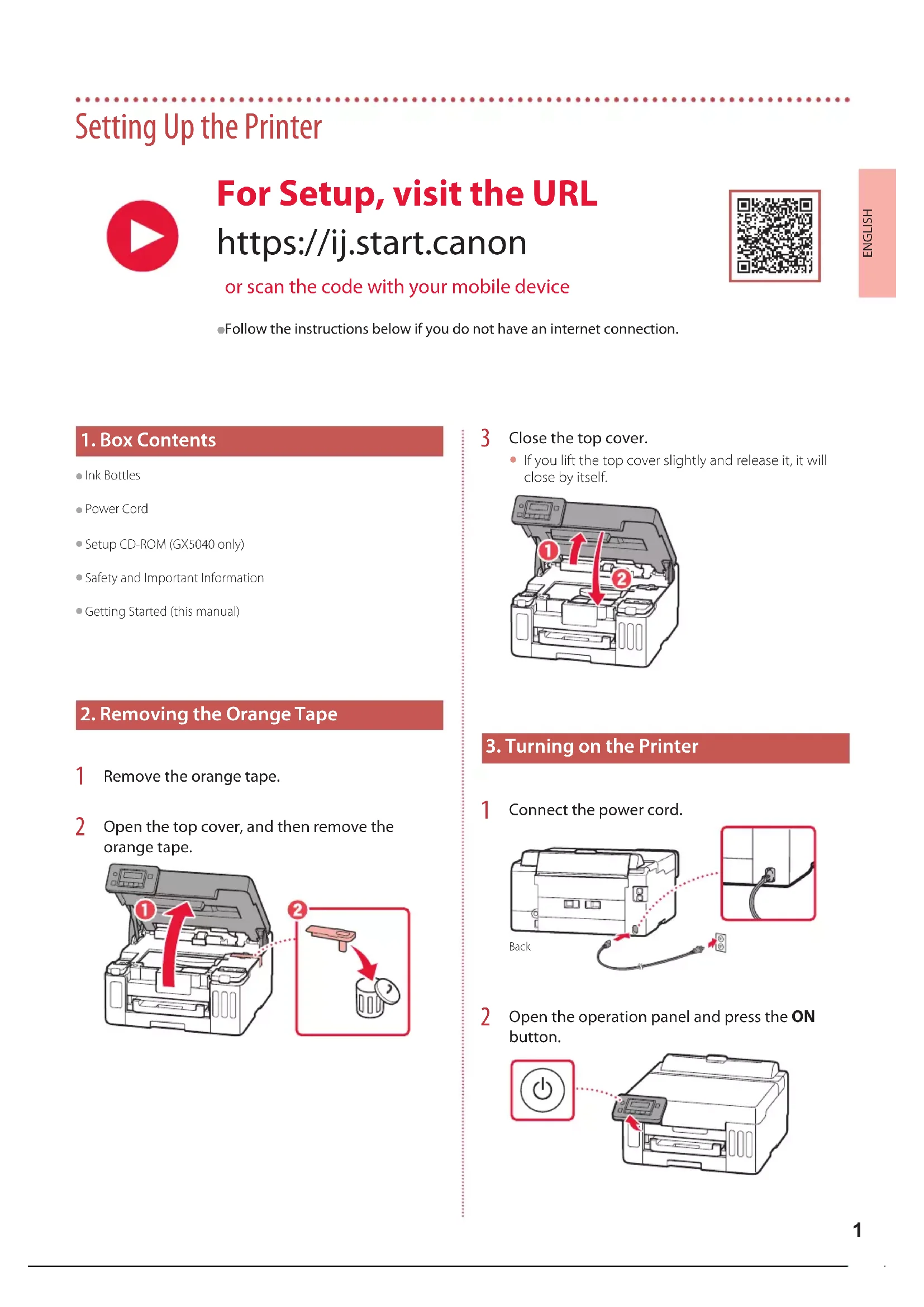

Ink Bottles Power Cord Setup CD-ROM (GX5040 only) Safety and Important Information Getting Started (this manual)

2. Removing the Orange Tape

Remove the orange tape.

Open the top cover, and then remove the orange tape.

Close the top cover.

If you lift the top cover slightly and release it, it will close by itself.

3. Turning on the Printer

Connect the power cord. Back

Open the operation panel and press the ON button. For Setup, visit the URL https://ij.start.canon or scan the code with your mobile device

Follow the instructions below if you do not have an internet connection.2 Setting Up the Printer

When the following screen appears, use the [ and ] buttons to select a language, and then press the OK button. Important If an error appears on the screen, see "If an error message (support code) appears on the screen" on page 5 and follow the instructions.

Use the [, ], and OK buttons to set the date and time.

Important This product requires careful handling of ink. Ink may splatter when the ink tanks are lled with ink. If ink gets on your clothes or belongings, it may not come o.

Open the ink tank cover and tank cap on the left of the printer.

Hold the ink bottle upright and gently twist the bottle cap to remove. Check!

Align the nozzle of the ink bottle with the inlet.3 ENGLISH

Slowly stand the ink bottle upside down and push down to pour the ink.

If the ink does not pour, gently remove the ink bottle and try again.

Gently remove the ink bottle from the inlet.

Be careful not to spill the ink.

Replace the tank cap securely.

Close the ink tank cover securely.

Repeat steps 2 through 8 to pour all ink into the corresponding ink tanks on the right. Check! C M Y

Close the top cover.

If you lift the top cover slightly and release it, it will close by itself.4 Setting Up the Printer

Use the [ and ] buttons to select Yes, and then press the OK button.

Remove the cassette from the printer.

Slide the right paper guide to the right edge. Align the front paper guide with the Letter or A4 mark.

Place the paper against the front paper guide, and align the right paper guide to the width of the paper.

Pull out the paper output tray.5 ENGLISH

Follow the on-screen instructions, and then press the OK button.

The alignment process prints out one double sided sheet. Wait without touching the paper until the screen in step 8 appears.

Follow the on-screen instructions, and then press the OK button. Proceed to the next page.Check the support code, and then follow the instructions if the displayed code is written below.

Protective material remaining. "2. Removing the Orange Tape" on page 1For all other cases, refer to the Online Manual. If an error message (support code) appears on the screen Support code6-a

Setting Up the Printer Computer SmartphoneComputer and smartphone Connecting to a Computer If you are using multiple computers, perform these steps on each computer. Access the Canon website from your computer. Select Set Up. Enter your printer's model name and click Go. What device are you connecting? 6-a. Connecting to a Computer Using the Setup CD-ROM )GX5040 only( Double click EasySetup.exe in the CD-ROM, and then continue from step 3. If you do not have an internet connection, open the win folder in the CD-ROM and double click SETUP.exe. This will install the printer driver. Click Start, and then select Connecting to a Computer/Smartphone. The following steps are for Windows users. Click Download. Run the downloaded file. Follow the on-screen instructions. This may take some time. To connect to a smartphone as well, see "6-b. Connecting to a Smartphone" on page 7.6-b

Install the "Canon PRINT Inkjet/SELPHY" app on your smartphone.

Search for "Canon PRINT" in App Store, or Google Play. Access the Canon website to download the app.

Open the installed app, and follow the on-screen instructions in the app to add your printer. Once you have added your printer, you can print from your smartphone. To print photos, see "Loading Paper" on page 8. Connecting to a Smartphone If you are using multiple smartphones, perform these steps on each smartphone. 6-b. Connecting to a Smartphone8

Open the rear tray cover and extend the paper support.

Slide the right-hand side paper guide to the far right.

Load several sheets of paper with the print side facing up and slide the side paper guide against the edge of the paper stack. Transporting Your Printer When relocating the printer, check the following. Refer to the Online Manual for details.Check that the position of the ink valve lever is closed.Pack the printer in a plastic bag in case ink leaks. Pack the printer in a sturdy box so that it is placed with its bottom facing down, using sucient protective material to ensure safe transport. Do not tilt the printer. Ink may leak. Please handle with care and ensure the box remains at and NOT turned upside down or on its side, as the printer may be damaged and ink in the printer may leak. When a shipping agent is handling transport of the printer, have its box marked "THIS SIDE UP" to keep the printer with its bottom facing down. Mark also with "FRAGILE" or "HANDLE WITH CARE". Loading Paper1 ESPAÑOL Instalación de la impresora

(support code) Support code4

support) " 5 " (code

Windows is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.

App Store is a trademark of Apple Inc., registered in the U.S. and other countries.

Google Play is a registered trademark of Google LLC.
