USER MANUAL Green Keeper 7056815 Batavia

Teal BATDAI electric shaver with circular blade and black handle, displayed against white background (no text or symbols on device)

7056815

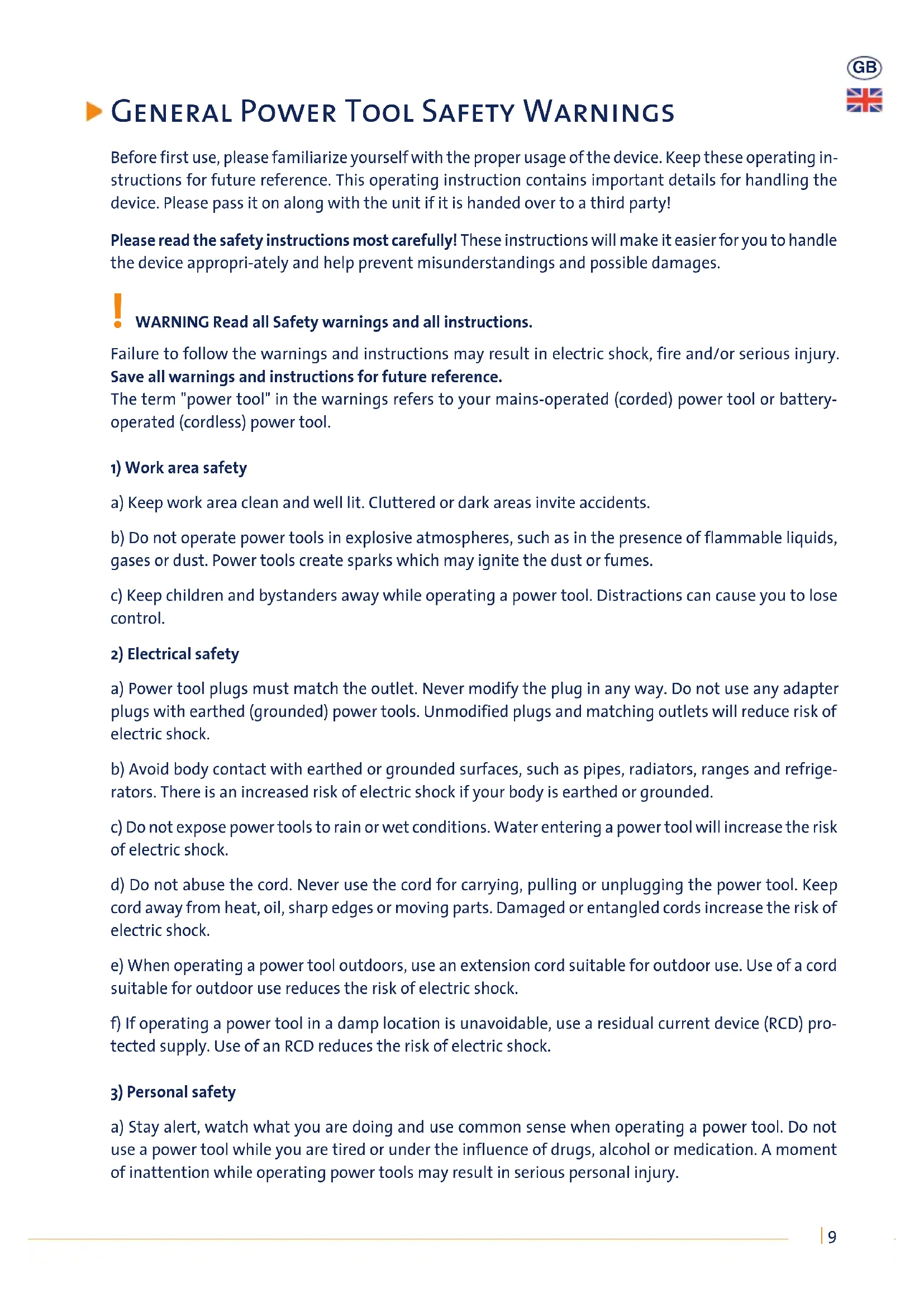

General Power Tool Safety Warnings 9 |
Special safety instructions 11
Before first Use 12
Swtich arrangement 12
Horizontal Trimming 12
Vertical Trimming 12
Trimming extra long growth 12
Technical Data | Disposal 13
EC-Declaration of conformity 24

nederlands

Before first use, please familiarize yourself with the proper usage of the device. Keep these operating instructions for future reference. This operating instruction contains important details for handling the device. Please pass it on along with the unit if it is handed over to a third party!

Please read the safety instructions most carefully! These instructions will make it easier for you to handle the device appropriately and help prevent misunderstandings and possible damages.

! WARNING Read all Safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Hedge trimmer safety warnings:

• Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
• Carry the hedge trimmer by the handle with the cutter blade stopped. When transporting or storing the hedge trimmer always fit the cutting device cover. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.
• Keep cable away from cutting area. During operation the cable may be hidden in shrubs and can be accidentally cut by the blade.

SPECIAL SAFETY INSTRUCTIONS

1. Keep hands and feet from the rotating blades ferm.
2. Turn the unit off and unplug the power cord when you stop work or carry the device to another work area.
3. The user is responsible for the safety and harm to other persons or their property.
4. Work with the device is not at eye level.
5. Use a safe ladder or scaffold, if you need to work above head height.
6. Make sure that it can freewheel when you start the knife. Keep the cutting head when you start never in the hedge.

Warning – To reduce the risk of injury, user must read instruction manual.

Keep bystanders away.

Keep hands and feet away from the cutting blades.

Do not use in the rain or in wet conditions.

Wear eye protection.

Switch off! Remove plug from Power Pack before adjusting, cleaning or if cable is damaged.

INSTALLATION AND USING

BEFORE FIRST USE

Remove all parts from the packaging. Keep packaging material out of reach of children. There is risk of suffocation!

SWTICH ARRANGEMENT

Your Green Keeper will operate when the main switch (14) and the front switch (12) located on the front handle are depressed, To operate the main switch.

HORIZONTAL TRIMMING (TOP OF HEDGES)

Move the Green Keeper in a sweeping pendulum motion from side to side (See fig. 1). The flat underside of the Green Keeper provides a natural guide, so the most inexperienced gardener can achieve great results.

Tip: The Green Keeper has been designed to cut growth of up to 1 year in age, 10mm in diameter. Use on heavier material may result in damage to the machine.

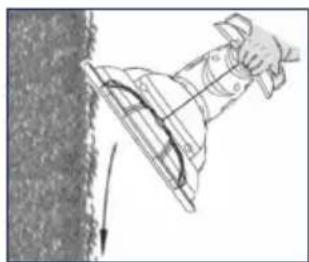

VERTICAL TRIMMING (SIDE OF HEDGE)

Move the Green Keeper in a vertical sweeping action, ensuring the flat underside of the machine is level with the surface of the hedge (see fig. 2).

Tip: For a tighter professional finish, bury the head of the machine into the hedge, to the desired depth, working the machine upwards. See fig.3 (below). To trim long stalks growing parallel with the surface of the hedge. move the head down in the opposite direction to growth (fig.4).

Please note: The capture rate of material is reduced using the able of cut.

TRIMMING EXTRA LONG GROWTH

The Green Keeper has been designed to trim hedge of 150 mm or less. However it will trim exceptionally long growth but this operation will inevitably result in a lower rate of capture (on vertical cuts only), due to the sheer dynamics and volume of material to be managed.

To trim exceptionally long growth (within the recommended cutting diameters) we advise the following techniques: trim the growth in several stages (see fig.5 below) layering down until you arrive at the desired level.

fig. 1

Technical line drawing of a conical mechanical component (no text or symbols)

Technical line drawing of a mechanical component with flanged ends and mounting holes (no text or symbols)

Hand holding a tool near a textured surface with an arrow indicating direction (no text or symbols)

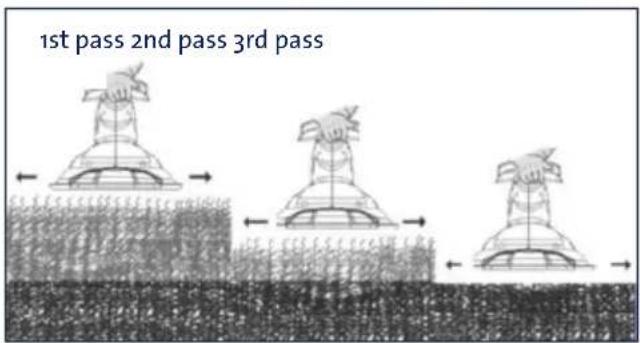

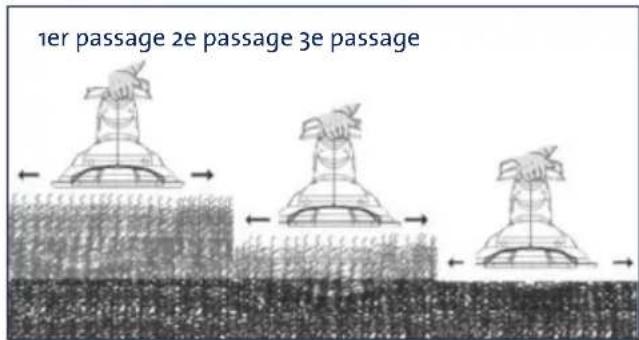

1st pass 2nd pass 3rd pass

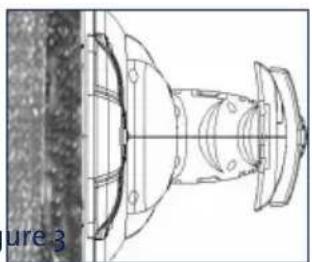

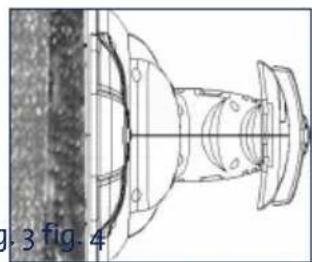

In some circumstances you may wish to adopt a vertical technique (see fig.3 below) bringing the Green Keeper down onto the growth in a vertical action.

Tip: We strongly recommend regular use of the Green Keeper, which will produce exceptional performance, speed of operation and ensure professional results.

fig. 5

TECHNICAL DATA

Model no.	7056815
Rated voltage	230~240Vac 50~60Hz
Ratted power(Watts)	300W
No Load speed (/min)	3400/min
Sound pressure level	L	pA = 82.3 dB(A)
Sound power level	L	WA=85.6 dB(A)
Vibration a		h =1537m/s ^2
Uncertainty		K=1.5

Complies with European and British safety and EMC regulations.

DISPOSAL

Dear Customer, please help avoid waste materials.

Waste electrical products should not be disposed of with household waste.

Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

NOTES

ALGEMENE VEILIGHEIDSVOORSCHRIFTEN VOOR ELEKTRISCH GEREEDSCHAP

Technical line drawing of a conical mechanical component with flanged ends and internal channels (no text or symbols)

figure 3

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a hand holding a tool near a surface, with an arrow indicating direction (no text or symbols)

EC-DECLARATION OF CONFORMITY GB

We, the Batavia GmbH, Blankenstein 230-1b, NL-7943PG Meppel, declare by our own responsibility that the product Green Keeper, Item-No 7056815 is according to the basic requirements, which are defined in the European Directives 2004/108/EC (EMC), 2006/42/EC (Machinery), 2006/95/EC (LVD), 2000/14/EC appendix 5 (EC Directive of noise emission) and their amendments. For the evaluation of conformity, the following harmonized standards were consulted: EN 60745-1:2009 EN ISO 12100-2/A1:2009 EN 62233:2008 EN 55014-1:2006 EN 55014-2/A1:2001 EN 61000-3-2:2006 EN 61000-3-3/A2:2005.

Meppel, 13th of March 2010

(Meino Seinen, QA)

(Meino Seinen, QA Representative)
