Features	Details
Output Voltage	24V / 12V
Load Capacity	200 mA
Charger Type	Battery charger
Usage	Compatible with 12V and 24V batteries, ideal for home and professional applications.
Maintenance	Regularly check the condition of cables and connectors. Clean contacts if necessary.
Safety	Use only in a dry environment. Do not expose to moisture or extreme temperatures.
General Information	Make sure to check compatibility with your batteries before purchase.

Frequently Asked Questions - GDB 24V12V200 Güde

How do I connect the Güde GDB 24V12V200 charger to a battery?

To connect the charger, start by attaching the red cable to the positive (+) terminal of the battery and the black cable to the negative (-) terminal. Make sure the charger is unplugged before making these connections.

What is the output voltage of the Güde GDB 24V12V200 charger?

The Güde GDB 24V12V200 offers an output voltage of 12V and 24V, depending on the setting selected on the charger.

What should I do if the charger does not turn on?

First, check that the charger is properly plugged into a working electrical outlet. If the charger still does not turn on, try inspecting the power cable for any damage.

How do I know if my battery is fully charged?

The Güde GDB 24V12V200 charger is equipped with an indicator light. When the battery is fully charged, the indicator turns green. If the indicator remains red, it means the battery is still charging.

Can I use this charger for all battery brands?

The Güde GDB 24V12V200 is designed to charge 12V and 24V lead-acid and AGM batteries. Please consult your battery manual to ensure compatibility.

How long does it take to charge a battery with the Güde GDB 24V12V200?

Charging time depends on the battery capacity and its discharge state. Generally, it can take a few hours to overnight to fully charge a battery.

What should I do if my battery is not charging?

If your battery is not charging, first check the connections and ensure they are secure. If the battery is deeply discharged or damaged, it may need to be replaced.

Is the charger equipped with overload protection?

Yes, the Güde GDB 24V12V200 is equipped with multiple protections, including overload and short-circuit protection, to ensure safe operation.

Can I leave the charger connected to the battery once it is charged?

It is recommended to unplug the charger once the battery is fully charged to avoid any risk of overcharging, even though the charger is designed to be safe.

USER MANUAL GDB 24V12V200 Güde

Translation of the original instructions Battery Charger

ENGLISH Please read the instructions carefully before starting the machine.

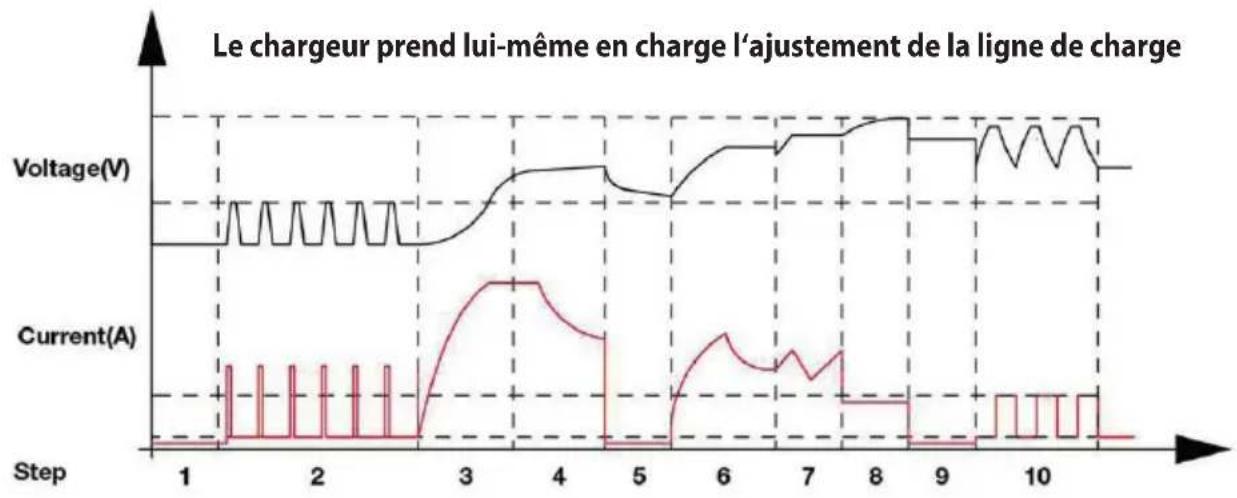

STEP 1

ANALYSING 1

Checks if battery has connected with the charger

STEP 2 DESULPHATION Pulsing charging to remove sulfate
STEP4 CONTROLLED CURRENT CHARGE Adjusts the charging current intelligently

STEP 3

SOFT START

Charges with gradually increasing charging current

STEP 5 ANALYSING 2 Tests if the battery can absorb charge
STEP 9 ANALYZING 3 Tests if the battery can hold charge

STEP 6 CONSTANT OUTPUT CHARGE		Charges with constant voltage and compensates fake full charge caused by high current charging
STEP 7 RECOVER CYCLE CHARGE		Absorbs merge charge and compensates side effect of recuces charging current
STEP 8	ABSORBTION	Charges with constant trickle current for maximum battery voltag

STEP 10 MAINTENANCE

Continuously monitors the battery, and charges with trickle current once the voltage is lower than threshold

ERROR CODES

E01 + ERROR LED LIT reverse connection + -
E02 + ERROR LED LIT temperature in charger is too high
E03 + ERROR LED LIT the battery cannot store electric charge / dead battery
E04 + ERROR LED LIT	no battery connected / battery voltage is lower than 1 volt / dead voltage
REPAIR ON DISPLAY + REPAIR LED FLASHING	charger automatically enters repairing mode
REPAIR ON DISPLAY + REPAIR LED SOLID LIT	manually choose repairing mode

Technical Data

BATTERY CHARGER	GDB 24V/12V-200	GDB 24V/12V-250
Art. No	85128 85129
Mains voltage / Frequency 230 V / 50 Hz 230 V / 50 Hz
Rated input 5000 W 6000 W
Output voltage 24 V / 12 V	—	24 V / 12 V—
Weight	16,5 kg 19 kg
Safety class I
Rated capacity 20 - 450 Ah	(12 - 24 V)	20 - 550 Ah (12 - 24 V)
Charging rms current	max. 40 A (12 - 24 V)	max. 50 A (12 - 24 V)
Start-up help	200 A (12 - 24 V)	250 A (12 - 24 V)

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

In case of any doubts about connection and operation refer please to our customer center

SafetyWarnings

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

The product is designed for use by persons aged 16 or older.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Children are not allowed to carry

out cleaning or user maintenance unless under supervision. To avoid danger, a damaged mains supply pipe must be replaced by the manufacturer.

WARNING! Electric shock! There is a risk of injury caused by electric shock!

Never operate the apparatus if a cable, the mains cord or plug are damaged. Damaged mains cords pose a hazard of electrocution.

Risk of fire! Risk of explosion!

A highly-explosive oxyhydrogen mixture occurs when batteries are charged.

• Fire, sparks, naked flames and smoking are forbidden.
• Provide adequate ventilation.
• Do not use the device in rooms in which easily flammable material or gases may be present.

Never use the charger in moist or wet conditions. Suitable for indoor areas only.

Make sure the cooling function is not limited by covering the cooling slots. Do not operate the appliance near heat sources or on a flammable surface.

Only connect or disconnect the battery connection cable if the charger is not connected to the mains.

Also pay attention to the instructions and information provided by the battery and vehicle manufacturer.

Ensure that the vehicle is switched off if the battery is mounted fixed in the vehicle! Switch off the ignition. Park the vehicle and secure it.

1. First connect the red battery clip to the positive terminal of the battery.
2. Then connect the black battery clip with the negative terminal of the battery (Mounted in the chassis, away from the battery and fuel line).
3. Plug the charger into a mains socket.
4. After charging: Disconnect the charger from the mains socket.
5. First remove the black clip from the chassis and then the red clip from the battery.

This sequence must be followed!

Danger of short circuit! Make sure that the two clips of the pole connecting cables do not touch or are connected by a conductive object, such as a tool.

Handle the terminal connecting cable (一^ and ^ + ^ ) only by the insulated sections!

Never hold both clips at the same time when the device is running.

Specified Conditions of Use

The battery charger is only to be used for charging and starting of vehicles taking all technical data into consideration.

Types of batteries:

• Lead acid batteries (liquid electrolyte) (PB)
• Gel battery (GEL)
• Absorbent glass mat battery (AGM)
• Wet-cell batteries (WET)
• Maintenance-free lead acid batteries (MF)

WARNING

It is not suitable for charging Li-ion, NiCad or NiMH batteries and other non-rechargeable batteries, for example.

Please note that our equipment has not been designed for commercial, craft or industrial use. If the equipment is used in commercial, craft or industrial operation or for similar activities, we cannot assume any liability.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Residual Risk

Even when the device is used properly and all safety regulations are complied with, there still may be some residual risks.

WARNING!

Wear eye protective goggles! Wear gloves! Keep childrenaway from acids and filled batteries.

Corrosion Hazard!

Battery acid is highly caustic.

First Aid

Rinse out any acid splashed into the eyes immediately using clear water for several minutes. Consult a doctor immediately.

Neutralise acid splashes on skin or clothes immediately using acid neutraliser or soap suds and rinse with plenty of water.

If acid is consumed, consult a doctor immediately.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help, state the following pieces of information: 1. Accident site, 2.

Accident type, 3. Number of injured persons, 4. Injury type(s)

Mains Connection

Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA ).

Before putting into operation, a qualified electrician must check whether electric safety measures required are in place. Any national regulations in this regard must be complied with.

Electric connection to a socket.

It is necessary to make sure the connecting socket was not near water and humidity and the plug was protected against humidity.

Check the voltage. Technical data given on the type label must correspond with electric network voltage.

Only use splash proof extension cables approved for outdoor purposes.

Check the cable and/or socket for damages before the appliance putting into operation.

Never use the charger when the cable, plug or the machine is damaged by external influences. In case damage let repaired in authorized workshop

To avoid danger, a damaged mains supply pipe must be replaced by the manufacturer. Do not under any circumstances attempt any repair yourself.

Cable connections to be separated by pulling the plug only. Pulling the cable could damage both the cable and plug. As a result, electric safety would no longer be guaranteed.

Over-temperature protection

The power will automatically be reduced should the apparatus heat up too much during charging. This will protect the apparatus.

Symbols

WARNING/CAUTION!

Warning against dangerous voltage

Read the operating instructions to reduce the risk of injury.

Unplug the machine before any work on it.

Charger to be used in closed spaces only.

~ AC Current

Plus - positive terminal

Minus - negative terminal

Direct Current

CE marking

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

Maintenance

Unplug the machine before any work on it.

The connection clamps, clips and the upper surface of the battery must be kept clean; if necessary clean the battery clips with a wire brush.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff.

Use only original accessories and original spare parts. Before using the appliance, perform a visual inspection at all times to make sure the power cord and the plug, in particular, are not damaged on the charger.

Clean only with dry cloth. Certain cleaning agents and solvents are harmful to plastics and other insulated parts. Keep the apparatus handle clean, dry and free of oil or grease.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If necessary, a list of spare parts can be found at www.guide.com.

Disposal

Do not dispose of electric tools together with household waste material.

Pursuant to European Directive 2002 / 96 / EC on Electrical and Electronic waste and to national legislation, electrical and electronic waste must be collected separately and delivered to a recycling facility for environmentally responsible disposal.

Check with your local authority or retailer for recycling advice and collection point.

Battery disposal

Pursuant to the Battery Ordinance you, as the end user, will be obligated to return all used batteries/ rechargeable batteries.

Flat batteries must not be disposed of with household waste. Care for the environment and take them to the collection points provided in accordance with national or local regulations. Please contact your local authority or your dealer for how to dispose of batteries properly.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Important information for the customer

Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guide.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label.

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

Protection anti-surchauffe

WAARSCHUWING/OPGELET!

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.

Notified Body Name: No: Adress:

Type Ex.Cert.-No.:

□97/68/EC_&2016/1628/EU

Emission No.:

2000/14/EC_2005/88/EC
