USER MANUAL MWOTR24100SS BEKO

MWOTR24100SS TINSEB---MRR0 Over The Range Microwave Oven User ManualPLEASE READ THIS MANUAL FIRST! Dear Customer, Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual. Remember that this user manual is also applicable for several other models. Differences between the models are explicitly described in the manual.

• Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is im- portant not to defeat or tamper with the safety interlocks.

• Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

• Do not operate the microwave oven if it is dam- aged. It is particularly important that the micro- wave oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.

• The microwave oven should not be adjusted or repaired by anyone except properly qualied ser- vice personnel. WARNINGWARNING This equipment generates and uses ISM frequen- cy energy and if not installed and used properly, that is in strict accordance with the manufacturer’s instructions, may cause interference to radio and television reception. It has been type-tested and found to comply with limits for an ISM Equipment pursuant to part 18 of FCC Rules, which are designed to provide reason- able protection against such interference in a resi- dential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is en- couraged to try to correct the interference by one or more of the following:

• Reorient the receiving antenna of radio or televi- sion.

• Relocate the Microwave oven with respect to the receiver.

• Move the microwave oven away from the receiv- er.

• Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits. THE MANUFACTURER is not responsible for any radio or TV interference caused by UNAUTHOR- IZED MODIFICATION to this microwave oven. It is the responsibility of the user to correct such inter- ference. 2 / 90 EN Over The Range Microwave Oven / User ManualCONTENTS

ABOUT UNPACKING AND EXAMINING

9 AUTO-TOUCH GUIDE ..........................................23 3 / 90 ENOver The Range Microwave Oven / User ManualIMPORTANT REGULATORY INFORMATION WARNINGWARNING Any changes or modications to the appliance not expressly approved by the party responsible for compli-ance could void the user’s authority to operate the appliance.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.

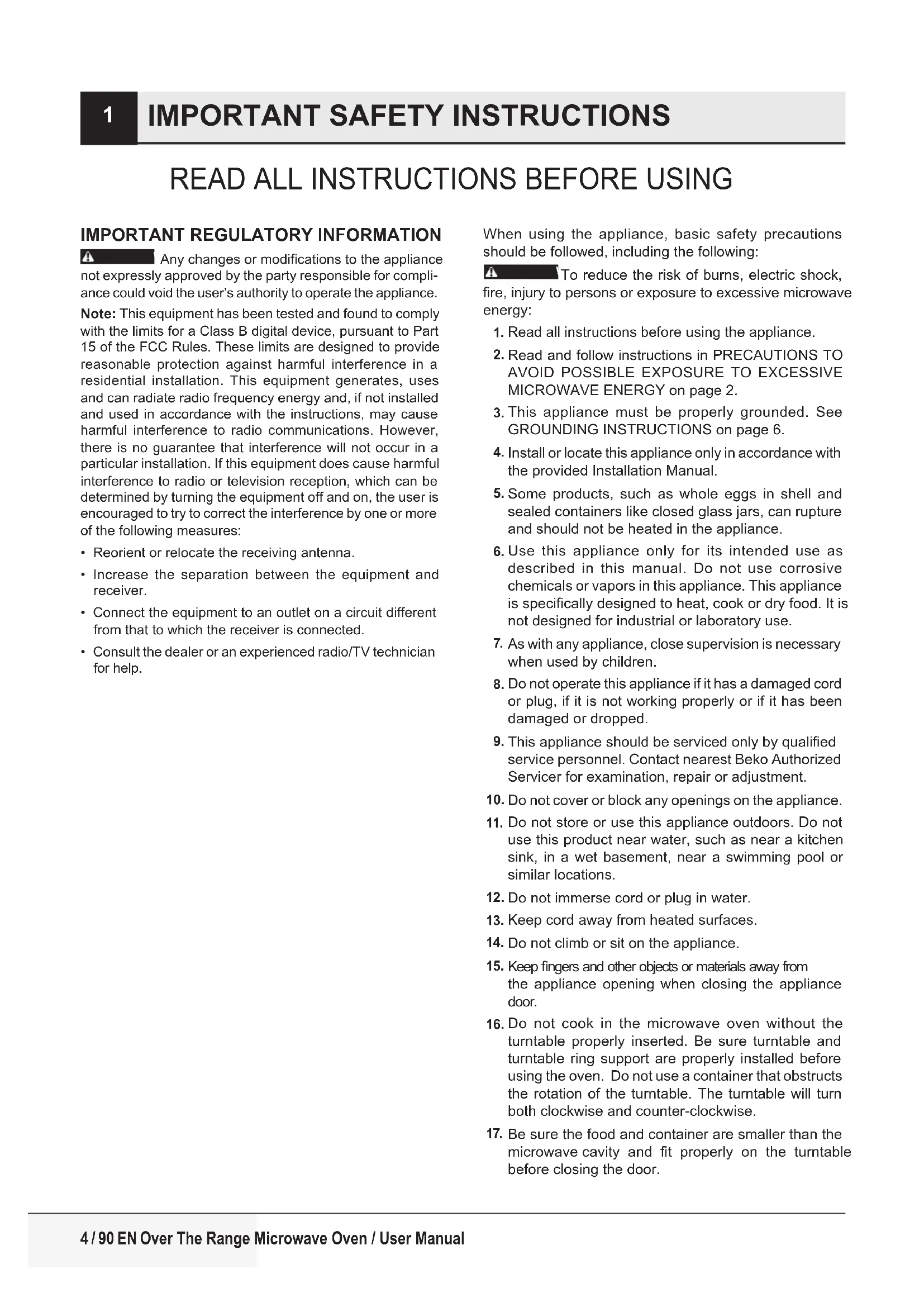

READ ALL INSTRUCTIONS BEFORE USING

When using the appliance, basic safety precautions should be followed, including the following: WARNINGWARNING To reduce the risk of burns, electric shock, re, injury to persons or exposure to excessive microwave energy:

Read all instructions before using the appliance.

Read and follow instructions in PRECAUTIONS TO

This appliance must be properly grounded. See GROUNDING INSTRUCTIONS on page 6.

Install or locate this appliance only in accordance with the provided Installation Manual.

Some products, such as whole eggs in shell and sealed containers like closed glass jars, can rupture and should not be heated in the appliance.

Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This appliance is specically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.

As with any appliance, close supervision is necessary when used by children.

Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped.

This appliance should be serviced only by qualied service personnel. Contact nearest Beko Authorized Servicer for examination, repair or adjustment.

Do not cover or block any openings on the appliance.

Do not store or use this appliance outdoors. Do not use this product near water, such as near a kitchen sink, in a wet basement, near a swimming pool or similar locations.

Do not immerse cord or plug in water.

Keep cord away from heated surfaces.

Do not climb or sit on the appliance.

Keep ngers and other objects or materials away from the appliance opening when closing the appliance door.

Do not cook in the microwave oven without the turntable properly inserted. Be sure turntable and turntable ring support are properly installed before using the oven. Do not use a container that obstructs the rotation of the turntable. The turntable will turn both clockwise and counter-clockwise.

Be sure the food and container are smaller than the microwave cavity and t properly on the turntable before closing the door.

4 / 90 EN Over The Range Microwave Oven / User Manual18. When cleaning appliance sealing surfaces that come together on closing the door, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth. Never use metal scouring pads to clean the Microwave Oven as pieces may break off of pad and cause electric shock if they come in contact with electrical parts. See CLEANING AND CARE on page 20.

To reduce the risk of re in the appliance cavity:

Do not overcook food. Carefully attend appliance when paper, plastic or other combustible materials are placed inside the appliance to facilitate cooking.

Remove wire twist-ties from paper or plastic bags before placing bag in appliance.

If materials inside the appliance ignite, keep appliance door closed, turn off appliance and shut off power at the fuse or circuit breaker panel.

Do not use the appliance for storage purposes. Do not leave paper products, cooking utensils or food in the appliance when not in use.

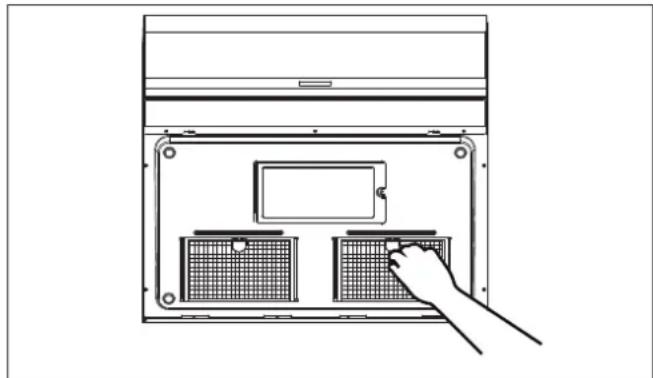

Clean ventilating hoods frequently. Grease should not be allowed to accumulate on hood or lter.

Never operate the fan or oven without the lters in place.

When ambéing foods under the hood, turn on the fan.

Never leave surface units unattended, especially if cooking with high heat, as smoke and spillovers from grease may ignite and spread if using the microwave vent fan.

In the event of a grease re on the surface units below the microwave oven, smother a aming pan by covering the pan completely with a lid, a cookie sheet or a at tray.

Use care when cleaning the vent-hood filter. Corrosive cleaning agents, such as lye-based oven cleaners, may damage the lter.

Liquids, such as water, coffee or tea, are able to be overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the appliance is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. WARNING To reduce the risk of injury to persons:

Do not overheat the liquid.

Stir the liquid both before and halfway through heating it.

Do not use straight-sided containers with narrow necks. Use wide-mouthed containers.

After heating, allow the container to stand in the appliance at least for 20 seconds before removing the container.

Use extreme care when inserting a spoon or other utensil into the container.

Do not heat oil or fat for deep-frying. It is difcult to control the temperature of oil in microwave oven.

SAVE THESE INSTRUCTIONS

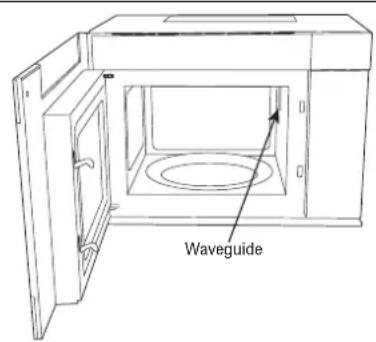

1. Remove all packing materials from inside the micro-

wave oven. DO NOT REMOVE THE WAVEGUIDE COVER, which is located on the side of the oven cavity inside of the microwave oven. Waveguide

2. Check that there are Installation Instructions, Wall

Template, Top Cabinet Template, Mounting Plate, Installation Hardware Accessories, Charcoal Filter, Grease Filters and Exhaust Damper Assembly. Read enclosures and save the Installation Instructions.

3. Remove the feature sticker, if there is one. Check

the oven for any damage, such as misaligned or bent oven door, damaged oven seals and sealing surfaces, broken or loose door and dents inside the cavity or on the front side of the oven. If there is any damage, do not operate the microwave oven and contact your dealer or a Beko AUTHORIZED SERVICER.

RADIO OR TV INTERFERENCE

Should there be any interference caused by the microwave oven to your radio or TV, check that the microwave oven is on a different electrical circuit, relocate the radio or TV as far away from the microwave oven as feasible or check position and signal of receiving antenna. GROUNDING INSTRUCTIONS This appliance must be grounded. The microwave oven is equipped with a cord having a grounding wire with a grounding plug. The electrical requirements are a 120 volt 60 Hz, AC only, 20 amp. It must be plugged into a wall receptacle that is properly installed and grounded in accordance with the National Electrical Code and local codes and ordinances. In the event of an electrical short circuit, grounding reduces risk of electric shock by pro- viding an escape wire for the electric current. Improper use of the grounding plug can result in a risk of electric shock. DO NOT USE AN EXTENSION CORD. If the power supply cord is too short, have a qualied electrician or serviceperson install an outlet near the appliance. If you have any questions about the grounding or electrical instructions, consult a qualied electrician or serviceperson.

ABOUT YOUR MICROWAVE OVEN

ALWAYS have food in the microwave oven when it is on to absorb the microwave energy. The vent under the microwave oven must not be blocked. During microwave cooking, steam may come from the left side lower vent (when facing the product). When using the microwave oven at power levels below 100%, you may hear the magnetron cycling on and off. It is normal for the exterior of the microwave oven to be warm to the touch when cooking or reheating. Condensation is a normal part of microwave cooking and the amount being vented is directly related to the moisture content of the food and room humidity. A cooler room will produce more condensation. Check the vented area after each use of the microwave oven and wipe it down if needed. The microwave oven is for food preparation only. Do not use it to dry clothes or newspapers. When using recipes or package directions, check food a minute or two before the minimum time and add time accordingly. When opening or closing the microwave oven quickly, food in the microwave oven may be spilled. To clean, see CLEANING AND CARE on page 20.

ABOUT MICROWAVE COOKING

• Arrange food carefully. Place thickest areas toward outside of dish.

• Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.

• While cooking, cover foods with paper towels, wax paper, microwave plastic wrap or a lid. Check recipes or cookbooks for other suggestions. Covers prevent spattering and help cook foods evenly. For information about microwave safe covering materials, see ABOUT UTENSILS AND COVERINGS on page 7.

• Stir foods from outside to center of dish once or twice during cooking, if possible.

• For speedy and even cooking, turn foods once during microwave cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.

• Rearrange foods such as meatballs halfway through cooking both from top to bottom and from right to left. Permanent and Correct Installation3-Prong plug3-Prong receptacleGrounded receptacle boxGrounding pin

6 / 90 EN Over The Range Microwave Oven / User Manual• Add standing time. Remove food from microwave oven and stir, if possible. Cover for standing time to allow the food to nish cooking without overcooking.

• Check for doneness. Look for signs indicating that cooking temperatures have been reached. Doneness signs include: - Food steams throughout, not just at edge. - Center bottom of dish is very hot to the touch. - Poultry thigh joints move easily. - Meat and poultry show no pinkness. - Fish is opaque and akes easily with a fork.

ABOUT UTENSILS AND COVERINGS

It is not necessary to buy all new cookware. Many pieces already in your kitchen can be used successfully in your new microwave oven. Make sure the utensil does not touch the interior walls during cooking. UTENSILS Use these utensils for safe microwave cooking and reheating:

• glass ceramic (Pyroceram

• heat-resistant glass (Pyrex

• microwave safe plastics

• microwave safe paper plates

• microwave safe pottery, stoneware and porcelain

• browning dish (Do not exceed recommended preheating time. Follow manufacturer’s directions.) Wood, straw and wicker utensils can be used with short cook times when reheating foods with little or no fat or sugar content.

• metal pans and bakeware

• dishes with metallic trim

• non-heat-resistant glass

• non-microwave safe plastics (margarine tubs)

• recycled paper products

• aluminum foil Should you wish to check if a dish is safe for microwave cooking, place the empty dish in the oven and microwave on HIGH for 30 seconds. A dish that becomes very hot is not safe for microwave cooking. COVERINGS The following coverings are ideal:

• Paper towels are good for covering foods for reheating and absorbing fat while cooking bacon.

• Wax paper can be used for cooking and reheating.

• Plastic wrap that is specially marked for microwave use can be used for cooking and reheating. DO NOT allow plastic wrap to touch food. Vent so steam can escape.

• Microwave safe lids are a good choice because heat is kept near the food to hasten cooking.

• Oven cooking bags are good for large meats or foods that need tenderizing. DO NOT use metal twist-ties. Vent so steam can escape. ACCESSORIES There are many microwave accessories available for purchase. Evaluate carefully before you purchase so they meet your needs. A microwave safe thermometer will assist you in determining correct doneness and assure you foods have been cooked to safe temperatures. Beko is not responsible for any damage to the microwave oven when accessories are used.

ABOUT CHILDREN AND THE MICROWAVE

Children under the age of 7 should use the microwave oven with a supervising person very near to them. Between the ages of 7 and 12, the supervising person should be in the same room. The child must be able to reach the microwave oven comfortably. Never allow anyone to lean or swing on microwave oven. Children should be taught all safety precautions:

• Remove coverings carefully.

• Pay special attention to packages that crisp food, as they may be extra hot. Do not assume a child can cook everything in the microwave oven just because they have mastered one skill. The Control Lock prevents unwanted oven operation, such as by small children. The microwave oven can be set so that the control panel is deactivated or locked. For instructions, see CONTROL LOCK on page 19.

7 / 90 ENOver The Range Microwave Oven / User ManualABOUT SAFETY Cook foods to temperatures recommended by the United States Department of Agriculture (USDA). 145˚F - Fish 160˚F - Pork, ground beef/veal/lamb, egg dishes 165˚F - Whole, pieces and ground turkey/chicken/ duck Leftover, ready-to-reheat refrigerated, deli and carry-out fresh food To test for doneness, insert a meat thermometer in a thick or dense area away from fat or bone. NEVER leave the thermometer in the food during cooking, unless it is approved for microwave use.

• ALWAYS use potholders to prevent burns when handling utensils in contact with hot food. Enough heat from the food can transfer through utensils to cause skin burns.

• Avoid steam burns by directing steam away from the face and hands. Slowly lift the farthest edge of a dish’s covering and carefully open popcorn and oven cooking bags away from the face.

• Stay near the microwave oven and check cooking progress frequently to avoid overcooking food.

• NEVER use the microwave oven for storing cookbooks or other items.

• Select, store and handle food carefully to preserve its high quality and minimize the spread of foodborne bacteria.

• Keep waveguide cover clean. Food residue can cause arcing and/or res. For more information on the waveguide cover, see CLEANING AND CARE on page 20.

• Use care when removing items from the oven so that utensils, clothes or accessories do not touch the safety door latches. ABOUT FOODS

Eggs, sausages, fruits & vegetables

• Puncture egg yolks before cooking to prevent bursting.

• Pierce skins of potatoes, apples, squash, hot dogs and sausages so steam escapes.

• Cook eggs in shells.

• Dry nuts or seeds in shells. Popcorn • Use specially bagged popcorn for the microwave.

• Listen while popping corn for the popping to slow to 1 or 2 seconds between pops or use special POPCORN pad.

• Pop popcorn in regular brown bags or glass bowls.

• Exceed maximum time on popcorn package. Baby food • Transfer baby food to small dish and heat carefully, stirring often. Check temperature before serving.

• Put nipples on bottles after heating and shake thoroughly. Test temperature on wrist before feeding.

• Heat disposable bottles.

• Heat bottles with nipples on.

• Heat baby food in original jars. General • Cut baked goods with lling after heating to release steam and avoid burns.

• Stir liquids briskly before and after heating to avoid eruption.

• Use deep bowl when cooking liquids or cereals to prevent boilovers.

• Be sure food and container are smaller than the microwave cavity and the turntable turns completely without obstruction from container.

• Heat or cook in closed glass jars or airtight containers.

• Use the microwave oven for canning, as harmful bacteria may not be destroyed.

• Dry wood, gourds, herbs or wet papers.

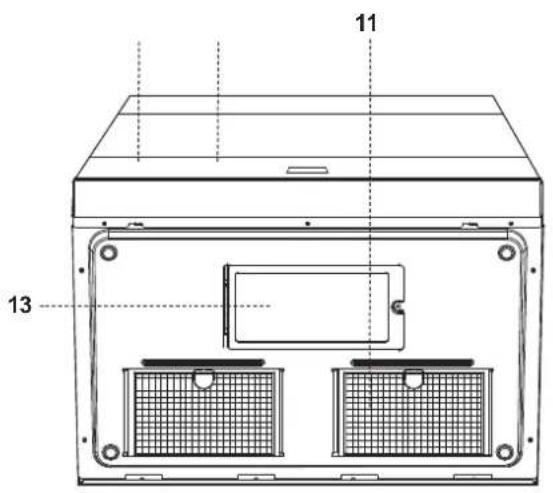

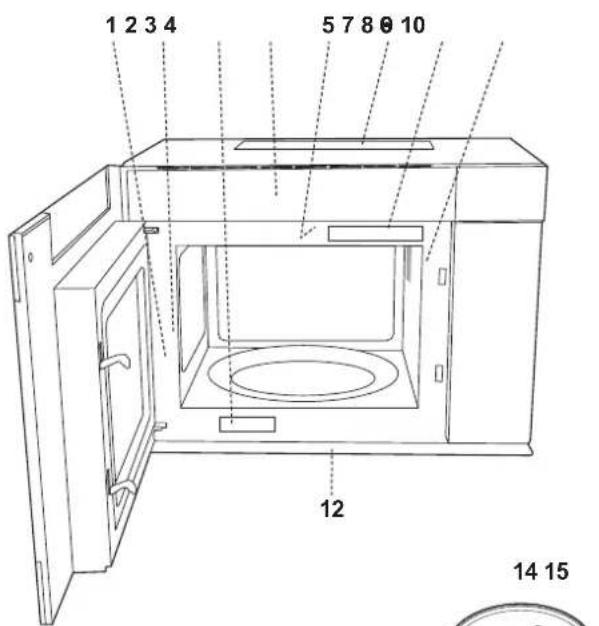

2. WINDOW with METAL SHIELD

3. MODEL NUMBER PLATE - On the front wall of the

6. VENTILATION MOTOR - Designed for adaptation to

the following three types of ventilation: recirculation ventilation system, vertical ventilation system and horizontal ventilation system See the Installation Manual to select the type of ventilation required for your installation.

outlet from splashes of cooking foods

microwave oven to support the glass tray Both the glass tray and the guide roller ring must be in place for microwave cooking.

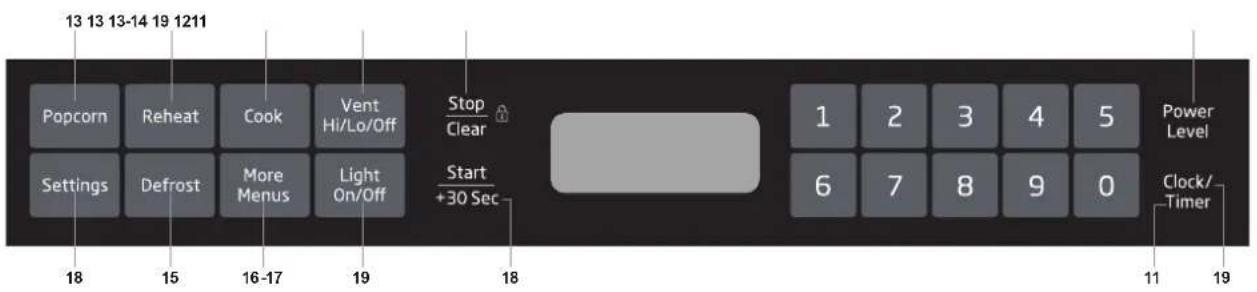

TOUCH CONTROL 13 13 13-14 19 1211 18 11 1918 15 16-17 19 10 / 90 EN Over The Range Microwave Oven / User ManualBefore operating your new microwave oven, make sure you read and understand this operation manual completely. Follow these steps:1. Plug in the microwave oven. ENJOY YOUR MICROWAVE TOUCH CLEAR will appear.2. Touch the STOP/CLEAR pad. will appear.3. Set clock.

2. Touch number pads for correct time of day

3. Touch START/+30 SEC.

This is a 12 hour clock. If you attempt to enter an incorrect clock time, ERROR will appear in the display. Touch the STOP/CLEAR pad and re-enter the time.• If the electrical power supply to your microwave oven should be interrupted, the display will intermittently show ENJOY YOUR MICROWAVE TOUCH CLEAR after the power is reinstated. If this occurs during cooking, the program will be erased. The time of day will also be erased. Simply touch STOP/CLEAR pad and reset the clock. Note: Any program can be set on the microwave oven with the oven door open except for START/+30 SEC. The oven can be programmed while the door is opened, but it must be closed to begin cooking. STOP/CLEAR Touch the STOP/CLEAR pad to:1. Erase if you make a mistake during programming.2. Cancel timer.3. Pause the oven during timed cooking. To restart the oven, close the door and touch START/+30 SEC.4. Return the time of day to the display.

5. Cancel a program during cooking. Touch STOP/CLEAR

2 times to cancel timed cooking. BEFORE OPERATING

11 / 90 ENOver The Range Microwave Oven / User ManualTIME COOKING Your microwave oven can be programmed for 99 minutes 99 seconds (99.99). Always enter the seconds after the minutes, even if they are both zeros.• Suppose you want to cook for 5 minutes at 100%.1. Enter cooking time 5 0 0.

2. To cook at 100% power (High), touch START/+30 SEC

There are eleven preset power levels.Using lower power levels increases the cooking time, which is recommended for foods such as cheese and milk and long slow cooking of meats. Consult a microwave cookbook or recipes for specic recommendations.• Suppose you want to defrost for 5 minutes at 30%.1. Enter defrost time

TOUCH POWER LEVEL PAD NUM-BER OF TIMES FOR DESIRED POWERAPPROXIMATE PERCENTAGE OF POWERCOMMON WORDS FOR POWER LEVELSPOWER LEVEL x 1 100% HighPOWER LEVEL x 2 90% POWER LEVEL x 3 80% POWER LEVEL x 4 70% Medium HighPOWER LEVEL x 5 60% POWER LEVEL x 6 50% MediumPOWER LEVEL x 7 40% POWER LEVEL x 8 30% Med Low/DefrostPOWER LEVEL x 9 20% POWER LEVEL x 10 10% LowPOWER LEVEL x 11 0% SENSOR SETTINGS Beko's Sensor is a semi-conductor device that detects the vapor (moisture and humidity) emitted from the food as it heats. The sensor adjusts the cooking times and power levels for various foods and quantities. USING SENSOR SETTINGS: 1. After the microwave oven is plugged in, wait 2 minutes before using any Sensor setting.2. Be sure the exterior of the cooking container and the inte-rior of the microwave oven are dry. Wipe off any moisture with a dry cloth or paper towel.3. The sensor works with foods at normal storage tempera-ture. For example, popcorn would be at room temperature.4. More or less food than the quantity listed in the charts should be cooked following the guidelines in any micro-wave cookbook.5. During Sensor use, the food name will appear on the display. Do not open the microwave oven or touch STOP/CLEAR during the cycle. The measurement of vapor will be interrupted. If this occurs, an error message will appear. To continue cooking, touch the STOP/CLEAR pad and cook manually. When the sensor detects the vapor emitted from the food, the remainder of cooking/reheating time will appear.6. Except for Popcorn, if the sensor does not detect vapor properly when cooking other foods, ERROR will be dis-played, and the microwave will turn off.7. Check food temperature after cooking. If additional time is needed, continue to cook manually.8. Each food on the menu label has a cooking hint. Touch the SETTINGS pad when the HELP indicator is illuminated in the display. COVERING FOODS: Some foods cook best when covered. Use the cover recom-mended in the charts for these foods. See charts beginning at the bottom of this page and continuing on the following pages. Refer to the hints by touching the SETTINGS pad. Recommended covers include:1. Casserole lid.2. Plastic wrap: Use plastic wrap recommended for micro-wave cooking. Cover dish loosely, allowing approximately /2 inch to remain uncovered to allow steam to escape. Plastic wrap should not touch food.3. Wax paper: Cover dish completely, folding excess wrap under dish to secure. If dish is wider than paper, overlap two pieces at least one inch to cover.Be careful when removing any covering to allow steam to escape away from you.

You can cook or reheat many foods and don’t need to calculate cooking time or power level.• Suppose you want to cook baked potatoes.1. Touch COOK pad once.2. See Menu Label. Select desired food by touching number pad. Ex: Touch 1 for baked potatoes.

3. Touch START/+30 SEC pad.

Note: To heat or cook other foods or foods above or below the quantity allowed on the chart, cook manually.

POPCORN, REHEAT CHART

FOOD AMOUNT PROCEDURES

POPCORN Only 1 package at a time Only cook one microwave popcorn package at a time with the appropriate side facing up. After cooking, remove and open carefully to allow steam to escape. 2.85 - 3.5 oz (Regular/Regular light)Touch POPCORN pad once.1.2 - 1.75 oz(Mini/Snack)Touch POPCORN pad twice. REHEAT 4 - 36 oz Use microwave safe cookware and cover with lid, plastic wrap or wax paper. Note: The tighter the cover, the hotter the food will be. However, it is necessary to leave a small vent for the steam/moisture to escape from the food as it heats. After reheating, stir well, if possible. Re-cover and allow to stand 2 to 3 minutes.

MICROWAVE OVEN COOKING

FOOD AMOUNT PROCEDURES

Pierce the potatoes at least 3 times each on the top, bottom and sides. Piercing allows steam to escape. Place on paper towel in microwave oven. After cooking, remove from microwave, wrap in aluminum foil and let stand 5 to 10 minutes.

3. Fish/Seafood 0.25 - 2.0 lb Arrange sh or seafood in ring in shallow glass dish. Tuck thin edges of

llets underneath. Cover with vented plastic wrap. After cooking, let stand, covered, for 3 minutes.

Place rice in a deep casserole and add double quantity of water. Cover with lid or plastic wrap. After cooking, stir, cover and let stand 3 to 5 minutes or until all liquid has been absorbed. Rice Water Size of casserole

Wash and place in casserole. Add no water if vegetables have just been washed. Cover with lid for tender vegetables. Cover with plastic wrap for tender-crisp vegetables. After cooking, stir, if possible. Let stand, covered, for 2 to 5 minutes.

7. Longer Fresh Vegetables

Carrots, sliced Corn on the cob Green beans Winter squash: diced halves

Place in casserole. Add 1 to 4 tablespoons water. Cover with lid for tender vegetables. Cover with plastic wrap for tender-crisp vegetables. After cooking, stir, if possible. Let stand, covered, for 2 to 5 minutes.

8. Frozen Vegetables 0.25 - 1.25 lb Add no water. Cover with lid or plastic wrap. After cooking, stir and let stand,

covered, for 3 minutes.

9. Ground Meat 0.25 - 2.0 lb Use this setting to cook ground beef or turkey as patties or in bulk to be

added to other ingredients. Place patties on a microwave safe dish and cover with wax paper. Place ground meat in a casserole and cover with wax paper or plastic wrap. When microwave pauses, turn over patties or stir bulk meat to break up large pieces. Re-cover and touch START/ +30 SEC. After cooking, let stand, covered, for 2 to 3 minutes.

10. Frozen Entrées 6 - 17 oz Remove entrée from outer packaging and follow package directions for cover-

ing. After cooking, let stand, covered, for 1 to 3 minutes.

14 / 90 EN Over The Range Microwave Oven / User ManualDEFROST Use this feature to defrost the foods shown in the DEFROST CHART below.1. Touch DEFROST pad. 2. See Menu Label. Select desired food by touching the number pad. Ex: Touch 2 for steaks/chops.

3. Enter weight by touching number pads.

4. Touch START/+30 SEC pad. The oven will stop so the

food can be checked.5. After the audible signal, open the microwave and turn food over or break food apart. Close the microwave oven. Touch START/+30 SEC pad.6. After each audible signal, turn food over or break food apart and touch START/+30 SEC again. 7. After defrost cycle ends, cover and let stand as indicated in the chart below.Notes:• To defrost other foods or foods above or below the weights allowed on the DEFROST CHART, see MANUAL DEFROST below.• Check foods when oven signals. After nal stage, small sections may still be icy. Let stand to continue thawing. Do not cook until all ice crystals are thawed. DEFROST CHART

FOOD AMOUNT PROCEDURES

1. Ground Meat 0.5 - 2.0 lb After each audible signal, remove any thawed pieces and touch START/+30 SEC again.

After cooking, let stand, covered, for 5 to 10 minutes.

2. Steaks/Chops 0.5 - 3.0 lb After each audible signal, turn food over and touch START/+30 SEC again. After cooking,

let stand, covered, for 10 to 20 minutes.

3. Boneless Poultry 0.5 - 2.0 lb After each audible signal, turn food over and touch START/+30 SEC again. After cooking,

let stand, covered, for 10 to 20 minutes.

4. Bone-in Poultry 0.5 - 3.0 lb After each audible signal, turn food over and touch START/+30 SEC again. After cooking,

let stand, covered, for 10 to 20 minutes.

5. Roast 2.0 - 4.0 lb After each audible signal, turn food over and touch START/+30 SEC again. After cooking,

let stand, covered, for 30 to 60 minutes.6. Casserole Soup

2 - 6 cups 1 - 6 cups

After each audible signal, break apart and remove any defrosted part. Touch START/+30 SEC again. After cooking, stir well and let stand, covered, for 5 to 10 minutes. MANUAL DEFROST If the food you wish to defrost is not listed on the DEFROST CHART or is above or below the limits in the AMOUNT col-umn on the DEFROST CHART, you need to defrost manually.You can defrost any frozen food, either raw or previously cooked, by using POWER LEVEL at 30%. For the 3-step procedure, see TO SET POWER LEVEL on page 12. Esti- mate defrosting time and touch POWER LEVEL pad eight times for 30% power.For both raw and previously cooked frozen food, defrosting typically takes 4 minutes per pound of food. For example, defrost 4 minutes for 1 pound of frozen spaghetti sauce.Always stop the oven periodically to remove or separate the defrosted portions. If food is not defrosted at the end of the estimated defrosting time, program the oven in 1 minute increments with POWER LEVEL at 30% until totally defrosted.When using plastic containers from the freezer, defrost only long enough to remove from the plastic in order to place in a microwave safe dish.

These features automatically compute the correct heating time and microwave power level for melting, softening and warming foods shown in the chart below.

1. Touch MORE MENUS pad once.

2. See Menu Label. Select desired food by touching number pad. Ex: Touch

3. Repeat touching same number pad to select quantity. Ex: Touch

2 two more times for 1 square.

4. Touch START/+30 SEC pad.

Note: To melt, soften or warm other food or foods above or below the quantity allowed on the MELT/SOFTEN/WARM CHART, use manual operation.

MELT/SOFTEN/WARM CHART

FOOD AMOUNT PROCEDURES

Melt Use a glass measuring cup. Cover with plastic wrap.1. Butter 2 tbsp 0.5 cupAfter touching MORE MENUS, touch 1 two times for 2 tbsp. After touching MORE MENUS, touch 1 three times for

2 two times for 1 cup chips. After touching MORE MENUS, touch 2 three times for 1 square. Soften DO NOT COVER.3. Ice cream 1 pint 1.5 qtAfter touching MORE MENUS, touch 3 two times for 1 pint. After touching MORE MENUS, touch 3 three times for 1.5 quarts.

4. Cream cheese 3 oz

8 oz After touching MORE MENUS, touch 4 two times for 3 oz. After touching MORE MENUS, touch 4 three times for 8 oz. Warm Use a glass measuring cup. DO NOT COVER.5. Syrup 0.25 cup0.5 cupAfter touching MORE MENUS, touch 5 two times for

cup.After touching MORE MENUS, touch 5 three times for

cup. After touching MORE MENUS, touch 6 three times for

16 / 90 EN Over The Range Microwave Oven / User ManualBEVERAGE REHEAT/HOT WATER/HOT CEREAL CHART FOOD AMOUNT PROCEDURES7. Beverage Reheat

0.5 - 2 cups This setting is good for restoring a cooled beverage to a better drinking temperature. Touch

number 7 pad for a 0.5 cup increase per touch. Stir after heating.

8. Hot Water 1 - 6 cups Use this setting for heating COLD TAP WATER to a temperature somewhat below the boiling

point to make instant coffee or tea. Touch number 8 pad for 1 cup increase per touch. Stir liquid briskly before and after heating to avoid eruption.

9. Hot Cereal 1 - 6 servings Use individual packets or bulk cereal in your favorite variety: oatmeal, oat bran, cream of

wheat, farina or wheatena. Follow the package directions for the correct amount of water or milk. To prevent boilovers, it is very important to choose a large container because microwave cooking of cereal causes high boiling. Touch number 9 pad for 1 serving increase per touch. If the oven is stopped, stir and touch START/+30 SEC. After cooking, stir and let stand, covered, for 2 minutes. BEVERAGE REHEAT/HOT WATER/HOT CEREALThese features enable you to reheat coffee or tea to restore to a more suitable drinking temperature or to make instant coffee, tea or hot cereal. • Suppose you want to make 2 cups of coffee.

1. Touch MORE MENUS pad once.

2. See Menu Label. Select desired selection by touching number pad. Ex: Touch

3. Repeat touching same number pad to select quantity. Ex: Touch

8 two more times for 2 cups of coffee.

17 / 90 ENOver The Range Microwave Oven / User ManualTIMER/CLOCK If the electrical power supply to your microwave oven should be interrupted, the display will intermittently show ENJOY YOUR MICROWAVE TOUCH CLEAR after the power is reinstated. If this occurs, the SETTINGS option you input will be erased. Simply touch STOP/CLEAR pad and reset.Note: For instructions on setting the clock, see TO SET THE CLOCK on page 11. TIMER

To cancel timer, touch STOP/CLEAR. SETTINGS

AUDIBLE SIGNAL ELIMINATION

At the end of timed cook, beeps will sound. The audible signal can be turned off if you prefer quiet operation.TO TURN OFF SOUND

1. Touch SETTINGS pad 1 time.

1. Touch SETTINGS pad 1 time.

At end of timed cooking, the microwave will signal every 10 seconds for the rst minute and then every 3 minutes for up to one hour until STOP/CLEAR pad is touched. TO TURN OFF REMINDER

1. Touch SETTINGS pad 3 times. The display shows

DEMO ON? HOLD START 3 SEC.

2. Hold START/+30 SEC pad for 3 seconds. The display

shows DEMO ON.TO CANCEL DEMO MODE

1. Touch SETTINGS pad 3 times. The display shows

DEMO OFF? HOLD START 3 SEC.

2. Touch START/+30 SEC pad. The display shows

DEMO OFF. Note: In Demo Mode, the microwave oven doesn't heat and the timer display counts down quickly. HELP Each setting of Popcorn, Reheat, Cook, Defrost and Beverage has a cooking hint. If you wish to check, touch SETTINGS whenever HELP is illuminated in the Interactive Display for these and other manual operation hints. +30 SEC To cook for 30 seconds at 100% power, touch the START/+30 SEC pad.

1. Within 3 minutes of the end of timed cooking, touch START/+30 SEC pad.

2. After closing the oven or touching the STOP/CLEAR pad

once, touch START/+30 SEC pad. 3. During manual cooking, extend cooking time in multiples of 30 seconds by repeatedly touching the START/+30 SEC pad. Note: +30 SEC cannot be used with SENSOR, REHEAT, MORE MENUS or DEFROST. OTHER FEATURES

18 / 90 EN Over The Range Microwave Oven / User ManualCONTROL LOCK The Control Lock prevents unwanted oven operation, such as by small children. The microwave oven can be set so the control panel and the automatic oven mechanism are deactivated or locked.

TO LOCK CONTROL PANEL

Touch STOP/CLEAR pad and hold for 3 seconds. The display shows LOCK ON.

TO LOCK CONTROL PANEL

Touch STOP/CLEAR pad and hold for 3 seconds. The display shows LOCK OFF.The Control Lock is canceled when the electrical power supply to your oven is interrupted. Set the Control Lock again when power to the oven is restored. LIGHT Touch LIGHT pad 1 time to turn on cooktop light. Touch LIGHT pad again to turn off cooktop light. Note: The cooktop light will not turn off automatically. It must be turned off manually. VENT The microwave oven can be used as a range hood to remove steam, odors and grease from surface cooking. There are two fan speeds: HIGH and LOW.

2. Touch VENT pad 2 times for LOW SPEED fan.

3. Touch VENT pad a third time to turn off fan. The fan will

not turn off automatically. It must be turned off manually. Note: The Vent fan will automatically turn on to LOW SPEED setting after the microwave is in use for 18 minutes. Once microwave cooking has completed or has been cancelled, the Vent fan will turn off automatically. If the microwave is paused or the cooking session lasts longer than 18 minutes, the Vent fan will continue to run. OTHER FEATURES

19 / 90 ENOver The Range Microwave Oven / User ManualBe sure the microwave oven Control Lock feature is ON before cleaning. For instructions, see page 19. EXTERIOR The outside surface is precoated stainless steel, glass and plastic. Clean the outside with mild soap and water. Rinse and dry with a soft cloth. Do not use any type of household or abrasive cleaner.

STAINLESS STEEL SURFACE

The exterior should be wiped often with a soft damp cloth and polished with a soft dry cloth to maintain its beauty. There are also a variety of products designed especially for cleaning and shining the stainless exterior of the oven. We recommend that the cleaner be applied to a soft cloth and then carefully used on the stainless exterior rather than sprayed directly on to it. Follow package directions carefully. DOOR Wipe the window on both sides with a soft damp cloth to remove any spills or spatters. Metal parts will be easier to maintain if wiped frequently with a soft damp cloth. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the oven surface. CONTROL PANEL Be sure Control Lock is ON. For instructions, see page

19. Wipe the panel with a cloth dampened slightly with water

only. Dry with a soft cloth. Do not scrub or use any chemi- cal cleaners. Close the door and turn OFF Control Lock if nished cleaning. INTERIOR Cleaning is easy because no heat is generated to interior surfaces of the oven, so spills and splatters are not baked in. To clean interior surfaces, wipe with a soft, damp cloth. For heavier soil, use mild soap and wipe clean with a soft, damp cloth. Never use abrasive or harsh cleaners or chemi- cal oven cleaners. Note: Never use metal scouring pads to clean the microwave oven as pieces may break off the pad and cause electric shock if they come in contact with electrical parts. WAVEGUIDE COVER ATTENTION DO NOT REMOVE THE WAVEGUIDE COVER. The waveguide cover, located on the right side of the interior cavity, is made from mica, so it requires special care. Keep the waveguide cover clean to assure good microwave performance. Carefully wipe with a soft, damp cloth any food spatters from the surface of the cover immediately after they occur. Built-up splashes may overheat and cause smoke or possibly catch re. ODOR REMOVAL Occasionally, cooking odor may remain in the microwave oven. To remove odor, combine 1 cup water, grated peel and juice of one lemon and several whole cloves in a 2-cup glass microwave safe measuring cup. Boil for several minutes using 100% power. Leave in the microwave oven until water cools. Wipe interior with a soft cloth.

TURNTABLE AND TURNTABLE SUPPORT

The turntable and turntable support can be removed for easy cleaning. The turntable can become hot during cooking. Let it cool before cleaning to prevent the glass from breaking. The turntable and turntable support can be washed in a dishwasher in the upper rack or by hand with mild, sudsy water. Use a mild cleaner and non-abrasive scouring sponge for stubborn stains. Note: The turntable motor shaft in the oven is not sealed. Excess water or spills must be wiped up immediately.

The Exhaust Hood feature is equipped with two grease lters. When the Vent fan is operated, air is drawn up through the lters and then discharged through the venting to the outside or recirculated through the charcoal lter if not vented to the outside. Note: Never operate the fan or oven without the lters in place.

REUSABLE GREASE FILTERS

The reusable grease lters should be cleaned at least once a month. In situations where aming might occur on surfaces below the hood, lters will stop the entry of ames into the unit. TO CLEAN GREASE FILTERS:

1. Turn ON Control Lock.

2. Pull down gently on the tab toward the front of the oven

and remove the lter. Repeat for the other lter.

3. Soak the lters in a sink or pan lled with hot water

and detergent. DO NOT use ammonia or products with ammonia, as this will darken the metal.

5. Rinse thoroughly and shake dry to remove moisture before

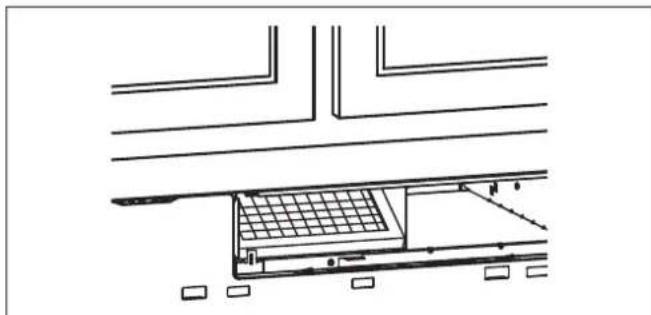

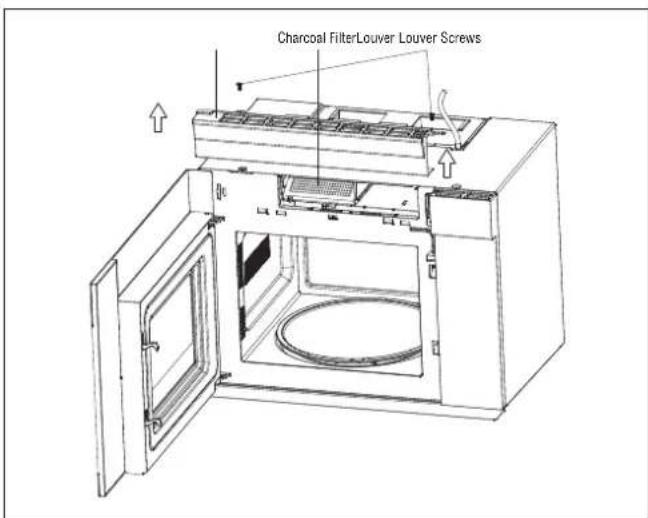

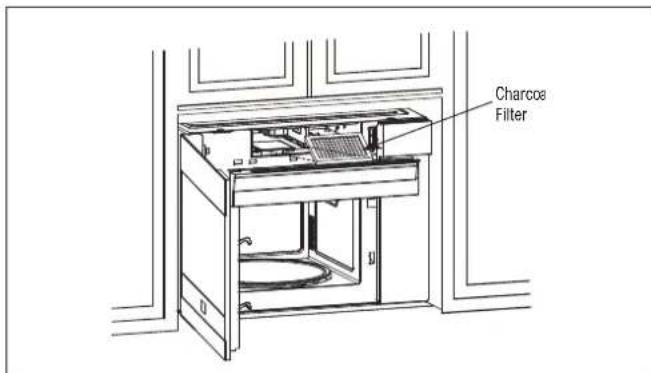

20 / 90 EN Over The Range Microwave Oven / User Manual6. Replace the lters into the openings.7. Turn OFF Control Lock to use the oven. COOKTOP LIGHTS Clean off the grease and dust on the light compartment cover on the bottom side of the microwave oven often with warm water and detergent.TO REPLACE COOKTOP LIGHT BULBS:1. Turn ON Control Lock.2. Remove the screw on the lamp cover with a Phillips-head screwdriver.3. Unscrew the light bulbs from sockets and replace with 30 Watt or lower wattage appliance bulbs. Do not exceed 30 Watt. 4. Replace the lamp cover and reinstall the screw to secure the cover.5. Turn OFF Control Lock to use the oven. CAUTION If the lights are on, the lamp cover may be hot to the touch. Turn off the Cooktop Lights before replacing bulbs. CHARCOAL FILTER If your oven is vented inside, the charcoal lter should be replaced every 6 months.TO REPLACE CHARCOAL FILTER:1. Unplug the oven or turn off the power at the main power supply.2. Remove the 2 louver mounting screws and open the door.Charcoal FilterLouver Louver Screws3. Slide louver to the left and pull it straight out.Charco Filter4. Push the charcoal lter backwards and remove it.5. Slide a new charcoal lter into place. The lter should rest at an angle.6. Replace the louver and 2 screws and close the door.7. Plug in the oven or turn on the power at the main power supply. OVEN LIGHT To remove and replace the Oven Light, the steps to remove the Charcoal Filter must be completed rst. The lters don't have to be removed, but it the process will be easier if they are. ALWAYS RETURN THE CHARCOAL FILTER before operating the microwave oven if the oven has non-vented recirculation installation. TO REPLACE OVEN LIGHT BULB:1. Turn ON Control Lock.2. Remove light cover screw with a Phillips-head screwdriver.3. Slide out the light cover carefully. 4. Unscrew the bulb from the socket and replace it with a 30 Watt or lower wattage appliance light bulb. Do not exceed 30 Watt. 5. Replace the light cover and reinstall the screw to secure.6. Replace Charcoal Filter. 7. Turn OFF Control Lock to use the oven.

21 / 90 ENOver The Range Microwave Oven / User ManualPlease check the following before calling for service. It may save you time and expense.

PROBLEM POSSIBLE CAUSE SOLUTION

1. Part or all of microwave

oven does not operate.

• Power cord of microwave oven is not completely connected to the electrical outlet.

• Fuse/circuit breaker at home doesn’t work.

• Oven is in Demo Mode.

• Make sure the power cord is tightly connected to the outlet.

• Check house lights to be sure. Call your local electric company for service.

Food in microwave oven is not heated.

• No power to the appliance.

• Oven controls improperly set.

• Oven is in Demo Mode.

• See SOLUTION for PROBLEM 1.

• Check if the controls have been properly set.

Microwave oven light or cooktop light does not work.

• Light bulb is loose or burned out. • See page 21.

Touch controls will not operate.

• Control Lock is on. • See page 19.

• Power failure. • Touch CLEAR pad and reset the clock. If the micro- wave oven was in use, reset the cooking function.

22 / 90 EN Over The Range Microwave Oven / User Manual23 For more complete information and safety precautions, refer to your Operation Manual. SET CLOCK

1. Touch TIMER/CLOCK pad two times.

2. Touch number pads for correct time of day and touch

3. If the electrical power supply to your microwave oven

is interrupted, the display will intermittently show:

ENJOY YOUR MICROWAVE TOUCH CLEAR

TIME COOKINGHigh Power Cooking

1. Enter cooking time by touching number pads. (Ex: 5

Variable Power Cooking

1. Enter cooking time, then touch POWER LEVEL pad

until desired power level is in the display.

2. Touch START/+30 SEC pad.

SENSOR SENSOR automatically computes the correct time and power level to cook foods on the Menu Label perfectly.

1. Touch COOK pad once.

2. See Menu Label. Select desired food by touching

number pad. Ex: Touch 1 for baked potatoes.

3. Touch START/+30 SEC pad.

+30 SEC Touch START/+30 SEC to cook for 30 seconds at 100% power or to add 30 seconds during manual cooking. Touch repeatedly for additional increases of 30 seconds to cook time. DEFROST Use this feature to defrost the foods shown on the Menu Label.

1. Touch DEFROST pad.

2. See Menu Label. Select desired food by touching the

number pad. Ex: Touch 2 for steaks/chops.

3. Enter weight by touching number pads.

4. Touch START/+30 SEC pad.

5. Microwave will stop to allow food to be turned over

or broken up. Close the microwave oven. Touch START/+30 SEC pad.

MORE MENUSMELT/SOFTEN/WARM

Use these features to melt, soften or warm the foods shown on the Menu Label.

1. Touch MORE MENUS pad once.

2. See Menu Label. Select desired food by touching the

number pad. Ex: Touch 2 for chocolate.

3. Repeat touching same number pad to select quantity.

Ex: touch 2 two more times for 1 square.

4. Touch START/+30 SEC pad.

Use this feature to reheat coffee or tea or heat cereal.

1. Touch MORE MENUS pad.

2. See Menu Label. Select desired food by touching the

number pad. Ex: Touch 8 for hot water.

3. Repeat touching same number pad to select quantity.

Ex: touch 8 two more times for 2 cups.

To cancel timer, touch STOP/CLEAR pad. SETTINGS Touch SETTINGS pad 1 time for sound on/off. 2 times for End of Cooking Reminder on/off. 3 times for Demo Mode on/off. CONTROL LOCK The Control Lock prevents unwanted oven operation, such as by small children. The microwave oven can be set so that the control panel is deactivated or locked. To Lock Touch STOP/CLEAR pad and hold for 3 seconds. To Unlock Touch STOP/CLEAR pad and hold for 3 seconds. AUTO-TOUCH GUIDE

COMMENT FAIRE APPLIQUER LA GARANTIE

PROBLÈME CAUSE POSSIBLE SOLUTION

https://ca.Beko.com/more/support25

GARANTIE NE COUVRE PAS

https://ca.Beko.com/more/support27
