Product Type	Microwave Oven with Grill
Brand	Beko
Model	MGF23210
Capacity	23 L
Microwave Power	800 W
Grill Power	1000 W
Frequency	2450 MHz
Voltage / Frequency	230V ~ 50Hz
Input Power	1280 W
Turntable Diameter	270 mm
External Dimensions (H x W x D)	282 x 482 x 379 mm
Net Weight	12.5 kg
Control Type	Rotary knob and push buttons
Functions	Microwave, Grill, Combi, Defrost, Auto Cook, Delayed Start, Child Lock
Safety Features	Child lock, door interlocks, overheat protection
Cleaning	Wipe with damp cloth; mild detergent for stubborn stains; no steam cleaner
Installed Accessories	Glass tray, roller ring, grill rack
Installation Type	Freestanding
Clearance Required	Min 20 cm above, 10 cm rear, 5 cm sides, 85 cm from floor

Frequently Asked Questions - MGF23210 BEKO

How do I set the clock on my Beko MGF23210 microwave?

After plugging in, press and hold the Defrost/Clock button for 3 seconds. The display shows '0:00'. Turn the Time/Weight knob to set the hours, press Defrost/Clock again, then set minutes. Press Defrost/Clock once more or wait 5 seconds to confirm.

What is the defrost function and how do I use it?

Press the Defrost/Clock button to cycle through d.1 (meat, 0.1-2.0 kg), d.2 (poultry, 0.2-3.0 kg), and d.3 (seafood, 0.1-0.9 kg). Set the weight using the Time/Weight knob, then press Instant/Start. The oven will beep halfway to remind you to turn the food over.

Can I use metal containers in the microwave?

No. Metal containers are not allowed during microwave or combination cooking as they may cause sparks. Use heat-resistant ceramic, glass, or microwave-safe plastic instead.

How should I clean the microwave oven?

Unplug and let cool. Wipe the interior and exterior with a damp cloth and mild detergent if needed. Do not use abrasive cleaners, sprays, or steam cleaners. Clean the glass tray and roller ring in warm soapy water or dishwasher. Remove odors by microwaving a bowl of water with lemon juice and peel for 5 minutes.

Why is steam building up inside or around the oven door?

This is normal when operating in high humidity conditions. Simply wipe with a soft cloth. Ensure the ventilation openings are not blocked.

How do I activate the child lock?

Press and hold the Pause/Cancel button for about 3 seconds. The lock icon appears and all buttons become inoperative. To deactivate, press and hold the same button again for 3 seconds.

What are the auto cooking programs and how do I use them?

Press Auto Cooking to cycle through A.1 to A.8 for popcorn, reheat, beverage, pizza, potato, frozen dinner, rice, and vegetable. Select the desired program, then set the weight or serving size using the Time/Weight knob and press Instant/Start.

How do I set a delayed start?

First set the current clock. Then program the cooking menu and time as usual. Press and hold Defrost/Clock for 3 seconds to return to clock display. Set the desired start time using the knob and press Defrost/Clock to confirm. The oven will start automatically at that time.

Can I use a browning dish in this microwave?

Yes, but always place a heat-resistant insulator (like a porcelain plate) under the browning dish to protect the turntable and roller ring. Follow the dish manufacturer's instructions.

What should I do if smoke appears during operation?

If smoke is observed, switch off or unplug the appliance if safe to do so. Keep the door closed to stifle any flames. Do not open the door until the smoke clears. If smoke persists, contact service.

USER MANUAL MGF23210 BEKO

Simple icon of a microwave oven with a steaming bowl (no text or symbols)

MGF 23210 B

EN - IT - CS - PL - FR - RO

CONTENTS

ENGLISH	03-22
ITALIANO	23-45
ČESKY 46-68
POLSKI 69-92
FRANÇAIS	93-114
ROMANIAN	115-140

Please read this user manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this user manual:

Important information and useful hints about usage.

Warnings for dangerous situations concerning the safety of life and property.

Warning for hot surfaces.

1 Important safety and environmental instructions

Important Safety Instructions Read Carefully And Keep For Future Reference

1.1 Safety warnings

This section contains safety instructions that will help protect from risk of fire, electric shock, exposure to leak microwave energy, personal injury or property damage. Failure to follow these instructions shall void any warranty.

•Beko Microwave Ovens comply with the applicable safety standards; therefore, in case of any damage on the appliance or power cable, it should be repaired or replaced by the dealer, service center or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.

• This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments; - Farm houses - By clients in hotels, motels and other residential type environments; - Bed and Breakfast type environments.

- Microwave oven is intended used freestanding. - It is not intended for industrial or laboratory use. - Do not attempt to start the oven when its door is open; otherwise you may be exposed to harmful microwave energy. Safety locks should not be disabled or tampered with.

• The microwave oven is intended for heating food and beverages. Drying of food or clothing and

1 Important safety and environmental instructions

heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

- Do not place any object between the front side and the door of the oven. Do not allow dirt or cleaning agent remnants to build up on the closure surfaces.

- Any service works involving removal of the cover that provides protection against exposure to microwave energy must be performed by authorized persons/service. Any other approach is dangerous.

- Your product is intended for cooking, heating and defrost food at home. It must not be used for commercial purposes.

- Your oven is not designed to dry any living being.

- Do not use your appliance

to dry clothes or kitchen towels.

- Do not use this appliance outdoors, bathrooms, humid environments or in places where the it can get wet.

- No responsibility or warranty claim shall be assumed for damages arising from misuse or improper handling of the appliance.

- Never attempt to dismantle the appliance. No warranty claims are accepted for damage caused by improper handling.

- Only use the original parts or parts recommended by the manufacturer.

- Do not leave this appliance unattended while it is in use.

• Always use the appliance on a stable, flat, clean dry, and non-slip surface.

• The appliance should not be operated with an exter-

1 Important safety and environmental instructions

nal clock timer or separate remote control system.

• Before using the appliance for the first time, clean all parts. Please see the details given in the “Cleaning and Care” section.
• Operate the appliance for its intended purpose only as described in this manual.
  •Appliance becomes very hot while it is in use. Pay attention not to touch the hot parts inside the oven.
• Do not operate the oven empty.
  • Cooking utensil may get hot due to the heat transferred from the heated food to the utensil. You may need oven gloves to hold the utensil.
• Utensils shall be checked to ensure that they are suitable for use in microwave ovens.
• Do not place the oven on stoves or other heat gen-

erating appliances. Otherwise, it may be damaged and the warranty becomes void.

- Steam may come out while opening the covers or the foil after cooking the food.

• The appliance and its accessible surfaces may be very hot when the appliance is in use.

- Door and outer glass may be very hot when the appliance is in use.

• Make sure that your mains power supply complies with the information supplied on the rating plate of the appliance.

• The only way to disconnect the appliance from the power supply is to remove the power plug from the power outlet.

- Use the appliance with a grounded outlet only.

- Never use the appliance if the power cable or the ap-

1 Important safety and environmental instructions

pliance itself is damaged.

- Do not use this appliance with an extension cord.

- Never touch the appliance or its plug with damp or wet hands.

- Place the appliance in a way so that the plug is always accessible.

- Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.

• Make sure that there is no danger that the power cable could be accidentally pulled or that someone could trip over it when the appliance is in use.

- Unplug the appliance before each cleaning and when the appliance is not in use.

- Do not pull the power cable of the appliance to disconnect it from its power

supply and never wrap its power cable around the appliance.

- Do not immerse the appliance, power cable, or power plug in water or any other liquids. Do not hold it under running water.

- When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

- Remove the wire strings and/or metal handles of paper or plastic bags before placing bags to the oven.

- If smoke is observed, switch off or unplug the appliance if safe to do so and keep the door closed in order to stifle any flames.

- Do not use microwave oven for storage. Do not leave paper items, cooking material or food inside the oven when it is not being

1 Important safety and environmental instructions

used.

• The contents of feeding bottles and baby food jars should be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

• This appliance is a Group 2 Class B ISM equipment. Group 2 contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment.

• Class B equipment is suitable for use in domestic establishments and establishments directly connected to a low voltage power supply network.

- Do not use cooking oil in the oven. Hot oil may damage the components

and materials of the oven, and it may even cause skin burns.

- Pierce food with thick crust such as potatoes, courgettes, apples and chestnuts.

• Appliance must be placed so that the rear side is facing the wall.

- Before moving the appliance, please secure the turntable to prevent damage.

• Eggs in their shell and whole hard-boiled eggs must not be heated in microwave ovens since they may explode, even after microwave heating has ended.

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

1 Important safety and environmental instructions

WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

• The oven should be cleaned regularly and any food deposits removed.
• There should be min 20 cm free space above the top surface of the oven.
- Do not over-cook foods; otherwise, you may cause a fire.
- Do not use chemicals and steam assisted cleaners to clean the appliance.
• Extreme caution is ad-

vised when being used near children and persons who are restricted in their physical, sensory or mental abilities.

• This appliance can be used by the children who are at the age of 8 or over and by the people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, as long as they are supervised with regard to safe use of the product or they are instructed accordingly or understand the risks of using the product. Children should not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Danger of choking! Keep all the packaging materials away from children.
• Keep the product and its power cable so that they

1 Important safety and environmental instructions

are inaccessible by children under 8 years old.

• Do not cook food directly on the glass tray. Put the food in / on appropriate kitchen utensils before placing them in the oven.
  • Metallic containers for food and beverages are not allowed during microwave cooking. Otherwise, sparking may occur.

- This product is not designed to be built-in. Do not place the product in a cabinet or box while it is in use.

- Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

• The appliance shall not be cleaned with a steam cleaner.

- Microwave heating of

beveranges can result in delayed eruptive boiling, therefore care must be taken when handling the container.

- WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

- Cleaning: Do not place the appliance in water or other liquids. Clean the housing only with a sponge/cloth moistened in warm, soapy water. Do not use harsh, abrasive cleaners. See for the Cleaning and care and Storage detailed cleaning instructions.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

1 Important safety and environmental instructions

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your microwave oven

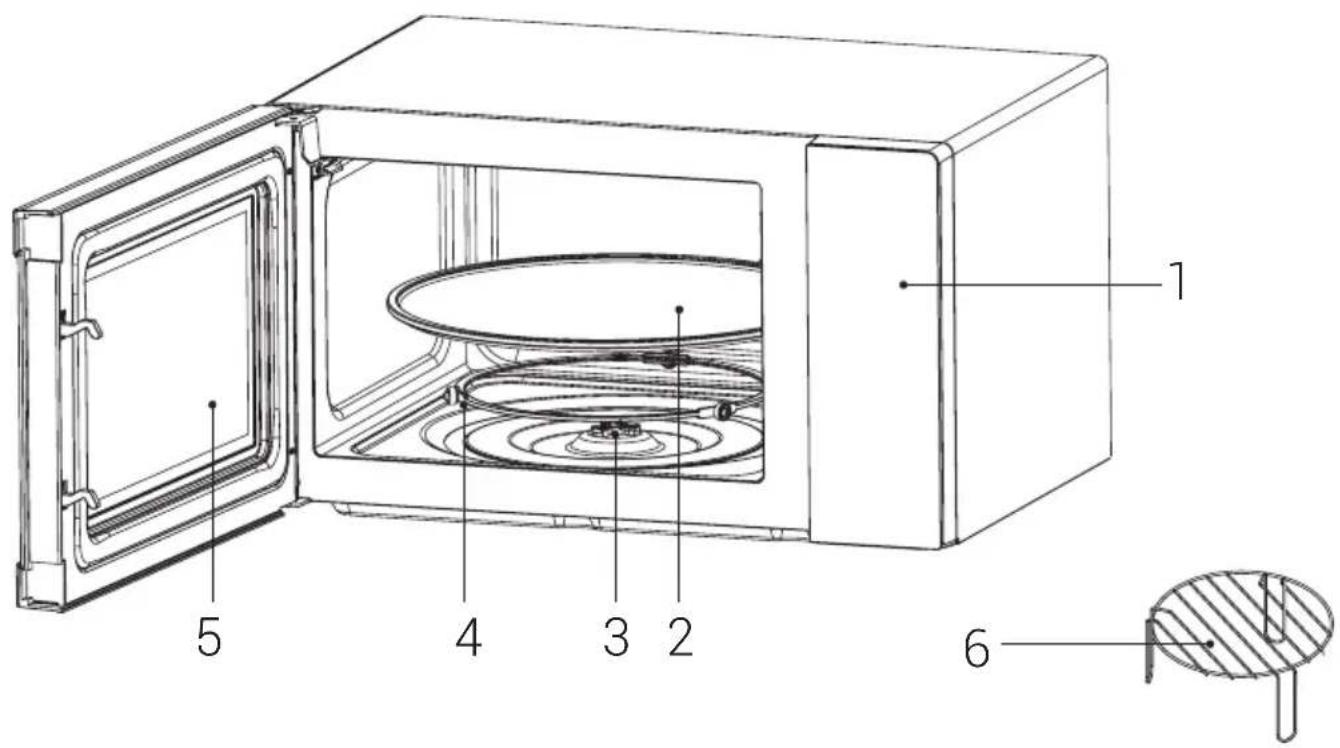

2.1 Overview

Control and parts

1. Control panel
2. Glass plate
3. Rotating axis
4. Rotating ring
5. Microwave door
6. Grill rack

2.2 Technical data

Model	MGF 23210 B
Voltage / Frequency	230V~, 50Hz
Input	1280W
Output	800W
Grill	1000W
Microwave frequency	2450MHz
Oven capacity	23 L
Turntable diameter	270 mm
External dimensions	482*379*282 mm
Net weight	12.5 kg

Technical and design modification rights are reserved.

Markings on the appliance or the values stated in other documents supplied with the product are values obtained under laboratory conditions as per relevant standards. These values may vary according to the usage of the appliance and ambient conditions.

2 Your microwave oven

2.3 Installing the turntable

• Never place the glass tray upside down. The glass tray should never be restricted.
• Both glass tray and turntable support must always be used during cooking.
• All food and containers of food must always place on the glass tray for co-oking.
• If glass tray or turntable support crack or break, contact your nearest authorized service center.

3 Your microwave oven

• Take out all the packing. If there is a safe film over the oven, tear it off before use. Check carefully for damage. If any, immediately notify dealer or send to the manufacturer's service center.
- Microwave ovens must be placed under dry and non-corrosiveness environments, kept away from heat and humidity, such as gas burner or water tank.
- To ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10 cm, the side to the wall should be at least 5 cm, the free distance above the top surface at least 20 cm. the distance of the microwave to the ground should be at least 85 cm.
- The position of the oven shall be such that it is far from the TV, Radio or antenna as picture disturbance, or noise may occur. The distance should be more than 5m.

• The appliance must be positioned so that the plug is accessible, and must ensure a good grounding in case leakage, ground loop can be formed to avoid electric shock.
• The microwave oven must be operated with the door closed.
• The microwave oven must not be placed in a cabinet. The microwave oven is intended to be used freestanding.
• As there is manufacturing residue or oil remained on the oven cavity or heat element, it usually would smell the odor, even a slight smoke, It is normal case and would not occur after several times use, keep the door or window open to ensure good ventilation. So it is strongly recommended to place a cup of water in the cavity, setting at high power and operate for several times.

4 Operation

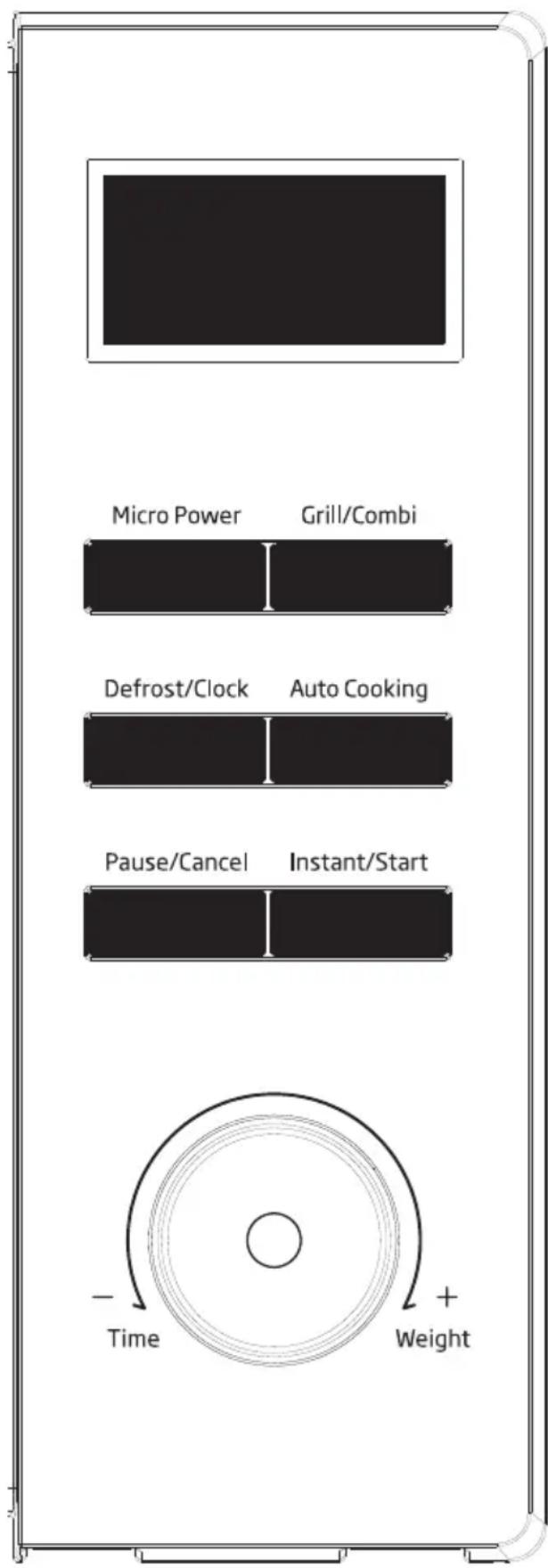

4.1 Control panel

4.2 How to set the oven controls

The LED flashes 3 times when plugged in power supply. Then it flashes "", prompting you to input the cooking menu and time.

4.3 Time/Weight knob

You can increase or decrease cooking time and weight during operation by turning Time/Weight knob.

4.4 Pause/Cancel

At the initial or input stage: press once to cancel input programs and resume initial stage.

During cooking: press once to stop oven operation, press twice to cancel cooking programs.

4.5 Auto reminder

When your preset cooking procedure have finished, the LED display will show End and three beeps sound will be heard to prompt you to take out food. If you do not press Pause/Cancel button once or open the door, the beep will be sounded at an interval of 3 minutes.

4.6 Instant cooking

on the standby status, press Instant/Start button, the oven will start express cook with high power; the default cooking time is one minute. You can increase or decrease cooking time by turning Time/Weight knob.

4.7 Clock setting

Clock button make it available for you to input current or preset time when ":" flashes onto LED display after plugged in, or try to skip it over to continue if unnecessary.

Example: to set 12:30
	Steps Display
1 After power-up, the colon flashes :
2 Press and hold Defrost/ Clock button for 3 seconds		0:00
3 Turn Time/Weight knob to set exact hours.		12:00
4 Press Defrost/Clock button once again.		12:00
5 Turn Time/Weight knob to set exact minutes.		12:30
6 Press Defrost/Clock button once again or wait for 5 seconds, and the numbers will go steadily.

This button is with two functions: set clock and set defrost menu. If you want to set clock, you need to press and hold this button for 3 seconds, while just press this button once to enter defrost state.

4.8 Microwave cooking

This function is for cooking and heating food. Press Micro Power button, LED cycles to show 100P – 80P – 60P – 40P – 20P.

High power 100% microwave power. Applicable for quick and thorough cooking
Medium High power	80% microwave power. Applicable for medium express cooking
Medium power	60% microwave power. Applicable for steaming food
Medium Low power	40% microwave power. Applicable for defrosting food
Low power 20%	microwave power. Applicable for keeping warm

CAUTION:

• The max time which can be set is 60 minutes.
• Never use the grill rack during microwave cooking.
• Never operate the oven empty.
• If you turn the food during operation, press the Instant/Start button once and the preset cooking procedure will continue.
• If you intend to remove the food before the preset time, you must press Pause/Cancel button once to clear the preset procedure to avoid unintended operation of next time use.
• At the maximum microwave power, the oven will automatically lower the power after a certain time of cooking to lengthen the service life.

Example: To cook at P80 for 10 minutes.
	Steps Display
1	After power-up, the colon flashes :
2	Select the desired microwave power by pressing Micro Power button consecutively	80P
3	Set cooking time by turning Time/Weight knob.	10:00
4	Press Instant/Start button to start and LED will count down to show running time.

4.9 Grill and grill combination

This function use for grill food, press the button LED display will cycle to show G-C1-C2.

4 Operation

G Grill	the heat element will be energized during operation time. Which is applicable for rolling thin meats or pork, sausage, chicken wing as good brown color can be obtained
C1 Combination of grill and microwave cooking. 30% of time microwave output and 70% of time grilling
C2 Combination of grill and microwave cooking. 55% of time microwave output and 45% of time grilling

CAUTION: In the mode of grill/combi, all of the oven parts, as well as the rack and cooking containers, may become very hot. Use caution when removing any item from the oven. Use heavy potholders or oven mitts to prevent burns.

Example: To grill food with C2 cook menu for 10 minutes
	Steps Display
1	After power-up, the colon flashes :
2	Press Grill /Combi button to select desired grill menu	C.2
3	Set cooking time by turning the Time/ Weight knob	10:00
4	Press Instant/Start to start cooking

4.10 Defrost

This function is used for defrosting food. Press the Defrost/Clock button and the LED display will cycle to show d.1-d.2-d.3.

d.1 For defrosting meat, the weight range from 0.1 to 2.0 kg.

d.2 For defrosting poultry, the weight range from 0.2 to 3.0kg.

d.3 For defrosting seafood, the weight range from 0.1 to 0.9kg.

CAUTION:

- It is necessary to turn over the food during operation to obtain uniform effect.

• Usually defrosting will need longer time than that of co-oking the food.

- If the food can be cut by knife, the defrosting process can be considered completed.

- Microwave penetrates around 4cm into most food

- Defrosted food should be consumed as soon as possible, it is not advised to put back to fridge and freeze again.

Example: to set 12:30
	Steps Display
1	After power-up, the colon flashes :
2	Press Defrost/Clock once button to set the food kind.	d.2
3	Turn Time/Weight knob to set the defrost weight	0.4
4	Start cooking by pressing Instant/Start
5	In half way during defrosting 3 beep sound will be heard two times to prompt you turn over the food. Open the door and turn over the food. Then close the door. Press Instant/ start button again to continue defrosting

4.11 Auto cooking

The oven has default cooking menu for simple operation. When the LED flash colon, press the Auto Cooking button

4 Operation

and LED will cycle to show A.1-A.2 ... A.8 Choose the appropriate menu according to the food type and weight and strictly observe the directions in below table, otherwise the cooking effect will be largely influenced.

Display Kind Method
A.1 Popcorn Suitable		for popping a bag of corn, which is available in the mar- ket, weighted 0.1kg. Popcorn prior to completing, if the popping speed has been decreased to 1 time per 1-2 seconds you should press Pause/ Cancel button to stop the popping process.
A.2 Reheat This setting suitable for reheating 0.2~1.0kg, which lets you reheat a dinner plate of chilled leftovers with good results.
A.3 Beverage Heating		a cup of 250 or 500ml liquid. The liquid temperature is about 5-10°C. Use a big mouth cup and do not seal.
A.4 Pizza Warm 1 or 2 shares pizza.
A.5 Potato Cooking the potato strips, cut into 5mm width and height, length. Total weight is about 0.45 or 0.65kg. Place the strips on a large dish and cover the dish with a thin film to prevent water loss.
A.6 Frozen dinner		Suitable for cooking 1 or 2 shares frozen dinner.
A.7 Rice Suitable for cooking 0.1~0.5kg rice.
A.8 Vegetable		Suitable for cooking 0.1~0.5kg vegetable.

CAUTION:

- The temperature of food before cooking would be 20-25°C. Higher or lower temperature of the food before cooking would require increase or decrease of cooking time.

• The temperature, weight and shape of food will largely influence the cooking effect. If any deviation has been found to the factor noted on above menu, you can adjust the cooking time for best result.

Example: Cook 0.5 kg rice
	Steps Display
1	After power-up, the colon flashes :
2	Press Auto Cooking button to set the cooking menu	A.7
3	Set cooking weight by turning Time/Weight knob	0.5
4	Start cooking by pressing Instant/Start button and LED will count down to show running time.

4.12 Automatic starting (Delayed function)

if you do not want the menu be started immediately, you can preset the cooking menu and time and the preset menu will be automatically started at your set time. The setting will consist of 2 steps:

1. Setting the current clock;
2. Setting the cooking menu and time.

4 Operation

Example: Now it is 12:30 clock, if you hope that the microwave oven will automatically start cooking with 100P microwave power for 9 minutes and 30 seconds at 14:20
	Steps Display
1 After power-up, the colon flashes :
2 Hold Defrost/Clock button for 3 seconds 0:00
3 Set hours by turning Time/ Weight knob 12:00
1.3 Press Defrost/Clock button again to confirm hours 12:00
1.4 Set minutes by turning Time/ Weight knob 12:30
1.5 Press Defrost/Clock button once or waiting for 5 seconds, and the numbers will go steady.		12:30
2 Set the cooking menu and time
2.1 Select cooking power by pressing Micro Power button 100P
2.2 Turn Time/Weight button to set cooking time 9:30
2.3 Hold Defrost/Clock button for 3 seconds to return to current clock.
3 Set the time you expect to start. Repeat the steps of 1.2, 1.3, 1.4
4 Press Defrost/Clock button to confirm the delayed menu. Now the program has been activated. And the menu will be started at 14:20.
5 You may check the preset starting time by pressing Defrost/Clock button.

4.13 Multi-sequence cooking

To obtain best cooking result, some recipes call for different cook mode and time. You may program your personalized menu as follow:

Example: You want cook food with 100P microwave for 3 minutes then grill for 9 minutes. This is 2 sequence setting.
	Steps Display
1 100P microwave for 3min
1.1 Press Micro Power button to select power level. 100P
1.2 Turn Time/Weight knob to set cooking time. 3:00
2 Grill for 9min
2.1 Press Grill/combi button to select desired menu G
2.2 Turn Time/Weight knob to set cooking time. 9:00
3 Start cooking by pressing Instant/Start

4 Operation

CAUTION:

• When microwave 100 power cooking is finished, microwave oven will begin grilling operation automatically.
• Max. 4 sequences can be set per time, repeat the steps

4.14 Child lock function

Use this feature to lock the control panel when you are cleaning or so that children can not use the oven unsupervised. All the buttons are rendered inoperable in this mode.

Set lock: Hold Pause/Cancel button about 3 seconds

Cancel lock: Hold Pause/Cancel button about 3 seconds

It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. You can take the reference of below table.

Material of container	Microwave Grill	Combi	Notes
Heat-resistant ceramic	Yes Yes Yes	Never use the ceramics which are decorated with metal rim or glazed
Heat-resistant plastic	Yes	No	No	Can not be used for long time microwave cooking
Heat-resistant glass	Yes Yes Yes
Plastic film Yes No No	t should not be used when cooking meat or chops as the over temperature may do damage to the film
Grill rack	No	Yes	Yes	The grill rack can only be used in grill and combination mode.
Metal container	No	No	No	It should not be used in microwave oven. Microwave can not penetrate through metal.
lacquer	No	No	No	Poor heat-resistant. Can not be used for High-temperature cooking
Bamboo wood and paper	No	No No Poor heat-resistant. Can not be used for High-temperature cooking

4 Operation

4.16 Cooking tips

The following factors may affect the cooking result:

Food arrangement

Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible.

Cooking time length

Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may result in smoke and burns.

Cooking food evenly

Food such as chicken, hamburger or steak should be turned once during cooking.

Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking

Allow standing time

After cooking times out, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner. Whether the food is done

Color and hardness of food help to determine if it is done, these include:

• Steam coming out from all parts of food, not just the edge
• Joints of poultry can be moved easily
• Pork or poultry shows no signs of blood
• Fish is opaque and can be sliced easily with a fork

Browning dish

When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and rotating ring.

Microwave safe plastic wrap

When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt

Microwave safe plastic cookware

Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish instruction manual must not be exceeded

5 Cleaning and care

5.1 Cleaning and care

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

WARNING: Never immerse the appliance or its power cable in water or in any other liquid.

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Wait for the appliance to completely cool down.
3. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
4. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside thea oven, water should not be allowed to seep into the ventilation openings.
5. Wipe the both sides of the door and window, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
6. A steam cleaner is not be used.
7. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
8. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the

microwave oven is operated under high humidity condition. And it is normal.

1. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dish-washer.

2. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.

3. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.

4. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.

5. Please do not dispose this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.

6. When the microwave oven with grill function is first used, it may produce slight smoke and smell. This is a normal phenomenon because the oven is made of a steel plate coated with lubricating oil, and the new oven will produce fumes and odor generated by burning the lubricating oil. This phenomenon will disappear after a period of using.

5 Cleaning and care

5.2 Storage

• If you do not intend to use the appliance for a long time, please store it carefully.
• Please make sure that the appliance is unplugged, cooled down and totally dry.
• Store the appliance in a cool and dry place.
• Keep the appliance out of the reach of children.

5.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance will render it non-operational or cause permanent damage.

Comandi e parti

4.2 Před vařením

Sterowanie i części

Commandes et pièces
