Technical Features	Precision electronic scale
Maximum Capacity	105 kg
Accuracy	0.1 kg
Display	Backlit LCD screen
Power Supply	Batteries (included)
Dimensions	300 x 300 x 25 mm
Weight	1.5 kg
Usage	Ideal for home or professional use
Maintenance	Clean with a damp cloth, do not immerse in water
Safety	Do not exceed maximum capacity
General Information	2-year warranty, CE compliant

Frequently Asked Questions - VTBAL105 Perel

How to calibrate the Perel VTBAL105 scale?

To calibrate the scale, place it on a flat and stable surface. Turn on the scale and wait until it displays "0.00". If it does not, press the calibration button until the display returns to "0.00".

What to do if the scale does not turn on?

Check if the batteries are properly installed and if they need to be replaced. Also ensure the scale is placed on a flat surface.

How to change the measurement units on the scale?

To change the measurement units, press the "Units" button until the desired unit (kg, lb, oz) is displayed.

The scale shows an incorrect weight, what to do?

Check that the scale is on a flat and stable surface. Also ensure it is properly calibrated. If the problem persists, try resetting the scale by removing the batteries for a few minutes.

How to clean the Perel VTBAL105 scale?

Use a soft, damp cloth to clean the surface of the scale. Avoid using abrasive products or solvents that could damage the device.

The scale does not measure small quantities correctly, what to do?

Make sure the scale is properly calibrated. For small quantities, it is recommended to use a container to weigh objects for a more accurate measurement.

Does the Perel VTBAL105 scale have an automatic power-off function?

Yes, the scale has an automatic power-off function that activates after a few minutes of inactivity to save battery.

What is the maximum capacity of the scale?

The Perel VTBAL105 scale has a maximum capacity of 180 kg.

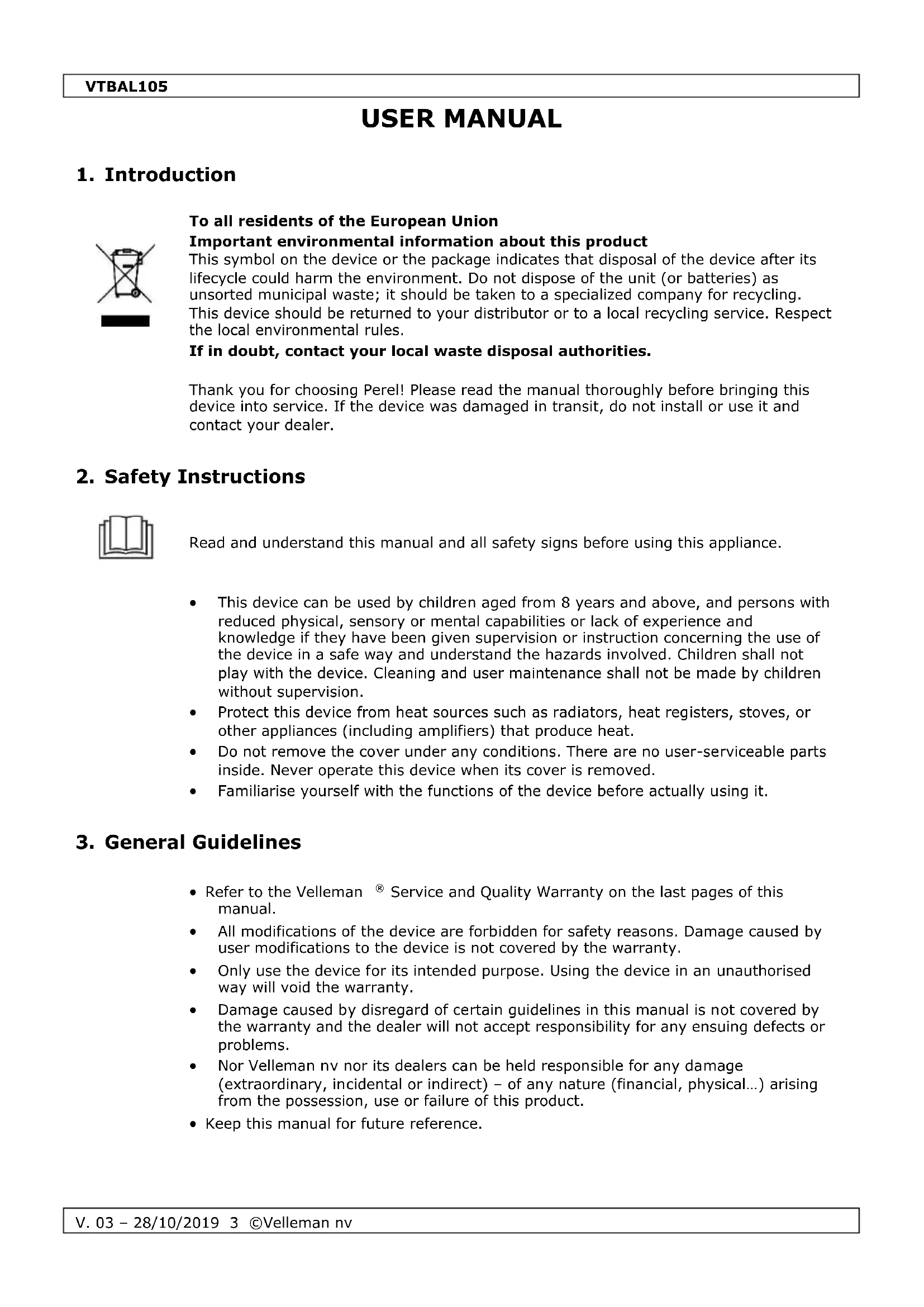

USER MANUAL VTBAL105 Perel

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
• Protect this device from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
• Do not remove the cover under any conditions. There are no user-serviceable parts inside. Never operate this device when its cover is removed.
  Familiarise yourself with the functions of the device before actually using it.

3. General Guidelines

Refer to the Velleman Service and Quality Warranty on the last pages of this manual.
- All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
- Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
- Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
- Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
- Keep this manual for future reference.

4. Batteries

WARNING

Do not puncture batteries or throw them in fire as they may explode. Do not attempt to recharge non-rechargeable batteries. Dispose of batteries in accordance with local regulations. Keep batteries away from children.

• Open the battery compartment and insert the batteries according to the correct polarity.
• Replace the batteries as soon as the display turns dark.
• Remove the batteries after use.

5. Description

Refer to the illustrations on page 2 of this manual.

General Description

1	LCD
2	on-off/tare

3

unit/hold

Display

○	tare weight
○	negative value
○	battery power

T	time display
ml	weighing unit
g	weighing unit

6. Operation

6.1 General Operation

1. Place the scale on a solid, level and non-slippery surface.
2. Switch on the scale. The scale is ready-to-use when the display shows 0.
3. Place the item to be weighed or the tare item in the middle of the weighing platform.
4. To tare an item, tap the tare button. Place the item to be weighed on the scale.
5. The weight is displayed.

6.2 Negative Value

The display shows a negative value if a (tare) weight has been removed from the scale. Press the on-off/zero/tare button to clear the display.

6.3 Time/Temperature Display

In the off status, the scale will display the time and indoor temperature.

VTBAL105

6.4 Setting the Time

In the off status, hold the time setting button pressed. Select the 12 h- or 24 h-mode with the arrows and confirm by pressing the time setting button. Next, set the time accordingly.

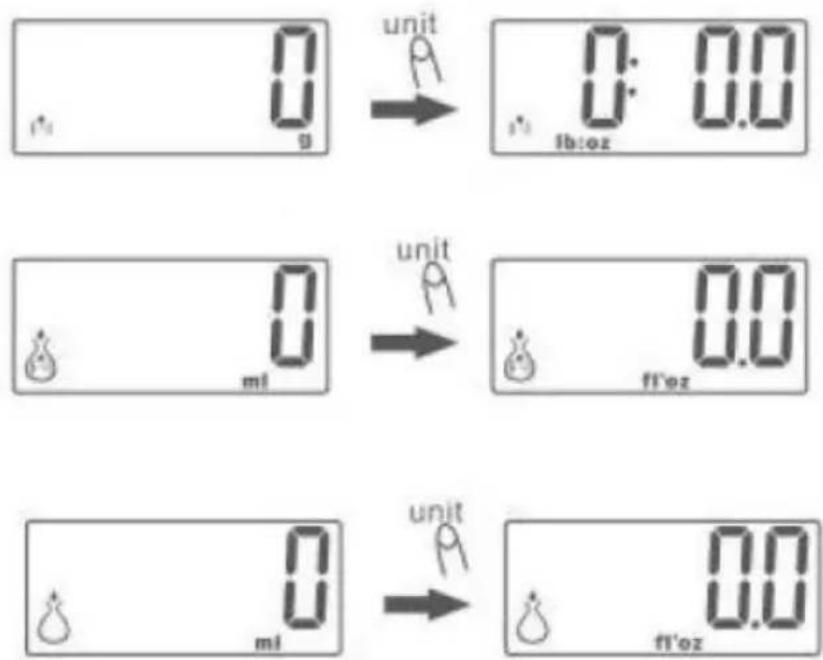

6.5 Unit Conversion

The scale features three weighing modes. Hold the unit button pressed for 3 seconds until the desired weighing unit is displayed.

regular weighing milk volume water volume

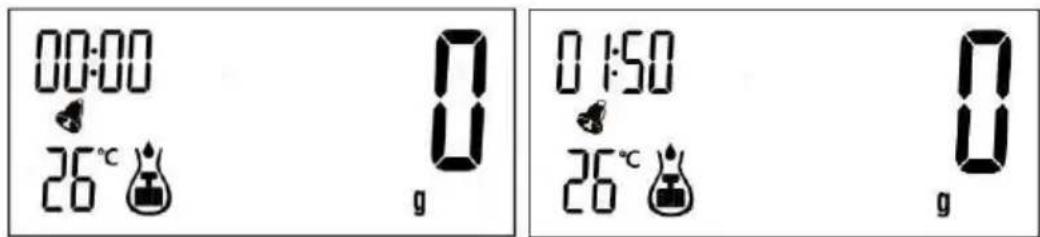

6.6 Countdown Function

In the on status, press the unit button to enter the countdown function. Select the minute/second digit with the time setting button and adjust with the arrows. Confirm with the time setting button. The countdown starts as soon as the timer is set and confirmed.

Once the countdown timer has reached 00:00, the alarm will sound. Press any button to switch off the alarm.

VTBAL105

6.7 Error Indications

Battery power running low.

Overloaded. Remove excess weight.

Unstable scale. Please re-position the scale.

7. Cleaning and Maintenance

• Occasionally wipe with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.
• Do not immerse the device in any liquid.

8. Technical Specifications

power supply 3 x 1.5 V AAA/R03 batteries (incl.)

material ABS

capacity 5 kg/11 lb.

graduation. 1 g/0.03 oz.

units. g/ml/lb./oz.

dimensions 160 x 160 x 130 mm

display 51 x 22.5 mm

weight 412g

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

graduation 1 g/0.03 oz

unites g/ml/lb./oz

dimensions 160 x 160 x 130 mm

afficheur 51x22.5mm

poids 412g

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits:

• consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

• flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....

• flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions:

• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

• damage resulting from an inappropriate packing and shipping of the article;

• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

• Repairs occurring after warranty expiration are subject to shipping costs

The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
