BBEK1130 - Deep fryer BRABANTIA - Free user manual and instructions

Product type	Deep fryer
Capacity	3.5 liters
Power	1800 W
Materials	Stainless steel
Adjustable temperature	Yes, up to 190b0C
Odor filter	Yes
Removable basket	Yes
Safety system	Overheat protection
Ease of cleaning	Dishwasher-safe parts
Dimensions	30 x 30 x 40 cm
Weight	3.5 kg
Warranty	2 years

Frequently Asked Questions - BBEK1130 BRABANTIA

How do I clean the BRABANTIA BBEK1130 deep fryer?

To clean the deep fryer, unplug it and let it cool completely. Remove the removable parts and wash them with warm soapy water. Wipe the outside of the appliance with a damp cloth.

How much oil should I use?

The maximum capacity of the BRABANTIA BBEK1130 deep fryer is 3 liters of oil. Do not exceed this amount to avoid overflow.

Why is my deep fryer not heating?

Check if the deep fryer is properly plugged in and the outlet is working. Also make sure the thermostat is set to the correct temperature.

Can I fry frozen foods in the deep fryer?

Yes, you can fry frozen foods, but make sure not to overload the deep fryer to avoid a drop in oil temperature.

How can I avoid oil splashes?

To reduce splashes, make sure the food is dry before placing it in the hot oil and use a lid if available.

Does the deep fryer have a safety feature?

Yes, the BRABANTIA BBEK1130 deep fryer is equipped with an overheat protection feature to prevent accidents.

How can I store the deep fryer when not in use?

Make sure the deep fryer is completely clean and dry. Store it in a cool, dry place away from moisture.

What type of oil is recommended for the deep fryer?

It is recommended to use oils suitable for high-temperature frying, such as sunflower oil, peanut oil, or rapeseed oil.

USER MANUAL BBEK1130 BRABANTIA

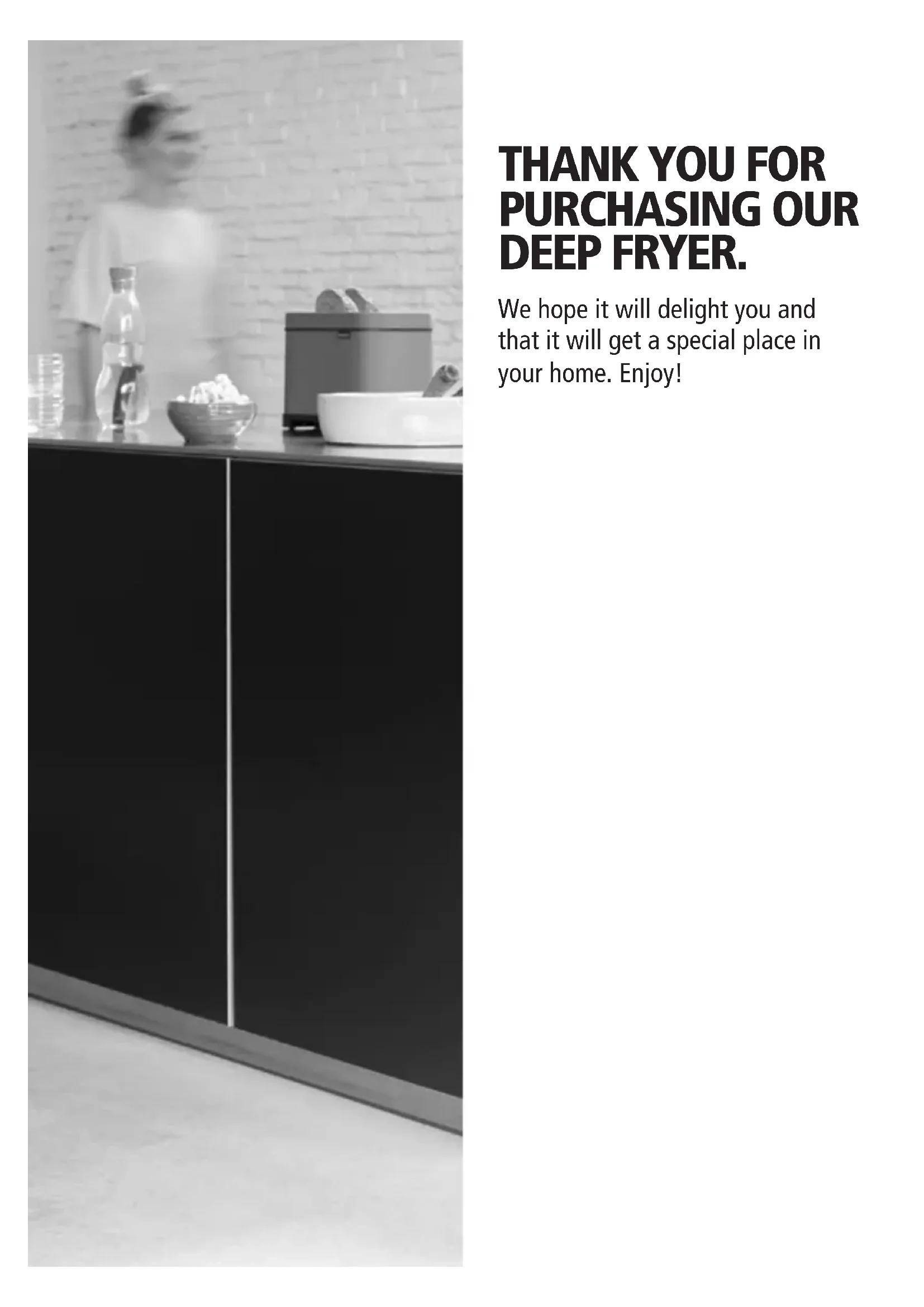

THANK YOU FOR PURCHASING OUR DEEP FRYER.

We hope it will delight you and that it will get a special place in your home. Enjoy!

EN

IMPORTANT SAFEGUARD

To get the most out of your new appliance, please read through these instructions carefully before using it for the first time. Take particular note of the safety precautions.

Please keep the instructions for future reference.

1. Use the appliance for its intended purpose only. The manufacturer is not responsible for any injury or damage resulting from incorrect use or handling.
2. Do not use any accessories other than those recommended by the manufacturer.
3. The appliance may only be connected to 220-240V, 50 / 60Hz
4. The appliance should not be switched on unless it is full of oil. Ensure that it is always filled with oil up to a level somewhere between the minimum and maximum level marks on the inside of the bowl.
5. Avoid using the appliance for too long in one go, as this can result in the oil overheating, causing a fire.
6. Never add water to the oil. This is extremely dangerous and may cause the oil to spit violently from the bowl!
7. Avoid contact with the hot oil.
8. Never leave the appliance unattended when in use or when it is hot, and keep an eye on children.
9. Touch only the black plastic handles; avoid touching the other surfaces, as the surfaces are liable to get hot during use.
10. Always set the temperature control to the lowest possible temperature and unplug the fryer as soon as you have finished cooking the food.
11. Wait until the appliance has cooled down completely before draining the oil out, moving or cleaning the fryer or putting it away.
12. Always use the carrying handles to move the appliance.
13. The appliance or the cord must not be immersed in water or any other liquid.
14. Never use the appliance with wet hands.
15. Make sure the appliance is always clean when it comes into contact with food.
16. This appliance is not suitable for commercial or outdoor use.
17. Only use the appliance in a dry and well ventilated room.
18. The appliance shall not be operated by means of an external timer, or a separate remote control system.
19. If the appliance cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
20. This appliance shall not be used by children under 8 years of age. This appliance can be used by children aged from 8 years and above if they are continuously supervised. This appliance can be used by people with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children.

1. Children should be supervised to ensure that they do not play with the appliance.

Positioning the appliance

1. Place the appliance on a flat, level and stable surface.
2. Always place the appliance at the back of a kitchen counter and at a safe distance from flammable objects such as curtains, cloths or similar.
3. Do not cover the appliance.
4. Do not allow the cord to hang over the edge of a table/ counter and keep it away from the hot surfaces of the fryer and other hot objects and naked flames.

Cord, plug and mains socket

1. Check regularly that the cord and plug are not damaged and do not use the appliance if this is the case, or if the appliance has been dropped or damaged in any other way. If the appliance, cord or plug is damaged, the appliance must be inspected and, if necessary, repaired by an authorized repair engineer, otherwise there is a risk of electric shock.
2. Never try to repair the appliance yourself.
3. Check that it is not possible to pull or trip over the appliance cord or any extension cable.
4. Remove the plug from the socket when cleaning, or when the appliance is not in use.
5. Avoid pulling the cord when removing the plug from the socket. Instead, hold the plug.
6. Do not roll the cord up or wind it around the appliance.

Important!

If a fire starts in the appliance, you must never try to put it out with water! Instead, close the lid and try to smother the flames with a damp cloth or wet towel.

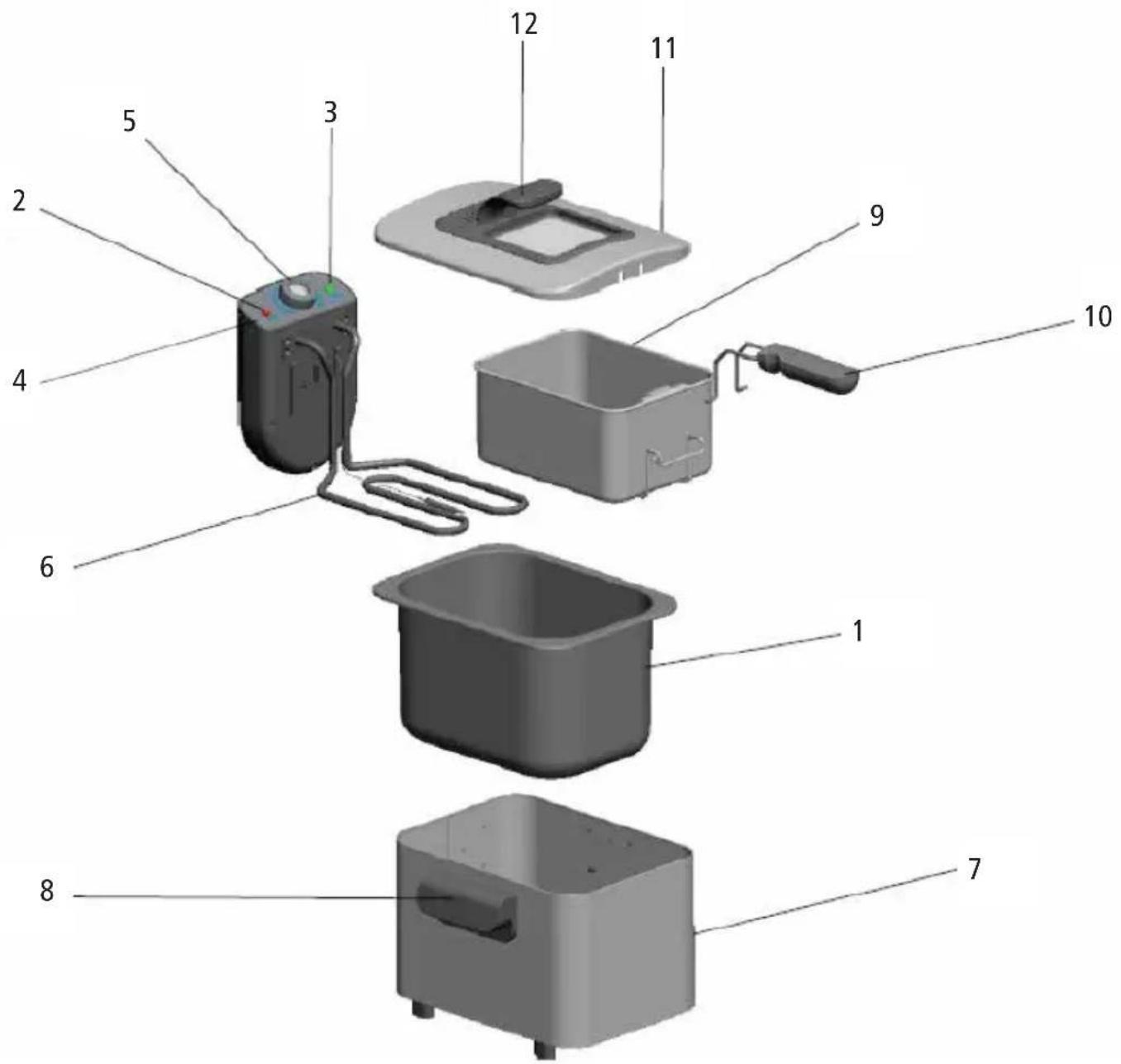

KNOW YOUR DEEP FRYER

1. Bowl
2. Power indicator
3. Heat indicator
4. Control panel with power cord
5. Temperature control knob

6. Heating element

7. Housing

8. Housing carrying handle
9. Basket
10. Basket handle
11. Lid
12. Lid handle

USING YOUR DEEP FRYER

Prior to first use

1. Read the safety instructions carefully.
2. Remove all packaging from the appliance and place it on a flat, stable surface, e.g. a kitchen counter, and at a safe distance from flammable objects.
3. Clean the lid (11), bowl (1), basket (9) and housing (7) using warm water and a little washing-up liquid and dry the parts carefully. The parts can also be washed in a dishwasher.
4. Fit the heating element and the control panel (6 and 4) in the bowl by inserting the pins on the inside of the plastic unit down into the grooves on the rear of the bowl. NOTE: Heating element must be pushed all the way down to activate safety switch. Otherwise unit may not be able to heat.

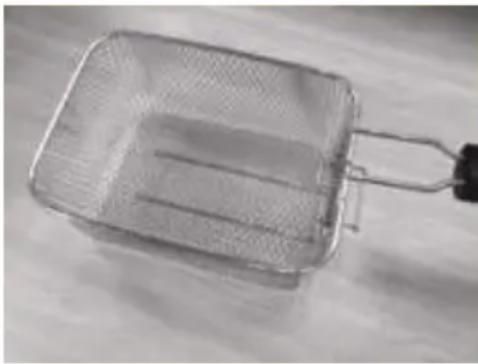

5. Fit the handle (10) on to the basket by clipping together the handle's two metal braces, inserting them into the brackets on the inside of the basket and tilting them in against the metal plate. Then loosen the knob on the metal braces, so they are firmly fixed in the bracket and the black plastic knob on the handle is at right angles to the basket. Check that the handle is fitted correctly before you use the basket.

Using your Deep Fryer

1. Check that the Deep Fryer is switched off.
2. Pour the required amount of oil into the bowl. Fill with oil to somewhere between the minimum and maximum level marks on the inside of the bowl. We recommend using liquid oil, which is recommended for deep fat frying.

Tip: You can use lard or other solid fats if you wish, but you will need to melt it first in the bowl. Set the temperature control to the lowest temperature and add the fat in small pieces. Only turn the temperature up to the desired level once the fat has melted.

1. Place the lid on the bowl.
2. Plug the fryer in and the red power indicator (2) will light up. Set it to the desired temperature by turning the temperature control (5). The green heat indicator (3) will light up and remains on while the Deep Fryer is heating up. Once the Deep Fryer has reached the selected temperature, the heat indicator (3) will go off. The heat indicator comes on and goes off during use, which merely indicates that it is

maintaining the selected temperature.

1. Do not add the food until the required temperature is reached.
2. Remove the lid from the Deep Fryer.
3. Place the food in the basket and lower it carefully into the bowl. Make sure the oil level does not rise to the edge of the bowl.
4. Always hold the basket handle firmly when fitting or removing the lid.
5. NOTE: Heating element must be pushed all the way down to activate safety switch. Otherwise unit may not be able to heat.

Important!

Be careful, as the oil may spit. Take care when removing the lid, as hot steam may be released.

There is a non-auto resetting thermostat built into the product. If the Deep Fryer has been in use for a prolonged time, the built-in non-auto resetting thermostat will activate and cut off the current to protect the appliance from overheating.

To enable the Deep Fryer to function normally again, turn the temperature control knob anti clockwise to reset the thermostat after the heating element has cooled down.

FOOD PREPARATION TIPS

Before lowering the basket

1. Always make sure that the food is dry before lowering it into the hot oil.
2. Ensure that the food is roughly the same size so that it cooks evenly. Avoid very thick pieces.
3. Some types of food should be breaded before being cooked in the Deep Fryer.
4. Make sure you remove as much ice as possible from frozen food. However, it does not need to be defrosted before cooking.
5. Do not fill the basket above the max mark on the metal plate under the handle.

Important!

The handle may be very hot after any prolonged period of use.

Cooking tips

Below is a guide to cooking temperatures and times for various foods. Cooking results may vary, so you will need to adjust these times to your individual requirements.

	Temperature	Time
Breaded fish fillets	170°C	5-6 mins
Large prawns	170°C	3-5 mins
Chicken breasts	175°C	3-4 mins
Breaded chicken fillets	170°C	12-15 mins
Onion rings	180°C	3 mins
Battered broccoli	185°C	2-3 mins
French fries (1st stage)	160°C	8-10 mins
French fries (2nd stage)	190°C	3-4 mins

After cooking

1. Lift the basket up out of the bowl and tilt it so that it rests on the edge of the bowl.
2. Allow the oil to drip from the food before removing the basket.
3. Set the temperature control to the lowest possible temperature by turning it to the left as far as possible.
4. Remove the plug from the socket.
5. Allow the appliance to cool completely (1-2 hours).

Important!

You must never move the appliance while it is hot, when there is oil in it, or if the lid has not been fitted.

HANDLING AND STORING THE OIL

1. Make sure all oil is only handled once it is completely cool.
2. Remove any food residues from the oil after use.
3. Filter the oil regularly.
4. The oil should be changed once it has been used approximately 10 times. All the oil should be changed at the same time; do not mix old and new oil. The old oil should be disposed of as per the relevant local regulations.
5. Keep the oil in the Deep Fryer or in an airtight container in a dry, cool and dark place. (It is not necessary to keep the oil in a fridge).

CLEANING

1. The heating element with control panel and cord must not be immersed in water. Remove the control panel and heating element before cleaning the appliance.
2. Once you have poured the oil out of the bowl, wipe the inside of the bowl with kitchen paper. Then wash the bowl thoroughly.
3. The housing, ceramic bowl, lid and basket with handle can be washed in hot water and washing-up liquid or in a dishwasher.
4. Do not use any kind of strong or abrasive cleaning agent on the Deep Fryer or its accessories. Never use a steel brush or scrubbing brush to clean the appliance, as this may damage the surface.

STORAGE

1. Wait until the appliance is completely cool before putting it away.
2. The bowl is best stored with a little oil in it. If you do this, you should check that the lid is closed properly so that no dust or dirt can get into the oil.

SPECIFICATIONS

Rated voltage/ Frequency: 220-240V~50/60Hz

Rated power: 2200W

Important!

This appliance must be earthed. The wires in the cord set are coloured as follows: Blue - Neutral, Brown - Live, Green & Yellow - Earth (For detachable plug only)

If the colours of the wires in the mains lead of this appliance do not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire that is coloured green & yellow must be connected to the terminal in the plug that is marked with the letter E or by the earth symbol, or coloured green & yellow. The wire that is coloured blue must be connected to the terminal that is marked with the letter N or coloured black.

The wire that is coloured brown must be connected to the terminal that is marked with the letter L or coloured red.

ENVIRONMENT FRIENDLY DISPOSAL

This marking indicates that this product should not be disposed of with other household waste. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the

sustainable re-use of material resources. To dispose of your appliance correctly, please contact or take it to your local refuse/recycling centre. Alternatively, contact your local council for information on your local re-use centre.

WARRANTY

THE WARRANTY WILL ONLY BE VALID IF THE PRODUCT IS RETURNED WITH A PROOF OF PURCHASE TILL SLIP AND ORIGINAL PACKAGING.

Warranty exclusions:

The warranty will not be valid if:

1. The product has not been installed, operated or maintained in accordance with the manufacturer's operating instructions provided with the product.
2. The product has been used for any purpose other than its intended function.

3. The damage or malfunction of the product is caused by any of the following:

4. Incorrect voltage

5. Accidents (including liquid or moisture damage)
6. Misuse or abuse of the product
7. Faulty or improper installation
8. Mains supply problems, including power spikes or lightning damage
9. Infestation by insects
10. Tampering or modification of the product by persons other than authorised service personnel
11. Exposure to abnormally corrosive materials
12. Insertion of foreign objects into the unit
13. Usage with accessories not pre-approved by Brabantia
14. General wear and tear, including, but not limited to, minor discolouration and scratches

Please refer to and heed all warnings and precautions in this Instruction Manual.

Due to continuous product development, specifications may be subject to change without prior notification.

NL

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

EXCLUSIONS DE GARANTIE

LA GARANTIE N'EST VALIDE QUE SI LE PRODUIT EST RETOURNÉ AVEC LE JUSTIFICATIF D'ACHAT, LE BON DE LIVRAISON ET SON EMBALLAGE ORIGINAL.

Should you experience any technical difficulty in setting up or using your new product, please feel free to contact our dedicated customer service help desk.

For customers from Netherlands and Belgium please contact Elmarc B.V.

Elmarc B.V.

Manufactured by Rank Sharp Industries under exclusive licence of Brabantia Nederland B.V.

Rank Sharp Industries, 11th Floor, SML Tower, 165 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong

PRODUCT INFORMATION

BBEK1030 DEEP FRYER
