14121605L - Lighting Livarno Lux - Free user manual and instructions

Technical Features	Details
Product Type	Uncategorized
Energy Consumption	Not specified
Dimensions	Not specified
Weight	Not specified
Materials	Not specified
Usage	Not specified
Maintenance	Not specified
Safety	Not specified
General Information	Not specified

Frequently Asked Questions - 14121605L Livarno Lux

How to assemble the Livarno Lux 14121605L product?

Please refer to the assembly guide provided in the packaging or download the manual from our website.

What to do if the product does not turn on?

Check that the product is properly plugged in and that the outlet is working. Also, make sure the switch is in the \"ON\" position.

How to replace a bulb of the Livarno Lux 14121605L?

Unplug the product, remove the defective bulb by turning it counterclockwise, then insert the new bulb by turning it clockwise.

The product makes a strange noise, what should I do?

Immediately unplug the product and contact our customer service for assistance.

Is the product waterproof?

Please check the technical specifications in the user manual. The Livarno Lux 14121605L is designed for indoor use unless otherwise specified.

How to clean the Livarno Lux 14121605L?

Use a soft, dry cloth to clean the surface. Avoid harsh chemicals that could damage the product.

Where can I buy spare parts?

Spare parts can be ordered on our website or by contacting our customer service.

Is the product under warranty?

Yes, the Livarno Lux 14121605L is covered by a 2-year warranty against manufacturing defects. Keep your receipt for any claims.

USER MANUAL 14121605L Livarno Lux

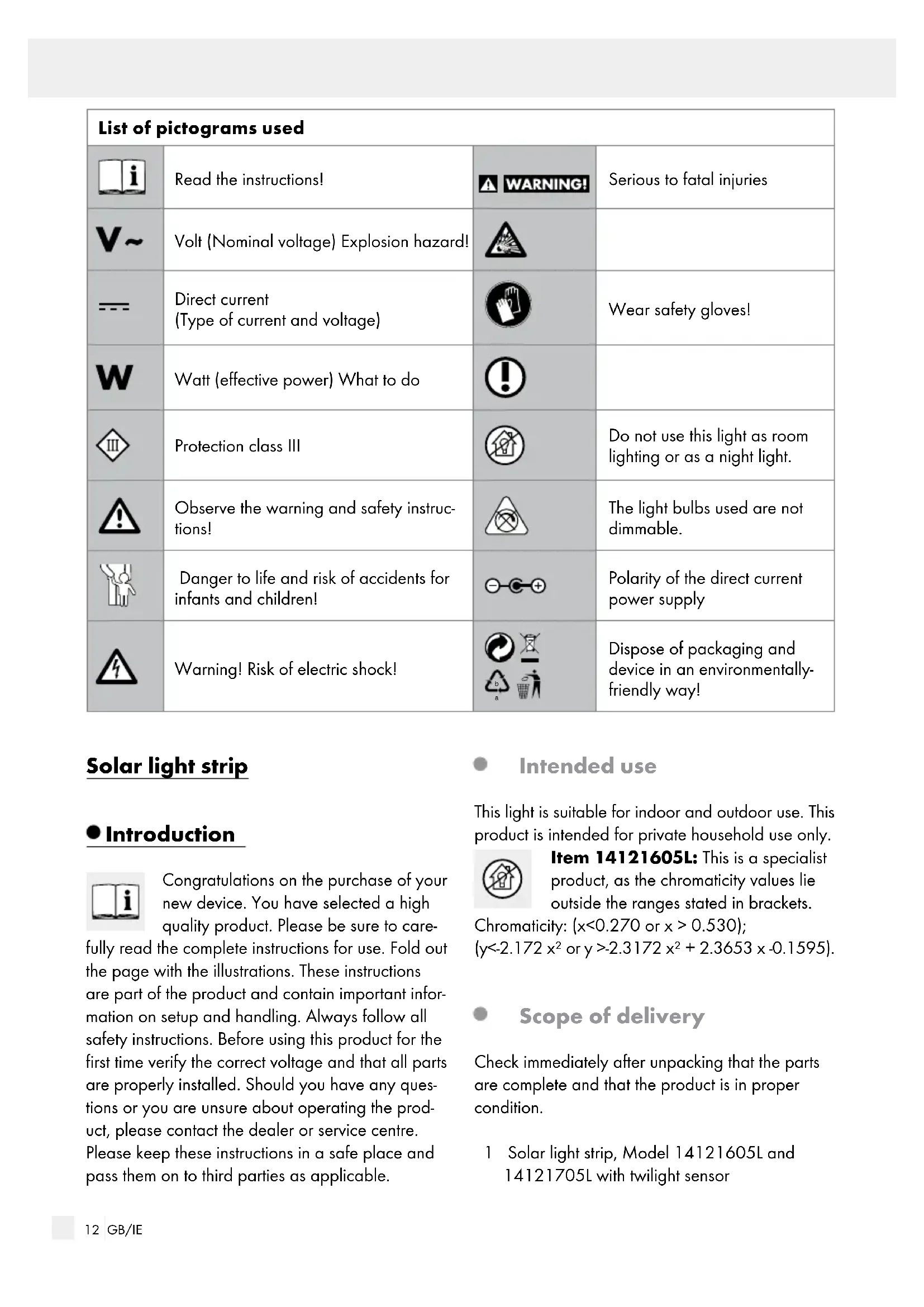

Operation and Safety Notes

Dispose of packaging and device in an environmentally- friendly way! Solar light strip Introduction Congratulations on the purchase of your new device. You have selected a high quality product. Please be sure to care- fully read the complete instructions for use. Fold out the page with the illustrations. These instructions are part of the product and contain important infor- mation on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. Should you have any ques- tions or you are unsure about operating the prod- uct, please contact the dealer or service centre. Please keep these instructions in a safe place and pass them on to third parties as applicable. Intended use This light is suitable for indoor and outdoor use. This product is intended for private household use only. Item 14121605L: This is a specialist product, as the chromaticity values lie outside the ranges stated in brackets. Chromaticity: (x<0.270 or x > 0.530); (y<-2.172 x² or y >-2.3172 x² + 2.3653 x -0.1595). Scope of delivery Check immediately after unpacking that the parts are complete and that the product is in proper condition. 1 Solar light strip, Model 14121605L and 14121705L with twilight sensor13 GB/IE Introduction / Safety 1 Solar panel 4 Silicone rings 1 Tube 1 Ground stake 1 Instructions for use Parts Description

Silicone rings Technical Data Item no.: 14121605L and 14121705L Operating voltage: SELV 3.2 V LED max. 0.2 W Bulbs: 90 x LED (each 30 x green, blue, pink) (14121605L) LEDs not replaceable 180 x white LED (14121705L) LEDs not replaceable Length: 3 m Protection class: III / Solar Panel: IP44 LED connector to LED strip: IP65 Output current solar panel: 30–40 mA Safety Safety instructions Damage due to failure to comply with these instruc- tions for use will void the warranty! We assume no liability for consequential damages! We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety instructions! This rope light must not be used without all gaskets being in place. Not suitable as room lighting. Outdoor light, LED lamp is suitable for extreme temperatures below -20 °C.

AND SMALL CHILDREN! Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children often underestimate dangers. Please always keep the product out of the reach of children. This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the as- sociated risks. Do not allow children to play with the product. Cleaning and user maintenance must not be performed by children without supervision. ATTENTION! Do not look into the LED from up close whilst in use. Do not look at the LED with an optical instru- ment (e.g. magnifier). Do not operate the tape light whilst rolled up or in the packaging. Never connect the LED tape with other LED tapes. The LEDs are non-replaceable. If the LEDs cease to function at the end of their operational life, the entire item must be replaced. Avoid the risk of fatal injury due to electric shock Check the LED tape light for damage before every use. Never use the LED tape light if any damage is detected. Introduction14 GB/IE Start-up / Maintenance and Cleaning / Disposal / InformationSafety / Start-up In the case of damage, repairs or other problems related to the LED strip, please contact the ser- vice centre or a qualified electrician. Never open any of the components of the elec- trical equipment or insert any objects into them. This poses a risk of fatal injury due to electric shock. Protect the product from sharp edges, mechanical loads and hot surfaces. Do not secure with sharp staples or nails. Never touch the plug or the LED strip with wet hands. To prevent hazards, a damaged lead must be replaced by the manufacturer or a professional. When installing on outdoor flooring, protect the supply cable from damage (passing over, etc.). Prevent fire and injury hazards This product does not contain any parts which can be serviced by the user. The LEDs cannot be replaced. Safety instructions for batteries / rechargeable batteries DANGER TO LIFE! Keep batteries / rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention. DANGER OF EXPLOSION! Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or burst- ing can be the result. Never throw batteries / rechargeable batteries into fire or water. Do not exert mechanical loads to batteries / rechargeable batteries. Risk of leakage of batteries / rechargeable batteries Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight. Avoid contact with the skin, eyes and mucous membranes. In the event of contact with battery acid, thoroughly flush the affected area with plenty of clean water and seek immediate medical attention. WEAR PROTECTIVE GLOVES! Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs. This product features a built-in rechargeable battery which cannot be replaced by the user. Safe working Do not leave the LED tape light or packaging material lying about carelessly. The packaging material presents a suffocation hazard and there is a danger to life due to strangulation. Install the light so that it is protected from dirt and excessive heating. Always be attentive! Always pay attention to what you are doing and use common sense. Never use the LED tape light if you are having difficulty concentrating or do not feel well. Before use, familiarise yourself with all the in- structions and diagrams in these instructions, as well as with the LED tape light itself. Start-up Installing the LED tape light Note: Ensure that the installation area is clean, grease-free and dry. Otherwise the functionality of the adhesive strip may be impaired.15 GB/IE Start-up / Maintenance and Cleaning / Disposal / Information Choose a suitable installation area (window etc.). Remove the protective foil from the reverse side of the LED strip

with the adhesive strip onto the installation area and press it on firmly. Mount the solar panel

and the ground stake

. Mount the plug-in con- nector

with the earth stake

into the ground. Your light is now ready to use. Alternatively, secure the LED strip

Switching the LED strip on / off Note: The LED strip is only switchable when the light has been switched on by the twilight sensor. Press the power switch

to switch on the LED strip

By pressing the power switch

you can choose between 7 effects or continuous lighting. The solar module takes approx. 3–4 hours to charge. When fully charged, the lighting time is 10–12 hours. The solar panel

contains a twilight sensor which automatically switches the light on and off again. To switch it off, hold the power switch

until the LED strip switches off. Maintenance and Cleaning

from the mains before performing any work. Disconnect the plug-in con- nector

Do not use solvents, petrol or similar substances, as they would damage the light. Use a dry, lint-free cloth to clean the LED tap light

Disposal The packaging is made entirely of recy- clable materials, which you may dispose of at local recycling facilities.
