HD6360 Manuel d'Instruction Instruction Manual Manual de Instruccionesl This household sewing machine is designed to comply with IEC/EN 60335-2-28 and UL1594. When using an electrical appliance, basic safety precautions should always be followed, including the following: Read all instructions before using this household sewing machine. Keep the instructions in a suitable place close to the machine. Make sure to hand them over if the machine is given to a third party. - A sewing machine should never be left unattended when plugged in. Always unplug this sewing machine from the electric outlet immediately after using and before cleaning, removing covers,lubricating or when making any other user servicing adjustments mentioned in the instructionmanual. - Do not allow to be used as a toy. Close attention is necessary when this sewing machine is used by or near children. - Use this sewing machine only for its intended use as described in this manual. Use only attachments recommended by the manufacturer as contained in this manual. - Never operate this sewing machine if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the sewing machine to the

To reduce the risk of electric shock : To reduce the risk of burns, fire, electric shock, or injury to person :

IMPORTANT SAFETY INSTRUCTIONS

ENnearest authorized dealer or service center for examination, repair, electrical or mechanical adjustment. - Never operate the sewing machine with any air openings blocked. Keep ventilation openings of the sewing machine and foot control free from the accumulation of lint, dust, and loose cloth. - Keep fingers away from all moving parts. Special care is required around the sewing machine needle. - Always use the proper needle plate. The wrong plate can cause the needle to break. - Do not use bent needles. - Do not pull or push fabric while stitching. It may deflect the needle causing it to break. - Wear safety glasses. - Switch the sewing machine off (" ") when making any adjustment in the needle area, such as threading needle, changing needle, threading bobbin, or changing presser foot, etc. - Never drop or insert any object into any opening. - Do not use outdoors. - Do not operate where aerosol (spray) products are being used or where oxygen is being administrated. - To disconnect, turn all controls to the off (" ") position, then remove plug from outlet. - Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. - The foot control is used to operate the machine. Avoid placing other objects on the foot control. - Do not use the machine if it is wet. - If the LED lamp is damaged or broken, it must be replaced by the manufacturer or its service agent or a similarly qualified person, in order to avoid a hazard. - If the supply cord connected with the foot control is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person, in order to avoid a hazard. - This sewing machine is provided with double insulation. Use only identical replacement parts. See instructions for Servicing of Double-Insulated Appliances.

For Europe only For outside Europe :

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. The noise level under normal operating conditions is less than 75dB(A). The machine must only be used with foot control of type manufactured by ZHEJIANG FOUNDER MOTOR CORPORATION LTD. (China) / 4C-316Q manufactured by Wakaho Electric Ind. Co., Ltd. (Vietnam) This sewing machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the sewing machine by a person responsible for their safety. Children should be supervised to ensure that they do not play with the sewing machine. The noise level under normal operating conditions is less than 75dB(A). The machine must only be used with foot control of type manufactured by ZHEJIANG FOUNDER MOTOR CORPORATION LTD. (China) / 4C-316Q manufactured by Wakaho Electric Ind. Co., Ltd. (Vietnam) FC-1902A (110-120V area) / FC-2902A, FC-2902D (220-240V area) (110-125V area) FC-1902A (110-120V area) / FC-2902A, FC-2902D (220-240V area) (110-125V area)

IIISERVICING OF DOUBLE INSULATED PRODUCTS

the owner of a new Singer sewing machine, you are about to begin an exciting adventure in creativity. From the moment you first use your machine, you will know you are sewing on one of the easiest to use sewing machines ever made. May we recommend that, before you start to use your sewing machine, you discover the many features and the ease of operation by going through this instruction book, step by step, seated at your machine. To ensure that you are always provided with the most modern sewing capabilities, the manufacturer reserves the right to change the appearance, design or accessories of this sewing machine when considered necessary. SINGER is the exclusive trademark of The Singer Company Limited S.à.r.l. or its Affiliates. ©2019 The Singer Company Limited S.à.r.l. or its Affiliates. All rights reserved.

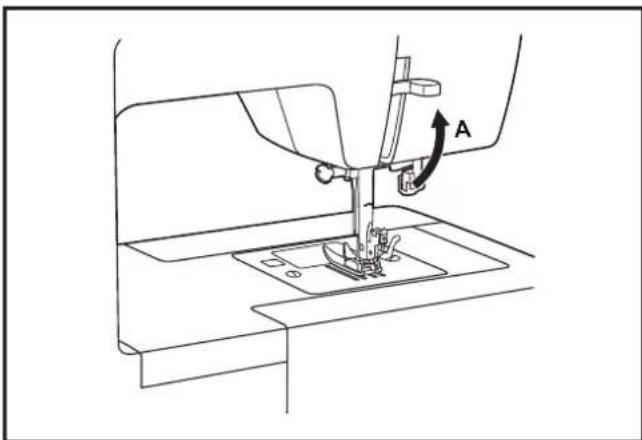

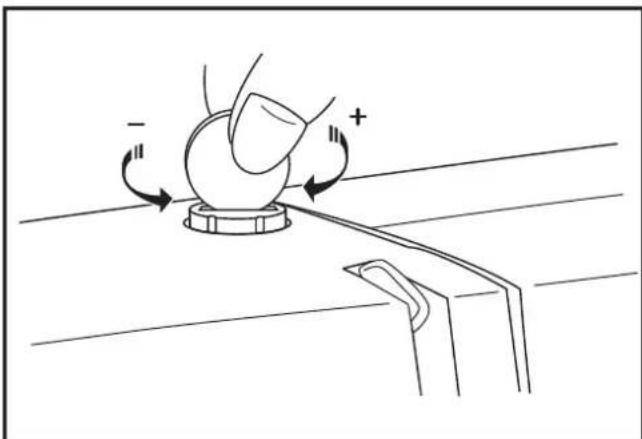

2. Presser foot pressure adjustment

3. Thread take-up lever

7. Needle plate cover

8. Removable extension table/ accessory storage

9. Three needle position dial

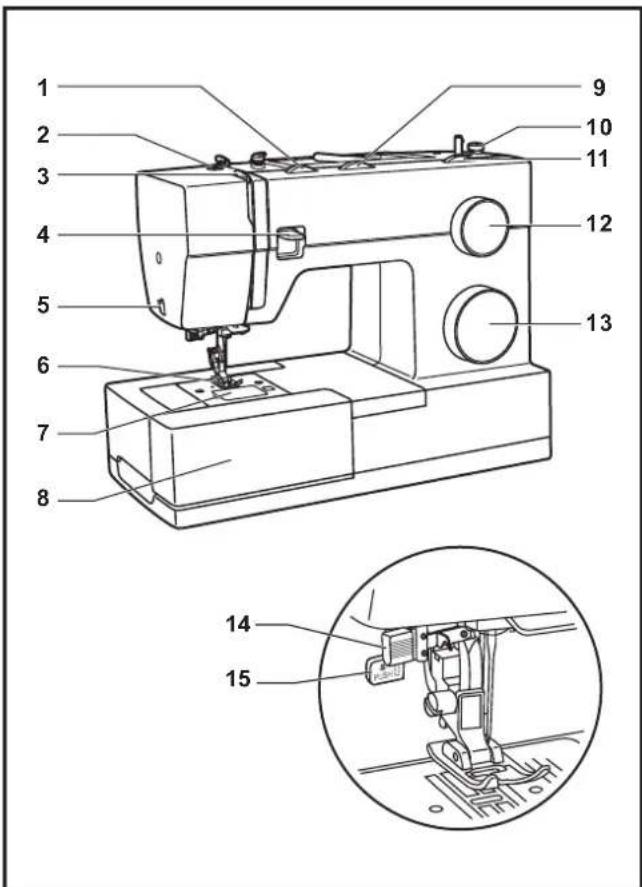

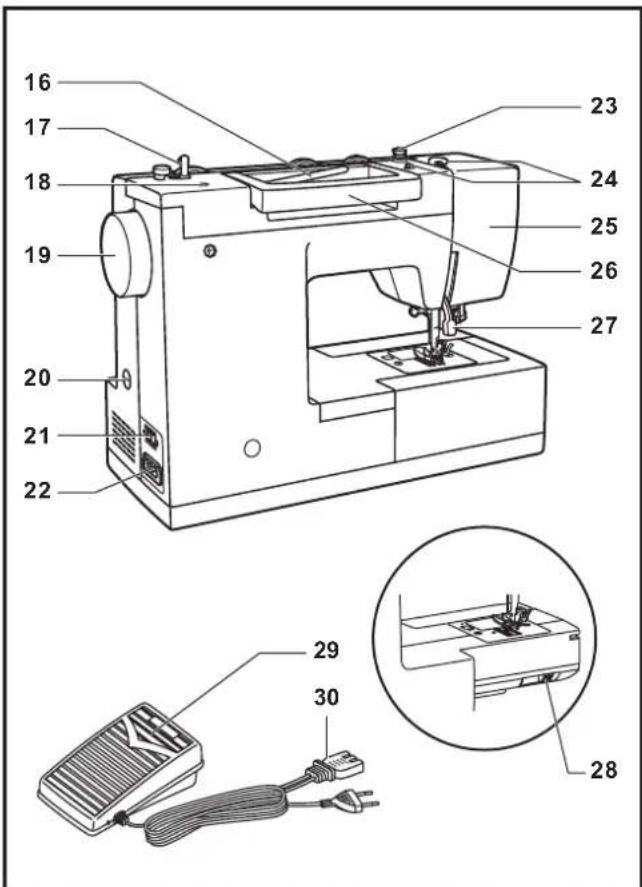

Principal Parts of the Machine

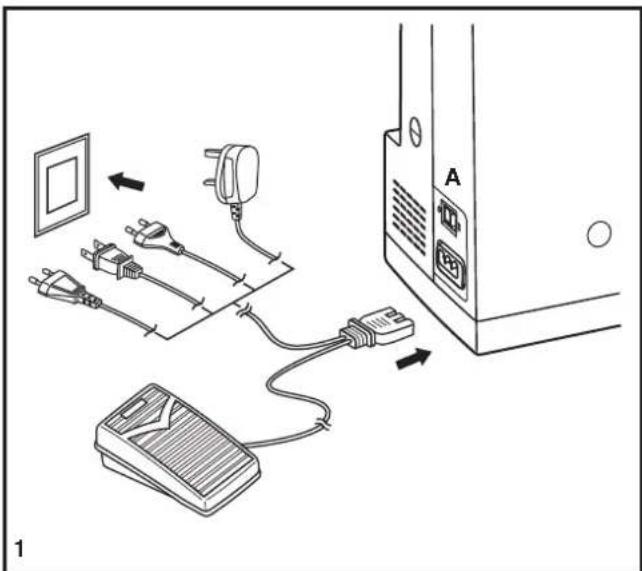

Connecting Machine to Power Source

Connect the machine to a power source as illustrated. (1) This appliance is equipped with a polarized plug which must be used with the appropriate polarized outlet. (2) Unplug power cord when machine is not in use. The foot control pedal regulates the sewing speed. (3) Consult a qualified electrician if in doubt of how to connect machine to power source. Unplug power cord when machine is not in use. Press main switch (A) to"l"forpower and light. For appliance with a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If it does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not modify the plug in any way. Attention: Foot control Attention: Sewing light IMPORTANT NOTICE a. Polarized attachment plug b. Conductor intended to be groundedE F Conexión de la máquina a la fuente de alimentación eléctrica Branchement de la machine une source d'alimentation

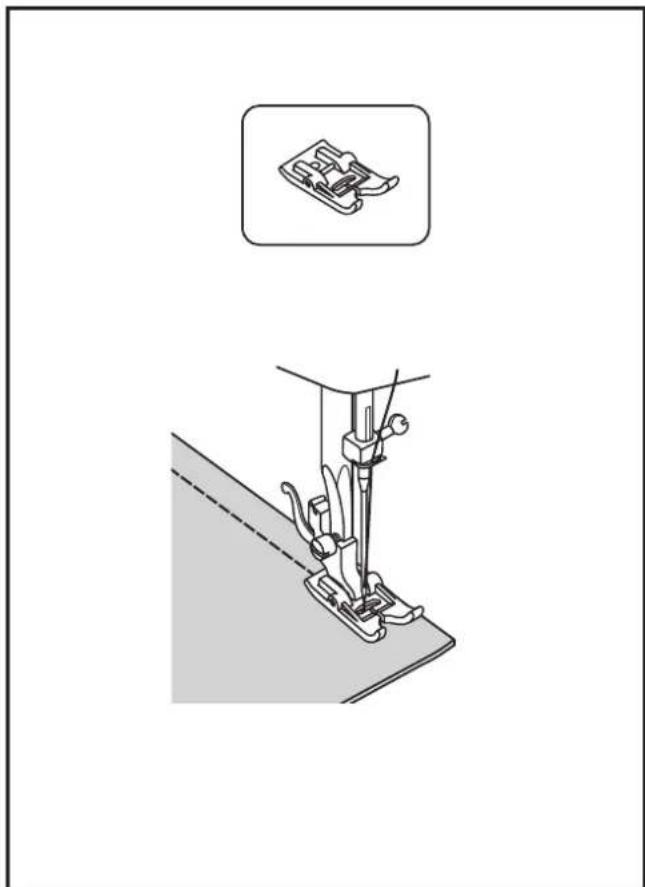

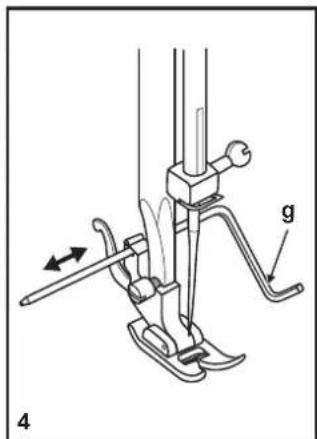

w. Quilting / straight stitch foot

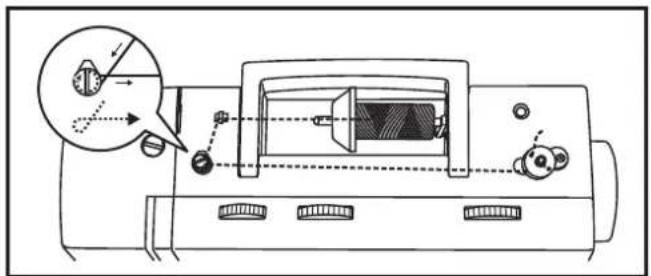

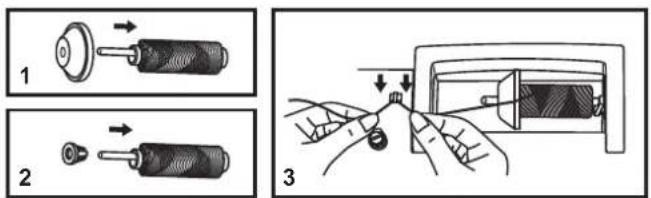

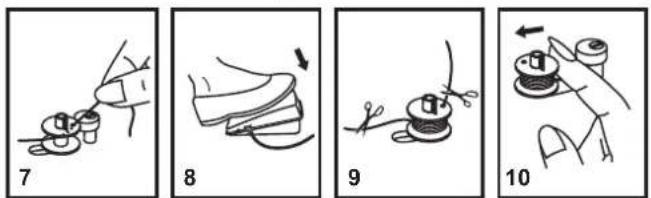

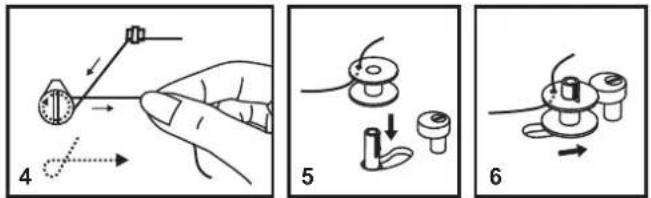

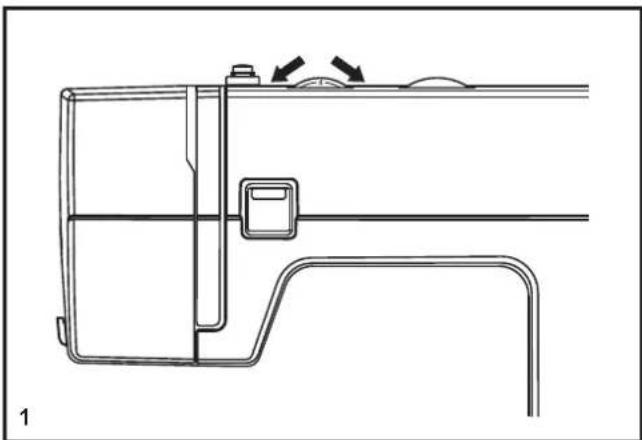

• Table de Rallonge (non illustrés)- Place thread and corresponding spool holder on to spool pin. (1/2) - Snap thread into thread guide. (3) - Wind thread clockwise around bobbin winder tension discs. (4) - Thread bobbin as illustrated and place on spindle. (5) - Push bobbin spindle to right. (6) - Hold thread end securily. (7) - Step on foot control pedal. (8) - Trim thread close to the bobbin & then continue winding until bobbin is full. (9) - Cut thread, push bobbin spindle to left (10) and remove. When the bobbin winder spindle is in "bobbin winding" position, the machine will not sew and the . To start sewing, push the bobbin winder spindle to the left (sewing position). Please Note: handwheel turn

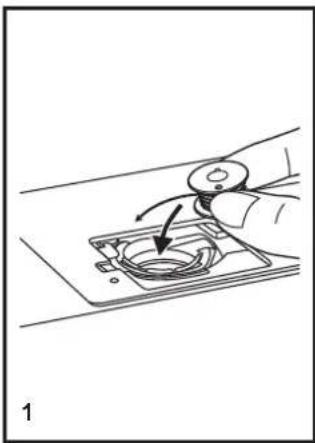

When inserting or removing the bobbin, raise the presser foot & make sure the needle is fully raised. Attention:

1. Remove the bobbin cover plate by pushing the small tab

to the right of the cover towards the right.

2. Insert the bobbin in the bobbin case with the thread

running counterclockwise direction (arrow).

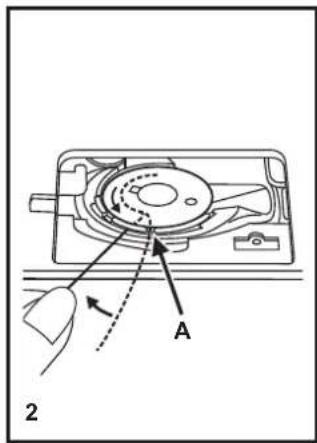

3. Pull the thread through the slit (A).

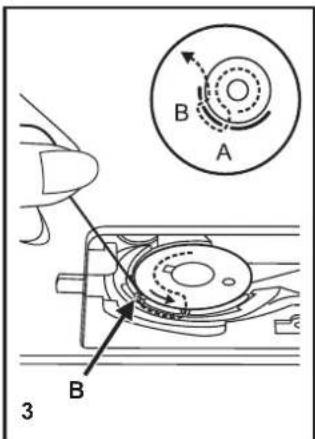

4. Draw the thread clockwise until it slips into the notch (B),

while holding the bobbin down with the tip of your finger.

5. Pull out about 15 cm (6 inches) of thread towards the

back of the plate and attach the bobbin cover plate. (C) Turn power switch to off ("O") before inserting or removing the bobbin.E

la parte de atrás de la placa y únalo a la placa cubre- bobina. (C) Gire el interruptor principal a la posición "O" antes de insertar o retirar la canilla.This is a simple operation but it is important to carry out correctly as by not doing so . - Start by raising the needle to its highest point (1), and continue turning the handwheel* counterclockwise until the needle just slightly begins to descend. You must raise the presser foot to release the tension discs. For safety, it is strongly suggested you turn off the power before threading. - Lift up the spool pin. Place the spool of thread on the holder with the thread coming off the spool from the back as shown and place appropriate spool holder next to the spool. For small thread spools, place small side of spool holder next to spool. (2) - Draw thread from spool through the upper thread guide (3) and pulling thread through pre-tension spring as illustrated. (4) - Thread tension module by leading thread down right channel. (5) During this process it is helpful to hold the thread between the spool and thread guide, as this will help to seat the thread between the tension discs. - At the top of this movement pass thread from right to left through the slotted eye of the take-up lever and then downwards again. (6) - Now pass the thread behind the horizontal thread guide, and then behind the thin wire needle clamp guide (7) and then down to the needle which should be threaded from front to back. - Pull about 6 - 8 inches of thread under the presser foot to the rear beyond the needle eye. Trim thread to length with built-in thread cutter. (8)

• Never turn the handwheel away from you as this may cause the timing to be disrupted. Always turn the handwheel counterclockwise (towards you). several sewing problems could result Note:

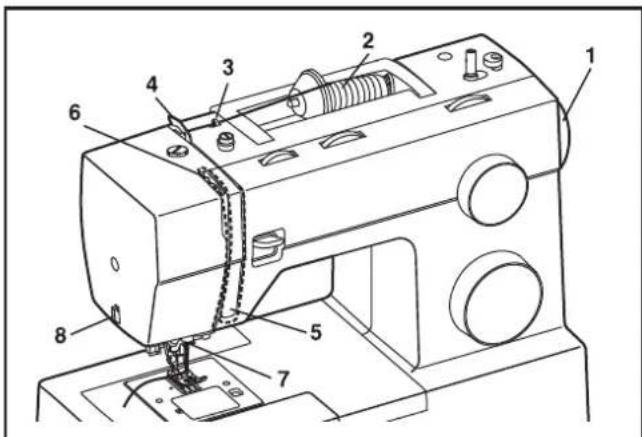

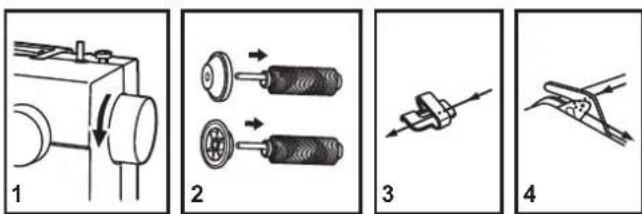

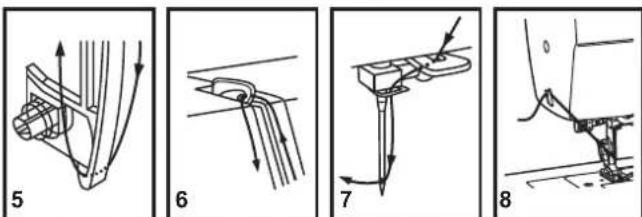

Threading the Upper Thread

17- Thread upper tension of machine up to the thin wire in front

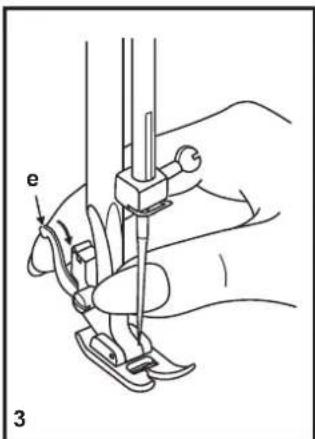

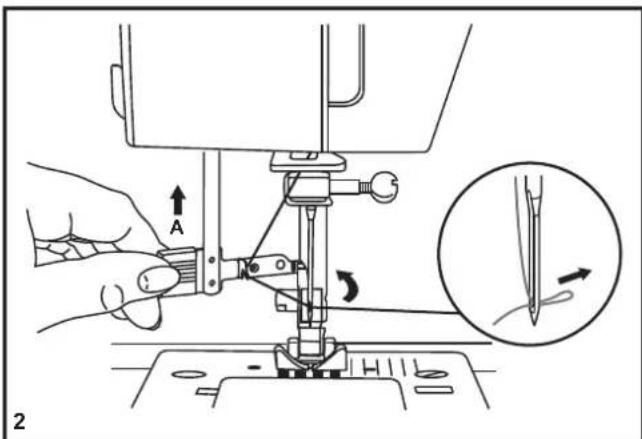

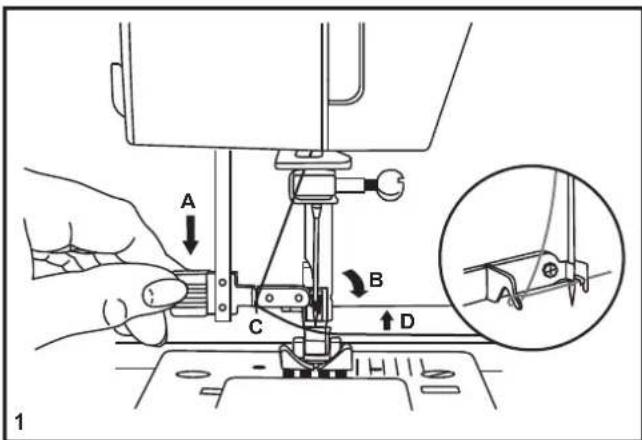

of the needle clamp. - Raise the needle to its highest position. - Set machine to straight stitch. - Press lever (A) down as far as it will go, and gently insert the hook of the threader into the eye of the needle by swinging the lever towards you when it is fully lowered. - The threader automtically swings to the threading position (B). - Pass thread under thread guide (C), from left to right. - Pass the thread in front of the needle around the hook (D) from bottom to top. - Release lever (A), by swinging it away from you & then pushing it back up to the resting position. - Pull the thread through the needle eye. Turn power switch to off ("O")! Attention: Automatic Needle Threader

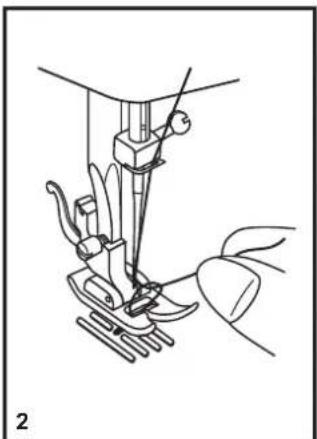

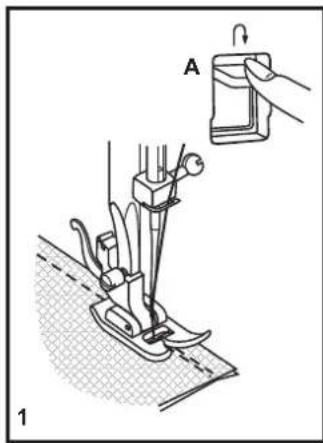

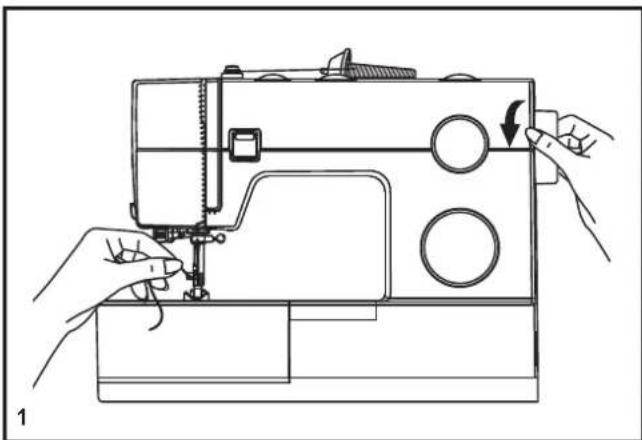

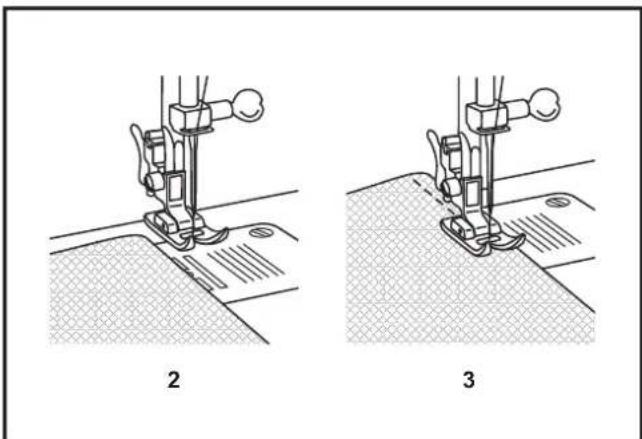

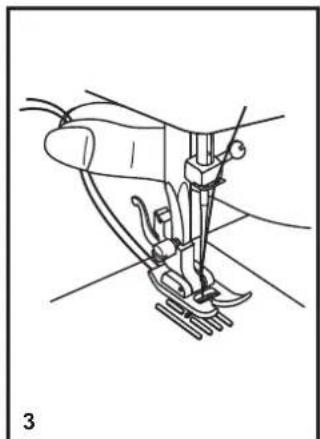

Hold the upper thread with the left hand. Turn the handwheel (1) towards you (counterclockwise) lowering, then raising needle. If it is difficult to raise the bobbin thread, check to make sure the thread is not trapped by the hinged cover or the Removable Extension Table. Gently pull on the upper thread to bring the bobbin thread up through the needle plate hole. (2) Lay both threads to the back under the presser foot. (3) Note: Raising the Bobbin Thread

Tensión del hilo Tension du fil 23The diagram on this page display the stitch patterns available on the machine. Stitches in the top of the diagram are indicated on the pattern selector dial in gray. To select the patterns indicated with the gray color, turn the pattern selector dial. (e) Use the stitch length dial (d) to adjust the stitch length as desired for the project. Use the stitch width dial (c) to adjust the width of the stitch as desired. Instructions for setting the stitch width & the stitch length dials can be found on page 28. To obtain the other patterns, turn the stitch length dial to "S1" or "S2", select the pattern desired with pattern selector dial, and adjust the stitch width with the stitch width dial. The pattern selector dial may be turned in either direction. a.Reverse sewing lever b.Three needle position dial c. Stitch width dial d.Stitch length dial e.Pattern selector dial

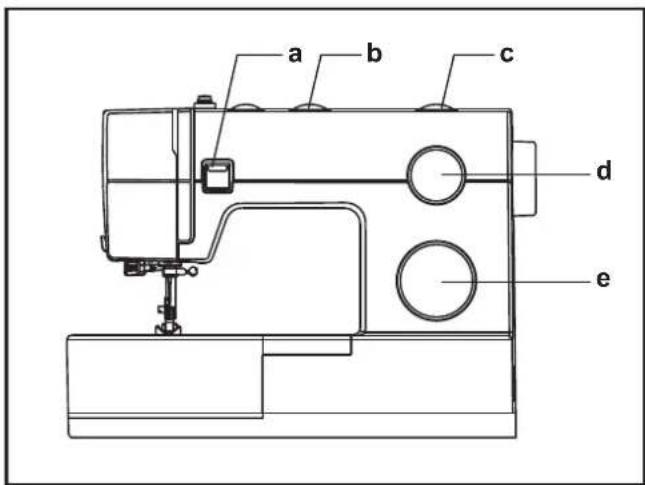

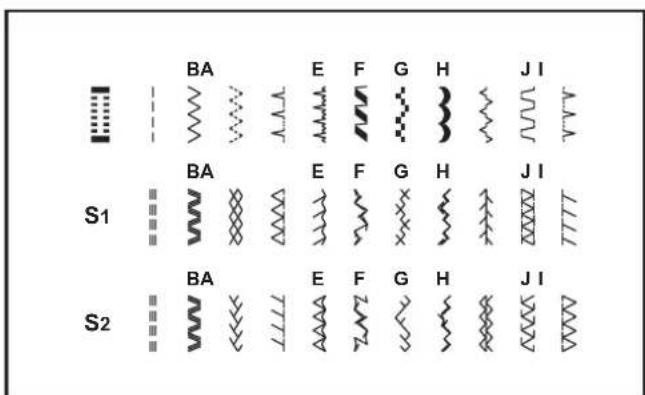

How to Choose Your Pattern

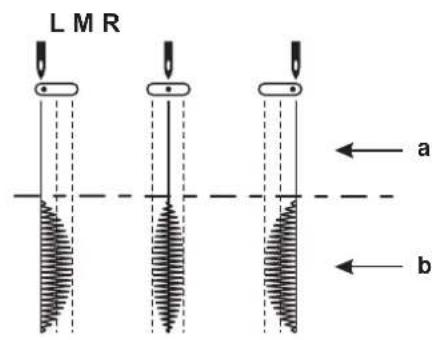

The needle position can be altered with the "Three needle position dial". For normal work, the needle position is middle. For edge stitching or sewing parallel lines of top stitch, select needle position left or right. For twin needle stitching, needle position is middle. a. Straight b. Zig-zag L. Left Needle Position M. Middle Needle Position R. Right Needle Position Three Needle Position Dial

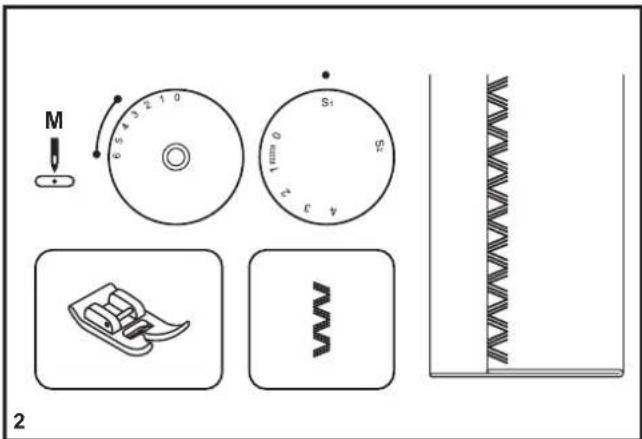

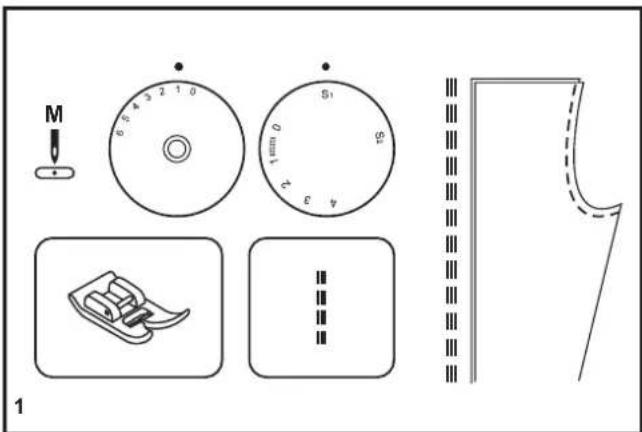

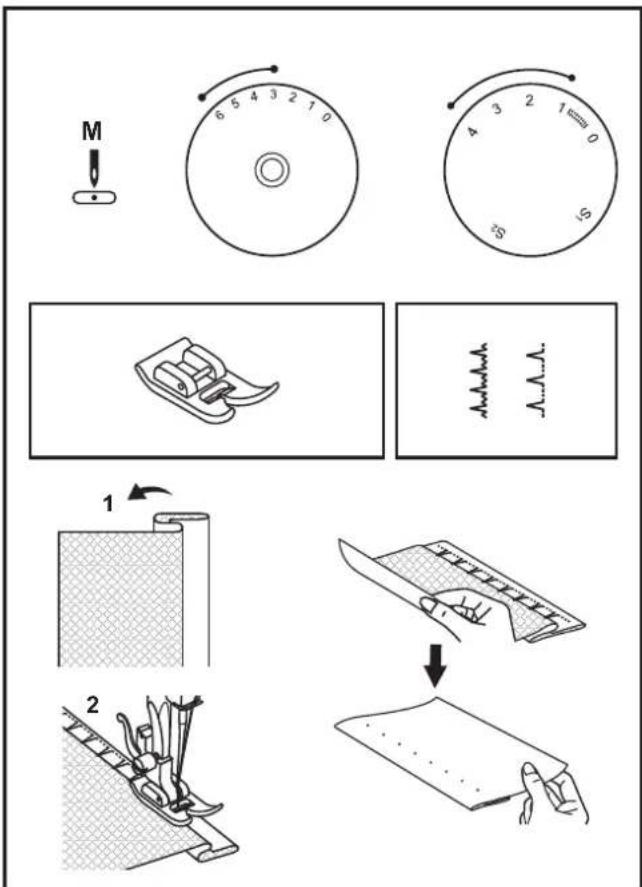

The stretch stitch patterns are indicated with blue and red colors on the pattern selector dial. To select these stitches, turn the pattern selector dial to the desired pattern. Then, turn the stitch length dial to the indicator marked "S1" or "S2". Though there are several stretch patterns, here are two examples: Set the pattern selector dial to " ". Set the stitch width dial to "1". Used to add triple reinforcement to stretch and hardwearing seams. The machine sews two stitches forward and one stitch backwards. Set the pattern selector dial to " ". Set the stitch length dial to "S1" or "S2". Adjust the stitch width dial to between "3" and "6". Ric rac stitch is suitable for firm fabrics like denim, corduroy, poplin, duck, etc. Straight Stretch Stitch (1) Ric Rac (2)E F Selección de puntadas elásticas Choisir les motifs de point extensible

Buttonhole sewing is a simple process that provides reliable results. It is strongly suggested to always make a test buttonhole on a sample of your fabric before working on your garment. Stabilizer should alsways be used when making buttonholes. Making a Buttonhole Making a Buttonhole on Stretch Fabrics (E)

1. Using tailor's chalk, mark the position of the buttonhole on the

2. Attach the buttonhole foot and set the Pattern Selector Dial to " ".

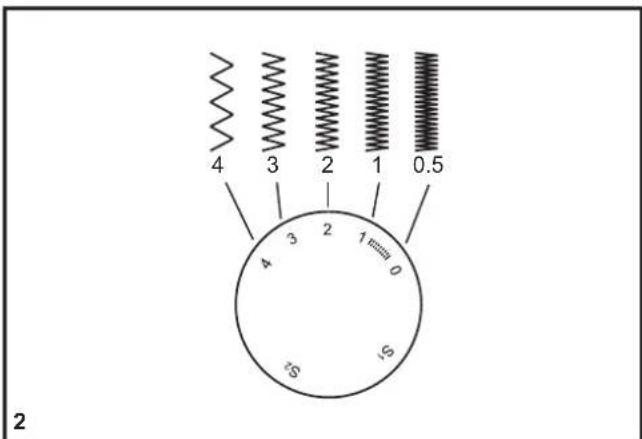

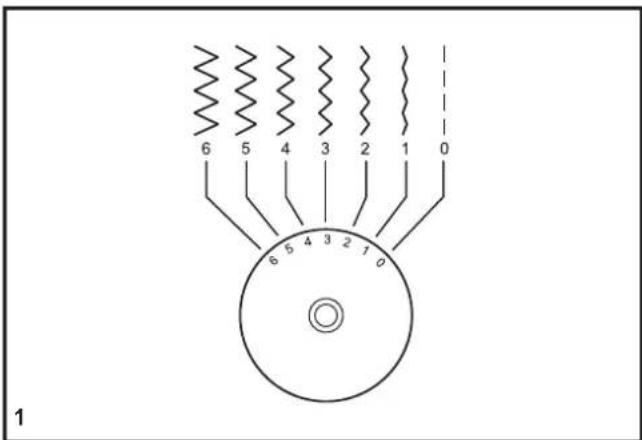

Set stitch length dial to " ". Set the stitch width at "6". The width however may need to be adjusted according to the project. Sew a test first to determine this.

3. Lower the presser foot aligning the marks on foot with the marks

on the fabric (A). (The front bar tack will be sewn first.) (Align the mark on the fabric (a) with the mark on the foot (b).)

4. Open the button plate and insert the button (B).

5. Lower the buttonhole lever and gently push it back (C).

6. While lightly holding the upper thread, start the machine.

7. Buttonhole stitching is done in the order (D).

8. Stop the machine when the buttonhole cycle has completed.

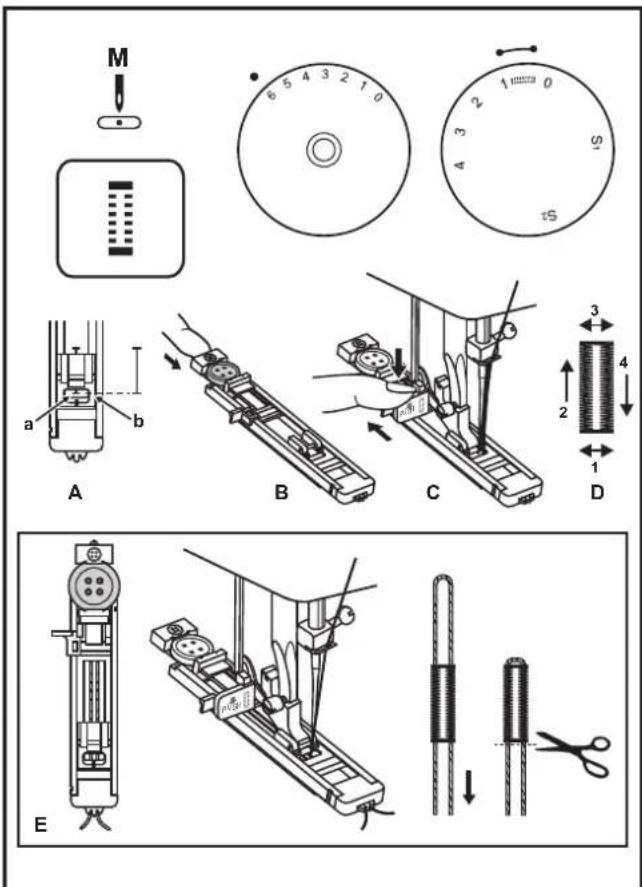

When sewing buttonholes on stretch fabric, hook heavy thread or cord under the buttonhole foot. When the buttonhole is sewn the legs will overcast the cord.

1. Mark the position of the buttonhole on the fabric with the tailor's

chalk, attach the buttonhole foot, and set the pattern selector dial to " ". Set stitch length dial to " ".

2. Hook the heavy thread onto the back end of the buttonhole foot,

then bring the two heavy thread ends under & to the front of the foot, insert them into the grooves and temporarily tie them there.

3. Lower the presser foot and start sewing.

*Set the stitch width to match the diameter of the gimp thread.

4. Once sewing is completed, gently pull the heavy thread to

eliminar cualquier aflojamiento y luego recorte el sobrante.40 Left and Right Side Balance for Buttonhole Stitch density on right and left sides of buttonhole can be adjusted by buttonhole balance control dial. This dial should usually be in a neutral position (between "+" and " ") If the stitches on the left side of buttonhole are too close together, turn the dial to the left (+).

• Turning dial to the left opens left side. If the stitches on the left side of the buttonhole are too open, turn the dial to the right ( ).

• Turning dial to right closes left side.

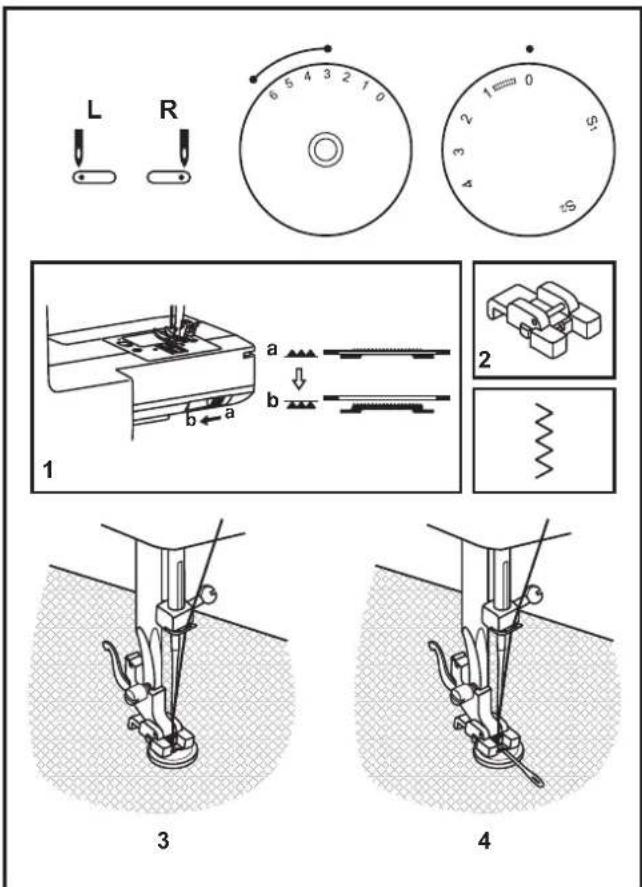

Move the drop feed control to right side to lower the feed dogs. (1) Change the all purpose foot to the button sewing foot. (2) Set the stitch length to "0". Set the machine for zig-zag stitch, then set the width to number "3" - "6". Turn the handwheel to check that the needle goes cleanly into the left and right holes of the button. Adjust the stitch width, as needed, according to the distance between the holes of the button. Slowly sew on the button with about 10 stitches. Raise the needle out of the fabric. Set the machine for straight If a shank is required, place a darning needle on top of the button and sew. For buttons with 4 holes, sew through the front two holes first, push the work forward and then sew through the back two holes. Place the button and fabric under the Button Sewing foot, as illustrated in (3). stitch again, then sew a few securing stitches to finish. L R

1. Snap on the Non-Stick Foot. Select desired stitch. Verify

that the needle will line up with the opening of the foot before starting to sew.

2. Sew slowly and guide the layers.

utilisez des trombones pour vous aider à retenir ensembles les couches de tissus. L'utilisation d'épingles droites laissera des trous dans le cuir et le vinyle. Astuce:46 The Even Feed / Walking Foot has its own set of feed dogs that work in conjunction with the sewing machine's feeding system to aid the movement of the fabric. This is important when sewing several layers of fabric, especially when quilting. This presser foot is also great for matching plaids or stripes and sewing fabrics with nap or pile, to keep them from shifting.

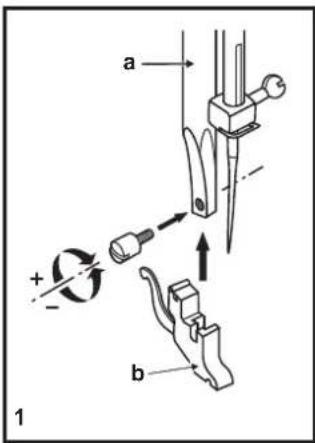

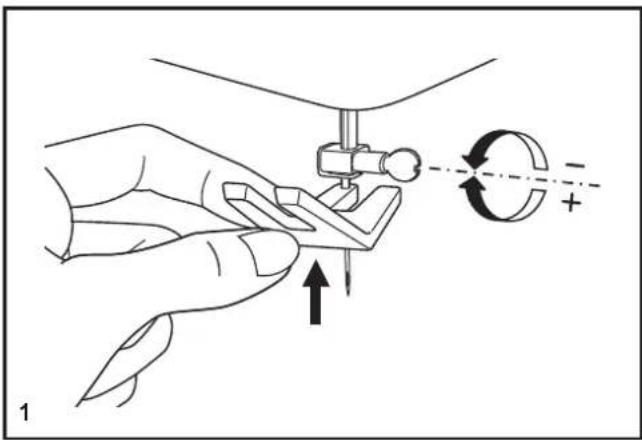

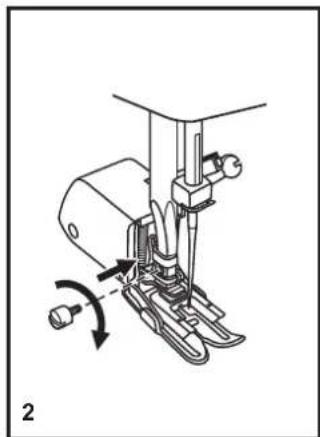

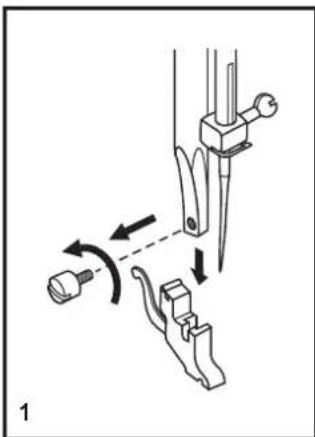

1. Loosen the presser bar screw, then remove the presser

bar screw, presser foot holder and foot.

2. Place the Even Feed / Walking Foot onto the presser bar,

making sure the bar fits over the needle bar. Replace the presser bar screw. Once it is correctly seated onto the presser bar, secure it in place using a screwdriver.

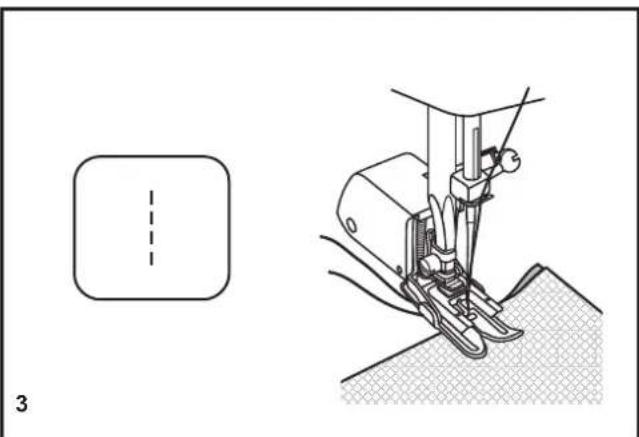

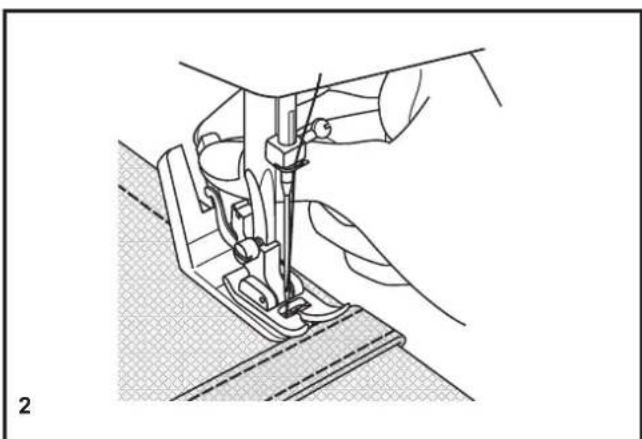

3. To sew seams in plaid, pile or napped fabrics, place two

pieces of the fabric, right sides together, under the presser foot. Select straight stitch, with a medium stitch length setting. Lower the presser foot, then sew the seam from top to bottom. To sew quilt layers, first secure the top fabric, batting and backing fabric together with pins or basting. Place all layers of fabric together under the presser foot. Lower the presser foot, then sew the layers together. If desired, lines can be drawn onto the fabric using a fabric marking pen/pencil and ruler as guides for stitching. Note: Even Feed / Walking Foot

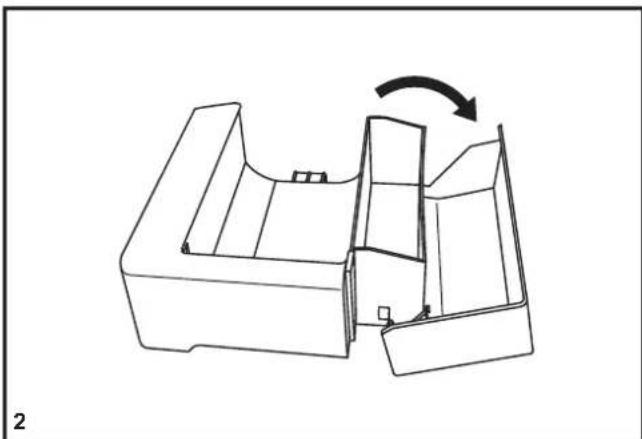

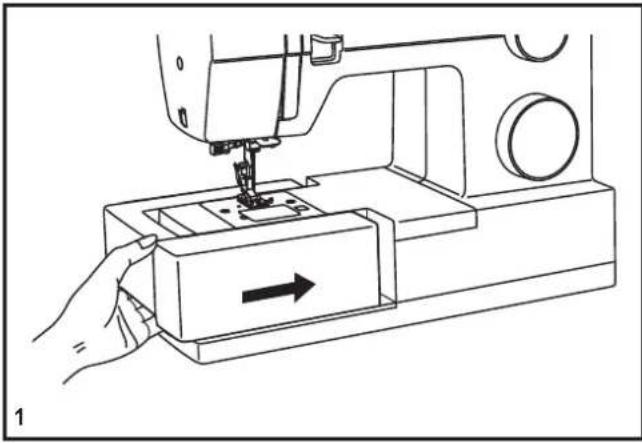

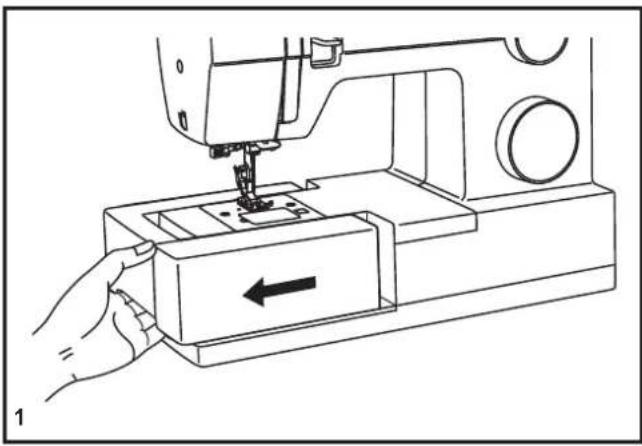

Hold the removable extension table horizontally, and push it in the direction of the arrow. (1) To remove the extension table, pull it toward the left. The inside of the removable extension table can be utilized as an accessory box. To open, flip cover down as shown. (2) Installing the Removable Extension Table ENE F

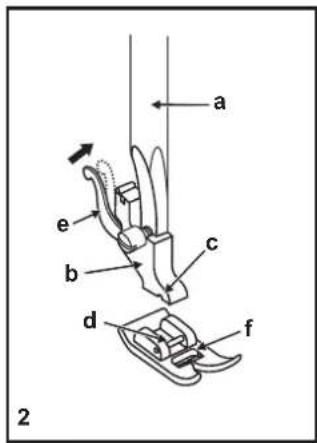

Attaching the Presser Foot Shank ENE F

Natural woven fabrics-wool, cotton, silk, etc. Not recommended for double knits. Natural and synthetic woven fabrics, polyester blends. Knits-polyesters, interlocks, tricot, single and double knits. Also sweater knits, Lycra , swimsuit fabric, elastic.

Leather, vinyl, upholstery. (Leaves smaller hole than standard large needle.) Note :

1. For best sewing results always use genuine SINGER needles.

2. Replace needle often (approximately every other garment ) and/ or at first thread breakage or skipped stitches.

Heavy duty thread in the upper tension, all purpose thread in the bobbin. Set stitch length to3or4. Lightweight fabrics-thin cottons, voile, silk, muslin, interlocks, cotton knits, tricots, jerseys, crepes, woven polyester, shirt & blouse fabrics. Heavy woolen, overcoat fabrics, upholstery fabrics, some leathers and vinyls. 9-11 (70-80) 11-14 (80-90) 14 (90) 16 (100) 18 (110) NEEDLE SIZE FABRICS

IMPORTANT: Adapter les dimensions de l'aiguille au fil et é .à la qualit du tissuFor ordinary sewing, keep the feed dogs engaged, for freehand embroidery, sewing on buttons and darning, drop the feed dogs. To rasie (a) and lower (b) feed dogs. (2) To lower feed dogs: Push lever towards position (b). (2) To raise feed dogs: Push lever towards position (a). (2). Turn handwheel towards you until you see the feed dogs re-engage.

How To Drop Feed Dog

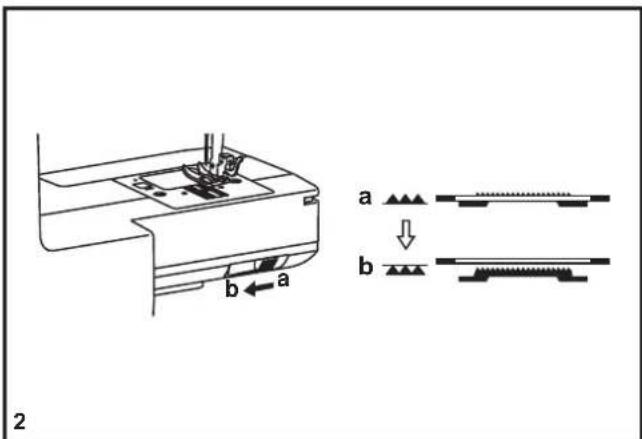

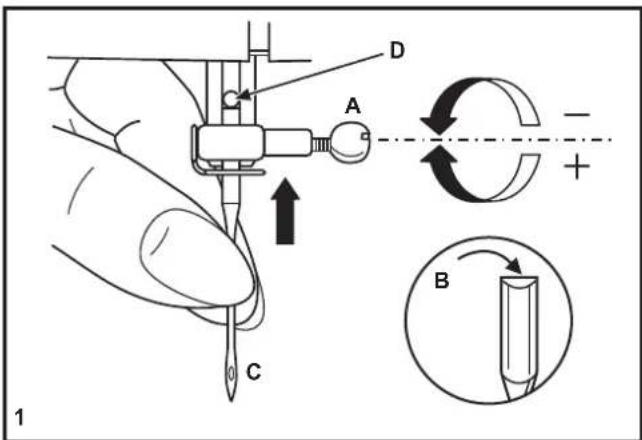

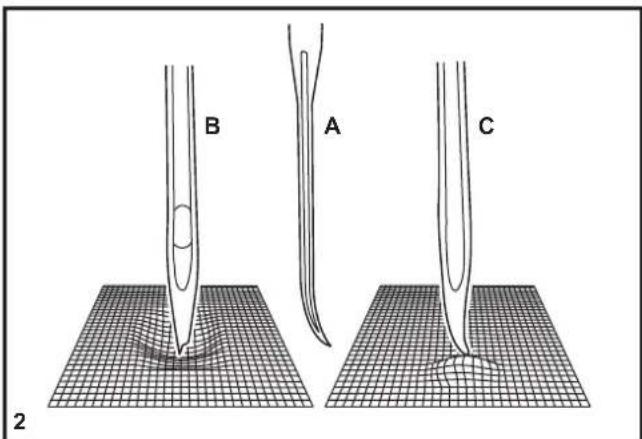

Comment abaisser les griffes d'entraînement FChange the needle regularly, especially if it is showing signs of wear and causing problems. For best sewing results always use SINGER needles. Insert the needle A. Loosen the needle clamp screw and tighten again after inserting the new needle. (1) B. The flat side of the shaft should be towards the back. C/D.Insert the needle as far up as it will go. Turn power switch to off ("O") before inserting or removing the needle. Needles must be in perfect condition. (2) Problems can occur with: A. Bent needles B. Damaged points C. Blunt needles Replace your needle after an average of 16 hours of sewing for better quality stitching. Attention:

as illustrated as follows:

Attention:Problem Cause Correction Upper thread breaks Lower thread breaks Skipped stitches Needle breaks Loose stitches Seams gather or pucker Uneven stitches, uneven feed The machine is noisy The machine jams

1. The machine is not threaded correctly.

2. The thread tension is too tight.

3. The thread is too thick for the needle.

4. The needle is not inserted correctly.

5. The thread is wound around the spool holder pin.

6. The needle is damaged.

1. The bobbin case is not inserted correctly.

2. The bobbin case is threaded wrong.

1. The needle is not inserted correctly.

2. The needle is damaged.

3. The wrong size needle has been used.

4. The foot is not attached correctly.

1. The needle is damaged.

2. The needle is not correctly inserted.

3. Wrong needle size for the fabric.

4. The wrong foot is attached.

1. The machine is not correctly threaded.

2. The bobbin case is not correctly threaded.

3. Needle/ fabric/ thread combination is wrong.

4. Thread tension wrong.

1. The needle is too thick for the fabric.

2. The stitch length is adjusted wrong.

3. The thread tension is too tight.

1. Poor quality thread.

2. The bobbin case is threaded wrong.

3. Fabric has been pulled.

1. Lint or oil have collected on the hook or needle bar.

2. The needle is damaged.

1. Rethread the machine.

2. Reduce the thread tension. (lower number)

3. Select a larger needle.

4. Remove and reinsert the needle. (flat side towards the back)

5. Remove the reel and wind thread onto reel.

6. Replace the needle.

1. Remove and reinsert the bobbin case and pull on the thread.

The thread should pull easily.

2. Check both bobbin and bobbin case.

1. Remove and reinsert needle. (flat side towards the back)

2. Insert a new needle.

3. Choose a needle to suit the thread and fabric.

4. Check and attach correctly.

1. Insert a new needle.

2. Insert the needle correctly. (flat side towards the back)

3. Choose a needle to suit the thread and fabric.

4. Select the correct foot.

1. Check the threading.

2. Thread the bobbin case as illustrated.

3. The needle size must suit the fabric and thread.

4. Correct the thread tension.

1. Select a finer needle.

2. Readjust the stitch length.

3. Loosen the thread tension.

1. Select a better quality thread.

2. Remove bobbin case, thread and insert correctly.

3. Do not pull on the fabric while sewing, let the feed dogs pull

the fabric under the foot.

1. Clean the hook and feed dog as described.

2. Replace the needle.

Thread is caught in the hook, because upper tension is not threaded correctly. Remove the upper thread and bobbin case. Gently rock the handwheel backards and forwards by hand and remove the thread from the bobbin area.
