USER MANUAL 263624 Hendi

You should read this user manual carefully before using the appliance.

Keep these instructions with the appliance.

For indoor use only.

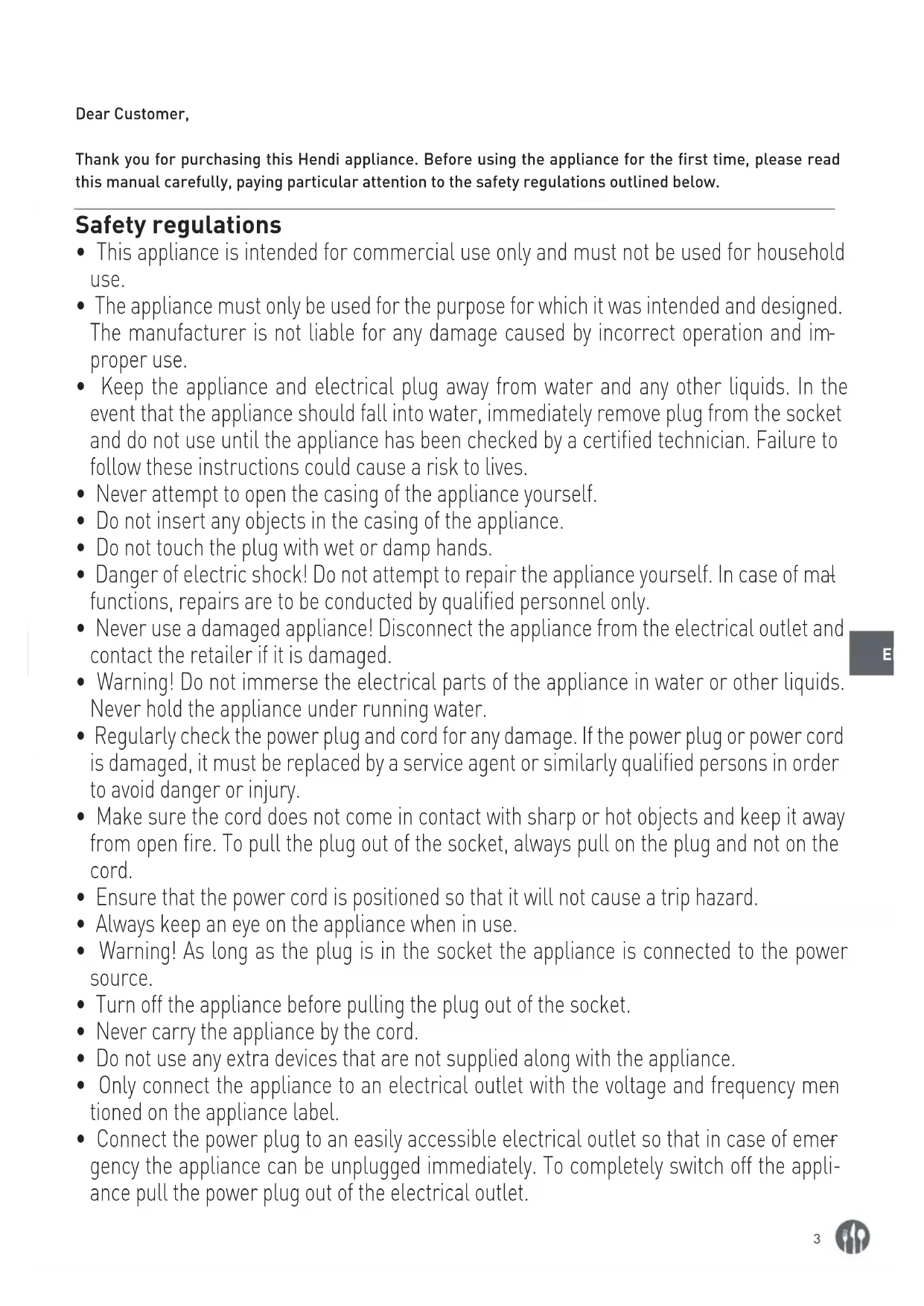

Thank you for purchasing this Hendi appliance. Before using the appliance for the first time, please read this manual carefully, paying particular attention to the safety regulations outlined below.

Safety regulations

• This appliance is intended for commercial use only and must not be used for household use.
• The appliance must only be used for the purpose for which it was intended and designed. The manufacturer is not liable for any damage caused by incorrect operation and improper use.
• Keep the appliance and electrical plug away from water and any other liquids. In the event that the appliance should fall into water, immediately remove plug from the socket and do not use until the appliance has been checked by a certified technician. Failure to follow these instructions could cause a risk to lives.
• Never attempt to open the casing of the appliance yourself.
• Do not insert any objects in the casing of the appliance.
• Do not touch the plug with wet or damp hands.
• Danger of electric shock! Do not attempt to repair the appliance yourself. In case of mal functions, repairs are to be conducted by qualified personnel only.
• Never use a damaged appliance! Disconnect the appliance from the electrical outlet and contact the retailer if it is damaged.
• Warning! Do not immerse the electrical parts of the appliance in water or other liquids. Never hold the appliance under running water.
• Regularly check the power plug and cord for any damage. If the power plug or power cord is damaged, it must be replaced by a service agent or similarly qualified persons in order to avoid danger or injury.
• Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. To pull the plug out of the socket, always pull on the plug and not on the cord.
• Ensure that the power cord is positioned so that it will not cause a trip hazard.
• Always keep an eye on the appliance when in use.
• Warning! As long as the plug is in the socket the appliance is connected to the power source.
• Turn off the appliance before pulling the plug out of the socket.
• Never carry the appliance by the cord.
• Do not use any extra devices that are not supplied along with the appliance.
• Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.

• Connect the power plug to an easily accessible electrical outlet so that in case of emergency the appliance can be unplugged immediately. To completely switch off the appliance pull the power plug out of the electrical outlet.

• Always turn the appliance off before disconnecting the plug.

• Never use accessories other than those recommended by the manufacturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
• This appliance must not be used by children under any circumstances.
• Keep the appliance and its cord out of reach of children.
• Always disconnect the appliance from the mains if it is left unattended or is not in use, and before assembly, disassembly or cleaning.
• Never leave the appliance unattended during use.

Special safety precautions

• Do not place any object on the grilling place & close it with great force.
• The adjustable temperature setting of the equipment is between 50 - 300^ . It is recommended that the average working temperature normally should be 200 - 250^ .
• Do not place the appliance near heat sources, like cooking stove, heater or fire, etc. The environment temperature lower than 45^ , the humidity is under 85% .

Important Safety Instructions

• Risk of burns! Hot surface! Fat and oil become very hot while grilling and can cause severe burns.
• Caution! Risk of burns! The grill plates and adjacent metal and plastic become very hot. The grill plates and adjacent metal and plastic parts become very hot. Therefore, use only the designated handle to open and close the grill plates.
• Do not cover the appliance in operation and keep it away from inflammable objects, e.g. curtains or newspapers or liquids, e.g. alcohol or fuels.
• This appliance exclusively meant for private commercial use and should not be used for household use.
• This appliance is serves only for the preparation of food.
• Use the appliance only in a well-ventilated area. Place the appliance on a flat and stable surface.
• Clean the appliance after each use to avoid infestation with mould fungus or vermin.

Hendi Contact Grill

The temperature of the grill plates can be regulated for different cooking requirements. This ap

pliance is mainly used for grilling sandwiches and meat but can also be used for other purposes.

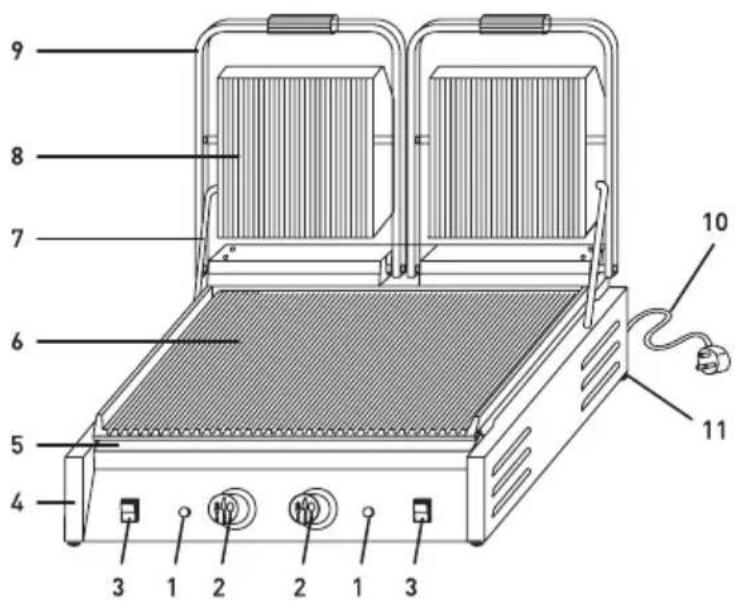

Exterior Structure

1. Heating indicator
2. Temperature controller
3. ON/OFF switch
4. Housing
5. Drip tray

6. Lower grill plate

7. Opening support system

8. Upper grill plate
9. Upper grill plate handle
10. Power cord
11. Rubber feet

Features of Function and Structure

• The upper and lower grill plates are enameled and are easy to clean.
• Independent temperature control on the double contact grill is convenient and allows the use of a single grill plate.
• Internal temperature protector is reliable and safe.

Operating instructions

• Before use, make sure the supply voltage match with the rating plate.
• Plug into the socket & switch on the appliance.
• Set temperature controller clockwise to the desired temperature. The orange indicator light up. The upper and lower grilling plate starts heating up.
• Temperature can be adjusted depends on different food within 180^ to 250^ .
• After approx. 8 minutes, swivel the upper griling plate with the handle.
• Put some edible oil on the upper & lower grilling plate.

Grilling temperature is adjustable.
- Made of stainless steel and the drawer-style dripping tray is also made of stainless steel.
- Grill is easy to open thanks to the support system.

• Place the food to be grilled on the lower gilling plate and then close the appliance using the handle. Keep an eye during cooking.
• When the temperature reaches the setting value, the orange indicator light off.
• At the front side of the lower grilling plate, there is the drip tray. The remaining edible oil will flow to the drip tray.
• Open the appliance by lifting the handle and take away the grilled food.
• After finish grilling, set the temperature controller to the "OFF" position and unplug the appliance.

Cleaning and Maintenance

Attention!Edible oil remaining on the grill is very hot after use of the appliance.

Risk of Electric Shock!

• Do not let water or liquids enter the appliance.
• Always disconnect the power plug before cleaning.

Risk of burns!

• Make sure the grilling plates cool down before cleaning.
• ATTENTION! Always unplug the appliance and cool down before cleaning.

• Clean the appliance after each use.

• Properly dispose of the oil in the drip tray.

• Drop a little edible oil on stubborn residues on the grill plates and let these soak for approx. 20 minutes.
• Wipe the grill plates and the housing with a slightly damp cloth.
• Avoid strong cleaning agents or scouring pads as these may damage the grilling plates coorode the plastic.
• Keep the appliance in a clean and dry location, away from the direct sunlight.
• Keep the appliance out of reach of the children.

Transportation and Storage

• Please handle with care during transport, never transport or store the appliance up side down or on its sides. This may cause damage to the appliance.

• When storing the appliance, make sure the storage space is ventilated and that there are no corrosives near the appliance.

Troubleshooting

Problems Causes Solutions
1. Heating plates are not heated after the appliance turn on.	1. If the thermostat is defective the orange heating indicator would not be illuminated.	1. Contact supplier for repair
	2. At least one of heating element is burned.	2. Contact supplier for repair
	3. If the Hi-limiter is triggered the orange indicator would be off.	3. There is a reset rod on the bottom of the appliance. There is no need to open the appliance.
2. Temperature controller has no function.	Temperature controller is defective Contact supplier for repair
3. The indicator does not light up. Indicator is broken. If the indicator is broken you don't need to replace the thermostat but you should contact the supplier.

Aforementioned troubles are just for reference. If any fault occurs, please cease using and contact the supplier.

WARNING!

• Check the operation of the appliance regularly to prevent problems that can cause serious accidents.

• As soon as you feel the appliance isn't working correctly or there is a problem, stop using the appliance, shut it off and contact the supplier.

Technical specifications

Model	Contact Grill single lower/upper ribbed	Contact Grill single upper ribbed / lower flat	Panini Grill lower/upper ribbed	Panini Grill lower flat/upper ribbed	Contact Grill double, left flat / right ribbed	Contact Grill double, upper ribbed / lower flat	Contact Grill double, lower & upper ribbed	Contact Grill double, upper ribbed / lower flat	Contact Grill double, low-er & upper ribbed
Model	263501 263	600 263655 263	662 263907 263	808 263709 263	815 263716
Voltage	230V-50Hz 240V-50Hz
Power	1800W 1800W 2200W 2200W 3600W 3600W 3000W 3000W
Number of controllers	1	1	1	1	1	2	2	2	2
Tempera-ture range	50-300 °C
Upper grill size	214×214mm	214×214mm	340 x 220mm	340 x 220mm	214×214mm	214×214mm	214×214mm	214×214mm	214×214mm
Lower grill size	218×230mm	218×230mm	340 x 230mm	340 x 230mm	475×230mm	475×230mm	475×230mm	475×230mm	475×230mm
Dimensions	290×395×210 mm	290×395×210 mm	410×395×210 mm	410×395×210 mm	570×395×210 mm	570×395×210 mm	570×395×210 mm	570×395×210 mm	570×395×210 mm
Weight	14kg	14kg	16 kg	16 kg	28.5kg	26kg	27kg	26kg	27kg

Warranty

Any defect affecting the functionality of the appliance which becomes apparent within one year after purchase will be repaired by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and

when it was purchased and include proof of purchase (e.g. receipt).

In line with our policy of continuous product development we reserve the right to change the product, packaging and documentation specifications without notice.

Discarding & Environment

At the end of the life of the appliance, please dispose of the appliance according to the regulations and guidelines applicable at the time.

Throw packing materials like plastic and boxes in the appropriate containers.

Important notice to UK users

This appliance is fitted with a UK approved mains plug and a 13A fuse. Should the fuse need to be replaced, an ASTA or BSI approved BS1362 fuse, rated at 13A must be used. If the plug needs re

placing, ensure that the fuse is removed beforehand. Always dispose of defunct plugs and fuses immediately.

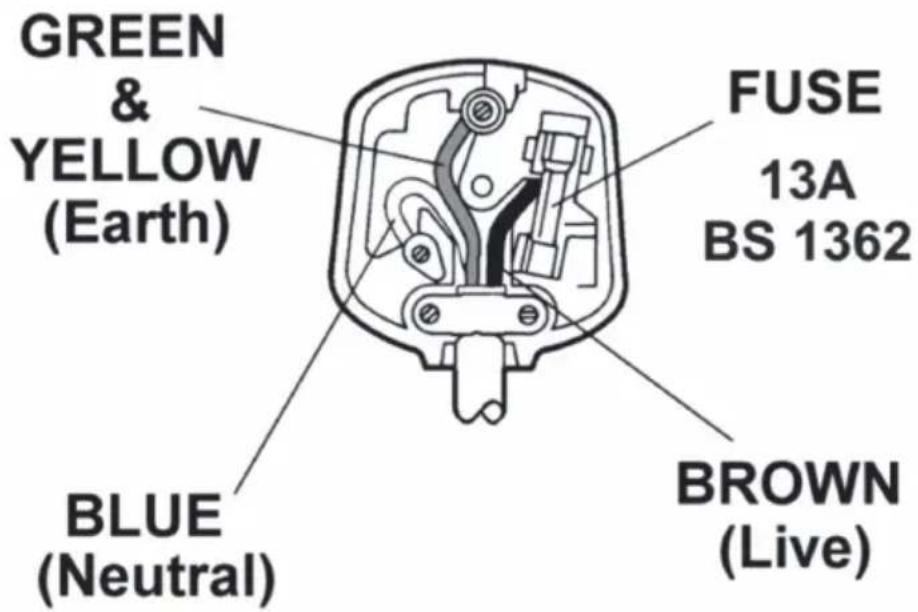

Connecting a mains plug

The wires in the mains lead are coloured as following:

Blue: NEUTRAL

Brown: LIVE

Green & Yellow: EARTH

As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:

• The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK.

• The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.

• The wire coloured GREEN & YELLOW must be connected to the terminal marked with the letter E or coloured GREEN or GREEN & YELLOW or marked with the Earth Symbol

If you have any doubt about the electrical supply to you appliance, consult a qualified electrician before use.

BnMaHne! Macno, ocTabWeecra Ha HarpBeBaTeNbHOI nIte OT npuroToBHeHna NIIuN, IMeet OueHb BlicOkyo TempeaTypy.

Onachoctb OT nopaxKeHnTOKOM!

• Henb3a DoynyckaTb nonaHaHnB BoDbI, nnn nHbIX XndkocTe BHyTpBaannapata.
• Ipeed uNcTKoI annapaTa cIeIyET BbHyTb BNkky n3 pO3eTKI.

Onachoctb noJyehn oXorOB!

• Pered qnctkoi annapata cneyuET yocToBe-pntbca, YTO HArpeBaTeIbHbIe NNITbI NOnHOCTbIO OCTbln.
  BHIMAHNE! Npeed uicTkO annapaTa cneDyET BbHyTb BNkU n3 p0eTKn n annapaT ocTabuB INOKOE IO NOJHOrO OCTbIBAHN.

• AnnapaT HuyxH0 MbITb nocJe KaJdoRo nCnOJb30-BaHnI.

• NpDnOH HyXHo TuaTeNbHO ouHCTbO T Xupa.
  Ha Tpydno Ouyuzaemble nTHa Ha HarpBeBaTeIb-HbIX PnITax KaHHTb HeCKoJIbKO KaneJb NnUeBO-TO MacLa I OCTaBtB B NOKoe Ha OKOLO 20 MNHT.

• BbItepeTb HArpeBaTeIbHbIe PnITbI n HApyKhIe NOBepxHOCTn annapata BlaXHoN TprnkoN.
  He pa3pe7aetcncnoB3oBaTb KpenKnx YnCTa- uX XnKocTe, XeCTKx R60k Bo n36exKaHne NOBpeJdeHna HArpeBaTeNbHbIX PnIT N nlaCTN-KOBbIX 3JeMeHTOB.
  Annapat cneNyet xpaHntb B uNCTOM n npoxlaHOM MeCTe, He NOpBepKeHHOM npRmOMy BO3dEn-CTBIO COJHeuHbIX Lyuei.
• AnnapaT xpaHnTB B MeCTe, HeoctynHom dIy deTei.

TpaHcnpT xpaHeHne

Bo Bpemra TpaHcnpTnpoBKn CneJyTe octopoxHo 6paatabca C yctpoNCTBOM. O6paaaine BHImaHne, UTo6bl rpiNb cTOnn npMaO, UTo6bl n36exKaTb BHyTpEHHnx IN BHeuHNX NOBpeJdeHn. YnaKobAHHOyeCtpoNCTBO XpaHNTB B XopoWo npoBeTpNaEMOM no

MeuHn, noaIbwe oT arpeccnBhix napOB. NomHnte, yTo6bl yctpoNCTBO He noDbepraIocb nIOxIM aTMocΦeRbIM ycNoBnM, daXe Bo BpeM BpeMeHHo- ro xpaHeHn.

YcTaPaHHeNnNoJOMOK
