Product Type	In-ear monitor earphones (professional reference)
Brand	Samson
Model	Zi100
Transducer	Single micro balanced armature with acoustic filter
Frequency Response	20 Hz – 20 kHz
Sensitivity	107 dB/W at 1 kHz
Impedance	46 Ω ± 15%
Isolation Level	15–18 dB (with silicone tips), 20 dB (with Comply™ foam tips)
Cable	3.75 ft (1.14 m) braided wire with gold-plated right-angle 1/8" (3.5 mm) connector
Weight	0.05 lb (22.6 g)
Accessories Included	2 pairs Comply™ Isolation T-100 foam tips, 3 pairs silicone tips, 1/4" adapter, hard zippered carry case
Fit Design	Contoured design with moldable memory wire ear hooks for secure customized fit
Power Source	Passive (no battery required)
Cleaning	Clean exterior with mild detergent solution; do not immerse in water
Safety Warnings	Risk of hearing damage at high volumes; do not use while driving, sleeping, or in hazardous environments
Repairability	Replaceable ear tips; non-replaceable cable; service requires RA number from Samson
Disposal	Do not dispose with household waste; follow local e‑waste recycling regulations

Frequently Asked Questions - Zi100 SAMSON

How do I achieve the best fit with my Samson Zi100 earphones?

Select the appropriate ear tip size (silicone or Comply™ foam). For foam tips, compress them before inserting. Insert with the cable toward the front of your ear and gently press to form a tight seal. The memory wire ear hooks can be molded for a secure fit.

How should I clean the Zi100 earphones?

Clean the exterior with a mild detergent solution. Do not immerse in water. Avoid cleaning the ear tips with harsh chemicals. For ear tips, you may wash them separately with mild soap and let them dry completely before reattaching.

Can I use the Zi100 earphones while sleeping?

No, the manual explicitly warns do not use while sleeping as accidents may result. The cable can pose a strangulation risk, and the earbuds may cause discomfort or injury.

What is the difference between the included silicone and foam ear tips?

Silicone tips provide 15–18 dB isolation, while Comply™ foam tips offer higher isolation at 20 dB. Foam tips also provide a more comfortable, custom seal and are recommended for optimal bass response.

Are the Samson Zi100 earphones waterproof?

No, they are not waterproof. Do not immerse in water or use while showering, bathing, or washing your face. Moisture can cause sound deterioration or failure.

How do I replace the ear tips on the Zi100?

To remove, rotate and pull the ear tip from the nozzle. To attach, slide the ear tip firmly onto the nozzle, rotating slightly if resistance is felt. Ensure the ear tip is securely seated to avoid detachment in the ear.

What should I do if an ear tip gets stuck in my ear?

Do not attempt to remove it yourself. Seek skilled medical assistance to remove the ear tip. Non-professional removal may cause damage to the ear canal.

How can I prevent hearing damage when using the Zi100?

Follow OSHA guidelines: limit exposure to 90 dB SPL to 8 hours, 95 dB to 4 hours, etc. Never exceed 120 dB SPL. Set volume to minimum before inserting, and gradually increase. If you experience ringing, reduce volume immediately.

Can I use the Zi100 for live onstage performance?

Yes, the Zi100 is designed for professional reference and onstage monitoring. For active performers, it is recommended to wear the cable behind your head and along your back to keep it out of the way.

What is the warranty and how do I get service for the Zi100?

Samson provides a limited warranty. For service, you must obtain a Return Authorization (RA) number from www.samsontech.com/ra before shipping. Retain original packaging. If purchased outside the US, contact your local distributor.

USER MANUAL Zi100 SAMSON

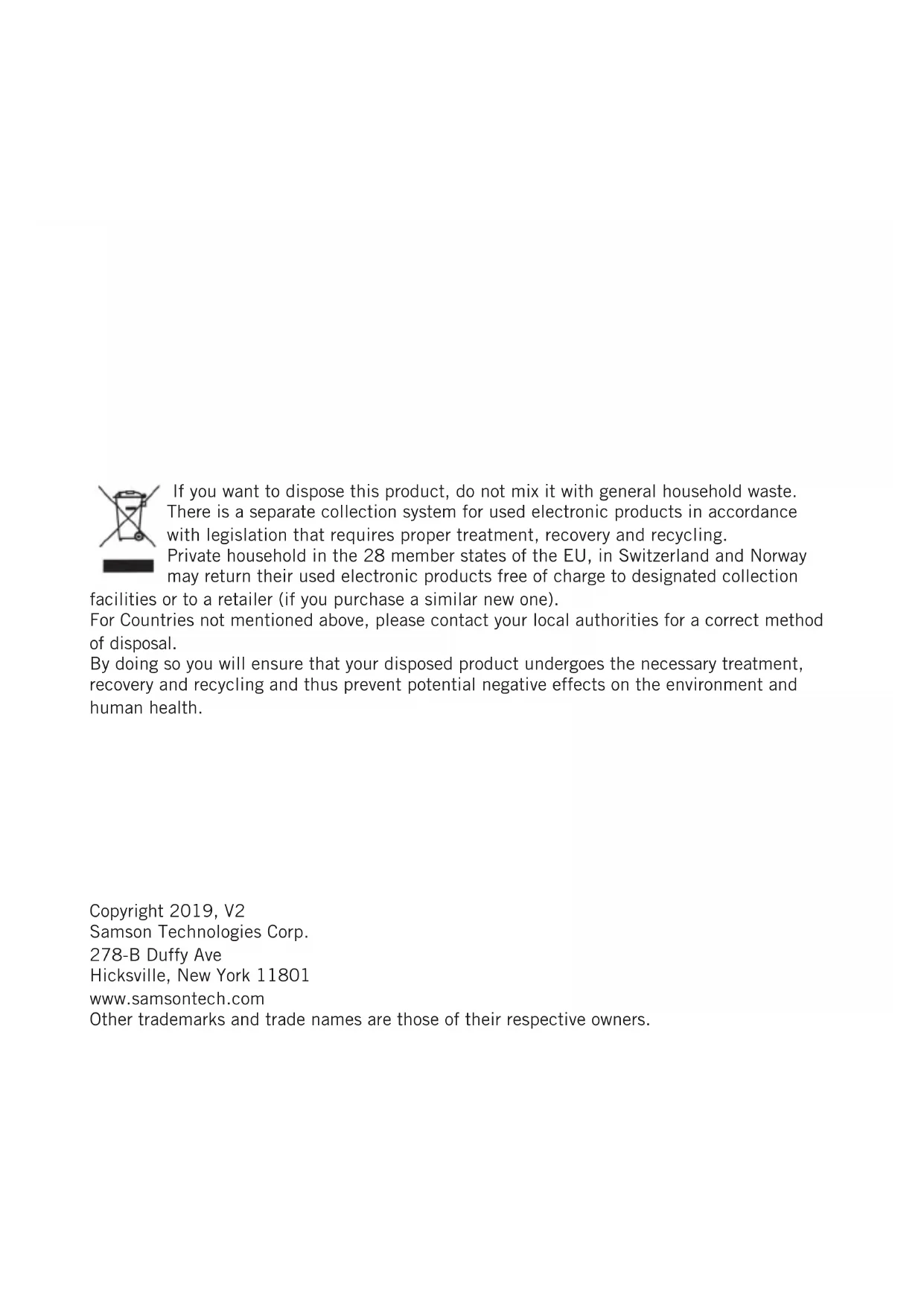

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private household in the 28 member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection

facilities or to a retailer (if you purchase a similar new one).

For Countries not mentioned above, please contact your local authorities for a correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Copyright 2019, V2

Samson Technologies Corp.

278-B DuffyAve

Hicksville, New York 11801

www.samsontech.com

Other trademarks and trade names are those of their respective owners.

IMPORTANT SAFETY INSTRUCTIONS

WARNING!

This product is capable of causing permanent damage to your hearing if used at excessive volumes!

To protect your hearing, the Samson SR550 headphones should always be used at as low a volume as possible. We recommend that you stringently follow the guidelines established by the U.S. Occupational Safety Health Administration (OSHA) regarding maximum time exposure at various sound pressure levels:

• Don't use this product for more than 8 hours at 90 dB SPL
• Don't use this product for more than 4 hours at 95 dB SPL
• Don't use this product for more than 2 hours at 100 dB SPL
• Don't use this product for more than 1 hour at 105 dB SPL
• Don't use this product for more than 1/2 hour at 110 dB SPL
• Don't use this product for more than 15 minutes at 115 dB SPL
• Don't operate at listening levels of greater than 120 dB SPL!

Pay attention to what your ears are telling you! Ringing is a sign that you have set the gain levels too high and that damage may result. We recommend that you consult with a qualified audiologist if you exhibit ringing or any other symptoms.

IMPORTANT SAFETY INSTRUCTIONS

1. Read, follow, and keep these instructions. Heed all warnings.
2. Do not use in or near dangerous environments. This includes driving, cycling, walking, jogging and other areas where traffic is present and accidents could occur.
3. Keep this product and its accessories out of reach of children. Handling or use by children may pose a risk of death or serious injury. Contains small parts and cords that may pose a risk of choking or strangulation.
4. Set the volume level of the audio device to a minimum, and then, after connecting the earphones, adjust the volume gradually. Sudden exposure to loud noises could cause hearing damage.
5. Install the earbuds firmly. If an ear tip accidentally detaches and is left in your ear, it may cause injury.
6. Failure to use, clean, or maintain ear tips may increase the risk of the ear tips detaching from the nozzle and becoming lodged in your ear.
7. Prior to inserting the earphone, always recheck the ear tip to make sure it is firmly attached to the nozzle.
8. If an ear tip becomes lodged in your ear, seek skilled medical assistance to remove it. Damage to the ear may be caused by non-professionals attempting to remove the ear tip.
9. Keep earbuds clean. To clean the earbuds, wash outside with a mild detergent solution.
10. Do not attempt to modify this product. Doing so could result in personal injury and/or product failure.
11. Do not immerse in water, such as while taking a shower, bath, or washing your face. Otherwise, sound deterioration or failures may result.
12. Do not use while sleeping as accidents may result.
13. Use a slow twisting motion to remove the earphones. Never pull on the earphone cord.
14. Stop using the earphones immediately if they are causing great discomfort, irritation, rash, discharge, or any other uncomfortable reaction.
15. If you are currently receiving ear treatment, consult your physician before using this device.

Introduction

Congratulations on purchasing your new Samson Zi Professional Reference Earphones! The Samson Zi100 and Zi200 Professional Reference Earphones with micro balanced armature drivers are superior upgrades to conventional in-ear monitors for onstage performance and personal listening. Both the Zi100 and Zi200 deliver detailed, full-range sound via a contoured design that provides maximum sound isolation and a comfortable fit, all for a truly high-performance audio experience. The lightweight Zi100 and Zi200 earbuds feature a sleek black finish, and contour to your ears with moldable ear hooks constructed of memory wire for a secure, customized fit. In addition, each set includes two pairs of Comply™ Premium Foam Tips and three pairs of silicon tips to provide exceptional sound isolation, as well in-ear fit options. A 1/4" adapter and hard, zippered carry case are also included.

Serial number:

Date of purchase:

If you have any questions or comments regarding the Zi Professional Reference Earphones or any other products from Samson, do not hesitate to contact us at

[e-mail].

With proper care and maintenance, your Zi Professional Reference Earphones will operate trouble-free for many years. Should your Zi Professional Reference Earphones ever require servicing, a Return Authorization (RA) number must be obtained before shipping your unit to Samson. Without this number, the unit will not be accepted. Please visit

www.samsontech.com/ra for an RA number prior to shipping your unit. Please retain the original packing materials and, if possible, return the unit in its original carton. If your Zi Professional Reference Earphones was purchased outside of the United States, contact your local distributor.

Wearing the earphones

Before inserting the earphones, turn down the volume on your audio device.

Each earphone is marked with an L or R on the inside of the earphone. Take note of the correct side before inserting into your ear.

If using the Comply™ foam tips, compress the foam before inserting into your ear.

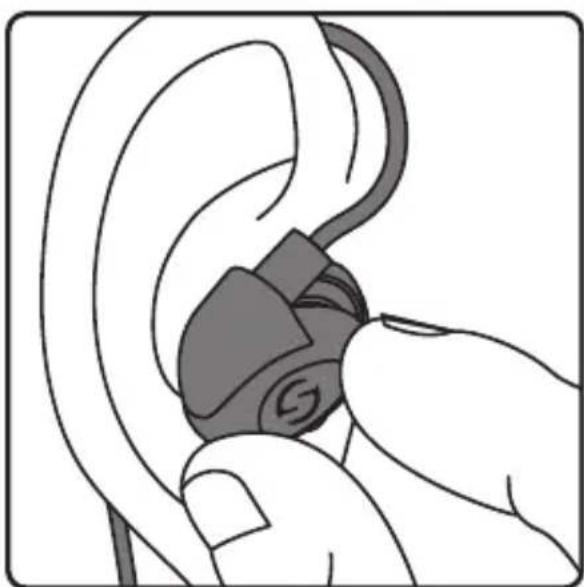

With the cable towards the front of your ear, insert the earphone into your ear canal.

Wearing the earphones

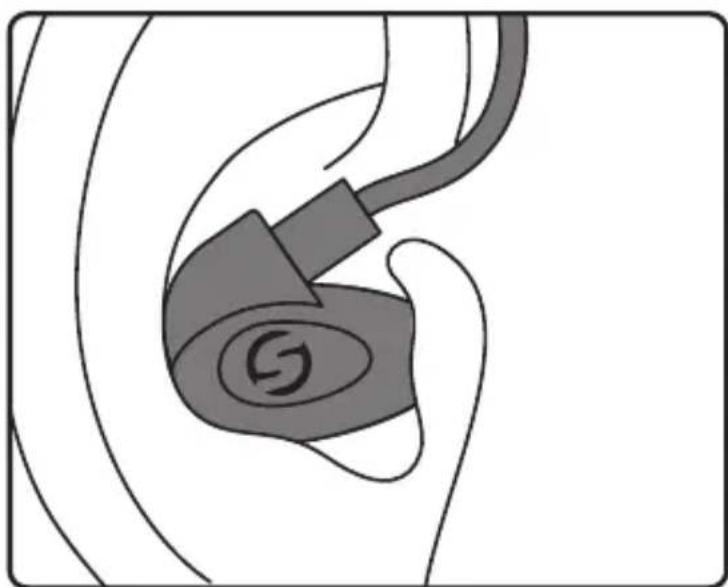

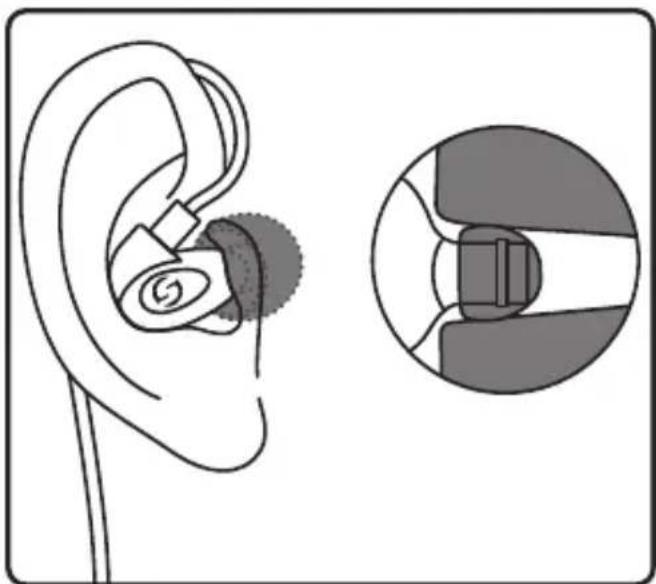

For optimal bass performance, the ear tip should form a tight seal in the ear canal. If you feel the bass response is low, gently press the arophone into the ear or try a different sized ear tip.

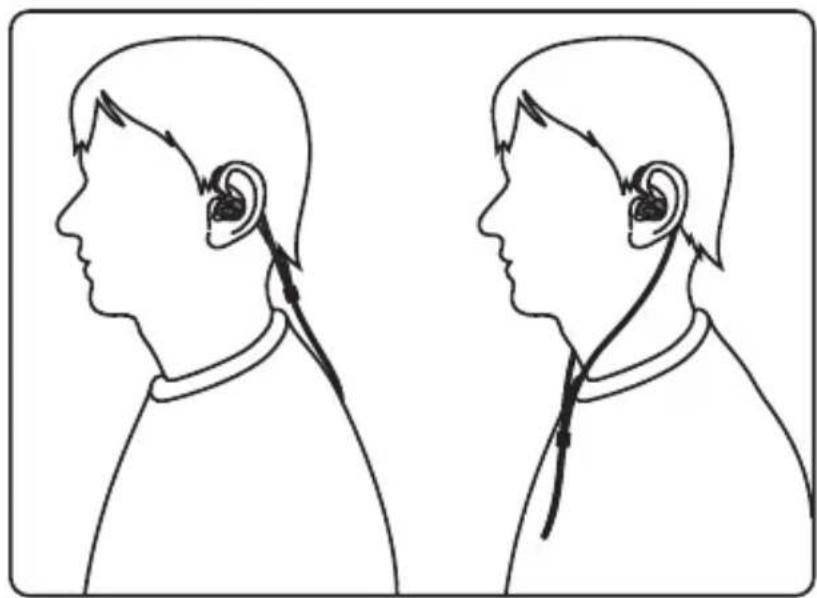

The cable for the Zi Earphones can be worn either in front of your body or along your back. For live or active performers it is recommended to wear the earphones behind your head, along your back.

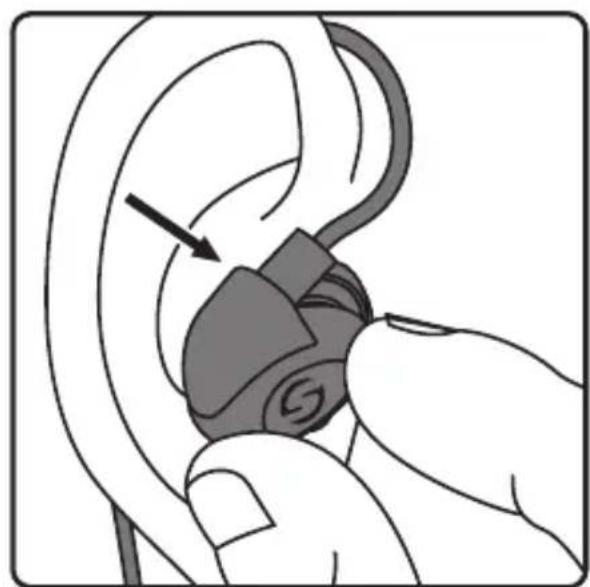

Removing the Earphones

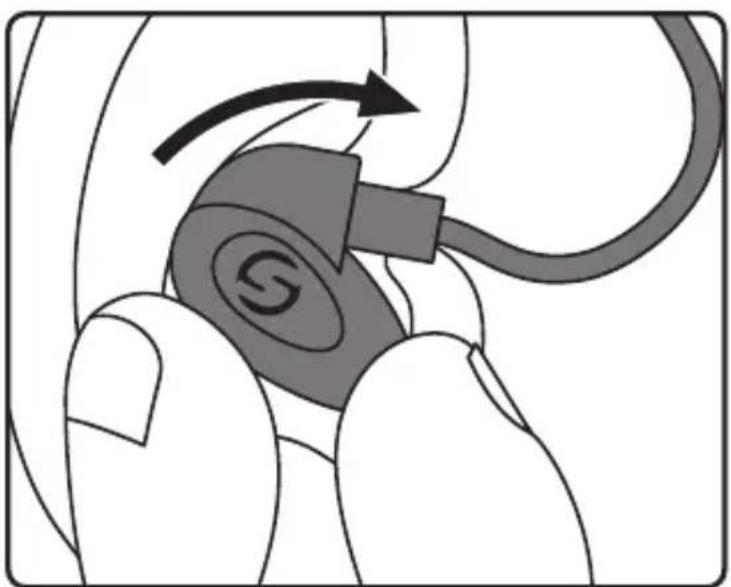

To remove the Zi earphones, firmly grip the earphones and twist forward while pulling the microphone out of your ear.

Do not use the cable to remove the earphones from your ears. This may damage the cable and result in poor performance.

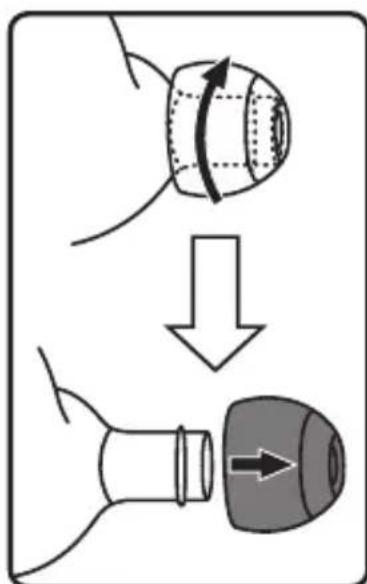

Attaching the ear tip

fig 1 fig 2

The Zi Earphones comes with 3 silicon ear tips (small, medium and large) and 2 Comply™ Isolation T-100 Premium Earphone Tips (small, medium).

Select the appropriate sized silicon or Comply™ fom tips.

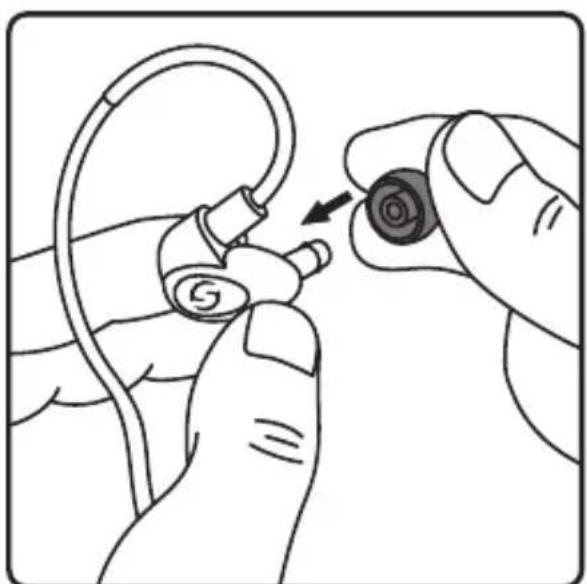

Carefully slide one ear tip onto each ear bud ensuring the ear tip is securely seated on the microphone (fig 1).

If using the Comply™ Isolation T-100 Premium Earphone Tips, it is recommended to compress the tips before attaching to the earphone.

If you feel some resistance, rotate the ear tip as you install it.

To remove the ear tip, rotate a pull the tip from the araphone (fig 2).

Specifications

Zi100

Sensitivity 107dB/W at 1kHz

Transducer Single micro balanced armature w/ acoustic filter

Frequency Response 20Hz-20kHz

Impedance 46 ± 15%

Isolation Level 15-18dB (with silicon tips),

20dB (with Comply™ tips)

Cable 3.75' braided wire cable w/ gold-plated,

Input Connector Right angle 1/8" (3.5mm) connector

Accessories2xComply™ Isolation T-100 Premium Earphone

Tips,

3x silicon tip pairs, 1/4" adapter, carry case

Weight 0.05lb / 22.6g

Specifications

Zi200

Sensitivity 105dB/W at 1kHz

Transducer Dual micro balanced armature (woofer + tweezer) w/passive crossover and acoustic filter

Frequency Response 20Hz-20kHz

Impedance 39 ± 15%

Isolation Level 15-18dB (with silicon tips),

20dB (with Comply™ tips)

Cable 3.75' braided wire cable w/ gold-plated,

Input Connector Right angle 1/8" (3.5mm) connector

Accessories2xComply™ Isolation T-100 Premium Earphone

Tips,

3x silicon tip pairs, 1/4" adapter, carry case

Weight 0.05lb / 22.6g
