SPS75 - Karaoke system Fenton - Free user manual and instructions

Technical Features	Fenton SPS75 karaoke system with wireless microphone, 75W power, Bluetooth connectivity, USB input, SD card reader.
Usage	Ideal for home karaoke parties, festive events, and outdoor use thanks to its portability.
Maintenance and Repair	Regularly check connections and cables. Clean the microphone with a soft cloth. In case of malfunction, consult customer service.
Safety	Avoid exposure to water and moisture. Do not use near heat sources. Follow electrical safety instructions.
General Information	Compatible with various Bluetooth devices, battery life varies depending on use, lightweight for easy transport.

Frequently Asked Questions - SPS75 Fenton

How do I connect the Fenton SPS75 to my TV?

You can connect the Fenton SPS75 to your TV via an RCA or HDMI cable. Make sure the TV and karaoke system are turned on, then select the appropriate source on your TV.

Why is the sound low when I sing?

Check the volume of the microphone and the karaoke system. Also ensure the microphone is properly plugged in and working correctly.

How do I add songs to my Fenton SPS75?

You can add songs via a USB stick or by using a Bluetooth connection. Make sure the files are in a format compatible with the system.

The Fenton SPS75 won't turn on, what should I do?

Check if the device is properly plugged in and if the outlet is working. Try replacing the fuse or testing with another power source.

How do I adjust the voice effects on the Fenton SPS75?

Use the effect adjustment buttons on the control panel to adjust reverb or other voice effects according to your preferences.

My microphone isn't working, what should I do?

Check that the microphone is properly plugged in. Test it with another device to ensure it works. If the problem persists, try another microphone with the Fenton SPS75.

How do I reset the Fenton SPS75 to factory settings?

To reset the Fenton SPS75, press and hold the reset button located on the back of the device for about 10 seconds.

Is there an app to control the Fenton SPS75?

Currently, there is no dedicated app for the Fenton SPS75, but you can use a smartphone to search for songs and play them via Bluetooth.

USER MANUAL SPS75 Fenton

Congratulations to the purchase of this Fenton product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit. This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ / 41^ and 35^ / 95^ .

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Fenton cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

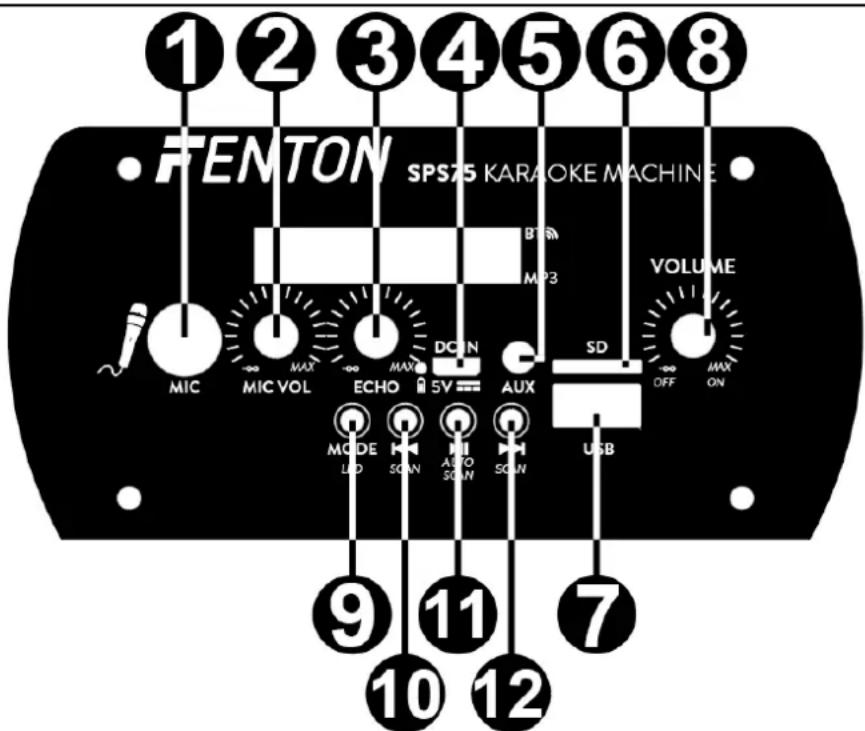

REAR PANEL

1. MIC INPUT

6.35mm (1/4") jack input for microphone.

1. MICROPHONE VOLUME

Raise or lower MIC volume.

1. ECHO

Adjust the echo effect.

1. 5V DC INPUT

Adapter input 5V.

1. AUX INPUT

3.5mm Stereo jack can be used to connect a CD player, MP3player, smartphone and other audio sources.

1. SD CARD SLOT

Insert an SD card in this slot.

1. USB PORT

USB entry port.

1. VOLUME

Turn to adjust the volume to the desired level.

1. INPUT SWITCH/LED SWITCH

Press to switch input channel. Hold for 1 second to turn on/off the led lighting effect.

1. PREVIOUS TRACK

Skip to previous track in MP3 mode. Long press to start record function.

1. PLAY/PAUSE

Start or pause play by pressing this button.

1. NEXT TRACK

Skip to next track in MP3 mode. Long press to engage microphone priority function.

1. POWER ON/OFF

Turn the device ON or OFF.

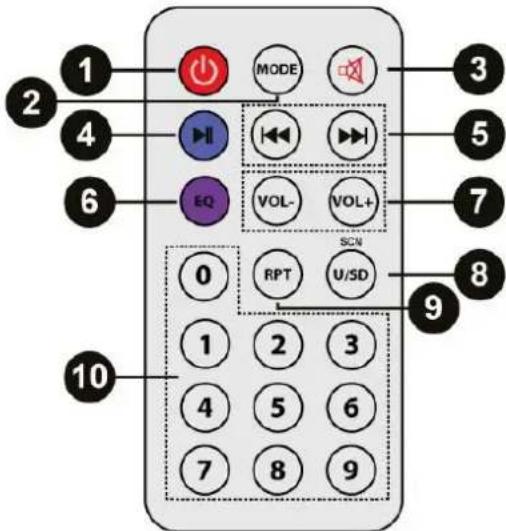

1. MODE

Press to choose between AUX, USB/SD and BT.

1. MUTE

By pressing this button, the device will be muted.

1. PLAY/PAUSE

Start/resume or pause play by pressing this button.

1. PREVIOUS/NEXT TRACK

Skip to previous or next track by pressing these buttons.

1. EQ

Press to choose EQ preset.

1. VOLUME UP/DOWN

Press to adjust the volume to the desired level.

1. USB OR SD

Choose between USB and SD input modes.

1. REPEAT

Press to repeat one song or complete folder.

1. NUMPAD

Use for choosing tracks directly.

CONNECTING WITH BT

1. Activate the BT-function on your device (mobile phone, tablet etc.) from which you want to play the music. See the operating instructions for that device.
2. Activate BT-function.
3. Select "FENTON SPEAKER" on your BT-device and make the BT-connection.

If password is required, you can enter "0000".

Attention: The BT distance is approx. 10 meter without any barrier.

Pulsequiryaperelegirlapreselectiondelecualizador.

1. SUBIR/BAJAR VOLUMEN

SPS75
Ref. nr.:	178.358
Input connections:	3.5mm jack, 6.3mm jack,SD-Card, USB
Output power:	100W
Tweeter type:	Piezo
Diameter woofer:	6.5"
Magnet type:	Ferrite
Frequency response:	50Hz - 18KHz
Impedance:	4Ohm
Battery:	3.7V - 1800mAh
Power supply:	5V via USB
Dimensions:	210 x 530mm
Weight (kg):	2.20

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

Low Voltage (LVD) 2014/35/EU
- Electromagnetic Compatibility (EMC) 2014/30/EU
Radio Equipment Directive (RED) 2014/53/EU
- Restriction of Hazardous Substances (RoHS) 2011/65/EU

Specifications and design are subject to change without prior notice.
