Product Type	2-Post Open Frame Rack (Server)
Brand	Tripp Lite
Model	SmartRack SR2POSTDP24HD
Depth	24 inches (61 cm)
Maximum Load Capacity	907 kg (2000 lbs)
Warranty	5-Year Limited
Key Features	Rackable equipment support, 2-post mounting, cable management, high load capacity
Maintenance and Cleaning	Keep in a controlled indoor environment, dust regularly
Safety	Secure to building structure, install heaviest equipment at bottom, do not exceed maximum load
Spare Parts and Repairability	Hardware included, repair or replacement under 5-year warranty
Included Mounting Hardware	#12-24 x 5/8 inch screws (black and silver), washers (black, white, countersunk)
Required Tools	13 mm wrench, 13 mm socket wrench, Phillips screwdriver
Installation Environment	Indoor, away from moisture, extreme temperatures, flammable liquids/gases
Compatible Models	SR2POSTDP12HD (12-inch depth) and SR2POSTDP24HD
General Information	Server rack for standard 19-inch equipment, adjustable depth

Frequently Asked Questions - SmartRack SR2POSTDP24HD Tripp Lite

What is the maximum load capacity of the SmartRack SR2POSTDP24HD?

The maximum load capacity is 907 kg (2000 lbs) for all models.

How to install equipment safely?

First install the heaviest equipment in the lower part of the rack, then work upward. Never exceed the maximum load.

What tools are needed to assemble the rack?

You will need a 13 mm wrench, a 13 mm socket wrench, and a Phillips screwdriver.

Does the rack need to be secured to the floor or wall?

Yes, it is recommended to secure the rack to the building structure to prevent tipping.

What is the warranty period?

Tripp Lite offers a 5-year limited warranty from the original purchase date.

Can this rack be used for life support equipment?

No, it is not recommended to use this equipment for life support devices due to risk of failure.

What are the recommended environmental conditions?

The rack should be installed in a controlled indoor environment, away from moisture, extreme temperatures, and flammable gases.

How to ensure adequate ventilation?

Leave enough space at the front of the rack to allow optimal airflow.

What to do in case of damage upon delivery?

Inspect the shipping container. If the rack is damaged, do not use it and contact Tripp Lite.

Can the rack be used outdoors?

No, the rack must be installed only indoors in a dry, controlled location.

USER MANUAL SmartRack SR2POSTDP24HD Tripp Lite

Technical line drawings of two modular server racks with grid-like internal compartments (no text or symbols)

Español 5 • Français 9 • Русский 13 • Deutsch 17

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!

tripplite.com/warranty

1111 West 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2021 Tripp Lite. All trademarks are the sole property of their respective owners.

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that must be followed during the installation and operation of the product described in this manual. Failure to comply may invalidate the warranty and cause property damage or personal injury.

• Keep the rack in a controlled indoor environment, away from moisture, temperature extremes, flammable liquids and gasses, conductive contaminants and dust.
• Leave adequate space at the front of the rack for proper ventilation.
• Inspect the shipping container and the rack for shipping damage. Do not use the rack if it is damaged.
• Tipping Hazard: Use assistance and avoid uneven floors during installation. The unit must be secured to building structure using stabilizing means during installation.
  • Install the rack in a structurally sound area capable of handling the load, the weight of the rack, all equipment that will be installed in the rack and any other equipment that will be installed nearby.
• Save all packing materials for later use. Repacking and shipping the rack without the original packing materials may cause product damage that may affect the warranty.
• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Parts List

Technical line drawing of two metal bracket components with mounting holes (no text or symbols)

Technical line drawing of two mechanical components with mounting brackets and internal slots (no text or symbols)

ABCDE

Channel Base Plate Waterfall Bracket Cable Hook M8 X 20 mm,

1.25 mm Pitch

FG

H

|

J

K

Bracket

Brace

Equipment Mounting Hardware

12-24 X 5/8"

Pan Head (Black)

12-24 X 5/8"

Pan Head (Silver)

Washer (Black) Washer (White) Washer (Countersink)

Rack Assembly

Warning: Assemble the rack completely and confirm its stability before attempting to install equipment.

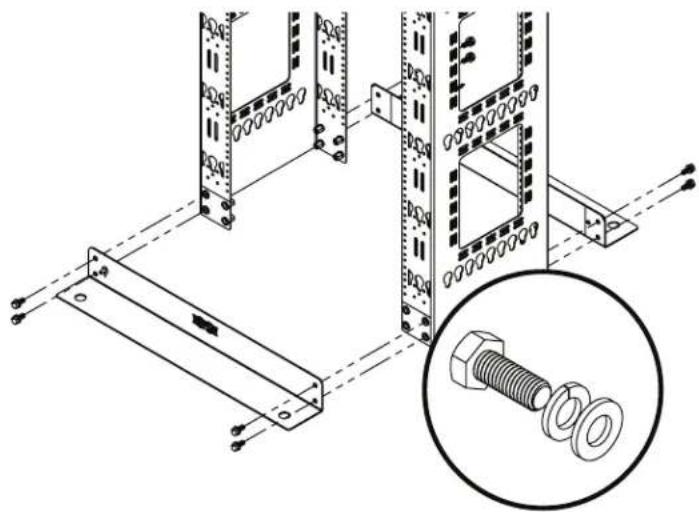

step

1

Note: The assembly process for all models is the same, the only difference being the depth of the uprights.

2

2

8

8

8

Technical line drawing of a server rack assembly with a magnified inset showing a bolt and washer (no text or symbols)

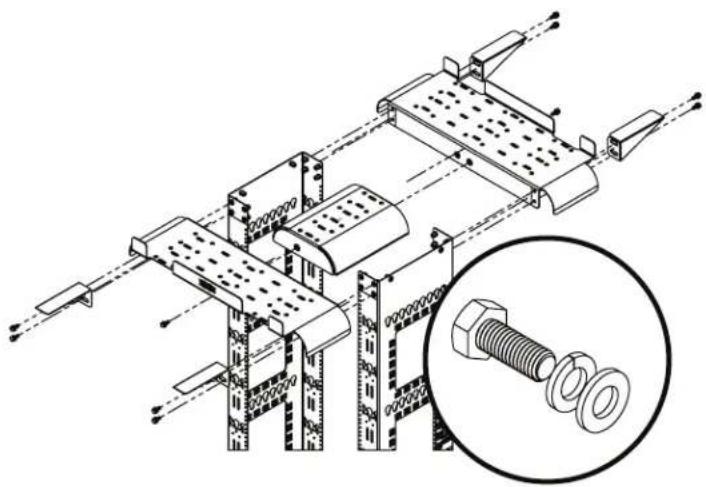

step

2

Note: If necessary, lay assembly down on a flat surface to attach top support rails.

2

12

12

12

4

1

Technical line drawing of a mechanical assembly with bolted components and a magnified inset showing a bolt (no text or symbols)

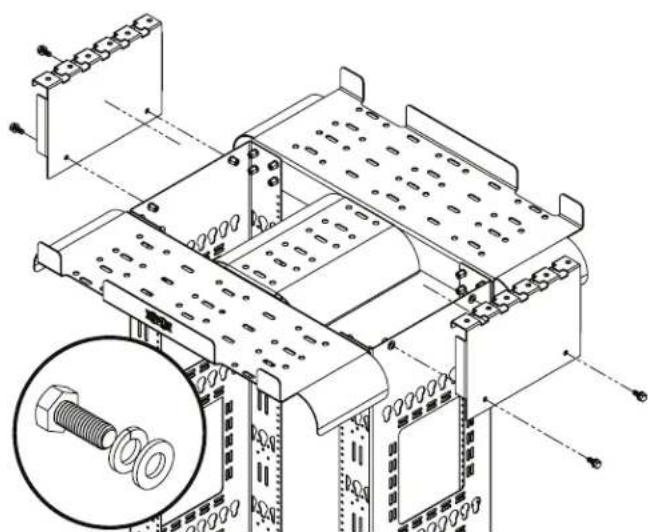

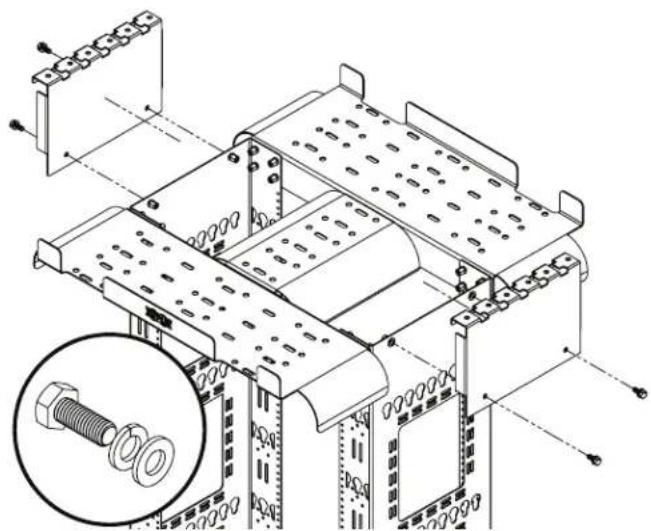

step

3

14

4

4

4

14

2

Technical line drawing of a mechanical assembly with bolted components and a magnified inset showing a threaded bolt (no text or symbols present)

Equipment Installation

All models can support an equipment load up to 2000 lb. (907 kg) maximum.

WARNING: Install heavier equipment first and install it toward the bottom of the rack. Install equipment starting from the bottom of the rack and proceeding toward the top of the rack—never the reverse.

Warranty & Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Product Registration

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

1111 West 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Technical line drawings of two server rack structures with grid patterns and mounting brackets (no text or symbols)

English 1 • Français 9 • Русский 13 • Deutsch 17

1111 West 35th Street, Chicago, IL 60609 EE UU • tripplite.com/support

Technical line drawing of two metal plates with mounting holes and a central slot (no text or symbols)

Technical line drawing of two mechanical components with no visible text or symbols

ABCDE

Technical line drawing of a server rack assembly with a magnified inset showing a bolt and washer (no text or symbols)

paso

2

Technical line drawing of a mechanical assembly with bolted components and a magnified inset showing a bolt (no text or symbols)

paso

3

(opcional)

14

4

4

4

14

2

Technical line drawing of a mechanical assembly with bolted components and a magnified inset showing a threaded bolt (no text or symbols present)

1111 West 35th Street, Chicago, IL 60609 EE UU • tripplite.com/support

Technical line drawings of two stacked server rack structures with grid patterns (no text or symbols)

English 1 • Español 5 • Русский 13 • Deutsch 17

1111 West 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Technical line drawing of two rectangular metal plates with mounting holes and a central slot (no text or symbols)

Technical line drawing of two mechanical components with no visible text or symbols

ABCDE

Technical illustration of a screw and two bracket components (no text or symbols)

K

Technical line drawing of two rectangular electronic components with mounting holes and a curved housing (no text or symbols)

accessoires
Entretoise

Outils requis

Technical diagram of a server rack assembly with mounting hardware and a close-up inset showing a bolt and washer (no text or labels)

Étape

2

Technical line drawing of a mechanical assembly with bolted components and a magnified inset showing a bolt (no text or symbols)

Étape

3

(facultative)

14

4

4

4

14

2.

Technical line drawing of a mechanical assembly with bolted components and a magnified inset showing a bolt (no text or symbols)

1111 West 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Technical line drawings of two server rack structures with grid patterns and mounting brackets (no text or symbols)

English 1 • Español 5 • Français 9 • Deutsch 17

EAC

1111 West 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Technical line drawing of two rectangular metal plates with mounting holes and a central slot (no text or symbols)

Technical line drawing of two mechanical components with no visible text or symbols

Technical line drawing of a server rack assembly with a magnified inset showing a bolt and washer (no text or symbols)

шаг

2

Technical line drawing of a mechanical assembly with bolted components and a magnified inset showing a bolt (no text or symbols)

шаг

3

14

4

4

4

14

2

Technical line drawing of a mechanical assembly with bolted components and a magnified inset showing a bolt (no text or symbols)

1111 West 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Benutzerhandbuch

Technical line drawings of two modular server racks with grid-like internal compartments (no text or symbols)

English 1 • Español 5 • Français 9 • Русский 13

1111 West 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Technical line drawing of two metal bracket components with mounting holes (no text or symbols)

Technical line drawing of two mechanical components with mounting brackets (no text or symbols)

ABCDE

Technical illustration of a screw and its assembly components (no text or symbols)

FGHIJK

Technical line drawing of a server rack assembly with a magnified inset showing a bolt and washer (no text or symbols)

Schritt

2

Technical line drawing of a mechanical assembly with a magnified inset showing a bolt and washer (no text or symbols)

Schritt

3

(optional)

14

4

4

4

14

2

Technical line drawing of a mechanical assembly with bolted components and a magnified inset showing a threaded bolt (no text or symbols present)
