USER MANUAL Pharoslite EAS05 ENERMAX
Pharoslite 7-IN-1 LED BLUETOOTH SPEAKER
User's Manual
EAS05 Wireless Speaker
www.enermax.com
Specification
| Speaker-EAS05 | |
| Amplifier Power | 5W |
| Frequency Response | 100Hz~18KHz (±3dB) |
| Maximum Sound Level | 95dB |
| Signal-to-Noise Ratio | ≥80dB |
| Dimension | Ø80 x H112 mm |
| Weight (set) | 590g |
| Flashing Light | |
| Light-up Duration | 6 hours |
| (LUX) 0cm | 11000 |
| (LUX) 30cm | 1350 |
Specification
| Battery | |
| Battery Type | Lithium battery 3.7V 1000mAh |
| Playing Time | 6 hours at 70% volume level |
| Charging Time | 3~4 hours |
| Bluetooth | |
| BluetoothTechnology | Jeli V4.2 |
| BluetoothFrequency Range | 2402MHz-2480MHz |
| Profile Support | A2DP\AVCTP\AVDTP\AVRCP |
| Operational Range | 10 M |
2PCS

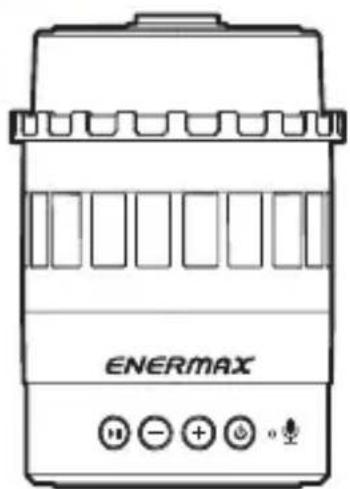

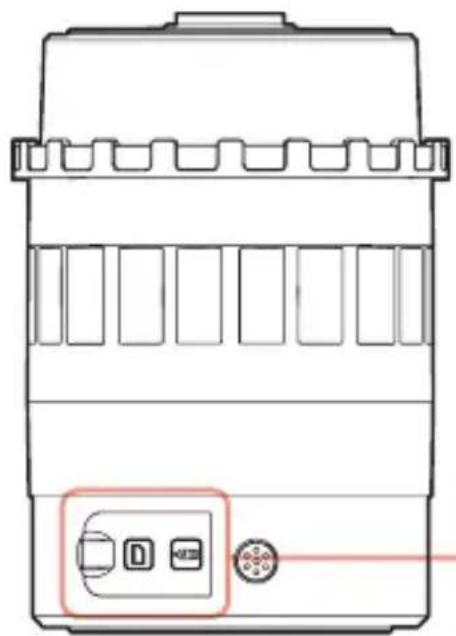

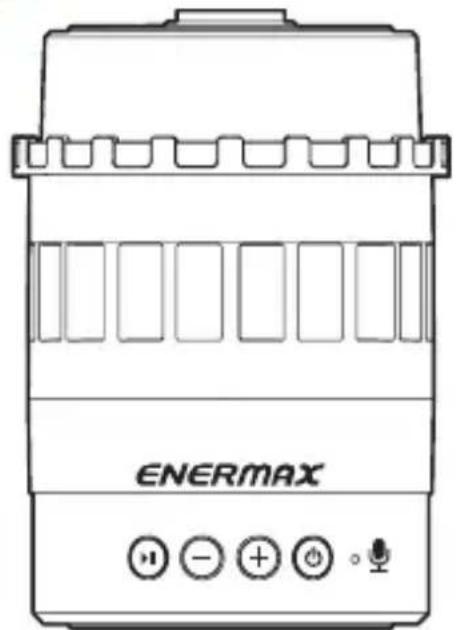

Front Back

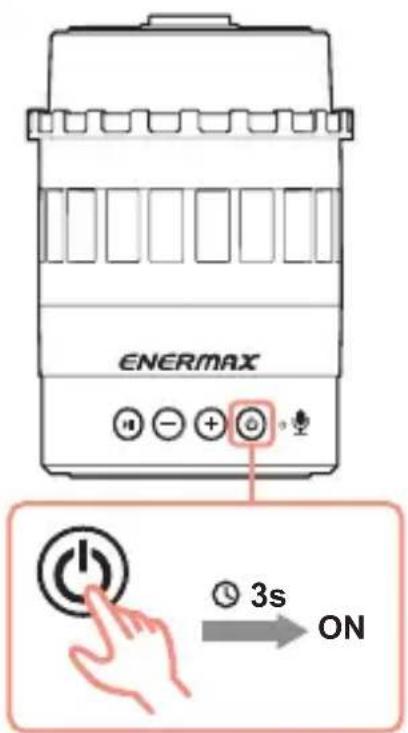

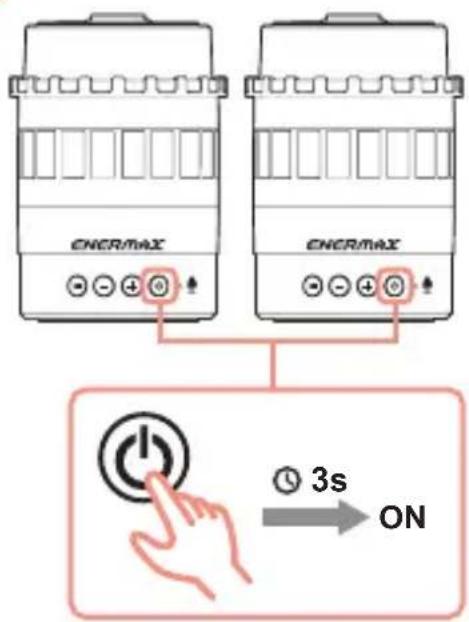

3s

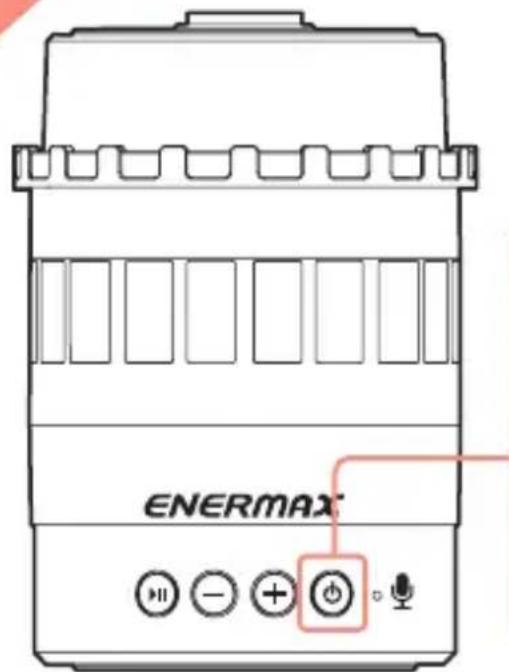

ON/OFF

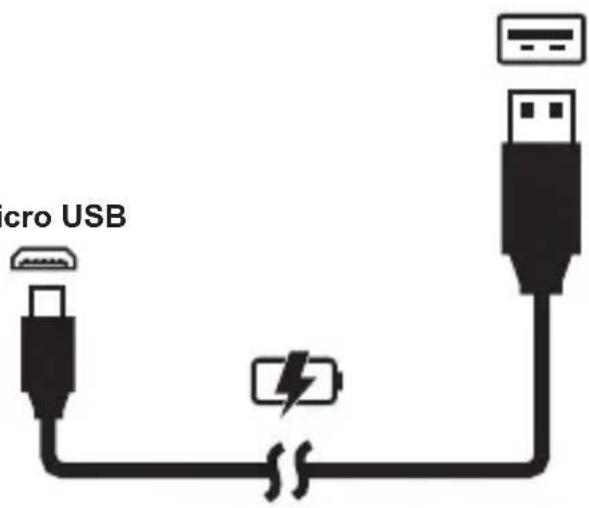

3~4 Hours

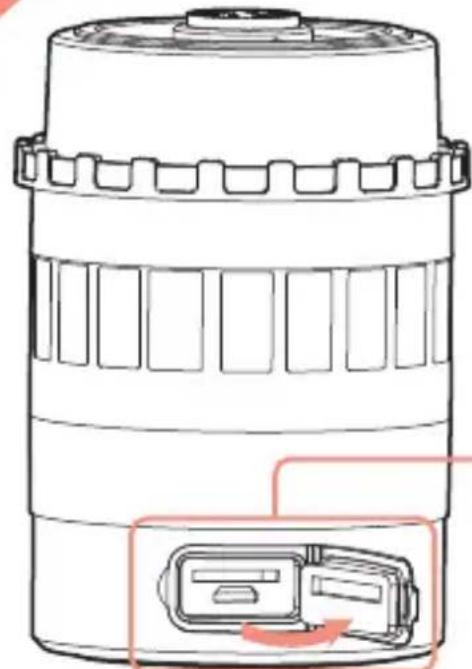

Micro USB
Max. 32 GB

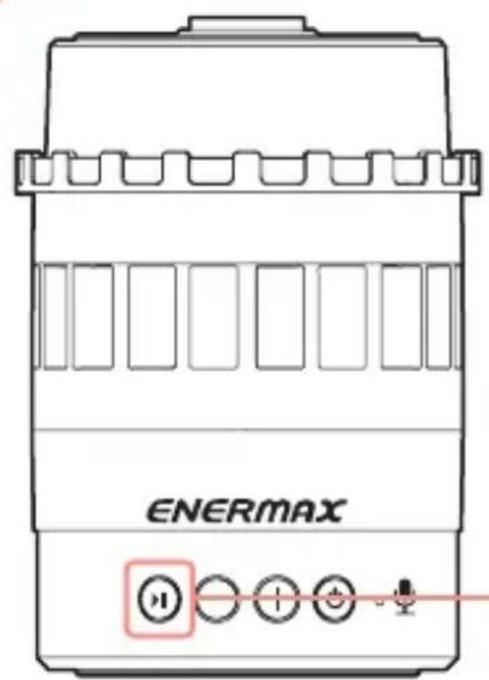

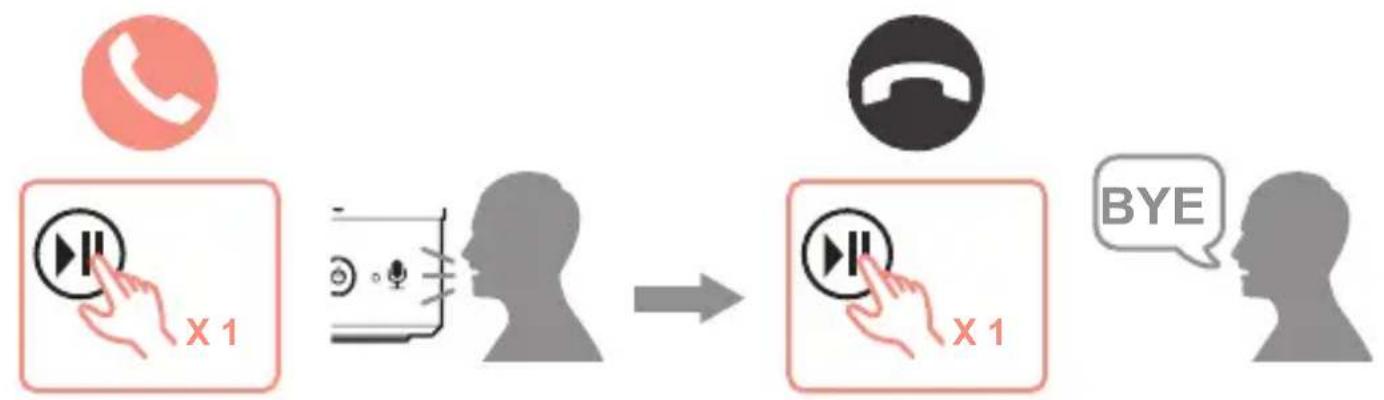

Play / Pause

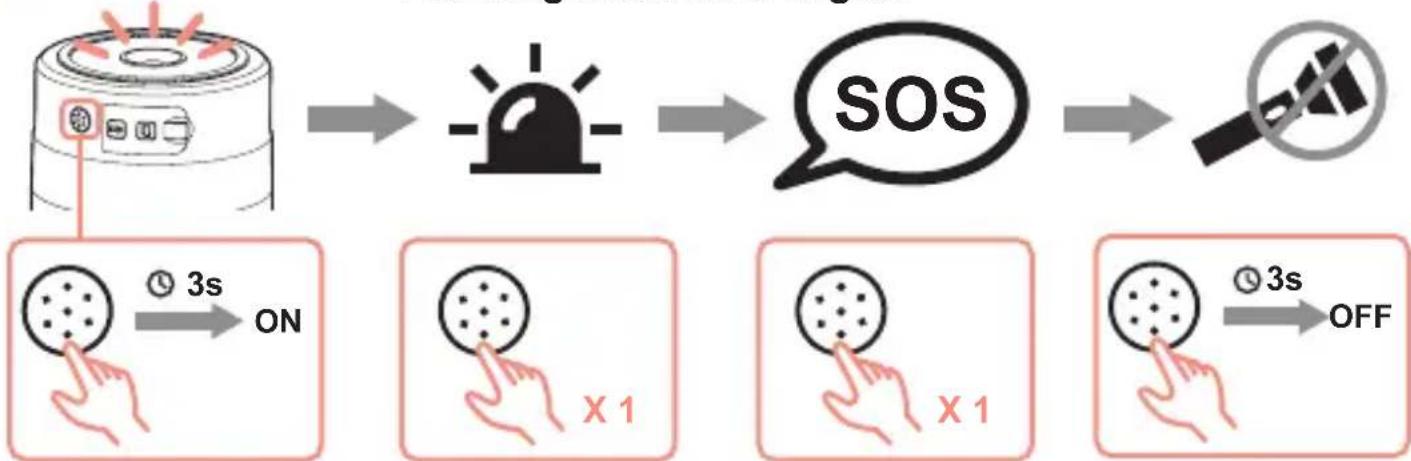

Flashing Mode SOS Signal

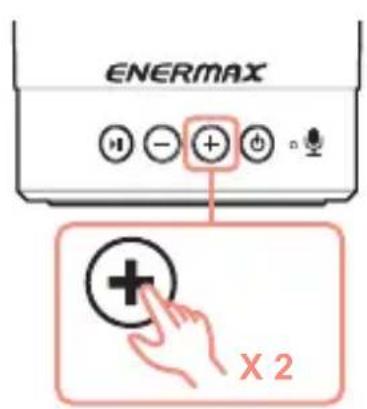

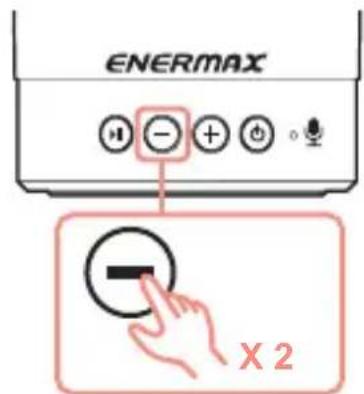

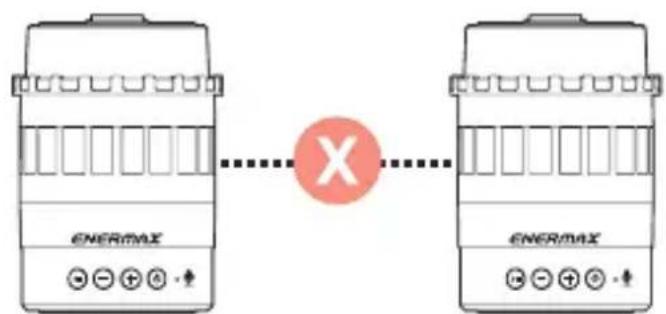

X2
OFF

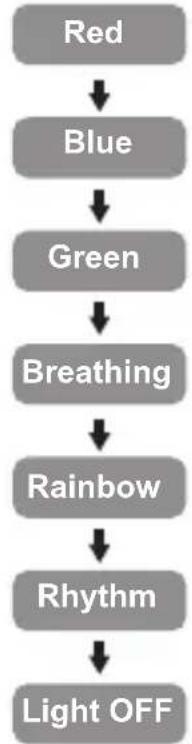

RGB LIGHTING

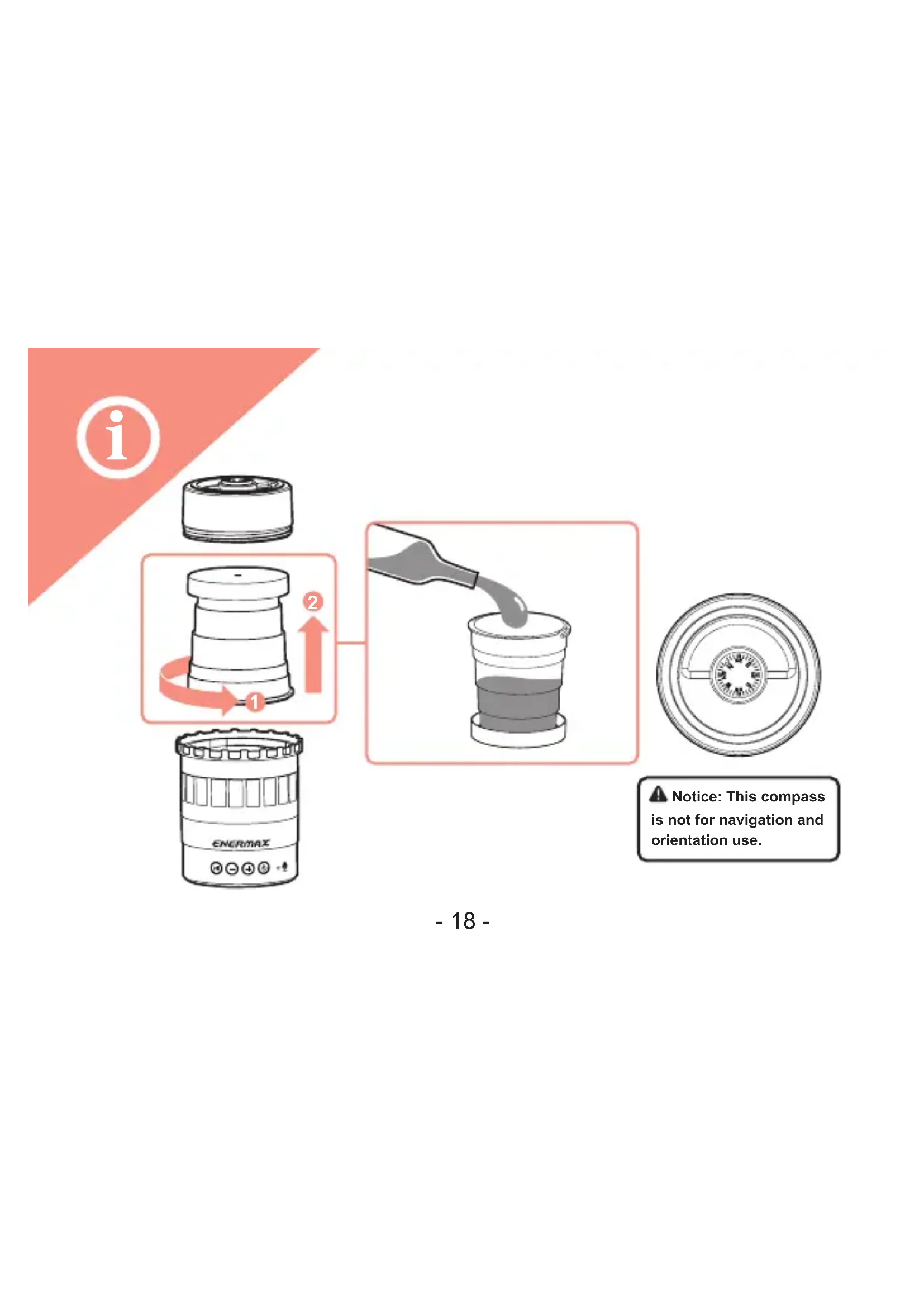

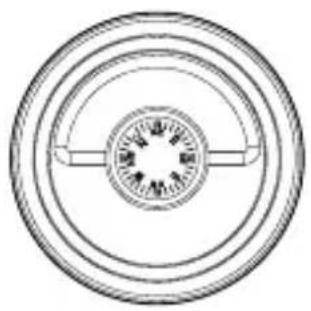

Notice: This compass is not for navigation and orientation use.
Safety Information
-
The unit should only be repaired by authorized service center. Do not repair by yourself.
-
Do not take speaker apart to avoid electrocution.
-
Only use approved attachments and accessories specified by Enermax audio.
-
Warning! Electric shock hazard : To reduce the risk of fire of electric shock, do not expose this product to water.
-
Noted : To prevent possible hearing damage, do not listen at high volume levels for long periods.
-
Do not use or charge a battery if it appears to be leaking, discolored, deformed, or in any way abnormal.
-
In the European Union and other locations, it is illegal to dispose of any battery with household trash. All batteries must be disposed of in an environmentally sound manner.
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
低功率電波輻射性電機管理辦法
Please Read Before Use
- To prevent permanent hearing damage, avoid setting the unit at high volume levels. Please also take precaution and limit the mount of time you use the unit when it is at high volume levels.
To enjoy your listening experience, we suggest you to turn down the volume levels before turning the unit off.
-
Do not use the unit while operating motor vehicles when you can not hear ambient sound.
-
Avoid physical impact and pulling to prevent unit damage.
-
For your safety, stop using the unit when it is out of order.
-
Never dismantle, modify, or repair the unit. Maintenance and compensation do not cover user caused accidents or damages.
-
Do not inject any liquid or objects into the unit. They may short out parts that could result in fire or electric shock.
- Though the unit is qualified to work for 24 consecutive hours under humidity of 93% , do not over expose the unit to moisture to reduce the risk of any danger.
- Do not use the unit near any heat source such as heaters, stoves or any device that emits heat.
- Clean with a dry cloth only, do not use any chemicals, such as alcohol or detergent.
- The unit should only be repaired by authorized service personnel.
- This product should be kept away from children under 3 years of age as the wire and product contains small parts that could cause a choking hazard.
- See product enclosure for safety related markings.
IMPORTANT: To ensure personal safety and successful charging, do not connect EAS05 to any power source while the charging port is wet, and do not expose EAS05 to dripping or splashing while charging, as doing so may result in permanent damage to the speaker or power source.
DE
15F-2, No 888, Jing-Guo Road, 330 Taoyuan City
TAIWAN
Stanley Chu, R&D Dept. Manager
C E
DECLARATION of Conformity
The following Applicant: ENERMAX TECHNOLOGY CORPORATION
Equipment: Bluetooth Speaker
Model No.: EAS05
We herewith confirm that the product listed above comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Low-voltage Directive (2014/35/EU) and Electromagnetic Compatibility (2014/30/EU) and Radio Equipment (2014/53/EU) and Restriction of the use of certain hazardous substances (RoHS) (2011/65/EU).
For the evaluation of above mentioned Directives, the following standards were applied:
EN 62368-1: 2014+ A11:2017
EN 62479:2010
EN 55032: 2015
EN 61000-3-2: 2014 (Not applicable); EN 61000-3-3: 2013
Draft ETSI EN 301 489-1 V2.2.1: 2019
Draft ETSI EN 301 489-17 V3.2.0: 2017
EN 55035:2017; EN 300 328 V2.1.1:2016
EN 50581:2012
The following manufacturer is responsible for this declaration:
ENERMAX Technology Corporation
15F-2, No.888, Jing-Guo Road, 330 Taoyuan City, TAIWAN
Person responsible for this declaration :
Stanley Chu, R&D Dept. Manager
Authorized Signature
Date: 2019-07-25
2019 ENERMAX TECHNOLOGY CORPORATION. All rights reserved. Specifications are subjected to change without prior notice. Some trademarks may be claimed as the property of others.
