Technical Features	Wall-mounted hood, stainless steel, 60 cm wide
Airflow	Up to 600 m8/h
Power Levels	3 power levels
Lighting	Integrated LED lighting
Filter	Aluminum grease filter, dishwasher safe
Installation	Wall installation, requires an exhaust duct
Usage	Button controls, easy to use
Maintenance	Filters need regular cleaning, simple maintenance
Safety	Overload protection, compliant with safety standards
General Information	Ideal for modern kitchens, elegant stainless steel design

Frequently Asked Questions - CEH6060IX CONTINENTAL EDISON

How do I clean the filters of the CONTINENTAL EDISON CEH6060IX hood?

To clean the filters, remove them from the hood and soak them in warm soapy water. Let them soak for about 15 minutes, then rinse with clean water and let them dry before putting them back in place.

What should I do if the hood does not turn on?

First, check that the hood is properly plugged into a working power outlet. Also make sure the circuit breaker has not tripped. If everything is in order and it still does not turn on, contact customer service.

How do I adjust the suction power of the hood?

The CONTINENTAL EDISON CEH6060IX hood has several power levels. Use the control panel to select the desired suction level according to your cooking needs.

The hood is noisy, is this normal?

A certain level of noise is normal when using the hood, but if the noise seems excessive, check that the filters are clean and that the hood is securely mounted. If it persists, contact a technician.

How do I change the hood light bulb?

To change the bulb, unplug the hood, remove the bulb cover by turning it counterclockwise, replace the bulb with a new one, and put the cover back in place.

The hood does not filter odors properly, what should I do?

Check that the charcoal filters are in good condition and have been replaced according to the manufacturers recommendations. If the filters are dirty or worn, replace them to improve filtration efficiency.

How do I install the CONTINENTAL EDISON CEH6060IX hood?

For proper installation, follow the provided installation manual. Make sure to mount the hood at an appropriate height above the stove and follow the ventilation instructions.

What types of filters should I use for my hood?

Use only filters recommended by the manufacturer to ensure proper hood operation. The grease and charcoal filters specified in the manual are essential for effective filtration.

USER MANUAL CEH6060IX CONTINENTAL EDISON

SAFETY PRECAUTIONS 3

COMPONENT LIST 9

INSTALLATION AND MOUNTING 11

OPERATION 22

CARBON FILTER REPLACEMENT 24

MAINTENANCE 25

INFORMATION FOR COOKER HOOD 26

ENVIRONMENTAL PROTECTION 29

Read this guide carefully before installing and using this product and retain for future reference.

For information on the necessary space for the installation and mounting of the device, refer to the "INSTALLATION AND MOUNTING" section.

For detailed information on the dimensions and position of the means to support and attach the device in this space, refer to the "INSTALLATION AND MOUNTING" section.

For detailed information on the minimum distances between the different parts of the device and the surrounding structure, refer to the "INSTALLATION AND MOUNTING" section.

For detailed information on the minimum dimensions of the ventilation openings and their correct arrangement, refer to the "INSTALLATION AND MOUNTING" section.

4

SAFETY PRECAUTIONS

Always turn off the power before installing or servicing, including replacing a bulb.
- The range hood must be installed in accordance with the installation instructions and all measures must be observed.
- The entire installation must be entrusted to a competent person or to a professional electrician.
- Please dispose of packaging materials carefully. They are dangerous for children. Check that the ducts do not have bends greater than 90 degrees. This would reduce the efficiency

of the range hood.

This range hood is intended exclusively for domestic use.
- Do not blaze food under the hood.
- Do not try to use the kitchen hood without the grease filters or if the filters are too full of grease!
- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
- Do not leave frying pans unattended during use as overheated fats or oils may catch fire.

• Never leave naked flames under the range hood.
  If the hood is damaged, do not attempt to use it.
  If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Watch your children to make sure they do not play with the device.

• The plug must be easily accessible after installation. There is minimum distance between the support surface of cookware on the cook top and the lowest part of the cooker hood. (When the range hood is placed over a gas appliance, this distance must be at least 65 cm.

• In the absence of an outward exit, the hood can be used in air recycling mode with carbon filters. The assembly is identical to what is described above, except for the installation of the expandable hose that should not be used.
  If the installation instructions for the gas cook top specify a larger distance, this should be taken into account

• Proper ventilation of the room must be provided when a kitchen hood is used simultaneously with appliances using gas or other fuel.
• Clean your appliance periodically using the

method suggested in the MAINTENANCE chapter

• There is a risk of fire if the cleaning is not done according to the instructions.
• Regulations regarding the discharge of air must be respected.

• Clean the grease filter every month to prevent fire.
  The charcoal filter traps odors and must be replaced at least once a year depending on the frequency of use of the range hood.
  WARNING: Accessible parts of this appliance may become hot when used with cooking appliances.

• For air extraction to be as efficient as possible, use a straight duct or with a minimum of elbows. Number of technicians recommended for installation: 2 to 3. Use appropriate wall plugs and screws on the wall where the hood is to be installed. Ask a qualified installer or technician to select the right dowels and screws. In a cold climate, it is advisable to install an additional check valve to minimize cold air return, as well as a nonmetallic thermal barrier to minimize heat transfer by conduction to the outside. The valve

must be installed on the side of the thermal barrier where the air is cold.

• The thermal barrier must also be installed as close as possible to the point where the duct enters the heated part of the building.

TO REDUCE FIRE HAZARDS, USE ONLY METALLIC DUCTS.

Install this hood in accordance with all specified requirements.

To reduce the risk of fire and extract air effectively, make sure the exhaust duct faces out. The extraction mouth must not be open on a space between two walls, ceilings, attics, reduced spaces or garages.

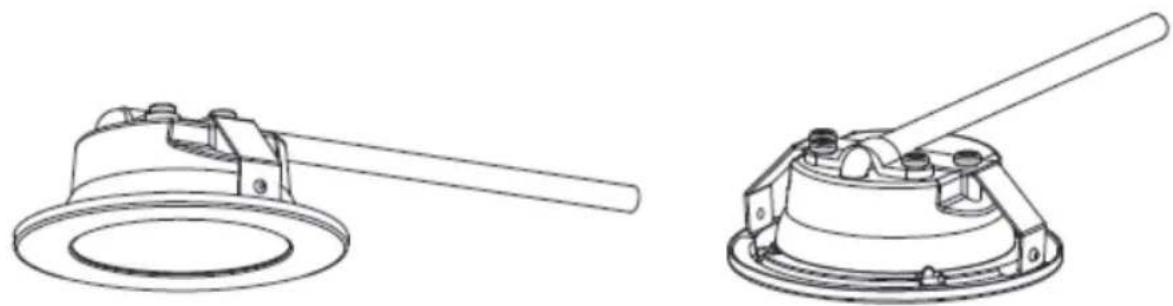

LIGHTING

• Non-replaceable LED lamp.
• Max. power 1.5W per lamp.
  -ILCOS D code is DSR-1.5/65-S-64.

Presentation

Thank you for choosing this range hood. This user manual is designed to provide all necessary instructions for the installation, operation and maintenance of this appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

PARTS SUPPLIED

Description Drawing QTY(pc/set)
Cooker Hood	1
outside chimney	1
inside chimney	1
outside chimney bracket	1
inside chimney bracket	1

hook 1
screw (ST4×8mm)		4
v-flap (150)		1 pair
cable tie-8×550mm		1
expansion pipe-150MM*2M		1
CF115 carbon filter		2

Information on Mounting

Your cooker hood can be used in extraction mode and recirculation.

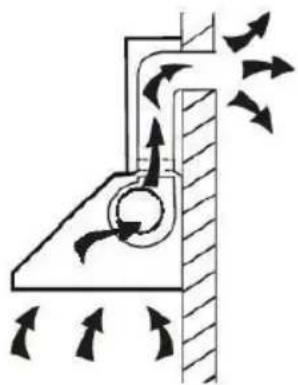

Extraction mode

In extraction mode, the cooking fumes are sucked up, led through the grease filter, and released outside through an expansion pipe.

Advantage: No carbon filter required, fume contamination always very low.

Disadvantage: Wall penetration (core drilling) of 15.5 cm diameter with compatible hose connection required. Usage of open fires in the same room is only somewhat possible.

Recirculation mode

In recirculation mode, the cooking fumes are sucked up and feed back into the room after filtration through the upper air outlet. The air is cleaned by the grease filter and then by the carbon filter (fume filter with activated charcoal).

Advantage: Easy installation.

Disadvantage: As the carbon filter becomes dirtier, it becomes less efficient at cleaning and sucking. The carbon filter must be replaced approximately every three months, depending on use.

Extraction mode

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminium, flexible pipe or nonferrous an interior diameter of 150mm)

1. Before installation, turn the unit off and unplug it from the outlet.

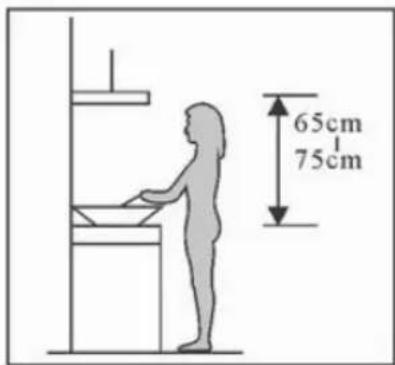

1. The cooker hood should be placed at a distance of 65 75 ~cm above the cooking surface for best effect.

Pic 1

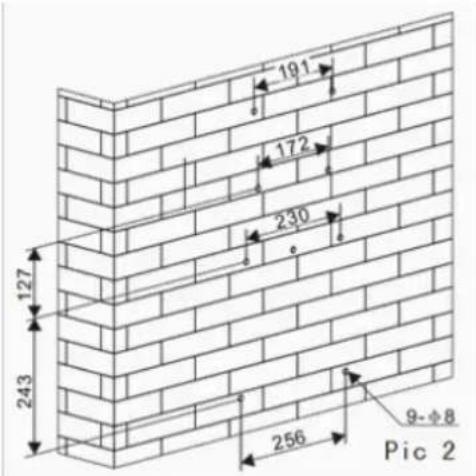

1. After fix the installation height of the cooker hood, measure the position of the holes for hook, inside chimney bracket, outside chimney bracket and safety hole. And drill 9 pcs 8 holes.Put wall plugs into those 9pcs 8 holes. Fix the hook onto the wall by three ST4*40mm screws, fix the inside chimney bracket onto the wall by two ST4*40mm screws. The fixed position of the inside chimney bracket is the place of chimney. See pic 2.

Pic 2

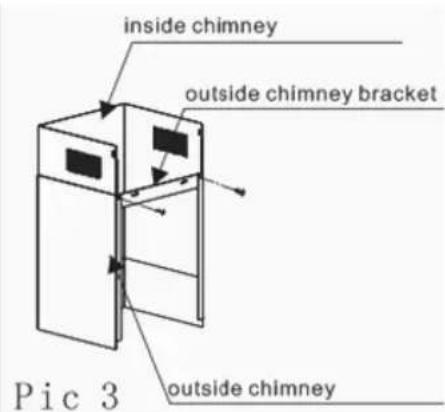

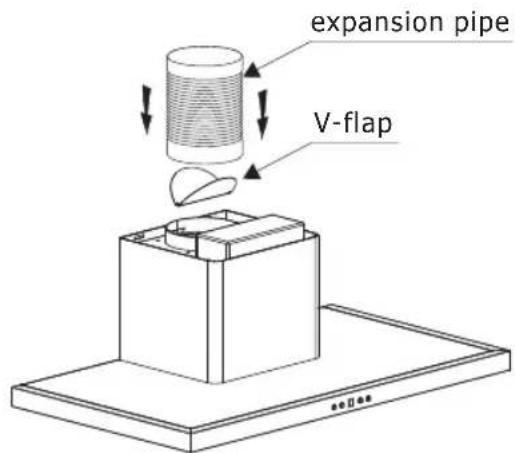

1. Fix the outside chimney bracket on the outside chimney, and be sure that the inside chimney can be adjusted the height in it freely. See Pic 3. Afterwards, install the v-flap and expansion pipe on the cooker hood, see Pic 4-1. And fix the expansion pipe by the cable tie, see Pic 4-2.

Pic 3

Pic 4-1

Pic 4-2

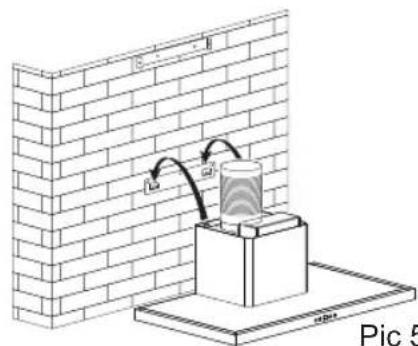

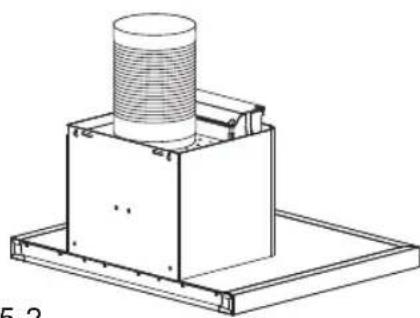

1. Place the hood on the hook. See Pic 5-1.

Secure the body of the hood with the 2 screws of secondary fixation. See Pic 5-2

Pic 5-1 Pic 5-2

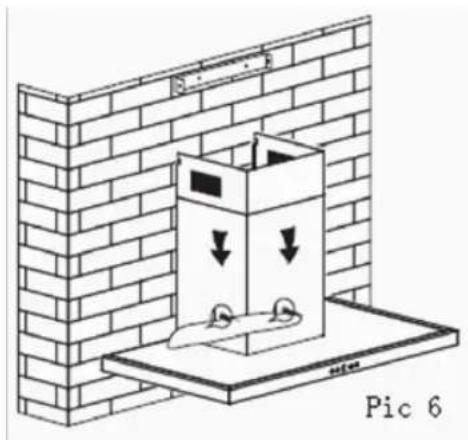

1. Adjust the cooker hood position, and fix the cooker hood with 2 ST4*30mm safety screws. Then put the chimneys on the cooker hood. See pic 6.

Pic 6

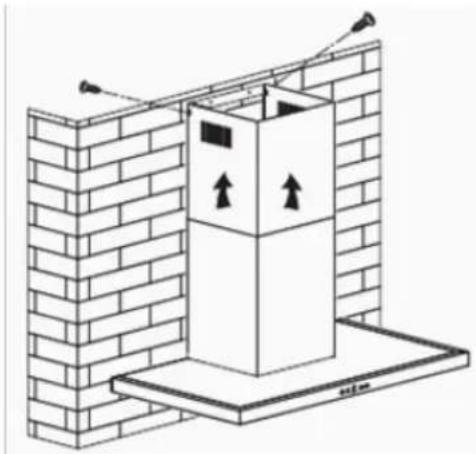

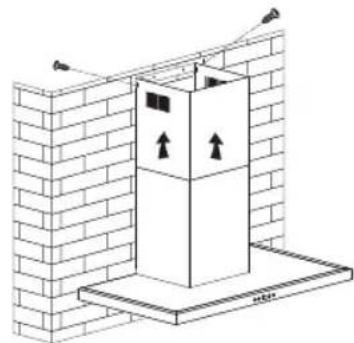

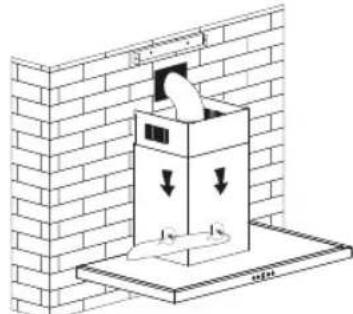

1. Adjust the height of the inside chimney to the position of the inside chimney bracket and fix on it by2 ST4*8mmscrews.See Pic 7.

Pic 7

Recirculation mode

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hood should be placed at a distance of 65 75cm above the cooking surface for best effect.

1. After fix the installation height of the cooker hood, measure the position of the holes for hook, inside chimney bracket, outside chimney bracket and safety hole. And drill9pcs 8 holes. Put wall plugs into those 9pcs 8 holes. Fix the hook onto the wall by three ST440mm screws, fix the inside chimney bracket onto the wall by two ST440mm screws. The fixed position of the inside chimney bracket is the place of chimney. See pic 2.

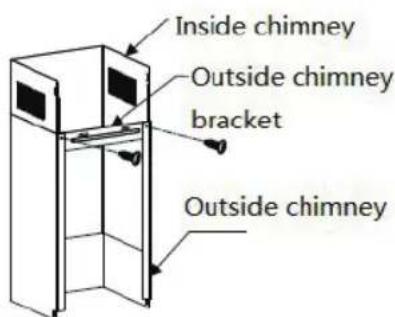

1. Fix the outside chimney bracket on the outside chimney, and be sure that the inside chimney can be adjusted the height in it freely. See Pic 3. Afterwards, install the v-flap on the cooker hood. See Pic4.

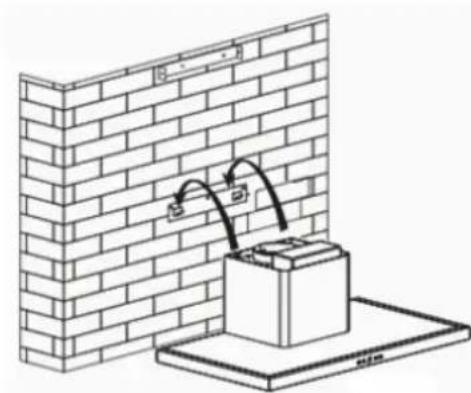

1. Place the hood on the hook. See Pic 5-1. Secure the body of the hood with the 2 screws of secondary fixation. See Pic 5-2

Pic 5-1 Pic 5-2

1. Adjust the cooker hood position, and fix the cooker hood with 2 ST4*30mm safety screws. Then put the chimneys on the cooker hood. See pic 6.

1. Adjust the height of the inside chimney to the position of the inside chimney bracket and fix on it by 2 ST4*8mm screws. See Pic 7.

Pic 7

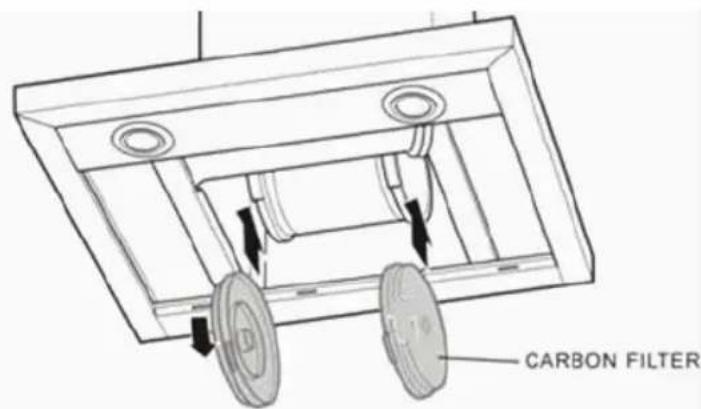

1. Carbon filter Installation.

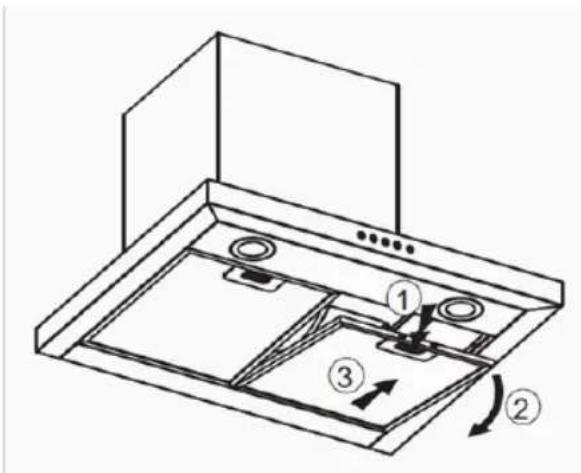

Remove the grease filter. Press the lock and pull it downward. See Pic 8.

Pic 8

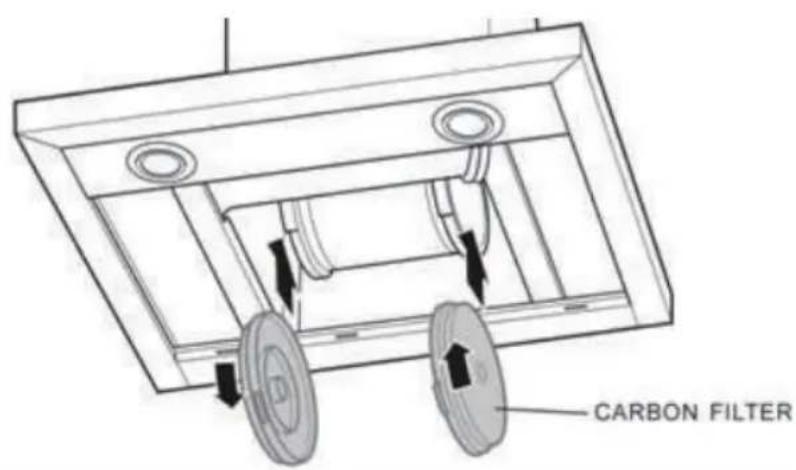

Put on the carbon filter by rotating the carbon filter clockwise. See Pic 9.

Pic 9

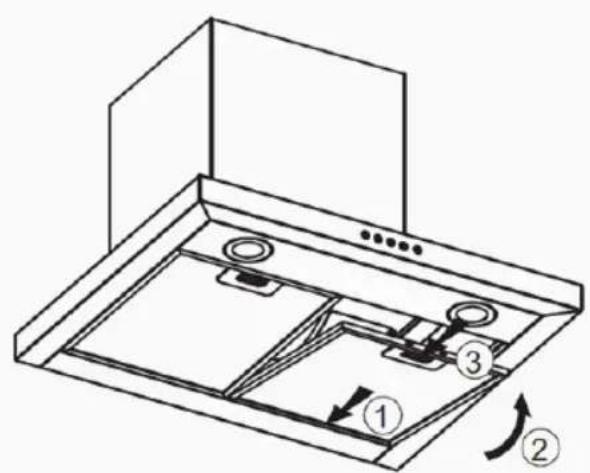

Install the grease filter. See Pic 10.

Pic 10

Case of use in air recycling:

In the absence of an outward exit, the hood can be used in air recycling mode with carbon filters. The assembly is identical to what is described above, except for the installation of the expandable hose that should not be used.

There are five touch buttons: (Low), (Mid), (High), (Light), (Power). See Pic above.

1. After connecting to power, indicator light will lit on, all the output close and the hood will enter standby mode. The indicator light will be off automatically after reminding if no operation.

2. Power on: Press power button one time, its indicator light will lit on, the hood works at low speed. Indicator light of low speed will be bright. Press power button again to close it, and its indicator light will be off. All the function operation of the hood will be closed, the hood enters into standby mode, and recycle by circle. The speed buttons and lamp button can work separately and not controlled by the power button. Press one function button, the hood will work at that function status. Press power button at any status will close all function operation.

3. Press lamp button once; lights will be turn on. Indicator light of lamp button and power button will lit on. Press lamp button again to turn off the lights. Indicator light of lamp button and power button will be off. And recycle like this.

4. Press the (High) button one time, motor runs on high speed, the indicator light of high button and power button will beam. Press high button again and the motor will stop. Indicator light of high button and power button will be off, and recycle by circle.

5. Press the (Mid) button one time, motor runs on middle speed, the indicator light of middle button and power button will beam. Press middle button again and the motor will stop. Indicator light of middle button and power button will be off, and recycle by circle.
6. Press the (low) button one time, motor runs on low speed, the indicator light of low button and power button will beam. Press low button again and the motor will stop. Indicator light of low button and power button will be off, and recycle by circle.
7. Low speed, mid speed and high speed cannot work at the same time. When hood is on high speed, press low speed, it will turn to low speed at once; when it is in low speed, press middle speed, it will turn to middle speed immediately, and so on.

Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed at three or six months according to your cooking habit. The installation procedure of activated carbon filter is as below.

(1) The aluminum filter should be detached first. Press the lock and pull it downward.

(2) Take out the carbon filter by rotating the carbon filter anti-clockwise.
(3) Replace the new carbon filter.

NOTE:

• Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
• When activated carbon filter attached, the suction power will be lowered.

Before cleaning, switch the unit off and unplug the appliance.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for metallic anti-grease filter ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust. So the filter is directly affecting the effloccyoker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter and it with household cleaning detergent.

	Symbol Unit Value
Trade Mark	Continental Edison
Address	120-126 Quai de BacalanCS 11584 33000 Bordeaux
Reference CEH6060IX
Model identification		SY-3503C-E1 - C89-L12-600
Annual Energy Consumption	AECwood	25,4	kWh/a
Energy Efficiency class		A+
Time increase factor f		0,8
Fluid Dynamic Efficiency	FDEhood	34,2
Fluid Dynamic Efficiency class		A
Energy Efficiency Index	EEIhood	42,4
Measured airflow rate at the best efficiency	QBEP	315	m³/h
Measured air pressure at best efficiency point	PBEP	302	Pa
Maximum airflow	Qmax	595	m³/h
Maximum air low/ air flow at working point(in normal use)		highest setting: 553 lowest setting: 187	m³/h
Measured electric power input at best efficiency point	WBEP	77,2	W
Nominal power of the lighting system	WL	3,9	W
Average illumination of the lighting system on the cooking surface	Emiddle	128	lux
Light Efficiency	LEhood	33	Lux/W
Light Efficiency Class A
Grease Filtering Efficiency	GFEhood	83,8
Grease Filtering Efficiency (GFE hood) class		C
Measured power consumption on off mode	Po	0,35	W
Sound power level	LWA	highest setting: 64 lowest setting: 43	dB

The measurement and calculation method of the above table was done in accordance with commission regulation (EU) No 65/2014 & 66/2014.

INFORMATION FOR COOKER HOOD

Note:

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process).

(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.

Information for dismantling

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority or retainer for recycling advice.

This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EC. It will then be recycled or dismantled to minimize impacts on the environment, electrical and electronic products are potentially dangerous for the environment and human

health due to the presence of hazardous substances.

For more information, please contact your local or regional authorities.

Environment friendly disposal! You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment to an appropriate waste disposal centre. The packaging material is recyclable.

Dispose of the packaging in an environmentally friendly manner and make it available for the recyclable material collection-service.
