USER MANUAL NEOX 14 THOMSON

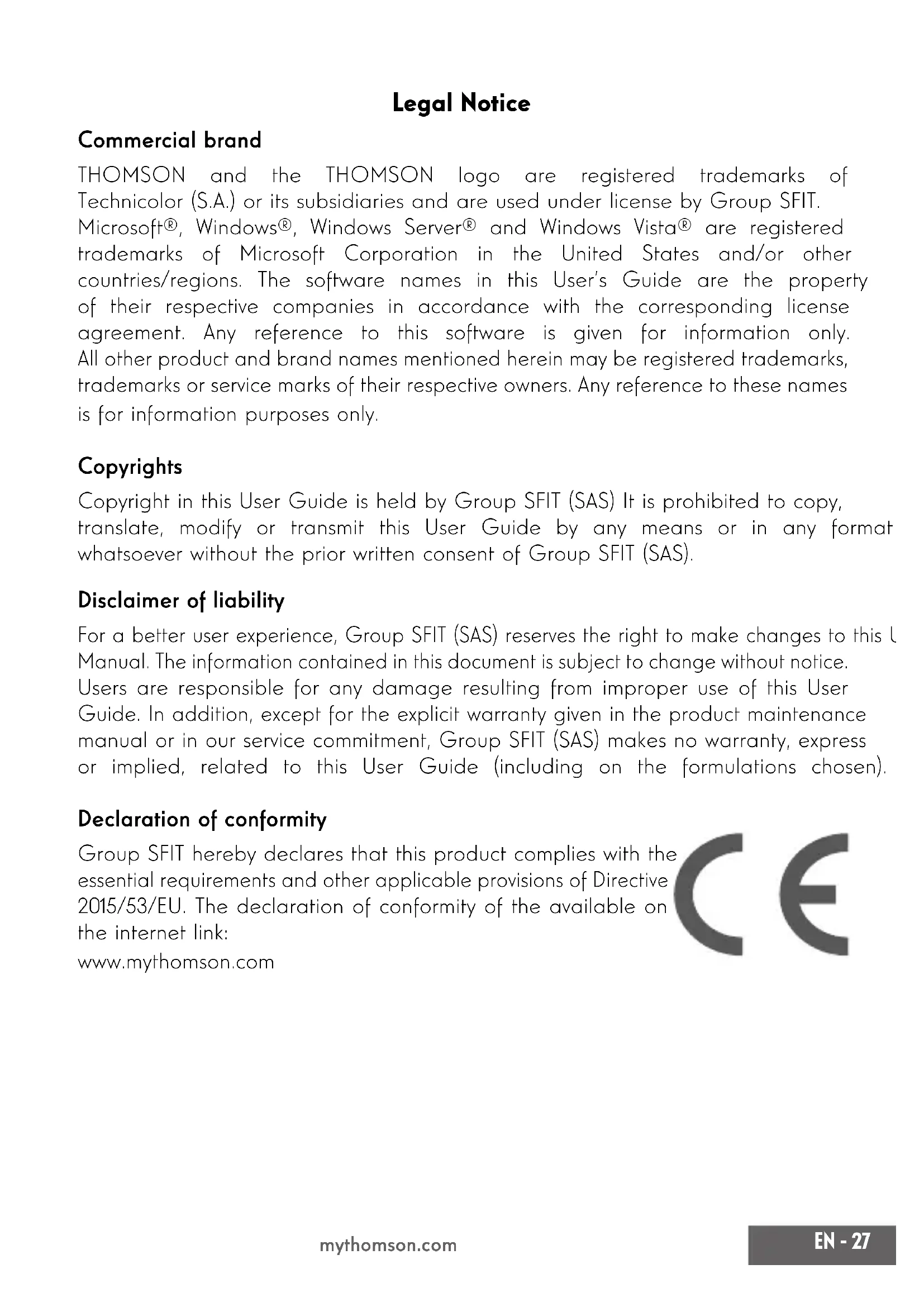

mythomson.com Legal Notice Commercial brand THOMSON and the THOMSON logo are registered trademarks of Technicolor (S.A.) or its subsidiaries and are used under license by Group SFIT. Microsoft®, Windows®, Windows Server® and Windows Vista® are registered trademarks of Microsoft Corporation in the United States and/or other countries/regions. The software names in this User’s Guide are the property of their respective companies in accordance with the corresponding license agreement. Any reference to this software is given for information only. All other product and brand names mentioned herein may be registered trademarks, trademarks or service marks of their respective owners. Any reference to these names is for information purposes only. Copyrights Copyright in this User Guide is held by Group SFIT (SAS) It is prohibited to copy, translate, modify or transmit this User Guide by any means or in any format whatsoever without the prior written consent of Group SFIT (SAS). Disclaimer of liability For a better user experience, Group SFIT (SAS) reserves the right to make changes to this User Manual. The information contained in this document is subject to change without notice. Users are responsible for any damage resulting from improper use of this User Guide. In addition, except for the explicit warranty given in the product maintenance manual or in our service commitment, Group SFIT (SAS) makes no warranty, express or implied, related to this User Guide (including on the formulations chosen). Declaration of conformity Group SFIT hereby declares that this product complies with the essential requirements and other applicable provisions of Directive 2015/53/EU. The declaration of conformity of the available on the internet link: www.mythomson.com28 - EN User’s Manual - NeoX - 14.1’’ i3 mythomson.com - Important safety instructions - This unit should be used in an environment with an ambient temperature between 5°C (41°F) and 35°C (95°F). Do not expose the unit to rain or moisture and keep it away from liquids. In case of splashing water or other liquid on the unit, immediately switch off the unit and wait until it is completely dry before turning it on again. Do not expose the device directly to solar radiation Do not use strong solvents, liquid detergents or other chemicals on or near the surface of the unit to prevent corrosion or deterioration of the surface of the unit. Do not expose the camera to a dusty environment. Do not use the unit during a gas leak. Do not expose the device to strong magnetic or electric elds. You can run the device through airport x-ray detectors. However, it is recommended not to pass your device through the magnetic detection portals or expose it to portable detectors. Do not place any objects on the device. Do not place the unit on an uneven or unstable surface. Make sure to protect the unit from falls or any other impact that may damage it. Do not leave the appliance on or loaded on your lap or any other part of your body to avoid any risk of heat-related injuries. Switch off the unit before transporting it or covering it with a material that does not allow optimal air circulation. Do not use damaged power cords, accessories or other devices with your device. We recommend the exclusive use of the accessories (power supply, cables, etc.) supplied with the unit. Use only original batteries. Replacing the battery with an incorrect battery can cause an explosion risk.EN - 29 mythomson.com Do not disassemble, modify or repair the unit yourself, as this may void the warranty. Please back up your important content regularly to avoid data loss. Our company accepts no responsibility for the loss or removal of items contained in the device due to improper use of the hardware or software, lack of maintenance or any other accidental event. At full volume, prolonged listening to the portable audio device may damage the user’s hearing. This product has been designed to allow proper recycling of parts and components. The symbol representing a crossed-out wheeled bin indicates that the device should not be disposed of with municipal waste. Consult local regulations for disposal of electronic devices. The symbol representing a crossed-out wheeled bin indicates that the battery should not be disposed of with municipal waste. Consult local regulations for battery disposal.30 - EN User’s Manual - NeoX - 14.1’’ i3 mythomson.com - Presentation of the device - Front view Note : The presentation of the device and some features may vary by country, model or version. Left view Right view

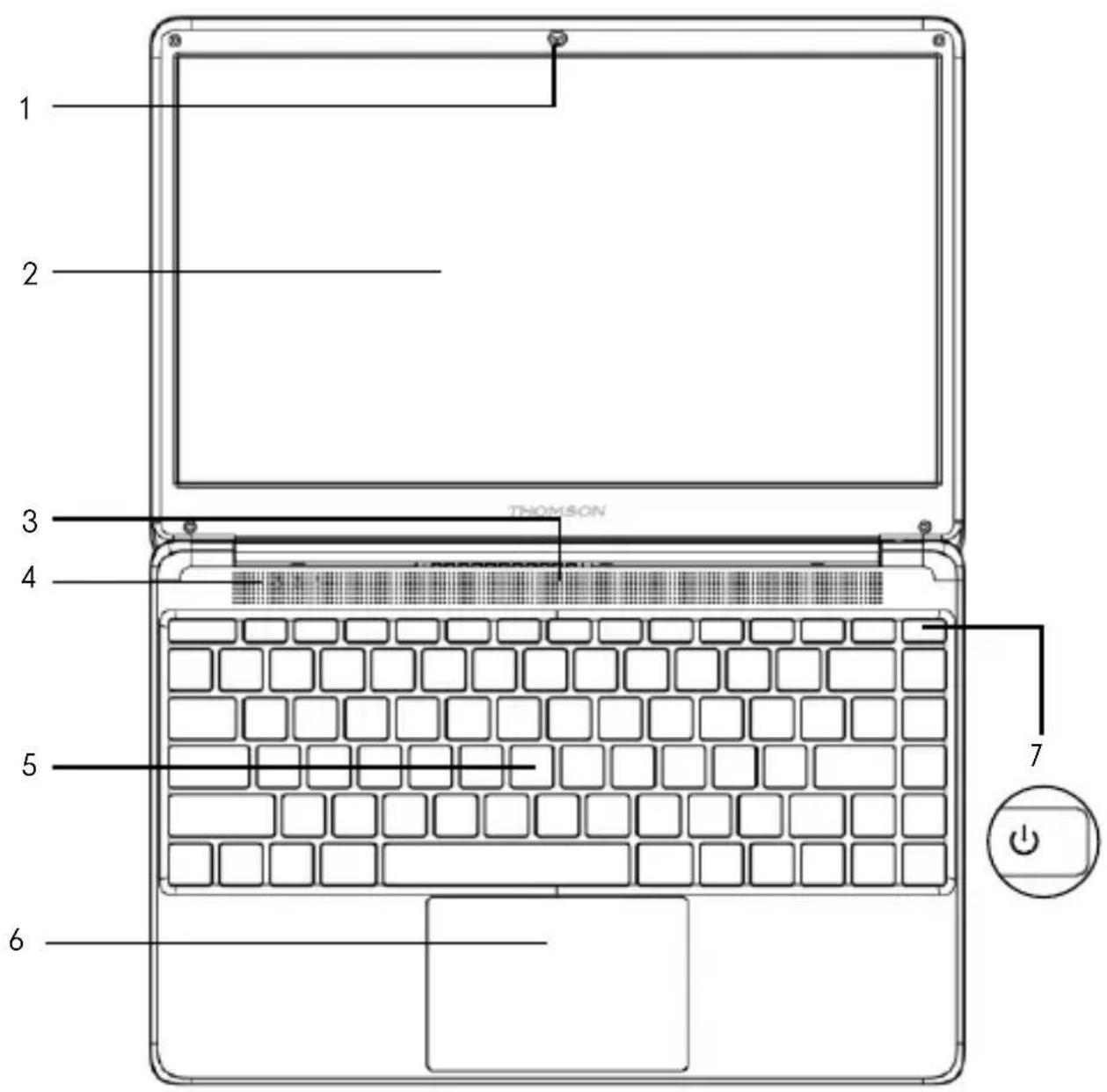

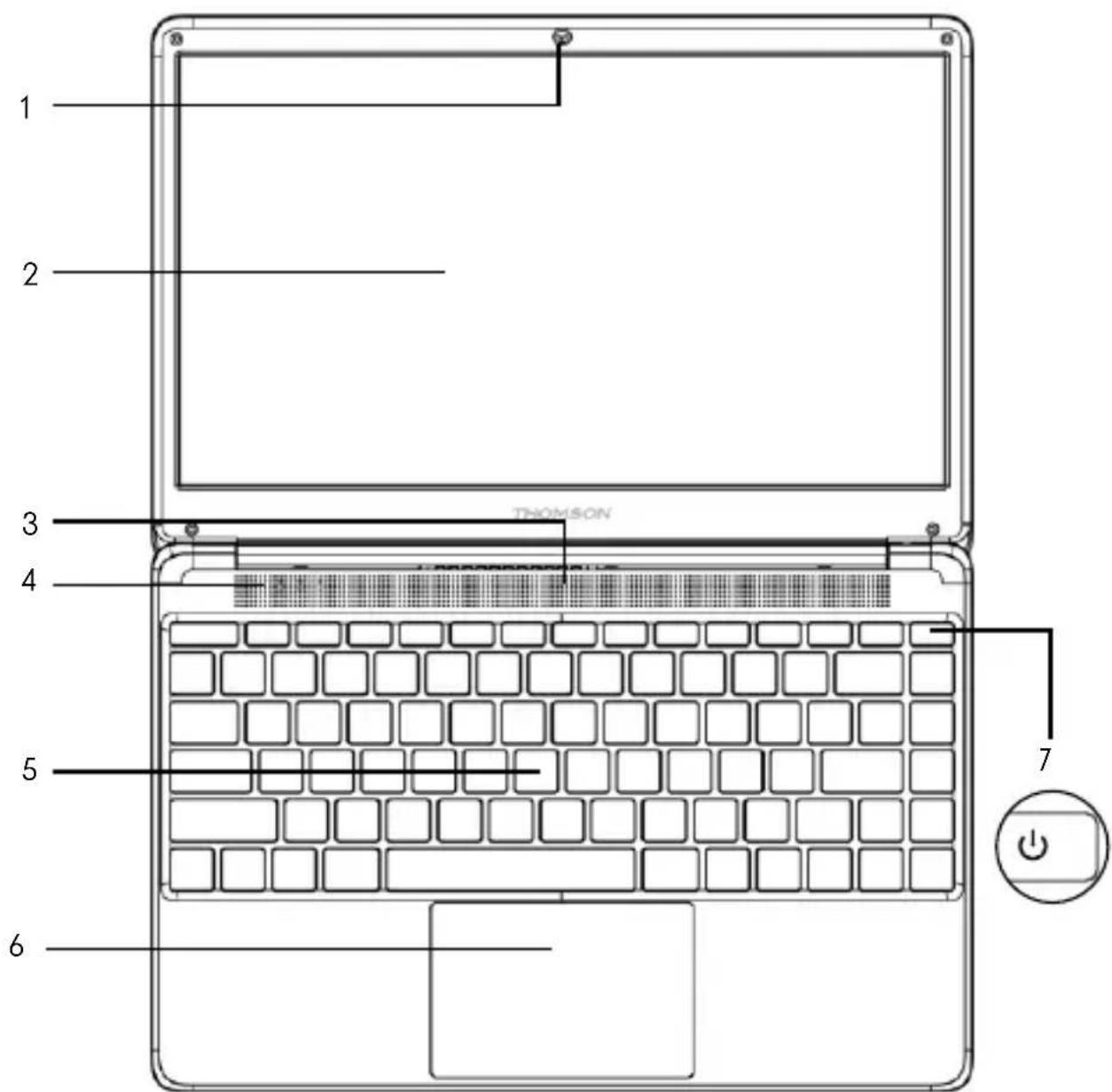

Use this camera for video calls or to take pictures.

The touchpad allows you to enjoy the features of a mouse. It offers an intuitive interface thanks to its multi-gestures features.

A long press of this button allows you to turn your notebook on or off. Front view

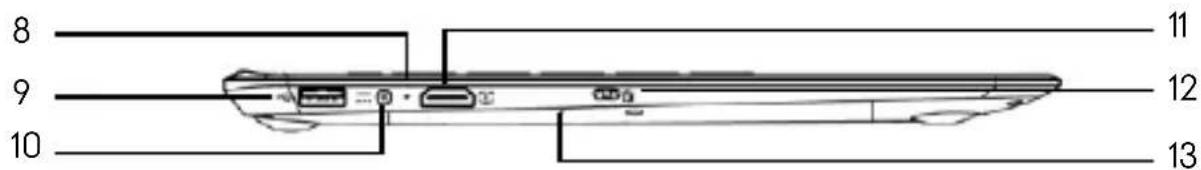

8. Charging indicator

This indicator lights up while the tablet is being charged.

This port is compatible with USB devices such as a keyboard, mouse, ash drive (USB sticks, memory card readers...), external hard disk, printer.

10. Mains power port

This port provides power when connected to an adapter.

11. Mini HDMI port (High - Denition Multimedia Interface)

This port allows you to connect your device to an HDMI-compatible device such as a TV, monitor or projector.

12. Kensington security slot

The Kensington security slot (also known as the Kensington lock, or K-lock) is part of an anti-theft system developed by Kensington Computer Products Group. It is a small rectangular shape hole reinforced around its circumference. It is intended to support a pluggable system associated with a padlock, then connected to a cable that must be xed around a xed object, or difcult to move.

The microphone allows you to use the voice commands on your device, make audio/ video calls, or make audio recordings. Left view

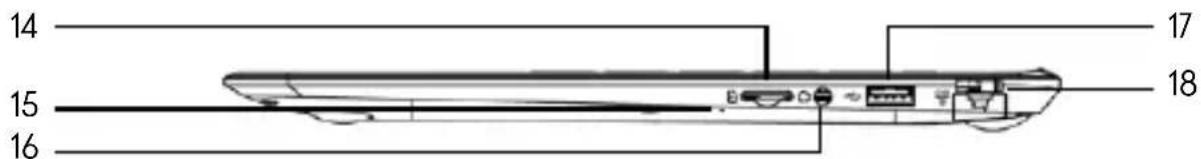

14. Micro-SD card reader

The micro-SD card reader allows you to read or write to micro-SDHC / micro-SDXC memory cards.

Use this port to connect external speakers or headphones to your tablet. You can also connect headphones with an external microphone.

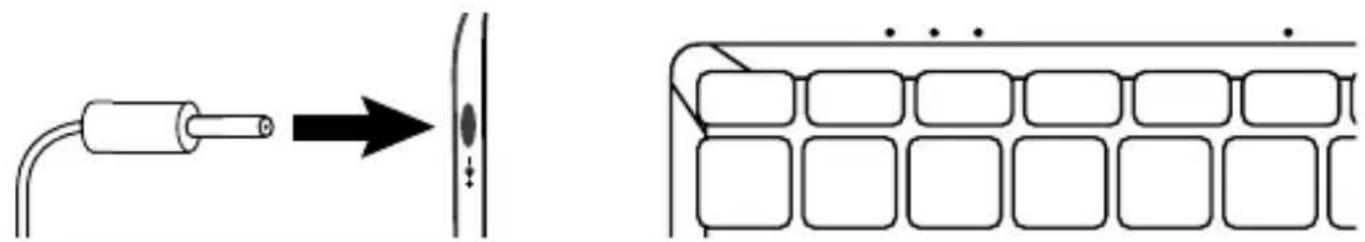

Right view32 - EN User’s Manual - NeoX - 14.1’’ i3 mythomson.com - Switching on - Note : Charge your Thomson device before using it for the rst time. Charging the battery of your device Connect the AC adapter to an earthed electrical outlet.

Read carefully the following instructions concerning the battery of your THOMSON device:

• Only a technician authorized by Thomson is authorized to remove and handle the battery.

• The battery in your Thomson device may present a re or burn hazard if it is removed or disassembled.

• Comply with the information on the device’s warning labels to avoid any risk of injury.

• There is a risk of explosion if the battery is replaced by an incorrect model.

• Do not dispose of the battery in a re.

• Do not attempt to short-circuit the battery of the Thomson camera.

• Do not attempt to disassemble the battery or reassemble the battery.

• Stop using the battery if it leaks.

• The battery and its components must be recycled or disposed of properly.

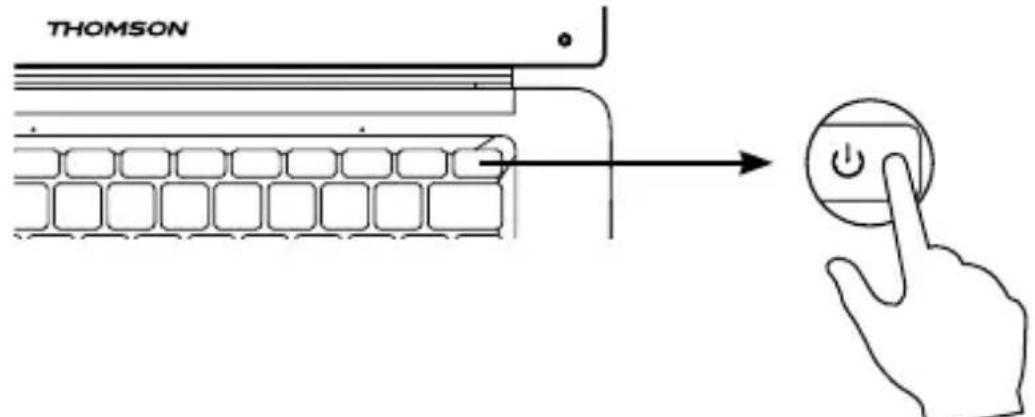

• Keep the battery and its components out of reach of children. Turning your device on / off Turn on your device by pressing and holding the power button for a long time. To turn off your device, go to the Start menu and select Start/Stop > Stop.EN - 33 mythomson.com First start of your device During the rst boot, the Windows® 10 operating system will guide you through the conguration steps. Once these conguration steps are completed, the system completes the installation and applies your customized settings. Do not turn off the unit and ensure that there is sufcient battery power during this step. The Windows® 10 home screen appears after installation and conguration is complete. Note : If you want to restore the factory conguration or reinstall your operating system, we recommend using the Windows Reset function. For this reason,

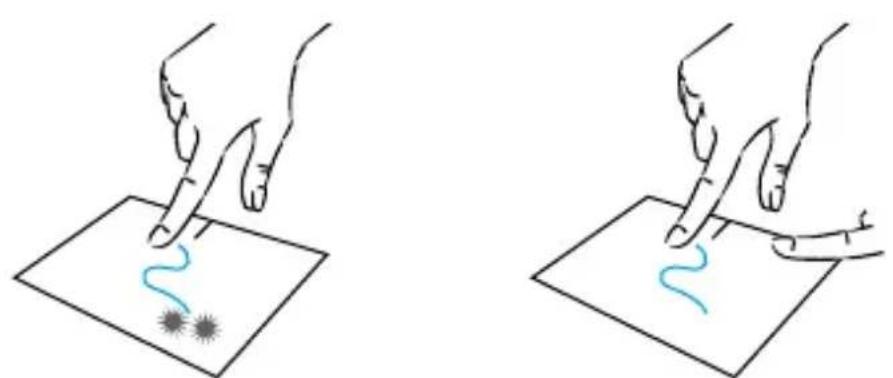

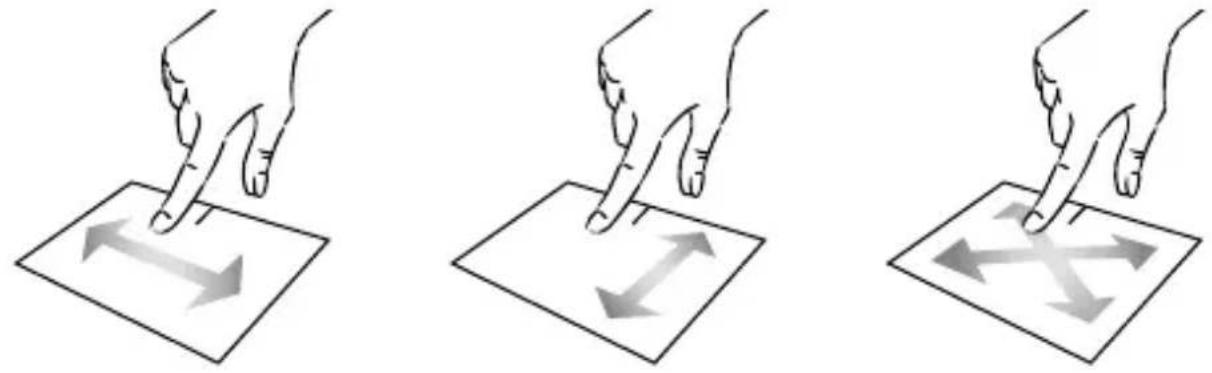

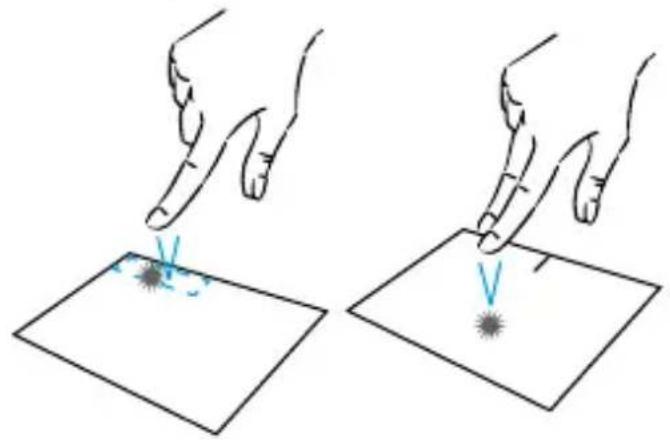

User’s Manual - NeoX - 14.1’’ i3 mythomson.com - Using the touchpad - Move the pointer Slide your nger on the touchpad to move the cursor. Click / Double-click Press briey once to make a click. For example, to select an item on the desktop or in the le explorer or to open an application from the start menu. Press briey twice to make a double click. For example, on the desktop or in the le explorer, this function will allow you to open the selected item. Drag and drop Press the trackpad briey twice to select the item and hold your nger on the trackpad by sliding it to the desired position and releasing. You can also select an element and hold down a left click while sliding another nger on the touchpad to drag and move an element.EN - 35 mythomson.com Left click Briey press the touchpad once to make a left click. Right click Press briey once at the bottom right of the touchpad to make a right click or press briey with two ngers on the touchpad. Scrolling Slide two ngers up or down to scroll vertically. Slide two ngers left or right to scroll horizontally. Zoom Move two ngers closer to the touchpad area to zoom out (zoom -). Move two ngers away from the touchpad area to zoom in (zoom +).36 - EN User’s Manual - NeoX - 14.1’’ i3 mythomson.com Show all applications running Slide three ngers upwards to display all applications running. View the desktop Slide three ngers down to display the Windows® 10 desktop. Open the action center Briey press with four ngers to open the Windows® 10 action center.EN - 37 mythomson.com - Using the keyboard - Function keys The keypad on your device is equipped with function keys for performing actions or settings. Note : The key icons displayed and the functions offered may vary depending on the model. Put the computer into standby mode Opens the default web browser Enables or disables the touchpad Lower the volume level Increases the volume level Enables or disables sound Opens the default media player Media player playback or pause function Previous music or video Next music or video Decreases the brightness of the screen Increases the brightness of the screen Opens the default email software Enables the use of an external display Opens the settings menu Opens the search pane Enables / Disables the wireless network fn + fn + fn + fn + fn + fn + fn + fn + fn + fn + fn + fn + fn + fn + fn + fn + fn + Displays applications running at runtime Opens the sharing pane Vertical scrolling upwards Vertical scrolling down Start function Fine function Cancels the current program (example: a game) Saves a screenshot of your screen Enables/disables the numeric keypad Enables/disables scrolling Enables/disables the Refresh mode fn + fn + fn + fn + fn + fn + Pause PrtScr/ Impécr Numlck/ VerrNum ScrLk Ins38 - EN User’s Manual - NeoX - 14.1’’ i3 mythomson.com Opens the Windows® 10 Start menu + A Opens the action center + D Displays the desktop + E Opens the le explorer + I Opens the Device Settings menu + L Locks the computer and displays the lock screen + M Reduces the size of active windows + S Opens the search window + P Opens the Project pane Shortcut keys Using the shortcut keys makes it easier to navigate under Windows® 10.EN - 39 mythomson.com - Windows® 10 Overview - Presentation of the interface Note : The interface may vary by country, model or version of Windows® 10 The Start menu is the entry point for your device. It allows you to access applications, folders and settings. The taskbar displays the applications in use and allows you to switch between them. The notication area displays important information about the use of your device. The search pane allows you to easily search through your les, applications and other items on your device. Desktop Taskbar Opens the search pane Opens the Start menu Start Menu Notication area40 - EN User’s Manual - NeoX - 14.1’’ i3 mythomson.com Presentation of the Start Menu Note : The interface may vary by country, model or version of Windows® 10 The Start menu is the entry point for your device. It allows you to access applications, folders and settings. Displays applications running at runtime Stop, Restart or Sleep your device Allows you to open the parameters Allows you to log out, lock the user session or change account settings Displays your favorite applications as tiles for quick and easy access. Note : To display an item as a tile, right-click on it and select the «Pin to Start Menu» option. To remove a tile, right-click on it and select the option: «Detach from the start menu». The applications installed on your device are listed here. Note : To open an application, move the mouse pointer over it and click to open it.EN - 41 mythomson.com Presentation of the Action Centre Note : The interface may vary by country, model or version of Windows® 10 The action center groups all notications from your applications. The lower part provides the main shortcuts useful for setting up your device. To open the action center, click on the icon in the notication area.42 - EN User’s Manual - NeoX - 14.1’’ i3 mythomson.com Connecting to a wireless Wi-Fi network Your device is equipped with a Wi-Fi module. Connecting to a Wi-Fi wireless network will allow you to access the Internet, check your e-mails, perform device updates or access a home or business network. To connect, follow these steps: > Click on the or in the notication area. > If Wi-Fi is not enabled, click on the

> Select your wireless network from the list. > Click on «Connect». If your wireless network requires a security key, ll in the key before making the connection. Pairing your device with a Bluetooth device Your device is equipped with a Bluetooth module. This one allows you to connect it to a Bluetooth device (mouse, portable speakers...). To connect the two devices, follow these steps: > Go to the Start menu and select Settings. > Click on the «Devices» section and select «Bluetooth and other devices». > Select the option "Add Bluetooth or other device" > Let the assistant guide you.EN - 43 mythomson.com Activate the Airplane mode Airplane mode disables wireless Wi-Fi and Bluetooth connectivity. To activate the airplane mode : > Click on the icon or in the notication area. > Click on the button

To disable the airplane mode : > Click on the icon or in the notication area. > Click on the button .44 - EN User’s Manual - NeoX - 14.1’’ i3 mythomson.com System restoration Windows® 10 offers several recovery options to restore the factory conguration : - Keep my les: Reset your device by keeping your personal les. - Delete All: Restores the factory conguration of your device. Make a backup of your important data before running this option. - Retrograde to the previous version of Windows® 10: Use this option if you are having trouble with your device after the system update. - Advanced boot: This option allows you to boot from an external device or access the device’s rmware settings or change Windows boot settings or restore Windows from a disk image. To perform a restoration operation, follow the following steps : > Go to the Start menu and select Settings. > Click on the «Update and security» section and select «Recovery». > Select the restoration option to be executed.

Make a backup of your important data before running this option.EN - 45 mythomson.com https://support.microsoft.com/en-us/hub/4338813/windows-help?os=windows-10 Discover more features on the Microsoft website :46 - EN User’s Manual - NeoX - 14.1’’ i3 mythomson.com - FAQ - A black or colored dot appears on the screen ! This does not affect the performance of your device. If the problem persists, please consult the general warranty conditions and then contact Thomson Customer Service. The touchpad doesn’t work ! Check that the touchpad is correctly activated using the function keys Fn + The battery charge indicator does not light up ! Make sure that the AC charger is properly connected to an AC outlet and the power port of the unit. If the problem persists, contact Thomson Customer Service. How to optimize battery life ? To optimize the battery life, you can adjust the screen brightness, disable Wi-Fi and Bluetooth if you are not using it and close applications you are not using. I lost the AC adapter ! Contact Thomson Customer Service. The battery doesn’t work anymore ! Contact Thomson Customer Service. The device does not emit any sound ! Check that the sound has not been disabled by using the function key Fn + or by increasing the volume by using the function key Fn + . Make sure that no headphones are connected to your device.EN - 47 mythomson.com When the device starts, the power indicator lights up but the operating system does not start ! Force the device to turn off by pressing the power button for 10 seconds and then disconnect all connected USB devices. Connect the device to a socket with the charger. Turn on the device. If the problem persists, contact Thomson Customer Service. The computer does not wake up from sleep mode ! Use the power button to exit the standby mode. Check that the battery level is sufcient by plugging the unit into an AC outlet using the charger. Press the power button again. Where to nd the drivers for your Thomson device ? The drivers necessary for the proper functioning of your device are present in the following folder :

We recommend that you backup the entire folder to an external storage medium (external hard disk, USB sticks, CD-R) in order to keep a copy of these drivers.48 - SP Manual de Usuario - NeoX - 14.1’’ i3 mythomson.com
