USER MANUAL mFive True Wireless JAYS
- Read, follow and keep these instructions.
- For the best possible experience, always use the product as described by the manufacturer.
- Always handle your earphones with care and protect them from external damage.
- Clean your earphones using a soft dry cloth. Never use water, cleaning detergent, leather polish or other substances as they may damage your earphones permanently.
- Avoid exposure to extreme conditions such as very cold or hot temperatures, magnetic fields or damp environments.
- Listening to music at high volume for prolonged periods of time can cause permanent damage to your hearing.
- Contains small parts and are not suitable for children age three (3) and below.
- The earphones contain magnetic material.
- The earphones contain a Lithium battery. If misused or damaged it can become a hazard and is at risk of explosion.
- Should a battery cell leak, do not allow the liquid to come in contact with skin or eyes.
- The earphones must not be disposed of with regular household waste. Please dispose of in accordance with local regulations.
- Do not use your earphones in the immediate proximity (10 cm) of a pacemaker.
- Do not subject the earphones and included accessories to abnormal wear and tear.
- Do not expose the earphones to temperatures below -20°C or above +45°C.
- Do not charge the earphones in temperatures below 0°C or above +45°C.
- Do not attempt to burn the earphones. The battery could explode causing injury and death.
- Do not attempt to open, modify, disassemble, repair or in other way access the internal structure of the earphones. They are not user serviceable.
- Do not use or store the earphones near to a vehicle airbag due to risk of injury.
- Do not use earphones while driving, jogging or walking through traffic areas.
- Earphones effectively isolate external sound and noise which means that when in use, you might not be able to hear your surroundings.
- Do not drop, sit on or cause other unusual impact to the earphones.
- Do not expose to fire, water or high voltage equipment.
- Do not expose the earphones to rain or moisture.
- Do not use the earphones near water, bathtubs, sinks, saunas, pools, other liquids or moist areas.
Statements
EU Declaration of conformity
Hereby Northbaze Group AB declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and all other EU directive requirements. The complete declaration of conformity can be found at www.jaysheadphones.com.
Caution
Risk of explosions if battery box is damaged or opened. Dispose of used battery according to your local waste disposal authority.
US Compliance Information
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
US FCC radiation exposure statement
FCC ID: 2AJOO-M5TW01. The product comply with the US portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Canada Compliance Information
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
Power on/off and pairing
To power on, place the earpieces in the charging case then take them out of the charging case, both earpieces at the same time. The LED on both earpieces will flash in white. Once the two earpieces have connected to each other, the LED on one of the earpieces will turn off and the LED on the other earpiece will flash in red and white as the earphones enter pairing mode automatically. To pair, go to Bluetooth ^® settings on your device and select "JAYS m-Five True Wireless". The white and red flashing LED on the earpiece will turn off upon a successful connection.
To power off, place the earpieces in the charging case and they will turn off automatically. If the Bluetooth ^2 on the paired device turns off, the earphones will turn off automatically after 3-5 minutes.
Reconnecting and additional pairing
The earphones will automatically try to reconnect to the most recently used device when both earpieces is taken out of the charging case.
Using the charging case
To charge, place both the earpieces in the charging case, the charging will begin automatically. The charging is indicated by the LED flashing in red on both earpieces. When the LED turns off, the earphones are fully charged.

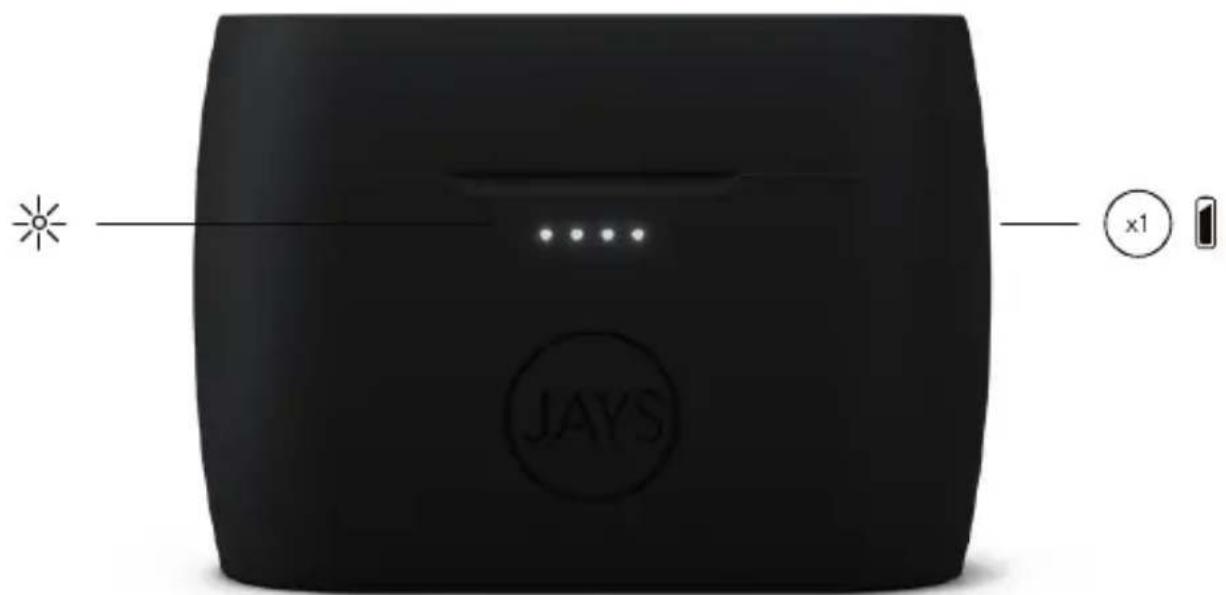

The battery level of the charging case is indicated by the four white LEDs on the front of the charging case. Press the button on the back of the charging case to check the battery level. One light, 25% battery. Two lights, 50% battery. Three lights, 75% battery. Four lights 100% battery. Charge the charging case by connecting the included cable to the bottom of the charging case and any certified USB power output. A full 100% charge will take around 1.5 hours (depending on temperature and charger).
Battery status
When the LED on the earpieces flash in red, the battery level is running low.
Troubleshooting
Problem pairing and connecting
- Make sure the earphones are not connected to another device.
- Disable and enable Bluetooth" on your device.
- Move the earphones closer to the device or alter their positions to avoid Bluetooth ^5 interference.
- Verify no other wireless equipment interfere with your earphones Bluetooth® signal.
- If the earpieces does not pair with each other, place the earpieces in the charging case, then take them out both at the same time.
Problem with sound transmission
Move the streaming device to another position. Your body, distance, different materials and other wireless equipment can interfere with the wireless signal between your device and earphone.
FAQ and quickstart guide
Visit jaysheadphones.com for more instructions and help on this product.
Legal & Warranty
Environmental information
This product complies with international directives, including but not limited to WEEE Directive (2012/19/EU). Do not dispose with normal household waste. Please consult your local waste disposal authority for guidance on how to properly recycle or dispose of this product.
Manufacturer's limited warranty
Your original Northbaze Group AB product is covered by a warranty of twelve (12) months from the date of purchase of a brand new, unused Northbaze Group AB product by the original purchaser. Northbaze Group AB guarantees that the product is free from faults in the materials, design and workmanship when it was sold to the purchaser. If you are not able to submit the receipt when making a warranty claim you may be obliged to pay for any repairs carried out. Proof of purchase must clearly state the date of purchase, name of the product and authorized resellers' details
The Warranty Period cannot be extended or renewed due to subsequent resale or replacement of the product. This Limited Warranty does not affect your legal rights under your applicable national laws relating to the sale of consumer electronic products. Defective parts replaced within the Limited Warranty Claim shall become the property of Northbaze Group AB.
What is not covered by the limited warranty?
- Faults caused by wear and tear, age-related battery capacity loss, accidents, dropping, mechanical damage, moisture, chemical products, abnormal impact damage or force majeure.
- Modifications or repairs performed by yourself or third party without Northbaze Group AB approval.
How to get warranty service
If you wish to make a Warranty Claim within the Limited Warranty Period, please contact the reseller of your product for further help. You will need to provide the proof of purchase and the affected part. Any defective parts covered by the Limited Warranty will be repaired or replaced free of charge. Replaced or repaired parts provided during the Warranty Period will be warranted for the remainder of the original Warranty Period or for sixty (60) days from the date of repair or replacement, whichever is longer. For FAQ please visit www.jaysheadphones.com.
svenska
Komma igång
(12) Northbaze Group AB
Northbaze Group AB
Northbaze Group AB.
.
www.jaysheadphones.com
jaysheadphones facebook.com/jays
Version 1.0 | Please visit www.jaysheadphones.com for latest manual version.
