USER MANUAL iGen4500cv WESTINGHOUSE

Gasoline: 3700 Running Watts | 4500 Peak Watts

DO NOT RETURN THIS PRODUCT TO THE STORE

If you have questions or need assistance, please call customer service at 855-944-3571.

INTRODUCTION

TABLE OF CONTENTS

INTRODUCTION

DISCLAIMERS 2

ALL RIGHTS RESERVED. 2

SPECIFICATIONS

SPECIFICATIONS. 3

SAFETY

SAFETY DEFINITIONS. 4

SAFETY SYMBOLS 4

SAFETYINSTRUCTIONS 5

SAFETY LABELS AND DECALS. 7

CO SENSOR. 8

ACTION LABEL. 8

CONTROL PANEL CO AUTO-SHUTOFF. 8

COMPONENTS

GENERATOR COMPONENTS 9

DIGITAL DATA CENTER. 9

ASSEMBLY

CARTON CONTENTS 11

INITIAL OIL FILL 11

FUEL 12

OPERATION

GENERATOR LOCATION. 13

GROUNDING 13

BREAK-IN PERIOD 14

BEFORE STARTING THE GENERATOR 14

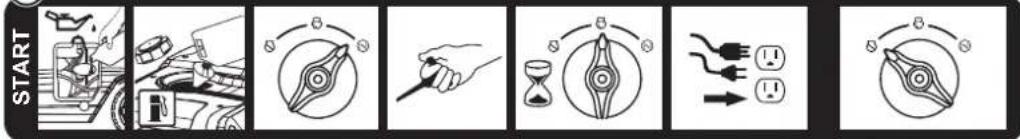

STARTING THE ENGINE 14

FREQUENCY OF USE 14

ECO MODE 15

WARNING: Operating, servicing, and maintaining this equipment can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, and wear gloves or wash your hands frequently when servicing this equipment. For more information go to www. P65 warnings.ca.gov.

DISCLAIMERS

All information, illustrations, and specifications in this manual were in effect at the time of publishing. The illustrations used in this manual are intended as representative reference views only. We reserve the right to make any specification or design change without notice.

AC CIRCUIT BREAKERS 15

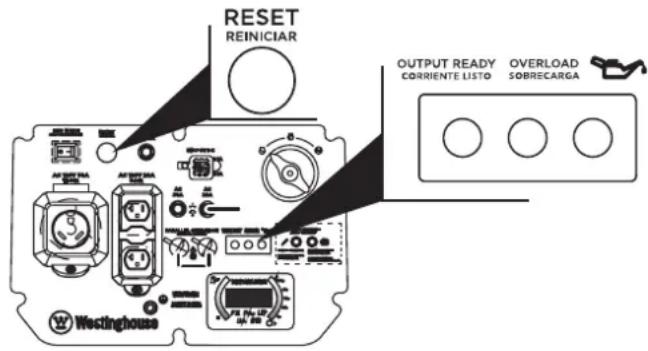

OVERLOAD RESET 15

POWER MANAGEMENT. 16

EXTENSION CORDS 16

MAINTENANCE REPLACEMENT PARTS 19

AIR FILTER MAINTENANCE. 19

ENGINE OIL LEVEL CHECK 20

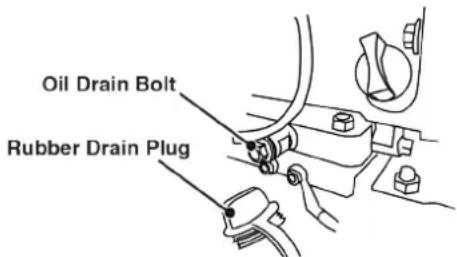

ENGINE OIL CHANGE 21

SPARK PLUG MAINTENANCE 21

SPARK ARRESTOR SERVICE 22

STORAGE 22

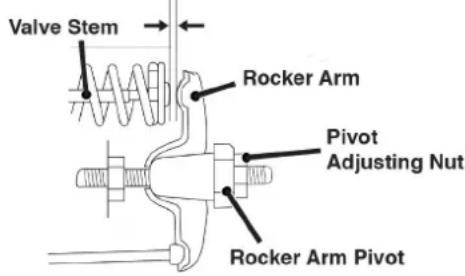

VALVE CLEARANCE 23

TROUBLESHOOTING

TROUBLESHOOTING 24

EXPLODED VIEWS AND PARTS LISTS

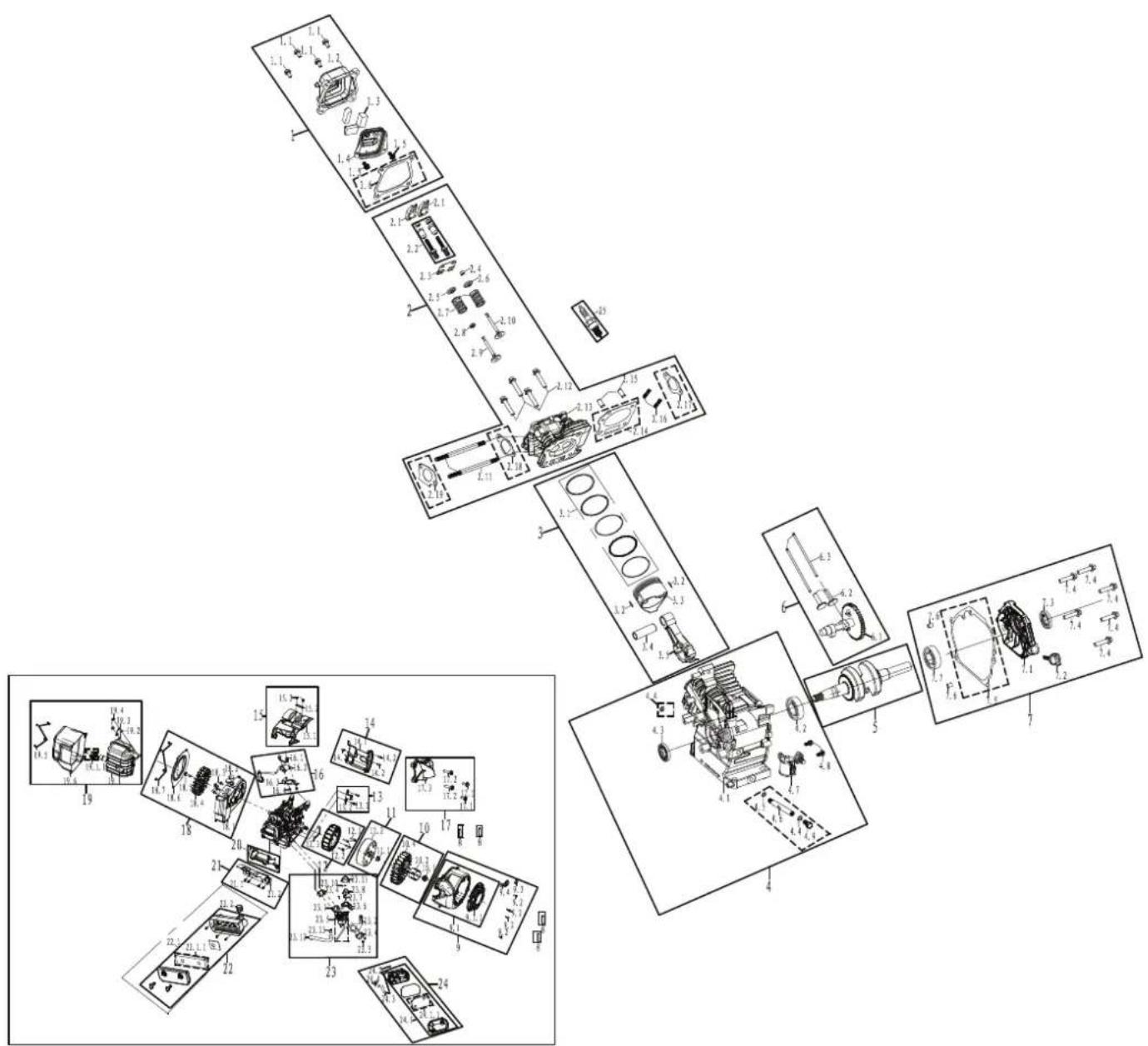

ENGINE EXPLODED VIEW 25

ENGINE PARTS LIST 26

ENGINE PARTS LIST CONTINUED 27

GENERATOR EXPLODED VIEW 28

GENERATOR PARTS LIST 29

SCHEMATICS

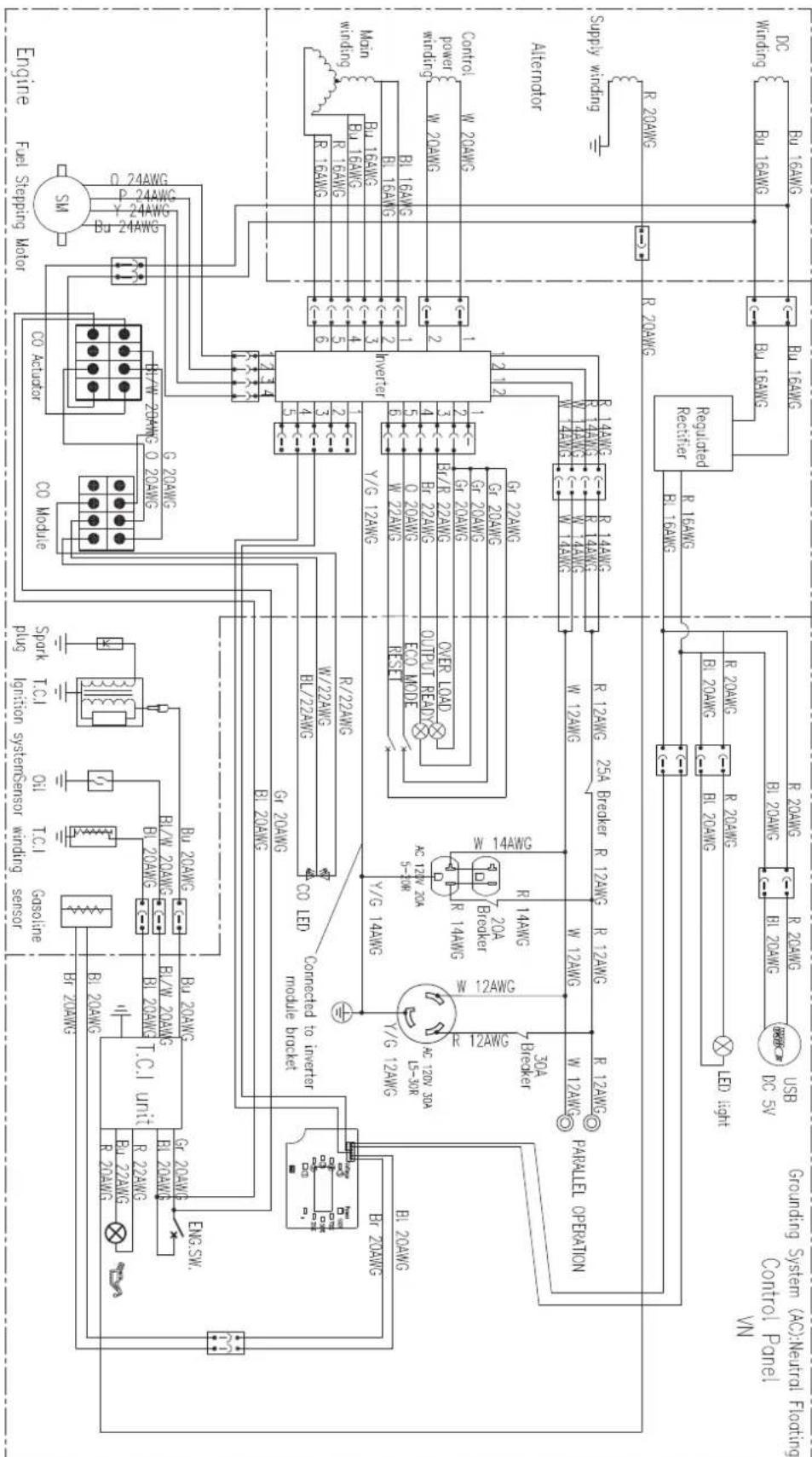

SCHEMATICS 31

ESPANOL 32

FRANCAIS 56

ALL RIGHTS RESERVED

All rights reserved. No reproduction allowed in any form without written permission from Westinghouse Outdoor Power Equipment, LLC.

DANGER

Read this manual before using or performing maintenance on this product. Failure to follow the instructions and safety precautions in this manual can result in serious injury or death.

SAVE THESE INSTRUCTIONS

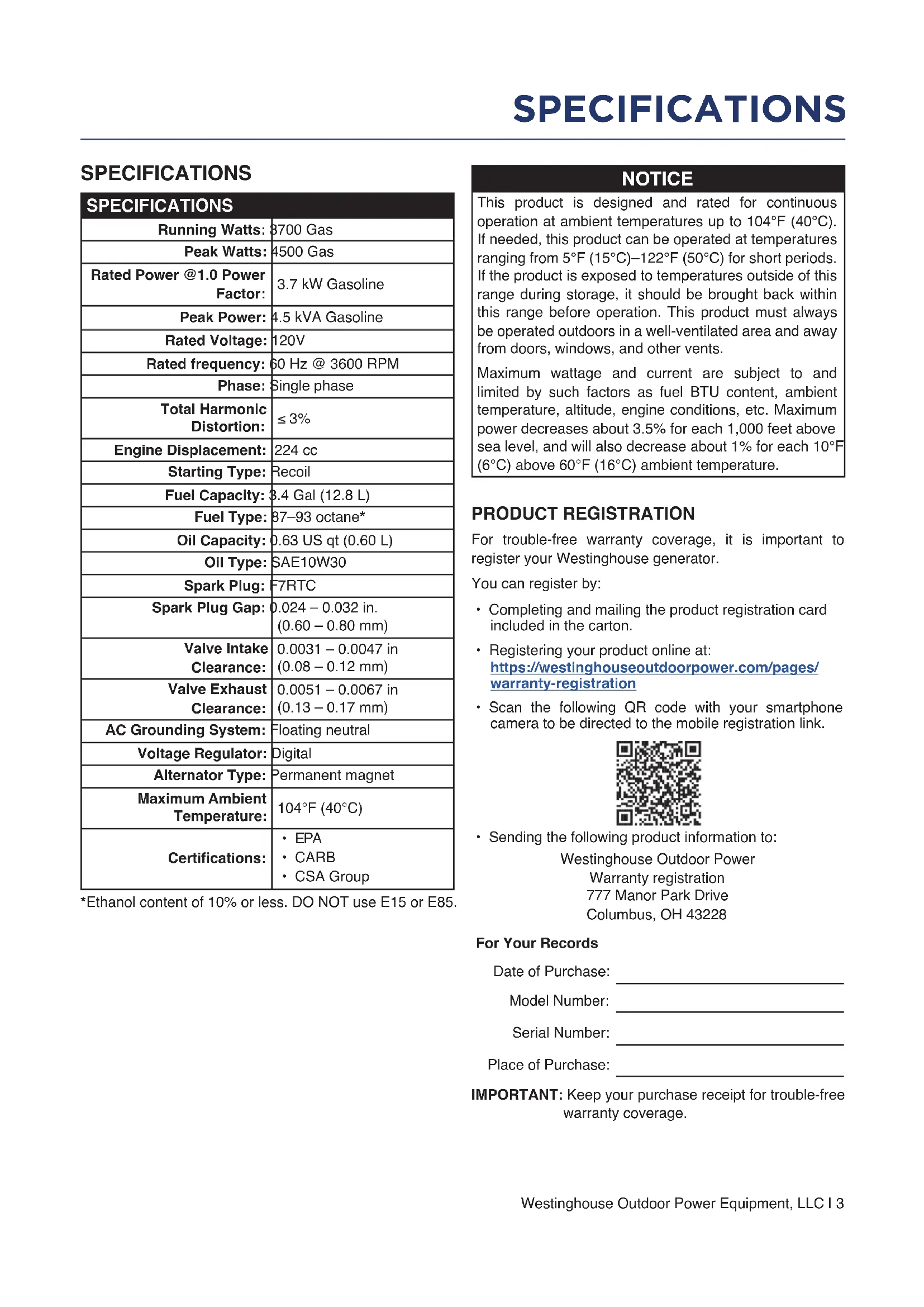

SPECIFICATIONS

SPECIFICATIONS
Running Watts:	3700 Gas
Peak Watts:	4500 Gas
Rated Power @1.0 Power Factor:	3.7 kW Gasoline
Peak Power:	4.5 kVA Gasoline
Rated Voltage:	120V
Rated frequency:	60 Hz @ 3600 RPM
Phase:	Single phase
Total Harmonic Distortion:	≤ 3%
Engine Displacement:	224 cc
Starting Type:	Recoil
Fuel Capacity:	3.4 Gal (12.8 L)
Fuel Type:	87-93 octane*
Oil Capacity:	0.63 US qt (0.60 L)

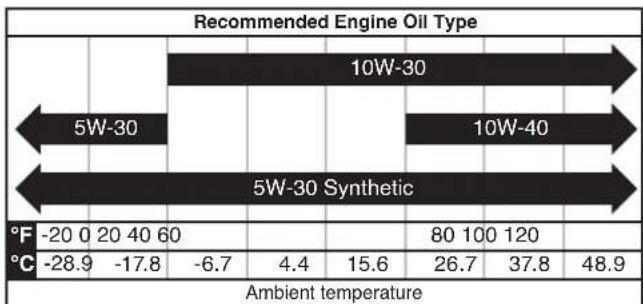

Oil Type:	SAE10W30
Spark Plug:	F7RTC
Spark Plug Gap:	0.024 - 0.032 in. (0.60 - 0.80 mm)
Valve Intake Clearance:	0.0031 - 0.0047 in. (0.08 - 0.12 mm)
Valve Exhaust Clearance:	0.0051 - 0.0067 in. (0.13 - 0.17 mm)
AC Grounding System:	Floating neutral
Voltage Regulator:	Digital
Alternator Type:	Permanent magnet
Maximum Ambient Temperature:	104°F (40°C)
Certifications:	· EPA · CARB · CSA Group

*Ethanol content of 10% or less. DO NOT use E15 or E85.

NOTICE

This product is designed and rated for continuous operation at ambient temperatures up to 104^ (40^) . If needed, this product can be operated at temperatures ranging from 5^ (15^) - 122^ (50^) for short periods. If the product is exposed to temperatures outside of this range during storage, it should be brought back within this range before operation. This product must always be operated outdoors in a well-ventilated area and away from doors, windows, and other vents.

Maximum wattage and current are subject to and limited by such factors as fuel BTU content, ambient temperature, altitude, engine conditions, etc. Maximum power decreases about 3.5% for each 1,000 feet above sea level, and will also decrease about 1% for each 10^ (6^) above 60^ (16^) ambient temperature.

PRODUCT REGISTRATION

For trouble-free warranty coverage, it is important to register your Westinghouse generator.

You can register by:

• Completing and mailing the product registration card included in the carton.
• Registering your product online at: https://westinghouseoutdoorpower.com/pages/warranty-registration
• Scan the following QR code with your smartphone camera to be directed to the mobile registration link.

• Sending the following product information to:

Westinghouse Outdoor Power

Warranty registration

777 Manor Park Drive

Columbus, OH 43228

For Your Records

Date of Purchase:

Model Number:

Serial Number:

Place of Purchase:

IMPORTANT: Keep your purchase receipt for trouble-free warranty coverage.

SAFETY

SAFETY DEFINITIONS

The words DANGER, WARNING, CAUTION and NOTICE are used throughout this manual to highlight important information. Make sure that the meanings of this safety information is known to all who operate, perform maintenance on, or are near the generator.

This safety alert symbol appears with most safety statements. It means attention, become alert, your safety is involved! Please read and abide by the message that follows the safety alerts symbol.

DANGER

Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

Indicates a situation which can cause damage to the generator, personal property, and/or the environment, or cause the equipment to operate improperly.

Note: Indicates a procedure, practice or condition that should be followed for the generator to function in the manner intended.

SAFETY SYMBOLS

Follow all safety information contained in this manual and on the generator.

Symbol Description
!	Safety Alert Symbol
	Electrocution Hazard
	Asphyxiation Hazard
	Burn Hazard. Do not touch hot surfaces.
	Electrical Shock Hazard
	Fire Hazard
4°LEET←	Maintain Safe Distance
	Lifting Hazard
	Read Manufacturer's Instructions
	Do Not Operate in Wet Conditions
	Ground. Consult with electrician to determine grounding requirements before operation.

DANGER

Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

SAFETY INSTRUCTIONS

CORRECT USE

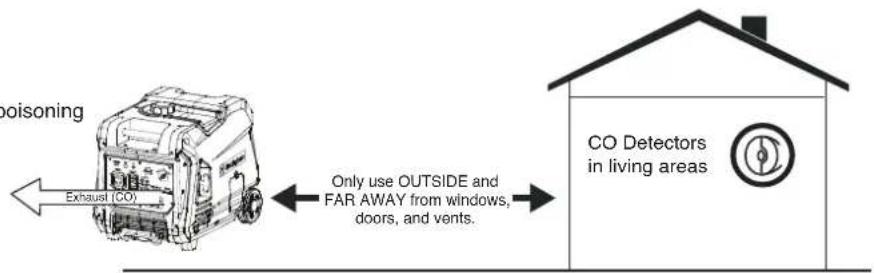

Example location to reduce risk of carbon monoxide poisoning

• ONLY use outside and downwind, far away from windows, doors and vents.
• Direct exhaust away from occupied spaces

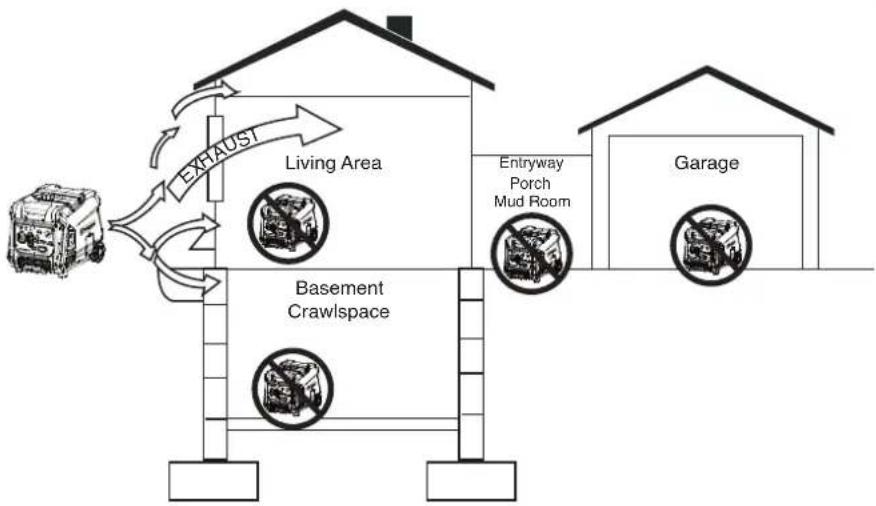

INCORRECTUSE

Do not operate in any of the following locations:

Near any door, window, or vent
- Garage
- Basement
Crawl Space
Living Area
- Attic
- Entry Way
- Porch
- Mudroom

NOTICE

Install battery-powered carbon monoxide detectors or plug-in carbon monoxide detectors with battery back-up in living areas.

DANGER

Fire and electrocution hazard. Do not connect to a building's electrical system unless the generator and transfer switch have been properly installed and the electrical output has been verified by a qualified electrician. The connection must isolate the generator power from utility power and must comply with all applicable laws and electrical codes.

DANGER

Electrocution hazard. Never use the generator in a location that is wet or damp. Never expose the generator to rain, snow, water spray, or standing water while in use. Protect the generator from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit.

GENERAL SAFETY PRECAUTIONS

• Never use the generator to power medical support equipment.
• Do not operate the generator when you are tired or under the influence of drugs, alcohol, or medication.
• Do not use generator with electrical cords which are worn, frayed, bare, or otherwise damaged.
• All electrical tools and appliances operated from this generator must be properly grounded by use of a third wire or be double-insulated.
• When this generator is used to supply a building wiring system the generator must be installed by a qualified electrician and connected to a transfer switch as a separately derived system in accordance with NFPA 70, National Electrical Code.
  If you begin to feel sick, dizzy, or weak while using the generator, move to fresh air IMMEDIATELY. See a doctor, as you can have carbon monoxide poisoning.
• Only use OUTSIDE and far away from windows, doors, and vents as recommended by the US Department of Health and Human Services Centers for Disease Control and Prevention. Your specific home and/or wind conditions may require additional distance.
• While operating and storing, keep at least 5 feet of clearance on all sides of the generator, including overhead. Allow the generator to cool a minimum of 30 minutes before storage. Heat created by the muffler and exhaust gases could be hot enough to cause serious burns and/or ignite combustible objects.
• Do not touch the muffler or engine. They are very HOT and will cause severe burns. Do not put body parts or any flammable or combustible materials in the direct path of the exhaust.
• Always remove any tools or other service equipment used during maintenance away from the generator before operating.
• Avoid skin contact with engine oil or gasoline. Wear protective clothing and equipment. Wash all exposed skin with soap and water.
• A transfer switch must be installed by a licensed electrician approved by the authority having jurisdiction. The installation must comply with all applicable laws and electrical codes.

FUEL SAFETY

• Store fuel in a container approved for gasoline.
• Do not smoke when filling the generator with gasoline.
• Do not allow the generator's gas tank to overflow when filling.
• Shut down the engine and allow it to cool for five minutes before adding gasoline or oil to the generator.
• Never remove the fuel cap when the generator is running. Shut off the engine and allow the unit to cool at least five minutes. Remove the fuel cap slowly to

release pressure, keep fuel from escaping around the cap, and to avoid the heat from the muffler igniting fuel vapors. Tighten the fuel cap securely after refueling.

• Wipe spilled fuel from the unit.
• Never attempt to burn off spilled fuel.

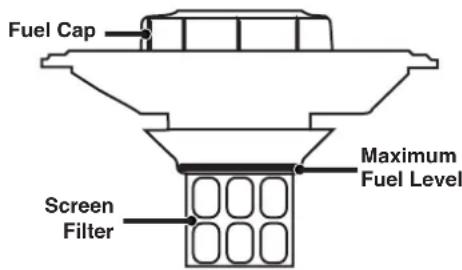

• Never overfill the fuel tank. Leave room for fuel to expand. Overfilling the fuel tank can result in a sudden overflow of gasoline and result in spilled gasoline coming in contact with HOT surfaces.
• Spilled fuel can ignite. If fuel is spilled on the generator, wipe up any spills immediately. Dispose of rag properly. Allow area of spilled fuel to dry before operating the generator.
• Wear eye protection while refueling.
• Never use gasoline as a cleaning agent.
• Store any containers containing gasoline in a wellventilated area, away from any combustibles or source of ignition.

Fire and explosion hazard. Gasoline is highly explosive and flammable and can cause severe burns or death.

• In case of a gas fire, do not attempt to extinguish the flame if the fuel tank valve is in the ON position. Introducing an extinguisher to a generator with an open fuel switch could create an explosion hazard.
• Gas has a distinctive odor, this will help detect potential leaks quickly.
  Gas vapors can cause a fire if ignited.
  Gasoline is a skin irritant and needs to be cleaned up immediately if it comes in contact with the skin.

When starting the generator:

• Make sure that the fuel cap, air filter, spark plug, fuel lines, and exhaust system are properly in place.
• If you spill any gasoline on the tank, allow it to fully evaporate before operating.
• Make sure the generator is on a flat surface before operating.

When transporting or servicing the generator:

• Disconnect the spark plug wire to prevent accidental starting.

When storing the generator:

• Store away from sparks, open flames, pilot lights, heat, and other sources of ignition.
• Do not store gasoline near furnaces, water heaters, or any other appliances that produce heat or have automatic ignitions.

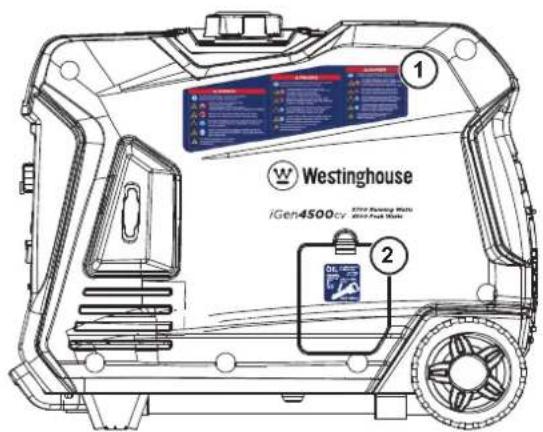

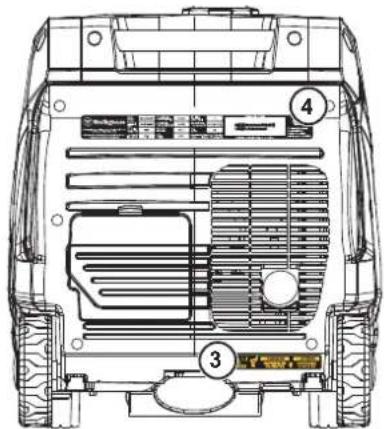

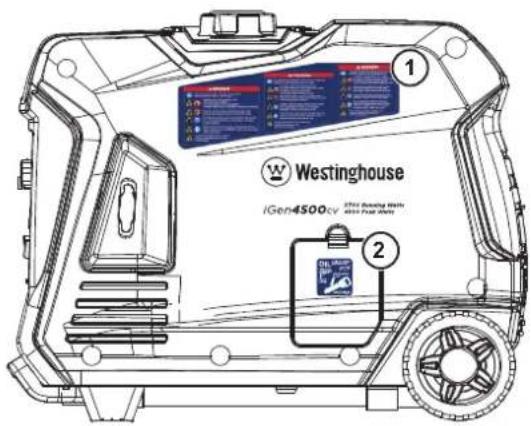

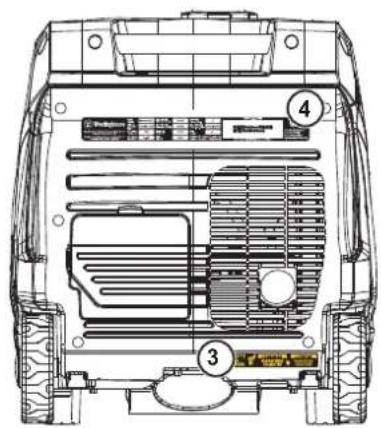

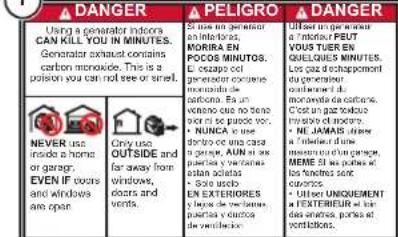

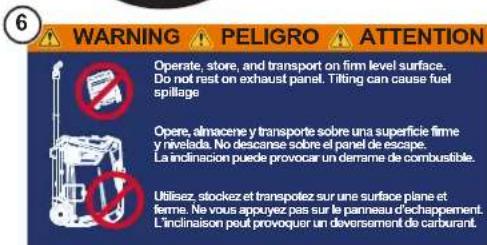

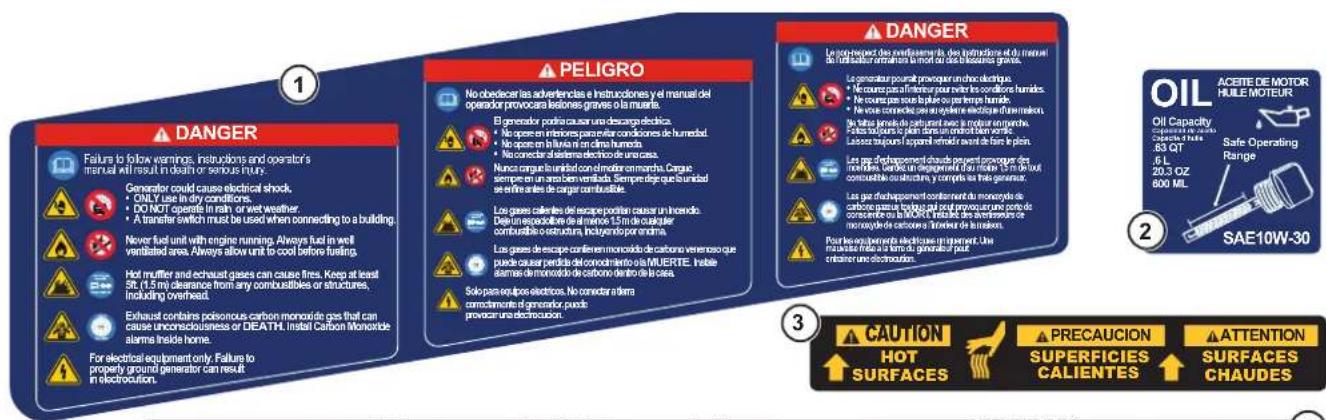

SAFETY LABELS AND DECALS

CO SENSOR

The CO sensor monitors for the accumulation of poisonous carbon monoxide gas around the generator when the engine is running. If increasing levels of CO gas are detected, the CO Sensor automatically shuts down the engine.

The CO Sensor will also detect the accumulation of carbon monoxide from other fuel burning sources used in the area of operation. For example, if the exhaust of fuel burning tools is pointed at a CO Sensor-equipped generator, a shut-off may be initiated due to rising CO levels. This is not an error. Hazardous carbon monoxide has been detected. Move and redirect any additional fuel burning sources to dissipate carbon monoxide away from personnel and occupied buildings.

Note: Remote start-equipped generators must be restarted with the START/STOP button on the control panel after an automatic shut-down occurs.

Generators are intended to be used outdoors, far from occupied buildings and the exhaust pointed away from personnel and buildings. If misused and operated in a location that results in the accumulation of CO, like in a partially enclosed area, the CO Sensor shuts off the engine, notifies the user with a RED indicator light, and directs the user to read the Action Label for steps to take. The CO Sensor DOES NOT replace carbon monoxide alarms. Install battery-powered carbon monoxide alarm(s) in your home.

WARNING

Automatic shutoff accompanied with a flashing RED light in the CO Sensor portion of the control panel is an indication that the generator was improperly located. If you start to feel sick, dizzy, weak, or carbon monoxide detectors in your home indicate an alarm, get to fresh air immediately. Call emergency services. You may have carbon monoxide poisoning.

CONTROL PANEL CO AUTO-SHUTOFF

CARBON MONOXIDE AUTO-SHUTOFF

AUTOMATIC SHUTOFF SEE ACTION LABEL

CORTE AUTOMÁTICO CONSULTE LA ETIQUETA DE ACCION

SERVICE GENERATOR REALICE UN SERVICIO DEL GENERATOR

CO SENSOR INDICATOR LIGHTS

Color Description

RED

Carbon monoxide accumulated around the generator. After shut-off, the RED indicator light in the CO Sensor area of the control panel will flash to provide notification that the generator was shut-off due to an accumulating CO hazard. The RED light will flash for at least five minutes after a CO shut-off. Move the generator to an open, outdoor area far away from occupied spaces with exhaust pointed away. Once relocated to a safe area, the generator can be restarted. Introduce fresh air and ventilate the area where the generator had shut down.

YELLOW

A CO sensor system fault occurred. When a system fault occurs, the generator is automatically shut down and the YELLOW indicator light in the CO auto-shutoff area of the control panel will flash to provide notification that the a fault has occurred. The YELLOW light will flash for at least five minutes after a fault. The generator can be re-started, but may continue to shutoff. A CO sensor fault can only be diagnosed and repaired by an authorized Westinghouse service center.

ACTION LABEL

ACTION LABEL

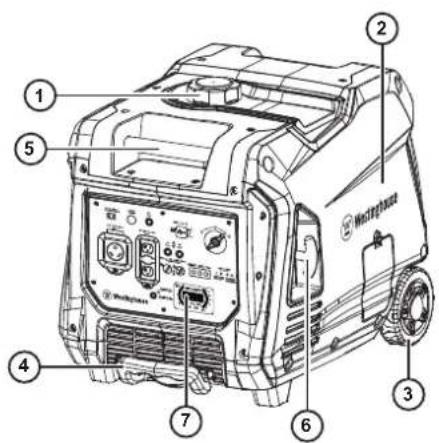

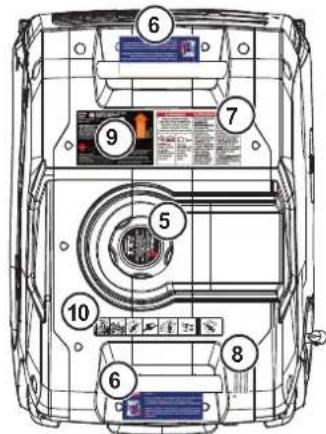

1. Fuel Cap: Add unleaded fuel here. Close the cap until it clicks.

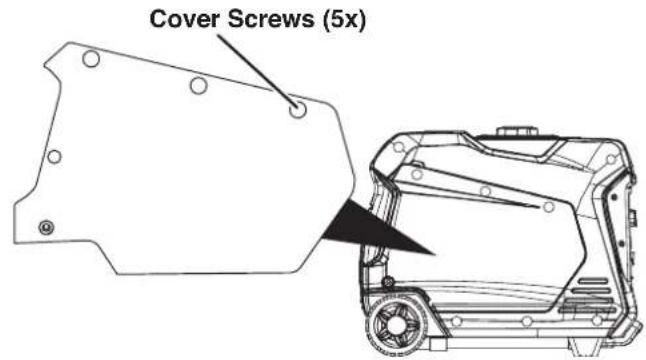

2. Engine Service Cover: Cover provides access to the engine, air cleaner, carburetor, and spark plug.
3. Transport Wheels: Wheels allow one-handed maneuverability when used with the extendable handle.
4. Extendable Handle: Extend and retract the handle by pushing the locking button.

5. Carry Handles: Built-in handles allow easy, two-person transport.

6. Recoil Handle: Pull the recoil handle to manually start the engine.

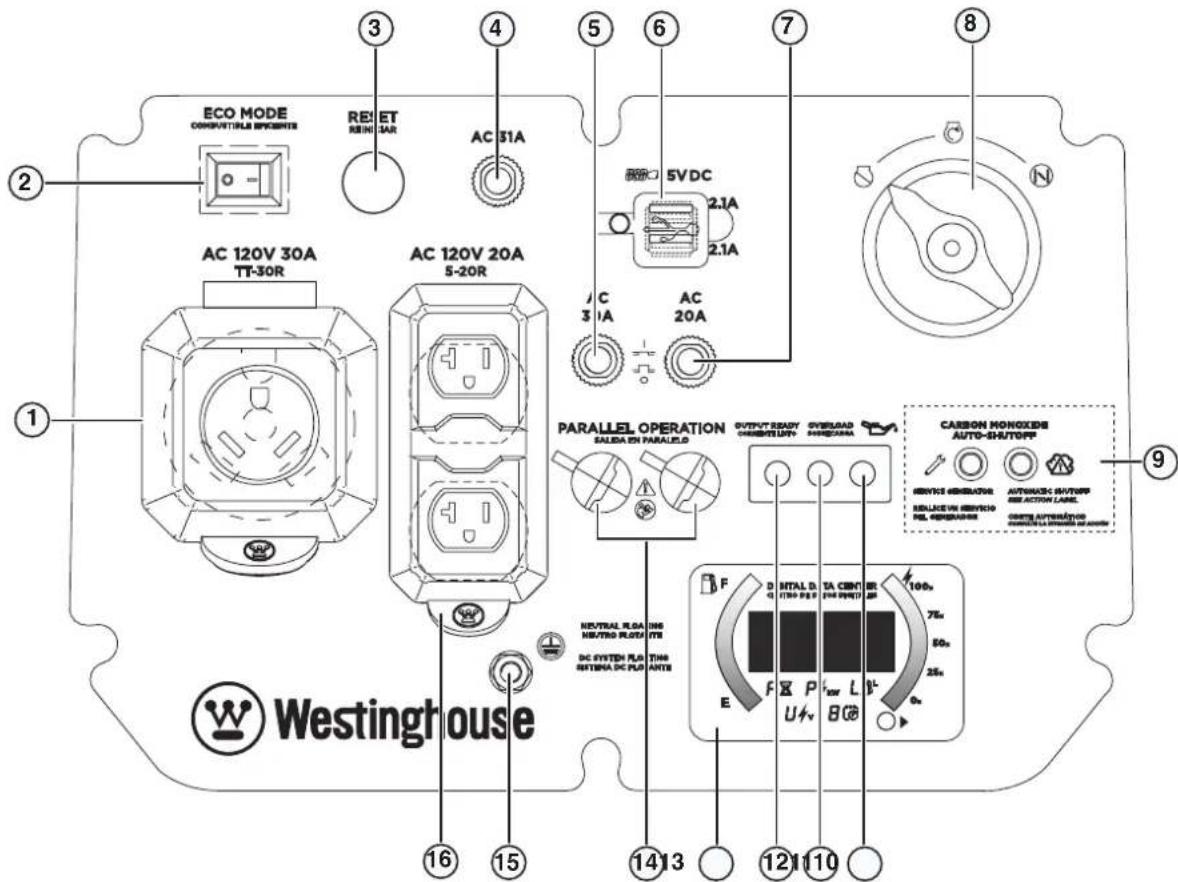

7. Control Panel: The control panel contains the outlets and operational controls.

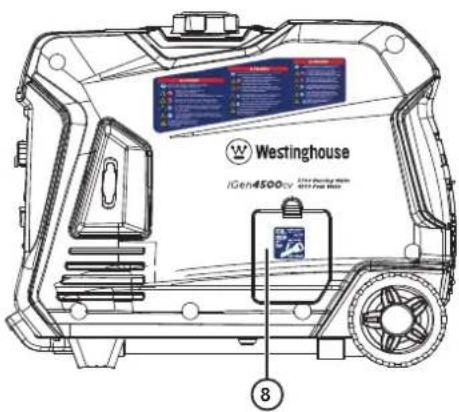

8. Oil Access Cover: Cover provides access to the oil fill cap/dipstick and oil drain plug.

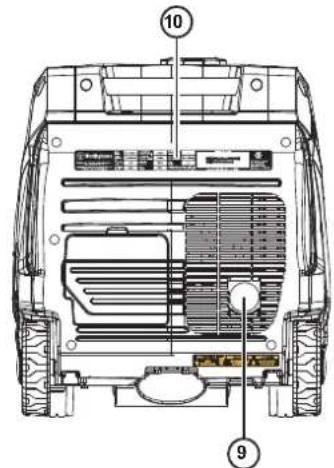

9. Muffler and Spark Arrestor: The spark arrestor prevents sparks from exiting the muffler.
10. Model Information Label: Provides model serial number, voltage/amps, and power rating information.

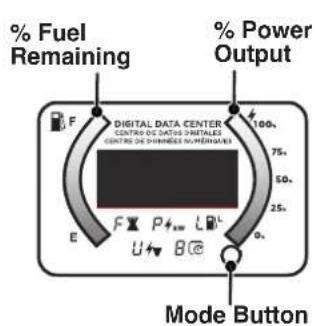

DIGITAL DATA CENTER

Fuel remaining and power output percentage LEDs are continuously displayed. Push the Mode button to cycle through the data display modes.

DATA DISPLAY

Remaining Run Time: Displays time remaining with current fuel level and power output.

Power Output: Displays electrical power output to receptacles in kilowatts.

Fuel level: Displays current fuel level in liters.

Voltage: Displays current voltage output of inverter.

Lifetime Hours: Displays the total run time of the inverter.

CONTROL PANEL COMPONENTS

1. 120 Volt AC, 30 Amp NEMA TT-30R Receptacle: Receptacle can supply a maximum of 30 Amps.
2. ECO Mode: Eco mode minimizes fuel consumption and noise by adjusting the engine RPM to the minimum required for the current load.
3. Overload Reset: The generator inverter will automatically switch OFF all AC output to protect the generator if overloaded or if there is a short circuit in a connected appliance.
4. Main Circuit Breaker: The main circuit breaker controls total output of all outlets to protect the generator from overload or short circuit.
5. USB Ports: Two-port 5V/2.1A USB outlet. Accepts Type A USB plugs.
6. 20 Amp AC Circuit Breaker: Circuit breaker limits the current that can be delivered through the NEMA 5-20R receptacle to 20 Amps.
7. 30 Amp AC Circuit Breaker: Circuit breaker limits the current that can be delivered through the NEMA TT-30 receptacle to 30 Amps.

8. CO Sensor indicator lights: The CO Sensor monitors for the accumulation of poisonous carbon monoxide gas. If increasing levels of CO gas are detected, the CO Sensor automatically shuts down the engine.

9. Low Oil LED: Indicates low oil level. When the oil level in the crankcase falls below the safe operating limit, the low oil level indicator will illuminate and the generator will automatically shut off the engine.

10. Overload LED: Indicates that the generator is overloaded
11. Output Ready LED: Illuminates when the generator is operating normally. Indicates the generator is producing electrical power at the receptacles.
12. LED Data Center: Displays remaining run time (F), power output in kW (P), fuel level in liters (L), voltage output (V), and lifetime hours.
13. Parallel Operation Outlets: A compatible Westinghouse Inverter Generator can be connected for additional power output.
14. Ground Terminal: The ground terminal is used to externally ground the generator.
15. 120 Volt AC, 20 Amp Duplex NEMA 5-20R Receptacle: Receptacle can supply a maximum of 20 Amps.

ASSEMBLY

CARTON CONTENTS

CAUTION

Weight hazard. Always have assistance when lifting the generator.

1. Carefully open the carton.
2. Remove and save the carton contents.
3. Remove and discard the packing tray.
4. Unfold the top of the plastic bag enclosing the generator.
5. Carefully cut the vertical corners of the carton to access the generator.
6. Recycle or dispose of the packaging materials properly.

CARTON CONTENTS

• User manual
• Quick Start Guide/Maintenance Schedule
• Remote start key fob (attached to recoil starter)
  0.63 Quart (0.6 Liter) bottle of SAE 10W-30 Oil
• Spark plug socket wrench
  Oil Funnel
• Screwdriver

If any parts are missing, contact our service team at [e-mail] or call 1-855-944-3571.

INITIAL OIL FILL

NOTICE

THIS GENERATOR HAS BEEN SHIPPED WITHOUT OIL. Do not attempt to crank or start engine before it has been properly serviced with recommended oil. Failure to add engine oil before starting will result in serious engine damage.

NOTICE

Use of 2-stroke/cycle oil or other unapproved oil types can cause severe engine damage that is not covered under warranty.

The included, recommended oil type for typical use is 10W-30 engine oil. If running the generator in extreme temperatures, refer to the following chart.

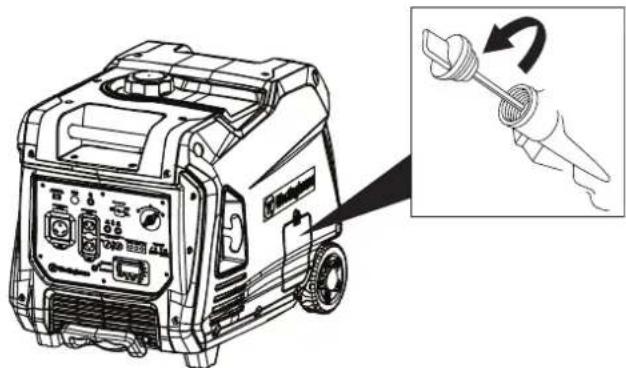

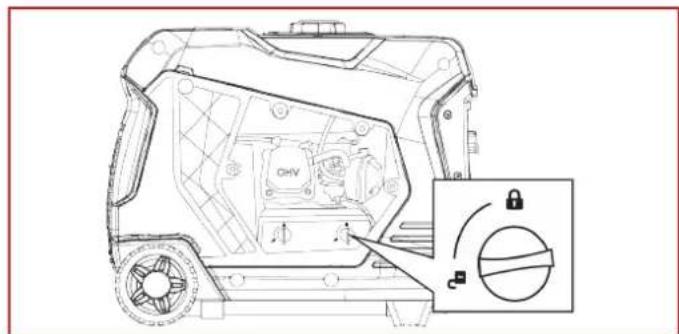

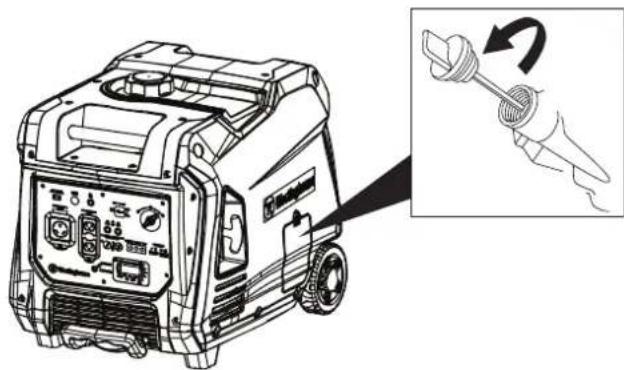

1. On a level surface, remove the oil access cover and oil dipstick.

1. Using the supplied funnel and oil, add oil into the engine.
   Note: As residual oil from the factory may remain in the engine, add the oil incrementally near the end of the bottle to prevent overfilling the engine. See Engine Oil Level Check in the Maintenance section.
2. Replace the oil dipstick and hand-tighten.
3. Replace the oil access cover.

FUEL

WARNING

Fire and explosion hazard. Never use a gasoline container, gasoline tank, or any other fuel item that is broken, cut, torn or damaged.

DANGER

Fire and explosion hazard. Do not overfill fuel tank. Fill only to the red fill ring located in the in-tank fuel screen filter. Overfilling may cause fuel to spill onto engine causing a fire or explosion hazard.

DANGER

Fire and explosion hazard. Never refuel the generator while the engine is running. Always turn the engine off and allow the generator to cool for two minutes before refueling.

NOTICE

Do not use E15 or E85 fuel in this product. Engine or equipment damage caused by stale fuel or the use of unapproved fuels (such as E15 or E85 ethanol blends) is not covered by warranty. Only use unleaded gasoline containing up to 10% ethanol.

FUEL REQUIREMENTS

• CLEAN, FRESH, unleaded gasoline, 87-93 octane.
• Up to 10% ethanol (gasohol) is acceptable (where available; non-ethanol fuel is recommended).
  DO NOT use E85 or E15.
  DO NOT use a gas oil mix.
• DO NOT modify the engine to run on alternate fuels.
  DO NOT fuel indoors.
  DO NOT create a spark or flame while fueling.

USING FUEL STABILIZER

Adding a fuel stabilizer (not included) extends the usable life of fuel and helps prevent deposits from forming that can clog the fuel system. Follow the manufacturer's instructions for use.

Always mix the correct amount of fuel stabilizer to gasoline in an approved gasoline container before fueling the generator. Run the generator for five minutes to allow the stabilizer to treat the entire fuel system.

FILLING THE FUEL TANK

1. Turn the generator OFF and allow to cool for a minimum of two minutes before fueling.
2. Place the generator on level ground in a well ventilated area.
3. Clean area around fuel cap and remove the cap slowly.

NOTICE

Only fill the tank from an approved gasoline container. Make sure the gasoline container is internally clean and in good condition to prevent fuel system contamination.
4. Slowly add the recommended fuel. Do not overfill. Fill only to the red maximum fill ring on the fuel screen filter visible in the filler neck.

1. Install the fuel cap. Tighten securely.

NOTICE

Fuel can damage paint and plastic. Use caution when filling the fuel tank. Damage caused by spilled fuel is not covered under warranty.

NOTICE

Clean the fuel screen filter of debris before and after each fueling. Remove the fuel screen filter by slightly compressing it while removing it from the fuel tank.

OPERATION

GENERATOR LOCATION

Read and understand all safety information before starting the generator.

DANGER

Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

NEVER operate the generator inside any building, including garages, basements, crawlspaces, sheds, enclosure, or compartment, including the generator compartment of a recreational vehicle.

DANGER

Electrocution hazard. Never use the generator in a location that is wet or damp. Never expose the generator to rain, snow, water spray, or standing water while in use. Protect the generator from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit. Using a generator or electrical appliance in wet conditions, such as rain or snow, or near a pool or sprinkler system, or when your hands are wet, could result in electrocution

WARNING

Fire hazard. Only operate the generator on a solid, level surface. Operating the generator on a surface with loose material such as sand or grass clippings can cause debris to be ingested by the generator that could block cooling vents or the air intake system. Allow the generator to cool for 30 minutes before transport or storage.

The generator should be on a flat, level surface at all times (Even while not in operation). The generator must have at least 5 ft. (1.5m) of clearance from all combustible material.

Do not operate the generator in the back of a SUV, camper, trailer, truck bed (regular, flat, or otherwise), under stairs, next to walls or buildings, or in any other location that will not allow for adequate cooling of the generator and/or the muffler. DO NOT contain generators during operation.

DANGER

Asphyxiation hazard. Place the generator in a wellventilated area. DO NOT place the generator near vents or intakes where exhaust fumes could be drawn into occupied or confined spaces. Carefully consider wind and air currents when positioning generator.

GROUNDING

WARNING

Shock hazard. Failure to properly ground the generator can result in electric shock.

NOTICE

Only use grounded 3-prong extension cords, tools, and appliances, or double-insulated tools and appliances.

The generator neutral is floating. The generator ground terminal is connected to the frame of the generator, the metal non-current-carrying parts of the generator, and the ground terminals of each receptacle. The generator (stator winding) is isolated from the frame and from the AC receptacle ground pin. Electrical devices that require a grounded receptacle pin connection may not function properly.

If this generator will be used only with cord and plug equipment connected to the receptacles mounted on the generator, National Electric Code does not require that the unit be grounded. However, other methods of using the generator may require grounding to reduce the risk of shock or electrocution.

Before using the ground terminal, consult a qualified electrician, electrical inspector, or local agency having jurisdiction for local codes or ordinances that apply to the intended use of the generator.

Engine power is reduced the higher you operate above sea level. Output will be reduced approximately 3.5% for every 1000 feet of increased altitude from sea level.

High altitude adjustment is required for operation at altitudes over 2000 ft. (762 m). Operation without this adjustment will cause decreased performance, increased fuel consumption, and increased emissions.

NOTICE

DO NOT operate the generator at altitudes below 2,000 ft. (762 m) with the high altitude kit installed. Engine damage may occur.

High Altitude Carburetor Kit: Part# 518916-01

BREAK-IN PERIOD

For proper break-in, do not exceed 50% of the rated running watts (1850 watts) during the first five hours of operation.

Vary the load occasionally to allow stator windings to heat and cool and help seat the piston rings.

BEFORE STARTING THE GENERATOR

Verify that:

The generator is placed in a safe, appropriate location.
- The generator is on a dry, flat, and level surface.
The engine is filled with oil.
Gasoline is in the fuel tank.
- All loads are disconnected.
The ECO switch is in the OFF position.

DANGER

Fire and explosion hazard. DO NOT move or tip the generator during operation.

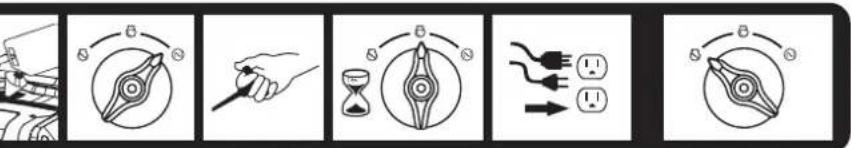

STARTING THE ENGINE

1. Turn the fuel cap vent to the ON position.

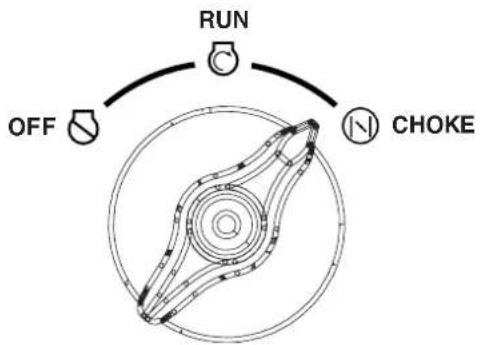

1. Turn the fuel knob to the choke position.

Note: The generator can be started from the Run position if warm from operation.

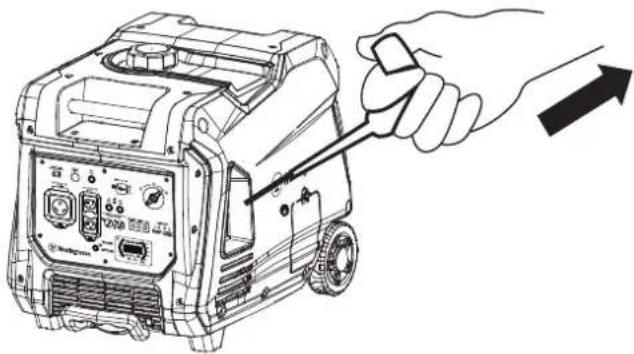

1. Firmly grasp and pull the recoil handle slowly until you feel increased resistance, then pull rapidly.

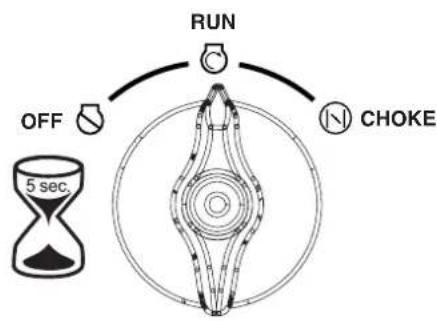

1. After the engine starts, turn the fuel knob to the RUN position.

STOPPING THE ENGINE

1. Turn off and unplug all connected electrical loads.

IMPORTANT: Never start or stop the generator with electrical devices connected.

1. Let the generator run with no load for several minutes to stabilize internal temperatures of the engine and generator.
2. Turn the fuel knob to the OFF position.
3. Allow the engine to cool, then turn the fuel cap vent to the OFF position.

Note: If there is an emergency and the inverter must be stopped quickly, immediately move the fuel switch to the OFF position.

FREQUENCY OF USE

If the generator will be used on an infrequent or intermittent basis (more than one month before next use), refer to the Storage sections of this manual for information regarding fuel deterioration.

ECO MODE

NOTICE

Always start the generator with ECO MODE OFF. Allow the engine speed to stabilize and the OUTPUT READY LED to illuminate before switching ECO MODE ON.

ECO MODE MBUSTIBLE EFICIENTE MUTATEUR D'ECONOMIE

Note: Do not use ECO MODE when in parallel operation with another Westinghouse generator.

ECO MODE minimizes fuel consumption and noise by adjusting the engine RPM to the minimum required for the current load.

Turn ECO MODE ON when powering small appliances with continuous loads such as a computer or electric light.

Turn ECO MODE OFF when powering large surge loads such as an air conditioner or electric pump.

To turn on ECO MODE, verify that the OUTPUT READY LED is illuminated green, then push the switch to the ON position. If no load is present, the generator RPM will drop to idle speed. The generator will detect loads as they are applied and increase engine RPM.

To run the generator at maximum power and RPM, push the ECO MODE switch to the OFF position.

AC CIRCUIT BREAKERS

The circuit breakers will automatically switch OFF if there is a short circuit or a significant overload of the generator at each receptacle. The main circuit breaker will automatically switch OFF if the combined load of the receptacles exceeds 31 Amps.

If an AC circuit breaker switches OFF automatically, check that the appliance is working correctly and it does not exceed the rated load capacity of the circuit before resetting the AC circuit breaker ON.

OVERLOAD RESET

The generator will automatically switch OFF all AC output to protect the generator if overloaded or if there is a short circuit in a connected appliance. However, the engine will continue to run. Marginal overloading that temporarily illuminates the OVERLOAD LED may shorten the service life of the generator.

OVERLOAD on the control panel will illuminate red and the green OUTPUT READY will be OFF.

To restore AC output:

1. Turn off and unplug all connected electrical loads.
2. Push the RESET button on the control panel until the OVERLOAD LED goes OFF and the OUTPUT READY LED is illuminated.
3. Reset the circuit breakers if OFF.
4. Verify that the intended running and surge loads do not exceed the generator's capacity.
5. Reconnect electrical loads sequentially, allowing the generator to stabilize after each load is connected.

GENERATOR CAPACITY

NOTICE

Do not overload the generator's capacity. Exceeding the generator's wattage/amperage capacity can damage the generator and/or electrical devices connected to it.

Make sure the generator can supply enough continuous (running) and surge (starting) watts for the items you will power at the same time.

The total power requirements (Volts × Amps = Watts) of all appliances connected must be considered. Appliance and power tool manufacturers usually list rating information near the model or serial number.

To determine power requirements:

1. Select the items you will power at the same time.
2. Total the continuous (running) watts of these items. This is the amount of power the generator must produce to keep the items running. See the wattage reference chart on the next page.
3. Estimate how many surge (starting) watts you will need. Surge wattage is the short burst of power needed to start electric motor-driven tools or appliances such as a circular saw or refrigerator. Because not all motors start at the same time, total surge watts can be estimated by adding only the item(s) with the highest additional surge watts to the total rated watts from step 2.

Example:

Tool or Appliance	Running Watts*	Starting Watts*
RV Air Conditioner (11,000 BTU)	1010 1600
TV (Tube Type)	300 0
RV Refrigerator	180 600
Radio	200 0
Light (75 Watts)	300 0
Coffee Maker	600 0
	2590 Total	1600
	Running	Highest
	Watts*	Starting
		Watts*

Total Running Watts 2590

Highest Starting Watts + 1600

Total Starting Watts Needed 4190

*Wattages listed are approximate. Verify actual wattage.

POWER MANAGEMENT

To prolong the life of the generator and attached devices, use care when adding electrical loads to the generator. There should be nothing connected to the generator outlets before starting the engine. The correct and safe way to manage generator power is to sequentially add loads as follows:

1. With nothing connected to the generator, start the engine as described in this manual.
2. Plug in and turn on the first load, preferably the largest load you have.
3. Permit the generator output to stabilize (engine runs smoothly and attached device operates properly).
4. Plug in and turn on the next load.
5. Again, permit the generator to stabilize.
6. Repeat steps 4 and 5 for each additional load.

Wattage Reference

Tool or Appliance	Estimated Running Watts*	Estimated Starting Watts*
Incandescent Lights (4 Quantity x 75 Watts)	300 0
TV (Tube Type) 300 0
Sump Pump (1/3 hp)	800	1300
Refrigerator or Freezer	700	2200
Well Pump (1/3 hp)	1000	2000
Furnace (1/2 hp)	800	2350
Radio	200 0
Drill (3/8", 4 amps)	440	600
Circular Saw (Heavy Duty, 7-1/4")	1400	2300
Miter Saw (10")	1800	1800
Table Saw (10")	2000	2000

*Wattages listed are approximate. Verify actual wattage.

EXTENSION CORDS

WARNING

Asphyxiation hazard. Extension cords running directly into the home increase the risk of carbon monoxide poisoning through any openings. If an extension cord running directly into your home is used to power indoor items, there is a risk of carbon monoxide poisoning to people inside the home. Always use battery-powered carbon monoxide detector (s) that meet current UL 2034 safety standards when running the generator. Regularly check the detector (s) battery.

WARNING

Asphyxiation hazard. When operating the generator with extension cords, make sure the generator is located in an open, outdoor area, at least 20 ft. (6 m.) far away from occupied spaces with exhaust pointed away.

WARNING

Fire and electrocution hazard. Never use worn or damaged extension cords. Damaged or overloaded extension cords could overheat, arc, and burn resulting in death or serious injury.

Before connecting an AC appliance or power cord to the generator:

• Use grounded 3-prong extension cords, tools, and appliances, or double-insulated tools and appliances.
• Make sure the tool or appliance is in good working order. Faulty appliances or power cords can create a potential for electric shock.
• Make sure the electrical rating of the tool or appliance does not exceed the rated power of the generator or the receptacle being used.

EXTENSION CORD SIZING

Only use grounded 3-prong extension cords marked for outdoor use that are rated for the electrical load.

Total Amperage	Minimum Gauge, Outdoor Rated
	Up to 50 FT (15 M)	Up to 100 FT (30 M)
Up to 10A	12	8
Up to 15A	10	8
Up to 20A	10	6
Up to 30A	8	6
Up to 35A	6	6

PARALLEL OPERATION

WARNING

Fire and electrocution hazard. Never connect or disconnect the parallel cord leads when a generator is running.

CAUTION

Correct connection of the left and right cables is very important when the generators are used with a transfer switch to supply power to a building. To avoid serious personal injury or damage to electrical devices, including the generators, do not try to power an electrical system in a building without using an approved transfer switch.

NOTICE

Connecting to a generator that is not compatible can cause a low voltage output that can damage tools and appliances powered by the generator.

Parallel operation gives you the ability to link to a compatible Westinghouse Inverter Generator for combined running and peak power output.

A Westinghouse 507PC parallel cord (purchased separately) is required for parallel operation. This cord can be purchased from an authorized Westinghouse Generator dealer.

Note: Compatible Westinghouse generators without parallel ports can be operated in parallel with the receptacle-mounted parallel cable, Part# 260041.

NOTICE

DO NOT use ECO MODE during parallel operation if powering large surge loads such as an air conditioner or electric pump. Engine rpm may not adjust quickly enough to provide the voltage requirements of large surge loads, causing damage to the devices or the generators.

1. On both generators, make sure the fuel knob and the ECO MODE switch are in the OFF position.
2. Connect two parallel cable leads to the parallel outlets on the first generator, then connect the opposite cable leads to the other generator's parallel outlets.

Note: If powering devices directly from the generators (not connected to a building's transfer switch), you do not need to match the left/right cables to the generator's parallel outlets.
3. Start one of the generators and wait until the OUTPUT READY LED illuminates.
4. Start the second generator and wait until the OUTPUT READY LED illuminates before connecting a load.

1. Connect additional loads as described in Power Management section.
2. Unplug all loads before stopping the generators.

TRANSPORTING

CAUTION

Weight hazard. Always have assistance when lifting the generator.

• Allow the generator to cool a minimum of 30 minutes before transporting.
• Replace all protective covers on the generator control panel.
• Only use the generator's fixed handle(s) to lift the unit or attach any load restraints such as ropes or tie-down straps. Do not attempt to lift or secure the generator by holding onto any of its other components.
• Keep the unit level during transport to minimize the possibility of fuel leakage or, if possible, drain the fuel or run the engine until the fuel tank is empty before transport.
• The generator wheels are only intended for hand transport. The wheels are not suitable for towing the generator either on or off-road.
• Use the extendable handle for one-person, hand transport. To deploy the handle, push on the locking button and pull on the handle until it's fully extended. To stow it, push on the locking button and push on the handle until it's fully retracted. Only extend or retract the handle while the generator is OFF, stationary, and resting on a horizontal surface. Do not use the extendable handle to lift the generator entirely off the ground, tow it, or up-end it.

CAUTION

Fire hazard. Do not up-end the generator or place it on its side. Fuel or oil can leak and damage to the generator may occur.

MAINTENANCE

WARNING

Accidental start-up. Disconnect the spark plug boot from the spark plug when performing maintenance on the generator.

MAINTENANCE SCHEDULE

Regular maintenance will improve performance and extend the service life of the generator. Follow the hourly or calendar intervals, whichever occurs first. More frequent service is required when operating in adverse conditions as noted below.

Before Each Use

Check engine oil

After First 25 Hours or First Month

Change engine oil

After 50 Hours or Every 6 Months

Change engine oil1Clean air filter2

After 100 Hours or Every 6 Months

Inspect/clean spark arresterInspect/clean spark plugReplace fuel filter3Inspect/adjust valve clearance3

After 300 Hours or Every Year

Replace spark plugReplace air filter

1 Change oil every month when operating under heavy load or in high temperatures.
2 Clean more often under dirty or dusty conditions. Replace air filter if it cannot be adequately cleaned.
3 Recommend service to be performed by authorized Westinghouse service dealer.

MAINTENANCE REPLACEMENT PARTS

Description Part Number
Foam air filter 5691
Oil drain plug crush washer 940	07
Spark arrester 6790
Spark plug F7RTC

ENGINE SERVICE COVER

Remove the engine service cover to access the air filter, carburetor, and spark plug. Remove the cover screws then pull the cover straight out with both hands to prevent damage to the grommet posts on the cover.

AIR FILTER MAINTENANCE

WARNING

Fire hazard. Never use gasoline or other flammable solvents to clean the air filter. Use only household detergent soap to clean the air filter.

The air filter must be cleaned after every 50 hours of use or six months (frequency should be increased if the generator is operated in a dusty environment).

1. Place the generator on a level surface and allow the engine to cool for several minutes.
2. Remove the engine service cover.
3. Turn the knobs on the air cleaner cover to the unlocked position. Tip the cover down to remove.

Note: The air filter element is oil soaked. Use an appropriate cleaning container.

NOTICE

Avoid skin contact with engine oil. Wear protective clothing and equipment. Wash all exposed skin with soap and water.

1. Remove the foam air filter from the air cleaner housing and wash it by submerging the element in a solution of household detergent soap and warm water. Slowly squeeze the foam to thoroughly clean.

NOTICE

DO NOT twist or tear the foam air filter element during cleaning or drying. Only apply slow but firm squeezing action.

1. Rinse the air filter element by submerging it in fresh water and applying a slow squeezing action. Allow the filter to dry thoroughly.

NOTICE

Do not pollute. Follow the guidelines of the EPA or other governmental agencies for proper disposal of hazardous materials. Consult local authorities or reclamation facility.

1. Dip the foam air filter in clean engine oil then squeeze out all excess oil. The engine will smoke when started if too much oil is left in the filter.
2. Install the foam air filter in the housing and lock the air cleaner cover in place.
3. Install the engine service panel.

Air Filter: Part# 5691

ENGINE OIL LEVEL CHECK

CAUTION

Avoid skin contact with engine oil. Wear protective clothing and equipment. Wash all exposed skin with soap and water.

NOTICE

Always use the specified engine oil. Failure to use the specified engine oil can cause accelerated wear and/or shorten the life of the engine.

When using the generator under extreme, dirty, dusty conditions or in extremely hot weather, change the oil more frequently.

Ambient air temperature will affect engine oil performance. Change the type of engine oil used based on weather conditions.

Recommended Engine Oil Type
10W-30
5W-30					10W-40
5W-30 Synthetic
°F	-20 0	20 40 60			80 100	120
°C	-28.9	-17.8	-6.7	4.4	15.6	26.7	37.8
Ambient temperature

Check the engine oil level before each use or every 8

hours of operation.

1. Place the generator on a level surface and allow the engine to cool for several minutes.
2. Remove the oil access cover.
3. With a damp rag, clean around the oil dipstick.
4. Remove the oil dipstick and wipe the dipstick clean.

1. Screw the dipstick fully into the filler neck. Remove the dipstick and verify that the oil level is within safe operating range.

1. If low, add recommended engine oil incrementally and recheck until the level is between the L and H marks on the dipstick. DO NOT overfill. If over the full mark on dipstick, drain the oil to reduce oil level to the full mark on dipstick.
2. Replace the oil dipstick and hand-tighten.
3. Install the oil access cover.

ENGINE OIL CHANGE

When using the generator under extreme, dirty, dusty conditions or in extremely hot weather, change the oil more frequently. Change the oil while the engine is still warm from operation.

1. Place the generator on a level surface and allow the engine to cool for several minutes.
2. Remove the engine service cover. Disconnect the spark plug wire from the spark plug and place the wire where it cannot contact the spark plug.
3. Remove the oil access cover.
4. With a damp rag, clean around the oil dipstick. Remove the dipstick and wipe clean.
5. Remove the rubber plug under the oil drain bolt and place an oil pan (or suitable container) under the drain hole.
6. Using a 10mm wrench, remove the oil drain bolt and allow the oil the to drain.

1. Install the oil drain plug and tighten securely. Install the rubber plug.

Note: A new oil drain plug crush washer is recommended at each oil change.

Drain plug crush washer: Part# 94007

1. Slowly pour oil into the oil fill opening until oil the level is between the L and H marks on the dipstick. Stop frequently to check the oil level. DO NOT overfill.

Maximum oil capacity: 0.63 US qt (0.60 L)

1. Replace the dipstick and hand-tighten.
2. Connect the spark plug wire and install the engine service cover.

NOTICE

Do not pollute. Follow the guidelines of the EPA or other governmental agencies for proper disposal of hazardous materials. Consult local authorities or reclamation facility.

SPARK PLUG MAINTENANCE

Inspect and clean the spark plug after every 100 hours of use or six months. Replace the spark plug after 300 hours of use or every year.

NOTICE

ALWAYS use the Westinghouse OEM or compatible non-resistor-type spark plug. Use of resistor-type spark plug can result in rough idling, misfire, or may prevent the engine from starting.

1. Place the generator on a level surface and allow the engine to cool.
2. Remove the engine service cover.
3. Remove the spark plug boot by firmly pulling the spark boot directly away from the engine.
4. Clean the area around the spark plug.
5. Remove the spark plug with the included spark plug socket wrench.

NOTICE

Never apply any side load or move the spark plug laterally when removing the spark plug.

1. Inspect the spark plug. Replace if electrodes are pitted, burned, or the insulator is cracked. Only use a recommended replacement plug.
2. Measure the spark plug electrode gap with a wire-type feeler gauge. If necessary, correct the gap by carefully bending the side electrode.

Spark plug gap: 0.024 - 0.032 in. (0.60 - 0.80 mm)

1. Carefully install the spark plug finger tight, then tighten as additional 3/8 to 1/2 turn with the spark plug wrench.
2. Install the spark plug boot and engine service cover.

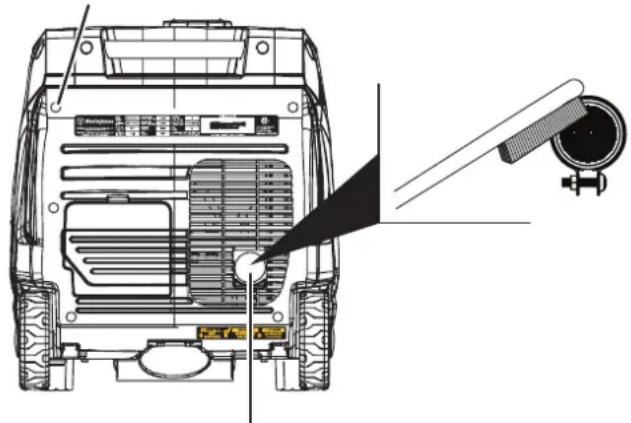

SPARK ARRESTOR SERVICE

Check and clean the spark arrester after every 100 hours of use or six months. Failure to clean the spark arrester will result in degraded engine performance.

1. Place the generator on a level surface and allow the muffler to cool before servicing the spark arrestor.
2. Remove the cover screws and the muffler cover. Use a screw driver to remove the spark arrester.
3. Carefully remove the carbon deposits from the spark arrestor screen with a wire brush. The spark arrestor must be free of breaks and tears. Replace the spark arrestor if damaged.

Cover Screws
Spark Arrestor

Spark Arrestor: Part# 6790

1. Reinstall the spark arrester and muffler cover.

STORAGE

Proper storage preparation is required for trouble-free operation and generator longevity.

NOTICE

Gasoline stored for as little as 30 days can deteriorate, causing gum, varnish, and corrosive buildup in fuel lines, fuel passages and the engine. This corrosive buildup restricts the flow of fuel, which can prevent the engine from starting after a prolonged storage period. The use of fuel stabilizer significantly increases the storage life of gasoline. Full-time use of fuel stabilizer is recommended. Follow the manufacturer's instructions for use.

STORAGE TIME RECOMMENDED PROCEDURE

Less than 1 month No	service required.
2 to 6 months	Fill with fresh gasoline and add gasoline stabilizer. Drain the carburetor float bowl.

STORAGE TIME RECOMMENDED PROCEDURE

6 months or longer

Drain the fuel tank and carburetor float bowl.

SHORT TERM STORAGE

• Allow the generator to cool a minimum of 30 minutes before storage.
• Replace all protective covers on the generator control panel.
• Wipe the generator with a moist cloth. Clean any debris from the air inlets under the control panel and muffler cooling vents.
• Store the generator in a well-ventilated, dry location away from sparks, open flames, pilot lights, heat, and other sources of ignition such as areas with a spark-producing electric motor or where power tools are operated.
• Do not store the generator or gasoline near furnaces, water heaters, or any other appliances that produce heat or have automatic ignitions.
• With the engine and exhaust system cool and all surfaces dry, cover the generator to keep out dust. Do not use a plastic sheet as a dust cover. Non-porous materials trap moisture and promote rust and corrosion.

LONG TERM STORAGE

Even properly stabilized fuel can leave residue and cause corrosion if left long term. If storing the generator for two to six months, drain the float bowl to prevent gum and varnish buildup in the carburetor.

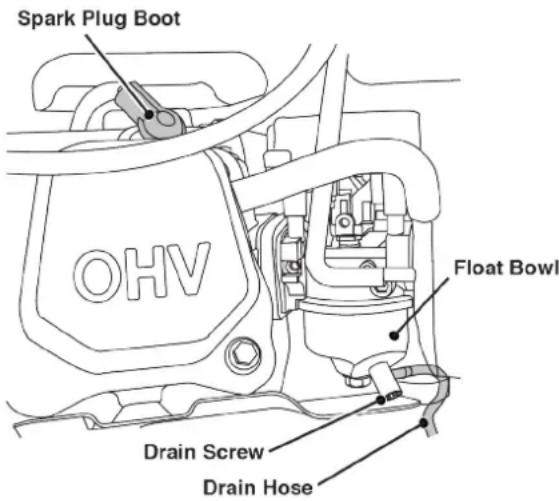

DRAINING THE FLOAT BOWL

1. Remove the engine service cover.
2. Locate the drain hose extending from the bottom of the carburetor float bowl.

1. Place the loose end of the hose outside the generator into an approved gasoline container to catch the drained fuel.
2. Loosen the float bowl drain screw and allow the fuel to drain. Tighten the float bowl drain screw.
3. Route the drain hose between the air cleaner housing and the engine service cover. Install the engine service cover.

DRAINING THE FUEL TANK

If storing the generator for longer than six months, drain the fuel tank to prevent fuel separation, deterioration, and deposits in the fuel system.

1. Unscrew the fuel tank cap. Remove the fuel screen filter by slightly compressing it while removing it from the tank.
2. Using a commercially available gasoline hand pump (not included), siphon the gasoline from the fuel tank into an approved gasoline container. DO NOT use an electric pump.
3. Reinstall the fuel screen filter and the fuel tank cap.
4. Start the generator and allow it to run until the generator engine stops.
5. Remove the spark plug.
6. Put a teaspoon of engine oil into the cylinder and pull the recoil handle until resistance is felt. At this position the piston is coming up on its compression stroke and both valves are closed. Storing the engine in this position will help prevent internal corrosion. Return the recoil handle gently.
7. Reinstall the spark plug. Leave the spark plug boot disconnected to prevent accidental starting.
8. Install the engine service cover.

VALVE CLEARANCE

NOTICE

Checking and adjusting valve clearance must be done when the engine is cold.

1. Remove the rocker arm cover and carefully remove the gasket. If the gasket is torn or damaged, it must be replaced.
2. Remove the spark plug so the engine can be rotated more easily.
3. Rotate the engine to top dead center (TDC) by pulling the recoil handle slowly. Looking through the spark plug hole, the piston should be at the top (both valves are closed).
4. Both the rocker arms should be loose at TDC on the compression stroke. If they are not, rotate the engine 360^
5. Insert a feeler gauge between the rocker arm and the valve stem to measure valve clearance.

Intake Valve Exhaust Valve

Valve Clearance	0.0031 – 0.0047 in (0.08 – 0.12 mm)	0.0051 – 0.0067 in (0.13 – 0.17 mm)
Torque 8-12 N·m 8-12 N·m

1. If an adjustment is necessary, hold the rocker arm pivot and loosen the pivot adjusting nut.
2. Turn the rocker arm pivot to obtain the specified clearance. Hold the rocker arm pivot and re-tighten the pivot adjusting nut to the specified torque.

Torque: 106 inch-pound (12 N·m)

1. Perform this procedure for the other valve.
2. Install the gasket, rocker arm cover, and spark plug.

TROUBLESHOOTING

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE CORRECTION
Engine will not start	Out of fuel. Refuel.
	Bad fuel, generator stored without treating or draining gasoline, or refueled with bad gasoline.	Drain the fuel tank. Refuel with fresh gasoline.
	Dirty air filter. Clean the air filter.
	Low engine oil level stopped generator.	If low oil LED illuminated, turn battery switch to the OFF position. Add engine oil.
	Spark plug wet with fuel (flooded engine).	Wait five minutes. Turn battery switch to the OFF position. Pull recoil handle rapidly several times. If the generator does not start, remove spark plug and dry.
	Spark plug faulty, fouled, or improperly gapped.	Gap or replace the spark plug. Reinstall.
	Fuel filter restricted, fuel system malfunction, fuel pump failure, ignition malfunction, valves stuck, etc.	Contact Westinghouse customer service toll-free at 1 [phone].
	CO sensor removed or modified. Return to original configuration.
	CO sensor activated or system fault occurred.	Relocate generator/Contact Westinghouse customer service toll-free at 1 [phone].
Engine starts, then shuts down	Out of fuel. Refuel.
	Incorrect engine oil level. Check engine oil level.
	Dirty air filter. Clean the air filter.
	Contaminated fuel. Drain the fuel tank. Refuel with fresh gasoline.
	Defective low oil level switch.	Contact Westinghouse customer service toll-free at 1 [phone].
Engine lacks power	Air filter restricted. Clean or replace air filter.
	Bad fuel, generator stored without treating or draining gasoline, or refueled with bad gasoline.	Drain the fuel tank. Refuel with fresh gasoline.
	Fuel filter restricted, fuel system malfunction, fuel pump failure, ignition malfunction, valves stuck, etc.	Contact Westinghouse customer service toll-free at 1 [phone].
Engine runs rough or bogs when load applied	Dirty air filter. Clean the air filter.
	Generator overloaded. Unplug some devices.
	Faulty power tool or appliance.	Replace or repair tool or appliance. Stop and restart the engine.
	Fuel filter restricted, fuel system malfunction, fuel pump failure, ignition malfunction, valves stuck, etc.	Contact Westinghouse customer service toll-free at 1 [phone].
No power at AC receptacles	OUTPUT READY LED is OFF and OVERLOAD LED is ON.	Check AC load. Stop and restart engine.
		Check the air inlet. Stop and restart the engine.
	AC circuit breaker/s tripped. Check AC loads and reset circuit breaker/s.
	Faulty power tool or appliance.	Replace or repair tool or appliance. Stop and restart the engine.
	Faulty generator.	Contact Westinghouse customer service toll-free at 1 [phone].

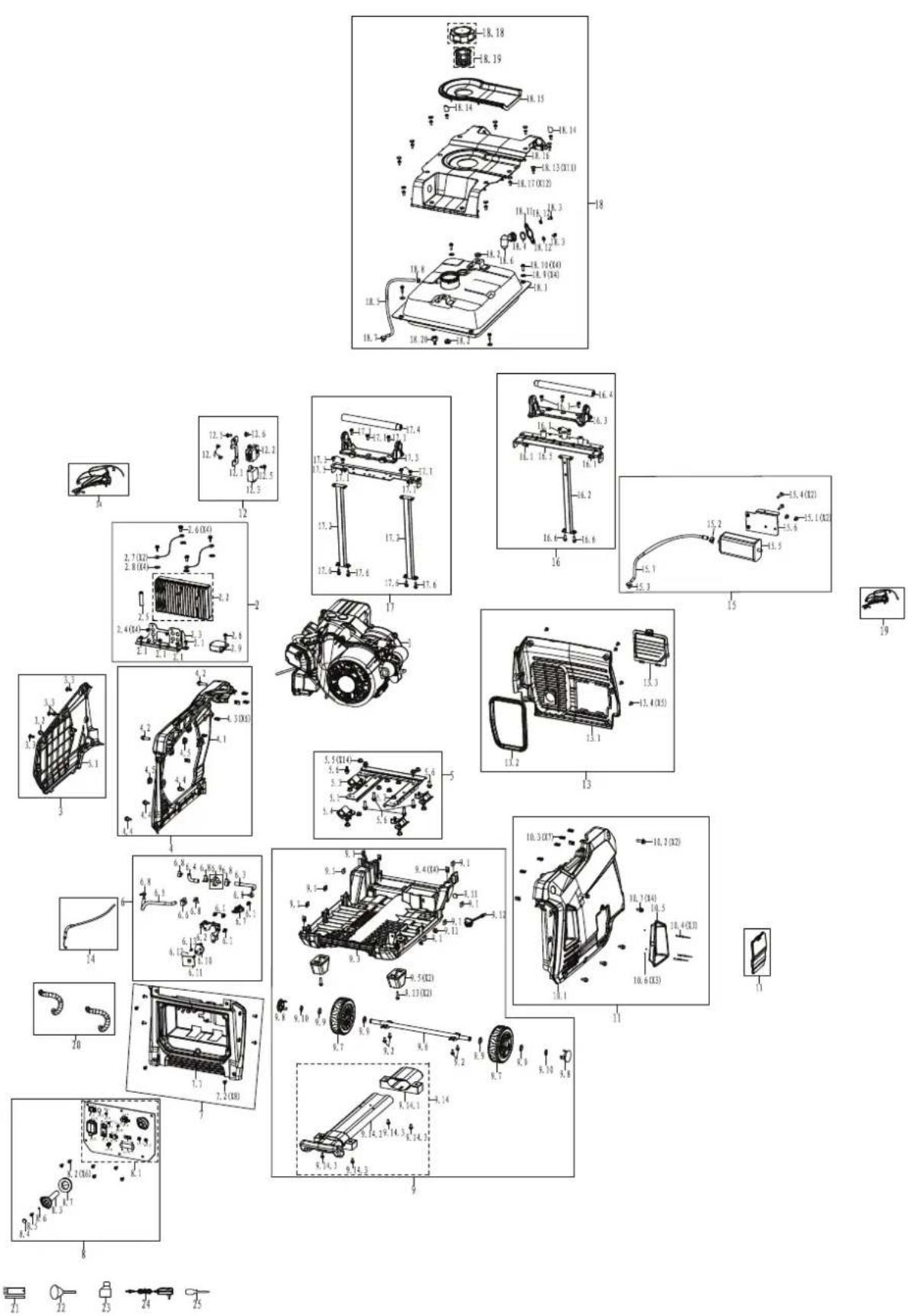

EXPLODED VIEWS AND PARTS LIST

ENGINE EXPLODED VIEW

ENGINE PARTS LIST

NO. PART # DESCRIPTION
1 50010026 CYLINDER HEAD COVER KIT ASSEMBLY
1.1 91325 BOLT M6X12
1.2 24115 CYLINDER HEAD COVER
1.3 33995 POLYURETH ANE SCREEN
1.4 24116 CYLINDER HEAD INTERNAL COVER
1.5 91322 BOLT M5*12
1.6 96200 CYLINDER HEAD COVER GASKET
2 50020056 CYLINDER HEAD KIT ASSEMBLY
2.1 242101 ROCKING ARM
2.2 91818 ROCKING ARM WITH TIGHT BOLT ASSEMBLY
2.3 242202 VALVE RETainer ASSEMBLY
2.4 241804 TOP CAP
2.5 241801 INTAKE VALVE SPRING SEAT
2.6 241802 EXHAUST VALVE SPRING SEAT
2.7 246001 VALVE SPRING
2.8 241806 INTAKE VALVE SPRING LOWER SEAT
2.9 241704 INTAKE VALVE
2.10 245904 EXHAUST VALVE
2.11 91029 AIR INLET STUD BOLT
2.12 91359 BOLT M8*60
2.13 241021 CYLINDER HEAD
2.14 96058 CYLINDER HEAD GASKET
2.15 240905 CYLINDER HEAD LOCATING PIN
2.16 91007 AIR EXHAUST STUD BOLT
2.17 96055 EXHAUST GASKET
2.18 96182 INTAKE GASKET
2.19 96051 CARBURETOR GASKET
3 50050018 PISTON & PISTON RING KIT ASSEMBLY
3.1 241607 PISTON RING ASSEMBLY
3.2 241301 PISTON PIN RING
3.3 24121 PISTON
3.4 245503 PISTON PIN
3.5 331500 CONNECTING ROD ASSEMBLY
4 50120050 CRANKCASE KIT ASSEMBLY
4.1 330202 CRANKCASE
4.2 93010 BEARING
4.3 93507 CRANKCASE OIL SEAL
4.4 94007 OIL DRAIN BOLT WASHER
4.5 94035 OIL DRAIN BOLT WASHER
4.6 91831 OIL DRAIN SOLENOID
4.7 24513 OIL SENSOR
4.8 91329 BOLT M6X16
4.9 91816 OIL DRAIN BOLT
5 240364 CRANKSHAFT ASSEMBLY
6 50150005 CAMSHAFT ASSEMBLY
6.1 332003 CAMSHAFT ASSEMBLY

NO. PART # DESCRIPTION

6.2 246103 VALVE LIFTER

6.3 241901 PUSH ROD

7 50200052 CRANKCASE COVER KIT ASSEMBLY

7.1 240116 CRANKCASE COVER

7.2 245601-295 DIPSTIC K ASSEMBLY

7.3 93507CRANKCASEOIL SEAL

7.4 91347BOLT M8X30

7.5 96041CRANKCASEGASKET

7.6 240904 CRANKCASELOCATING PIN

7.7 93010BEARING

8 599601METAL CLIP

9 50090053 RECOIL STARTER KIT ASSEMBLY

9.1 330501RECOIL STARTER ASSEMBLY

9.1.1 5324START PULLER RECOIL COVER

9.2 91329BOLT M6X16

9.3 500017-231 RECOIL HANDLE COVER

9.4 500018 RECOIL HANDLE

10 50170007 IMPELLERKIT ASSEMBLY

10.1 91864STARTER PULLEY COMPRESSIONBOLT

10.2 334501 STARTER FULLEY

10.3 334601 IMPELLER

11 50760003 ROTOR KIT ASSEMBLY

11.1 90003 NUT M14

11.2 503698 ROTOR

12 50750002 STATOR KIT ASSEMBLY

12.1 91400BOLT M6X60

12.2 503410 STATOR

12.3 240904 CRANKCASELOCATING PIN

13 5074002 TRIGGER KIT ASSEMBLY

13.1 91329BOLT M6X16

13.2 339902TRIGGER

14 50130012 WIND-LEAD-COVER KIT ASSEMBLY

14.1 330503 WIND-LEAD-COVER

14.2 91325BOLT M6X12

15 50620001 UPPER WIND DEFLECTOR KITASSEMBLY

15.1 330502 UPPER WIND DEFLECTOR

15.2 249914 CRIMPING BLOCK

15.3 91325BOLT M6X12

16 50340004 IGNITION COIL KIT ASSEMBLY

16.1 91333BOLT M6*28

16.2 339909 IGNITION COIL

16.3 339903 HIGH-VOLTAGE PACKAGE MOUNTINGBRACKET

16.4 90016 NUT M6

17 50770001 PANEL KIT ASSEMBLY

17.1 91329BOLT M6X16

ENGINE PARTS LIST CONTINUED

NO. PART # DESCRIPTION
17.2 91330 BOLT M6X20
17.3 335701 PANEL
18 50630001 CENTRIFUGAL FAN HOUSING KIT ASSEMBLY
18.1 244306 CENTRIFUGAL FAN HOUSING
18.2 244304 CENTRIFUGAL FAN PLUG
18.3 91343 BOLT M8*16
18.4 244606 IMPELLER
18.5 91419 BOLT M8*1*25
18.6 334302 CENTRIFUGAL FAN COVER
18.7 91330 BOLT M6X20
19 502400020 EXHAUST MUFFLER KIT ASSEMBLY
19.1 243782 MUFFLER
19.1.1 6790 SPARK ARRESTER
19.2 94216 FLAT WASHER
19.3 94206 SPRING WASHER
19.4 9001 NUT M8
19.5 91330 BOLT M6X20
19.6 500057 MUFFLER COVER
20 240511 SHIELD
21 50630002 BRACKET KIT ASSEMBLY
21.1 91330 BOLT M6X20
21.2 249917 BRACKET
22 50030050 AIR FILTER KIT ASSEMBLY
22.1 332901 AIR FILTER ASSEMBLY
22.1.1 5691 AIR FILTER
22.2 95918 CONNECTING PIPE
23 50040104 CARBURETOR KIT ASSEMBLY
23.1 332301 CARBURETOR CONNECTION BLOCK
23.2 339905 BRACKET ASSEMBLY
23.3 90016 NUT M6
23.4 94229 AIR FILTER GASKET
23.5 332808 CARBURETOR ASSEMBLY
23.6 249915 STEPPER MOTOR BRACKET
23.7 92055 CROSS SCREW STUD M4X25
23.8 249949 STEPPER MOTOR
23.9 249916 STEPPER MOTOR PROTECTIVE COVER
23.10 92240 CROSS SCREW STUD M4X6
24 50630003 RESONANT CAVITY KIT ASSEMBLY
24.1 337001 RESONANT CAVITY ASSEMBLY
24.1.1 5697 FOAM FILTER
24.2 249919 PLUG
24.3 95602 BREATHER TUBE
24.4 94407 FUEL LINE O LAMP
25 97109 SPARK PLUG

GENERATOR EXPLODED VIEW

GENERATOR PARTS LIST

NO. PART # DESCRIPTION
1 1148225110047 ENGINE ASSEMBLY DH225
2 100100010 INVERTER KIT ASSEMBLY
2.1 91325 BOLT M6X12
2.2 503147 INVERTER MOD JLE
2.3 503013 BRACKET
2.4 91322 BOLT M5X12
2.5 599601 METAL CLIP
2.6 91325 BOLT M6X12
2.7 500044 SHORT WIRE
2.8 94003 TOOTH WASHER
2.9 500700 DC VOLTAGE REGULATOR
3 100150012 LEFT PANEL KIT ASSEMBLY
3.1 503039-221D LEFT PANEL
3.2 92097 SCREW M6X20
3.3 92079 STOP BOLT M6X16
4 100280015 LEFT FRAME KIT ASSEMBLY
4.1 503005-221 LEFT FRAME
4.2 91345 BOLT M8X20
4.3 500060 LOCK CLIP M6
4.4 92097 SCREW M6X20
4.5 500007 FUEL TANK ISOLATION PAD A
5 100380001 BRACKET KIT ASSEMBLY
5.1 503001 BRACKET
5.2 503002 BRACKET
5.3 503003 BRACKET
5.4 503004 ISOLATION PAD
5.5 90044 NUT M8
5.6 91348 BOLT M8X35
6 100380007 BRACKET KIT ASSEMBLY
6.1 91325 BOLT M6X12
6.2 503017 BRACKET
6.3 503772 FUEL LINE 4X 10X 6X 12-89L
6.4 503773 FUEL LINE 4X 10X 6X 12-45L
6.5 503020L FUEL LINE 4X 10-194L
6.6 503044 CLIP
6.7 503062 FUEL SWITCH
6.8 503034 FUEL LINE CLAMP
6.9 516401 FILTER
6.10 500242 CABLE TRAY
6.11 500011 FUEL SWITCH HOLDER
6.12 500003 STEEL BALL
6.13 500012 SPRING
7 100140002 PANEL REAR COVER KIT ASSEMBLY
7.1 503016 PANEL REAR COVER
7.2 92078 SCREW M6X16
8 100110016 PANEL KIT ASSEMBLY

NO. PART # DESCRIPTION
8.1 50380	4 PANEL ASSEMBLY	Y
8.1.1	9224	ECO SWITCH
8.1.2	9079	WATERPROOF CAP
8.1.3	9230	VOLTAGE RESET SWITCH
8.1.4	9227-31	THERMAL PROTECTOR
8.1.5	6404	WATERPROOF CAP
8.1.6	9227-30	THERMAL PROTECTOR
8.1.7	6404	WATERPROOF CAP
8.1.8	9229	USB
8.1.9	503108 USB DUST COVER	COVER
8.1.10	9227-20	THERMAL PROTECTOR
8.1.11	6404	WATERPROOF CAP
8.1.12	9228	IGNITOR
8.1.13	9236	CO WARNING LIGHT
8.1.14	9236	CO WARNING LIGHT
8.1.15	9235	LED
8.1.16	9232	PARALLEL SOCKET
8.1.17	9122	WATERPROOF COVER
8.1.18	9132	GROUNDING BOLT
8.1.19	6032	L5-20R RECEPTACLE
8.1.20	9194	DUST COVER
8.1.21	6015	RV SOCKET
8.1.22	6849	DUST COVER
8.2 91825	SCREW & FLAT WASHER M5X12
8.3 50302	4 KNOB
8.4 50006	8 HANDLE PANEL PLUG
8.5 92032	SCREW M4X16
8.6 94325	FLAT WASHER 4
8.7 50331	0 KNOB PLUG
9 100200	006 BASEBOARD KIT ASSEMBLY
9.1 90027	SQUARE NUT
9.2 91325	BOLT M6X12
9.3 50304	5 BOTTOM PLATE
9.4 50006	0 LOCK CLIP M6
9.5 50302	6 ISOLATION PAD
9.6 50302	3 AXLE
9.7 50303	1 WHEEL
9.8 50303	2 WHEEL COVER
9.9 94022	STEEL WASHER
9.10 5003	21 AXLE WILD CARD
9.11 5030	53 LIMIT BLOCK
9.12 5030	52 BASE OIL COVER
9.13 9133	4 BOLT M6X30
9.14 1003	10003 PULL ROD KIT ASSEMBLY
9.14.1	503033 PULL ROD SEAT
9.14.2	503035 PULL ROD
9.14.3	91334 BOLT M6X30

GENERATOR PARTS LIST CONTINUED

NO. PART # DESCRIPTION
10 10028 0022 RIGHT FRAME KIT ASSEMBLY
10.1 5030 21-221D RIGHT FRAME
10.2 9134 5 BOLT M8X20
10.3 5000 60 LOCK CLIP M6
10.4 5030 67 BLIND RIVET
10.5 5030 36-052 HANDLE DECORATIVE BOARD
10.6 942 9 FLAT WASHER
10.7 9209 7 SCREW M6X20
11 503022-221 OBSERVATION COVER
12 10045 0001 CO MODULE KIT ASSEMBLY
12.1 5038 07 CO MODULE BRACKET
12.2 5990 70 CO MODULE
12.3 5990 71 CO FLAMEOUT ACTUATOR
12.4 9232 8 BOLT M4*12
12.5 9132 5 BOLT M6X12
12.6 900 16 NUT M6
13 10003 0002 MUFFLER PANEL KIT ASSEMBLY
13.1 5030 27 MUFFLER PANEL
13.2 500 08 MUFFLER EXHAUST SEALING STRIP
13.3 5030 40 COVER
13.4 9207 8 SCREW M6X16
14 50033 3 CABLE
15 10220 0004 CARBON CANISTER KIT ASSEMBLY
15.1 91325 BOLT M6X12
15.2 9440 5 FUEL LINE CLAMP 11.5
15.3 9440 3 FUEL LINE CLAMP 11.5
15.4 9133 4 BOLT M6X30
15.5 5433 01L CARBON CANISTER ASSEMBLY
15.6 5030 43 BRACKET
15.7 9501 6 CARBON CANISTER AND AIR FILTER CONNECTING PIPE
16 10038 0003 BRACKET KIT ASSEMBLY
16.1 91325 BOLT M6X12
16.2 5030 06 LIFTER
16.3 5030 08 BRACKET
16.4 5030 09 HANDLE
16.5 5030 42 BRACKET
16.6 9133 0 BOLT M6X20
17 10038 0007 BRACKET KIT ASSEMBLY
17.1 91325 BOLT M6X12
17.2 5030 07 LIFTER
17.3 5030 08 BRACKET
17.4 5030 09 HANDLE
17.5 5030 11 BRACKET
17.6 9133 0 BOLT M6X20
18 10007 0008 FUEL TANK KIT ASSEMBLY

NO. PART # DESCRIPTION
18.1 5037 75 FUEL TANK ASSEMBLY
18.2 5000 08 FUEL TANK ISOLATION PAD
18.3 9132 2 BOLT M5X12
18.4 5002 52 SEALING RING
18.5 9512 7 CARBON CANISTER AND FUEL TANK CONNECTING PIPE
18.6 5002 47 GASLINE SENSOR
18.7 9440 5 FUEL LINE CLAMP 11.5
18.8 9440 3 FUEL LINE CLAMP 11.5
18.9 9680 1 FUEL TANK GASKET
18.10 913 97 BOLT M6X20
18.11 500244 PRESS PLATE
18.12 500 324 SEALING WASHER
18.13 500 068 HANDLE PANEL PLUG
18.14 500 025 PLUG
18.15 500 029 FUEL SLOT
18.16 500 038-221 TOP COVER
18.17 920 78 SCREW M6X16
18.18 500 028 FUEL CAP
18.19 518 801 FUEL TANK FILTER
18.20 503 782 FUEL NOZZLE
19 50381 2 DEPUTY WIRING HARNESSE
20 50308 2 BELLOWS
21 99011 SPARK PLUG SLEEVE
22 50094 2 FUNNEL
23 99629 OIL BOTTLE ASSEMBLY
24 50380 6 DEPUTY WIRING HARNESSE
25 99506 DUAL - PURPOSE SCREWDRIVER

SCHEMATICS SCHEMATICS

	M/nB		M/18
	nd		d		M
	0				ng

iGen4500cv

Generador Inversor Digital

Westinghouse Outdoor Power

Warranty registration

777 Manor Park Drive

Columbus, OH 43228

Para su archivo

Fecha de compra:

Numero de modelos:

Numero de série:

Lugar de compra:

NE PAS RETOURNER CE PRODUIT AU MAGASIN

CENTRE DE DONNÉES LED 64

COMPOSANTS DU PANNEAU DE COMMANDE 65

ASSEMBLE

CONTENU DU CARTON 66

CARBURANT 67

REEMPLIR LE RÉSERVOIR DE CARBURANT 67

OPERATION

EMPLACEMENT DU GENÉRATEUR 68

MISE A LA TERRE 68

FONCTIONNEMENT A HAUTE ALTITUDE 69

PERIODE DE RODAGE 69

AVANT DE DEMARRER LE GÉNÉRATEUR 69

DEMARRAGE DU MOTEUR 69

ARRET DU MOTEUR 70

FREQUENCY D'UTILISATION 70

MODE ECO 70

DISJONCTEUR AC. 70

SURCHARGE REINITIALISER. 70

CAPACITE DU GENERATEUR. 71

GESTION DE L'ALIMENTATION 71

RALLONGES 72

DIMENSIONS DU CORDON D'EXTENSION 72

FONCTIONNEMENT PARALLELE 72

TRANSPORT 73

ENTRETIEN

CALENDRIER DE MAINTENANCE 74

PIECES DE RECHANGE D'ENTRETIEN 74

COUVERCLE DE SERVICE DU MOTEUR 74

MANTENIMIENTO DEL FILTRO DE AIRE 74

CONTROLE DU NIVEAU D'HUILE MOTEUR 75

CHANGEMENT D'HUILE MOTEUR 76

MAINTENANCE DES BOUGIES 76

SERVICE DE PARE-ETINCELLES 77

ESPACE DE RANGEMENT 77

LE JEU DES SOUPAPES 78

DéPANNAGE

DEPANNAGE 79

INTRODUCTION

Westinghouse Outdoor Power

Warranty registration

777 Manor Park Drive

Columbus, OH 43228

AANNNNNE AENNNNNE ANNNNNE

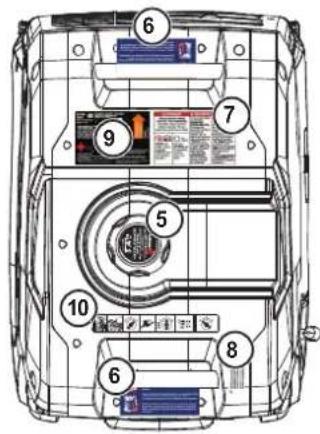

ÉTIQUETTES ET DÉCALCOMANIES DE SECURITÉ

10

6

7

9

- MOVE TO FRESH AIR.

WARNING ADVERTICAGO VIRTISSEMENT
L'ALTERNATION DE CAPTEUR DE MONOXYDE DE CARBONE POT ENTRAINER DES CONDITIONS DANGEREUSES

COMPOSANTS

COMPOSANTS DU GÉNÉRATEUR

CENTRE DE DONNÉES LED

DIMENSIONS DU CORDON D'EXTENSION

Couple: 106 inch-pound (12 N·m)

WestinghousePortablePower.com

Service Hotline: [phone]

777 Manor Park Drive

Columbus, OH 43228

^TM & © 2020 Westinghouse Electric Corporation

© 2020 Westinghouse Outdoor Power Equipment, LLC All Rights Reserved.

iGen4500CV Rev01

122034 Rev02 12/21
