USER MANUAL Stonehenge Blumfeldt

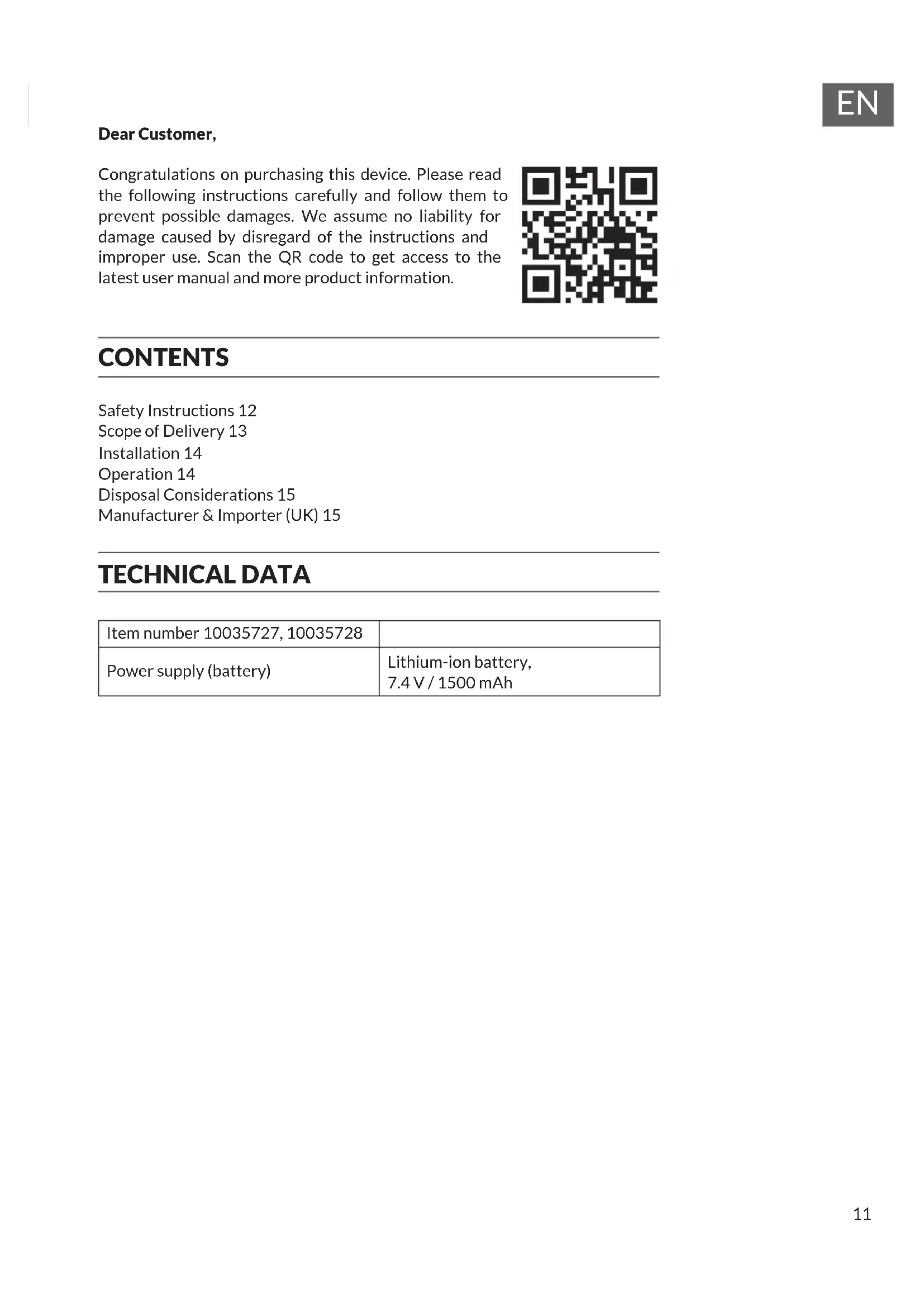

Dear Customer, Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information. CONTENTS Safety Instructions 12 Scope of Delivery 13 Installation 14 Operation 14 Disposal Considerations 15 Manufacturer & Importer (UK) 15 TECHNICAL DATA Item number 10035727, 10035728 Power supply (battery) Lithium-ion battery,

• To reduce the risk of electric shock, do not remove any of the covers. The unit contains parts that are not accessible to the user.

• The unit label is located on the back of the unit.

• Do not place any vessels lled with liquids, such as vases or watering cans, on the unit.

• Do not drop metal objects on this unit.

• Do not place heavy objects on top of this unit.

• Only use accessories and attachments approved by the manufacturer.

• Have repairs carried out only by qualied specialists.

• Repair is required if the product has been damaged in any way, i.e. if objects have fallen on it, if it does not function properly or if it has been dropped. Do not attempt to repair the unit yourself. Opening the cover may result in electric shock or other injury.

• Do not pull, bend, or place heavy objects on the cable.

• Do not place open ame sources, such as burning candles, on the product.

• Never let the pump run empty.

• Never connect the unit to AC power. It is only designed for operation with direct current.

• Operate the pump only in fresh water ponds at temperatures up to 50°C maximum.

• Do not place the solar panel in hollows or holes where water can collect. Choose a level location with a solid surface. The plastic bolt should be placed in sufciently solid soil.

• Do not place the unit on top of other units that may become hot. This heat could damage the unit.

• Do not use volatile liquids such as insect sprays. Excessive pressure when wiping may damage the surfaces. Rubber or plastic parts should not be in contact with the unit for long periods of time.

• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.13

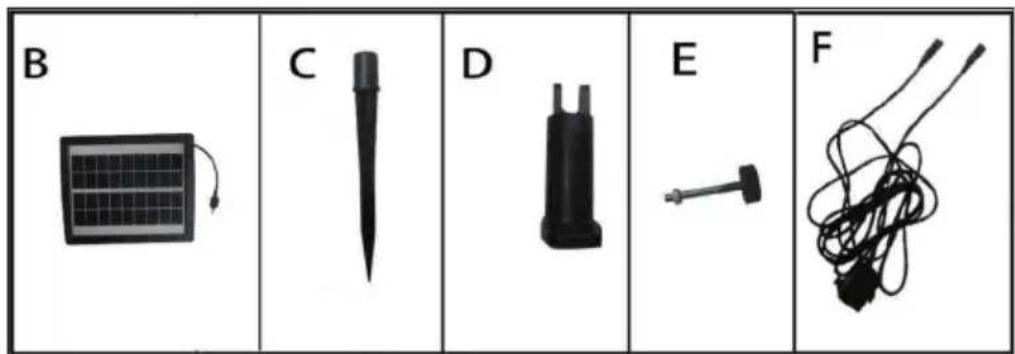

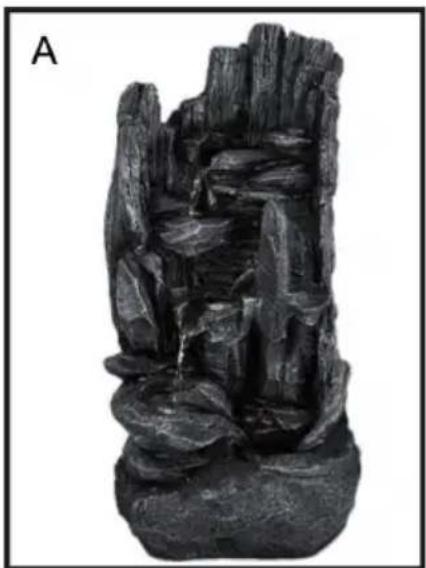

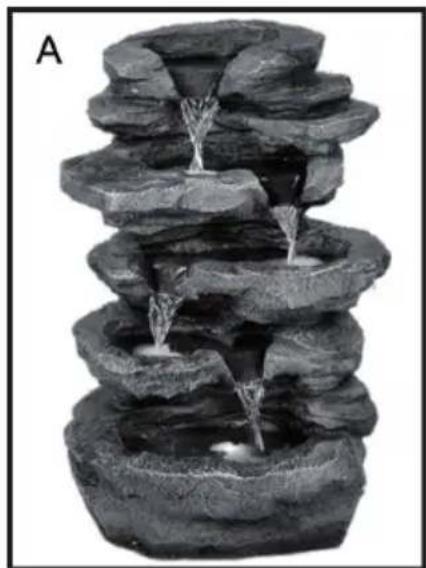

Stonehenge (10035727) Mystic Tree (10035728) Note: Double check contents before discarding the packaging to prevent losing parts that are needed for assembly.14

1. Attach the pump to the solar panel before use, plug the sprinkler head

or hose into the outlet of the pump, make sure the water level covers the pump, but is lower than the sprinkler head.

2. Plug the power line of the pump into the plug of the solar panel, and then

3. Position the solar panel in full sun to optimally run the pump, the backup

battery will be charged from the solar panel during normal operation and automatically run the pump without sunshine.

4. If required the pump can be run by the battery in times of low sunlight.

Turn on the switch at located at the back of the solar panel, if the battery is fully charged the pump will start to work immediately. OPERATION Charging and Operation

1. Turn the switch, which is located on under the solar panel, to “ON” position

and the battery will work automatically. Charge the solar product by placing it under direct sunlight for at least 8 hours. A longer charging time is recommended for the rst use. If the switch is “OFF” the battery will not work, solar panel ensures the pump works directly.

2. The light will work automatically.

How to Use The pump/fountain function will ONLY work when there is full, direct, sufcient sunlight on the pump solar panel (B). Notes:

• If there is no water, disconnect the pump from the battery and solar panel. Running the pump dry will reduce the life of the pump.

• When there is no sun, panel charged previously will power the fountain water and light for minimum a few of hours. In the circumstances of a period of time with no Sun, it will not work due to battery charged consumption being used up.

• If the fountain is not used or before transport, please disconnect pump from the battery.

• The battery is NONE replaceable.15

DISPOSAL CONSIDERATIONS If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service. This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Berlin Brands Group UK Limited PO Box 42 272 Kensington High Street London, W8 6ND United Kingdom17
