MIG25BNT - Microwave Oven CANDY - Free user manual and instructions

USER MANUAL MIG25BNT CANDY

ESSAVE THESE INSTRUCTIONS CAREFULLY

Read these instructions carefully before using your microwave oven,and keep it carefully. If you follow the instructions, your oven will provide you withmany years of good service. MODEL:

900W 315mm .5 kg595x401x388mm (a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person. ADDENDUM If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

B TTo reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including he following:

1. Warning: Liquids and other foods must not be heated

in sealed containers since they are liable to explode.

2. Warning: It is hazardous for anyone other than a

competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

3. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.Children shall not play with the appliance.Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of reach of

children less than 8 years.

5. Only use utensils suitable for use in microwave ovens.

6. The oven should be cleaned regularly and any food

deposits should be removed.

7. Read and follow the specific:"PRECAUTIONS TO

8. When heating food in plastic or paper containers,

keep an eye on the oven due to the possibility of ignition.

39. If smoke is emitted, switch off or unplug the appliance

and keep the door closed in order to stifle any flames.

10. Do not overcook food.

11. Do not use the oven cavity for storage purposes.

Do not store items, such as bread, cookies, etc. inside the oven.

12. Remove wire twist-ties and metal handles from

paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in accordance with the

installation instructions provided.

14. Eggs in the shell and whole hard-boiled eggs should

not be heated in microwave ovens since they may explode, even after microwave heating has ended. 15.This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -by clients in hotels, motels and other residential type environments; -farm houses; -bed and breakfast type environments.

16. If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

17. Do not store or use this appliance outdoors.

18. Do not use this oven near water, in a wet basement

or near a swimming pool.

19. The temperature of accessible surfaces may be high

when the appliance is operating. The surfaces are liable to get hot during use.Keep cord away from heated surface, and do not cover any vents on the oven.

21. Failure to maintain the oven in a clean condition

could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. 22.The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

23. Microwave heating of beverages can result in

delayed eruptive boiling, therefore care must be taken when handling the container. 24.The appliance is not intended for use by persons (including children) with reduced physical , sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. 25.Children should be supervised to ensure that they do not play with the appliance. 26.The appliances are not intended to be operated by means of an external timer or separate remote-control system.

27. Accessible parts may become hot during use.

Young children should be kept away. 28.Steam cleaner is not to be used. 29.During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven. 30.Only use the temperature probe recommended for temperature-sensing probe.) this oven.(for ovens provided with a facility to use a

531.WARNING: The appliance and its accessible parts become hot during use.Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. 32.The microwave oven must be operated with the decorative door open.(for ovens with a decorative door.) 33.Surface of a storage cabinet can get hot.

READ CAREFULLY AND KEEP FOR FUTURE

6To Reduce the Risk of Injury to Persons Grounding Installation DANGER Electric Shock Hazard Touching some of the internal componentscan cause serious personal injury or death.Do not disassemble this appliance. WARNING Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubtexists as to whether the appliance is properly grounded. If it is necessary to use an extension cord , use only a 3-wire

1. A short power-supply cord

is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.2. If a long cord set or extension cord isused: 1)The marked electrical rating of the cordset or extension cord should be at least as great as the electrical rating of the appliance. 2)The extension cord must be a grounding-type 3-wire cord. 3)The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

7CLEANING Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp

2. Clean the accessories in the usual way in soapy water.

3. The door frame and seal and neighbouring parts must be

cleaned carefully with a damp cloth when they are dirty.

4. Do not use harsh abrasive cleaners or sharp metal scrapers

to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

5. Cleaning Tip---For easier cleaning of the cavity walls that the

food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth. UTENSILS CAUTION Personal Injury Hazard It is hazardous for anyone other than a compentent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold

water (250ml) along with the utensil in question.

2. Cook on maximum power for 1 minute.

3. Carefully feel the utensil. If the empty utensil is

warm, do not use it for microwave cooking.

4. Do not exceed 1 minute cooking time.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

8Materials you can use in microwave oven Utensils Remarks Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes. Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape. Use for short–term cooking/warming only. Do not leave oven unattended while cooking. Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. Use as a cover to prevent splattering or a wrap for steaming. Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package. Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. Thermometers Microwave-safe only (meat and candy thermometers). Wax paper Use as a cover to prevent splattering and retain moisture. Browning dish Glass jars Glassware Oven cooking bags Paper plates and cups Paper towels Parchment paper Plastic Plastic wrap Dinnerware

Materials to be avoided in microwave oven Utensils Remarks Aluminum tray Food carton with metal handle Metal or metal- trimmed utensils Metal twist ties Paper bags Plastic foam Wood Metal shields the food from microwave energy. Metal trim may cause arcing. May cause a fire in the oven. Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood will dry out when used in the microwave oven and may split or crack. May cause arcing. Transfer food into microwave-safe dish. May cause arcing. Transfer food into microwave-safe dish. May cause arcing and could cause a fire in the oven. 9A) Control panelB) Turntable shaftC) Turntable ring assemblyD) Glass trayE) Observation windowF) Door assemblyG) Safety interlock system

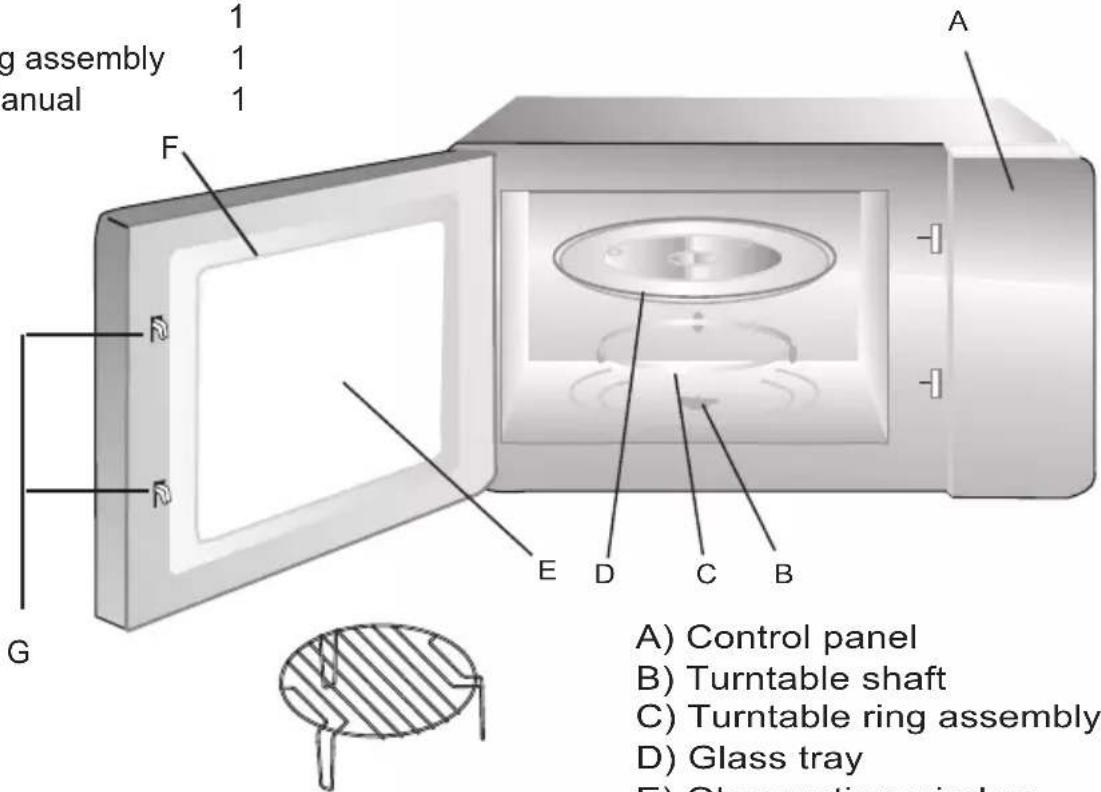

Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity.Your oven comes with the following accessories:Glass tray 1Turntable ring assembly 1Instruction Manual 1Grill Rack( Only for Grill series ) Hub (underside)Glass trayTurntable ring assemblya. Never place the glass tray upside down. The glass tray should never be restricted.b. Both glass tray and turntable ring assembly must always be used during cooking.c. All food and containers of food are always placed on the glass tray for cooking.d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center. Turntable Installation Turntable shaft 10GB Installation and connection 1.This appliance is only intended for domestic use. 2.This oven is intended for built-in use only.It is not intended for counter-top use or for use inside a cupboard.

3. Please observe the special installation instructions.

4.The appliance can be installed in a 60cm wide wall- mounted cupboard(at lease 55cm deep and 85cm off the floor). 5.The appliance is fitted with a plug and must only be connected to a properly installed earthed socket. 6.The mains voltage must correspond to the voltage specified on the rating plate. 7.The socket must be installed and connecting cable must only be replaced by a qualified electrician.If the plug is no longer to accessible following installation,an all-pole disconnecting device must be present on the installation side with a contact gap of at lease 3mm. 8.Adapters,multi-way strips and extension leads must not be used. Overloading can result in a risk of fire. The accessible surfacemay be hot during operation. 11GB Operation Instructions

1) Press " " once, the screen displays "P100".

3) Press " ", the minute figures will flash.

4) to adjust the cooking time until the oven displays "20:00".

When the microwave oven is electrified, the LED will display "0:00", buzzer will ring once.1) Press " " , the hour figures will flash.4) to adjust the minute figures, the input time should be within 0--59.5) Press " Note: the step quantities for the adjustment time of the coding switch are as follow: 0---1 min : 5 seconds 1---5 min : 10 seconds 5---10 min : 30 seconds 10---30 min : 1 minute 30---95 min : 5 minutes

2) Press " " once again or to choose 80%

microwave power.Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if you press " ", the oven

will go back to the previous status automatically.

2. Microwave Cooking

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps. Press " ", the LED will display "P100". Press " " for times or to choose the power you " or "P10" will display for each added press. again to start cooking.Press " " or " "Press " " or " "time from 0:05 to 95:00. Press " " to set cooking Press " " or " "Then press " " to confirm, and want, and "P100", "P80", "P50", "P30 " to finish clock setting. ":" will flash, and the time will light. twicepress " " or " "press " " or " "press " " or " "

" to confirm, and the screen displays "P 80"." to start co king .GB Order Microwave Power Display

100% 80% 50% 30% 10%

1) Press " " once, the screen displays "P100".3) Press " " to confirm, and the screen displays "C-1".

4) to adjust the cooking time until the oven displays "10:00".

5) Press " " to start cooking .

2) Press " " for times or to choose combi.

Grill Power 100% 45% 64%

55% 36% Note:If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press " " to contime cooking. P100 P80 P50 P30 P10

Press " " once, "P100" displays and then press " " for times or to choose the power " "to confirm, and again to start cooking. Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for 10 minutes, you can operate the oven as the following steps. " " Pad instructions you want, and "G","C-1" or "C-2" will display for each added press. Then pressfrom 0:05 to 95:00. Press " " to set cooking time from Press " " or " "1 mode.If no operation, the oven will continue cooking.press " " or " "press " " or " "

press " " or " " 13GB 1) Press " " twice, and the oven will display "dEF2".2) to select the defrost time.3) Press " " to start defrosting.Example: If you want to use "Auto Menu" to cook fish for 350g.2) Press " " to confirm.2) Press " " to confirm.3) to choose the default weight as the menu chart.4) Press " " to start cooking.1) Press " " once, and the oven will display "dEF1".2) to select the weight of food from 100 to 2000 g.3) Press " " to start defrosting.

1) In waiting state, press " " to start 30 seconds cooking with 100%

power, each added press will increase 30 seconds cooking time up to 95 minutes.2) In microwave, grill, combi. cooking or time defrost state, each press of " " can increase

cooking time.3) In waiting state, press " " to set cooking time with 100% microwave power, then press " " to start cooking.

5. Defrost By Weight

3) to select the weight of fish till "350" display .4) Press " " to start cooking.

means pizza, meat, vegetable, pasta, potato, fish, beverage and popcorn.1) Press " " to choose the menu, and "A-1" to "A-8" will display, which1) clockwise till "A-6" displays.Press " " or " "Press " " or " "Press " " or " "Press " " or " "Press " " or " "

A-8 Popcorn 50g 50 100g 100 (1) Press " " once, LED will display 00:00. (2) to enter the correct time.(The maximum cooking time is (3) Press " " to confirm setting. (4) When the kitchen time is reached, the buzzer will ring 5 times. If the clock has been set(24-hour system), LED will display the current time.Note: The kitchen Time is differ from 24-hour system Kitchen Timer is a timer.

ent . Press " " or " "95 minutes.) 15GB

" to start cooking, and buzzer will sound once for the first section, defrosting time counts down; buzzer will sound once again entering the second cooking. When cooking finishes, buzzer sounds five times.

1) Press " " twice, and the oven will display "dEF2".

" to confirm, and the screen displays "P 80".

6) to adjust the cooking time till the oven displays "7:00".

4) Press " " once again or to choose 80%

9. Multi-section cooking

At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section. Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following: Press " " or " " Press " " or " "

10. Inquiring Function

(1) In states of microwave, grill and combination cooking, press " ", the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state (2) In cooking state, press " for 3 seconds.

11. Lock-out Function for Children

Lock: In waiting state, press " " for 3 seconds, there will be a long beep time has been set, otherwise, the LED will display " ". Lock quitting: In locked state, press " " for 3 seconds, there will be a long "beep" denoting that the lock is released. denoting entering the children-lock state and the current time will display if the " to inquire the time and the time will display press " " or " "

16GB (1) " " must be pressed to continue cooking if the door is opened during cooking (2) Once the cooking programme has been set , " " is not pressed in 1 minute. The current time will be displayed. The setting will be cancelled. (3) The buzzer sounds once by efficient press, inefficient press will be no responce. (4) The buzzer will sound five times to remind you when cooking is finished.

17Trouble shooting It is forbidden to run the unit without any food inside. It is very dangerous. If something does trouble shooting; before seeking assistanace carry out the following checks first.

18This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product
