CMWA32EDLB - Microwaves CANDY - Free user manual and instructions

Product type	Microwave
Brand	Candy
Model	CMWA32EDLB
Power supply	230 V ~ 50 Hz
Input power	1550 W
Output power	1000 W
Main functions	Microwave cooking (5 power levels), weight and time defrost, auto menu (8 programs), smart clean, quick start, child lock
Capacity	32 L (estimation based on model)
Turntable	Yes, glass plate with ring
Display	LED
Timer	Up to 95 minutes
Maintenance and cleaning	Clean regularly with a damp cloth; use half a lemon in 300 ml of water on microwave mode for 10 minutes to ease cleaning; do not use steam cleaners or metal scrapers
Safety	Door safety lock, child lock system, mandatory grounding, automatic shutdown in case of malfunction
Included parts	Glass tray, turntable ring
Repairability	Repair by authorized service center only; in case of damage to the door or seals, contact after-sales service
General information	Built-in or countertop microwave; do not install above a heat source; minimum installation height 85 cm; free space of 30 cm above and 20 cm on sides
Weight	Not specified in the manual, approximately 12 kg (estimation)
Dimensions (W x H x D)	Not specified in the manual, typically 52 x 31 x 40 cm (estimation)

Frequently Asked Questions - CMWA32EDLB CANDY

How to set the microwave clock?

Press the Clock button twice. The hours flash: turn the knob to set the hours (0-23 in 24h format). Press again: the minutes flash, set them (0-59). Press Clock to confirm.

Can I use metal containers in this microwave?

No, metal containers (aluminum, steel, etc.) cause arcing and may damage the appliance. Use only microwave-safe utensils (glass, ceramic, specific plastic).

How to effectively clean the inside of the microwave?

Place a bowl with 300 ml of water and half a lemon in the oven. Start the Smart Clean program (100% power, 5 min) or manually heat for 10 min at full power. Then wipe with a soft dry cloth.

What to do if the microwave does not heat?

Check that the door is properly closed. Ensure the power cord is plugged in and the fuse/circuit breaker has not tripped. If the problem persists, contact authorized service.

How to activate the child lock?

In standby, press the Child Lock button for 3 seconds. A long beep sounds and the lock indicator lights up. To deactivate, repeat the same operation.

What power levels are available?

Five levels: P100 (1000 W), P80 (800 W), P50 (500 W), P30 (300 W), P10 (100 W). Use the Power button to select them.

How to defrost food with this microwave?

Two methods: by weight (100-2000 g, press Defrost once then set weight) or by time (press Defrost twice then set time). Defrost power is fixed at P30.

Can I use plastic bags for cooking?

Yes, provided they are microwave-safe. Do not seal with a metal tie and make slits to let steam escape. Monitor cooking.

How to use quick start?

In standby, press the +30s button to start cooking at full power for 30 seconds. Each additional press adds 30 seconds, up to 95 minutes.

Why does the oven light dim during cooking?

This is normal: at low power, the lighting may dim. This does not affect the appliance's operation.

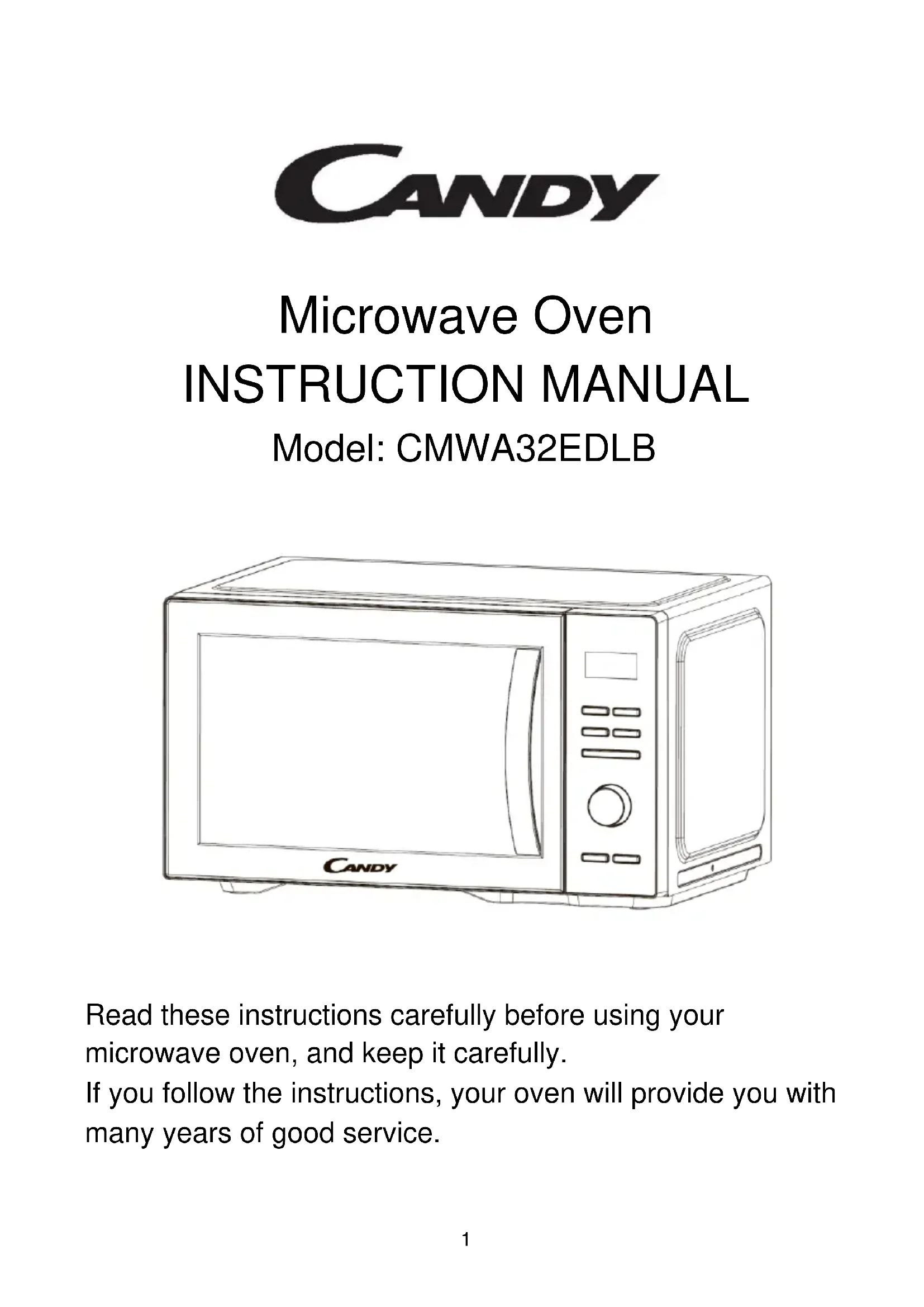

USER MANUAL CMWA32EDLB CANDY

Microwave Oven INSTRUCTION MANUAL

Model: CMWA32EDLB

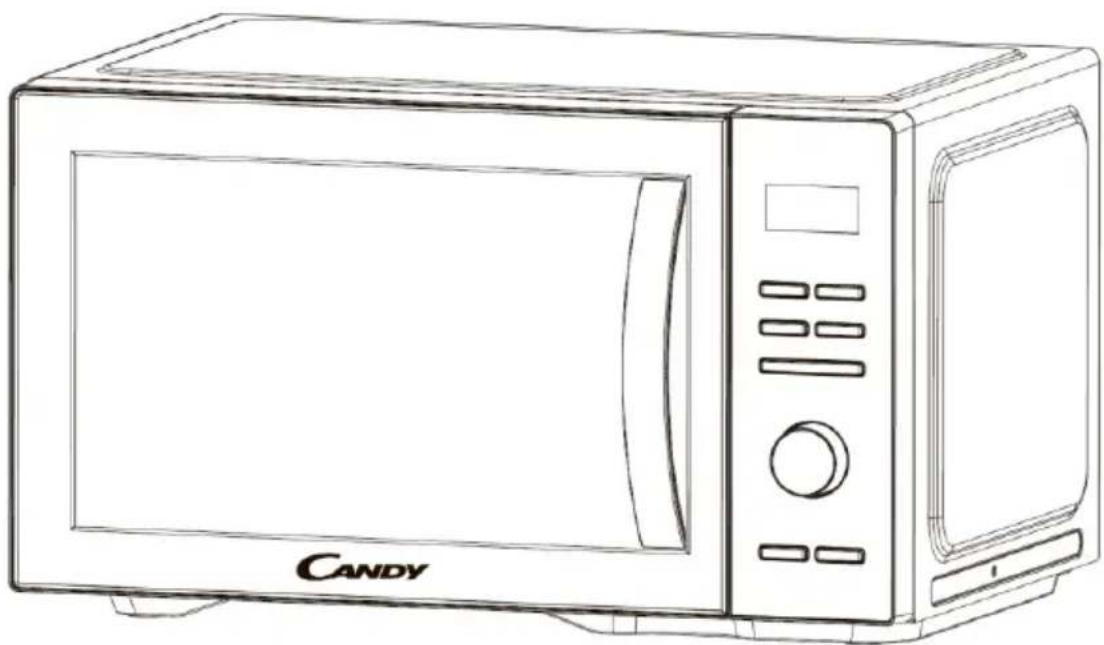

Line drawing of a CANDY microwave oven with control panel and door (no text or symbols on the device itself)

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

SPECIFICATIONS

Model	CMWA32EDLB
Rated Voltage	230V~ 50 Hz
Microwave Input	1550W
Microwave Output	1000W

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
   Cleaning and user maintenance shall not be made by children without supervision.

3. Keep the appliance and its cord out of reach of children less than 8 years.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

6. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

7. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

9. Only use utensils that are suitable for use in microwave ovens.

10. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

11. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

12. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

13. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

14. The oven should be cleaned regularly and any food deposits removed.

15. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

16. The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)

17. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)

18. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

19. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)

20. This appliance is intended to be used in household and similar applications such as:

21. staff kitchen areas in shops, offices and other working environments;

22. by clients in hotels, motels and other residential type environments;
23. farm houses;

24. bed and breakfast type environments.

25. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

26. Metallic containers for food and beverages are not allowed during microwave cooking.

27. The appliance shall not be cleaned with a steam cleaner.

28. The appliance is intended to be used freestanding.

29. The rear surface of appliances shall be placed against a wall.

30. The appliances are not intended to be operated by means of an external timer or separate remote-control system.

31. The temperature of accessible surfaces may be high when the appliance is operating.

32. WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATIO

DANGER

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock.

Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a grounding-type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.

2. Clean the accessories in the usual way in soapy water.

3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

PERSONAL INJURY HAZARD

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

UTENSIL TEST:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.

2. Cook on maximum power for 1 minute.

3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.

4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

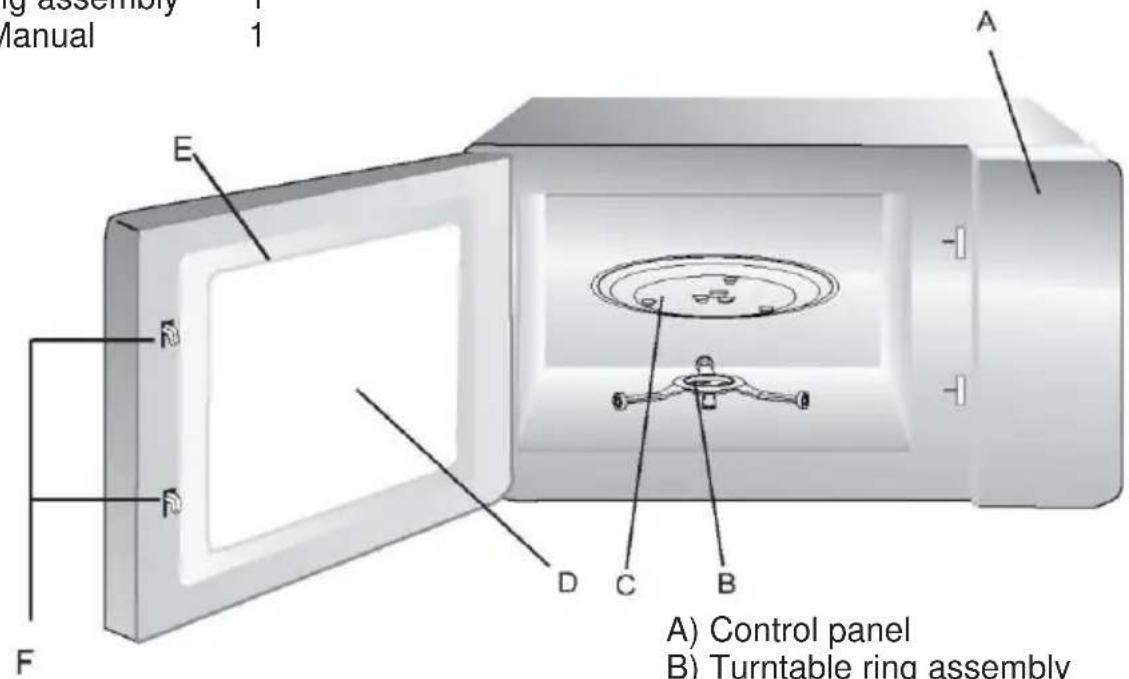

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

Glass tray	1
Turntable ring assembly	1
Instruction Manual	1

ring assembly Manual 1 A E R R F D C B A) Control panel B) Turntable ring assembly

A) Control panel
B) Turntable ring assembly
C) Glass tray
D) Observation window
E) Door assembly
F) Safety interlock system

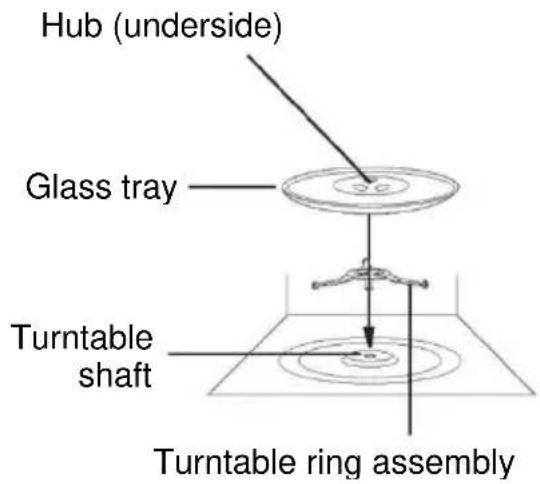

Turntable Installation

Hub (underside) Glass tray Turntable shaft Turntable ring assembly

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

COUNTERTOP INSTALLATION

Remove all packing material and accessories.

Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

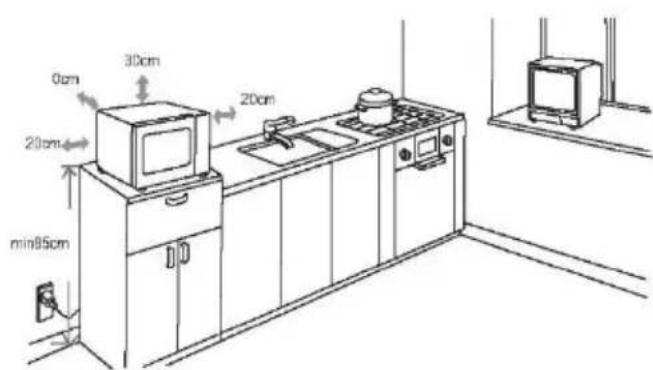

INSTALLATION

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

0cm 30cm 20cm min85cm 20cm 20cm

(1) The minimum installation height is 85cm.
(2) The rear surface of appliance shall be placed against a wall.

Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.

(3) Do not remove the legs from the bottom of the oven.
(4) Blocking the intake and/or outlet openings can damage the oven.
(5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

Warning symbol with steam inside a triangle, indicating hazardous material

Mobile phone interface screenshot showing status bar, navigation icons, and a circular progress indicator with plus sign

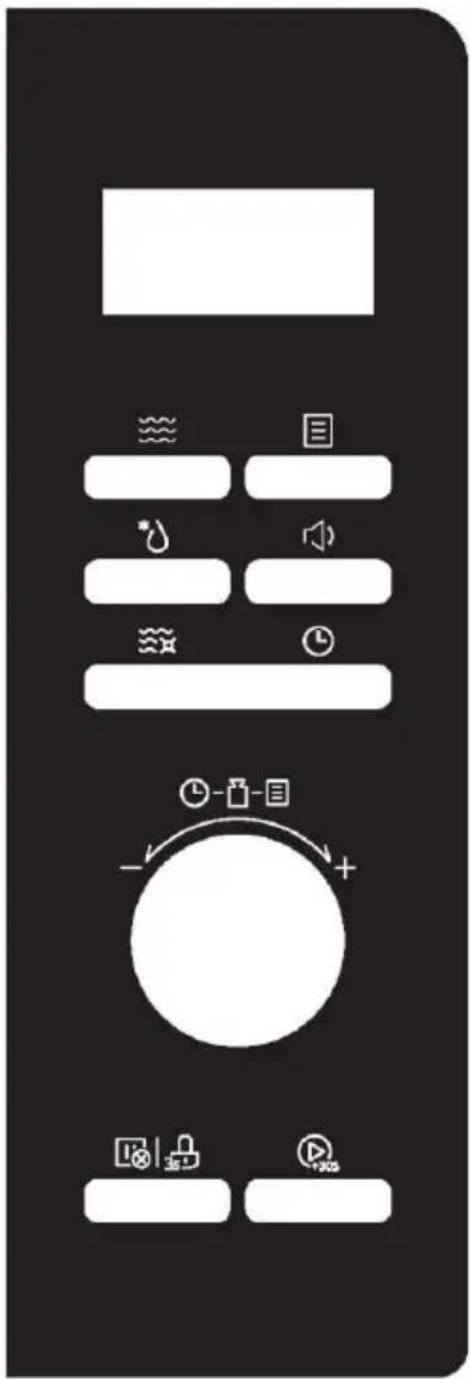

- Microwave

Press to select microwave function

- Defrost

Press to select deforst function quickly

- Timer/Clock

Press to set clock

- Smart Clean

Press to select smart clean function

- Auto Menu

Press to select auto menus

- Sound off

Press 3 seconds to mute the microwave

- Stop/Cancel

Press to cancel current cooking function

- Lock

Press 3 seconds for child lock function

- Start/+30Sec.

Press to start the function or quick start for 30 seconds microwave function

This microwave oven uses modern electronic controls to meet your cooking needs.

1. Clock Setting

When the microwave oven is Powered On, the oven will display "0:00" and the buzzer will ring once.

1) Press " twice. "00:00" display, the hour figures will flash.
2) Turn " 🔍 " to adjust the hour figures, the input time should be within 0--23(24-hour).
3) Press " ", the minute figures will flash.
4) Turn " 🔍 " to adjust the minute figures, the input time should be within 0--59.
5) Press " "to finish clock setting. ":" will flash.

Note:

1) If the clock is not set, it would not function when powered.
2) During the process of clock setting, if you don't press " ℓ" within 5 minutes, the oven will go back to the previous status automatically.

2. Kitchen Timer

1) Press " once, the screen will display 00:00.
2) Turn "to enter the correct timer. (The maximum cooking time is 95 minutes.)
3) Press " +30s to confirm setting.

3. Microwave Cooking

Microwave Power Chart

Display	P100	P80	P50	P30	P10
Microwave Power	1000W	800W	500W	300W	100W

1) Press "and then "P100" will display.
2) Press " repeatedly or turn the knob to set the power level. The 5 power levels are available.
3) Press "to confirm.

4) Turn "to adjust the cooking time. It should be within 0:05-95:00.
5) Press " +30s to start cooking.

4. Defrost by Weight

1) Press " * " pad once, the oven will display "d-1".
2) Turn " 🔍 " to select the weight of food. At the same time, "g" will light.

The weight should be within 100-2000g.

3) Press "key to start defrosting.

Note: the buzzer will sound to remind you to turn the food over during defrosting. If no operation, the oven will continue working.

5. Defrost by Time

1) Press " * " key twice, the oven will display "d-2".
2) Turn " " to select the cooking time. The maximum setting time is 95 minutes.
3) Press "key to start defrosting.

The defrost power is P30, and it can not be changed.

Note: When half of the time has passed, the buzzer will sound to remind you to turn the food over. If no operation, the oven will continue working.

6. Quick Start

1) In waiting state, Press " +305 " to start 30 seconds cooking with 100% power, each added press will increase 30 seconds cooking time up to 95 minutes.
2) In waiting state, turn " " left to set cooking time for 95 minutes with 100% microwave power, and then turn " " to set the cook time, Press " " to start cooking.

7. Multi Stage

Notes:

1) Two cooking stages can be set in multi-stage cooking.
2) If you set defrost function, it will work automatically in the first stage.

3) Kitchen timer, auto menu and auto clean cannot be set as one of the multi-stage.

Example: defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes.

1) Press " * " twice and then the screen will display "d-2".
2) Turn " " to set the desired defrost time of 5 minutes.
3) Press " " and then "P100" will display.
4) Turn " or press " " repeatedly to set the power level of P80.
5) Press " +30s to confirm.
6) Turn " " to set the desired defrost time of 7 minutes.
7) Press " +305 to start cooking.

8. Smart Clean

In waiting state, press " ≈" once, "AC" will display, Press " ▶+30S " to start cleaning (100% microwave clean for 5 minutes)

The Smart Clean program helps you to easily clean your appliance and remove unpleasant odors. You just need to place a bowl of water inside the microwave and select the Smart Clean function, the natural power of the steam will soften the food residues in a few minutes, preparing them to be eliminated.

Note: It is forbidden to hold the water with metal vessels.

9. Child Lock

Lock: In waiting state, press " I" for 9 seconds, there will be a long "beep" denoting entering into the children-lock state and locked indicator will light.

Unlock: In locked state, press " [1] for 3 seconds, there will be a long "beep" denoting that the lock is released, and locked indicator will disappear.

10. Time Function

1) During cooking state, press " Ⓛ " to check the current time. It will be displayed for 3 seconds.

11. Silent Mode

To activate the silent mode:

In waiting or clock state, press and hold " [icon] " for 3 seconds. "oFF" will display, when you press the keys, it does not make a sound.

To deactivate the silent mode:

In silent mode, press and hold "☐" for 3 seconds. A beep will sound. "on" will display.

12. Auto Menu

2) Press "to confirm the menu you need.
3) Turn " to choose the submenu.
4) Press " ▶to start cooking.

1) In waiting state, turn " 🔥" right to choose the function wanted, and "A1"\~"A8" will display.

Menu Chart

NUMBER	CATEGORY NAME	DISPLAY	PROGRAM NAME	WEIGHT	TIME	POWER
A1	Frozen vegetables	b1 -1	Frozen Green beans	200g	5'00"	P100
		b1 -2		400g	8'00"	P100
		b2-1	Frozen mix vegetable	200g	4'00"	P100
		b2-2		400g	7'00"	P100
		b3-1	Frozen broccoli	200g	4'30"	P100
		b3-2		400g	4'30"	P100
A2	Fresh vegetables	b1 -1	Potatoes without skin	400g	5'00"	P100
		b1 -2		800g	9'00"	P100
		b2-1	Potatoes with skin	2(200g)	5'00"	P100
		b2-2		4(400g)	14'00"	P100
		b3	Broccoli	400g	8'00"	P100
		b4	Carrots	400g	7'00"	P100
		b5	Courgettes	400g	5'00"	P100
A3	Fish	b1	Mussels	200g	6'00"	P80
		b2	Salmon	350g	8'00"	P80
		b3	Tuna	350g	7'00"	P80
		b4	Seabass	350g	8'00"	P80
A4	Meat	b1	Chicken	800g	14'00"	P100
		b2	Turkey	800g	14'00"	P100
		b3	Pork	450g	4'00"	P100
		b4	Red meat	800g	12'00"	P100
A5	Cereals& Pasta	b1 -1	Macaroni	100g	10'00"	P80
		b1 -2		200g	12'00"	P80
		b2-1	Couscous	200g	3'00"/9'00"	P80
		b2-2		300g	4'00"/10'00"	P80
		b3	Rice	1 cup	8'00"+500""	P100+P50
		b4-1	Oatmeal	2serving	3'30"/3'30"	P100
		b4-2		4serving	5'30"/5'30"	P100
A6	baby food	b1	Pured baby food	150g	2'00"	P80
		b2	Broth	200g	2'30"	P100
		b3	Sterilization	1 piece (biberon)	1'30"	P100
		b4	Baby milk	100 ml	40'00"	P30
A7	Beverage	b1	Milk (1 cup/240ml)	250 ml	1'00"	P100
		b2	Coffee (1 cup/120ml)	250 ml	1'00"	P100
		b3	Tea	250 ml	2'00"	P100
		b4	Hot chocolate	200 ml	1'15"	P80
A8	Melt	b1 -1	Butter (melt)	230g	1'40"	P80
		b1 -2	Butter (melt)	460g	2'20"	P80
		b2-1	Butter (soften)	230g	1'30"	P80
		b2-2	Butter (soften)	460g	2'30"	P80
		b3-1	Chocolate	100g	2'00"	P80
		b3-2	Chocolate	200g	4'00"	P80
		b4-1	Ice cream (soften)	450g	0'15"	P80
		b4-2	Ice cream (soften)	700g	0'30"	P80

TROUBLE SHOOTING

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible Cause	Remedy
Oven cannot be started.	(1) Power cord is not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door is not closed well.	Close door well.

ENVIRONMENTAL PROTECTION

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

- the WEEE should not be treated as domestic waste; - the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

CANDY

Four à micro-ondes MANUEL D'INSTRUCTIONS

Modèle : CMWA32EDLB

Line drawing of a CANDY microwave oven with control panel and door (no text or symbols on body)

1 A E R D C B

Warning symbol with steam inside a triangle, indicating hazardous material

MODE D'EMPLOI

PANNEAU DE COMMANDES

Mobile phone interface screenshot showing status bar, navigation buttons, and a circular progress indicator with plus sign

- Micro-ondes

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)
