USER MANUAL CMGA20SDLWLI CANDY

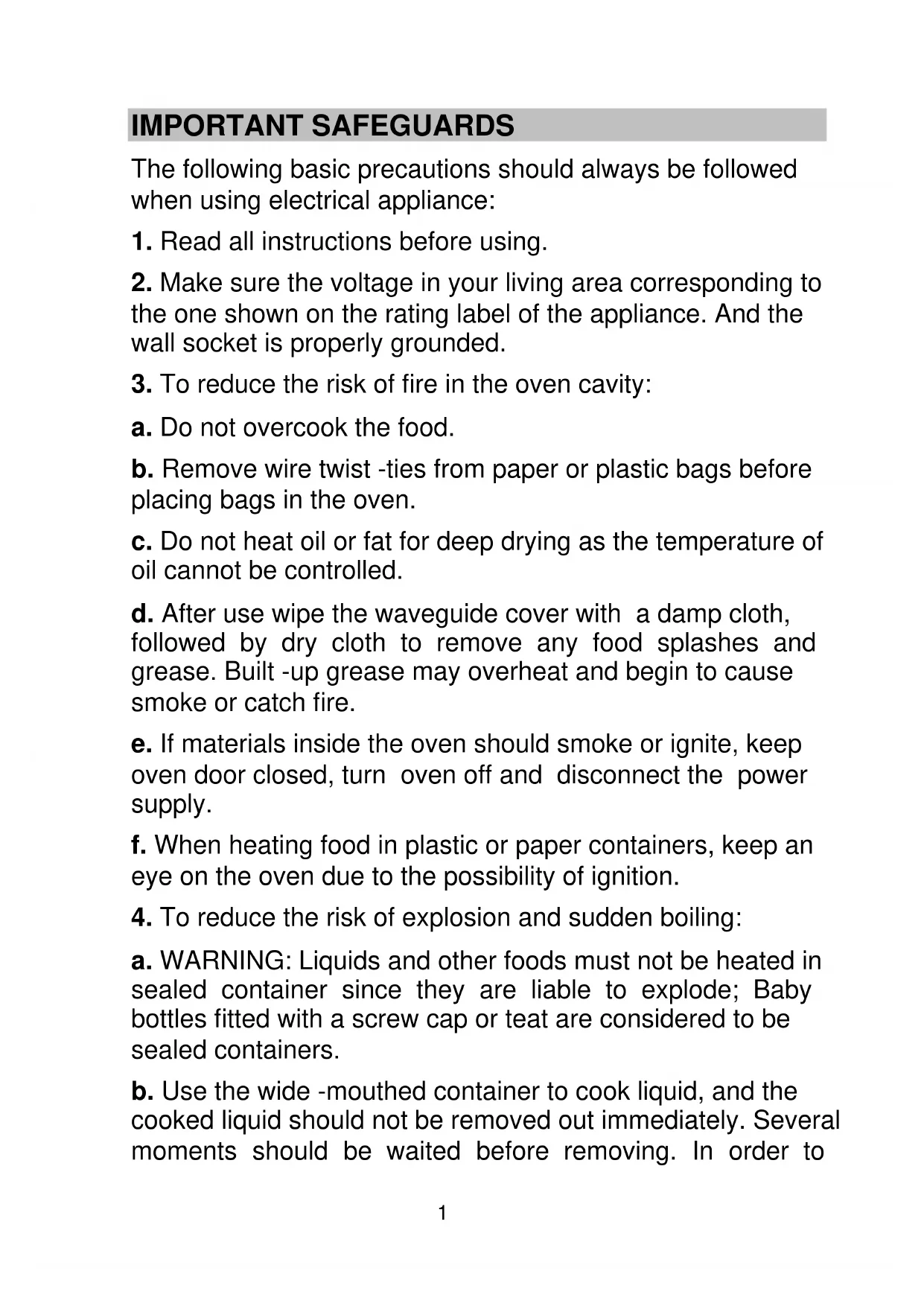

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE1 IMPORTANT SAFEGUARDS The following basic precautions should always be followed when using electrical appliance:

1. Read all instructions before using.

2. Make sure the voltage in your living area corresponding to

the one shown on the rating label of the appliance. And the wall socket is properly grounded.

3. To reduce the risk of fire in the oven cavity:

a. Do not overcook the food. b. Remove wire twist -ties from paper or plastic bags before placing bags in the oven. c. Do not heat oil or fat for deep drying as the temperature of oil cannot be controlled. d. After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease. Built -up grease may overheat and begin to cause smoke or catch fire. e. If materials inside the oven should smoke or ignite, keep oven door closed, turn oven off and disconnect the power supply. f. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

4. To reduce the risk of explosion and sudden boiling:

a. WARNING: Liquids and other foods must not be heated in sealed container since they are liable to explode; Baby bottles fitted with a screw cap or teat are considered to be sealed containers. b. Use the wide -mouthed container to cook liquid, and the cooked liquid should not be removed out immediately. Several moments should be waited before removing. In order to2 avoid possible hazards caused by delayed eruptive boiling of liquids. c. Potatoes, sausage and chestnut should be peeled or pierced before cooking. Eggs in their shell, whole hard -boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. d. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.

5. If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a qualified technician in order to avoid a shock hazard.

6. After cooking, the container is very hot. Using gloves to

take out the food and avoid steam burns by directing steam away from the face and hands.

7. Slowly lift the furthest edge of dishes cover and microwave

plastic wrap and carefully open popcorn and oven cooking bags away from the face.

8. To prevent the turntable from breaking:

a. Let the turntable cool down before cleaning. b. Do not place hot foods or utensils on the cold turntable. c. Do not place frozen foods or utensils on the hot turntable.

9. Make sure the utensils do not touch the interior walls

10. Only use utensils that are suitable for use in microwave

11. Do not store food or any other things inside the oven.

12. Do not operate the oven without any liquid or food inside

the oven. This would do damage the oven.3

13. When the appliance is operated in the combination mode,

children should only use the oven under adult supervision due to the temperatures generated.

14. Any accessories not recommended by the manufacturer

may cause injuries to persons.

15. Do not use outdoors.

16. Save these instructions.

17. WARNING: If the door or door seals are damaged or the

oven is malfunctioned, the oven must not be operated until it has been repaired by a competent person;

18. WARNING: It is hazardous for anyone other than a

competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;

19. If smoke is emitted, switch off or unplug the appliance

and keep the door closed in order to stifle any flames;

20. Microwave heating of beverages can result in delayed

eruptive boiling; therefore care must be taken when handling the container;

21. Do not use harsh abrasive cleaners or sharp metal

scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

22. The lamp of microwave oven is not intended for other

23. The appliances are not intended to be operated by means

of an external timer or separate remote -control system.

24. This appliance is intended to be used in household and

similar applications, such as:

• Staff kitchen areas in shops, offices and other working environments;

• By clients in hotels, motels and other residential environ- ments;

• Bed and breakfast type environments.

25. The microwave oven is intended for heating food and

beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

26. This appliance can be used by children aged from

8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.

27. This appliance is not intended for use by persons

(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

28. Children should be supervised to ensure that they do not

play with the appliance.

29. A steam cleaner is not to be used.

30. The door or the outer surface may get hot when the

appliance is operating.

31. WARNING: Accessible parts may become hot during

use. Young children should be kept away.

32. During use the appliance becomes hot. Care should be

taken to avoid touching heating elements inside the oven.

33. The surfaces are liable to get hot during use.5

: CAUTION: HOT SURFACE

Household use only INSTALLATION

1. Take out all the packing. If there is a safe film over the oven,

tear it off before Use. Check carefully for damage. If any, immediately notify dealer or send to the manufacturer’s service center.

2. Microwave ovens must be placed under dry and

non-corrosiveness environments, kept away from heat and humidity, such as gas burner or water tank.

3. To ensure sufficient ventilation, the distance of the back of

microwave to the wall should be at least 10 cm, the side to the wall should be at least 5 cm, the free distance above the top surface at least 20 cm. the distance of the microwave to the ground should be at least 85 cm.

4. The position of the oven shall be such that it is far from

the TV, Radio or antenna as picture disturbance. The distance should be more than 5m.

5. The appliance must be positioned so that the plug is

accessible, and must ensure a good grounding in case leakage, ground loop can be formed to avoid electric shock.

6. The microwave oven must be operated with the door closed.

7. The microwave oven must not be placed in a cabinet.

The microwave oven is intended to be used freestanding.

8. As there is manufacturing residue or oil remained on the

oven cavity or heat element, it usually would smell the odor, even a slight smoke, It is normal case and would not occur after several times use, keep the door or window open to ensure good ventilation. So it is strongly recommended to set the oven to grill mode and operate dry several times.6 CLEANING

CAUTION The oven should be cleaned regularly and any food deposits removed. WARNING

1. Remove the power cord from the wall outlet before cleaning.

Don't immerse the appliance in water or other fluids when cleaning.

2. Failure to maintain the oven in a clean condition could

lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation

3. Never use hard detergent, gasoline, abrasive powder or

metal brush to clean any part of the appliance

4. Do not remove the waveguide cover

5. When the microwave oven has been used for a long time,

there may be some strange odors exist in oven, Following 3 methods can get rid of them: a. Place several lemon slices in a cup, then heat with high Micro Power for 2-3 min. b. Place a cup of red tea in oven, then heat with high micro power. c. Put some orange peel into oven, and then heat them with high Micro Power for 1 minute.

6. WARNING: Only allow children to use the oven without

supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use;7

Details for cleaning door seals, cavity and adjacent parts: Exterior: Wipe the enclosure with a dampened soft cloth Door: Using a dampened soft cloth, wipe clean the door and window Wipe the door seals and adjacent parts to remove any spill or spatter Wipe the control panel with a slightly dampened soft cloth Interior walls: Wipe clean the cavity with a dampened soft cloth Wipe clean the waveguide cover to remove any food splashed Turntable/ Rotation ring/ Rotation axis: Wash with mild soap water Rinse with clean water and allow drying thoroughly8 PRODUCT INSTRUCTION

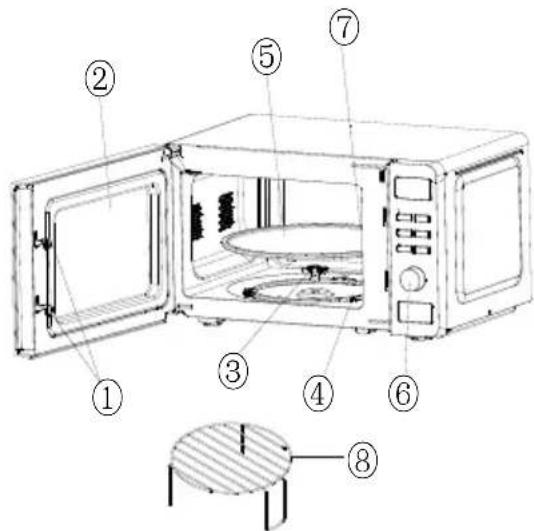

Microwave oven door must be properly closed in order for it to operate

Allow user to see the cooking status

The glass turntable sits on the axis; the motor underneath it drives the turntable to rotate

The glass turntable sits on its wheels; it supports the turntable and helps it to balance when rotating

The food sits on the turntable, its rotation during operation helps to cook food evenly CAUTION - Place the rotating ring first - Fit the turntable onto the rotating axis and make sure that it is geared in properly

See below in details (the control panel is subject to change without prior notice)9

It is inside the microwave oven, next to the wall of control panel. WARNING Never remove the waveguide cover

Use to place the roasting food.10

The LED flashes 3 times when plugged in power supply. Then it flashes “:”, prompting you to input the cooking menu and time.

You can increase or decrease cooking time, weight or select auto cooking menu during operation by turning the knob.11

At the initial or input stage: press once to cancel input programs and resume initial stage. During cooking: press once to stop oven operation, press twice to cancel cooking programs.

When your preset cooking procedure have finished, the LED Display will show End and three beeps sound will be heard to prompt you to take out food. If you do not press " " button once or open the door, the beep will be sounded at an interval of 3 minutes.

On the standby status, press " " button, the oven will start cooking with high power; system default cooking time is 1 minute. You can increase or decrease cooking time by turning the knob.

Clock button make it available for you to input current or preset time when “:” flashes onto LED display after plugged in, or try to skip it over to continue if unnecessary. Example: to set 12:30

After power-up, the colon flashes

Press " " button once 00:00

Turn " " knob to set exact hours. 12:0012

Press " " button once again. 12:00

Turn " " knob to set exact minutes. 12:30

Press " " button once again or wait for 5 seconds, and the numbers will go steadily.

This function is for cooking and heating food. Press " " button, LED will cycle to show 100P—80P—60P — 40P— 20P. High power 100% microwave power. Applicable for quick and thorough cooking Medium High power 80% microwave power. Applicable for medium express cooking Medium power 60% microwave power. Applicable for steaming food Medium Low power 40% microwave power. Applicable for defrosting food Low power 20% microwave power. Applicable for keeping warm CAUTION a. The max time which can be set is 60 minutes b. Never operate the oven empty. c. Never use the grill rack when microwave cooking. d. At the maximum microwave power, the oven will automatically lower the power after a certain time of cooking to lengthen the service life. e. If you turn the food during operation, press the " " button once and the preset cooking procedure will continue.13 f. If you intend to remove the food before the preset time, you must press " " button once to clear the preset procedure to avoid unintended operation of next time use. Example: To cook at P80 for 10 minutes.

After power-up, the colon flashes

Select the desired microwave power by pressing " " button consecutively 80P

Set cooking time by turning " " knob 10:00

Press " " button to start and LED will count down to show running time.

This function is used for grilling food. Press this button, LED display will cycle to show G - C1 - C2.

Grill, the heat element will be energized during operation time. Which is applicable for rolling thin meats or pork, sausage, chicken wing as good brown color can be obtained. C.1 Combination of grill and microwave cooking. 30% of time microwave output and 70% of time grilling C.2 Combination of grill and microwave cooking. 55% of time microwave output and 45% of time grilling CAUTION In the mode of grill/combi, all of the oven parts, as well as the rack and cooking containers, may become very hot. Use caution when removing any item from the oven. Use heavy potholders or oven mitts to PREVENT BURNS.14 Example: To grill food with C.2 cook menu for 10 minutes

After power-up, the colon flashes

Press " " button to select desired grill menu C.2

Set cooking time by turning the " " knob 10:00

Press " " to start cooking

This function use for defrost food. Press the " " button and the LED display will cycle to show d.1-d.2-d.3. d.1 For defrosting meat, the weight range from 0.1 to 2.0 kg. d.2 For defrosting poultry, the weight range from 0.2 to 3.0kg. d.3 For defrosting seafood, the weight range from 0.1 to 0.9kg. CAUTION a. It is necessary to turn over the food during operation to obtain uniform effect. b. Usually defrosting will need longer time than that of cooking the food. c. If the food can be cut by knife, the defrosting process can be considered completed. d. Microwave penetrates around 4cm into most food e. Defrosted food should be consumed as soon as possible, it is not advised to put back to fridge and freeze again.15 Example: To defrost 0.4kg poultry

After power-up, the colon flashes

Press " " button to set the food kind. d.2

Turn " " knob to set the defrost weight

Start cooking by pressing " "

In half way during defrosting 3 beep sound will be heard two times to prompt you turn over the food. Open the door and turn over the food. Then close the door. Press " " button again to continue defrosting

The oven has default cooking menu for simple operation. When the LED flashes colon, turn the Auto Cooking knob and LED will cycle to show A.1, A.2 …… A.8 Choose the appropriate menu according to the food type and weight and strictly observe the directions in below table, otherwise the cooking effect will be largely influenced. Display Kind Method A.1 Popcorn Suitable for popping a bag of corn, which is available in the market, weighted 85g. Popcorn prior to completing, if the popping speed has been decreased to 1 time per 1-2 seconds you should press " " button to stop the popping process A.2 Popcorn Same as A.1 except 100g weight A.3 Pizza Warm a piece of chilled pizza of 0.15kg16 A.4 Beverage Heating a cup of 250 ml liquid. The liquid temperature is about 5-10℃. Use a big mouth cup and do not seal A.5 Beverage Heating a cup of 500 ml liquid. The liquid temperature is about 5-10℃. Use a big mouth cup and do not seal A.6 Potato Cooking the potato strips, cut into 5mm width and height, length. Total weight is about 0.45kg. Place the strips on a large dish and cover the dish with a thin film to prevent water loss A.7 Potato Same as A.6 except the weight of potato strips is about 0.65kg A.8 Fish Suitable for steaming a fish of 0.45kg. After the fish washed and scales removed, make a slits on the skin of fish .Put the fish on a shallow dish of 22-27cm diameter sprinkle lightly with some ingredient and cover the dish with a thin film to prevent water loss. After cooking, stand for 2 minutes.

CAUTION a. The temperature of food before cooking would be 20-25℃. Higher or lower temperature of the food before cooking would require increase or decrease of cooking time. b. The temperature, weight and shape of food will largely influence the cooking effect. If any deviation has been found to the factor noted on above menu, you can adjust the cooking time for best result. Example: Steam 0.45kg fish

After power-up, the colon flashes

Turn " " knob to set the cooking A.817 menu

Start cooking by pressing " " button, and LED will count down to show running time.

If you do not want the menu be started immediately, you can preset the cooking menu and time and the preset menu will be automatically started at your set time. The setting will consist of 2 steps: ● Setting the current clock; ● Setting the cooking menu and time. Example: Now it is 12:30 clock, if you hope that the microwave oven will automatically start cooking with 100P microwave power for 9 minutes and 30 seconds at 14:20

After power-up, the colon flashes

Press " " button 00:00

Set hours by turning " " knob 12:00

Press " " button again to confirm hours 12:00

Set minutes by turning " " knob 12:30

Press " " button once or waiting for 5 seconds, and the numbers will go steady. 12:30

Set the cooking menu and time

Select cooking power by pressing " " button 100P18

Turn " " knob to set cooking time 9:30

Press and hold " " button for 3 seconds to return to current clock.

Set the time you expect to start. Repeat the steps of 1.2, 1.3, 1.4

Press " " button to confirm the delayed menu. Now the program has been activated. And the menu will be started at 14:20.

You may check the preset starting time by pressing " " button.

To obtain best cooking result, some recipes call for different cook mode and time. You may program your personalized menu as follow: Example: You want cook food with 100P microwave for 3 minutes then grill for 9 minutes. This is 2 sequence setting.

Press " " button to select power level. 100P

Turn " " knob to set cooking time. 3:00

Press " " button to select desired menu

Turn " " knob to set cooking time. 9:00

Start cooking by pressing " "19 a. When 100 microwave power cooking is finished, microwave oven will begin grilling operation automatically. b. Max 4 sequences can be set per time, repeat the steps

13. CHILD LOCK FUNCTION

Use this feature to lock the control panel when you are cleaning or so that children can not use the oven unsupervised. All the buttons are rendered inoperable in this mode.

1) Set lock: Hold " " button about 3 seconds.

2) Cancel lock: Hold " " button about 3 seconds.

UTENSILS GUIDELINE It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. You can take the reference of below table. Material of container Microwave grill Combi Notes Heat-resistant ceramic Yes Yes Yes Never use the ceramics which are decorated with metal rim or glazed Heat-resistant plastic Yes

Can not be used for long time microwave cooking Heat-resistant glass Yes Yes Yes20 Plastic film Yes

It should not be used when cooking meat or chops as the over-temperature may do damage to the film Grill rack

It should not be used in microwave oven. Microwave can not penetrate through metal. lacquer

Poor heat-resistant. Can not be used for High-temperature cooking Bamboo wood and paper

Poor heat-resistant. Can not be used for High-temperature cooking

COOKING TIPS The following factors may affect the cooking result: Food arrangement Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible. Cooking time length Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may result in smoke and burns. Cooking food evenly Food such as chicken, hamburger or steak should be turned once during cooking. Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking21 Allow standing time After cooking times out, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner Whether the food is done Color and hardness of food help to determine if it is done, these include: - Steam coming out from all parts of food, not just the edge - Joints of poultry can be moved easily - Pork or poultry shows no signs of blood - Fish is opaque and can be sliced easily with a fork Browning dish When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and rotating ring. Microwave safe plastic wrap When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt Microwave safe plastic cookware Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish instruction manual must not be exceeded MAINTENANCE SERVICING Please check the following before calling for services.

1. Place one cup of water (approx.150ml) in a glass measure

in the oven and close the door securely. Oven lamp should go off if the door is closed properly. Let the oven work for 1 min.

2. Does the oven lamp light?

3. Does the cooling fan work?

(Put your hand over the rear ventilation openings.)22

4. Does the turntable rotate?

(The turntable can rotate clockwise or counter clockwise. This is quite normal.)

5. Is the water inside the oven hot?

If “NO” is the answer to any of the above questions, please check your wall socket and the fuse in your meter box. If both the wall socket and the fuse are functioning properly, CONTACT YOUR NEAREST SERVICE CENTER APPROVED. SERVICING SAFEGUARDS Caution: MICROWAVE RADIATION

1. The high voltage capacitor remains charge after disconnection;

short the negative terminal of H. V capacitor to the oven chassis (use a screwdriver) to discharge before touching.

2. During servicing below listed parts are liable to be removed

and give access to potentials above250V to earth. ● Magnetron ● High voltage transformer ● High voltage capacitor ● High voltage diode ● High voltage fuse

3. The following conditions may cause undue microwave

exposure during servicing. Improper fitting of magnetron; Improper matching of door interlock, door hinge and door; Improper fitting of switch support; Door, door seal or enclosure has been damaged.23 Correct Disposal of this product

This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules: - the WEEE should not be treated as domestic waste; - the WEEE should be taken to dedicated collection areas managed by the town council or a registered company. ln many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.HORNO DE MICROONDAS
