BDG4327BC - Faucet Concept - Free user manual and instructions

Features	Details
Product type	Faucet
Materials	Brass, chrome finish
Dimensions	Standard, suitable for domestic installations
Recommended water pressure	0.5 to 5 bars
Maximum water temperature	70b0C
Installation	Easy, mounting on sink or washbasin
Maintenance	Regular cleaning with a soft cloth, avoid abrasive products
Warranty	2 years
Safety standards	Compliant with current safety standards
Additional information	Water saving thanks to an integrated regulation system

Frequently Asked Questions - BDG4327BC Concept

How to install the BDG4327BC faucet?

To install the BDG4327BC faucet, start by turning off the water. Attach the faucet to the sink using the supplied nuts. Connect the hot and cold water pipes following the instructions in the installation manual.

What to do if the faucet leaks?

If the faucet leaks, first check the connections to ensure they are tight. If the leak persists, the sealing gasket may be worn and needs to be replaced.

The faucet does not supply water, what should I check?

Check that the water is turned on at the supply valves. Also make sure no pipe is bent or blocked.

How to clean the faucet without damaging it?

Use a soft, non-abrasive cloth with soapy water to clean the faucet. Avoid harsh chemicals that could scratch or corrode the surface.

What type of cartridge does the BDG4327BC faucet use?

The BDG4327BC faucet uses a ceramic cartridge. If you need to replace it, please refer to the manual for specific instructions.

Is the faucet guaranteed?

Yes, the BDG4327BC faucet is covered by a two-year warranty against manufacturing defects. Keep your receipt for any warranty claims.

How to adjust the water temperature?

To adjust the water temperature, turn the control lever to the right for hot water and to the left for cold water. Adjust until you get the desired temperature.

Can I use a water filter with this faucet?

Yes, you can use a water filter with the BDG4327BC faucet, just make sure the filtration system is compatible with the faucet's water flow.

What is the required hole diameter for installation?

The BDG4327BC faucet requires a hole diameter of 3.2 cm for proper installation.

USER MANUAL BDG4327BC Concept

BDC3334, BDG3334BC, BDG3334BE, BDG3334WH

BDC3334, BDG3334BC, BDG3334BE, BDG3334WH

BDC3334, BDG3334BC, BDG3334BE, BDG3334WH

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance. Follow the recommendations in the manual and then use the new product successfully.

TABLE OF CONTENTS

• Important safety information
  Technical specifications
• Cleaning and maintenance
• Faucet installation
  Warranty

IMPORTANT SAFETY INFORMATION

When maintaining the faucet, take into account its surface finish and use cleaning agents which are suitable for the surface. Never use cleaning agents containing chlorine or alcohol and if you work with such agents close to the faucet, avoid contact.

Although the surface of the faucets is durable, avoid mechanical damage by sharp objects such as scratches with a kitchen knife.

TECHNICAL SPECIFICATIONS

Minimum water pressure: (0.5 bar)

Maximum water pressure: (10 bar)

Maximum hot water temperature: 80^

Recommended hot water temperature: 70^

CLEANING AND MAINTENANCE

Concept sink faucets combine practical and high-quality design. Inside each faucet, there is a high-quality ceramic cartridge that forms the main body of the faucet. The surface of the faucet is coated with scratch-resistant technology. At the same time, it was developed to perfectly match the design of Concept granite sinks.

Clean the faucet regularly with neutral detergents that do not contain abrasive particles; soap solution is sufficient. After cleaning, rinse the surface with water and dry. Remove larger dirt and scale deposits with vinegar solution, or with detergent containing vinegar. After use, dry the faucet surface with a soft cloth. Regular drying protects the faucet from unwanted scale deposits.

EN

Polish faucets with chrome finish from time to time with a special agent for stainless steel or chrome finish. That will remove stains and restore the chrome surface gloss.

Treat faucets with granite surface once in a while with water and milk for granite sinks. Rinse the surface with warm water and dry with a soft cloth. Remove lime deposits around the strainer with vinegar solution or acetic cleaner.

Daily and regular care extends their lifespan.

FAUCET INSTALLATION

Please follow the following instruction during product installation: The warranty does not cover damages caused by incorrect installation.

Before product installation, make sure it is not damaged in any way.

The product should be installed by a professional qualified to install faucets.

Thanks to the fact that each faucet body can be rotated 360^ , you can install the handle on both the right and left side.

Installation

• Shut off the hot and cold water supply.
• Unscrew the aerator to prevent it from clogging the first time you use the faucet.
• Position the faucet body on the sink with the fixing parts. Connect the water hoses and tighten by hand. Do not tighten with tools or brute force, the threads on valves or hoses could be damaged.
• If necessary, screw a 3/8 " threaded adapter onto both hoses.
• Screw the hoses to the water supply and open the water supply. Leave the faucet in a closed position where no water flows and check all connections for leaks. If you need to make additional tightening of joints, be sure to close the water supply.
• If all joints are tight, let hot and cold water run, first for a shorter period of time. Then install the aerator that you first dismantled and put the faucet back into operation.

Description of individual parts of the product BDC6529, BDG6529BC

Number	Item
1	Aerator
2	Spout
3	Body
4	Base
5	Cartridge
6	Connect nut
7	Cap
8	Handle
9	Fixing parts
10	Inlet hose

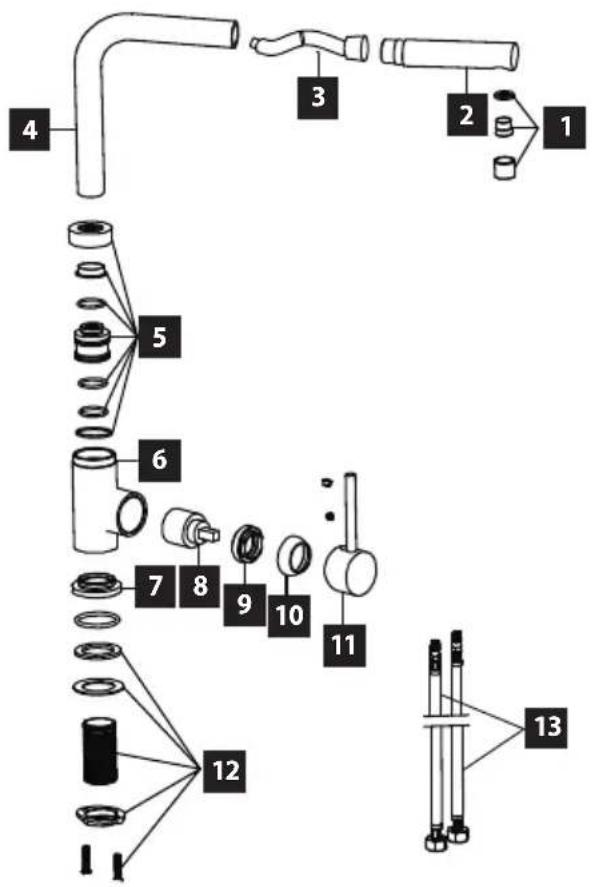

Description of individual parts of the product

BDC4327, BDG4327BC, BDG4327BE, BDG4327WH, BDG4327DS

Number Item
1	Aerator
2	Spout head
3	Connecting parts
4	Spout
5	Connecting parts
6	Body
7	Base
8	Cartridge
9	Connect nut
10	Cap
11	Handle
12	Fixing parts
13	Inlet hose

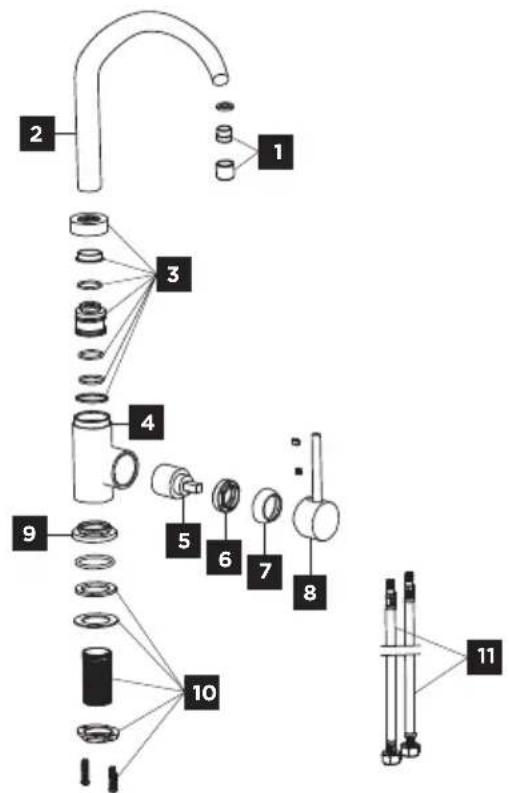

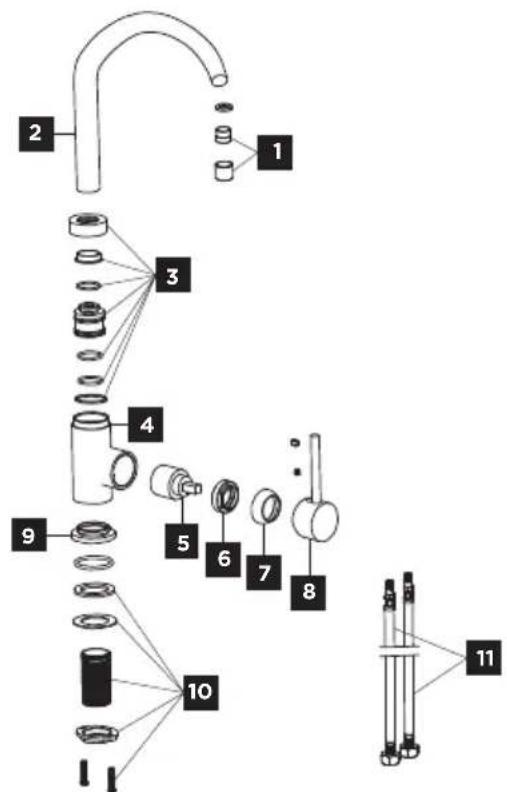

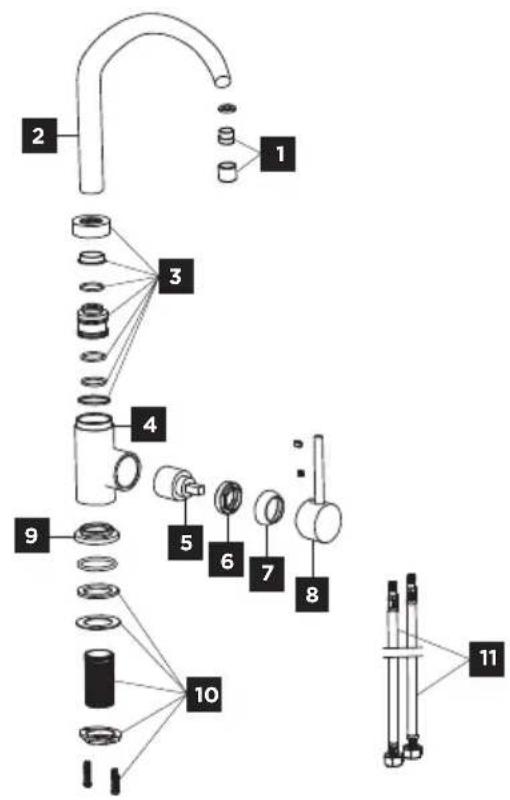

Description of individual parts of the product BDC3334, BDG3334BC, BDG3334BE, BDG3334WH

Number	Item
1	Aerator
2	Spout
3	Connecting parts
4	Body
5	Cartridge
6	Connect nut
7	Cap
8	Handle
9	Base
10	Fixing parts
11	Inlet hose

Description of individual parts of the product BDC5327, BDC5327BC

Number Item
1	Aerator
2	Spout
3	Connecting parts
4	Body
5	Cap
6	Bonnet nut
7	Cap
8	Handle
9	Base
10	to Fixing part
11	Inlet hose
12	Inlet tube

Description of individual parts of the product

BDC4527, BDG4527BC, BDG4527BE, BDG4527WH, BDG4527DG

Number Item

1 Aerator

2 Shower head

3 Hose

4 Spout

5 Connecting parts

6 Body

7 Button

8 Cartidge

9 Bonnect nut

10 Cap

11 Handle

12 Fixing parts

13 Inlet hose

Description of individual parts of the product BDC7547

Number	Item
1	Aerator shell
2	Aerator
3	Pull out head
4	Hose connector
5	Silicone hose
6	Connecting hose
7
8	Conector
9	Body cap
10	Body
11	Cartridge
12	Bonnet nut
13	Cap
14	Handle
15	Button
16	Inlet tube
17	Fixing part
18	Inlet hoses

WARRANTY

The manufacturer is responsible for manufacturing and material defects during the warranty period specified by the manufacturer. In the event that such defects occur, please return the sink to the seller with enclosed documents of its acquisition. Keep these documents throughout the warranty period.

The warranty does not cover defects caused by incorrect assembly or maintenance. Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

DANKSAGUNG

BDC3334, BDG3334BC, BDG3334BE, BDG3334WH

BDC3334, BDG3334BC, BDG3334BE, BDG3334WH

BDC3334, BDG3334BC, BDG3334BE, BDG3334WH

BDC3334, BDG3334BC, BDG3334BE, BDG3334WH

W: www.my-concept.pl

EN

Jindrich Valenta-Concept

Vysokomytska 1800,

565 01 Chocen, Czech Republic

T: [phone]

E: [e-mail]

W: www.my-concept.cz
