USER MANUAL HTR16BBERCC HOTPOINT

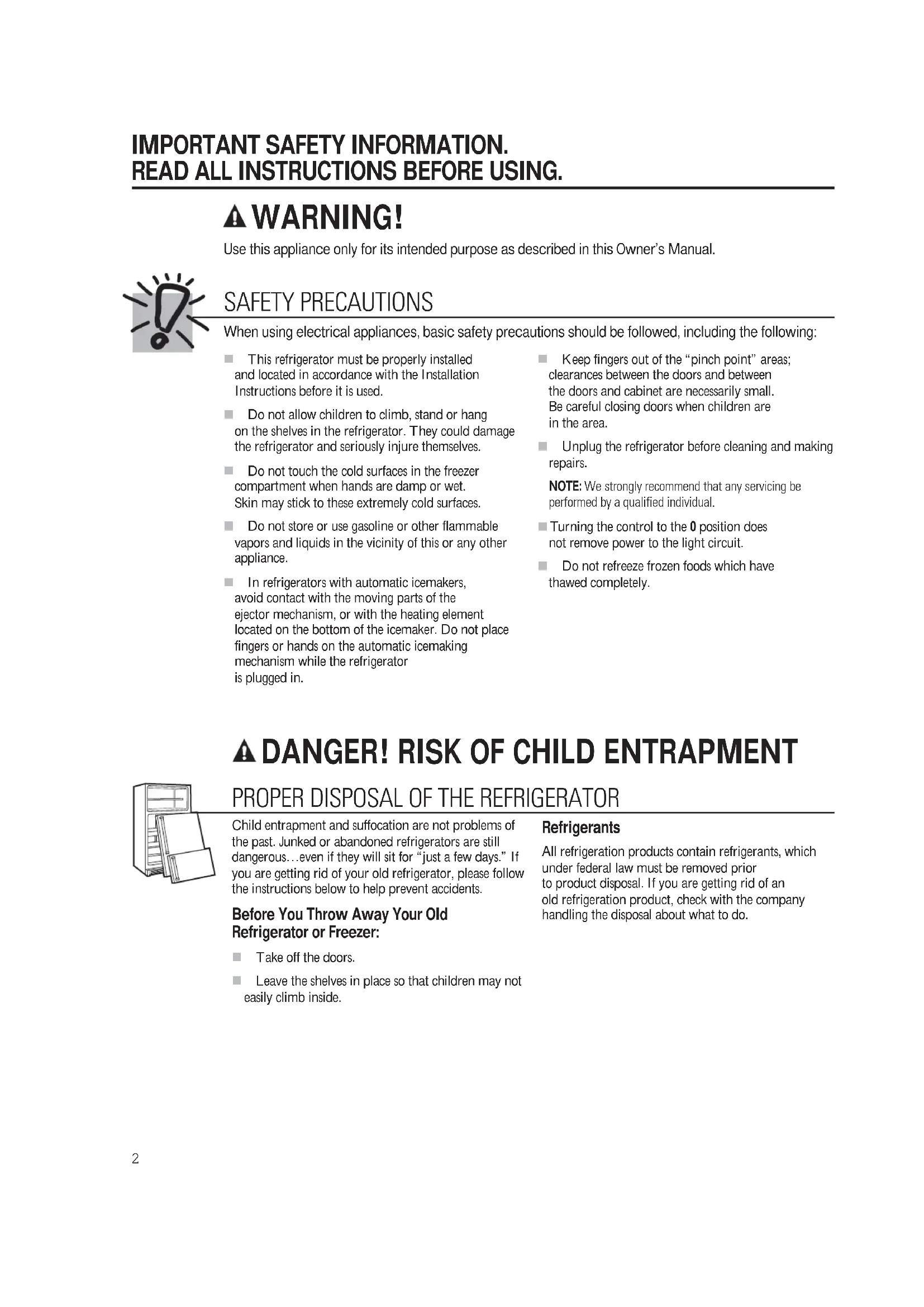

This refrigerator must be properly installed and located in accordance with the Installation Instructions before it is used.

Do not allow children to climb, stand or hang on the shelves in the refrigerator. They could damage the refrigerator and seriously injure themselves.

Do not touch the cold surfaces in the freezer compartment when hands are damp or wet. Skin may stick to these extremely cold surfaces.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector mechanism, or with the heating element located on the bottom of the icemaker. Do not place fingers or hands on the automatic icemaking mechanism while the refrigerator is plugged in.

Keep fingers out of the “pinch point” areas; clearances between the doors and between the doors and cabinet are necessarily small. Be careful closing doors when children are in the area.

Unplug the refrigerator before cleaning and making repairs. NOTE: We strongly recommend that any servicing be performed by a qualified individual.

Turning the control to the 0 position does not remove power to the light circuit.

Do not refreeze frozen foods which have thawed completely.

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous…even if they will sit for “just a few days.” If you are getting rid of your old refrigerator, please follow the instructions below to help prevent accidents. Before You Throw Away Your Old Refrigerator or Freezer: Take off the doors. Leave the shelves in place so that children may not easily climb inside. Refrigerants All refrigeration products contain refrigerants, which under federal law must be removed prior to product disposal. If you are getting rid of an old refrigeration product, check with the company handling the disposal about what to do.IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING. GEAppliaces.com WARNING!

HOW TO CONNECT ELECTRICITY

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded. The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. Where a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires. Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the refrigerator away from the wall, be careful not to roll over or damage the power cord.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord. However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed (in the United States) or a CSA-listed (in Canada), 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts. READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

About Energy Smart™ Models What Energy Smart™ Does If the ACM (Appliance Communication Module) is connected to your refrigerator and is receiving utility rate information, then the Energy Smart™ feature alters the performance of the refrigerator. It minimizes energy consumption when directed by the Nucleus energy manager (sold separately) or Smart Meter. This feature can cause changes in the refrigerator or freezer compartment temperatures and can cause changes in rate of ice cube production. Energy Smart™ Override Press and hold the Energy Smart™ button for 3 seconds to override the Energy Smart™ feature. The adjacent LED will flash three times to confirm a successful override of the feature. This will prevent the feature from altering the performance of your refrigerator for 18 hours. During this 18 hour period, the LED will remain OFF. Eighteen hours after the feature has been disabled, the Energy Smart™ feature will return to its normal operating routine. Energy Smart

Switch Models with the EnergySmart ™ feature have an additional button and LED light on the controls as shown. The LED will be ON during high rate periods and OFF during low or normal rate periods. The button is used to disable the EnergySmart ™ feature (see “EnergySmart ™ override” section). 3About the temperature control dial. Turning the dial to Off stops cooling in both compartments—fresh food and freezer. It does not shut off power to the refrigerator. About the fresh food compartment shelves. Shelf supports at various levels allow you to custom-space your shelves. Not all features are on all models. Full-Width Shelves Some models have a steel wire sliding shelf, a stationary tempered glass shelf, a spillproof shelf or two steel wire stationary shelves. These shelves can be moved to another place in the fresh food compartment. The full-width sliding shelf has stop-locks. When placed correctly on the shelf supports, the shelf will stop before coming completely out of the refrigerator and will not tilt when you place food on it or remove food from it. Half-Width Shelves One end of the shelf rests on a molded side- wall support; a bracket on the other end hooks into a track on the rear cabinet wall. To remove, lift the shelf up at front, then off the support and out of the track. To replace, select desired shelf height. With shelf front raised slightly, hook the bracket’s top lug into the track, then lower the shelf onto the support. NOTE: The shelf to the right of the track is designed to hook into the right-hand slot; the shelf to the left is designed to hook into the left-hand slot.

Tilt upTo remove a full-width shelf whenthe fresh food compartment doorcannot be opened fullyLift rearPull forward and downLift rearPull forwardTo remove the full-width shelves About the freezer compartment shelves. Step Shelf (on some models) To remove the step shelf: Lift left side of shelf slightly. Move shelf to the left to free its right ends from holes in the cabinet wall. Lower right side of shelf, move shelf to the right and take it out.

To replace the step shelf: With shelf tilted as shown, fit left ends of shelf into holes in cabinet wall. Lift left side of shelf slightly, swing shelf up, fit right ends of shelf into holes in cabinet wall, and lower shelf into place.

Temperature Control Dial The temperature dial adjusts refrigerator from warmest to coldest. See illustrations below for temperature setting information. OFF OFF OFF Recommenedfactory settingColdest settingWarmest settingAbout the automatic icemaker. A newly-installed refrigerator may take 12 to 24 hours to begin making ice. Automatic Icemaker (on some models) The icemaker will produce approximately 100–130 cubes in a 24-hour period, depending on the freezer compartment temperature, room temperature, number of door openings and other use conditions. If the refrigerator is operated before the water connection is made to the icemaker, move the feeler arm to the STOP (up) position. When the refrigerator has been connected to the water supply, move the feeler arm to the ON (down) position. You will hear a buzzing sound each time the icemaker fills with water. The icemaker will fill with water when it cools to 15°F. A newly-installed refrigerator may take 12 to 24 hours to begin making ice cubes. Throw away the first few batches of ice to allow the water line to clear. Be sure nothing interferes with the sweep of the feeler arm. When the bin fills to the level of the feeler arm, the icemaker will stop producing ice. It is normal for several cubes to be joined together. If ice is not used frequently, old ice cubes will become cloudy, taste stale and shrink. NOTE: In homes with lower-than-average water pressure, you may hear the icemaker cycle multiple times when making one batch of ice. Icemaker Accessory Kit If your refrigerator did not already come equipped with an automatic icemaker, an icemaker accessory kit is available at extra cost. Check the back of the refrigerator for the specific icemaker kit needed for your model. Feeler Arm in the STOP (up) position Feeler Arm in the ON (down) position

About storage drawer and cover removal. Not all features are on all models. Twin Drawer Shelf To remove: Remove the drawers. Reach in, push the front of glass cover up, and at the same time, pull it forward as far as it will come. Tilt it and take it out. Avoid cleaning the cold glass cover with hot water because the extreme temperature difference may cause it to break. Remove the drawer frame. (Always remove the glass cover before you take out the drawer frame.) Lift the frame off the supports at each side and back, pull it forward, tilt it and take it out. To replace: Lower the frame until it rests on the supports at each side and back. Replace the glass cover, pushing its rear edge firmly into the rear frame channel and gently lowering the front into place. Replace the drawers.

Drawer and Cover Removal Drawers can be removed easily by grasping the sides and lifting up slightly while pulling drawers past the stop location. To remove the cover, lift it off its supports, pull it forward, tilt it and take it out. Adjustable Humidity Drawer (on some models) Slide the control all the way to the HIGH setting to provide high humidity recommended for most vegetables. Slide the control all the way to the LOW setting to provide lower humidity levels recommended for most fruits. The snacks drawer can be moved to the most useful location for your family’s needs. Snacks Drawer Not all features are on all models. About the storage drawers. GEAppliaces.com Fruit and Vegetable Drawers Excess water that may accumulate in the bottom of the drawers should be emptied and the drawers wiped dry.Care and cleaning of the refrigerator.

Cleaning the Outside The door handles and trim (on some models). Clean with a cloth dampened with soapy water. Dry with a soft cloth. Keep the outside clean. Wipe with a clean cloth lightly dampened with kitchen appliance wax or mild liquid dish detergent. Dry and polish with a clean, soft cloth. The stainless steel panels and door handles (on some models) can be cleaned with a commercially available stainless steel cleaner. Do not use appliance wax or polish on the stainless steel. Do not wipe the refrigerator with a soiled dish cloth or wet towel. These may leave a residue that can erode the paint. Do not use scouring pads, powdered cleaners, bleach or cleaners containing bleach because these products can scratch and weaken the paint finish. Cleaning the Inside To help prevent odors, leave an open box of baking soda in the fresh food and freezer compartments. Unplug the refrigerator before cleaning. If this is not practical, wring excess moisture out of sponge or cloth when cleaning around switches, lights or controls. Use warm water and baking soda solution—about a tablespoon (15 ml) of baking soda to a quart (1 liter) of water. This both cleans and neutralizes odors. Rinse and wipe dry. After cleaning the door gaskets, apply a thin layer of petroleum jelly to the door gaskets at the hinge side. This helps keep the gaskets from sticking and bending out of shape. Avoid cleaning cold glass shelves (on some models) with hot water because the extreme temperature difference may cause them to break. Handle glass shelves carefully. Bumping tempered glass can cause it to shatter. Do not wash any plastic refrigerator parts in the dishwasher. Condenser There is no need for routine condenser cleaning in normal home operating environments. However, in environments that may be particularly dusty or greasy, the condenser should be cleaned periodically for efficient refrigerator operation. To clean the condenser, turn the temperature control dial to

0. Sweep away or vacuum up dust.

For best results, use a brush specially designed for this purpose. It is available at most appliance parts stores. Moving the Refrigerator Be careful when moving the refrigerator away from the wall. All types of floor coverings can be damaged, particularly cushioned coverings and those with embossed surfaces. Turn the leveling legs at each front corner of the refrigerator counterclockwise until the rollers support the refrigerator. Pull the refrigerator straight out and return it to position by pushing it straight in. Moving the refrigerator in a side direction may result in damage to the floor covering or refrigerator. When pushing the refrigerator back, make sure you don’t roll over the power cord or icemaker supply line (on some models). After rolling the refrigerator back into place, turn the legs clockwise until the legs again bear the weight of the refrigerator. Light Bulb Replacement To replace a burned-out bulb, unplug the refrigerator from its electrical outlet, unscrew the bulb when cool and replace it with an appliance bulb of the same or lower wattage. Turning the control to the 0 position does not remove power to the light circuit. Preparing for Vacation For long vacations or absences, remove food and unplug the refrigerator. Move the temperature control dial to the 0 position, and clean the interior with a baking soda solution of one tablespoon (15 ml) of baking soda to one quart (1 liter) of water. Leave the doors open. Move the feeler arm to the STOP (up) position and shut off the water supply to the refrigerator. If the temperature can drop below freezing, have a qualified servicer drain the water supply system (on some models) to prevent serious property damage due to flooding. Preparing to Move Secure all loose items such as grille, shelves and drawers by taping them securely in place to prevent damage. Be sure the refrigerator stays in an upright position during moving. Cleaning the condenser coils.BEFORE YOU BEGIN Read these instructions completely and carefully.

IMPORTANT – Save these instructions for local inspector’s use.

IMPORTANT – Observe all governing codes and ordinances.

• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions for future reference.
• Skill level – Installation of this appliance requires basic mechanical skills.
• Completion time – Refrigerator Installation 15 minutesReversing the Door Swing1 hour• Proper installation is the responsibility of the installer. • Product failure due to improper installation is notcovered under the Warranty.• Do not install the refrigerator where the temperature will gobelow 60°F (16°C) because it will not run often enough tomaintain proper temperatures.• Install it on a floor strong enough to support it fully loaded. REFRIGERATOR LOCATION Allow the following clearances for ease of installation,proper air circulation and plumbing and electricalconnections.

• Back 2” (50 mm) CLEARANCES Leveling legs near each front corner of the refrigerator areadjustable. They firmly position the refrigerator and preventit from moving when the doors are opened. Leveling legsshould be set so the front of the refrigerator is raised justenough that the doors close easily when opened abouthalfway.Turn the leveling legs clockwise to raise the refrigerator,counterclockwise to lower it.Rollers next to the leveling legs allow you to move therefrigerator away from the wall for cleaning.Turn the legs counterclockwise until the weight of therefrigerator is transferred from them to the rollers. Afterrolling the refrigerator back into place, turn the legsclockwise until the legs again bear the weight of therefrigerator.

ROLLERS AND LEVELING LEGS

If the refrigerator has an icemaker, it will have to beconnected to a cold water line. A water supply kit(containing copper tubing, shutoff valve, fittings andinstructions) is available at extra cost from your dealer, by visiting our Website at GEAppliaces.com (in Canada at www.geappliances.ca) or from Parts and Accessories,1.800.661.1616.

Refrigerator Tubing kit, 1/4” outer diameter to connect the refrigerator to the water supply. If using copper, be sure both ends of the tubing are cut square. To determine how much tubing you need: measure the distance from the water valve on the back of the refrigerator to the water supply pipe. Then add 8’ (2.4 m). Be sure there is sufficient extra tubing (about 8’ [2.4 m] coiled into 3 turns of about 10” [25 cm] diameter) to allow the refrigerator to move out from the wall after installation. INSTALLING THE WATER LINE (ON SOME MODELS) Installation Instructions

Recommended copper water supply kits are WX8X2, WX8X3 or WX8X4, depending on the amount of tubing you need. Approved plastic water supply lines are GE SmartConnect

Refrigerator Tubing (WX08X10006, WX08X10015 and WX08X10025). When connecting your refrigerator to a GE Reverse Osmosis Water System, the only approved installation is with a GE RVKit. For other reverse osmosis water systems, follow the manufacturer’s recommendations. This water line installation is not warranted by the refrigerator or icemaker manufacturer. Follow these instructions carefully to minimize the risk of expensive water damage. Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and lead to water leakage or flooding. Call a qualified plumber to correct water hammer before installing the water supply line to the refrigerator. To prevent burns and product damage, do not hook up the water line to the hot water line. If you use your refrigerator before connecting the water line, make sure the feeler arm is in the STOP (up) position. Do not install the icemaker tubing in areas where temperatures fall below freezing. When using any electrical device (such as a power drill) during installation, be sure the device is double insulated or grounded in a manner to prevent the hazard of electric shock, or is battery powered. All installations must be in accordance with local plumbing code requirements.

Refrigerator Tubing Kits are available in the following lengths: 6’ (1.8 m) – WX08X10006 15’ (4.6 m) – WX08X10015 25’ (7.6) m) – WX08X10025 Be sure that the kit you select allows at least 8’ (2.4 m) as described above. NOTE: The only GE approved plastic tubing is that supplied in GE SmartConnect

Refrigerator Tubing kits. Do not use any other plastic water supply line because the line is under pressure at all times. Certain types of plastic will crack or rupture with age and cause water damage to your home.

• A GE water supply kit (containing tubing, shutoff valve and fittings listed below) is available at extra cost from your dealer or from Parts and Accessories,

• A cold water supply. The water pressure must be between 20 and 120 p.s.i. (1.4–8.1 bar).

• 1/2” or adjustable wrench.

• Straight and Phillips blade screwdriver.

• Two 1/4” outer diameter compression nuts and 2 ferrules (sleeves)—to connect the copper tubing to the shutoff valve and the refrigerator water valve.

• If you are using a GE SmartConnect

Refrigerator Tubing kit, the necessary fittings are preassembled to the tubing.

• If your existing copper water line has a flared fitting at the end, you will need an adapter (available at plumbing supply stores) to connect the water line to the refrigerator OR you can cut off the flared fitting with a tube cutter and then use a compression fitting. Do not cut formed end from GE SmartConnect

• Shutoff valve to connect to the cold water line. The shutoff valve should have a water inlet with a minimum inside diameter of 5/32” at the point of connection to the COLD WATER LINE. Saddle-type shutoff valves are included in many water supply kits. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes.Installation Instructions Install the shutoff valve on the nearest frequently used drinking water line.

SHUT OFF THE MAIN WATER

REFRIGERATOR Turn on the nearest faucet (counterclockwise) long enough to clear the line of water.

Choose a location for the valve that is easily accessible. It is best to connect into the side of a vertical water pipe. When it is necessary to connect into a horizontal water pipe, make the connection to the top or side, rather than at the bottom, to avoid drawing off any sediment from the water pipe. Drill a 1/4” hole in the water pipe (even if using a self- piercing valve), using a sharp bit. Remove any burrs resulting from drilling the hole in the pipe. Take care not to allow water to drain into the drill. Failure to drill a 1/4” hole may result in reduced ice production or smaller cubes.

Fasten the shutoff valve to the cold water pipe with the pipe clamp. Tighten the clamp screws until the sealing washer begins to swell. NOTE: Do not overtighten or you may crush the tubing. NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

Turn the main water supply on (counterclockwise) and flush out the tubing until the water is clear. Shut the water off at the water valve after about one quart (1 liter) of water has been flushed through the tubing.

Place the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing and connect it to the shutoff valve. Make sure the tubing is fully inserted into the valve. Tighten the compression nut securely. For plastic tubing from a GE SmartConnect

Refrigerator Tubing kit, insert the molded end of the tubing into the shutoff valve and tighten compression nut until it is hand tight, then tighten one additional turn with a wrench. Overtightening may cause leaks. NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

Route the tubing between the cold water line and the refrigerator. Route the tubing through a hole drilled in the wall or floor (behind the refrigerator or adjacent base cabinet) as close to the wall as possible. NOTE: Be sure there is sufficient extra tubing (about 8 feet [244 cm] coiled into 3 turns of about 10” [25 cm] diameter) to allow the refrigerator to move out from the wall after installation.

4CONNECT THE TUBING TO THE

REFRIGERATOR (CONT.) Fasten the tubing into the clamp provided to hold it in a vertical position. You may need to pry open the clamp.

Installation Instructions

• Before making the connection to the refrigerator, be sure the refrigerator power cord is not plugged into the wall outlet.

• We recommend installing a water filter if your water supply has sand or particles that could clog the screen of the refrigerator’s water valve. Install it in the water line near the refrigerator. If using GE SmartConnect

Refrigerator Tubing kit, you will need an additional tube (WX08X10002) to connect the filter. Do not cut plastic tube to install filter. Remove the access cover. Remove the plastic flexible cap from the water valve (refrigerator connection). Place the compression nut and ferrule (sleeve) onto the end of the tubing as shown. On GE SmartConnect

Refrigerator Tubing kit, the nuts are already assembled to the tubing. Insert the end of the tubing into the water valve connection as far as possible. While holding the tubing, tighten the fitting. For plastic tubing from a GE SmartConnect

Refrigerator Tubing kit, insert the molded end of the tubing into the shutoff valve and tighten compression nut until it is hand tight, then tighten one additional turn with a wrench. Overtightening may cause leaks.

SHUTOFF VALVE Tighten any connections that leak.

Tubing Clamp1/4” Compression Nut Ferrule (sleeve)SmartConnect TubingRefrigerator Connection1/4” CopperTubing

Arrange the coil of tubing so that it does not vibrate against the back of the refrigerator or against the wall. Push the refrigerator back to the wall.

Move the feeler arm to the ON (down) position. The icemaker will not begin to operate until it reaches its operating temperature of 15°F (–9°C) or below. It will then begin operation automatically.

Feeler Arm in theSTOP (up) positionFeeler Arm inthe ON (down) position

NOTE: In lower water pressure conditions, the water valve may turn on up to 3 times to deliver enough water to the icemaker. Reattach the access cover. INSTALLING THE WATER LINE (CONT.)

Installation Instructions

When reversing the door swing:

• Read the instructions all the way through before starting.

• Handle parts carefully to avoid scratching paint.

• Set screws down by their related parts to avoid using them in the wrong places.

• Provide a non-scratching work surface for the doors. IMPORTANT: Once you begin, do not move the cabinet until door-swing reversal is completed. These instructions are for changing the hinges from the right side to the left side—if you ever want to change the hinges back to the right side, follow these same instructions and reverse all references to left and right. IMPORTANT NOTES Phillips screwdriver TOOLS REQUIRED Masking tape T20 or T25 Torxdriver (needed for some models) 5/16” hex-head socket driver 5/16” open-end wrench Putty knife or thin-blade screwdriver 2.1Tape the door shut with masking tape. 2.2With a 5/16” hex-head socket driver, remove the screws that hold the top hinge to the cabinet.

2.3Lift the hinge straight up to free the hinge pin from the socket in the top of the door and set it aside, along with its screws. Top Hinge 2.6Transfer the 2 screws from the opposite side of the cabinet to the screw holes vacated by the top hinge removal. 2.5Set the door on a non-scratching surface with the outside up. 2.4Remove the tape and tilt the door away from the cabinet. Lift it off the center hinge pin. 1.1Unplug the refrigerator from its electrical outlet. 1.2Empty all door shelves, including the dairy compartment. CAUTION: Do not let either door drop to the floor. To do so could damage the door stop.

1Installation Instructions 3.1Tape the door shut with masking tape.

3.4Set the door outside-up on a non-scratching surface. 3.3Remove the tape and tilt the door away from the cabinet. Lift the door from the pin in the bottom hinge bracket. (If the plastic washer sticks to the door bottom, put it back on the hinge.) 3.2Using a 5/16” hex-head socket screwdriver and a 5/16” open-end wrench, remove the two screws holding the center hinge to the cabinet. Lift the center hinge to free its pin from the socket in the top of the door, and set hinge and screws aside. Be careful not to lose the center hinge spacer and washer. 3.7Take one of the screws removed in step 2 and start it in the outermost screw hole on the opposite side. Do not drive it all the way down—leave enough space under the screw head for thickness of the bracket.

3.5Transfer the two screws from the opposite side of the cabinet to the screw holes vacated by the center hinge removal. 3.6Transfer the washer (if your model has one) to the opposite side.

REMOVE THE FRESH FOOD DOOR (CONT.) 4.1 Move the bottom hinge bracket and plastic washer from theright side to the left side.PlasticWasherHingeBracketSwitch the hinge pin to theopposite side of the bracket.Installation Instructions 4.2Interchange hinge and screws at top right with screws at top left of cabinet. Do not tighten screws on hinge side at this time. NOTES:

• Some hinges have four holes. Which holes you use for installing the hinge depends on which side you install the hinge.

• The outer edge of the hinge should be parallel to the edge of the case for correct installation. Installing the hinge on the left.Installing the hinge on the right.

side of the door and insert it into the hole on the opposite side that was vacated by removal of the top hinge. Plug Button Plug

5.1.4 Pull the plug button from the front of the door and

transfer it to the opposite side. To reattach thehandle on theopposite side.Plug Button

5.3 Reinstall fresh food door handle

5.3.1 Attach the handle to the right side of the

door with screws at the top and under the handle plug.

5.1 Transfer fresh food door handle

5.1.1 Remove the handle plug using a tape-tipped

putty knife under the edge, and remove the screw underneath. Remove the two screws holding the handle to the top of the door.

5.2 Transfer door stop

5.2.1 Move the plastic door stop and screws from

the right side to the left side. Plastic Door StopLeft SideRight SideMetal Door StopLeft SideRight Side

5.2.2 Move the metal door stop from the right side

to the left side and transfer the screw to the opposite side of the door.Installation Instructions 5.4.3 Remove the screw from theright top edge of the doorand insert it into the handlescrew hole on the left side.5.4.4 Transfer the door stop as shown in precedingsection 5.2.5.4.5 Attach the handle to the rightedge of the door with screws at top and bottom,using bottom holes vacated byremoval of the door stopscrews.TOP BOTTOM Top Bottom

5.4 Transfer Freezer Door Handle

5.4.1 Remove the screw holding the handle to the top of the door and the two screws holding the handle to the bottom of the door.5.4.2 Remove the handle. 6.1.2 Insert the pin on the center hinge into the socket in thetop of the door. Place the spacer, then the washer, on thehinge pin. NOTE: The center hinge must be turned over as shown when mounted on the left side.Plastic Washerand SpacerHinge Pin

onto the center hinge pin. Be sure the washer and spacer are in place on the pin. RE-HANGING THE DOORS (CONT.)

Center Hinge PinPlastic Washerand Spacer REVERSING THE DOOR SWING (CONT.)

6.1.3 Tilt the door toward the cabinet. As the door is broughtinto position, slide the hinge under the head of the screwwhich earlier had been partly driven into the outermosthole. Insert the remaining screw, then tighten both screwssecurely.

6.1 Re-hang the fresh food door

6.1.1 Lower the fresh food door onto the

bottom hinge pin. Be sure the washer is in place on the pin.

RE-HANGING THE DOORS

PlasticWasherHingeBracket6.2.2 Tilt the door toward the cabinet, lifting the top hinge sothe pin fits into the socket on the top of the door.6.2.3. Make sure the door is slightly above the top of thecabinet and the gap between the doors is even across thefront. Tighten the top hinge screws. Do not overtightenthese screws–tighten them until they are just snug, thenturn them another one-half turn. REVERSING THE DOOR HANDLES (CONT.)

Installation Instructions LABEL NOTE: The ACM can be placed on top, back, or side of refrigerator. ACM can also be installed without direct contact with refrigerator (for example in adjoining cabinets). See ACM manual for further ACM installation details. PLACE ACM

CONNECTING ENERGY SMART APPLIANCE

This accessory is part of ACM kit.

2.2 Plug interconnect cable into

connector on access cover as shown.

2.3 Plug opposite end of

interconnect cable into ACM.

2.4 Refer to ACM kit

instructions to connect ACM to Nucleus

REMOVE WHEN REMOVE WHEN

The new high efficiencycompressor may runfaster and longer thanyour old refrigerator andyou may hear a high-pitched hum or pulsating soundwhile it is operating. You may hear a whooshing sound when the doors close. Thisis due to pressure equalizing within the refrigerator. Normal operating sounds. GEAppliaces.com Newer refrigerators sound different from older refrigerators. Modern refrigerators have more features and use newer technology.

You may hear the fans spinning at highspeeds. This happens when the refrigerator isfirst plugged in, when the doors areopened frequently or when a large amount of food is added to the refrigerator orfreezer compartments. The fans are helping to maintain thecorrect temperatures. CLICKS, POPS, CRACKS and CHIRPS

You may hear cracking or popping sounds when the refrigeratoris first plugged in. This happens as the refrigerator cools to thecorrect temperature. The compressor may cause a clicking or chirping sound whenattempting to restart (this could take up to 5 minutes). Expansion and contraction of cooling coils during and afterdefrost can cause a cracking or popping sound. On models with an icemaker, after an icemaking cycle, you mayhear the ice cubes dropping into the ice bucket. WATER SOUNDS

The flow of refrigerant through the freezer cooling coils maymake a gurgling noise like boiling water. Water dropping on the defrost heater can cause a sizzling,popping or buzzing sound during the defrost cycle. A water dripping noise may occur during the defrost cycle as icemelts from the evaporator and flows into the drain pan. Closing the door may cause a gurgling sound due to pressureequalization. Do you hear what I hear? These sounds are normal. For additional information on normalicemaker operating sounds, see the About the automatic icemaker section. Before you call for service… Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service. Problem Possible Causes What To Do Refrigerator does not Refrigerator in defrost cycle. • Wait about 30 minutes for defrost cycle to end. operate Temperature control dial • Move the temperature control dial to a temperature in 0 position. setting. Refrigerator is unplugged. • Push the plug completely into the outlet. The fuse is blown/circuit • Replace fuse or reset the breaker. breaker is tripped. Energy Smart™ feature is • Wait about 2 hours for normal operation to continue altering refrigerator performance Vibration or rattling (slight Roller screws or leveling legs • See Rollers and Leveling Legs. vibration is normal) need adjusting. Fresh food or freezer Temperature control dial • See About the temperature control dial. compartment too warm not set cold enough. Warm weather or frequent • Set the temperature control dial one step colder. door openings. See About the temperature control dial. Door left open. • Check to see if package is holding door open. Package blocking air duct in • Check to see if package is blocking air duct in freezer freezer compartment. compartment. Energy Smart™ feature is • See About Energy Smart™ Models altering refrigerator performance HUMMM... WHOOSH...Problem Possible Causes What To Do Normal when refrigerator • Wait 24 hours for the refrigerator to completely is first plugged in. cool down. Often occurs when large • This is normal. amounts of food are placed in refrigerator. Door left open. • Check to see if package is holding door open. Hot weather or frequent • This is normal. door openings. Temperature control dial • See About the temperature control dial. set at the coldest setting. Grille and condenser • See Care and cleaning. need cleaning. Frost or ice crystals Door left open. • Check to see if package is holding door open. on frozen food Too frequent or too long (frost within package door openings. is normal) Automatic icemaker Icemaker is not on. • Move the feeler arm to the ON (down) position. does not work Water supply turned off or • See Installing the water line. (on some models) not connected. Freezer compartment • Wait 24 hours for the refrigerator to completely too warm. cool down. Piled up cubes in the storage • Level cubes by hand. bin cause the icemaker to shut off. Frequent “buzzing” sound Icemaker is on but the water • Move the feeler arm to the STOP (up) position. Keeping it supply to the refrigerator has on will damage the water valve. not been connected. Cubes too small Water shutoff valve connecting • Call the plumber to clear the valve. refrigerator to water line may be clogged. Slow ice cube freezing Door left open. • Check to see if package is holding door open. Temperature control dial • See About the temperature control dial. not set cold enough. Ice cubes have Ice storage bin needs cleaning. • Empty and wash bin. Discard old cubes. odor/taste Food transmitting odor/taste • Wrap foods well. to ice cubes. Interior of refrigerator • See Care and cleaning. needs cleaning. Energy Smart™ feature is • See About Energy Smart™ Models altering refrigerator performance Moisture forms on Not unusual during • Wipe surface dry and reset temperature control dial cabinet surface periods of high humidity. one setting colder. between the doors Moisture collects inside Too frequent or too (in humid weather, air long door openings. carries moisture into refrigerator when doors are opened) Refrigerator has odor Foods transmitting • Foods with strong odors should be tightly wrapped. odor to refrigerator.

• Keep an open box of baking soda in the refrigerator; replace every three months. Interior needs cleaning. • See Care and cleaning. Motor operates for long periods or cycles on and off frequently. (Modern refrigerators with more storage space and a larger space and a larger freezer require more operating time. They start and stop often to maintain even temperatures.) Before you call for service…

Troubleshooting Tips18 TERMS AND CONDITIONS: This warranty applies only for single family domestic use in Canada when the Refrigerator has been properly installed according to the instructions supplied by Mabe and is connected to an adequate and proper utility service. Damage due to abuse, accident, commercial use, and alteration or defacing of the serial plate cancels all obligations of this warranty. Service during this warranty period must be performed by an Authorized Mabe Service Agent. Neither Mabe nor the Dealer is liable for any claims or damages resulting from failure of the Refrigerator or from service delays beyond their reasonable control. To obtain warranty service, purchaser must present the original Bill of Sale. Components repaired or replaced are warranted through the remainder of the original warranty period only. This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within Canada. In home warranty service will be provided in areas where it is available and deemed reasonable by Mabe to provide. This warranty is in addition to any statutory warranty. WHAT IS NOT COVERED:

• Owner is responsible to pay for service calls related to product installation and/or teaching how to use the product.

• Damage to finish must be reported within 48 hours following the delivery of the appliance.

• Damage to finish after delivery.

• Improper installation—proper installation includes adequate air circulation to the refrigeration system, adequate electrical, plumbing and other connecting facilities.

• Replacement of house fuses or resetting of circuit breakers.

• Replacement of light bulbs.

• Damage to product caused by accident, fire, floods or acts of God.

• Loss of food due to spoilage.

• Proper use and care of product as listed in the owner’s manual, proper setting of controls.

• Product not accessible to provide required service.

• Warrantor is not responsible for consequential damages. IMPORTANT Keep this warranty and your bill of sale as proof of original purchase and purchase date. Please have serial number and model number available when calling for service. Mabe Service is available coast to coast. If further help is needed concerning this warranty, contact: Manager, Consumer Relations Mabe Canada Inc., Consumer Service 1 Factory Lane, Suite 310 Moncton, New Brunswick E1C 9M3

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty. What is covered How Long Warranted Parts Labour (From Date of Sale) Repair or Replace at Mabe’s Option Compressor GE Profile: Ten (10) Years GE Profile: Ten (10) Years GE Profile: Five (5) Years GE and All Other GE and All Other GE and All Other Brands: One (1) Year Brands: One (1) Year Brands: One (1) Year Sealed System (including GE Profile: Five (5) Years GE Profile: Five (5) Years GE Profile: Five (5) Years evaporator, condenser GE and All Other GE and All Other GE and All Other tubing and refrigerant) Brands: One (1) Year Brands: One (1) Year Brands: One (1) Year All Other Parts One (1) Year One (1) Year One (1) Year CUSTOMER WARRANTY (for customers in Canada) Your refrigerator is warranted to be free of defects in material and workmanship. EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.19 Consumer Product Ownership Registration Dear Customer:Thank you for purchasing our product and thank you for placing your confidence in us. We are proud to have you as a customer! Follow these three steps to protect your new appliance investment: Important: If you did not get a registration card with your product, detach and return the form on the next page to ensure that your product is registered, or register online at GEAppliaces.com. The top card is for products installed in the U.S. The bottom card is for products installed in Canada.

Model Number Serial Number Complete and mailyour ConsumerProductOwnershipRegistration today.Have the peace ofmind of knowing wecan contact you in the unlikely event of safety modification.After mailing theregistration below, store this document in a safe place. Itcontains informationyou will need should you require service. Our service number is800 GE CARES (800.432.2737).Read your Owner’sManual carefully.It will help youoperate your newappliance properly. GE Service Protection Plus

GE, a name recognized worldwide for quality and dependability together with Assurant Solutions, offers youService Protection Plus —comprehensive protection on your appliances.* Benefits Include:

• Prompt, reliable service from GE Authorized Servicers

• Convenient hours designed to suit your busy schedule

• Quality replacement parts

• The dependability of GE, a name recognized and trusted worldwide

• Ask about our interest-free payment plans With Service Protection Plus you can expect:

• An extended service plan that limits unexpected repair bills

• Service coverage for most major brands

• Unlimited service calls for the length of your contract, or credit toward a replacement product

• Service coverage for covered operating parts and labor on appliances and home electronics that fail during normal single family household use

• Your satisfaction is our goal. We strive to provide you with excellent service in a professional and timely manner. Place your confidence in GE and call us in the U.S. toll-free at 1.800.626.2224 for more information. *Most brands covered up to 15 years old in the continental U.S.SPP is a trademark of General Electric Company.OWNERSHIP REGISTRATION

Cut here For refrigerators installed in Canada Cut here For refrigerators installed in Canada 21Refrigerator Warranty. (For customers in the United States) All warranty service provided by our Factory Service Centers, or an authorized Customer Care

technician. To schedule service, on-line, 24 hours a day, visit us at GEAppliaces.com , or call 800.GE.CARES (800.432.2737). Please have serial number and model number available when calling for service. For The Period Of: GE Will Replace: GE and GE PROFILE MODELS: One Year Any part of the refrigerator which fails due to a defect in materials or workmanship. From the date of the During this limited one-year warranty, GE will also provide, free of charge, all labor and original purchase related service to replace the defective part. Thirty Days Any part of the water filter cartridge which fails due to a defect in materials or workmanship. (Water filter, if included) During this limited thirty-day warranty, GE will also provide, free of charge, a replacement water From the original filter cartridge. purchase date of the refrigerator GE PROFILE MODELS ONLY: Five Years Any part of the sealed refrigerating system (the compressor, condenser, evaporator (GE Profile models only) and all connecting tubing) which fails due to a defect in materials or workmanship. From the date of the During this limited five-year sealed refrigerating system warranty, GE will also provide, original purchase free of charge, all labor and related service to replace the defective part in the sealed refrigerating system. This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home. Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General. Warrantor: General Electric Company. Louisville, KY 40225 Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty. EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

Service trips to your home to teach you how to use the product. Improper installation, delivery or maintenance. Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially. Loss of food due to spoilage. Replacement of house fuses or resetting of circuit breakers. Damage caused after delivery. Replacement of the water filter cartridge, if included, due to water pressure that is outside the specified operating range or due to excessive sediment in the water supply. Replacement of the light bulbs, if included, or water filter cartridge, if included, other than as noted above. Damage to the product caused by accident, fire, floods or acts of God. Incidental or consequential damage caused by possible defects with this appliance. Product not accessible to provide required service. What GE Will Not Cover:23 AVERTISSEMENT! N’utilisez cet appareil qu’aux fins prévues dans le présent Manuel du propriétaire.

Refrigerator Tubing.

1.800.661.1616 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation. Customers in Canada should consult the yellow pages for the nearest Mabe service center, or call 1.800.661.1616. If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations GE Appliances, Appliance Park Louisville, KY 40225 In Canada: www.geappliances.ca, or write to: Director, Consumer Relations, Mabe Canada Inc. Suite 310, 1 Factory Lane Moncton, N.B. E1C 9M3 Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In Canada: www.geappliances.ca GEAppliances.com GEAppliances.com GE Appliances Website In the U.S.: www.Hotpoint.com Schedule Service In the U.S.: www.Hotpoint.com Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours. In Canada, call 1.800.561.3344 Real Life Design Studio In the U.S.: GEAppliances.com Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 1.888.261.2133 during normal business hours. GE Consumer Home Services will still be there after your warranty expires. GEAppliances.com GEAppliances.com GEAppliances.com Parts and Accessories In the U.S.: www.Hotpoint.com Contact Us In the U.S.: www.Hotpoint.com Register Your Appliance In the U.S.: www.Hotpoint.com Printed in the United States Printed on Recycled Paper
