Product Type	IP Surveillance Camera
Brand	Grandstream
Model	GXV3601_LL
Dimensions (lens)	36 × 52 × 52 mm
Weight (lens)	95 g
Power Supply	12 V DC or PoE (Power over Ethernet)
Network Connectivity	RJ45 10/100 Ethernet Port
Lens	Varifocal 3.5–8 mm, F1.4, CS mount, 1/3" format
Horizontal Viewing Angle	81°
Main Functions	Night vision, motion detection, alarm input/output, RS485 PTZ, microphone, speaker, SD card and USB key storage
Video Resolution	Up to 720p (not precisely specified)
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90% RH (non-condensing)
Safety	Do not open, do not use third-party power supply, do not expose outside temperature/humidity ranges
Maintenance and Cleaning	Clean with a soft, dry cloth; avoid solvents
Included Spare Parts	12 V power supply unit, green cable connector, quick installation guide
Repairability	Do not disassemble; contact Grandstream technical support
Default Configuration	IP address: 192.168.1.168, credentials: admin / admin
Required Software	Internet Explorer with GSViewerX.cab add-on

Frequently Asked Questions - GXV3601_LL GRANDSTREAM

How to connect the GXV3601 to my network?

You can use the 12 V DC power supply (option A) or PoE (option B). Connect the Ethernet cable to the network port and to your switch/router. For PoE, ensure that the Ethernet port is pre-powered.

What is the default IP address of the GXV3601?

The default IP address is 192.168.1.168. Configure your PC with a fixed address in the same subnet (e.g., 192.168.1.x) and a mask of 255.255.255.0.

What are the default credentials to access the web interface?

The username is admin and the password is admin.

Why don't I see video after accessing the web page?

You must install the GSViewerX.cab add-on provided by Grandstream. Allow installation in Internet Explorer, then refresh the page and click the play button.

Can I use a non-supplied power cable?

No, use only the supplied power supply unit. Using a third-party adapter may damage the device.

How to reset the GXV3601 to factory defaults?

The RESET button is located on the panel. Hold it pressed for about 10 seconds until the LEDs flash.

What type of SD card is supported?

The GXV3601 supports SD cards for local storage. The maximum capacity is not specified, but standard SD cards up to 32 GB should work.

Can I use an external microphone?

Yes, the GXV3601 has a microphone input (terminal A/B/W). You can connect an external microphone to it.

What is the allowed operating temperature?

The camera can operate between -10 °C and +55 °C. Do not expose it to temperatures outside this range.

Where can I download the complete user manual?

The complete manual is available on the Grandstream website at: http://www.grandstream.com/support/gxv_series_surveillance/gxv3601/documents/gxv3601_usermanual_english.pdf (in English).

USER MANUAL GXV3601_LL GRANDSTREAM

Technical line drawing of a cylindrical mechanical component with flanges and housing (no text or symbols)

QuickStart

Guide

PRECAUTIONS

• Do not attempt to open, disassemble, or modify the device
• Do not use a third party power adapter
• Do not expose this device to temperatures outside the range of -10^ C to +55^ C
• Do not expose the GXV3601 to environments outside of the following humidity range: 10-90% RH (non-condensing)

PACKAGE CONTENTS

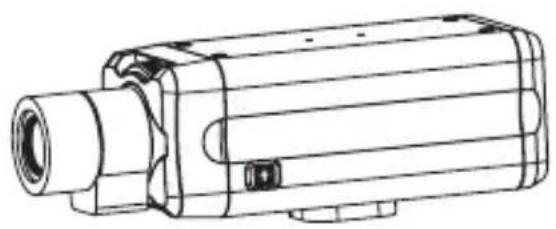

Technical line drawing of a mechanical device with cylindrical body and flanged ends (no text or symbols)

GXV3601

Simple line drawing of a 12V power supply connected to a cable (no text or symbols)

Power Adapter

Technical line drawing of a 3-pin electrical connector (no text or symbols)

Green Wire Cramper

Blank white rectangular object with a slightly curled edge, no visible text or symbols.

QUICKSTART GUIDE

CONNECTING THE GXV3601

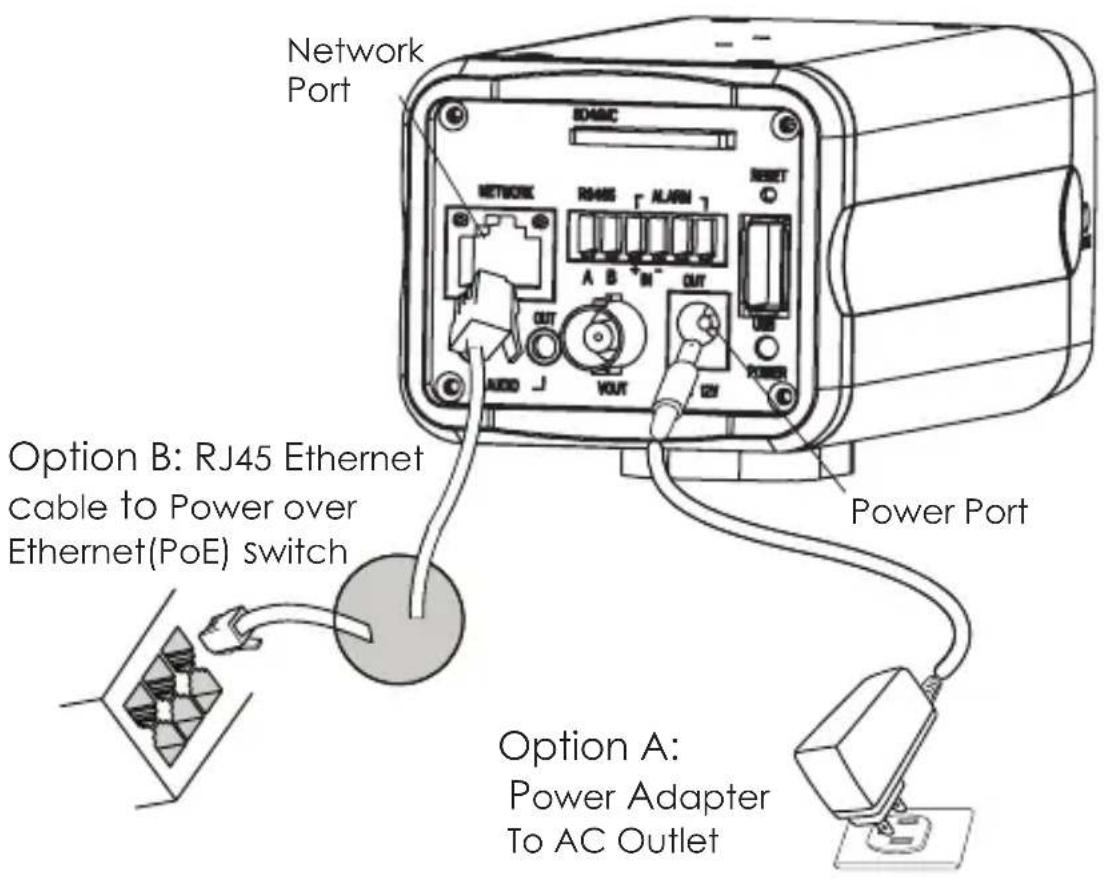

Refer to the illustration below when following the instructions on the next page.

Network Port SDABC NETWORK R445 ALARM RESET A B M OUT OUT VOUT Power Port Option B: RJ45 Ethernet cable to Power over Ethernet(PoE) switch Option A: Power Adapter To AC Outlet

NOTE: Choose Option A if using the power supply. Or choose Option B if using a Power over Ethernet (PoE) switch.

Option A

Step 1: Insert the power adapter into the 12V DC port on the GXV3601. Plug the other end of the adapter into an AC power outlet.

Step 2: Plug an RJ45 Ethernet cable into the network port. Plug the other into a hub, switch or router.

Option B

Step 1: Plug an RJ45 Ethernet cable into the network port. Plug the other end into a Power over Ethernet (PoE) switch.

Gxv3601 CONFIGURATION

Configuring the GXV3601 using Microsoft Internet Explorer

Step 1: Connect your PC and the GXV3601 to the same network.

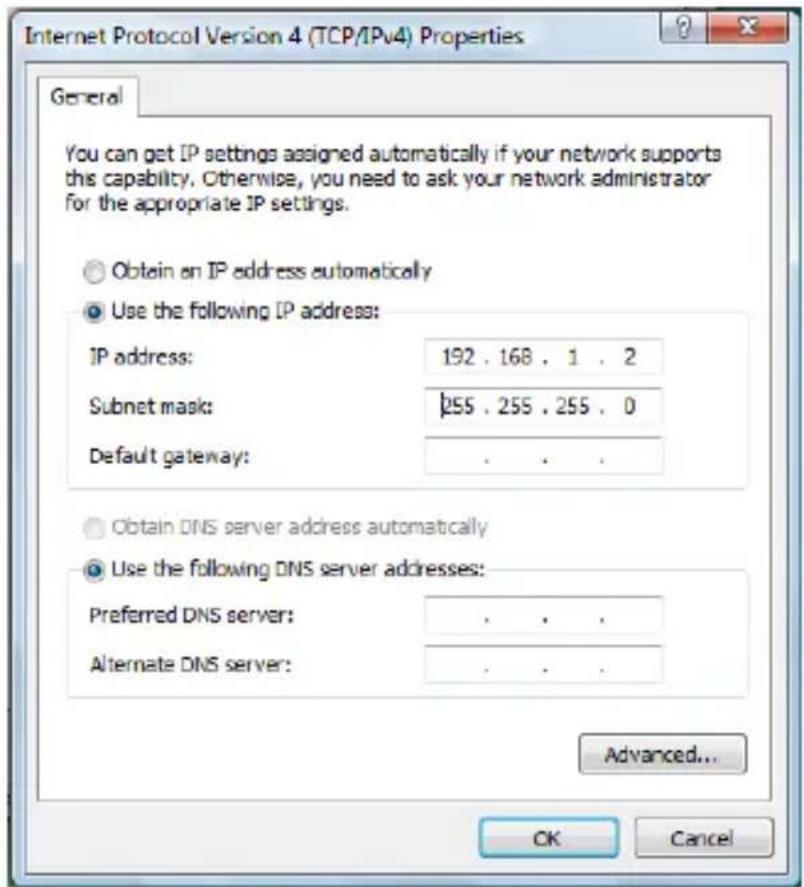

Step 2: Set the IP address of your PC to 192.168.1.X. Set the Default Gateway of your PC to 255.255.255.0.

Internet Protocol Version 4 (TCP/IPv4) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 1 . 2 Subnet mask: 255 . 255 . 255 . 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Advanced... OK Cancel

Step 3: Open Microsoft Internet Explorer on your PC. Type 192.168.1.168 in the address bar.

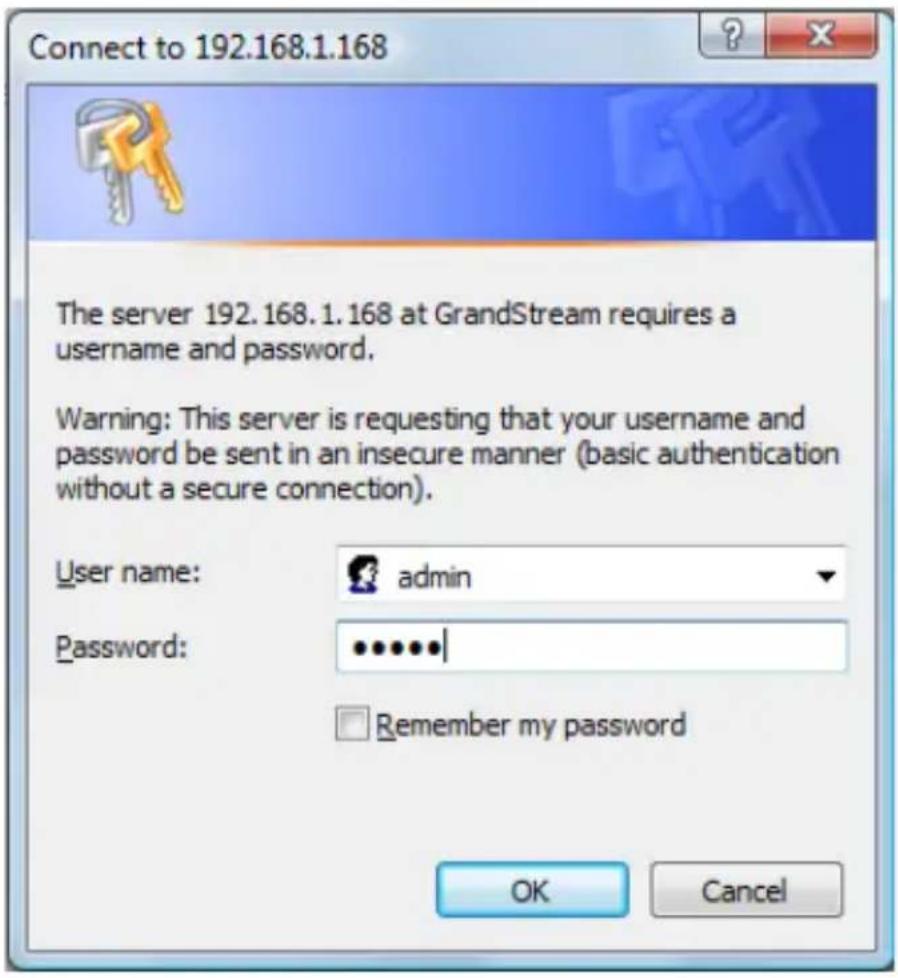

Step 4: A pop-up window will appear with prompts for a user name and password. The default administrator user name and password are both set to “admin” at the default factory configuration.

Connect to 192.168.1.168 The server 192.168.1.168 at GrandStream requires a username and password. Warning: This server is requesting that your username and password be sent in an insecure manner (basic authentication without a secure connection). User name: admin Password: ******** Remember my password OK Cancel

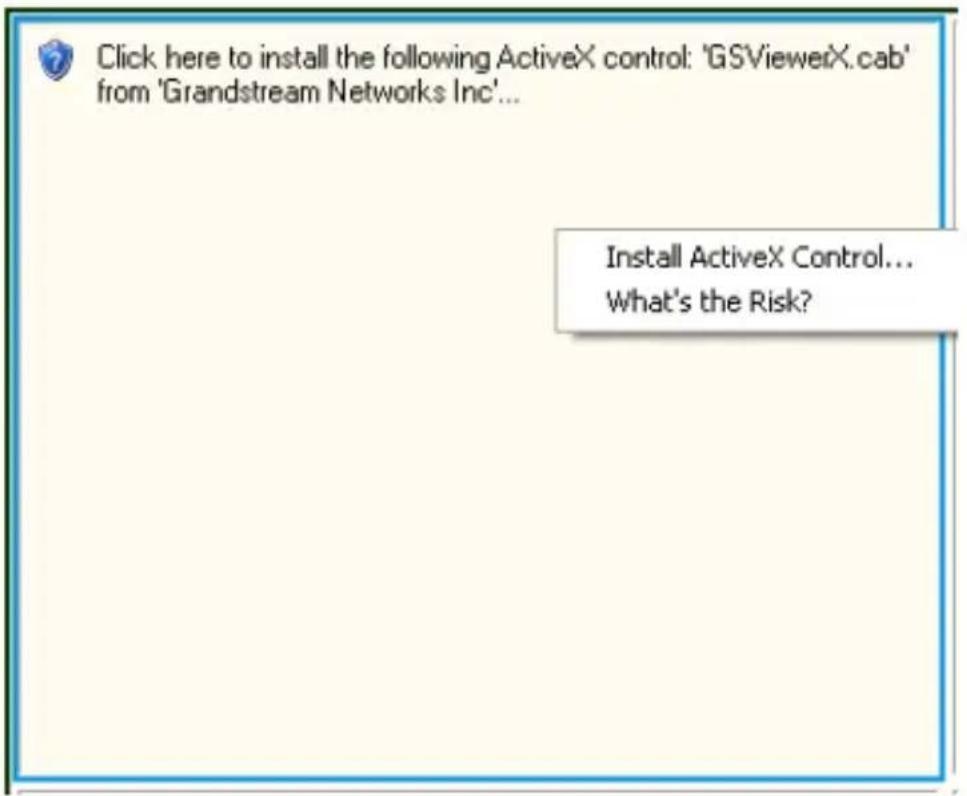

Step 5: Once you log into the GXV3601's web interface Internet Explorer will indicate that "This website wants to install to following add-on: 'GSViewer.cab' from Grandstream Networks, Inc." Install this add-on by following the instructions.

Click here to install the following ActiveX control: 'GSViewerX.cab' from 'Grandstream Networks Inc'... Install ActiveX Control... What's the Risk?

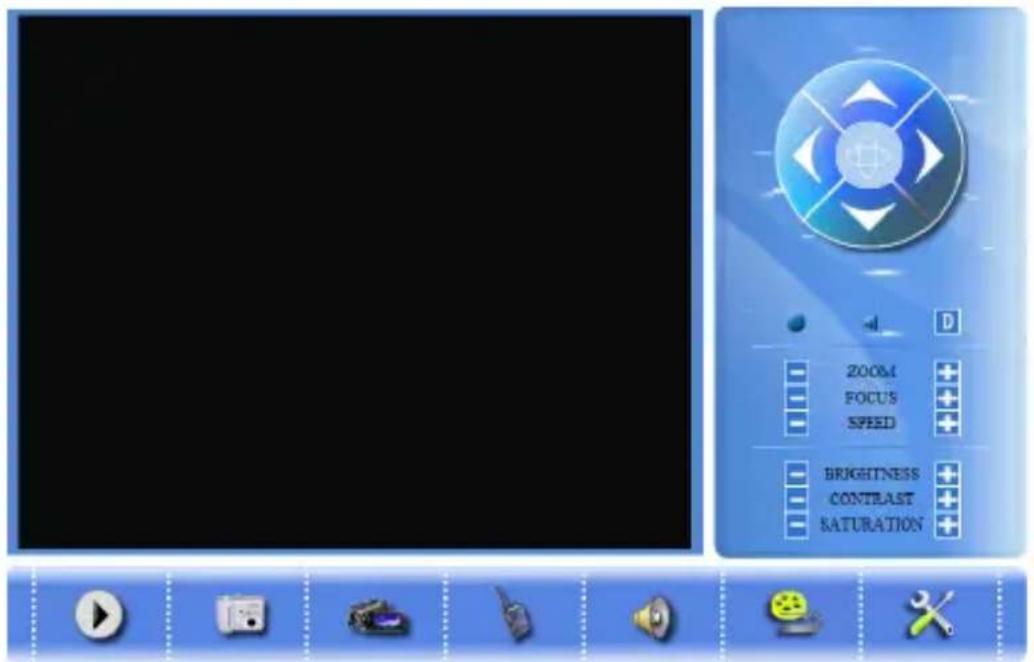

Step 6: Once the installation of GSViewX.cab completes you will see the web page shown in the screenshot on the next page. Click the play button to view the video feed.

Game interface screenshot showing a CD player with playback controls and action buttons like zoom, focus, speed, brightness, contrast, saturation.

Step 7: Click through the menu on the left hand side of the web UI for more advanced configuration parameters.

Please download the user manual and FAQ for more detailed configuration instructions: http://www.grandstream.com/support/gxv_series_surveillance/gxv3601/documents/gxv3601_usermanual_english.pdf

GXV3601 SAMPLE CONNECTION DIAGRAM

SD Card USBDrive 12V DV 12V Alarm In Alarm Out PTZ Device NETWORK A B N OUT DC DV Microphone Speaker INTERNET PC

GXV3601 LENS SPECIFICATIONS

E

Lens Specifications

Lens Mount CS
Lens Format (Image Sensor Area)	1/3"
Focal Length Variable forcus	3.5 to 8 mm
Aperture (D/f') 1/1.4
View Angle 81 (Horizontal)	°
IRIS DC
Minimum Object Distance	0.20 m (0.65 ft)
Size (Diameter X Length1 X Length2)	36 X 52 X 52 mm (1.42 X 2.05 X 2.05 in)
Operation Focus (w/lock)
	Zoom (w/lock)
Weight 95 g (3.35 oz)
