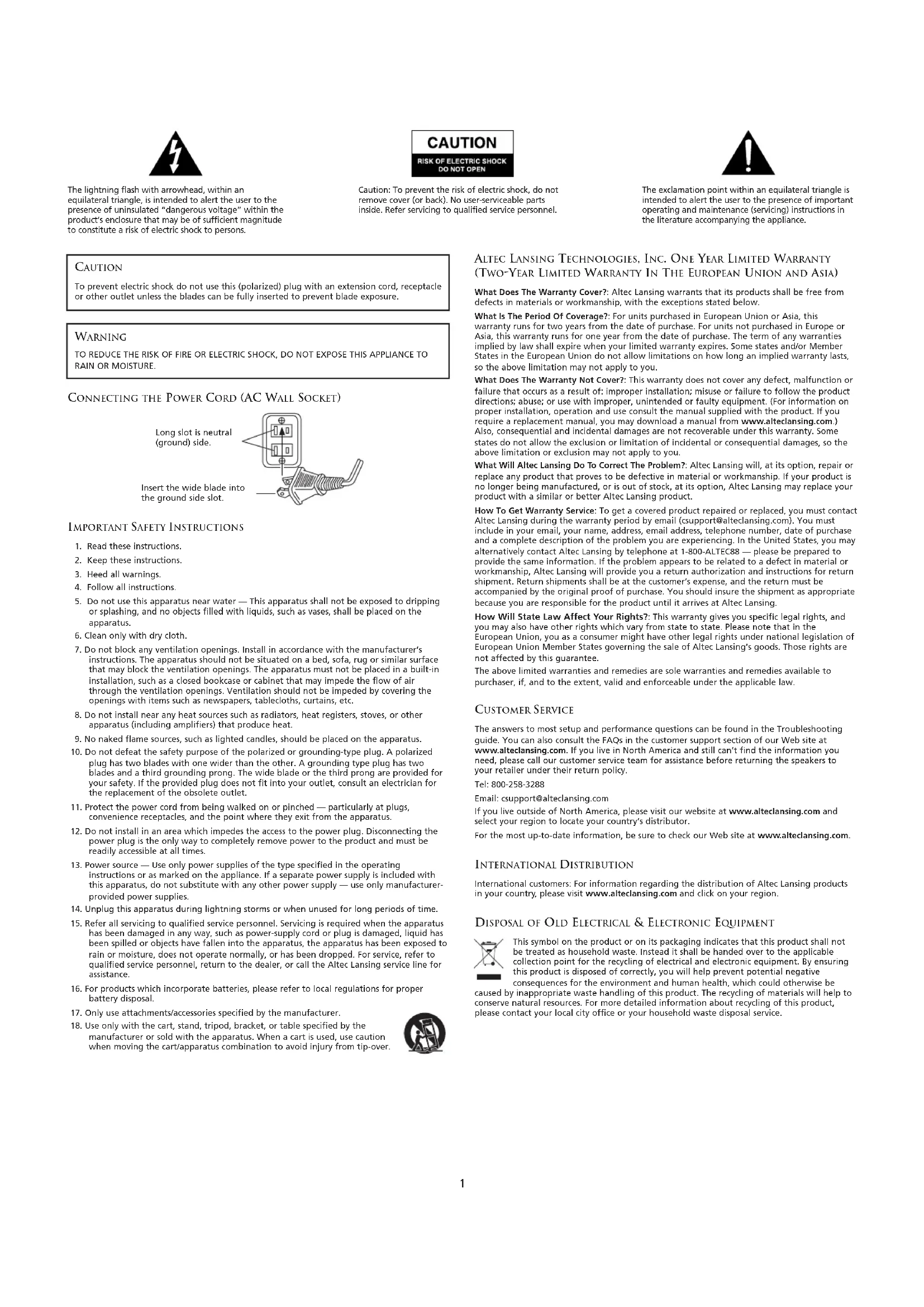

PT6021 User’s guide Mode d’emploi Guía del usuario2 FCC Instructions for a Class B digital device or peripheral Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consultez votre revendeur ou un technicien radio/télévision expérimenté afin d’obtenir de l’aide. Cet appareillage digital de Classe B est conforme au ICES-003 canadien.1 The lightning flash with arrowhead, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Caution: To prevent the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CONNECTING THE POWER CORD (AC WALL SOCKET)

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water — This apparatus shall not be exposed to dripping

or splashing, and no objects filled with liquids, such as vases, shall be placed on the apparatus.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions. The apparatus should not be situated on a bed, sofa, rug or similar surface that may block the ventilation openings. The apparatus must not be placed in a built-in installation, such as a closed bookcase or cabinet that may impede the flow of air through the ventilation openings. Ventilation should not be impeded by covering the openings with items such as newspapers, tablecloths, curtains, etc.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9. No naked flame sources, such as lighted candles, should be placed on the apparatus.

10. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for the replacement of the obsolete outlet.

11. Protect the power cord from being walked on or pinched — particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

12. Do not install in an area which impedes the access to the power plug. Disconnecting the

power plug is the only way to completely remove power to the product and must be readily accessible at all times.

13. Power source — Use only power supplies of the type specified in the operating

instructions or as marked on the appliance. If a separate power supply is included with this apparatus, do not substitute with any other power supply — use only manufacturer- provided power supplies.

14. Unplug this apparatus during lightning storms or when unused for long periods of time.

15. Refer all servicing to qualified service personnel. Servicing is required when the apparatus

has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. For service, refer to qualified service personnel, return to the dealer, or call the Altec Lansing service line for assistance.

16. For products which incorporate batteries, please refer to local regulations for proper

17. Only use attachments/accessories specified by the manufacturer.

18. Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. ALTEC LANSING TECHNOLOGIES, INC. ONE YEAR LIMITED WARRANTY (TWO-YEAR LIMITED WARRANTY IN THE EUROPEAN UNION AND ASIA) What Does The Warranty Cover?: Altec Lansing warrants that its products shall be free from defects in materials or workmanship, with the exceptions stated below. What Is The Period Of Coverage?: For units purchased in European Union or Asia, this warranty runs for two years from the date of purchase. For units not purchased in Europe or Asia, this warranty runs for one year from the date of purchase. The term of any warranties implied by law shall expire when your limited warranty expires. Some states and/or Member States in the European Union do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. What Does The Warranty Not Cover?: This warranty does not cover any defect, malfunction or failure that occurs as a result of: improper installation; misuse or failure to follow the product directions; abuse; or use with improper, unintended or faulty equipment. (For information on proper installation, operation and use consult the manual supplied with the product. If you require a replacement manual, you may download a manual from www.alteclansing.com.) Also, consequential and incidental damages are not recoverable under this warranty. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. What Will Altec Lansing Do To Correct The Problem?: Altec Lansing will, at its option, repair or replace any product that proves to be defective in material or workmanship. If your product is no longer being manufactured, or is out of stock, at its option, Altec Lansing may replace your product with a similar or better Altec Lansing product. How To Get Warranty Service: To get a covered product repaired or replaced, you must contact Altec Lansing during the warranty period by email (csupport@alteclansing.com). You must include in your email, your name, address, email address, telephone number, date of purchase and a complete description of the problem you are experiencing. In the United States, you may alternatively contact Altec Lansing by telephone at 1-800-ALTEC88 — please be prepared to provide the same information. If the problem appears to be related to a defect in material or workmanship, Altec Lansing will provide you a return authorization and instructions for return shipment. Return shipments shall be at the customer’s expense, and the return must be accompanied by the original proof of purchase. You should insure the shipment as appropriate because you are responsible for the product until it arrives at Altec Lansing. How Will State Law Affect Your Rights?: This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Please note that in the European Union, you as a consumer might have other legal rights under national legislation of European Union Member States governing the sale of Altec Lansing’s goods. Those rights are not affected by this guarantee. The above limited warranties and remedies are sole warranties and remedies available to purchaser, if, and to the extent, valid and enforceable under the applicable law. CUSTOMER SERVICE The answers to most setup and performance questions can be found in the Troubleshooting guide. You can also consult the FAQs in the customer support section of our Web site at www.alteclansing.com. If you live in North America and still can’t find the information you need, please call our customer service team for assistance before returning the speakers to your retailer under their return policy. Tel: 800-258-3288 Email: csupport@alteclansing.com If you live outside of North America, please visit our website at www.alteclansing.com and select your region to locate your country’s distributor. For the most up-to-date information, be sure to check our Web site at www.alteclansing.com. INTERNATIONAL DISTRIBUTION International customers: For information regarding the distribution of Altec Lansing products in your country, please visit www.alteclansing.com and click on your region.

DISPOSAL OF OLD ELECTRICAL & ELECTRONIC EQUIPMENT

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office or your household waste disposal service. CAUTION To prevent electric shock do not use this (polarized) plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure. WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. Long slot is neutral (ground) side. Insert the wide blade into the ground side slot.2 Thank you for purchasing this Altec Lansing product. For generations, Altec Lansing has been first in audio innovation. Today, our line of powered speakers has received more performance awards than any other brand. In all kinds of environments, in every price range, Altec Lansing offers sound of distinction — giving even the most demanding customers the audio enjoyment they seek. Just listen to this! Box Contents

• Wireless Speaker System Remote

• 3.5 mm Stereo Audio Cable

• 2 sets of Satellite Mounting Brackets

• Speaker System Manual Also included:

Warning: The subwoofer is NOT magnetically shielded, so it must be kept at least

2 feet (0.6m) from PC monitors, TV sets, computer hard drives or any other magnetic media (floppy disks, computer or audio tapes, etc.). The subwoofer is non-directional, so it doesn’t need to be placed in any particular location. Putting it on the floor close to a wall or in a corner will maximize bass efficiency and be sure to provide it with proper ventilation. Satellite Speakers Arrange the satellite speakers to suite your listening tastes. The speakers are magnetically shielded and can be placed close to a TV set or PC monitor without distorting the image. TV Stand or Home Entertainment Center Installation (base included) When placing the speakers on a TV stand or in a home entertainment center, use the included mounting-base as follows:

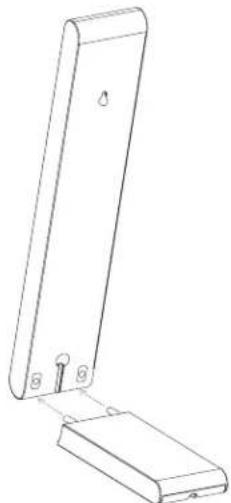

• Locate the right satellite speaker and one (1) satellite base. Insert the metal pins of the satellite base into the corresponding holes on the rear of the satellite speaker. Be sure the groove on the base is facing down before inserting the base into the satellite speaker. Run the cable through the groove on the base.

• Locate the left satellite speaker and one (1) satellite base. Insert the metal pins of the satellite base into the corresponding holes on the rear of the satellite speaker. Be sure the groove on the base is facing down before inserting the base into the satellite speaker. Run the cable through the groove on the base.

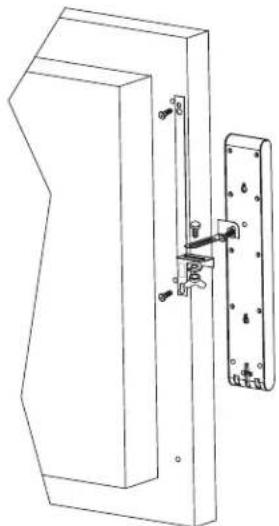

• For optimal positioning the speakers can also pivot 15 degrees back or 5 degrees forward. Flat-panel Display Installation (brackets included) When attaching the satellite speakers to your flat-panel display, use the included brackets as follows:

• Locate the left flat-panel display mounting bracket.

• Secure the long bracket to the display with the supplied screw, washer and wing nut. When installed, this bracket will project outward to the left of the display.

• Secure the small left satellite bracket with the supplied screw, washer and wing nut. This bracket attaches to the satellite speaker’s threaded insert. Before tightening the wing nut, adjust brackets to the desired orientation of the satellite speaker.

• Locate the right flat-panel display mounting bracket and repeat these instructions, projecting the bracket outward to the right of the display. Wall-mounting Installation When mounting the satellite speakers to the wall, use the key holes (top and bottom) or the threaded inserts on the rear of the satellite speaker (installation using threaded inserts requires the purchase of a universal mounting kit.) Making Connections Connecting the Speaker System

Warning: Do not insert the speaker system’s power adapter plug into an AC

outlet until all connections are made. Also, turn off your audio source before connecting its outputs to the PT6021’s inputs. To ensure first-time operation as expected, please carefully follow the connection sequence described below.

1. Connect the right satellite speaker’s orange connector into the “RIGHT” input on

the rear of the subwoofer. If using the mounting base, run the cable through the channel on the base.

2. Connect the left satellite speaker’s brown connector into the “LEFT” input on the

rear of the subwoofer. If using the mounting base, run the cable through the channel on the base.

3. Connect the grey-colored DIN connector from the wired controller into the grey

“CONTROLLER” jack on the rear of the subwoofer. Note that the arrow on the DIN connector must face up.

4. Connect one end of the audio input cable (with lime green connectors at each

end) to the matching lime green input plug on the back of the subwoofer, labeled INPUT.

5. Connect the other end of the audio input cable to your desired audio source.

Connecting to a PC Connect the lime green audio input cable to your PC’s sound card output jack (typically colored lime green and usually labeled “1” or “Main”) as described in your PC/sound card documentation. Connecting to a Portable Audio Device (CD Player, MP3 Player, etc.) Connect the lime green audio input cable to the line out of your portable device (if it has one) or to the device’s headphone jack. Connecting to a Gaming System (Playstation 2, Xbox, GameCube, etc.) and TV The primary input jacks are located on the subwoofer, connect any audio source that has red (right) and white (left) RCA output jacks to the PT6021’s red (right) and white (left) RCA input jacks. Note: For the clearest sound, try muting your TV’s speakers when using the TV as an audio source. PT6021 Three-Piece Powered Theater System3 Sound Pressure Level (SPL): 105 dB Total Continuous Power: 75 Watts RMS

• Front Speakers: 12.5 Watts/channel @ 4 ohms @ 10% THD @ 180 – 15000 Hz 2 Channels Loaded

• Subwoofer: 50 Watts @ 4 ohms @ 10% THD @ 40 – 180 Hz Single Channel Loaded System Response: 32 Hz – 18 kHz (-10 dB) Signal to Noise Ratio @ 1 kHz input: > 75 dB Drivers (per satellite): Six 1" full-range micro drivers Subwoofer Driver: One 6.5" long-throw woofer System Specifications Connecting a Second Device This auxiliary or secondary input is located on the wired controller. Connect any audio source that has a stereo 3.5 mm plug (i.e. headphone style plug), including portable CD or MP3 players. Caution: Make sure the audio source features a line-out jack. This will ensure that the output is not amplified. Check the owner’s manual for your audio device for more information. Note: You may need a cable that has RCA plugs on one end and a 3.5 mm stereo male plug on the other or 3.5 mm stereo plugs on both ends. These types of plugs may be purchased at most electronics stores. POWERING ON
