USER MANUAL HFC3501ACW HAIER

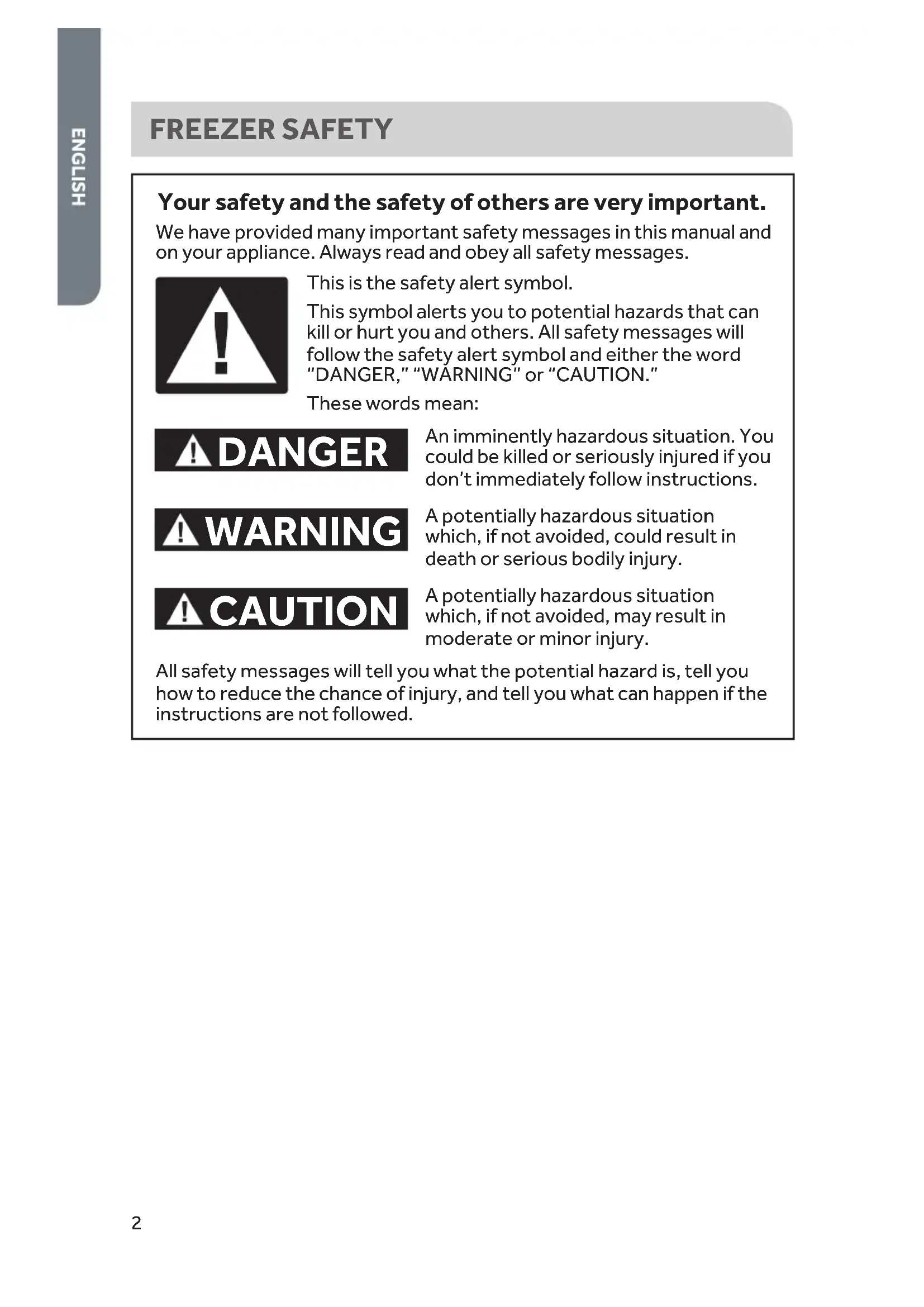

Date of purchase2 FREEZER SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. DANGER WARNING CAUTION This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER,” “WARNING” or “CAUTION.” These words mean: An imminently hazardous situation. You could be killed or seriously injured if you don’t immediately follow instructions. A potentially hazardous situation which, if not avoided, could result in death or serious bodily injury. A potentially hazardous situation which, if not avoided, may result in moderate or minor injury. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.3 IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of re, electrical shock, injury to persons,

or damage when using the freezer, follow basic precautions, including the following:

Use this appliance only for its intended purpose as described in this user manual.

This freezer must be properly installed in accordance with the installation instructions before it is used. See grounding instructions in the installation section.

Flammable refrigerant used. Do not use mechanical devices to defrost freezer. Do not puncture refrigerant tubing.

Flammable refrigerant used. To be repaired only by trained service personnel. Do not puncture refrigerant tubing.

Flammable refrigerant used. Dispose of properly in accordance with federal or local regulations.

Flammable refrigerant used. Follow handling instructions carefully. Risk of re or explosion due to puncture of refrigerant tubing.

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Do not repair or replace any part of the appliance unless specically recommended in the manual. All other servicing should be referred to a qualied technician.

Disconnect power before servicing.

Replace all parts and panels before operating.

Keep ammable materials and vapors, such as gasoline, away from freezer.

Cabinet edges along stamp/ cutout areas may be sharp. Avoid placing hands, ngers or other appendages near these areas.

This freezer should not be recessed or built-in an enclosed cabinet. It is designed for freestanding installation only.

Before discarding or removing from service, remove the door. This will reduce the possibility of danger to children.

INSTRUCTIONS4 State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the

State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the

State of California to cause birth defects or other reproductive harm. PROPER DISPOSAL OF YOUR OLD REFRIGERATED APPLIANCE WARNING Suffocation Hazard Remove doors or lid from your old freezer or refrigerator. Failure to do so can result in death or brain damage. IMPORTANT: Child entrapment and suocation are not problems of the past. A junked or abandoned freezers or refrigerators are still dangerous – even if it will sit for “just a few days.” If you are getting rid of your old refrigerator or freezer, please follow these instructions to help prevent accidents. Before You Throw Away Your Old Freezer or Refrigerator:

Leave any shelves in place so that children may not easily climb inside. Important information to know about disposal of refrigerants: Dispose of freezer in accordance with Federal and Local regulations. Refrigerants must be evacuated by a licensed, EPA certied refrigerant technician in accordance with established procedures.5

a Lock with Key (modelHF71CL53NW only) b Interior Drain Plug (not shown - see insert) c Vinyl Coated Wire Basket d Power Indicator - green light (onsome models) e Temperature Control Adjustment f Exterior Drain Plug6 INSTALLATION REQUIREMENTS LOCATION REQUIREMENTS WARNING Explosion and Fire Hazard Keep flammable materials and vapors, such as gasoline, away from appliance. Failure to do so can result in death, explosion or fire. IMPORTANT: This freezer is designed for freestanding installation only. It should not be recessed or built-in an enclosed cabinet. To ensure your freezer works at optimum eciency, you should install it in a location where there is proper air circulation, and electrical connections. Recommended Clearances:4" (10.2 cm)4" (10.2 cm)Do Not BlockTop4" (10.2 cm) Do not install your freezer in any location not properly insulated or heated such as a garage. Your freezer was not designed to operate in temperature settings below 55˚F (13°C). Select a suitable location for the freezer on a hard even surface away from direct sunlight or heat source e.g. radiators, baseboard heaters, cooking appliances etc. Any oor unevenness should be corrected. Place the freezer on a oor strong enough to support it fully loaded.7 ELECTRICAL REQUIREMENTS WARNING Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove the ground prong from the power cord plug. Do not use an adapter. Do not use an extension cord. Failure to do so can result in death, fire or electrical shock. Before you move your freezer to a location, it is important to make sure you have the proper electrical connection. Recommended Grounding Method A 115 Volt, 60 Hz., AC only, 15-amp fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your freezer be provided. Use an outlet that cannot be turned o by a switch. Do not use an extension cord.8 FREEZER INSTALLATION

STEP 1 - UNPACK FREEZER

WARNING Fire or Explosion Hazard Do not puncture refrigerant tubing. Follow handling instructions carefully. Flammable refrigerant used. Failure to do so can result in death, explosion or fire. IMPORTANT: Handle with care when moving freezer to avoid either damaging the refrigerant tubing or increasing the risk of a leak. IMPORTANT: When moving the freezer, never tilt it more than a 45° angle. This could damage the compressor and the sealed system. If the freezer has been placed in a horizontal position for any period of time, wait 24 hours before plugging in the freezer to allow the refrigerant to settle.

1. Remove and dispose of/recycle all packing materials. This includes the foam

base and all adhesive tape. Remove all protective packaging covering the freezer.

2. Remove user manual and other printed material before turning on the freezer.

3. Clean the exterior surface with a soft cloth.9

STEP 2 - COMPLETE THE INSTALLATION

WARNING Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove the ground prong from the power cord plug. Do not use an adapter. Do not use an extension cord. Failure to do so can result in death, fire or electrical shock. 1. Plug into a grounded 3 prong outlet.2. Using a carpenter’s level, make sure the freezer is level from front to back, and from side to side. Shim if necessary. FREEZER USE CONTROL The control, located on the front of the freezer cabinet, is an adjustable dial with Temperature settings ranging from 1 (Least Cold) to 7 (Coldest), and O. 1. Turn the temperature control dial to 4 (Recommended Setting).2. Allow the freezer to cool for several hours before adding food. OFF

The recommended setting (4) is designed to maintain the temperature at or near 0°F (-17.8°C) under normal operating conditions.10 To Adjust the Freezer Temperature:

1. Adjust the control dial to one of the adjacent settings 3 (less cold) or 5 (colder).

NOTE: Except when starting the freezer, do not adjust the control more than one setting at a time.

2. Wait 24 hours between adjustments for the freezer temperature to stabilize.

POWER ON INDICATOR - (ON SOME MODELS) The Power On indicator illuminates when the freezer is properly connected to electrical power. IMPORTANT: Turning the control dial to OFF does not disconnect the freezer from the power supply. Even when Cooling is turned O, the Power On indicator will remain illuminated as long as the freezer is plugged into an outlet. OFF1234567

Store the freezer key in a location away from the freezer and not easily accessible to children.

The key slot is spring loaded or equivalent so that the key must be manually held in the lock in any position of the lock. To Lock/Unlock the Freezer: Close the freezer lid, insert the key, push in and turn the key to lock. To unlock, insert the key, push in and turn the key in the opposite direction. FREEZER BASKETS For storage exibility, your freezer comes with two removable wire baskets. The removable freezer baskets allow easier access to foods used frequently.11 FREEZER CARE CLEANING WARNING Explosion Hazard Use nonflammable cleaner. Failure to do so can result in death, explosion or fire. IMPORTANT: Do not use harsh chemicals, ammonia, chlorine bleach, concentrated detergent, solvents, abrasives or metal scouring pads to clean your freezer inside or out. They can damage and/or discolor the freezer nish. WARNING Electrical Shock Hazard Unplug your appliance or disconnect power before cleaning. Failure to do so can result in death, electric shock or personal injury.

1. Unplug freezer or disconnect power.

2. Before using cleaning products, always read and follow manufacturer’s

instructions and warnings to avoid personal injury or product damage.

3. Wash interior surfaces, accessories, and outer frame with cold water and a little

4. Dry thoroughly with a soft cloth.

5. Plug in or reconnect power.12

DOOR GASKETS Gaskets must be kept clean and pliable to assure a proper seal. Clean door gaskets every 3 months with solution of baking soda and warm water. Petroleum jelly applied lightly on the hinge side of gaskets will keep the gasket pliable and assure a good seal.

DEFROSTING AND DRAINING

DANGER Fire or Explosion Hazard Flammable refrigerant used. Do not use mechanical devices to defrost freezer. Do not puncture refrigerant tubing. Failure to do so can result in death, explosion or fire. For most ecient operation and minimum energy consumption, defrost whenever the frost becomes " (6 mm) thick.IMPORTANT: Do not use metal instruments to defrost freezer. Do not use boiling water as it may damage the freezer.1. Turn the temperature control to OFF and unplug the freezer. NOTE: Defrosting usually takes a few hours. To defrost faster keep the freezer door open.2. Place a tray (not included) in front of the freezer, beneath the exterior drain plug to collect the water. Remove the interior drain plug, and then remove (unscrew) the exterior drain plug to allow the water to ow out into the tray.NOTE: Water that has accumulated at the bottom of the freezer during defrosting will drain into the tray. Monitor the tray under the drain to avoid overow.3. When defrosting is complete, wipe the interior of the freezer with a soft cloth, and replace the drain plug.13 WARNING Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove the ground prong from the power cord plug. Do not use an adapter. Do not use an extension cord. Failure to do so can result in death, fire or electrical shock.

4. Plug into a grounded 3 prong outlet.

5. Reset the temperature control to your preferred setting.

6. Return the food into the freezer.

WARNING Fire or Explosion Hazard Do not puncture refrigerant tubing. Follow handling instructions carefully. Flammable refrigerant used. Failure to do so can result in death, explosion or fire. IMPORTANT: When moving freezer, handle with care to avoid either damaging the refrigerant tubing or increasing the risk of a leak. IMPORTANT: When moving the freezer, never tilt it more than a 45° angle. This could damage the compressor and the sealed system. For long vacations or absences:

Remove food from freezer.

Turn the temperature control to OFF.

Clean the door gaskets. See “Cleaning.” Prop open the doors to allow air to circulate inside.

REINSTALLING/USING FREEZER AGAIN

If the freezer has been placed in a horizontal or tilted position for any period of time wait 24 hours before plugging in the freezer to allow the refrigerant to settle.1. Clean Freezer. See “Cleaning.“2. Move freezer to desired location. Check that it is level and shim, if necessary. WARNING Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove the ground prong from the power cord plug. Do not use an adapter. Do not use an extension cord. Failure to do so can result in death, fire or electrical shock.

3. Plug into grounded 3 prong outlet.

TROUBLESHOOTING First try the solutions suggested here to possibly avoid the cost of a service call.PROBLEM POSSIBLE CAUSE(S) SOLUTIONFreezer does not run The freezer is unplugged. Plug freezer into a grounded 3prong outlet. The circuit breaker is tripped or turned o / Fuse is blown.Reset / Turn on circuit breaker or replace fuseThe temperature control is turned to OFF. Turn the temperature control to a setting between 1 and 7.The compressor cycle is not complete. Wait 30 to 40 minutes to see whether the freezer will start.15

PROBLEM POSSIBLE CAUSE(S) SOLUTION

Compressor runs too frequently The temperature is hot and/or humid. This may be normal to maintain constant temperature during high temperature and humid days. The freezer door is ajar. Completely close the freezer door. The door gasket is not sealing properly. Clean the door gasket. See “Cleaning.” Frequent or prolonged door openings. Limit door openings to maintain the internal temperature of the freezer. The freezer door is blocked open. Rearrange or remove items from blocking open the freezer door. Food temperature is too warm The door is opened frequently. Limit door openings. A large load of food was recently added. Allow time for recently added warm food to cool to freezer temperature. The freezer door is not sealing properly. Clean door gasket. See “Cleaning.” The control is not set to a cold enough temperature. Adjust the temperature control to a colder setting. Food temperature is too cold. The control is set to a too cold setting. Adjust the temperature control to a less cold setting. Freezer has an odor The freezer needs cleaning. Clean the freezer. See “Cleaning.” Food is improperly wrapped or sealed and is giving o odor. Wrap and seal food tightly before storing in the freezer. Gurgling sound Refrigerant circulating through the cooling coils. This sound is normal. Clicking The temperature control cycling on and o. This sound is normal. FOR MORE HELP, VISIT HAIER.COM OR CALL THE CONSUMER

FULL ONE YEAR WARRANTY

12 Months on Parts and Labor (Carry-In only) 5 Years on Sealed System (Carry-In only) For 12 months from the date of original retail purchase, Haier will repair or replace any part free of charge including labor that fails due to a defect in materials or workmanship. Haier may replace or repair at their sole discretion any part, sub system including the entire product. LIMITED WARRANTY NOTE: This warranty commences on the date the item was purchased, and the original purchase receipt must be presented to the authorized service representative before warranty repairs are rendered. Exceptions: Commercial Use Warranty 90 days labor from date of original purchase 90 days parts from date of original purchase No other warranty applies.

FOR CARRY-IN WARRANTY

SERVICE All service must be performed by a Haier authorized service center. For the name and telephone number of the nearest authorized service center, please call 1-877-337-3639. Before calling please have available the following information: Model number and serial number of your appliance. The name and address of the dealer you purchased the unit from and the date of purchase. A clear description of the problem. A proof of purchase (sales receipt). This warranty covers carry-in appliance services within the contiguous United States and Canada and where available in Alaska, Hawaii and Puerto Rico. What is not covered by this warranty: Replacement or repair of household fuses, circuit breakers, wiring or plumbing. A product whose original serial number has been removed or altered. Any service charges not specically identied as normal such as normal service area or hours. Damage incurred in shipping. Damage caused by improper installation or maintenance. Damage from misuse, abuse accident, re, ood, or acts of nature. Damage from service other than an authorized Haier dealer or service center. Damage from incorrect electrical current, voltage or supply. Damage resulting from any product modication, alteration or adjustment not authorized by Haier. Adjustment of consumer operated controls as identied in the owner’s manual. All attachments, accessories and disposable parts. Labor, service transportation, and shipping charges for the removal and replacement of defective parts beyond the initial 12-month period. Damage from other than normal household use. Any transportation and shipping charges.

EXPRESS ED OR IMPLIED, INCLUDING BUT

PARTICULAR PURPOSE The remedy provided in this warranty is exclusive and is granted in lieu of all other remedies. This warranty does not cover incidental or consequential damages, so the above limitations may not apply to you. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. This warranty gives you specic legal rights, and you may have other rights, which vary from state to state. Haier America Wayne, NJ 0747017

HF50CM23NW, HF71CW20W HF71CM33NW, HF71CL53NW Issued: November 2015 Printed in China Part # 0570000226 REV A
