USER MANUAL HCM203R HAIER

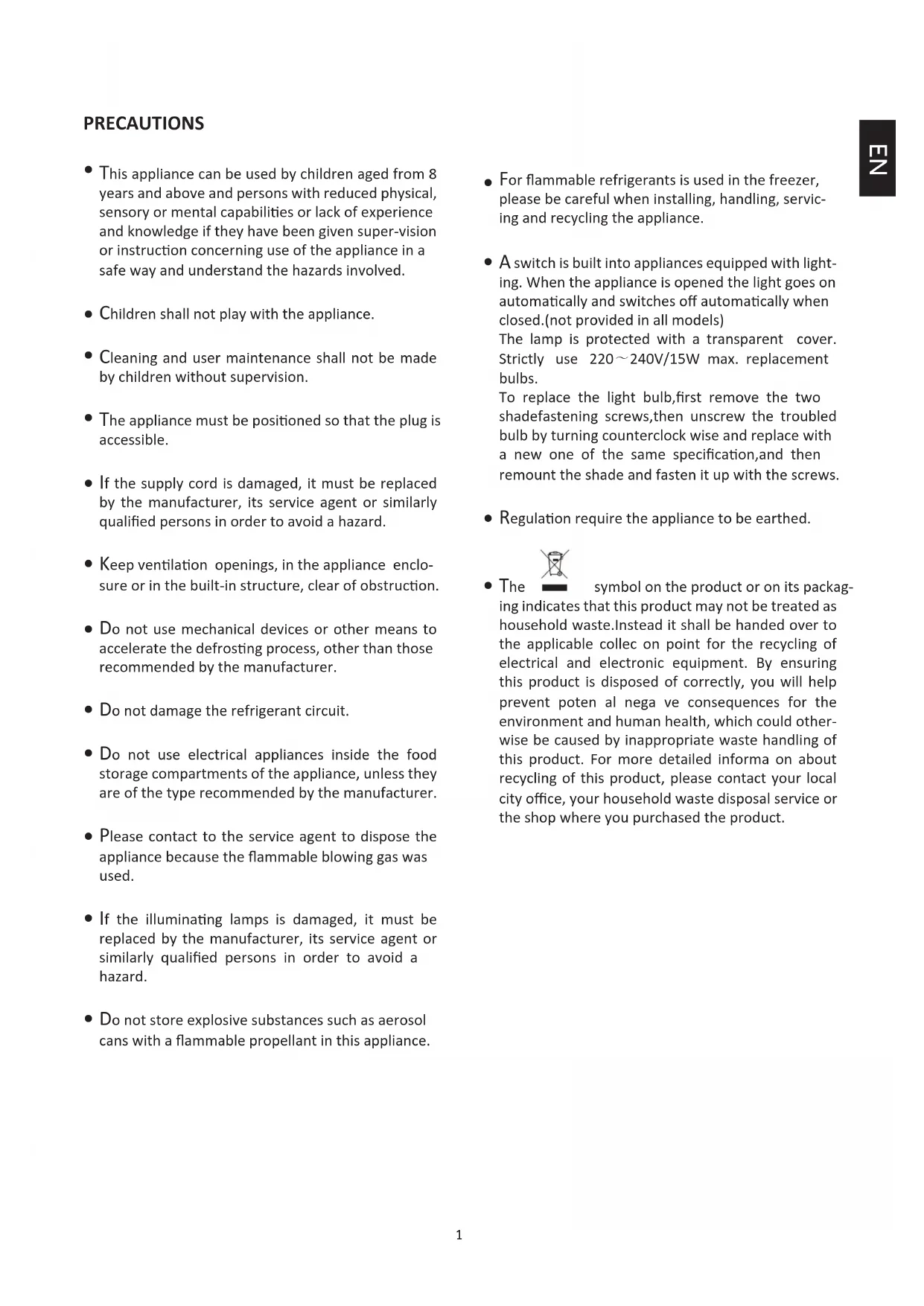

This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilies or lack of experience

and knowledge if they have been given super-vision

or instrucon concerning use of the appliance in a

safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made

by children without supervision.

The appliance must be posioned so that the plug is

If the supply cord is damaged, it must be replaced

by the manufacturer, its service agent or similarly

qualified persons in order to avoid a hazard.

Keep venlaon openings, in the appliance enclo-

sure or in the built-in structure, clear of obstrucon.

Do not use mechanical devices or other means to

accelerate the defrosng process, other than those

recommended by the manufacturer.

Do not damage the refrigerant circuit.

Do not use electrical appliances inside the food

storage compartments of the appliance, unless they

are of the type recommended by the manufacturer.

Please contact to the service agent to dispose the

appliance because the flammable blowing gas was

If the illuminang lamps is damaged, it must be

replaced by the manufacturer, its service agent or

similarly qualified persons in order to avoid a

Do not store explosive substances such as aerosol

cans with a flammable propellant in this appliance.

For flammable refrigerants is used in the freezer,

please be careful when installing, handling, servic-

ing and recycling the appliance.

A switch is built into appliances equipped with light-

ing. When the appliance is opened the light goes on

automacally and switches off automacally when

closed.(not provided in all models)

The lamp is protected with a transparent cover.

Strictly use 220～240V/15W max. replacement

bulb by turning counterclock wise and replace with

a new one of the same specificaon,and then

remount the shade and fasten it up with the screws.

Regulaon require the appliance to be earthed.

The symbol on the product or on its packag-

ing indicates that this product may not be treated as

household waste.Instead it shall be handed over to

the applicable collec on point for the recycling of

electrical and electronic equipment. By ensuring

this product is disposed of correctly, you will help

prevent poten al nega ve consequences for the

environment and human health, which could other-

wise be caused by inappropriate waste handling of

this product. For more detailed informa on about

recycling of this product, please contact your local

city office, your household waste disposal service or

the shop where you purchased the product.DIAGRAMS FIG1.

E Storage compartment

I Compressor chamber

Green = CONTROL (The appliance is running)

Red = ALARM (Interior temperature too high)

Yellow = Super Freeze indicator (if available)

• This appliance is intended strictly for household

use, for storing food only.

• If the appliance unpacked is damaged please

contact your dealer.

• The mains electricity supply must conform to the

ng plate of the appliance.

• Fully unpack the appliance. Please ensure that all

packaging materials are removed and properly

disposed prior to installa

• The appliance should be installed in a dry, well

lated room, and not exposed to direct

sunlight and not placed near a heat source.

• Leave at least 10cm between the appliance and

la on and heat dissipa on.

• The electricity supply must conform to as

ng plate and follow local

• It is recommended to wait at least two hours

before plugging the appliance a

This helps the refrigerant circuit to stabilise.

TEMPERATURE SETTING Turn thermostat (1) to adjust the temperature

between Min (warmer) and Max (colder ).

SUPER FREEZE FUNCTION (If available)

Press the Super freeze bu on (4) to a vate the

on. The yellow light (4) turns on.

on again to switch it off.

The Super freeze fun on will be switched off

cally a er 56 hours to save energy.

on will increase when this

The storage temperature will decrease from Min.

Wrap or seal food in aluminium foil, air ght

containers or food storage bags prior to freezing.

Allow hot food to cool prior to placing it in the

Smaller poron of food will be faster frozen. The

recommended max poron weight is 2.5kg.

Avoid placing warm food directly in contact with

already frozen food. Frozen food could defrost

and may not outlast the foreseen storage me.

The capacity of the appliance, as shown on the

rang plate, should not be exceeded.

When filling the appliance with higher quanes

of fresh food, it is recommended to turn on the

Insert the plug in the socket. The green light (2)

Allow one hour for the temperature inside the

appliance to go down and then place food inside

ENSuper Freeze funcon (if available) 24 hours in

• The storage me for purchased deep-frozen

products varies and depends on the type of

product and its packaging. Therefore, strictly

observe the producer/manufactures instrucons

CLEANING AND MAINTENANCE Always ensure that the power supply is switched off

prior to conducng any maintenance or cleaning of

If you leave your appliance out of use for an extended

period, leave it open to

unpleasant smells building up inside.

DEFROSTING The appliance should be defrosted once the

thickness of ice on the walls reaches 5-6 mm.

Do not use any electrical, sharp or mechanical objects

to assistant in defrosng the ice removal process,

unless supplied or approved by manufacturer or

approved service centre.

To remove ice from the inner walls, use a plasc or

wood scraper without sharp edges. Never use a metal

Make sure to unplug the appliance.

2. Dry your hands thoroughly to prevent skin

damage by contact with ice (it is advised to use

3. Remove all frozen food from the appliance, put it

into a container, cool box, put the frozen cool

blocks on top of the frozen food to help keep it

very cold, and place the container or cool box in

4. Pull out the water drain plug (if available) located

at the boom of the appliance. Otherwise you

up the melt water at the boom of

the appliance compartment with a sponge or

5. Scrape the ice carefully from the inner of

appliance and put it into your kitchen sink, for

6. Thoroughly clean the inside of the appliance

compartment, rinse it with warm water and

remove any spilt food or liquids.

7. Wipe the appliance with an absorbent cloth or

sponge thoroughly dry and allow to air for about

8. Replace the drain-plug (if available).

9. Close the applianc

e door, replace the plug in the

socket and turn the appliance on.

10. Now re-fill the frozen food.

To prevent frozen food from defrosng, carry out

the de defrosng procedure within a maximum of

two hours to reduce significant rise in temperature

of the frozen food that would shorten the storage

1. No operaon (appliance not running/geng

• Is there a power failure?

• Is the plug in good condion and properly

plugged into the socket?

Appliance not working sufficiently/Red light on

• Is the lid of the appliance closed properly?

• Is there heavy ice formaon on the inner walls?

• Is the appliance exposed to direct sunlight or

• Have too much warm foods been put in the

• The climac class can be found on the rang

lable in the back of the appliance. It specifies

the ambient temperatures at which the

appliance will operate correctly.

Climac class Ambient temperature__

3. The appliance makes noise.

____T +16 °C to 43 °C______

This noise is produced when the motor in the

compressor operates and also by refrigerant

flowing in the cooling system circuit. These noises

4. Consensaon build up on external walls

Under certain atmospheric condions,

condensaon can from on external walls of the

appliance. This is normal and won’t affect the

funcon of the appliance.

1. Resolving faults by yourself

If you suspect any fault, before conta

er-sales service directly or via your

dealer, make sure you have observed all instru

and advice in this user manual.

Consult the enclosed warranty card for available

In order to receive immediate help, make sure you

have ready the following essen

your appliance:  Brand of appliance  Model  Serial number  The problem or reason  Date of purchase  Purchased from/supplier PRECAUTIONS

DECLARATION OF CONFORMITY The manufacturer of the product/s described herein,

to which this descrip

on refers, declares on its sole

responsibility that the product/s meet the relevant

fundamental safety, health and protec

requirements of the relevant UK and EU

requirements and that the corresponding test

reports are available for examina

es and can be requested from the seller of

the appliance, especially with regard to CE Declara

on of Conformity issued by the

manufacturer or with the manufacturers approval.

Moreover, the manufacturer declares that the parts

of the appliance described in this user manual, which

come into contact with fresh food, do not contain any

The manufacturer works constantly at

the further development of all

products. Please therefore bear this in

mind as the form, set up and

technology are subject to change,

without prior no ce.

EN If your cabinet is to be discard,you must remove

the door and leave the shelves in place.This will

reduce the possibility of danger to children. And

the flammable foaming needs to be disposed by

professional persons.PRECAUZIONI
