AM 6000 - Hand blender Orbegozo - Free user manual and instructions

Product type	Food processor (stand mixer)
Brand	Orbegozo
Model	AM 6000
Power supply	220-240 V ~ 50/60 Hz
Power	1000 W (estimated)
Bowl capacity	4 L (estimated)
Bowl material	Stainless steel (estimated)
Main functions	Mix, beat, knead, whisk
Included accessories	Beaters, dough hook, whisk, spatula
Speeds	Variable (rotary selector)
Tiltable head	Yes, with tilt button
Maximum continuous cycle	10 minutes
Rest time between cycles	Minimum 20 minutes
Safety	Automatic stop in position 0, do not immerse
Maintenance of bowl and accessories (except beaters and hook)	Dishwasher safe
Maintenance of beaters and dough hook	Hand wash only, do not put in dishwasher
Cleaning the body	Damp cloth, do not immerse
Use	Domestic use only
Weight	5 kg (estimated)
Dimensions (L x W x H)	35 x 20 x 30 cm (estimated)
Color	White or black (not specified)

Frequently Asked Questions - AM 6000 Orbegozo

How to assemble the AM 6000 food processor?

Make sure the appliance is unplugged and the speed selector is set to 0. Insert the beater, hook, or whisk until locked. Place the bowl on the base and turn clockwise until it clicks. Lower the head while holding the tilt button.

What is the maximum continuous operation time?

The maximum duration is 10 minutes per cycle. After that, let the appliance cool down for at least 20 minutes before using again.

Can I wash the accessories in the dishwasher?

The bowl, whisk, and spatula are dishwasher safe. However, the beaters and dough hook must be hand washed to avoid damage.

How to clean the body of the robot?

Unplug the appliance. Clean the surface with a damp cloth, then wipe with a dry soft cloth. Never immerse the head or base in water.

What to do if an accessory does not come off easily?

Set the selector to 0 and unplug. Push against the joint of the beater/hook/whisk to ease removal. You can also run the appliance for a few seconds to reposition the accessory.

What is the tilt button for?

The tilt button allows you to lift the head of the robot to access the bowl and accessories. Press and hold it to release the head.

Can I use the robot for hot preparations?

No, this appliance is designed for ingredients at room temperature. Do not pour boiling liquids into the bowl.

What to do if the dough sticks to the bowl walls?

Stop the appliance, remove the cover, and scrape the flour or dough from the walls with a plastic spatula. Then resume kneading.

How to avoid splashes during mixing?

Always use the provided bowl cover. Start at low speed then gradually increase.

Is the appliance suitable for people with reduced mobility?

Yes, the robot can be used by persons aged 8 and above or with reduced capabilities if supervised or have received safety instructions.

USER MANUAL AM 6000 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

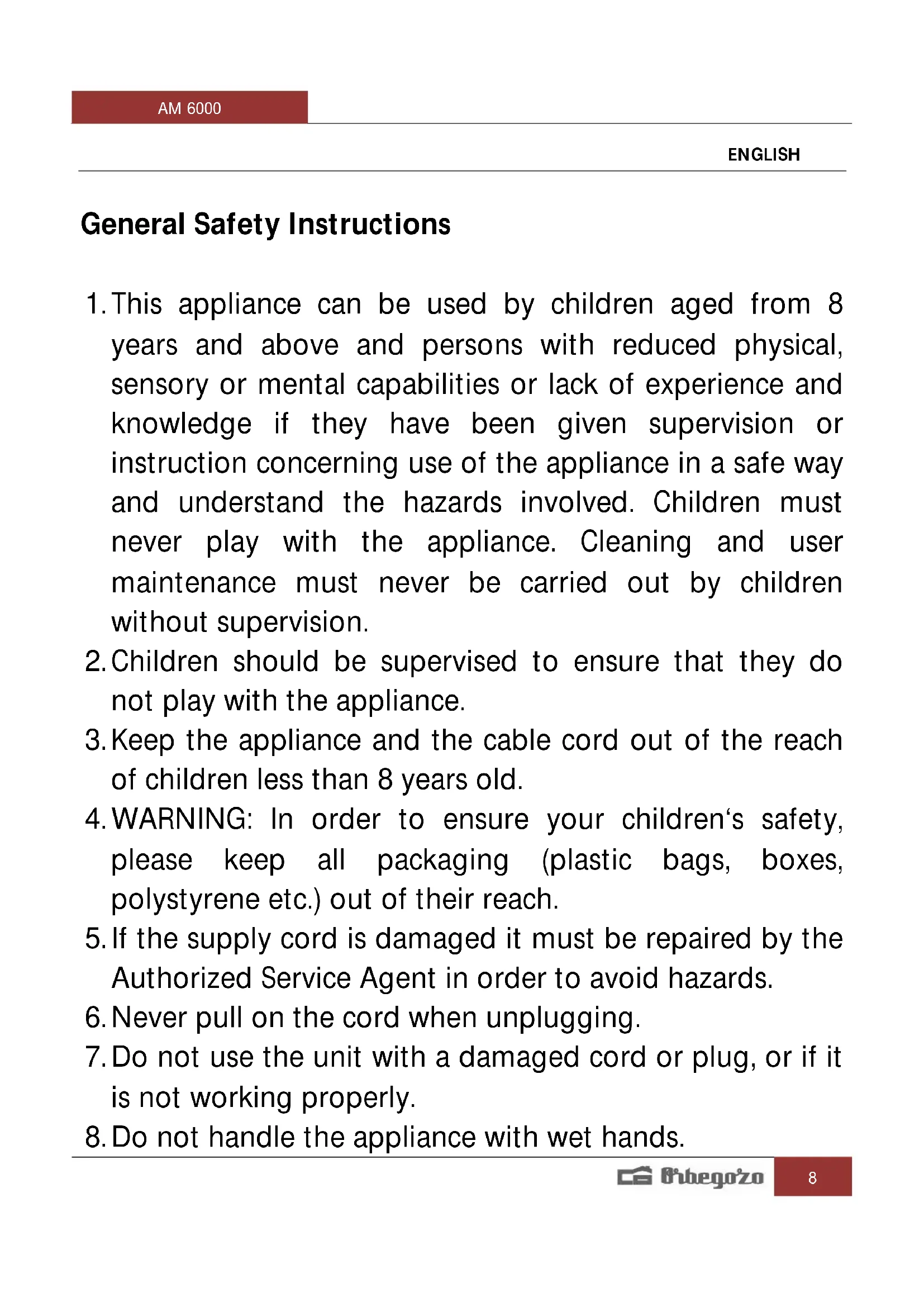

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

14. WARNING: In case of misuse, there is a risk of possible injury.

15. The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.

16. When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.

17. Never leave the appliance unsupervised. To protect children from the dangers posed by electrical appliances,

make sure that the cable is hanging low and that children do not have access to the appliance.

• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician.
• Use only original spare parts.
• Only operate this machine under supervision.
• Do not interfere with any safety switches.
• Do not insert anything into the rotating hooks while the machine is working.
• Place the machine on a smooth, flat and stable working surface.
• Do not insert the mains plug of the machine into the power socket without having installed all the necessary accessories.

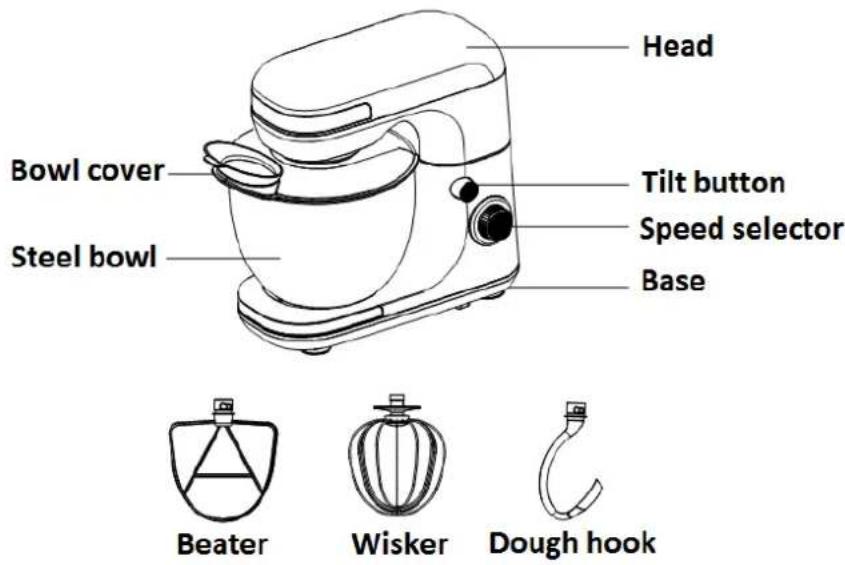

KNOW YOUR MIXER

Product may be subject to change without prior notice

BEFORE USING MIXER

Before assembling the mixer, be sure the power cord is unplugged from the power outlet and the speed selector is in the 0 position.

1. Depressing the tilt button, the head of mixer will automatically release and lock into tile position.
2. Select the desired attachments, which are depending on the mixing task to be performed: beater for mixing and beating egg, and dough hook for kneading, the whisk for beating and frothing egg white.
3. Inserting the Beater/ dough hook/whisk directly, until it locks into position.

Note: Ensure the beater or dough hook or whisk is fully inserted into the socket, otherwise your mixing results may be affected.
4. Place bowl on position. First place the bowl on the base, then turn the bowl in clockwise until it lock into position (see fig.1).
5. To lower the head and place beater / dough hook/whisk into the bowl by holding the head with the one hand and ease the head down. A click sound will be heard when the head has reached the correct position.
6. And make sure the bowl cover in place (see fig.2).

Fig 1

Fig 2

1. Ensure that the speed selector is at the 0 position, then plug in the power source.
2. Turn the speed selector to your desired setting.

Warning: Do not stick knife, metal spoons, fork and so on into bowl when operating.
3. The max operation time per time shall not exceed 10 minutes and minimum 20 minutes rest time must be maintained between two consecutive cycles. When kneading yeast dough, suggest the speed selector first use a low speed and then use high speed to achieve the best results.
Note: during kneading, some flour may be adhered on the inside of the bowl, you shall remove the bowl cover, and scrape the flour on the inside wall of bowl by spatula to obtain well kneading results.
4. When mixing is completed, turn the speed selector to 0 position, unplug the cord from power outlet.
5. Hold down the tilt button, the head of the mixer will automatically lift and lock into the tilt position.

Caution: Before pressing down the tilt button (namely before lifting the head of mixer), make sure the beater or whisk or dough hook rest on the two sides of the head of mixer, otherwise, when lifting the head of mixer, the beater or whisk or dough hook will intervene the mixing bowl; if the beater or whisk or dough hook is resting on the front of the head of mixer, you shall turn on the speed selector again, let the mixer rotate for a few seconds, then turn off the speed selector to stop the beater or whisk or dough hook on the two sides of the head of mixer.

1. If necessary you can scrape the excess food particles from the beaters or dough hooks by plastic spatula.
2. Pull out the beater/dough hook/whisk with a little force. It is recommended to resisting against the washer on the beater/dough hook/whisk to easily pull out the beater/dough hook/whisk.

Caution: The speed selector must be at 0 position and the power outlet must be unplugged before pulling out the heater/dough hook/whisk.

CLEANING AND MAINTENANCE

1. Unplug the appliance and wait it completely cool down before cleaning.
   Caution: the mixer cannot be immersed in water or other liquid.
2. Wipe over the outside surface of the head and base with a dampened cloth and polish with a soft dry cloth.
3. Wipe any excess food particles from the power cord.
4. Immerse the bowl, beater, spatula, dough hook and whisk in warm soapy water for complete cleaning. Then rinse under running water and wipe dry. There also can be placed in the dishwasher.

COOKERY TIPS

1. Refrigerated ingredients, such as butter and eggs, then should be at room temperature before mixing begins. Set these ingredients out ahead of time.

2. To eliminate the possibility of shells or deteriorated-off eggs in your recipe, break eggs into separate container first, then adding to the mixture.

3. Do not over-beat. Be careful that you only mix/blend mixtures until recommended in your recipe. Fold into dry ingredients only until just combined. Always use the low speed.

4. Climatic conditions. Seasonal temperature changes, temperature of ingredients and their texture variation from area to area all play a part in the required mixing time and the results achieved.

IMPORTANT SAFEGUARD

Always start mixing at lowest speed. When ingredients into a smooth paste, increase to the recommended speed gradually in the recipe sheet.

NEVER PLACE BEATER AND DOUGH HOOK IN DISHWASHER.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for

information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.
