BT 1050 - Hand blender Orbegozo - Free user manual and instructions

Product Type	Immersion Blender
Brand	Orbegozo
Model	BT 1050
Speeds	2 speeds (low and high) with release stop
Beaker Capacity	500 ml (max)
Supplied Accessories	Blending shaft with blades, beaker with lid
Functions	Blend, emulsify, prepare sauces, smoothies, soups, mayonnaise
Cleaning the shaft	Dishwasher-safe (do not immerse the motor unit)
Cleaning the motor unit	Wipe with a soft damp cloth
Safety	Automatic stop by releasing buttons, do not immerse the motor unit, do not use in hot oil
Maximum continuous use	2 minutes, then cool down for 2 minutes
Liquid temperature	Do not use with boiling liquids; lukewarm liquids acceptable
Contraindications	Do not immerse beyond the shaft, do not use in hot oil
Power supply	Mains (230 V / 50 Hz)
Compliance	Directives 2006/95/EC and 2004/108/EC

Frequently Asked Questions - BT 1050 Orbegozo

How to turn on the BT 1050 immersion blender?

Press the top button for low speed, or the bottom button for high speed. Release to stop.

Can I blend hot liquids?

Yes, but not boiling. The shaft does not withstand temperatures near boiling. For lukewarm liquids, fully immerse the blade before turning on.

What is the maximum capacity of the beaker?

The beaker has a maximum capacity of 500 ml, indicated by the 'max' mark. Do not exceed to avoid spillage.

Is the blending shaft dishwasher safe?

Yes, the blending shaft (part with blades) can be washed in the dishwasher. The motor unit must be wiped with a damp cloth.

How to avoid splashing?

Keep the shaft straight and do not turn it on until it is fully immersed in the container. Turn off before removing.

Can I blend hot oil?

No, never use the shaft in hot or warm oil. Oil sticks to the skin and causes painful burns.

How long can I use the appliance continuously?

Do not use it for more than 2 minutes at a time, then let it cool down for at least 2 minutes before using again.

How to clean the motor unit?

Unplug the appliance and wipe the motor unit with a soft damp cloth. Never immerse the motor unit in water.

What to do if the cord is damaged?

Contact an authorized technical service to avoid any danger. Do not use the appliance with a damaged cord.

Can I blend solid ingredients?

Yes, for fruits and vegetables, blend 50-100 g for 25 seconds. For purees and soups, 50-200 ml for 25 seconds.

USER MANUAL BT 1050 Orbegozo

White laboratory brush tool with two circular ports, no visible text or symbols on body

BT 1050

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

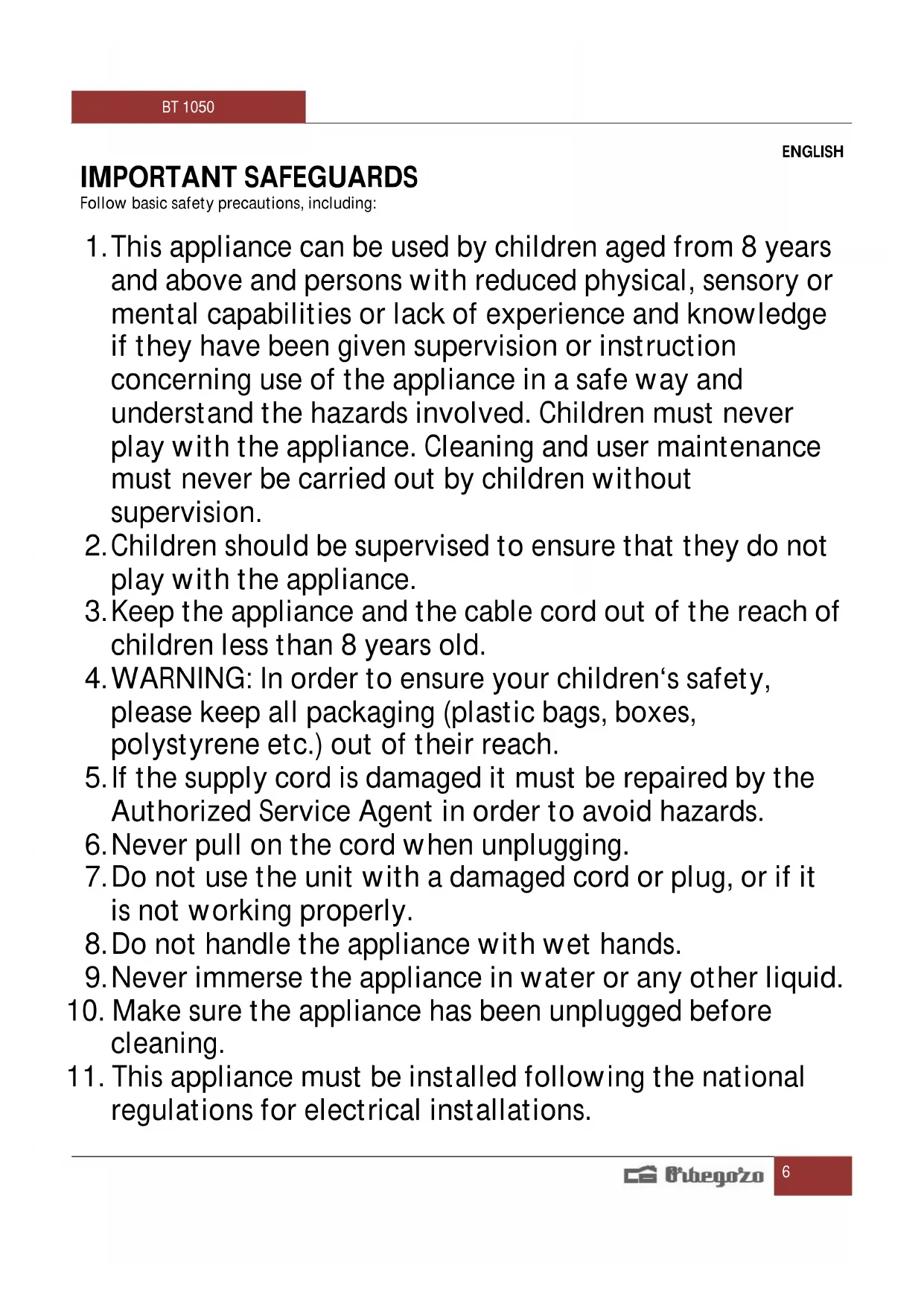

Follow basic safety precautions, including:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail].

14. WARNING: In case of misuse, there is a risk of possible injury.

15. The appliance is at risk for injury in the event of misuse. Care should be taken when handling the cutting blades when the glass is empty and during cleaning.

16. Always disconnect the power if left unattended and before assembling, disassembling or cleaning.
    • Always use the blender on a flat, level work surface.
17. Unplug the appliance before attempting to change the stick.

KNOW YOUR BLENDER

1. Low speed
2. High speed
3. Motor unit
4. Stick
5. Blades

BEFORE USING FOR THE FIRST TIME

Clean the blender and attachments thoroughly, to remove manufacturing dust, etc.

FITTING / REMOVING ATTACHMENTS

• Unplug the blender before fitting or removing attachments.
• To put the stick on the motor unit, attach the stick to the unit and rotate it until you hear a click.
• To remove the stick rotate it in the opposite direction, then remove the motor unit.

THE SPEED BUTTONS

• Press the top button for low speed, release it to switch off.
• Press the bottom button for high speed, release it to switch off.

THE STICK

- You can make mayonnaise, milkshakes, smoothies or fruit drinks in the beaker. You can beat ingredients to make sauce or puree mixture in the beaker.

• Make sure the beaker is supported on a stable, flat surface and hold it with your free hand, to prevent it wandering over the work surface.
• Do not immerse the blender beyond the maximum length of the stick. Do not use it for more than 2 minutes at a time, then leave it for at least 2 minutes to cool down.

AVOIDING SPRAY/SPLASHING

• Hold the blender straight
• Don't switch on till it's well inside the food container.
• Switch off before lifting it out of the container.
• With liquids, switch on and off with the blade under the surface.

WARM LIQUIDS

• The blender will not withstand temperatures near boiling point. When using it in warm liquids, don't let the blade break the surface at an angle, as you might spray liquid outside the bowl/pan/container.
• Don't use the blender in hot oil-not even moderately hot oil. While you may be able to stand fairly hot water, oil at the same temperature will cause painful burns. Water can be throw off immediately and the skin will rapidly cool, but oil will stick to the skin and blister it.

THE BEAKER

• When using it with blender, don't fill above the max mark on the beaker (600 ml or a bit under 18 fluid ounces), to prevent the contents escaping.
• Sit it on a stable, flat work surface and support it with your free hand.
• Don't lift it off the work surface and hold it in your hand. If it slips, you'll hurt yourself.

CARE AND MAINTENANCE

• Clean the appliance after each use.
• Switch the appliance off and unplug it.
• Take great care with the blades, don't handle them directly, use a nylon washing-up brush.
• You can wash the stick in the dishwasher. Not enter the engine in the dishwasher.
• Wipe the handle surfaces with a soft damp cloth.
• Don't put the handle in water or any other liquid.
• Clean the blade end of the wand in hot soapy water, with a nylon brush.

A FEW SIMPLE RECIPES TO GET YOU STARTED

Coriander pesto

2 handfuls fresh coriander leaf
2 cloves fresh garlic
60g pine nuts

125ml olive oil

Put the coriander, garlic and pine nuts in the beaker, add a spoonful of oil and process. Repeat until it's all done, then put in a larger bowl and mix in the parmesan. Season with freshly ground black pepper. Serve as a topping for a soup, tossed through warm pasta, or as a dip.

Sweet and sour sauce

2 shallots, peeled

Small piece fresh ginger, peeled

1 clove garlic

1 tbsp soy sauce

Dash white wine vinegar

1 tsp mustard

1 tsp tomato purée

Put everything in the bowl and process until smooth. Serve with chicken or fish, or as a dip.

Black olive and anchovy sauce

125g pitted black olives

75ml olive oil

30g anchovy fillets, drained

1 tbsp brandy (optional) fresh ground black pepper

1 12 tbsp. capers, drained

Put everything but the oil into the beaker. Add one tbsp. oil and process for 5 seconds. Do this twice more. If it's too dry, add a little mor oil and process again. Toss through warm pasta or spread on toast.

Horseradish and apple sauce

125ml double cream

3 tbsp horseradish relish

1 sharp flavoured apple, peeled and grated

1 tsp paprika

Put the cream into the bowl and process until soft peaks have formed, then transfer it to a mixing bowl and fold in the rest of the ingredients. Season with fresh ground black pepper, serve with beef or sausage.

Food	Quantity	Time
Fruits & vegetables	50-100g	25 seconds
Porridges, soups & sauces	50-200ml	25 seconds
Milkshakes	50-200ml	25 seconds

Disposal of old electrical appliances

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and

recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
