CAH 0800 - Heated blanket/cushion Orbegozo - Free user manual and instructions
Find the device manual for free CAH 0800 Orbegozo in PDF.
| Product type | Heated underblanket |
| Brand | Orbegozo |
| Model | CAH 0800 |
| Dimensions | 150 x 80 cm (single bed) |
| Power | 60 W |
| Voltage | 220-240 V ~ 50 Hz |
| Heat levels | 3 (1, 2, 3) |
| Auto shut-off | After 3 hours of operation |
| Use | Single bed; double model CAH 1400 with two independent zones |
| Controller | Provided, model CAH 0800 or CAH 1400 |
| Washing | Machine wash at 40°C with mild detergent; hand wash possible |
| Drying | Air dry, do not use tumble dryer or clothespins |
| Ironing | Not allowed |
| Chemicals | Do not use bleach, dry cleaning, or moth repellents |
| Safety | Do not use on infants, persons insensitive to heat or animals; do not use wet or folded |
| Inspection | Check regularly for wear or damage |
| Storage | In a dry place, after cooling, carefully folded without heavy objects on top |
| Warranty | Complies with European directives (BT 2014/35/EU, EMC 2014/30/EU) |
Frequently Asked Questions - CAH 0800 Orbegozo
User questions about CAH 0800 Orbegozo
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Heated blanket/cushion in PDF format for free! Find your manual CAH 0800 - Orbegozo and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CAH 0800 by Orbegozo.
USER MANUAL CAH 0800 Orbegozo
COUVERTURE THERMIQUE - MANUEL D'INSTRUCTIONS
COBERTOR TÉRMICO - MANUAL DE INSTRUÇÕES


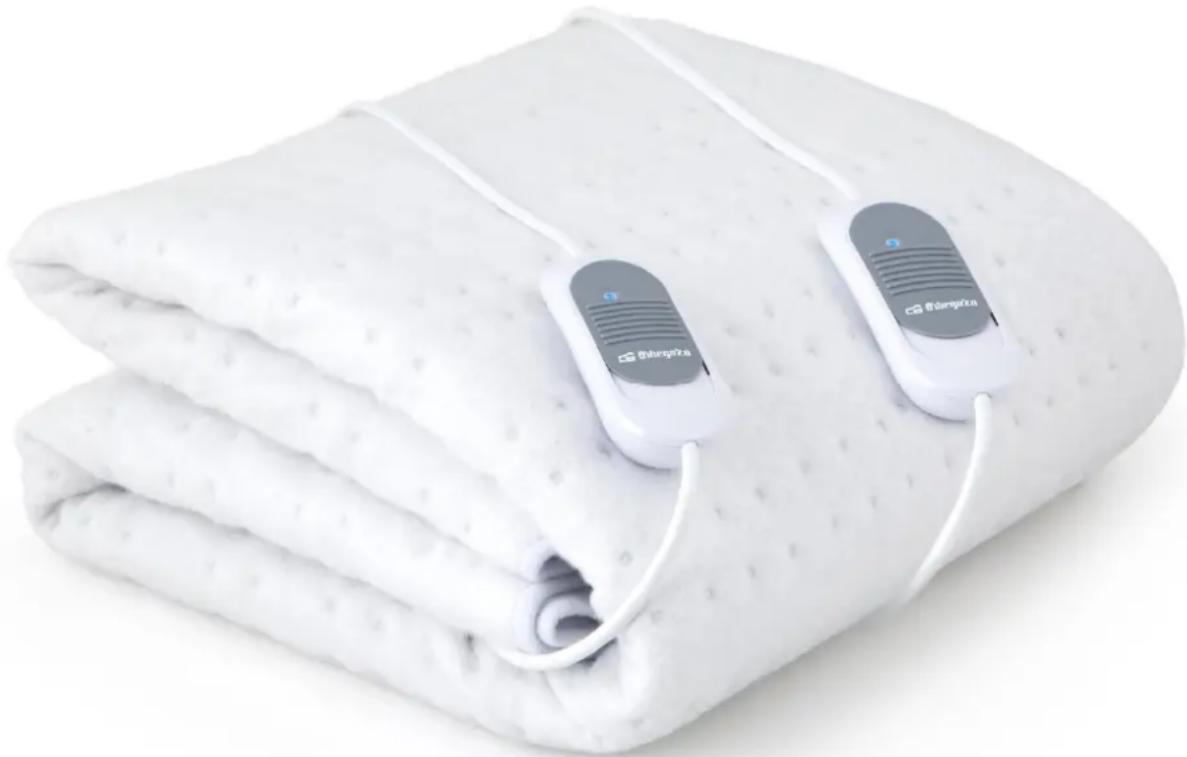

Coiled white fabric with two connected medical sensors labeled 'Bisegna' (no text or symbols on the fabric itself)CAH 0800 (150X80CM) CAH 1400 (150X140CM)
Sonifer, S.A.
Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.
GENERAL SAFETY INSTRUCTIONS
-
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
-
Children should be supervised to ensure that they do not play with the appliance.
-
Keep the appliance and the cable cord out of the reach of children less than 8 years old.
-
WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
-
If the supply cord is damaged it must be repaired by the Authorized Service Agent, in order to avoid hazards.
-
Never pull on the cord when unplugging.
-
Do not use the unit with a damaged cord or plug, or if it is not working properly.
-
Do not handle the appliance with wet hands.
-
Never immerse the appliance in water or any other liquid.
-
Make sure the appliance has been unplugged before cleaning.
-
This appliance must be installed following the national regulations for electrical installations.
-
This appliance is for household use only.
-
In case that you need a copy of the instruction manual, you can ask for it writing an email to sonifer@sonifer.es.
-
WARNING: In case of misuse, there is a risk of possible injury.
-
Important instructions. Retain for future.
- If you are going to use the appliance during continuous or prolonged operation, the ignition switch must be set in position 1 (minimum heat).
- Do not fall asleep while the appliance is working.
- When you don't use the appliance, store it as follows: unplug it, wait it to cool down and fold it. Do not place objets on when the appliance is stored and folded. Store it in dry place.
- When the appliance is stored, wait to cool it down before to fold it.
- Do not fold the appliance placing objects on it during its storage.
- Check the appliance frequently for signs of wear or damage. If such signs exist or if the appliance has been improperly used or does not work, return it to the dealer before reconnecting it.
• This product is not designed for medical use in hospitals. - Do not use if wet.
- This appliance shouldn't be used by insensitive to heat persons or other very vulnerable persons who are unable to react to overheating.
- Children under three years of age should not use this appliance because of their inability to react to overheating.
- The appliance should not be used by children unless the controls have been preset by a parent or guardian, or unless the child has been adequately instructed on how to use the controls safely.
- The appliance should only be used with its supplied control unit with reference CAH 0800/CAH 1400.
- Do not use the product to heat animals.
• This product is an underblanket.
- The pad should be used under direct supervision, especially when used by people who are disabled, insensitive to heat or sick or when used by children.
- If the device is used for a prolonged period on the highest setting, burning of the skin may result.
- Do not use the product if it is wet or in rooms with a high level of humidity, such as bathrooms etc.
- Do not fold or bend the electric cord and do not use your blanket when it is folded up, rolled up or bent on itself.
- Wear it over a garment.
- Do not cut or pierce the heating blanket. Do not make holes using pins or dull instruments. Do not disassemble it
UNDERBLANKET'S PLACEMENT
Make sure that the underblanket is not wrinkled or bent before using.
- Place the underblanket directly on top of the mattress. To place it in the correct position the control connector should be on the top of the mattress (on the head).
- Adjust the underblanket to the mattress with the elastics you have at each corner.
- Place the bottom bed sheet on the top of the underblanket.
- It is advisable to use a pillow or cushion so that the head is not in direct contact with the underblanket.
OPERATION
A.Level indicator.
B. Power selector.
-
To turn underblanket on, connect the control to the connector and plug it into the mains.
-
Move the power selector B up and select the desire level (1, 2 or 3). The underblanket will operate at the desired power.
-
The underblanket will remain in operation for 3h. or until you turn it off.
-
The model for double bed is CAH 1400, has two controls and therefore two independent heat zones. So each can select one level of heat or turn off one while the other is still on.
Use only original accessories. Do not connect another controller to the appliance.
AUTOMATIC SHUT-OFF
The blanket will turn off automatically after 3 hours. This saves energy and guarantees additional safety as the blanket will never operate without supervision.
After using, unplug the blanket from the mains.
CLEANING AND CARE
- Disconnect the blanket, unplug from the socket and unplug the controller from the blanket.
- The blanket may be washed by hand or in the washing machine with mild detergent at 40°C.
Important
- Do not iron the blanket.
- Please do not use bleach.
- Do not have the blanket dry-cleaned.
• The blanket cannot be dried in a dryer. - Do not use pressure cleaners.
- Please, ensue that the controller does not come into contact with any liquids. The liquid could cause damages.
- Never use the blanket while it is wet or damp. The blanket cannot be switched on while it is drying.
- Let the blanket air-dry. Do not use laundry pins to hang it. It could damage the wires.
STORAGE AND PERIODIC INSPECTION
- Do not wrinkle the device. Fold the product carefully for storage.
- Store the device at a dry location if it is not in use.
- Let the device cool off prior to folding or rolling it.
- Regularly inspect the device and power cord for possible signs of wear or damage.
- Do not use chemical moth protection.
- Do not place any heavy objects on top of the device while storing it; these could damage electric wires.
- Please, return the device to your point of sale in case of any wear or malfunction.
TECHNICAL INFORMATION
Dimension: CAH 0800 - 150X80CM // CAH 1400 - 150X140CM
Power: CAH 0800-60W // CAH 1400-2X60W.
Voltage: 220-240V\~, 50Hz.
MEANING OF SYMBOLS APPEARING ON HEATING PAD
Please, read de instructions.
Do not use if folded is creased.
Do not insert pins or needles.
Do not use on babies.
Disposal of old electrical appliances.
The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.
The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.
Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.
DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.
