Technical Features	Hand blender with powerful motor, multiple speeds, and included accessories.
Usage	Ideal for blending, emulsifying, and preparing soups, sauces, and smoothies.
Maintenance and Repair	Easy to disassemble for optimal cleaning, dishwasher-safe parts.
Safety	Equipped with a safety system to prevent accidental starts.
General Information	Ergonomic design, lightweight and easy to handle, available in multiple colors.

Frequently Asked Questions - Sam Springlane

How do I disassemble the Springlane Sam hand blender for cleaning?

To disassemble the blender, first unplug it. Then press the release button located on the body of the device to separate the shaft from the motor.

The hand blender won't start, what should I do?

First, check that the blender is properly plugged in and that the outlet is working. Also ensure that the blender shaft is correctly attached to the motor.

Is the Springlane Sam hand blender dishwasher safe?

The blender shaft is generally dishwasher safe, but it is recommended to consult the user manual to confirm.

What types of food can I blend with the Springlane Sam?

You can blend a variety of foods including soups, sauces, smoothies, and purees. Avoid very hard foods that could damage the blades.

The hand blender makes noise, is this normal?

Some noise is normal during use, but if the noise is excessive or unusual, it may indicate a problem. Check that the blades are not obstructed.

How can I get replacement parts for my blender?

Replacement parts can be ordered directly from the Springlane website or from your local retailer. Make sure you have the exact model of the blender.

What is the warranty for the Springlane Sam hand blender?

The blender is generally covered by a 2-year warranty. Please consult your user manual for specific details.

Does the hand blender have a variable speed function?

Yes, the Springlane Sam hand blender is equipped with multiple speed settings to suit different types of preparation.

Can I use the hand blender for hot preparations?

Yes, the blender is designed to be used with hot preparations, but avoid immersing the motor in hot liquids.

USER MANUAL Sam Springlane

Technical Data 22
Using Sam 23
Cleaning and care 30
Trouble shooting 30
Customer service 32
Disposal/
Environmental protection 32

Important safety information

Please read this manual carefully before using the device for the first time and keep the manual.

Intended use

The Sam hand blender and all of its accessories are intended for chopping, beating and pureeing food items.

Symbols

This symbol warns of hazards that can damage

the appliance or cause injury.

This symbol warns of an electric shock that may be

caused by a defective appliance or by improper handling. This product may only be opened for necessary service work by an authorised technician.

Safety information

Do not insert objects or your hand into the

appliance while it is in operation.

Do not immerse the

appliance in water or any

other liquid. Protect the power

cable and power plug from moisture.

Should the blades become stuck, remove the plug

from the socket before attempting to clean them.

Always unplug the appliance before switching

accessories.

• After unpacking the appliance, check that it is in perfect condition and has not sustained any damage that could impair its functional safety. Should you notice any defects or if the appliance has fallen on the floor, do not attempt to use it, but call our customer service.

• Improper repairs can lead to hazards for the user and the warranty may be deemed void. If the cable is damaged, it must be replaced by the manufacturer, an authorised specialist company, or a similarly qualified person to avoid danger to the user.

• The Sam hand blender and all of its accessories are intended for

chopping, beating and pureeing food items. Do not place any other substances in the food processor.

Devices can be used by persons with physical, sensory or mental disabilities or by persons with limited experience and knowledge if they have received instruction on the safe use of the device and understand the dangers associated with it.
Children should not play with the device.
- This device may not be used by children. Store the device and the cable out of the reach of children.
- Never touch the blades when the device is plugged in. The blades are very sharp.
Always make sure that the device is disconnected from the power supply when you leave it unsupervised before assembling it, taking it apart or cleaning it.
- Improper use of the device can lead to injury.
- Position the appliance on a free and level surface.
- The appliance is only intended for use in the household or other similar uses such as

• in kitchenettes in shops, offices, or other workplaces,
  on farms,

• for use by guests in accommodation establishments (hotels, motels) private guest houses, or holiday homes.

• Use the appliance only after proper assembly.
  The appliance may only be used with original accessories.

• Allow the appliance to cool down for 30 minutes after use.
  Exercise particular care when handling the sharp blades, especially when emptying the jug or cleaning the blades.
  Exercise particular care when pureeing hot liquid foods. These may splash.
• Connect the appliance only to alternating current as indicated on the type plate. Connect the mains plug only to an earthed socket.
• Uncoil the power cable completely before use.
• Disconnect the mains plug as soon as you have finished using the appliance. Do not pull the power cable itself, as it could cause damage.
• Switch off the machine before

plugging in or unplugging it.

• The appliance must not be operated with an external timer or a separate remote control system.
• Always disconnect the mains plug after use, before cleaning, or in the event of possible malfunctions during operation.
• Sam cannot be cleaned in the dishwasher. All other removable parts can be cleaned in the dishwasher. We recommend cleaning the blades carefully by hand as this will help them stay sharp for longer.
• Never place or use the appliance and power cable on or near a hot surface.
• The cable must not hang over the edge of the work surface.
• Do not use the appliance outdoors.

Notice: Protection from overheating

• Your Sam hand blender provides protection from overheating.
  Overheat protection monitors the engine temperature. It might switch off the engine automatically. In this case, turn off the power properly and

unplug the power cord.
- Your hand blender will only be ready for use again once the engine has cooled down.

Before first use

• Remove all parts related to packaging and transport safety. Make sure that these parts are also kept away from children - they pose a risk of suffocation!
• Before initial operation and after prolonged periods of non-use, Sam should be cleaned. When doing so, please make sure to note our instructions on cleaning and care.
• Place the appliance on a level and dry surface.

Technical Data

Output: 800 W, 220-240 V AC, 50/60

Hz, protection class II

Dimensions (W/D/H)/ Weight:

Handblender: 0.94kg / 6.5× 6.5× 40.5cm

Chopper: 0.27kg / 11.5× 11.5× 15cm

Measuring Jug: 0.14 kg/

10.5 × 10.5 × 18.5 ~cm

Whisk: 0.09kg / 5× 5× 24cm

Beater and dough hook: 0.22kg/

6.5× 6.5× 22.5cm

Food processor: 1.8kg / 25× 20× 24cm

Dough hook for food processor:

0.068 kg/11 x 5 x 13 cm

Revolutions/minute: 10,000-12,000

Maximum temperature of ingredients:

80^ C

Sam equipment: the Sam hand blender

has continuous speed control, overheating

protection, and a blender attachment with a stainless steel blade

Accessories 944097: whisk attachment, plastic jug with lid, chopping attachment with a 400ml jug, and stainless steel blades

Additional accessories 944098: food processor incl. dough hook, dicing and julienne cutting inserts, grating and cutting disks

This appliance can be used at either 50 or 60Hz without the need to change any settings.

Specifications, technology, colours, and design are subject to change without notice.

Using Sam

Product description

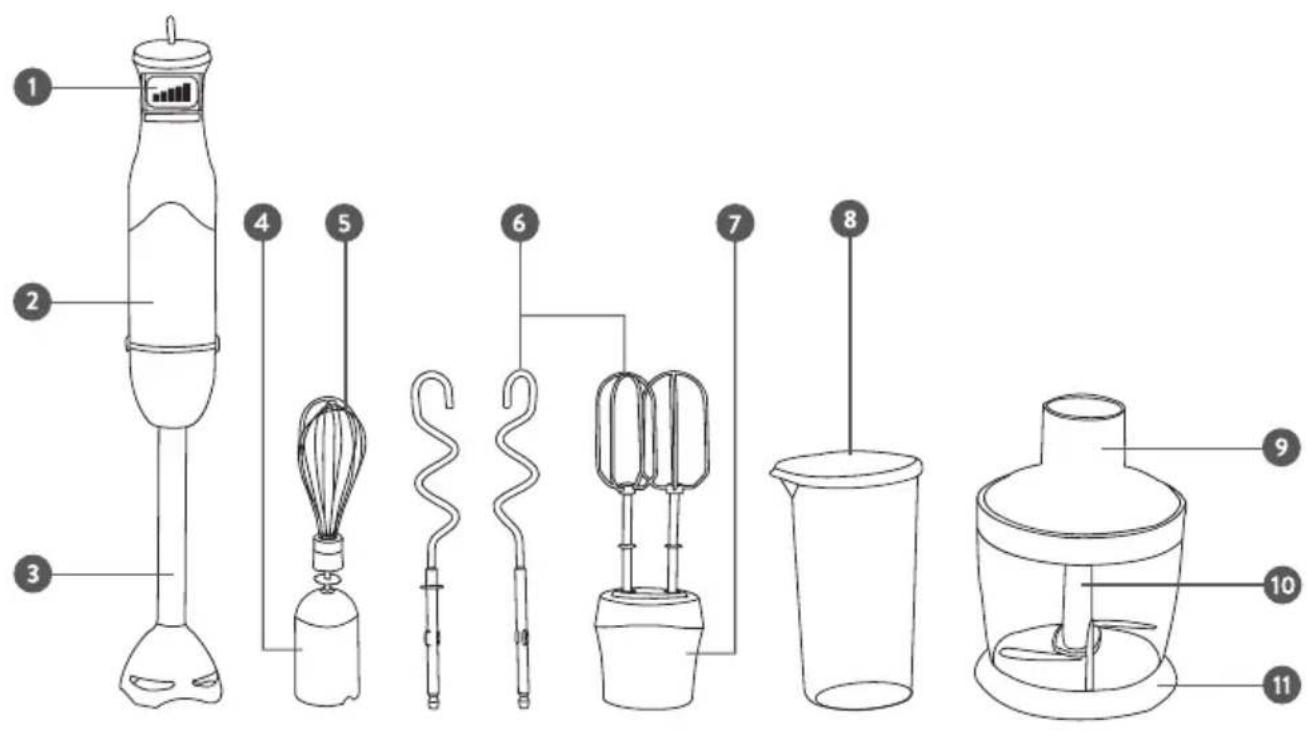

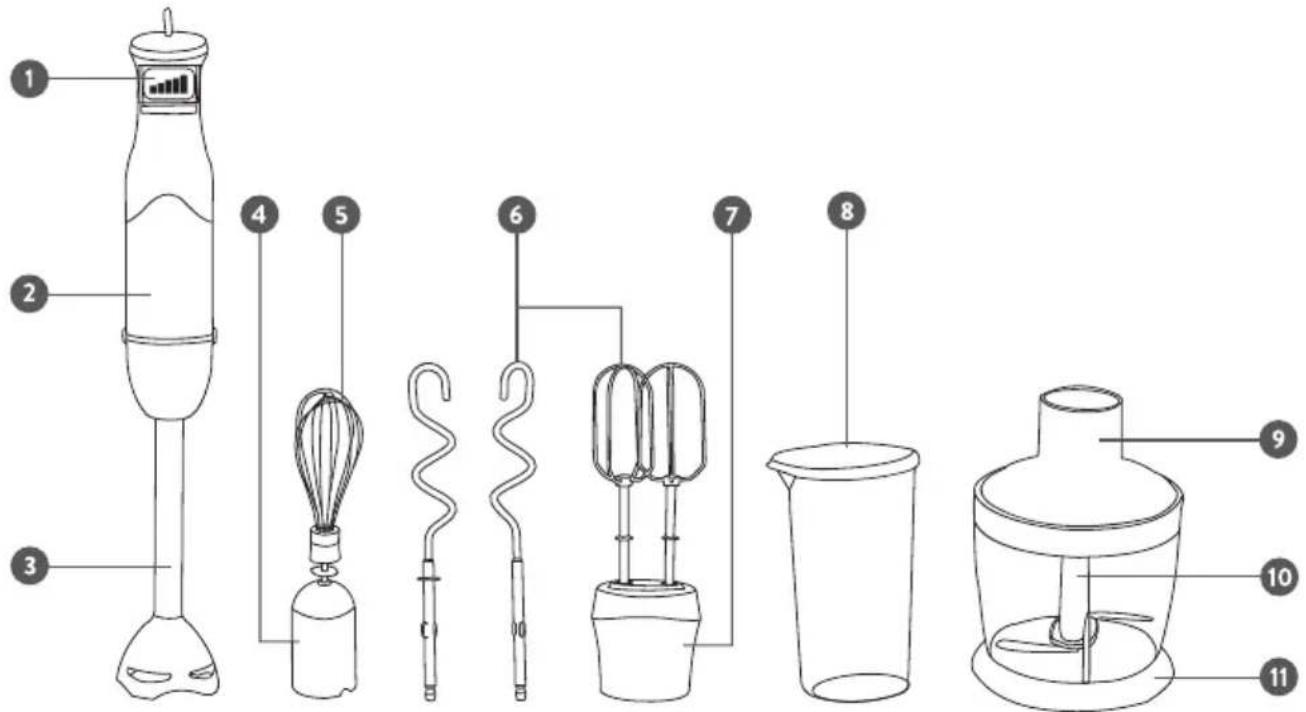

Sam with accessories (944097)

1. Control button
2. Motor housing
3. Hand blender
4. Gear component for whisk
5. Whisk

6. Mixers: beater and dough hook

7. Gear component for dough hook

8. Jug with lid
9. Lid for chopper
10. Blade insert for chopper
11. Jug for chopper

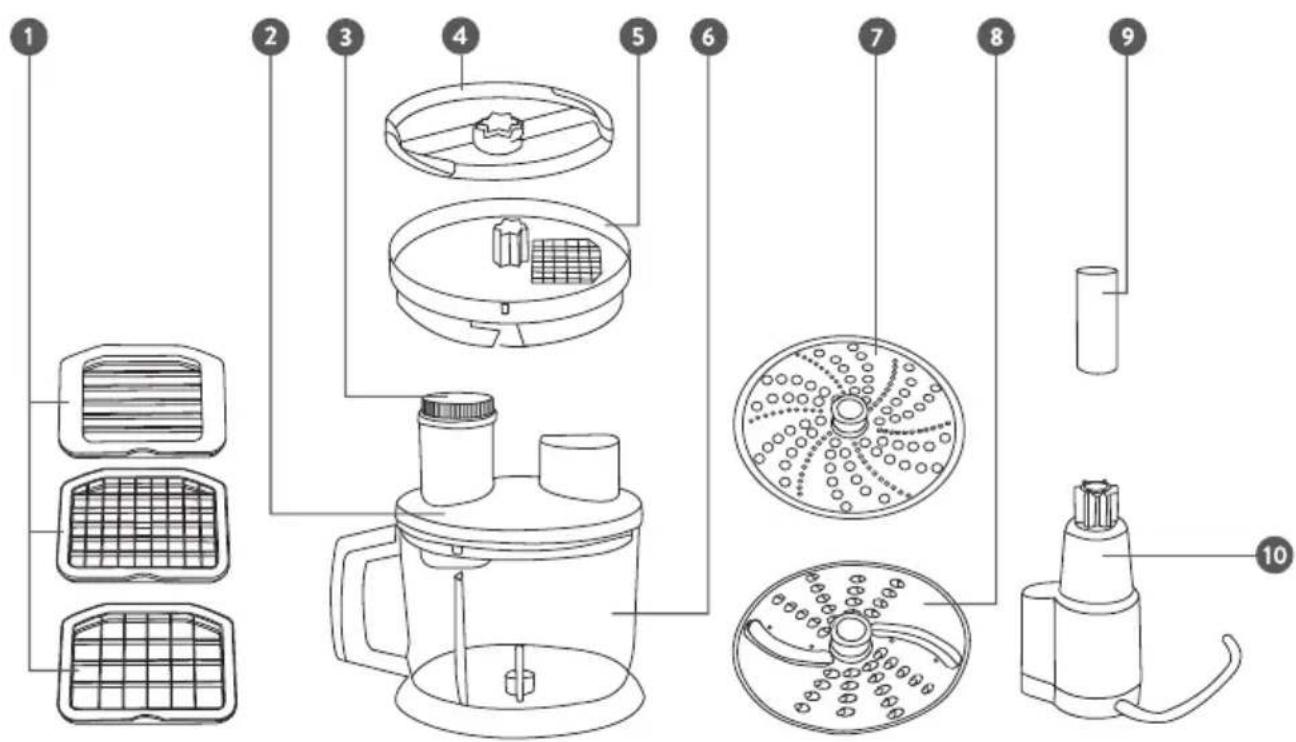

1. Dicing and julienne cutting inserts
2. Plunger
3. Lid
4. Blade insert
5. Interior lid with insert recess for accessories

The attachments (Sam)

Blender attachment

The blender attachment is ideal for preparing your sauces, dips, soups, drinks and baby food.

Twist the blender attachment onto the engine part's rod until you hear a click

1. Jug
2. Grating disk
3. Cutting disks
4. Pin for the grating and cutting disks
5. Dough hook

and the icons are facing each other.

• Place the blender in the filled container and plunge the attachment into the food that you wish to mash.

• Press the on / off button to start blending. The longer you press the button, the stronger the mashing effect will be.

• Release the on / off button to end the process and wait briefly until the blending attachment stops moving. You may then pull the attachment out of the container.

• Disconnect the power adapter from the outlet after use.

Tip:

• For your blender to function properly, you should make sure that the top of the attachment is sufficiently covered with food or liquid and that the maximum filling capacity is not exceeded.
• Before mixing, cut the food you want to puree into pieces measuring approx. 2cm

WARNING: The blades of your Sam hand blender are very sharp. Please use with caution and never reach into the switched-on device.

Chopper

The chopper is used for chopping cheese, nuts, onions, herbs, raw vegetables and fruits. Frozen foods should be thawed before shredding. Exceedingly tough foods like ice cubes, coffee beans etc. should not be used.

• Carefully remove the plastic protection from the attachment's blade. Hold it

by the handle at all times.

• Place the blade attachment in the centre of the mini-foodprocessor bowl, so that it clicks into place and the markers face one another. Always use the anti-slip base along with the mini-foodprocessor container.
• Fill the jug and close the lid.
• Place the motor housing on the top of the chopper jug and tighten it until you hear it click.
• To switch on, use the on/off switch. Hold the motor housing with one hand and the chopper jug with the other.
• Be careful not to use the mini-foodprocessor for more than 10 seconds at a time for more solid foods. Shred several times.
• To switch off, release the on/off button, remove the plug from the socket, ensure that the blades are no longer rotating and turn the motor housing to remove it from the chopper.
• Remove the lid and carefully remove the blade by its handle.
• Remove the processed foods from the chopper jug.

Tip:

• First, cut the food you want to process into pieces measuring approx. 2 cm.
• Do not shred very hard ingredients, e.g. nutshells, meat with bits of bone

or coffee beans.

• The container is dishwasher safe but not suitable for microwaves.

WARNING: The chopper's blades are very sharp.

Please use with caution and never reach into the switched-on device.

Whisk attachment

With the whisk attachment, you can whip cream, egg whites, liquid dough or dessert creams in no time. Do not use this attachment for other kinds of food, hot foods or liquids.

• Place the whisk atop the gear unit and twist it onto the engine housing until it snaps into place and the markings are facing each other.
• Plunge the whisk into a container and hold it, then press the on / off button to start.
• Do not use the whisk longer than 2 minutes at a time.
• To finish, release the on / off button and unplug the power adapter. Only then can you remove the whisk from the container.

• To finish, release the on/off switch and remove the plug from the socket. Only then should the whisk be removed from the jug.

• The cup is dishwasher safe but not suitable for microwaves.

Tip:

• Move the whisk in a circular motion whilst using and keep it slightly inclined where appropriate to get a smoother result.

WARNING: Never reach into the running apparatus

for risk of injury.

Mixer attachments: beater and dough hook

Use the beater to mix batters for sweet and savoury foods, as well as sauces, fillings and creams.

• Insert the beater or dough hook into the appropriate gear component. Always use the attachments as a pair, never alone.
• Only mix heavy doughs for short periods at a time and regularly allow the hand blender to cool down. This protects the motor. Sam is not suitable for heavy bread dough.

The attachments

(Food processor 944098)

Dicing and julienne cutting inserts

The dicing and julienne cutting inserts cut

raw and cooked vegetables and fruit into cubes and julienne shapes. Do not use them for frozen ingredients, stone fruit, or meat with bones.

• Place the dicing or julienne cutting inserts into the recess of the interior lid with the attachment's blades facing upwards. Exercise particular care to prevent injury.
  Fix the blade attachment onto the interior lid and close the brackets to securely connect both parts.
• Place the insert into the jug so that it is straight and secure.
• Replace the lid and turn it counterclockwise until it locks into place.
• Attach the hand blender's motor housing to the lid by turning until it clicks.
• Remove the plunger and only then add the ingredients.
• Switch Sam on and use the plunger to push down the ingredients.
  Once the ingredients have been processed, remove the motor housing by pressing the button where it is connected and remove the hand blender by lifting it.
• Remove the lid by turning it clockwise.

• Remove the interior lid with the insert, release the brackets, remove the blade insert, and also the dicing or julienne cutting inserts.

• Remove the ingredients from the jug.
  Tip:

• Cut the ingredients to a size such that they fit through the feed chute without getting stuck.
  To process several ingredients in succession, start with the softest ingredients and progress to the hardest.

• The insert can easily bend if they are exposed to excessive loads. Should this happen, carefully bend them back into their correct shape.

Cutting and grating disks

Use the cutting disks to cut or grate vegetables, fruit, and cheese. Please note that both sides of the cutting disks can be used.

• Place the julienne cutting insert for the grating and cutting disks into the jug.
• Place the attachment you wish to use on the pin and ensure that it is secured well.
• Replace the lid and turn it counterclockwise until it locks into place.
• Attach the hand blender's motor housing to the lid by turning until it clicks.
• Remove the plunger and only then add the ingredients.
• Switch Sam on and use the plunger to

push down the ingredients.

Once the ingredients have been processed, remove the motor housing by pressing the button where it is connected and remove the hand blender by lifting it.
- Remove the lid by turning it clockwise.
- Lift the grating and cutting disk and remove the pin.
- Remove the processed ingredients.

Tip:

• For the ingredients to be cut into larger pieces, use a low speed. For finer processing, increase the speed.
  We do not necessarily recommend

processing soft fruit.

Speed settings

Press and hold the on / off button to start up the device. Using the continuous speed control, you can determine the speed: the firmer and longer you push, the faster the device will work. To slow down Sam you can simple put less pressure on the button. Please keep in mind that the higher the speed of the food processor, the finer the ingredients will become.

Maximum quantities and preparation times

Pureeing

Ingredient Quantity	Time
Fruit & vegetables 100-200 g 10-15 seconds
Carrots 180-240 g 10-15 seconds
Baby food, soups & sauces 50-200 ml 10-15 seconds
Dough 50-250 ml 10-15 seconds
Drinks & milkshakes 50-50 ml 10-15 seconds

Mini chopper

Ingredient Quantity	Time
Onions & boiled eggs 200 g	5-10 seconds
Meat & fish 250 g 5-10 secs	ons
Herbs	100 g	5-10 seconds
Cheese 100-200 g 15 seconds
Nuts & kernels 250-320 g	10-15 seconds

Whisk

Ingredient Quantity	Time
Cream 250 ml 60 seconds
Egg white 4 eggs 60 seconds

Grating disc

Ingredient Quantity	Time
Potatoes (boiled) 500 g 60 seconds

Dicing & julienne

Ingredient Quantity	Time
Carrots 500-800 g 120 seconds
Vegetables 500-800 g 120 seconds

Kneading hook and beater

Ingredient Quantity	Time
Flour 300-500 g	120 seconds

Grating and cutting disks

Ingredient Quantity

Time

Cleaning and care

Your hand blender should be cleaned and dried after each use as follows. Lack of or improper care of the device can affect your Sam Hand Blender's functionality.

Always disconnect the hand blender's power plug before cleaning.
- Engine part, power cable and power plug must not get wet. Clean the engine housing with a slightly damp cloth.
- The jug, whisk, beaters, and dough hooks as well as the chopping jug can all be cleaned in the dishwasher. Please clean the remaining parts by hand as they are not suitable for washing in the dishwasher.
- Of the food processor accessories, the jug, blades, and dicing and julienne cutting inserts can be washed in the dishwasher. Wash all other parts by hand.

• Clean all plastic parts on the top shelf of a dishwasher and use a programme with at most 60^ to keep them from losing their shape. Make sure that the plastic part is not jammed.
• If you process food colouring or strongly colouring food with your Sam Hand Blender, attachments or engine housings may discolour. After use, wipe the device with a cloth moistened with vegetable oil to remove the colour. Clean it as described above.
• If you use the chopper to process exceedingly salty foods, be sure to rinse the blade immediately after use.
• Make sure to always clean all parts thoroughly with hot water and washing-up liquid that come in contact with food.

Trouble shooting

If the device does not work properly, please check the following steps:

1. Check if the manual was followed precisely and correctly.
2. Check the following table for possible reasons.
3. Check if all fuses are working.

Problem Solution
My hand blender won’t grind the ingredients properly.	If necessary, add some more liquid, so that your hand blender can do a perfect job. Cut food into smaller pieces before processing.
My hand blender has trouble properly mixing all the ingredients.	Be mindful of the container’s minimum and maximum capacity. The attachment should be immersed deeply enough.
The device will suddenly switch off.	Be careful not to shred food that is too touch, as this may overheat the engine and the overheat protection will shut the device off. You should not blend soft ingredients for more than one minute or solid ingredients for longer than 15 seconds at a time.
The device becomes unusually loud.	Use your hand blender only inside the designated container – never in pots, pans etc. This might damage the container or the attachment of your hand blender as well as the vessels. Use your hand blender only for soft to firm but not for too tough or frozen foods.
The chopper will not shred the ingredients properly.	To make your chopper’s job easier and to achieve ideal results, you should cut the ingredients into pieces and then shred them in portions.
The whisk attachment won’t stiffen the cream.	Please note that the container and whisk should be fat-free and the cream should be cold (below 10 °C).
My mayonnaise curdlies during preparation.	Make sure all ingredients are at room temperature and only add the oil gradually whilst blending. If possible, keep the blender at the bottom of the container and slowly pull it up towards the end of the process. If your mayonnaise has already clotted, you can save it by adding 1 to 2 tablespoons of boiling water.

Should your Sam show any other defects, please contact a professional repair service provider. Do not attempt to repair the appliance yourself.

Customer service

In principle, our products have a legal warranty duty of 2 years. Further claims can

only be processed in conjunction with a proof of purchase. Wearing parts exclude any warranty claims, when usual abrasion has occurred. The durability is determined by the respective handling and use of the

products and is thus variable.

For questions concerning handling and functionality of our products, please contact our customer service:

Tel. [phone] - 80944-0

Email: [e-mail]

Disposal/Environmental protection

Our products are manufactured to high quality standards and are designed for a long service life.

Regular maintenance and care will help to extend service life. If the appliance is defective and can no longer be repaired, it must not be disposed of in the normal household waste.

Take the appliance to a designated disposal point for recycling electrical or electronic equipment. Through professional disposal and recycling you make an important contribution to protecting our environment.

Kronenburg Handel GmbH herewith declares that the product complies with the essential CE requirements on the issuing date. The complete declaration of conformity can be accessed at www.springlane.de/pages/ce.

Same accessory (944097)

Tours/minute:10000-12000
