Feature	Details
Product type	DJ Mixer
Number of channels	4 channels
Audio inputs	2 x RCA, 2 x XLR, 2 x 6.35 mm jack
Audio outputs	2 x RCA, 1 x XLR, 1 x 6.35 mm jack
Power supply	AC 220-240V, 50/60Hz
Dimensions	482 x 200 x 100 mm
Weight	2.5 kg
Recommended use	Live music mixing, DJ events, parties
Maintenance	Regular cleaning of connections and surfaces, cable inspection
Safety	Use in a dry environment, avoid electric shocks
Additional information	2-year warranty, technical support available

Frequently Asked Questions - PDMM804A Power Dynamics

How do I connect the Power Dynamics PDMM804A to my computer?

Use a USB cable to connect the PDMM804A to your computer. Make sure the DJ software is installed and the PDMM804A is selected as the input and output device.

The sound is low, what should I do?

Check the volume settings on the PDMM804A as well as in your DJ software. Also ensure that the cables are properly connected and the speakers are turned on.

How can I adjust the equalizer on the PDMM804A?

Use the equalizer knobs located on the PDMM804A control panel to adjust the bass, mid, and treble levels according to your preferences.

The microphone is not working, what should I do?

Check that the microphone is properly connected and the gain level is set on the PDMM804A. Test the microphone with another device to ensure it is working.

How do I update the firmware of the PDMM804A?

Visit the official Power Dynamics website to download the latest firmware version. Follow the provided instructions to perform the update.

The PDMM804A does not turn on, what should I check?

Make sure the device is properly plugged into a power source. Also check if the power cable is damaged and try another power outlet.

Can I use the PDMM804A with Bluetooth devices?

Yes, the PDMM804A supports Bluetooth connections. Enable Bluetooth on your device and select the PDMM804A from the list of available devices.

How can I get stereo sound?

Make sure you are using appropriate stereo cables and the PDMM804A is configured for stereo output. Also check your DJ software settings.

Is there a warranty for the Power Dynamics PDMM804A?

Yes, the PDMM804A typically comes with a two-year warranty. Check the specific terms with the retailer where you purchased the product.

USER MANUAL PDMM804A Power Dynamics

Power Dynamics Professional Audio

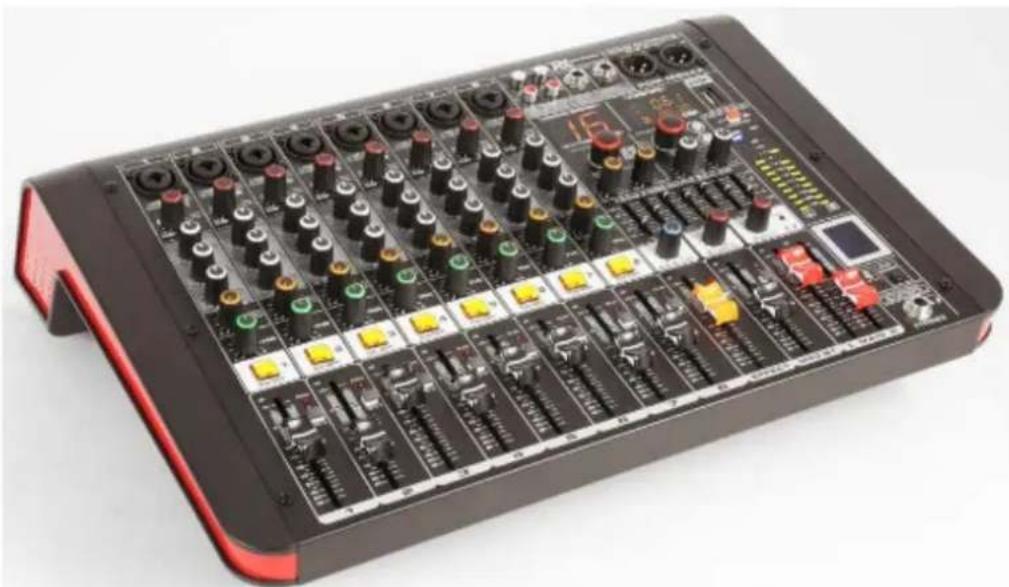

PDM-Series Powered Music mixers

Ref. nr.: 172.610; 172.612; 172.614; 172.616

INSTRUCTION MANUAL
GEBRUKSAANWIJZING
BEDIENUNGSANLEITUNG
MANUAL DE INSTRUCCIONES
MANUEL D'INSTRUCTIONS
INSTRUKCJA OBSLUGI

V1.0

Congratulations to the purchase of this Power Dynamics product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit. This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• This unit is with built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the unit for a long period of time. Or the battery may be damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
  Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ / 41^ and 35^ / 95^ .

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Power Dynamics cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the product be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

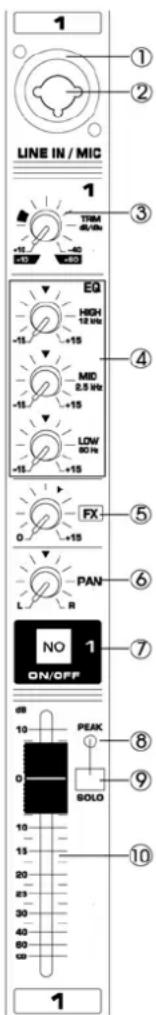

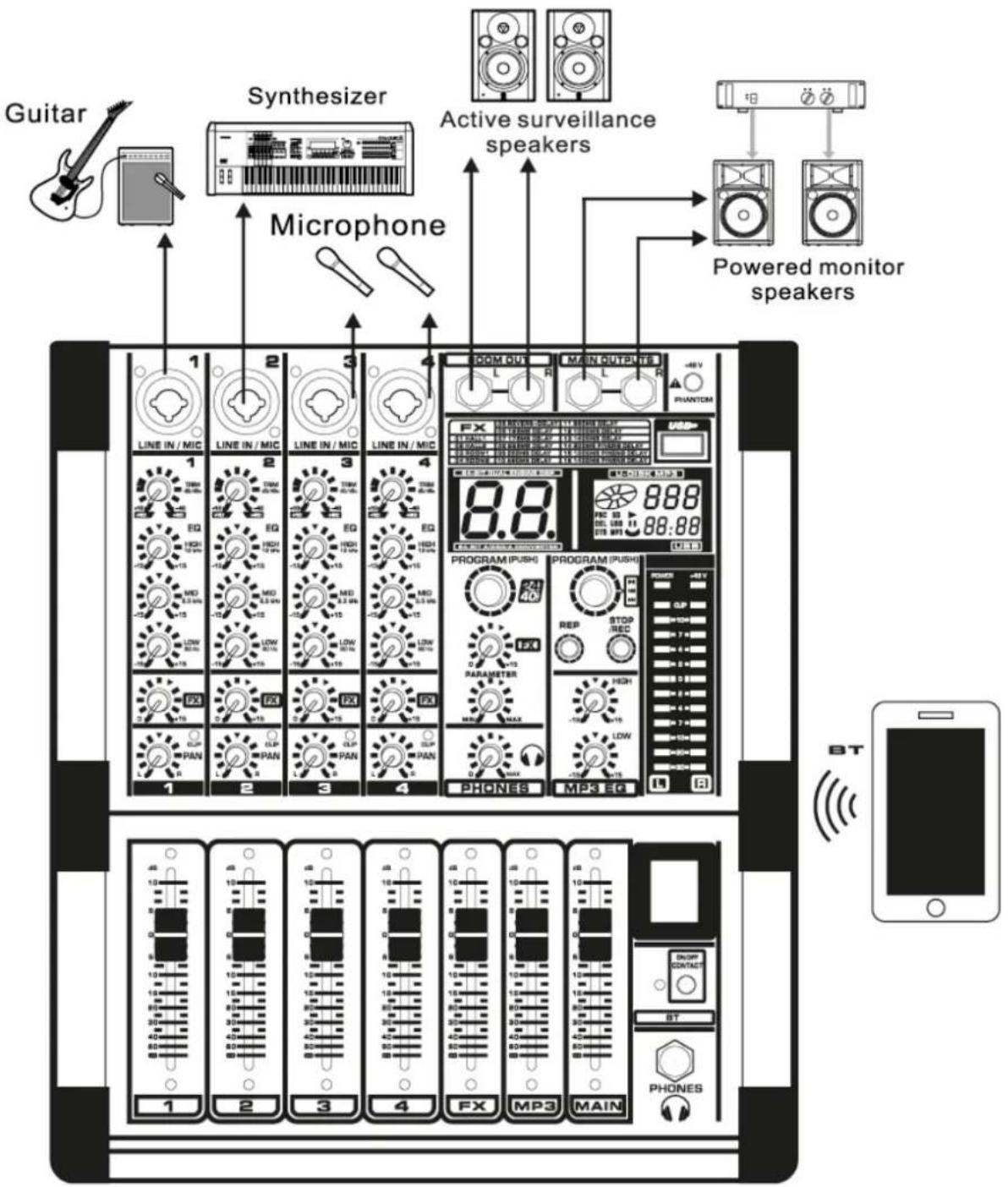

CONTROL ELEMENTS

1. Microphone Input

Balanced XLR input jacks.

1. LINE Input

Balanced 6.3mm (1/4^ ) jack line inputs. You can connect either balanced or unbalanced phone plugs to these jacks.

1. TRIM Control

Adjusts the input signal level. To get the best balance between the S/N ratio and the dynamic range, adjust the gain so that the peak indicator (8) lights only occasionally and briefly on the highest input transients. The +10dB to +60dB scale is the MIC input adjustment range. The +10dB to -40db scale is the line input adjustment range.

1. 3-BandsEqualizer

Three-band equalizer adjusts the channel's high, mid and low frequency bands. Setting the knob to the "O" position produces a fiat response in the corresponding band. Turning the knob to the right boosts the corresponding frequency band, while turning to the left attenuates the band.

1. FX Control

Adjusts the effect signal level.

1. PAN Control

The PAN control determines the position of the channel signal within the stereo image. When working with subgroups, you can use the PAN control to assign the signal to just one output, which gives you additional flexibility in recording situations.

1. ON/OFF Switch

Turn this switch on to send the signal to master. The switch lights when on.

1. Peak LED

The peak-led lights up when the input signal is driven too high. If this happens, back off the TRIM control and, if necessary, check the setting of the channel EQ.

1. Solo Switch

The solo switch is used to route the channel signal to the solo bus (Solo In Place) or to the PFL bus (Pre Fader Listen). This enables you to listen to a channel signal without affecting the main output signal.

1. Channel Fader

Adjusts the level if the channel signal. Use these faders to adjust the balance between the various channels.

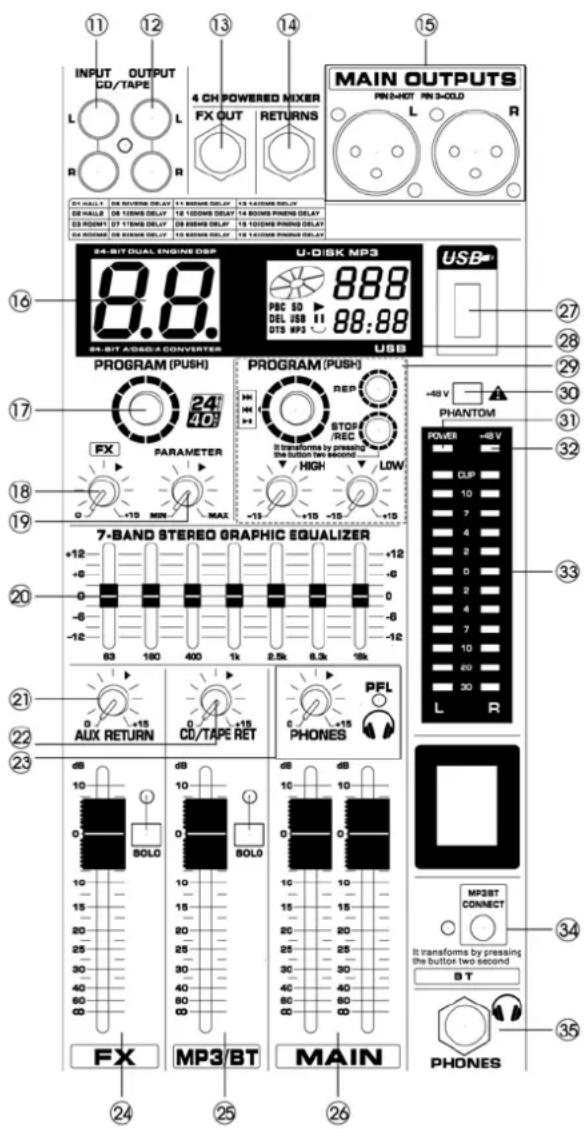

1. Line Input

These RCA jacks input for stereo sound source. Use this jacks when you want to connect a CD player directly to the mixer.

1. Line Output

These RCA jacks can be connected to an external recorder.

1. FX Output

The FX output jacks carries the master aux mix (from the channel FX controls). You can connect this to an external effects device to process the FX bus. The processed FX-signal can then be brought from the effects device back into the stereo Return jacks.

1. Returns stereo

The stereo aux return jacks generally serve as the return for the effects mix (created using the post-fader aux sends) by connecting the output of an external effects device.

15. Main Out

The XLR jacks deliver the mixer's stereo output. You use these jacks, for example, to connect to the power amplifier driving your main speakers.

16. Effect Display

Show the kind of effect.

17. Program Dial

You can select the effect preset by turning the program control. The display flashes with the number of the current preset. To recall the selected preset, press on the button; the flashing stops. You can also recall the selected preset with the foot switch.

18. FX Control

The FX-Output jacks carries the master aux mix (from the channel's FX controls). You can connect this to an external effects device to process the FX bus.

19. Repeat Control

Adjusts the parameter (depth, speed, etc.) for the selected effect.

20. 7-Bands Equalizer

The graphic stereo equalizer allows you to tailor the sound to the room acoustics.

21. Aux return Stereo

Adjusts the level at which the signal received at the return jacks (L and R), is sent to the stereo L/R bus.

22. Line In control

Adjusts the level of the signal sent from RCA Line in jacks (12).

23. Headphone Level

Use this control to adjust the output level of headphone.

24. FX Fader

Control effect input signal level.

25. MP3/BT Fader

Control the volume of MP3 and BT.

26. Main Mix Fader

Control the output level of the main mix.

27. USB Port

USB: can be play through U-DISK

28. MP3 Display

Show the MP3 time, song name and other play instruction.

29. MP3/BT Command

STOP: Press shortly to stop playing. Press for seconds for recording, also press 2 seconds to stop recording.

PREV/NEXT:Turning the program control.

PLAY: Press the program control knob.

REP: Repeating of single track or all tracks.

Two-band equalizer adjusts the high and low frequency of MP3/BT-player.

30. Phantom +48V

This switch toggles phantom power on and off. When the switch is on the mixer supplies +48V phantom power to all channels that have XLR input jacks. Turn this switch on when using one or more phantom-powered condenser microphones.

31. Power indicator

This indicator lights when the mixer power is on.

32. 48V Indicator

The red +48V LED lights up when phantom power is switched on. Phantom power is required to operate condenser microphones.

33. VU-Meter

Displays the signal of output.

NOTE: The "0" segment corresponds to the nominal output level. The peak indicator lights up red when the output reaches the clipping level.

34. BT-Function

Contact mobile phone or tablet.

Connecting: Press the "contact switch" for two seconds, then the signal LED light up, use your mobile phone or tablet and choose "MIXER-01" BT-connection.

35. Headphone

6.3mm (1 / 4^ ) input jack for connecting a headphone.

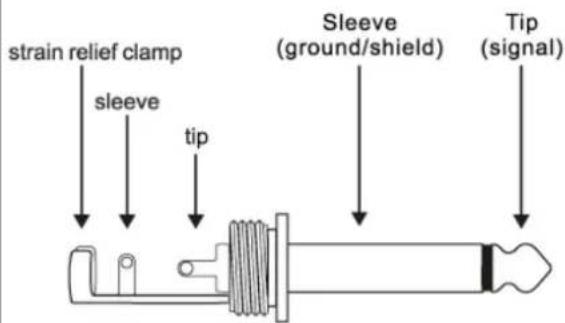

6.3:1/4" mono plug
Unbalanced "TS connector

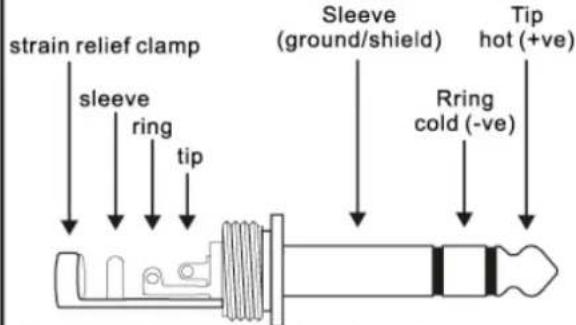

Balanced 1/4" TRS connector
For connection of balanced and unbalanced plugs, ring and sleeve have to be bridged at the stereo plug.

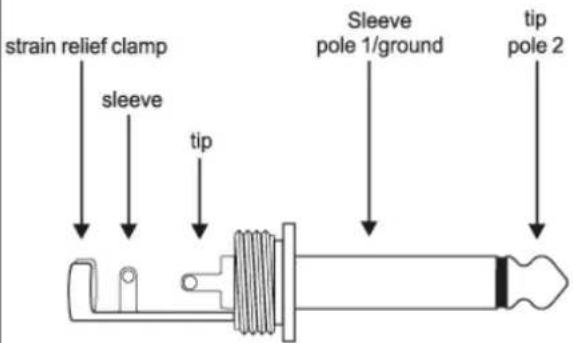

1/4" TS footswitch connector
The footswitch connects both poles momentarily

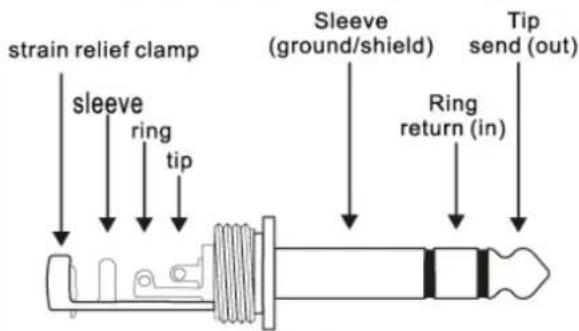

Insert send return 1/4" TRS connector
Connect the insert send with the input and the insert return with the output of the effects device.

Balanced use with XLR connectors
Input

1 = ground/shield
2 = hot (+ve)
3 = cold (-ve)

Output
For unbalanced use, pin 1 and pin 3 have to be bridged

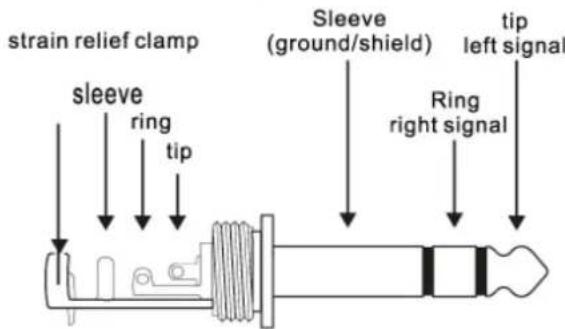

1/4"TRS headphones connector

MICROPHONE INPUTS (XENYX MIC PREAMP)
FADE-OUT ATTENUATION

Type	XLR, electronically balanced, discrete input circuit
Mic E.I.N. (20 Hz - 20 kHz)
@ 0 Ω source resistance	-134 dB / 135.7 dB A-weighted
@ 50 Ω source resistance	-131 dB / 133.3 dB A-weighted
@ 150 Ω source resistance	-129 dB / 130.5 dB A-weighted
Frequency response	<10 Hz - 150 kHz (-1 dB), <10 Hz - 200 kHz (-3 dB)
Gain range	+10 to +60 dB
Max. input level	+12 dBu @ +10 dB Gain
Impedance	approx. 2.6 kΩ balanced
Signal-to-noise ratio	110 dB / 112 dB A-weighted (0 dBu In @ +22 dB gain)
Distortion (THD+N)	0.005% / 0.004% A-weighted
Line input
Type	¼" TRS connector electronically balanced
Impedance	approx. 20 kΩ balanced
	10 kΩ unbalanced
Gain range	-10 to +40 dB
Max. input level	30 dBu

(CROSSTALK ATTENUATION)

Main fader closed	90 dB
Channel muted	89 dB
Channel fader closed	89 dB

FREQUENCY RESPONSE

Microphone input to main out
<10 Hz - 90 kHz	+0 dB / -1 dB
<10 Hz - 160 kHz	+0 dB / -3 dB

Stereo inputs

Type	14"TRS connector, electronically balanced
Impedance	approx. 20 kΩ
Max. input level	+22 dBu

EQ mono channels

Low	80 Hz / ±15 dB
Mid	100 Hz - 8 kHz/ ±15 dB
High	12 kHz/ ±15 dB

EQ stereo channels

Low	80 Hz/±15 dB
Low Mid	500 Hz/±15 dB
High Mid	3 kHz/±15 dB
High	12 kHz/±15 dB

Aux sends

Type	1/4" TS connector, unbalanced
Impedance	approx. 120 Ω
Max. output level	+22 dBu

Stereo aux returns

Type	14" TRS connector,
	electronically balanced
Impedance	approx. 20 kΩ bal. / 10 kΩ unbal.
Max. input level	+22 dBu

Main outputs

Type	XLR, electronically balanced and 1/4" TRS balanced
1622FX only:	1/4" TS connector unbalanced
Impedance	approx. 240 Ω symm. / 120 Ω unbalanced
Max. output level	+28 dBu
	+22 dBu

Control room outputs

Type	1/4" TS connector unbalanced
Impedance	approx. 120 Ω
Max. output level	+22 dBu

Headphones outputs

Type	14" TRS connector, unbalanced
Max. output level	+19 dBu / 150 Ω (+25 dBm)

DSP
MAIN MIX SYSTEM DATA

Converter	24-bit Sigma-Delta,64/128-times oversampling
Sampling rate	40 kHz

Noise

Main mix @ -∞ Channel fader @ -∞	-101 dB -100 dB
Main mix @ 0 dB, Channel fader @ -∞	-93 dB -96 dB -87 dB
Main mix @ 0 dB, Channel fader @ 0 dB	-81 dB -83 dB -80 dB

Power supply

Mains voltage	230V~, 50/60 Hz
Fuse	230V ~:T 12 A H 250V
Mains connection	Standard IEC receptacle

tronios

Sound & Light

Declaration of Conformity

Manufacturer: TRONIOS BV

Product Description: PDM-Series Powered Music mixers

Trade Name: POWER DYNAMICS

Regulatory Requirement: EN 301489-1 V1.9.2:2011

EN 301489-17 V2.2.1:2012

EN 300328 V1.9.1:2015

EN 60065:2014

I hereby declare that the product meets the requirements stated in Directives 2014/35/EU and 2014/30/EU and conforms to the above mentioned Declarations.

Almelo,

26-01-2017

Name : M. Velders

Signature

Specifications and design are subject to change without prior notice..

www.tronios.com

Copyright © 2017 by TRONIOS the Netherlands
