Carry Basic - Bike rack Cordo - Free user manual and instructions

Technical Features	Capacity: 2 bikes, Weight: 12 kg, Material: steel, Dimensions: 120 x 60 x 80 cm
Usage	Easy installation on hitch, Compatible with most bikes, Includes safety straps to secure the bikes in place
Maintenance and Repair	Regularly check fastenings and straps, Clean with a damp cloth, Lubricate moving parts if necessary
Safety	Approved according to current safety standards, Check proper locking before driving
General Information	Warranty: 2 years, Maximum supported weight: 60 kg, Compatible with 50 mm type hitches

Frequently Asked Questions - Carry Basic Cordo

How do I install the Cordo Carry Basic on my vehicle?

To install the Cordo Carry Basic, start by attaching the bike rack arms to your vehicle's tailgate following the instruction manual. Make sure the bike rack is securely fixed and does not move.

What types of bikes can be transported with the Cordo Carry Basic?

The Cordo Carry Basic is designed to carry bikes up to 15 kg each, with a maximum capacity of 2 bikes.

Is the Cordo Carry Basic compatible with all types of vehicles?

The Cordo Carry Basic is compatible with most hatchback vehicles, but it is recommended to check compatibility with your specific model in the instruction manual.

How do I secure my bikes on the Cordo Carry Basic?

To secure your bikes, use the straps provided with the bike rack. Make sure the bikes are firmly fixed and the straps are tight.

Can I use the Cordo Carry Basic with an electric bike?

Yes, but please check the weight of your electric bike. The total weight must not exceed 15 kg per bike.

How do I maintain my Cordo Carry Basic?

To maintain your Cordo Carry Basic, clean it regularly with soapy water and check the fastenings and straps to ensure they are in good condition.

What should I do if the straps of my Cordo Carry Basic are damaged?

If the straps are damaged, replace them immediately with compatible replacement straps to ensure the safety of your bikes.

Can the Cordo Carry Basic be used with a vehicle equipped with a glass tailgate?

No, it is not recommended to use the Cordo Carry Basic with a vehicle having a glass tailgate, as this could damage the glass.

What is the warranty for the Cordo Carry Basic?

The Cordo Carry Basic generally comes with a 2-year warranty, but check the specific details in the user manual.

USER MANUAL Carry Basic Cordo

UK: Assembly instruction and safety regulations - page 41

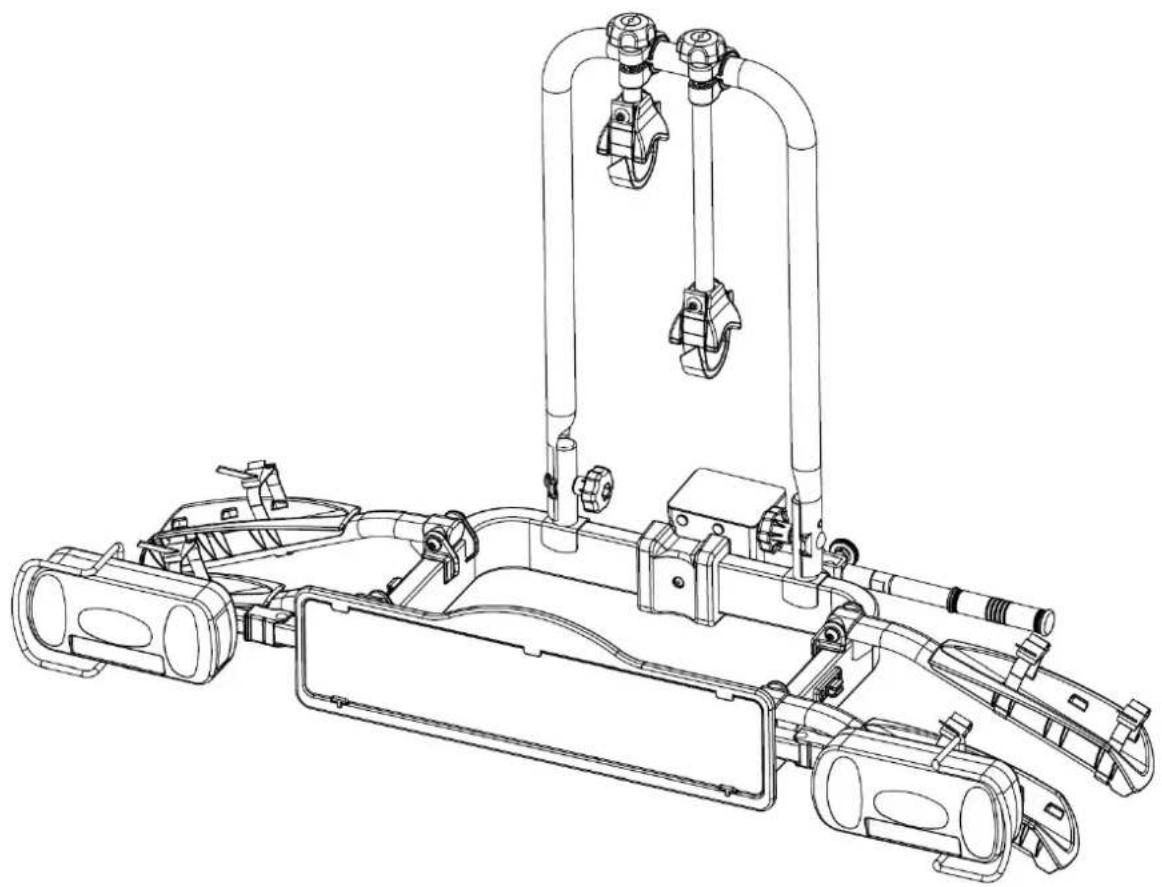

Carry basic/Carry advanced

CORDO

Europese typegoedkeur/Europäische Zulassung/European permission/Certification Européenne

E426R03/030441

INHOU

Voorwoord 4

Cordo Carry advanced:

Maximale kogeldruk	Gewicht fietsendrager	Max. belasting
50kg	13,5kg	36,5kg
60kg	13,5kg	46,5kg
75kg	13,5kg	Max. 50kg
90kg	13,5kg	Max. 50kg

VEREISTEN TREKHAAK

WAARSCHUWING!

Cardo Carry advanced

ONDERDELENLIJST

Cordo Carry advanced:

Cardo Carry advanced

STÜCKLISTE

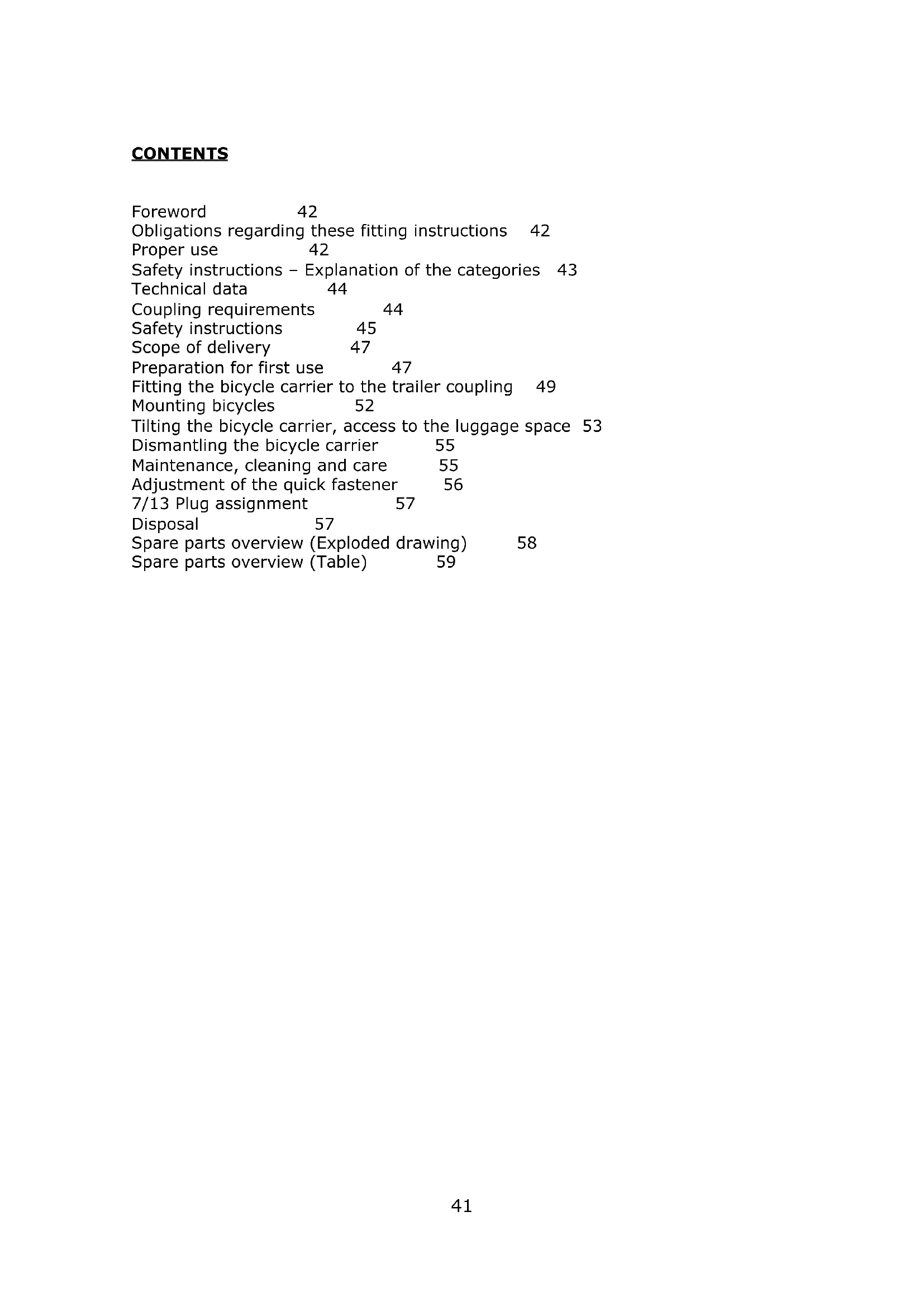

Obligations regarding these fitting instructions 42

Proper use 42

Safety instructions - Explanation of the categories 43

Technical data 44

Coupling requirements 44

Safety instructions 45

Scope of delivery 47

Preparation for first use 47

Fitting the bicycle carrier to the trailer coupling 49

Mounting bicycles 52

Tilting the bicycle carrier, access to the luggage space 53

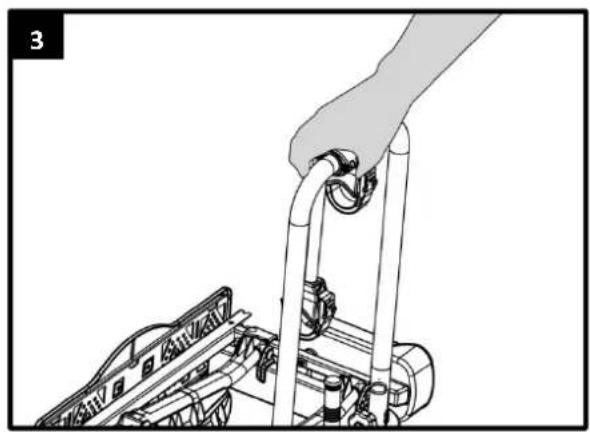

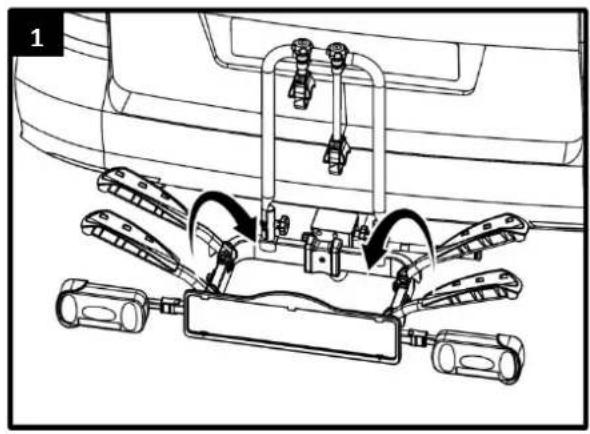

Dismantling the bicycle carrier 55

Maintenance, cleaning and care 55

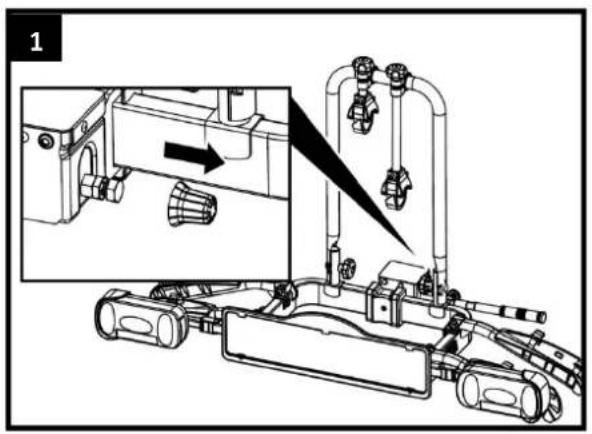

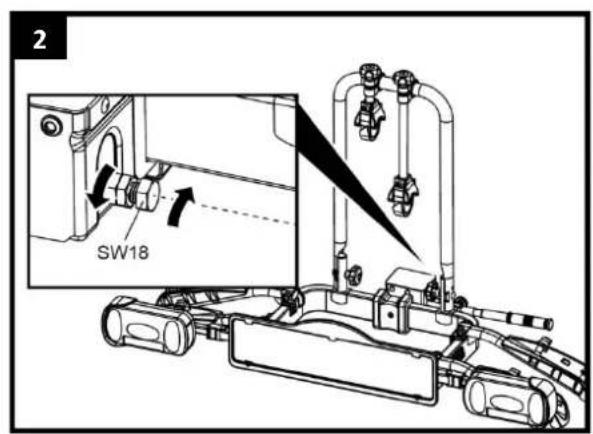

Adjustment of the quick fastener 56

7/13 Plug assignment 57

Disposal 57

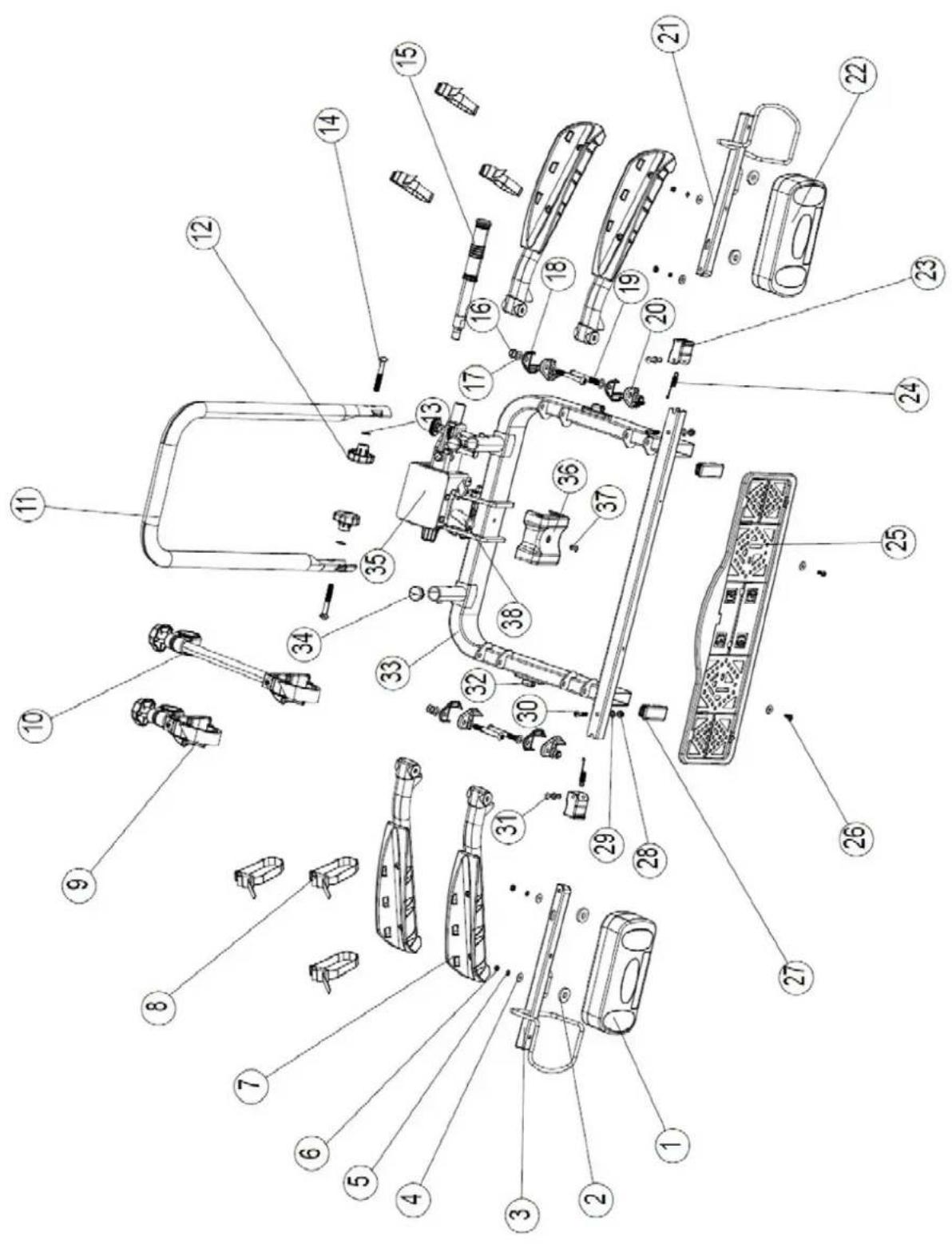

Spare parts overview (Exploded drawing) 58

Spare parts overview (Table) 59

FOREWORD

The Credo Carry basic/advanced bike carrier is part of the family of bike carriers manufactured by AGU BV.

These fitting instructions will assist you with the proper and safe fitting of the Cordo Carry basic/advanced bicycle carrier.

OBLIGATIONS REGARDING THESE FITTING INSTRUCTIONS

Every person who fits, cleans or disposes of this bicycle carrier must have taken note of and understood the complete contents of these fitting instructions.

Keep these fitting instructions ready to hand and safe at all times.

Hand on these fitting instructions when removing or passing on the bicycle carrier.

PROPERUSE

The bicycle carrier Cordo Carry basic/advanced is used for the transport of max. two bicycles.

It must be mounted only on trailer couplings which meet the requirements specified in the chapter "Coupling requirements". The permissible carrying capacity of the bicycle carrier must not be exceeded under any circumstances.

Proper use also includes the observation of all information provided in these fitting instructions, and in particular the safety instructions. Any other form of use constitutes improper use, and can result in personal injury or material damage. AGU BV accepts no liability for damage resulting from improper use.

SAFETY INSTRUCTIONS - EXPLANATION OF THE CATEGORIES

You will find in these instructions the following categories of safety instructions:

WARNING!

Personal injury possible:

Instructions under the heading WARNING! warn of potentially impending danger. Failure to avoid such danger may result in serious or even fatal injuries

CAUTION!

Personal injury or material damage possible:

Instructions under the heading CAUTION! warn of possibly impending danger. Failure to avoid such danger may result in slight or minor injuries. The product or other nearby objects may be severely damaged.

ATTENTION!

Personal injury or material damage possible:

Instructions under the heading ATTENTION! warn of a potentially harmful situation. Failure to avoid such situations may result in damage to the product or other nearby objects.

NOTE!

Other instructions:

Useful tip. Facilitates the operation or fitting of the product or serves for better understanding.

The safety symbol used does not replace the text of the safety instruction. Read the safety instruction and follow it exactly!

TECHNICAL DATA

	Cardo Carry basic	Cardo Carry advanced
Itemnumber	91744	91745
Tiltable	No	Yes
Material	Steel/plastic	Steel/plastic
Own weight	13kg	13,5kg
Carrying capacity (max.)	50kg	50kg

The bicycle carrier is suitable for the transport of two bicycles at most. Please check the maximum permissible ball load. You can find it on the identification plate of the tow bar of your car (for most cars this is 75kg ). The total weight of the bicycle carrier with the bicycles cannot exceed the maximum permissible ball load of the tow bar.

Cordo Carry basic:

Max. permissible ball load	Weight bicycle carrier	Max. carrying capacity
50kg	13kg	37kg
60kg	13kg	47kg
75kg	13kg	Max. 50kg
90kg	13kg	Max. 50kg

Cordo carry advanced:

Max. permissible ball load	Weight bicycle carrier	Max. carrying capacity
50kg	13,5kg	36,5kg
60kg	13,5kg	46,5kg
75kg	13,5kg	Max. 50kg
90kg	13,5kg	Max. 50kg

COUPLING REQUIREMENTS

WARNING!

Personal injury is possible due to breakage of the trailer coupling.

The coupling could break if the bicycle carrier is fitted to a coupling made of a too soft material.

• Fit the bicycle carrier only to a coupling made of steel St52, grey cast iron GG52 or higher quality.
• Never fit the bicycle carrier to a coupling made of aluminium, other light metals or plastic.
• Only suitable for use on the coupling of a passenger car.

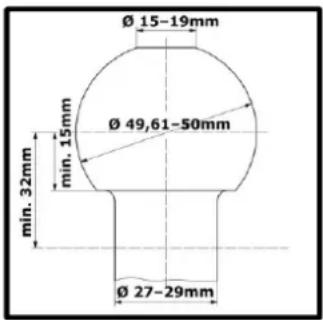

Fit the bicycle carrier only to trailer couplings with the following properties:

Material: min. steel St52 or grey cast iron GG52

D-value: >7,6 kN

Tow ball: 50mm (class A-50 according

Note the instructions of the coupling manufacture.

SAFETY INSTRUCTIONS

Follow the fitting instructions carefully. Failure to follow the instructions can lead to personal injuries and material damage.

If you are not sure about correct fitting, ask your dealer or the manufacturer for further information. Neither the manufacturer nor dealer are liable for damages which are due to improper use or fitting.

Check the bicycle carrier and the load regularly: you are required to do so and may be held liable in case of damage.

NOTE

The legal regulations and provisions on the transport of goods on the back of your vehicle apply when driving with a mounted bicycle carried.

WARNING!

Personal injury or material damage due to changed vehicle driving characteristics.

Driving with the bicycle carrier fitted will affect the driving characteristics of your vehicle.

• Adjust your speed to the new driving characteristics.
• Never exceed a speed of 120 km/h .
• Avoid sudden and jerky steering movements.
• Remember that your vehicle is longer than usual.

WARNING!

Personal injury or material damage due to overloading.

Exceeding the max. carrying capacity of the bicycle carrier or the permissible bearing load of the trailer coupling or the permissible overall weight can lead to serious accidents.

• Observe the information on the max. carrying capacity, permissible bearing load and permissible overall weight of your vehicle. Never exceed these specifications.

WARNING!

Personal injury or material damage due to loss of the bicycles.

Carrying bicycles without using the safety straps can lead to accidents.

• Before the start of every journey, check the correct and firm attachment of the strap around the bikes and the frame holder bracket of the carrier.
• Before the start of every journey, check the correct and firm attachment of both straps around the front wheel, and the strap around the rear wheel of the bicycle.
• Tighten the straps if necessary.
• Before the start of every journey, check that the straps are not worn or damaged.
• Worn or damaged straps must be replaced with undamaged straps before the start of the journey. The straps used must be approved by AGU BV.

WARNING!

Personal injury or material damage due to incompletely fitted bicycle carrier.

Driving with a folded bicycle carrier can lead to accidents.

The moving parts of bicycle carrier constitute a source of danger if not properly fitted.

• Remove the bicycle carrier if it is not needed.
• Never drive with a folded bicycle carrier.

WARNING!

Personal injury or material damage due to projecting parts.

Parts projecting beyond the edge of the vehicle or bicycle carrier can cause personal injury or material damage when driving.

• Fit only such parts which do not project beyond the edge of the vehicle or bicycle carrier.

WARNING!

Personal injury or material damage due to tarpaulins.

Tarpaulins increase the air resistance. They can become loose and fly about leading to serious accidents.

• Never use tarpaulins or covers.

WARNING!

Personal injury or material damage due to loss of the bicycles.

After the attachment, the carrier first settles properly into the coupling after driving several kilometres.

• Check the attachment of the carrier for secure attachment after driving several kilometres.

Redo the attachment if it is loose.

WARNING!

Personal injury or material damage due to the breaking off of the bicycle carrier.

Driving with a mounted bicycle carrier over difficult terrain can lead to the carrier breaking off.

Do not use the bicycle carrier when driving over difficult terrain.

Only suitable for use on the hitch of a passenger car.

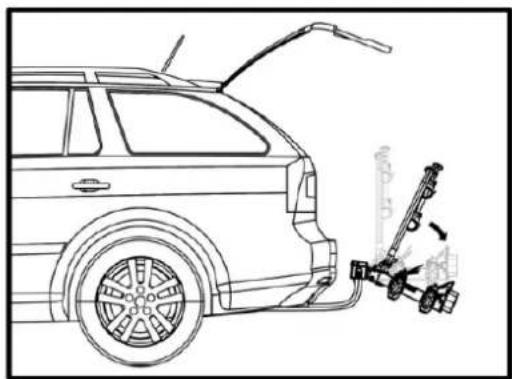

ATTENTION!

Material damage due to opening tailgate.

The tailgate could impact against the bicycle carrier and be damaged.

• Switch off electric tailgates and operate them manually.

• Fold down the bicycle carrier before opening the tailgate.

ATTENTION!

Material damage due to hot exhaust gases.

Damage can be caused to the bicycle carrier or the bicycles if the exhaust pipe is too close.

• Fit an exhaust deflector if necessary.

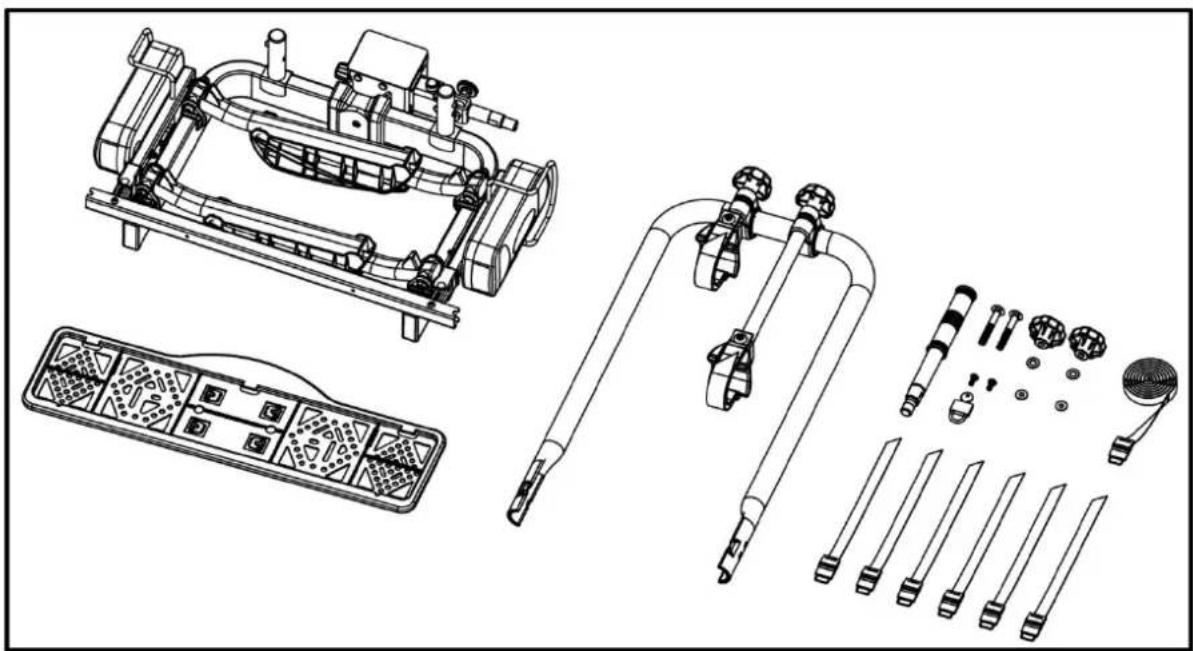

SCOPE OF DELIVERY

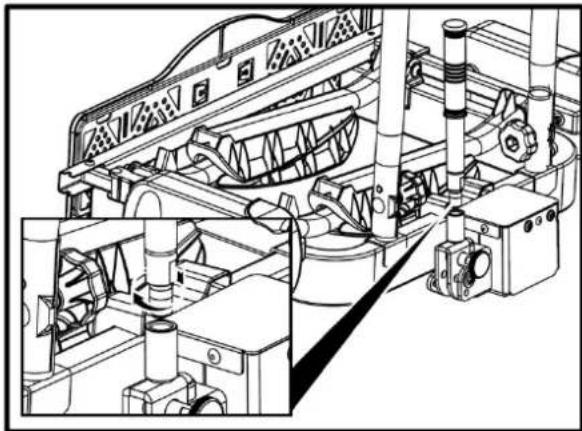

PREPARATION FOR FIRST USE

The bike carrier still has to be partially assembled.

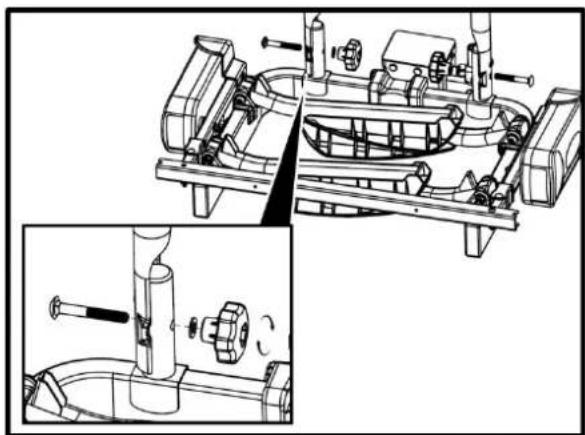

The U-frame:

Slide the U-frame against the outside of the U-frame holders of the base frame. Secure this U-frame with the supplied carriage bolts (M8x60), washers and plastic rotary knobs. Make sure the plastic rotary knobs are on the inside (see drawing).

Please note: firmly tighten both rotary knobs so that the U-frame will come on its place well.

Quick coupling handle: Tighten the quick connector handle firmly into the quick connector handle socket. Use a spanner if necessary.

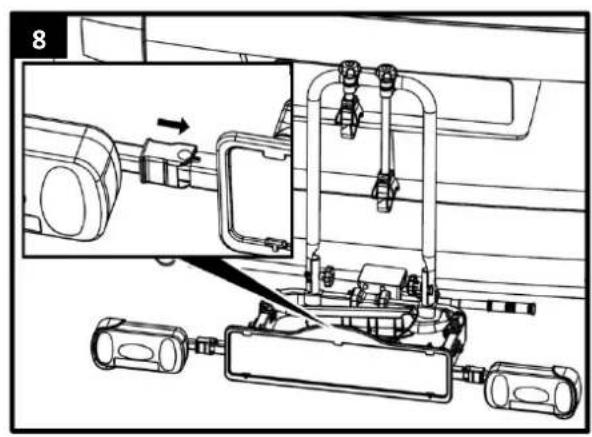

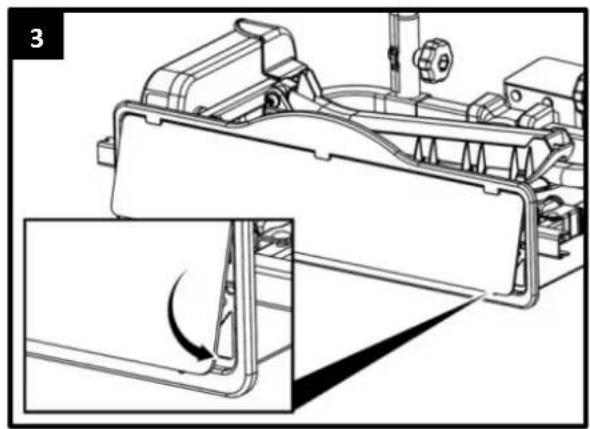

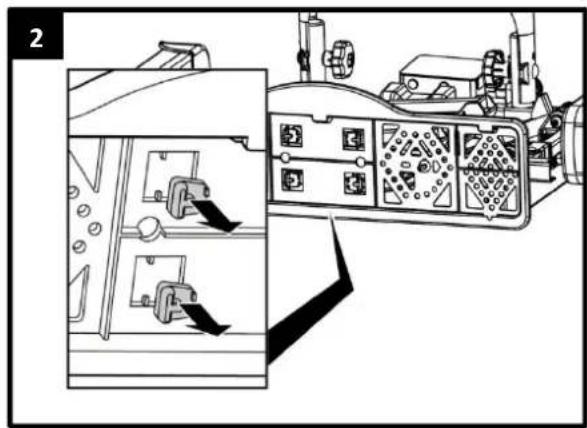

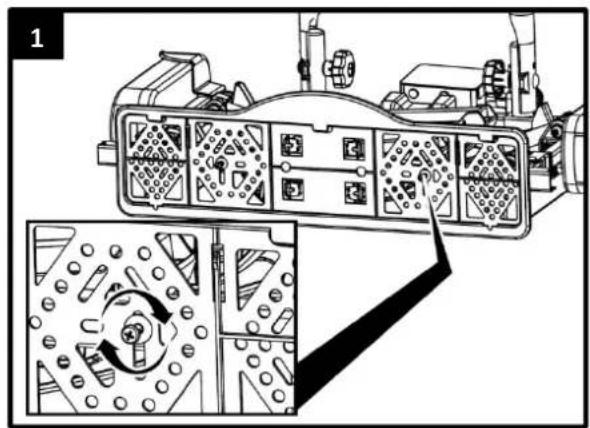

The license plate holder and license plate: Loosen and remove the little screws intended for the mounting of the number plate holder from the light holder rail and fasten the number plate holder to the rail. The number plate holder has to be level with the lighting.

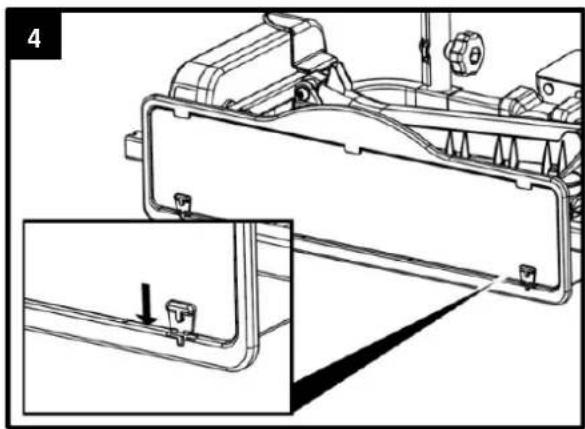

Place the license plate in the license plate holder. The clips (2) to mount the license plate can be pressed out and are in the license plate holder (see drawing 2).

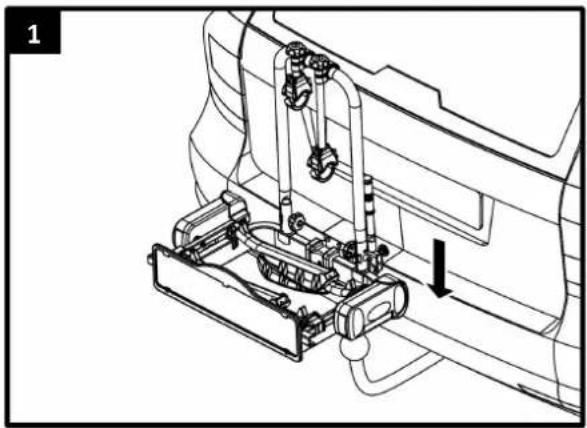

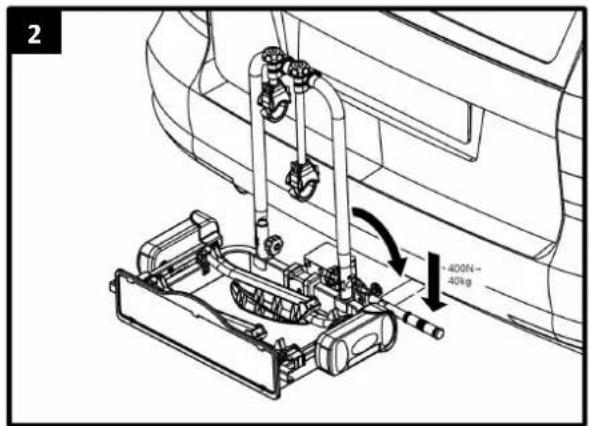

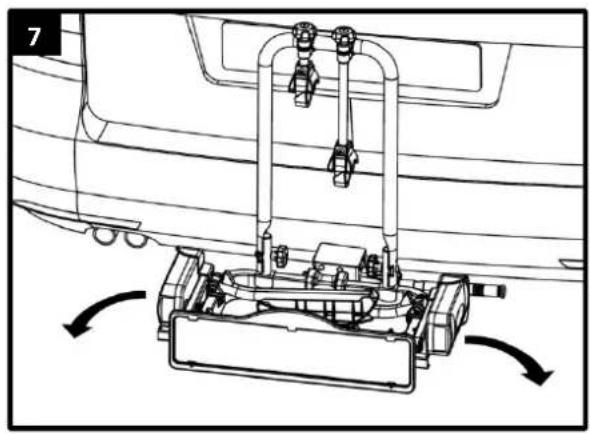

FITTING THE BICYCLE CARRIER TO THE TRAILER COUPLING

Park your vehicle on a level surface. Apply the handbrake.

WARNING!

Personal injury or material damage due to damaged bicycle carrier.

Damage of the carrier, e.g. by bent parts, cracks or scratches, prevent the safe operation of the carrier.

• Do not fit the bicycle carrier if it is damaged in any way.
• Proceed as described in the chapter "Maintenance".

WARNING!

Personal injury or material damage due to loss of the bicycle carrier during the journey.

A faulty or defective connection between the bicycle carrier and trailer coupling can lead to the detachment of the bicycle carrier.

• Replace the trailer coupling if it is damaged.
• Clean the trailer coupling of dirt, dust and grease.

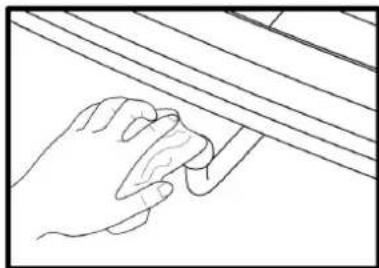

NOTE

There is often a layer of paint on the coupling ball. For the best possible attachment of the bicycle carrier, this paint coating should be carefully removed. Note the instructions of the coupling manufacturer.

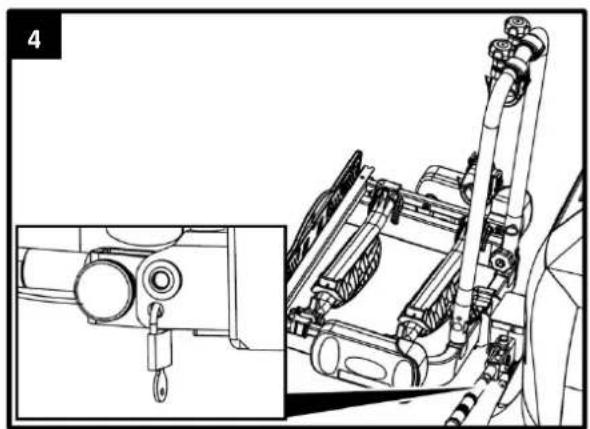

WARNING!

Personal injury or material damage due to unsecure bicycle carrier. If the lever is not secured by locking, the bicycle carrier could become detached from the vehicle during the journey

• Lock the bicycle carrier.
• Check that you have locked the lever and removed the key. Locking the bicycle carrier also prevents its possible loss by theft.

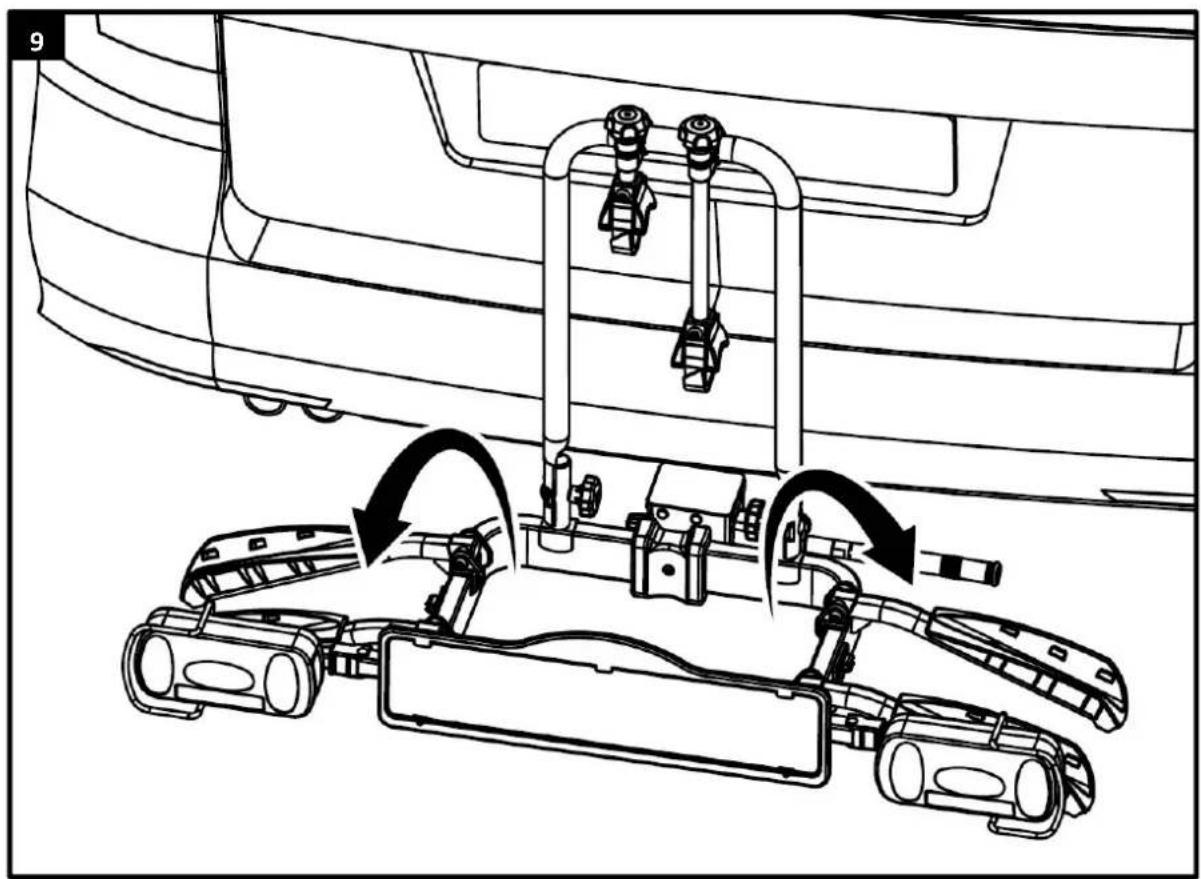

WARNING!

Personal injury or material damage due to loss of the bicycle carrier during the journey.

A loose connection between the bicycle carrier and trailer coupling can lead to detachment of the bicycle carrier.

• Check the bicycle carrier for secure attachment.
• Repeat steps 1 to 4 in the event of a loose connection. If this brings about no improvement, the quick fastener may need to be adjusted, see chapter "Adjustment of the quick connector".

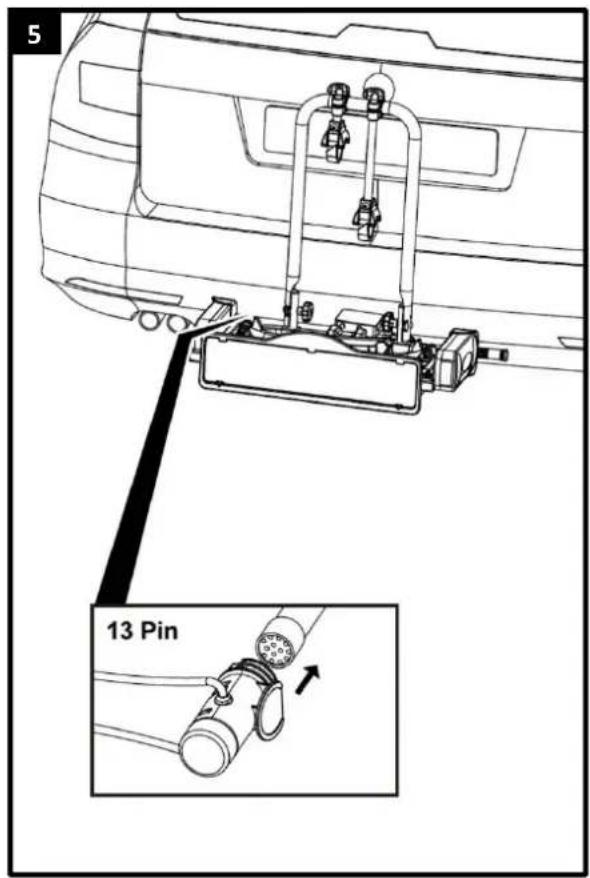

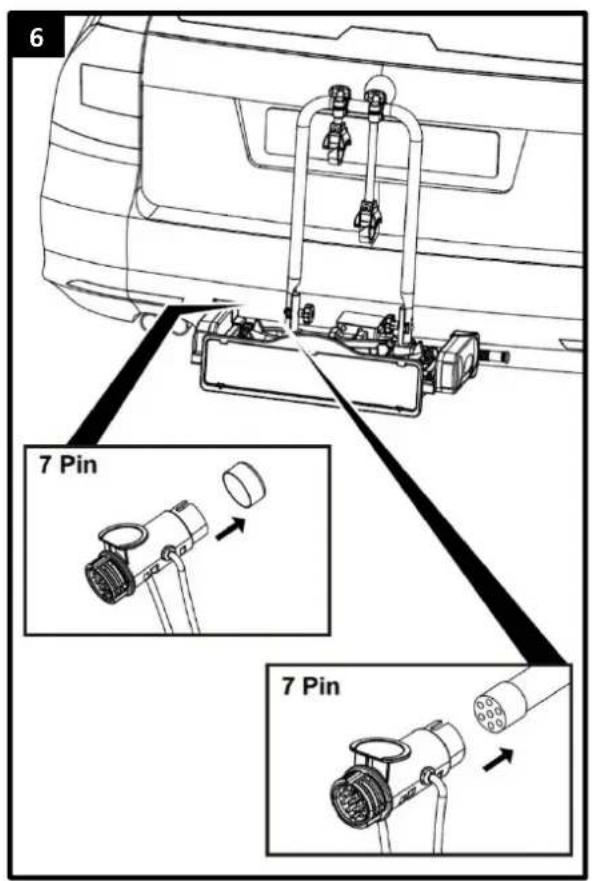

WARNING!

Personal injury due to not being seen by other road-users.

Driving with a defective lighting system can lead to accidents.

• Check the correct operation of the lighting system before the start of every journey.
• Replace any defective bulbs.
• Check the connection between the plug and coupling.

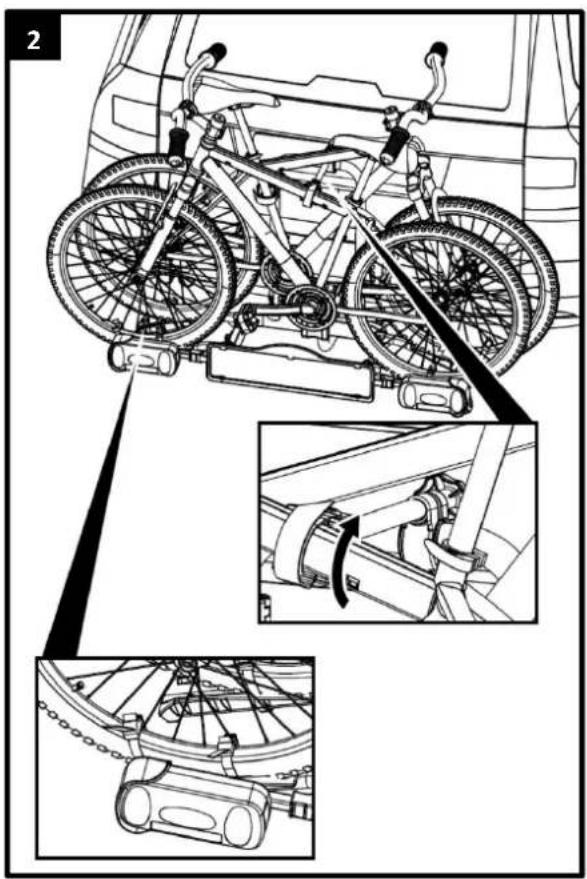

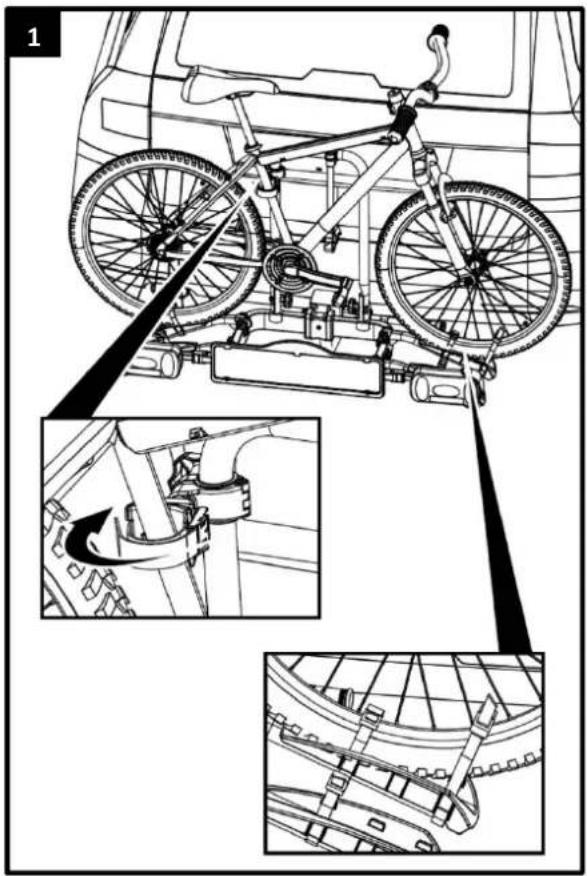

MOUNTING BICYCLES

ATTENTION!

Personal injury or material damage possible due to loose parts. Improperly tightened parts on the bicycles can become loose during the journey.

• Remove all parts not firmly attached to the bicycle, such as bicycle pumps, panniers, navigation devices or batteries.

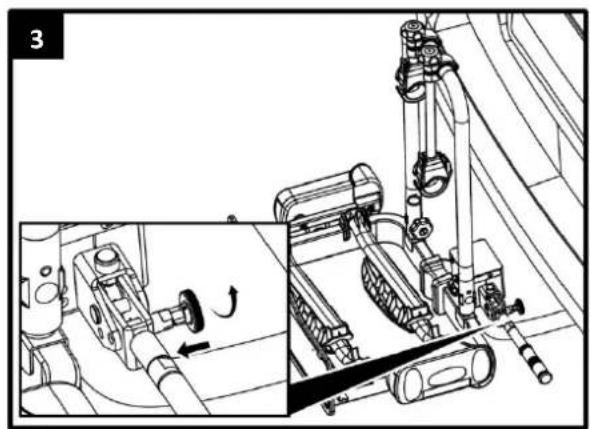

NOTE

In order to improve the driving characteristics of your vehicle, mount the heavier bicycle first. If carrying only one bicycle, this should be mounted in the rail closest to the rear of the vehicle.

NOTE

The frame holders are flexible to place on your bicycle. Try the first time which position in your situation works best (and most stable affirmative is). It is important to place the frame holder as high as possible, giving maximum stability.

WARNING!

Personal injury or material damage due to loss of the bicycles.

Carrying bicycles without using the safety straps can lead to accidents.

Before the start of every journey, check the correct and firm attachment of the strap around the bikes and the Frame holder bracket of the carrier (see step 3).
Before the start of every journey, check the correct and firm attachment of both straps around the front wheel, and the strap around the rear wheel of the bicycle.
- Tighten the straps if necessary.
- Before the start of every journey, check that the straps are not worn or damaged.
- Worn or damaged straps must be replaced with undamaged straps before the start of the journey. The straps used must be approved by AGU BV.

WARNING!

Personal injury or material damage due to loss of a bicycle during the journey.

A loose connection between the bicycle carrier and bicycle can lead to detachment of the connection and loss of the bicycle.

• Check the bicycles for secure and complete attachment.
• Repeat steps 1 to 3 of this chapter in the event of a loose connection.

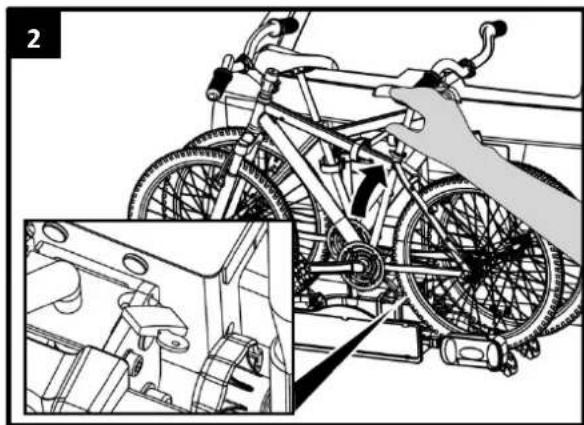

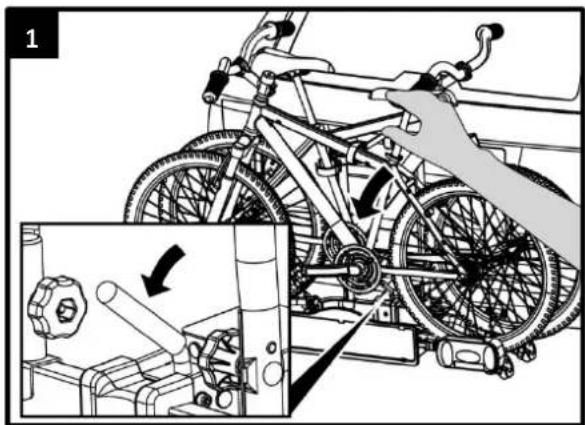

TILTING THE BICYCLE CARRIER, ACCESS TO THE LUGGAGE SPACE

Only applicable for the de Cordo Carry advanced

ATTENTION!

Material damage due to opening tailgate.

The tailgate could impact against the bicycle carrier and be damaged.

• Switch off electric tailgates and operate them manually.
• Fold down the bicycle carrier before opening the tailgate.

CAUTION!

Personal injury or material damage due to sudden tilting down of the carrier.

Body parts or objects under or in front of the carrier when it is tilted down may be trapped.

• Make sure that there is nothing under the carrier.
• Keep all body parts, and particularly your head, clear, and maintain a suitable safety distance.
• Hold the carrier by the bicycle when tilting it down. With your other hand loosen the locking device and then tilt the carrier downward with your hand (see fig. 1)

CAUTION!

Personal injury or material damage possible when tilting up the carrier. Body parts or objects between the carrier and the vehicle when it is tilted up may be trapped.

• Make sure that there is nothing between the carrier and the vehicle.
• Remove any objects between the carrier and the vehicle.

WARNING!

Personal injury or material damage possible due to loss of the bicycle carrier during the journey.

A bicycle carrier which is not tilted up can result in detachment of the carrier or the coupling.

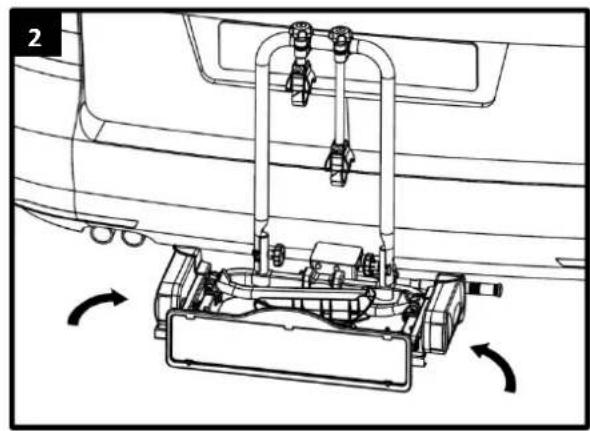

• Tilt the carrier up before the start of the journey (see fig. 2).
• Raising the rack platform engages it back into the transport position.
• To secure the tilting mechanism during travel, hook the second padlock into one of the holes of the tilting mechanism.

DISMANTLING THE BICYCLE CARRIER

To dismantle the bicycle carrier, proceed in the reverse order to fitting:

• Folding bicycle carrier together.
• Remove lighting connector from the car.
• Release the quick-release lever and pull the wearer of the device.

MAINTANANCE, CLEANING AND CARE

Check the bicycle carrier for wear before the start of every journey.

Defective metal parts and straps in particular must be replaced.

Please refer to our customer service for the replacement of parts.

Any modification of original parts and materials or the construction of bicycle carrier can adversely affect its safety and serviceability.

The steel parts of the bicycle carrier are protected in the works against corrosion by a powder coating. If this paint coating is damaged, please have the damage rectified professionally as soon as possible.

Under normal conditions and use, the bicycle carrier only requires cleaning, and is otherwise maintenance free.

The bicycle carrier can be cleaned with a mild cleaning agent, with warm water and/or a soft cloth. First remove any coarse dirt and dust.

Do not use any solvents or similar cleaning agents, since these can damage the bicycle carrier.

Clean the bicycle carrier regularly when used in coastal areas or in winter conditions in order to wash off any salt and prolong the service life of the bicycle carrier.

Store the bicycle carrier in a dry and protected area when not used for extended periods (e.g. over winter) in order to prolong the service life of the bicycle carrier.

ADJUSTMENT OF THE QUICK CONNECTOR

Carry out this maintenance operation only if the bicycle carrier cannot be fitted firmly to the trailer coupling, as described in the chapter "Fitting the bicycle carrier to the trailer coupling".

Remove the bicycle carrier from the trailer coupling, as described under "Dismantling the bicycle carrier".

• Loosen the locking nut slightly (fig. 2).
• Screw in the setting screw one quarter of a turn (fig. 2).

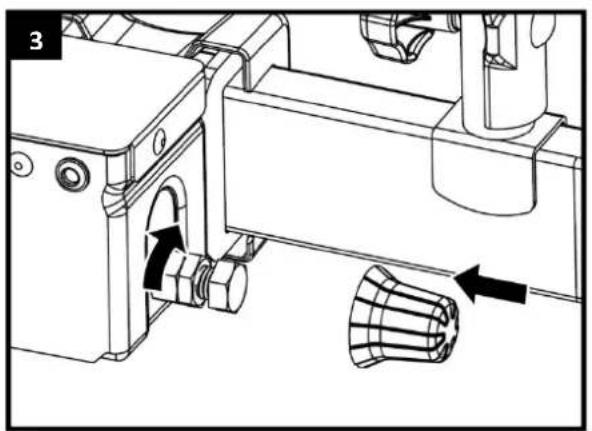

• Tighten the locking nut (fig. 3)
• Check whether the carrier is now firmly seated on the trailer coupling, as described under "Fitting the bicycle carrier to the trailer coupling". If not, repeat the above steps.

7/13 PIN CONNECTOR

This bike carrier is equipped with a lighting system. This system can be connected to the tow bar power socket of your car. Seeing that there are different kinds of sockets that require different kinds of plugs, this carrier comes with the usual 7pin plug and the 13pin plug (Jaeger). As a result, the carrier can be used with any tow bar!

Both plugs are in one housing. Please cover the plug you don't use with the supplied cover.

This information is only for the retrofitting by a specialised dealer. A retrofitting by non trained persons is not permitted.

Universal system 7 pin 3/54 1/8 2/64G 7/58L 3/31 4/R 6/54 7/58L	1/L 2/54G 3/31 4/R 5/58R 6/54 7/58L	Indicator left Rear fog light Ground Indicator right Rear light right Stop lights Rear light left The reversing light is not working via the 7-pin plug!	yellow blue white green brown red black
Jaeger system 13 pin (DIN 72.570) 7 8 9 6 4 1 2 10 1 3 2 10 1 1 1 2 1 2 1 3 1 3	1 2 3 4 5 6 7 8 9 10 11 12 13	Indicator left Rear fog light Ground Indicator right Rear light right Stop lights Rear light left Reversing light Not used Not used Not used Ground Not used

DISPOSAL

Local regulations must be observed for the disposal of the product.

The packaging should also be sorted by type and disposed of in the relevant collection containers.

Further information is available from your communal disposal point.

EXPLODED VIEW

Cardo Carry advanced

PART LIST

Pos nr.	Description	QTY	Remark
1	Rear light left	1
2	Plastic washer	4
3	Lampholder tube left	1
4	Washer	4	M5
5	Spring washer	4	M5
6	Nylon nut	4	M5
7	Wheelholder	4
8	Wheelholder strap	6
9	Frameholder short	1
10	Frameholder long	1
11	U-tube	1
12	Plastic knob	2	M8
13	Washer	10	M8
14	Carriage bolt	2	M8x60
15	Quick connector handle	1
16	Nylon nut	4	M8
17	Padlock	2
18	Plastic hinge cover V1	4
19	Inner-socket bolt	4	M8x65
20	Plastic hinge cover V2	4
21	Lampholder tube right	1
22	Rearlight right	1
23	Plastic locking	2
24	Spring	2
25	License plate holder	1
26	Screw	2
27	Plastic cover	2
28	Nylon nut	2	M6
29	Washer	6	M6
30	Inner-socket bolt	2	M6x35
31	Rivet pin	2
32	Plastic clip	2
33	Mainframe with quick connector(Carry basic)/Mainframe(Carry advanced)	1
34	Plastic cover	2
35	Quick connector*	1
36	Plastic cover	1
37	Rivet	1
38	Tilting handle*	1

• Only applicable for the de Cordo Carry advanced

SOMMAIRE

Preface 61

Cordo Carry advanced :

Force de traction maximale de l'attache remorque	Le poids à vide du porte-vélo	Charge maximum
50kg	13,5kg	36,5kg
60kg	13,5kg	46,5kg
75kg	13,5kg	Max. 50kg
90kg	13,5kg	Max. 50kg

CONDITIONS D'ACCOUPLEMENT

AVERTISSEMENT!

PRISE MALE 7/13 BROCHES

Cordo Carry advanced

APERÇU DES PIECES DE RECHANGE (TABLEEAU)
