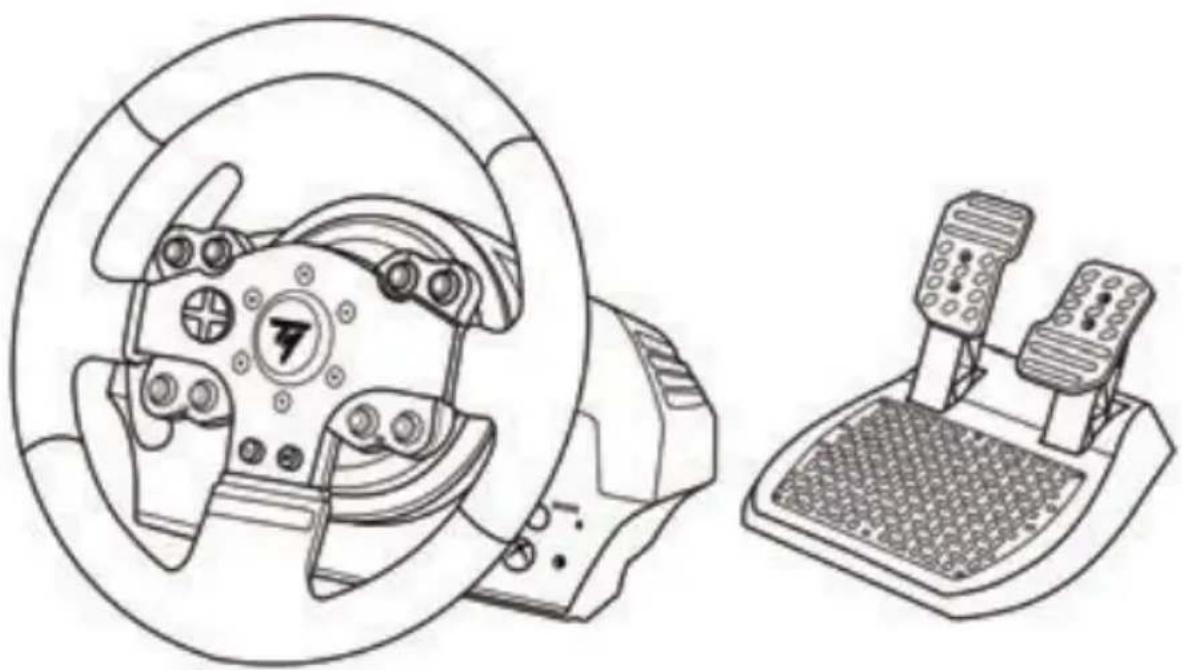

USER MANUAL TMX Pro THRUSTMASTER

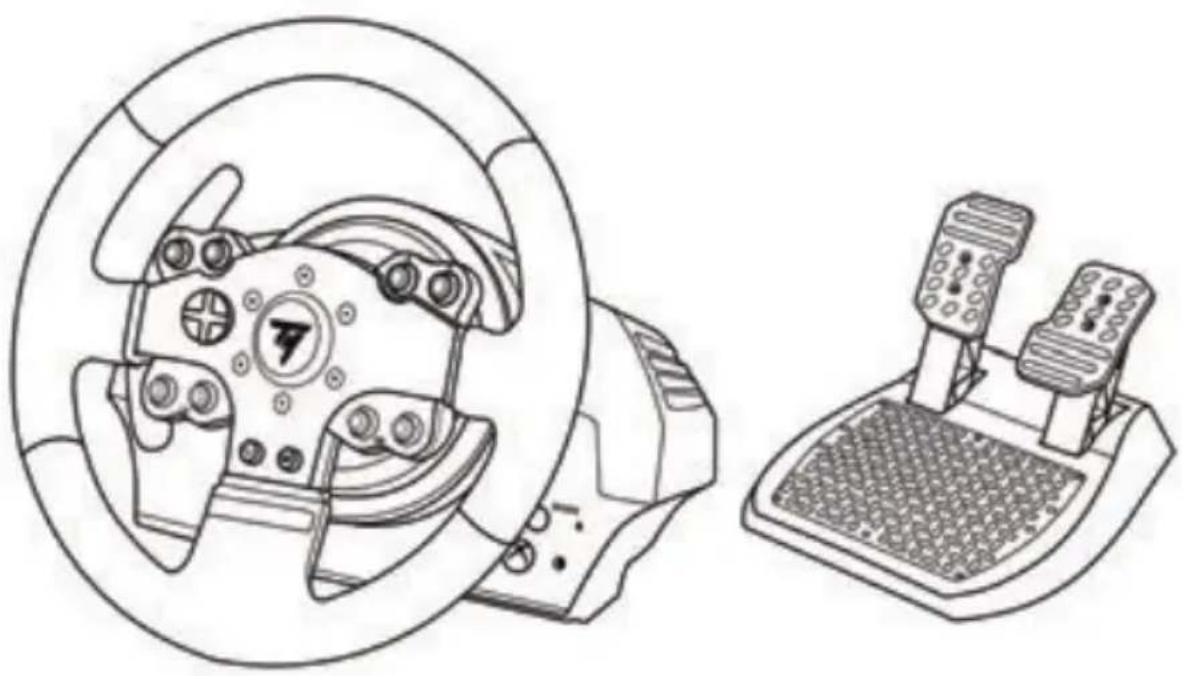

Line drawing of a steering wheel and a control console (no text or symbols)

WARNING:

To ensure that your TMX racing wheel functions correctly with Xbox One and PC games, you may be required to install the game's automatic updates (available when your console or PC is connected to the Internet).

TECHNICAL FEATURES

Technical diagram of a mechanical component with numbered parts and a separate schematic view labeled 10, 11.

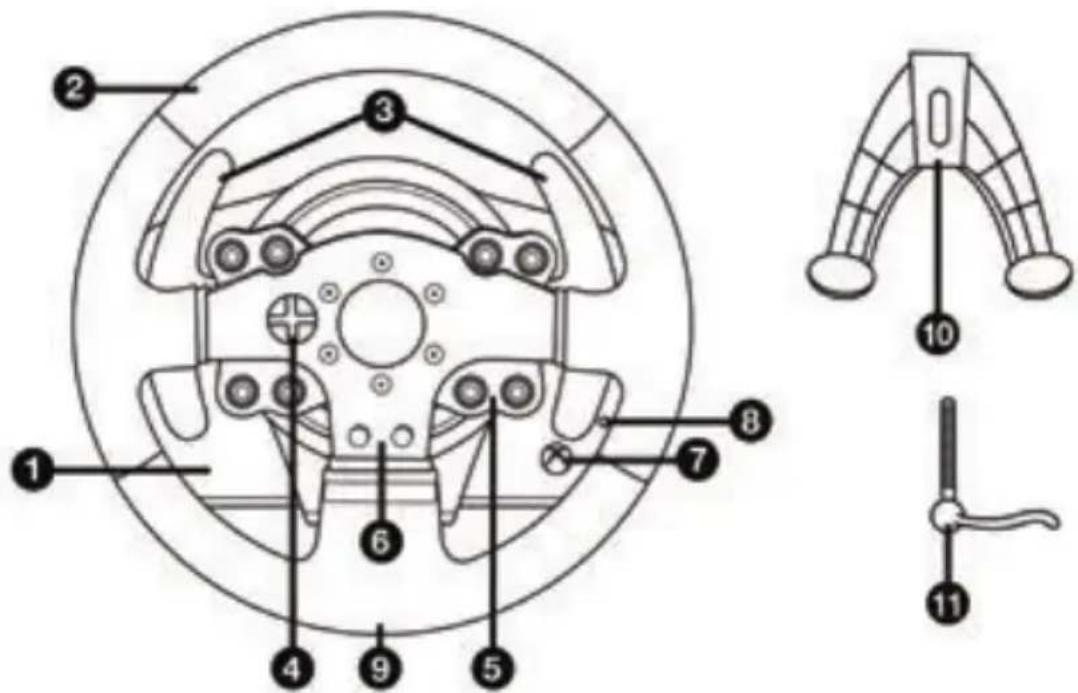

1 TMX base
2 Wheel
3 2 sequential paddle shifters (up & down)
4 Directional buttons
5 Action buttons
6 Action buttons

7 Xbox Guide button + White indicator light
8 MODE button + Red/Green indicator light
9 Large threaded hole (for attachment system and fastening screw)
10 Attachment system
11 Metal fastening screw

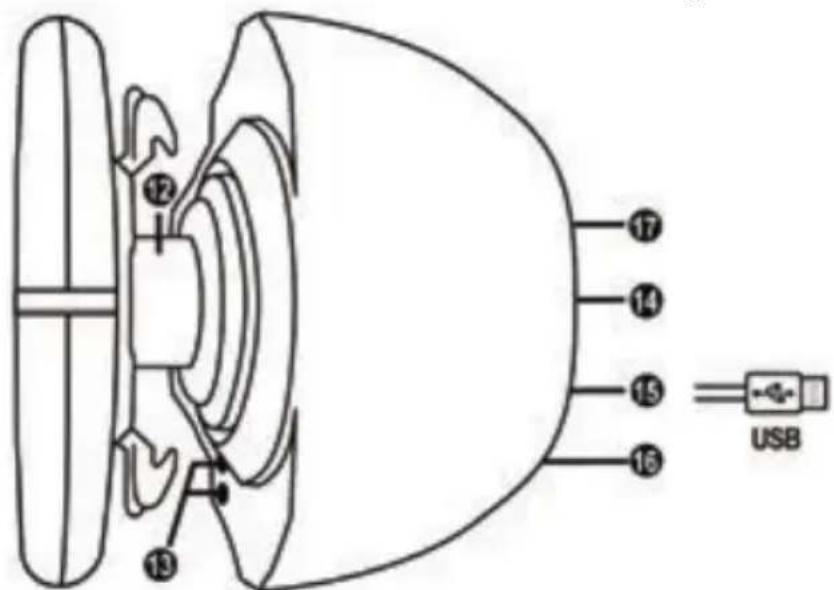

17 14 15 16 USB

12 Steering axis
13 Xbox Guide button + White indicator light
14 Power cable

or Power supply connector

(varies from one country to another)

15 Racing wheel USB cable and connector
16 Gearbox connector

(gearbox sold separately)

17 Pedal set connector

WARNING

Before using this product, please read this manual carefully and save it for later reference.

Warning – Electrical shock

* Keep the product in a dry location and do not expose it to dust or sunlight.
* Do not twist or pull on the connectors and cables.
* Do not spill any liquid on the product or its connectors.
* Do not short-circuit the product.
* Never dismantle the product; do not throw it onto a fire and do not expose it to high temperatures.
* Do not use a power supply cable other than the one provided with your racing wheel.
* Do not use the power supply cable if the cable or its connectors are damaged, split or broken.
* Make sure that the power supply cable is properly plugged into an electrical outlet, and properly connected to the connector at the rear of the racing wheel's base.
* Do not open up the racing wheel: there are no user-serviceable parts inside. Any repairs must be carried out by the manufacturer, its authorized representative or a qualified technician.
* Only use attachment systems/accessories specified by the manufacturer.
* If the racing wheel is operating abnormally (if it is emitting any abnormal sounds, heat or odors), stop using it immediately, unplug the power supply cable from the electrical outlet and disconnect the other cables.
* If you will not be using the racing wheel for an extended period of time, unplug its power supply cable from the electrical outlet.
* Only use the power supply provided with your racing wheel (in the event of an external power supply).
* The power outlet shall be installed near the equipment and shall be easily accessible.

Air vents

Make sure not to block any of the air vents on the racing wheel's base. For optimal ventilation, make sure to do the following:

* Position the wheel's base at least 10cm away from any wall surfaces.
* Do not place the base in any tight spaces.
* Do not cover the base.
* Do not let any dust build up on the air vents.

For safety reasons, never use the pedal set with bare feet or while wearing only socks on your feet.

THRUSTMASTER® DISCLAIMS ALL RESPONSIBILITY IN THE EVENT OF INJURY RESULTING FROM USE OF THE PEDAL SET WITHOUT SHOES.

Warning – Injuries due to force feedback and repeated movements

Playing with a force feedback racing wheel may cause muscle or joint pain. To avoid any problems:

* Avoid lengthy gaming periods.
* Take 10 to 15 minute breaks after each hour of play.
* If you feel any fatigue or pain in your hands, wrists, arms, feet or legs, stop playing and rest for a few hours before you start playing again.

Warning – Injuries due to force feedback and repeated movements (continued)

* If the symptoms or pain indicated persist when you start playing again, stop playing and consult your doctor.
* Keep out of children's reach.

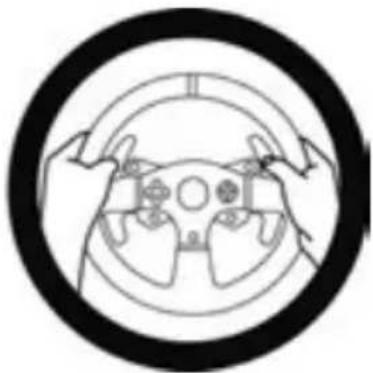

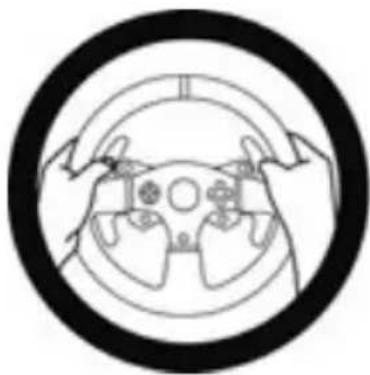

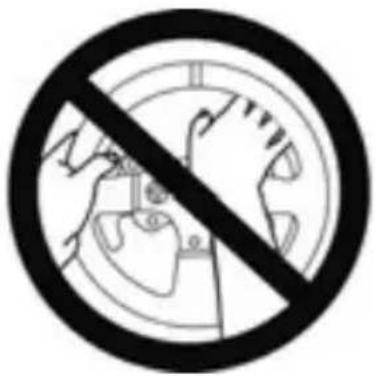

* During gameplay, always leave both hands correctly positioned on the wheel without completely letting go.

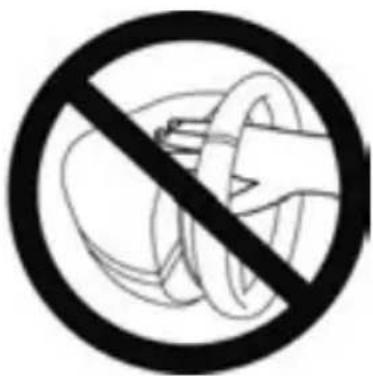

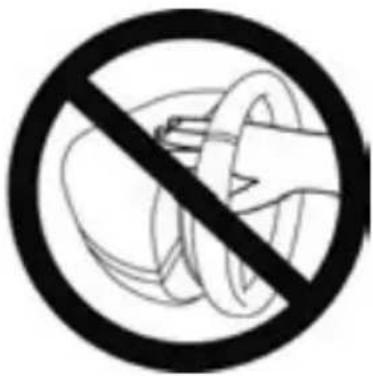

* During gameplay, never place your hands or your fingers under the pedals or anywhere near the pedal set.

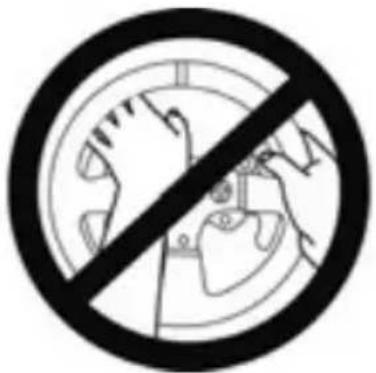

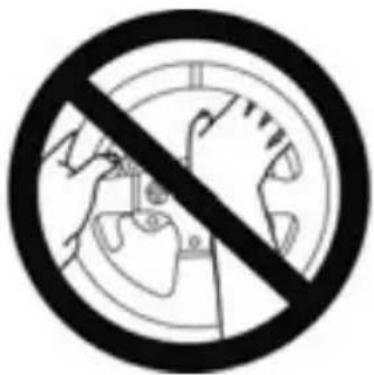

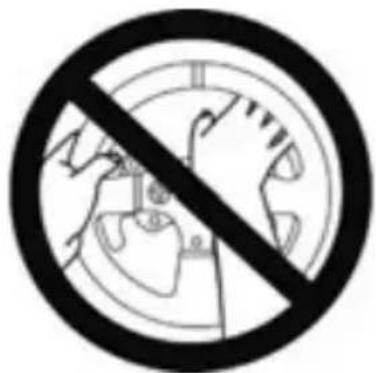

* During calibration and gameplay, never place your hand or your arm through the openings in the racing wheel.
* Make sure that the racing wheel's base is properly secured, as per this manual's instructions.

HEAVY PRODUCT

14+

Product to be handled only by users 14 years of age or older

7kg

Be careful not to drop the product on yourself or on anyone else!

ALWAYS

Diagram of hands holding a car steering wheel, enclosed in a circular frame (no text or symbols)

NEVER

Prohibition sign with hand and heart symbols, indicating no protection or exclusion

NEVER

Prohibition sign with crossed rings and a hand holding a device, indicating no use or prohibition of a device.

Warning – Pedal set pinch hazard when playing

* Keep the pedal set out of children's reach.

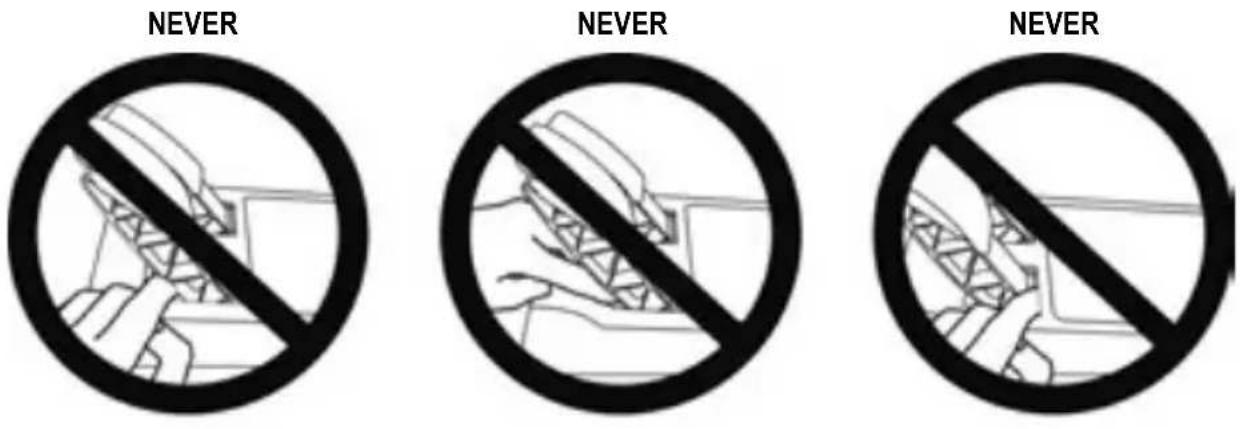

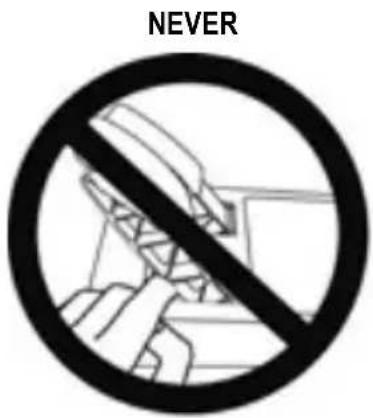

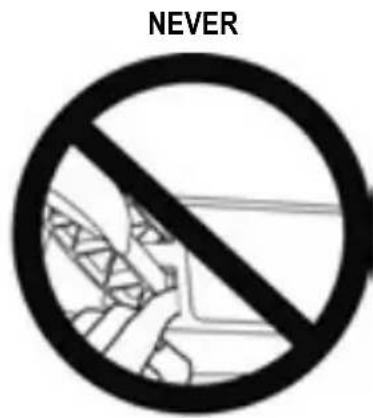

* During gameplay, never place your fingers on or anywhere near the sides of the pedals.

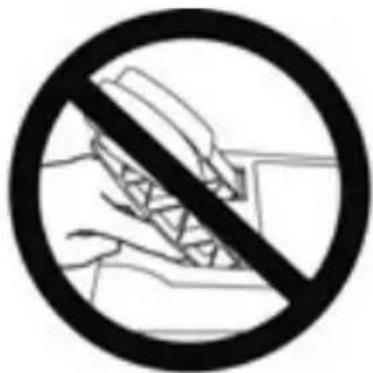

* During gameplay, never place your fingers on or anywhere near the pedal's rear base.

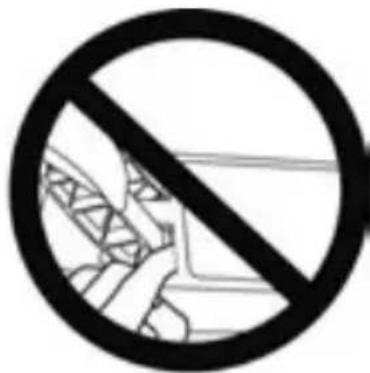

* During gameplay, never place your fingers on or anywhere near the pedal's front base.

NEVER

NEVER

NEVER

Warning – Pedal set pinch hazard when not playing

* Store the pedal set in a safe place, and keep it out of children's reach.

UPDATING YOUR RACING WHEEL'S FIRMWARE

The firmware included in your racing wheel's base can be updated to a more recent version featuring product enhancements.

To display the firmware version that your racing wheel is currently using and update it if required: on PC, visit http://support.thrustmaster.com. Click Racing Wheels / TMX Force Feedback, then select Firmware and follow the instructions describing the download and installation procedure.

ADJUSTING THE PEDAL INCLINATION

The pedal inclination is adjustable.

The adjustment instructions for each pedal are available at http://support.thrustmaster.com. In the Updates and Downloads section, click Racing Wheels / TMX Force Feedback, then select Manual.

ATTACHING THE RACING WHEEL

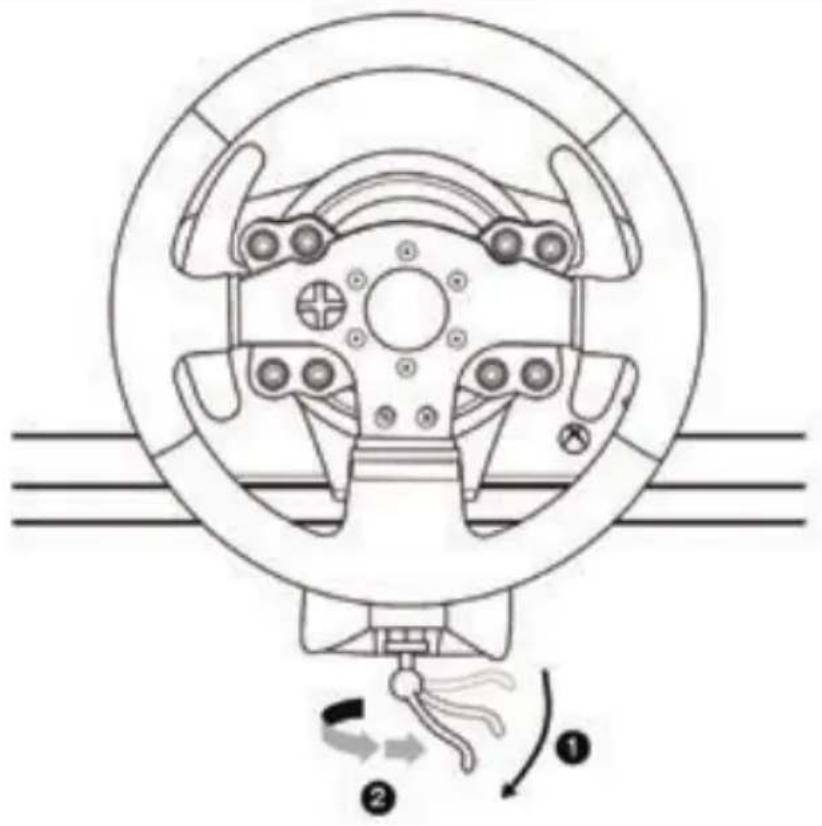

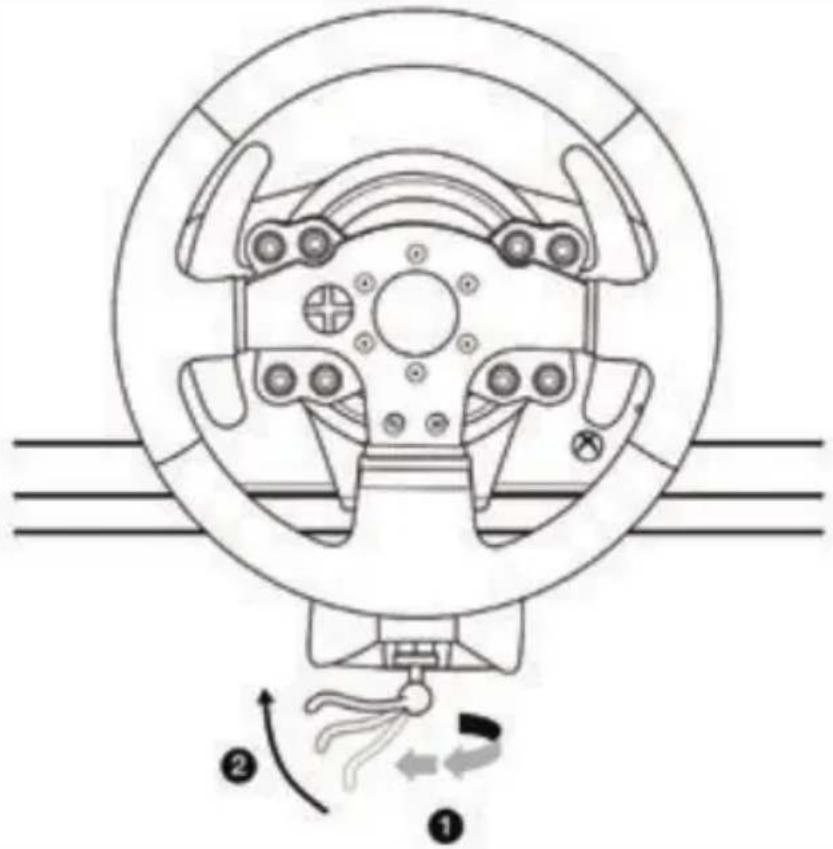

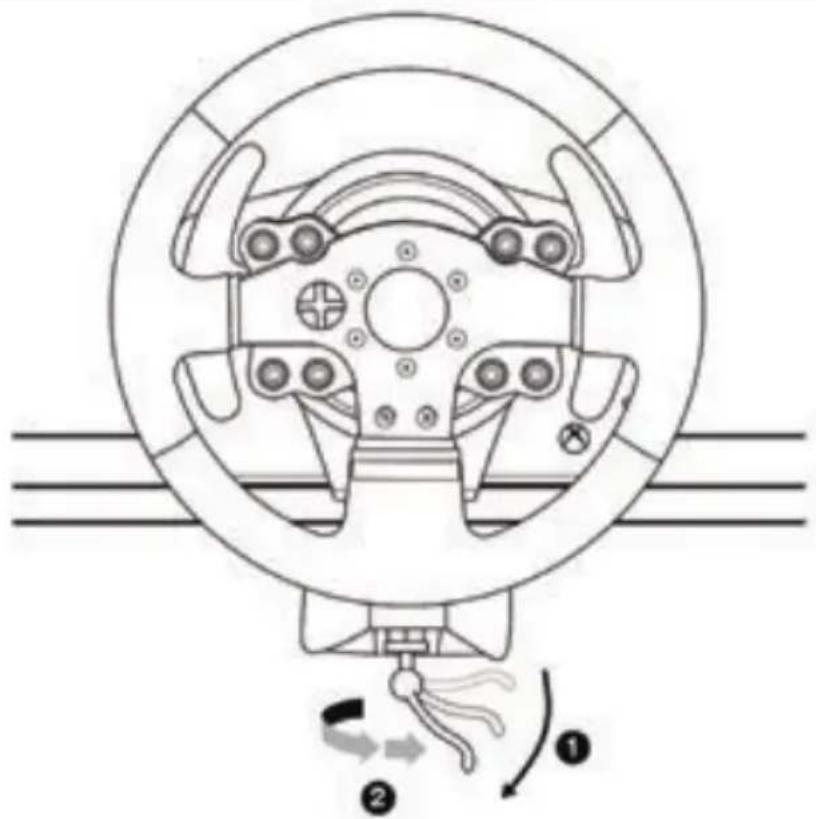

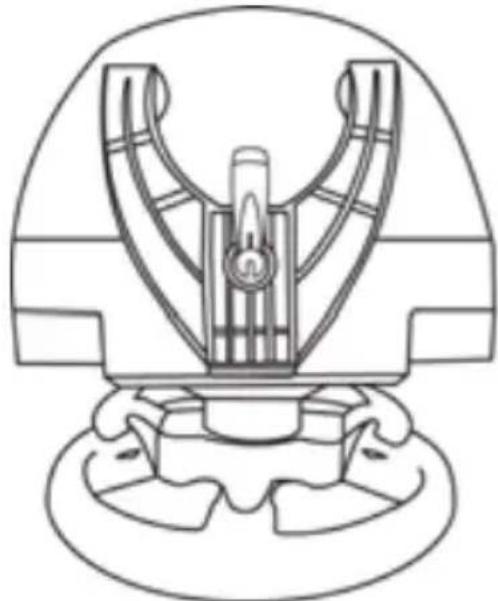

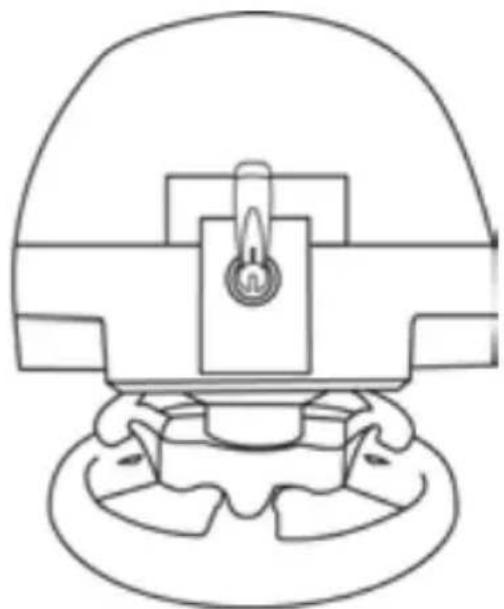

Attaching the racing wheel to a table or a desktop

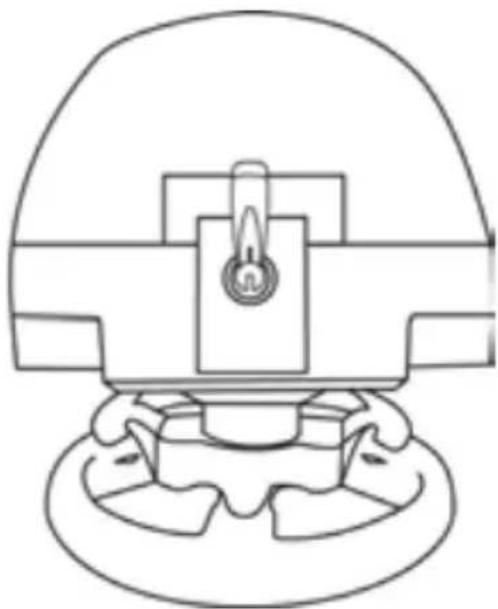

1. Place the racing wheel on a table or any other horizontal, flat and stable surface.

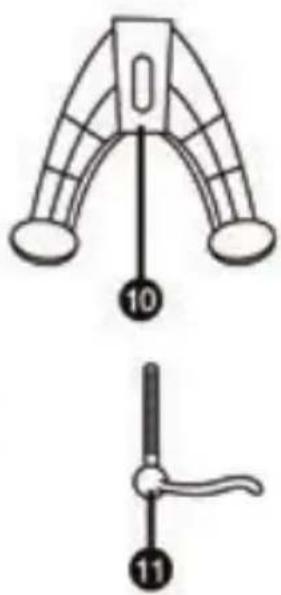

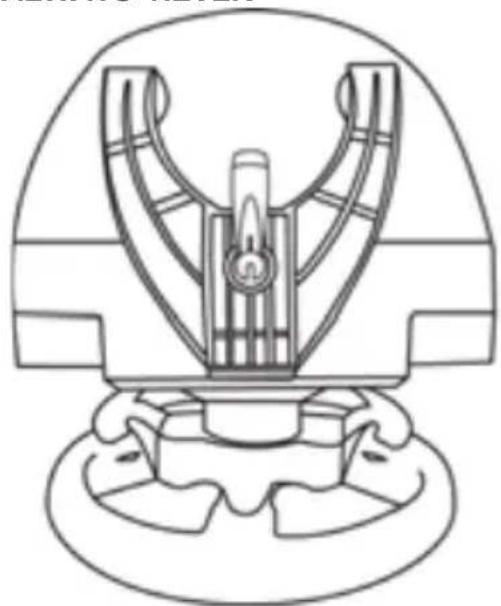

2. Insert the fastening screw (11) in the attachment system (10), then tighten the device by turning the screw counterclockwise, so that it feeds into the large threaded hole (9) located beneath the racing wheel, until the wheel is perfectly stable.

ALWAYS NEVER

Technical line drawing of a mechanical instrument or dial (no text or symbols present)

Technical line drawing of a mechanical component with a central valve and base (no text or symbols)

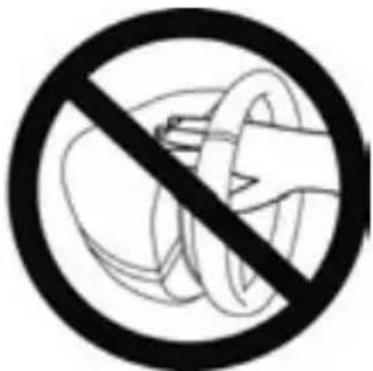

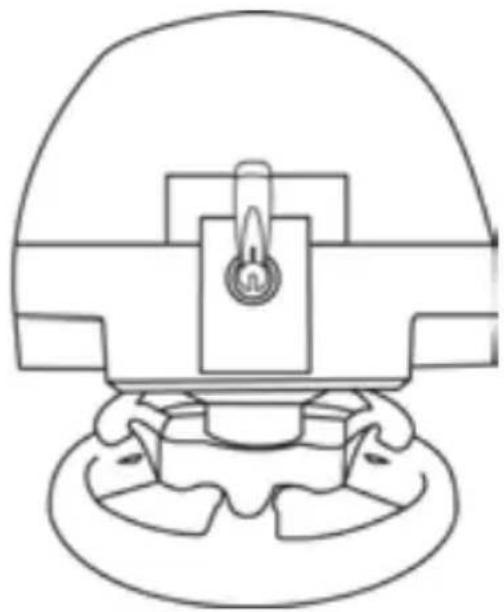

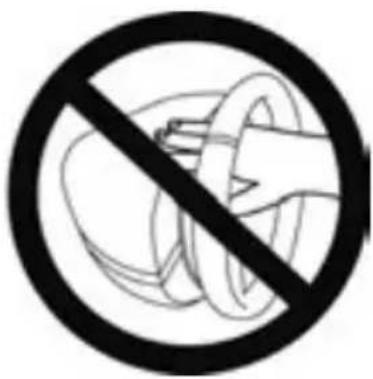

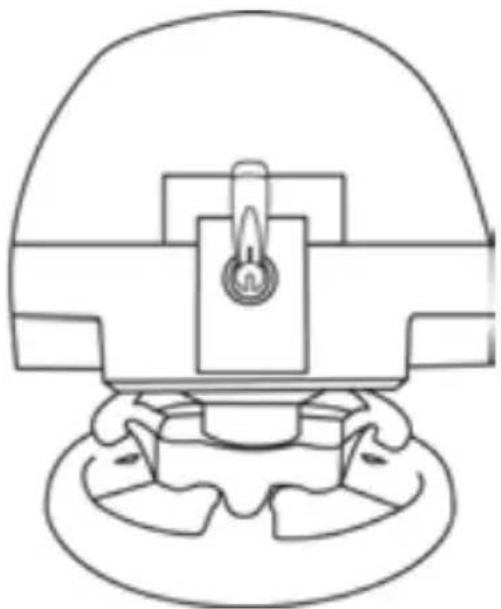

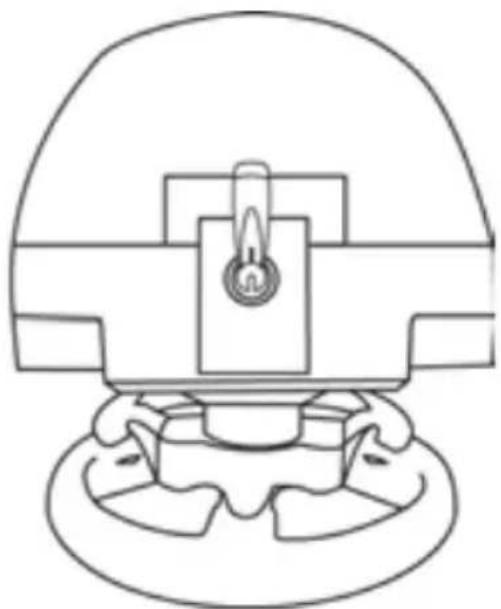

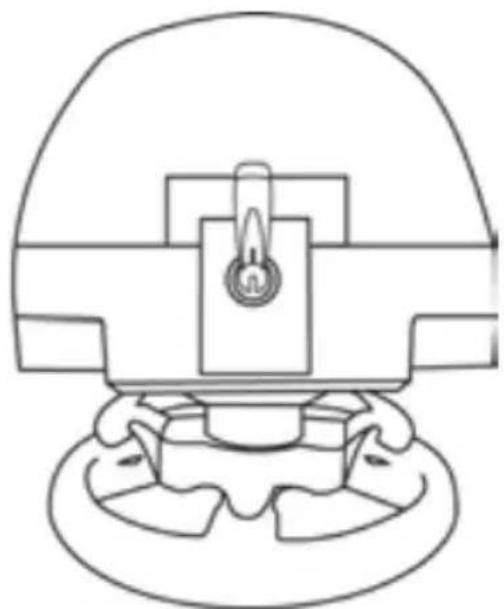

WARNING: Never tighten the screw alone, without the attachment system in place!
(This could damage the racing wheel.)

ATTACHMENT / REMOVAL	DIRECTION
To tighten:Turn the screw anticlockwise
To release:Turn the screw clockwise

Attaching the pedal set to a cockpit

1. Attach the pedal set using the small screw threads located on its underside.
2. Drive two M6 screws (not included) through the cockpit shelf, then feed them into the two small screw threads located on the underside of the pedal set.
   Important: The length of the two M6 screws must not exceed the thickness of the shelf + 10 mm; longer screws could cause damage to internal components located in the pedal set.

Layout diagrams for cockpits are available at http://support.thrustmaster.com: click Racing Wheels / TMX Force Feedback, then select Manual or FAQ.

SETTING UP THE RACING WHEEL FOR XBOX ONE

1. Connect the pedal set to the connector (17) located at the back of the racing wheel's base.
2. Connect the power supply cable to the connector (14) located at the back of the racing wheel's base.
3. Plug the power supply cable into an electrical outlet with the same voltage specifications.
4. Connect the racing wheel's USB connector (15) to one of the console's USB ports.
5. Once your console is powered on, your racing wheel will calibrate itself automatically.

You are now ready to play!

- The list of Xbox One games compatible with the TMX Force Feedback is available at: http://support.thrustmaster.com (in the Racing Wheels/TMX section). This list is updated regularly.

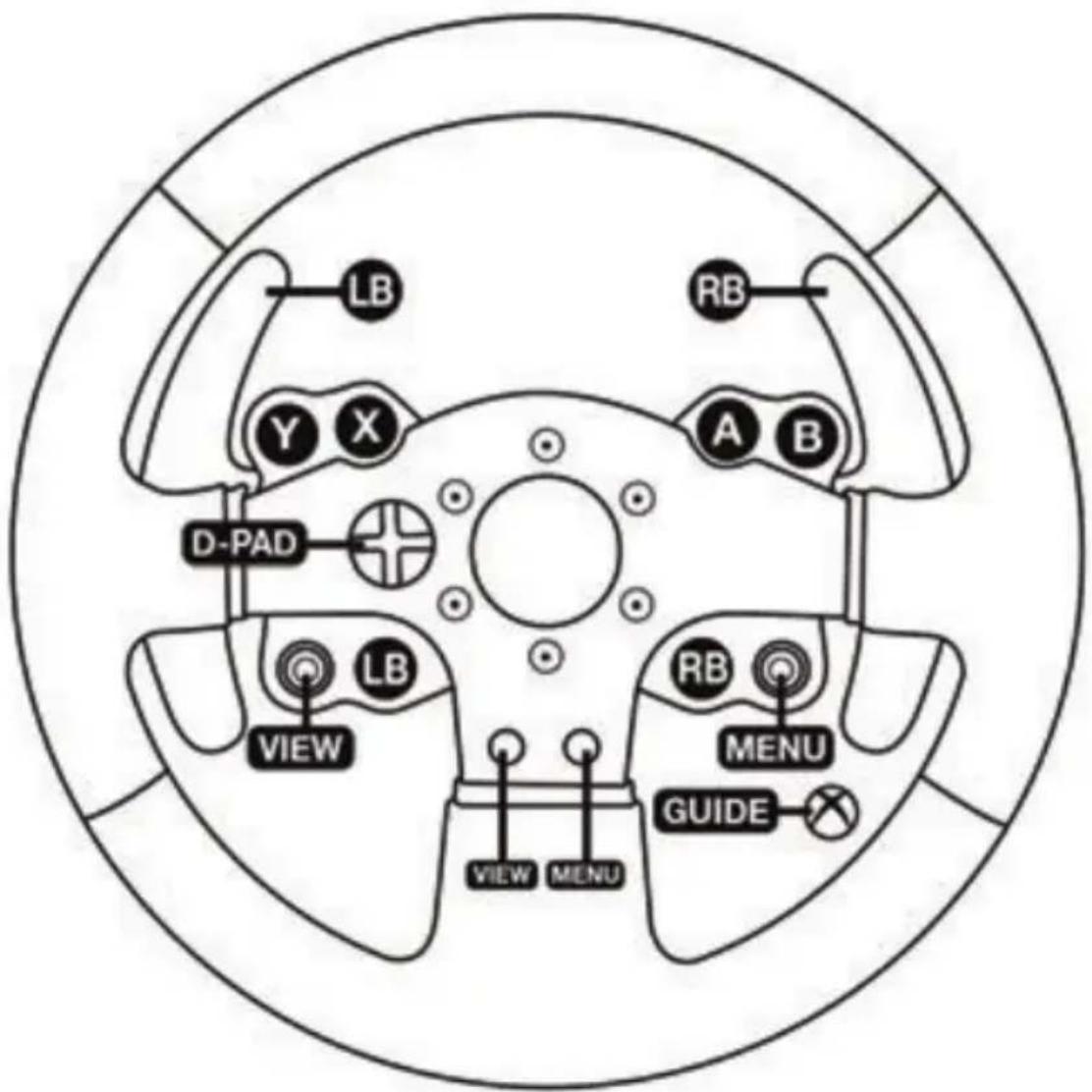

XBOX ONE MAPPING

LB Y X D-PAD VIEW LB A B RB MENU GUIDE VIEW MENU

SETTING UP THE RACING WHEEL FOR PC

1. Go to http://support.thrustmaster.com to download the drivers and the force feedback software for PC. Click Racing Wheels / TMX Force Feedback, then select Drivers.
2. Once the download is complete, launch the installation, and follow the on-screen instructions to connect the wheel's USB plug to your computer and complete the installation.
3. Once the installation is complete, click Finish and restart your computer.
4. Select Start / All Programs / Thrustmaster / FFB Racing Wheel / Control Panel to open the Game Controllers window.

The Game Controllers window displays the racing wheel's name Thrustmaster TMX Racing Wheel with the status OK.

1. Click Properties to configure your wheel in the TMX control panel:

- Test Input tab: allows to test and view the action buttons, directional buttons, wheel and pedals axes, and to adjust the wheel's rotation angle in your PC games.

- Test Forces tab: allows to test 12 force feedback effects.

- Gain Settings tab: allows to adjust the power of the force feedback effects in your PC games.

You are now ready to play!

General notes:

• On PC, click OK to close the Game Controllers window before launching the game.
• On PC, the adjustments made in the Game Controllers window will only be saved on your computer (hence they will have no effect on Xbox One).
• Your wheel's firmware version is displayed in the upper right-hand corner of the TMX Force Feedback control panel tabs.

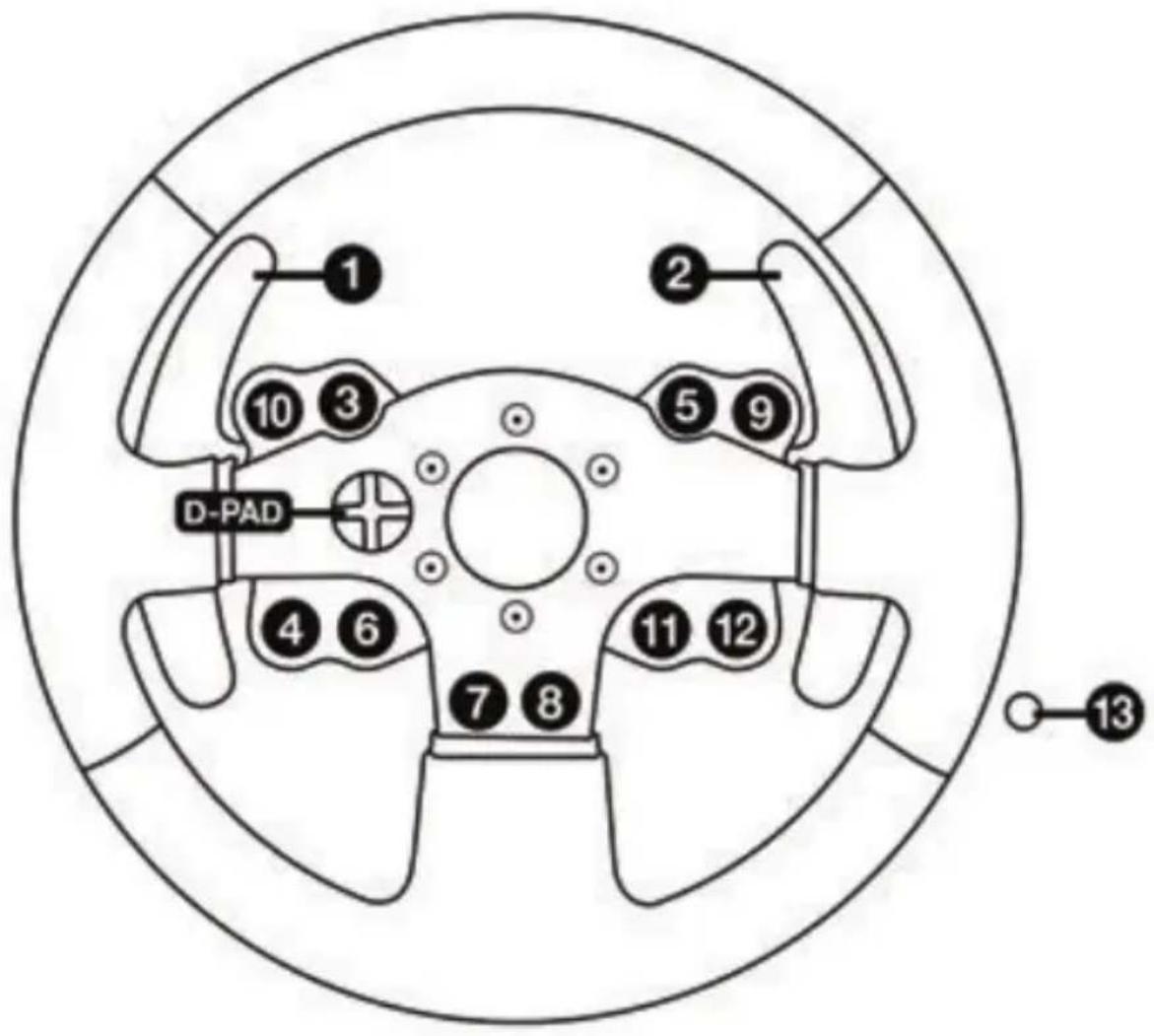

PC MAPPING

1 2 3 5 9 D-PAD 4 6 7 8 11 12 13

AUTOMATIC RACING WHEEL AND PEDAL SET CALIBRATION

The wheel automatically self-calibrates when you plug the racing wheel into an electrical outlet and connect the racing wheel's USB connector to the Xbox One.

During this phase, the racing wheel will rotate quickly towards the left and the right, covering a 900 degree angle, before stopping at the center.

WARNING:

Never touch the racing wheel during the self-calibration phase!

(This could result in improper calibration and/or personal injuries.)

AUTOMATIC CALIBRATION OF THE PEDAL SET

Never connect the pedal set to the racing wheel's base (or disconnect it from the base) when it is connected to the console or during gameplay (this could result in improper calibration).

Always connect the pedal set before connecting the racing wheel to the console.

Once the racing wheel's calibration is complete and the game has been started, the pedals are automatically calibrated after a few presses.

WARNING:

Never press the pedals during the racing wheel's self-calibration phase or while a game is loading!

(This could result in improper calibration.)

If your racing wheel and/or pedal set do not function correctly, or if they seem to be improperly calibrated:

Power off your console or PC and completely disconnect the racing wheel. Then reconnect all cables (including the power supply cable and the pedal set), and restart your console or PC and your game.

MODE BUTTON AND INDICATOR LIGHT (8)

MODE button for the pedal set

The pedal set included with the TMX Force Feedback features 2 pedals.

When using this pedal set, make sure that the indicator light remains red, or else the gas pedal will not function properly.

The TMX Force Feedback is also compatible with Thrustmaster pedal sets featuring 3 pedals (sold separately); these allow you to electronically swap the accelerator and clutch pedals.

To do so, simply press the MODE button (8) for 2 seconds.

The racing wheel's internal memory stores whether the pedals have been swapped around or not.

GAS AND CLUTCH PEDALS	Color of the MODE indicator light (8)
NORMAL	RED
SWAPPED AROUND GREEN

Other information regarding the MODE button

To learn more about the MODE button and indicator light, please visit http://support.thrustmaster.com. Click Racing Wheels / TMX Force Feedback, then select Manual or FAQ.

HELP FILES AND FAQs (NOT INCLUDED IN THIS MANUAL)

Please visit http://support.thrustmaster.com, click Racing Wheels / TMX Force Feedback, then select Manual or FAQ.

CONSUMER WARRANTY INFORMATION

Worldwide, Guillemot Corporation S.A., whose registered office is located at Place du Granier, B.P. 97143, 35571 Chantepie, France (hereinafter “Guillemot”) warrants to the consumer that this Thrustmaster product shall be free from defects in materials and workmanship, for a warranty period which corresponds to the time limit to bring an action for conformity with respect to this product. In the countries of the European Union, this corresponds to a period of two (2) years from delivery of the Thrustmaster product. In other countries, the warranty period corresponds to the time limit to bring an action for conformity with respect to the Thrustmaster product according to applicable laws of the country in which the consumer was domiciled on the date of purchase of the Thrustmaster product (if no such action exists in the corresponding country, then the warranty period shall be one (1) year from the original date of purchase of the Thrustmaster product).

Notwithstanding the above, rechargeable batteries are covered by a warranty period of six (6) months from the date of original purchase.

Should the product appear to be defective during the warranty period, immediately contact Technical Support, who will indicate the procedure to follow. If the defect is confirmed, the product must be returned to its place of purchase (or any other location indicated by Technical Support).

Within the context of this warranty, the consumer's defective product shall, at Technical Support's option, be either replaced or returned to working order. If, during the warranty period, the Thrustmaster product is subject to such reconditioning, any period of at least seven (7) days during which the product is out of use shall be added to the remaining warranty period (this period runs from the date of the consumer's request for intervention or from the date on which the product in question is made available for reconditioning, if the date on which the product is made available for reconditioning is subsequent to the date of the request for intervention). If permitted under applicable law, the full liability of Guillemot and its subsidiaries (including for consequential damages) is limited to the return to working order or the replacement of the Thrustmaster product. If permitted under applicable law, Guillemot disclaims all warranties of merchantability or fitness for a particular purpose.

This warranty shall not apply: (1) if the product has been modified, opened, altered, or has suffered damage as a result of inappropriate or abusive use, negligence, an accident, normal wear, or any other cause unrelated to a material or manufacturing defect (including, but not limited to, combining the Thrustmaster product with any unsuitable element, including in particular power supplies, rechargeable batteries, chargers, or any other elements not supplied by Guillemot for this product); (2) if the product has been used for any use other than home use, including for professional or commercial purposes (game rooms, training, competitions, for example); (3) in the event of failure to comply with the instructions provided by Technical Support; (4) to software, said software being subject to a specific warranty; (5) to consumables (elements to be replaced over the product's lifespan: disposable batteries, audio headset or headphone ear pads, for example); (6) to accessories (cables, cases, pouches, bags, wrist-straps, for example); (7) if the product was sold at public auction.

This warranty is nontransferable.

The consumer's legal rights with respect to laws applicable to the sale of consumer goods in his or her country are not affected by this warranty.

Additional warranty provisions

During the warranty period, Guillemot shall not provide, in principle, any spare parts, as Technical Support is the only party authorized to open and/or recondition any Thrustmaster product (with the exception of any reconditioning procedures which Technical Support may request that the consumer carry out, by way of written instructions – for example, due to the simplicity and the lack of confidentiality of the reconditioning process – and by providing the consumer with the required spare part(s), where applicable).

Given its innovation cycles and in order to protect its know-how and trade secrets, Guillemot shall not provide, in principle, any reconditioning notification or spare parts for any Thrustmaster product whose warranty period has expired.

In the United States of America and in Canada, this warranty is limited to the product's internal mechanism and external housing. In no event shall Guillemot or its affiliates be held liable to any third party for any consequential or incidental damages resulting from the breach of any express or implied warranties. Some States/Provinces do not allow limitation on how long an implied warranty lasts or exclusion or limitation of liability for consequential or incidental damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from State to State or Province to Province.

Liability

If permitted under applicable law, Guillemot Corporation S.A. (hereinafter “Guillemot”) and its subsidiaries disclaim all liability for any damages caused by one or more of the following: (1) the product has been modified, opened or altered; (2) failure to comply with assembly instructions; (3) inappropriate or abusive use, negligence, an accident (an impact, for example); (4) normal wear; (5) the use of the product for any use other than home use, including for professional or commercial purposes (game rooms, training, competitions, for example). If permitted under applicable law, Guillemot and its subsidiaries disclaim all liability for any damages unrelated to a material or manufacturing defect with respect to the product (including, but not limited to, any damages caused directly or indirectly by any software, or by combining the Thrustmaster product with any unsuitable element, including in particular power supplies, rechargeable batteries, chargers, or any other elements not supplied by Guillemot for this product).

THRUSTMASTER® TECHNICAL SUPPORT http://support.thrustmaster.com © email telephone

FCC STATEMENT

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

1. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

COPYRIGHT

© 2017 Guillemot Corporation S.A. All rights reserved. Thrustmaster® is a registered trademark of Guillemot Corporation S.A. All other trademarks are the property of their respective owners. Illustrations not binding. Contents, designs and specifications are subject to change without notice and may vary from one country to another. Made in China.

ENVIRONMENTAL PROTECTION RECOMMENDATION

Symbol of a trash bin with crossed x- and y-axes, no text or labels present

In the European Union: At the end of its working life, this product should not be disposed of with standard household waste, but rather dropped off at a collection point for the disposal of Waste Electrical and Electronic Equipment (WEEE) for recycling.

This is confirmed by the symbol found on the product, user manual or packaging. Depending on their characteristics, the materials may be recycled. Through recycling and other forms of processing Waste Electrical and Electronic Equipment,

you can make a significant contribution towards helping to protect the environment.

Please contact your local authorities for information on the collection point nearest you.

For all other countries: Please adhere to local recycling laws for electrical and electronic equipment.

Retain this information. Colours and decorations may vary.

Plastic fasteners and adhesives should be removed from the product before it is used.

www.thrustmaster.com

*Applicable to EU and Turkey only

CE* FC JOIN THE THRUSTMASTER® RACING TEAM FOR RACERS f JOIN THE THRUSTMASTER XTEAM FOR RACERS

TMX

FORCE FEEDBACK

POUR XBOX ONE ET PC

Line drawing of a steering wheel and a handheld device (no text or symbols)

ATTENTION :

Technical diagram of a mechanical component with numbered parts and labeled parts in Chinese

Diagram of hands holding a game controller inside a circular frame (no text or symbols)

Prohibition sign with crossed-out hand and circular background, indicating no protection or resistance

Prohibition sign with crossed-out ring and hand holding a key, indicating no liability or prohibition

Three circular symbols with prohibition signs, depicting a hand holding a tool against a surface, likely indicating no prohibition or no action.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with a central knob and base (no text or symbols)

INFORMATIONS RELATIVES A LA GARANTIE AUX CONSOMMATEURS

Symbol of a trash bin with crossed lines and a black rectangle below (no text or labels)

www.thrustmaster.com

Line drawing of a steering wheel and a handheld device (no text or symbols)

ACHTUNG!

Technical diagram of a mechanical component with numbered parts and a separate schematic view labeled 10, 11.

1 TMX Basis
2 Lenkkranz
3 2 sequenzielle Schaltwippen (Hoch & Runter)
4 Multidirektionales D-Pad
5 Actionbuttons
6 Actionbuttons

Diagram of hands holding a steering wheel with controllers, enclosed in a circular frame (no text or symbols)

NIE

Prohibition sign with hand and hand crossed out, indicating no protection or resistance

NIE

Prohibition sign with crossed-out ring and hand symbol, indicating no prohibition or restriction

Technical line drawing of an ancient tripod or optical instrument with a central column and base (no text or symbols)

Technical line drawing of a mechanical component with a central valve and base (no text or symbols)

www.thrustmaster.com

Line drawing of a steering wheel and a handheld device (no text or symbols)

WAARSCHUWING:

Technical diagram of a mechanical component with numbered parts and a separate schematic view labeled 10, 11.

Diagram of hands holding a game controller inside a circular frame (no text or symbols)

Prohibition sign with hand and hand crossed out, indicating no protection or prohibition in a medical or health context.

Prohibition sign with crossed-out ring and hand holding a device, symbolizing no-prohibition or prohibition.

Three circular symbols with a diagonal line crossing through hand-drawn diagrams, indicating no prohibition or anti-protection measures.

Technical line drawing of a mechanical instrument or dial (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Three black icons: a lowercase 'i' in a circle, an envelope symbol, and a telephone handset (no text or labels)

COPYRIGHT

Symbol of a trash bin with crosshair and a blank rectangular base (no text or labels)

www.thrustmaster.com

Line drawing of a steering wheel and a handheld device (no text or symbols)

ATTENZIONE:

Technical diagram of a mechanical component with numbered parts and a separate schematic view labeled 10, 11.

Diagram of hands holding a car steering wheel, enclosed in a circular frame (no text or symbols)

MAI

Prohibition sign with hand and gear symbols crossed out, indicating no protection or resistance

MAI

Prohibition sign with a hand holding a ring and crossed out, indicating no prohibition or disapproval.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with a central knob and base (no text or symbols)

Icon set with three symbols: lowercase 'i', envelope, and telephone

COPYRIGHT

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

www.thrustmaster.com

Line drawing of a steering wheel and a handheld device (no text or symbols)

ADVERTENCIA:

Technical diagram of a mechanical component with numbered parts and a separate schematic view labeled 10, 11.

Diagram of hands holding a game controller inside a circular frame (no text or symbols)

NUNCA

Prohibition sign with hand and gear symbols, indicating no protection or avoidance

NUNCA

Prohibition sign with crossed-out ring and hand symbol, indicating no liability or prohibition

Technical line drawing of a mechanical instrument or dial (no text or symbols present)

Technical line drawing of a mechanical component with a central knob and base mount (no text or symbols)

Symbol of a trash bin crossed with diagonal lines, no text or labels present

www.thrustmaster.com

Line drawing of a steering wheel and a handheld device (no text or symbols)

ATENÇÃO:

Technical diagram of a mechanical component with numbered parts and a separate schematic view labeled 10, 11.

Diagram of hands holding a car steering wheel, enclosed in a circular frame (no text or symbols)

NUNCA

Prohibition sign with hand and hand crossed out, indicating no protection or disinfection

NUNCA

Prohibition sign with a hand holding a ring and crossed out, indicating no prohibition or exclusion.

Technical line drawing of a mechanical instrument or dial (no text or symbols present)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a trash bin with no text or symbols

www.thrustmaster.com

Line drawing of a steering wheel and a handheld device (no text or symbols)

ВНИМАНИЕ!

Technical diagram of a mechanical component with numbered parts and labeled parts in Chinese

Diagram of hands holding a game controller inside a circular frame (no text or symbols)

НЕЛЬЗЯ

Prohibition sign with hand and spoon crossed out, indicating no intervention or absence of a medical device.

НЕЛЬЗЯ

Prohibition sign with crossed-out ring and hand holding a tool, symbolizing anti-smoking or resistance.

Prohibition sign with crossed-out hand holding a pen, indicating no use or prohibition of a device.

НЕЛЬЗЯ

Prohibition sign with crossed-out hand holding a pen, indicating no liability or prohibition

НЕЛЬЗЯ

Prohibition sign with crossed-out hand and vehicle silhouette, indicating no liability or prohibition

www.thrustmaster.com

EAC

JOIN THE THRUSTMASTER® RACING TEAM FOR RACERS

JOIN THE THRUSTMASTER XTEAM FOR RACERS

TMX

FORCE FEEDBACK

ΓΙΑ ΧΒΟΧ ΟΝΕ Η ΡC

Εγχειρίδιο χρήσης

Line drawing of a steering wheel and a handheld device (no text or symbols)

ΠΡΟΕΙΔΟΠΟΙΗΣΗ:

Technical diagram of a mechanical component with numbered parts and exploded view, likely for assembly or identification.

Diagram of hands holding a steering wheel with a controller, enclosed in a circular frame (no text or symbols)

ПОТЕ

Prohibition sign with hand and gear symbols, indicating no protection or anti-protection

ПОТЕ

Prohibition sign with a hand holding a ring and crossed out, indicating no prohibition or exclusion.

Technical line drawing of a mechanical instrument or dial (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

THRUSTMASTER® TEXNIK'ΗΣ ΥΠΟΣΤ'ΗΡΙΞΗΣ http://support.thrustmaster.com © ℤ

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

www.thrustmaster.com

Line drawing of a steering wheel and a handheld device (no text or symbols)

UYARI:

Technical diagram of a mechanical component with numbered parts and exploded view, likely for assembly or identification.

Diagram of hands holding a steering wheel with control buttons, enclosed in a circular frame (no text or symbols)

ASLA

Prohibition sign with hand holding heart inside a circular target, crossed out by a diagonal line

ASLA

Prohibition sign with crossed-out ring and hand holding a tool, indicating no use or prohibition of a device.

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Icon set with three symbols: lowercase circle (i), envelope, and telephone handset

TELİF HAKKI

Symbol of a trash bin with cross lines and a black rectangle below (no text or labels)

www.thrustmaster.com

Line drawing of a steering wheel and a handheld device (no text or symbols)

OSTRZEŻENIE:

Technical diagram of a mechanical component with numbered parts and a separate schematic view labeled 10, 11.

Diagram of hands holding a car steering wheel, enclosed in a circular frame (no text or symbols)

NIGDY

Prohibition sign with hand and gear symbols crossed out, indicating no protection or resistance

NIGDY

Prohibition sign with crossed-out ring and hand holding a device, indicating no liability or prohibition

Technical line drawing of a mechanical instrument or dial (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Symbol of a trash bin crossed with a diagonal line and a black rectangular block below (no text or labels)

www.thrustmaster.com

Line drawing of a steering wheel and a handheld device (no text or symbols)

تحذير:

Technical diagram of a mechanical component with numbered parts labeled 1 through 9

10 11

Prohibition sign with a diagonal line crossing over a circular background, indicating no prohibition or resistance.

مطلفا

Prohibition sign with crossed-out hand and heart diagram, indicating no smoking or disinfection

دانُما

Diagram of hands holding a steering wheel inside a circular frame (no text or symbols)

www.thrustmaster.com

Line drawing of a steering wheel and a handheld device (no text or symbols)

경고:

Technical diagram of a mechanical component with numbered parts and exploded view, likely for assembly or identification.

Diagram of hands holding a steering wheel with control buttons, enclosed in a circular frame (no text or symbols)

절대 금지

Prohibition sign with crossed-out hand and circular background, indicating no protection or disinfection

절대 금지

Prohibition sign with crossed-out ring and hand holding a tool, symbolizing no liability or prohibition

Technical line drawing of a mechanical assembly with no visible text or symbols

절대 금지

Technical line drawing of a mechanical component with no visible text or symbols

www.thrustmaster.com

CE FC

JOIN THE THRUSTMASTER® RACING TEAM FOR RACERS

JOIN THE THRUSTMASTER XTEAM FOR RACERS

THRUSTMASTER®

기술 지원

http://support.thrustmaster.com

Three black icons: a lowercase 'i' in a circle, an envelope, and a telephone handset (no text or symbols)

TMX

FORCE FEEDBACK

FOR XBOX ONE® AND PC

User Manual

Line drawing of a steering wheel and a handheld device (no text or symbols)

WARNING:

To ensure that your TMX racing wheel functions correctly with Xbox One and PC games, you may be required to install the game's automatic updates (available when your console or PC is connected to the Internet).

TECHNICAL FEATURES

Technical diagram of a mechanical component with numbered parts and a separate schematic view labeled 10, 11.

1 TMX base
2 Wheel
3 2 sequential paddle shifters (up & down)
4 Directional buttons
5 Action buttons
6 Action buttons

7 Xbox Guide button + White indicator light
8 MODE button + Red/Green indicator light
9 Large threaded hole (for attachment system and fastening screw)
10 Attachment system
11 Metal fastening screw

17 14 15 16 USB

12 Steering axis
13 Xbox Guide button + White indicator light
14 Power cable

or Power supply connector

(varies from one country to another)

15 Racing wheel USB cable and connector
16 Gearbox connector

(gearbox sold separately)

17 Pedal set connector

WARNING

Before using this product, please read this manual carefully and save it for later reference.

Warning – Electrical shock

* Keep the product in a dry location and do not expose it to dust or sunlight.
* Do not twist or pull on the connectors and cables.
* Do not spill any liquid on the product or its connectors.
* Do not short-circuit the product.
* Never dismantle the product; do not throw it onto a fire and do not expose it to high temperatures.
* Do not use a power supply cable other than the one provided with your racing wheel.
* Do not use the power supply cable if the cable or its connectors are damaged, split or broken.
* Make sure that the power supply cable is properly plugged into an electrical outlet, and properly connected to the connector at the rear of the racing wheel's base.
* Do not open up the racing wheel: there are no user-serviceable parts inside. Any repairs must be carried out by the manufacturer, its authorized representative or a qualified technician.
* Only use attachment systems/accessories specified by the manufacturer.
* If the racing wheel is operating abnormally (if it is emitting any abnormal sounds, heat or odors), stop using it immediately, unplug the power supply cable from the electrical outlet and disconnect the other cables.
* If you will not be using the racing wheel for an extended period of time, unplug its power supply cable from the electrical outlet.
* Only use the power supply provided with your racing wheel (in the event of an external power supply).

Air vents

Make sure not to block any of the air vents on the racing wheel's base. For optimal ventilation, make sure to do the following:

* Position the wheel's base at least 10cm away from any wall surfaces.
* Do not place the base in any tight spaces.
* Do not cover the base.
* Do not let any dust build up on the air vents.

For safety reasons, never use the pedal set with bare feet or while wearing only socks on your feet.

THRUSTMASTER® DISCLAIMS ALL RESPONSIBILITY IN THE EVENT OF INJURY RESULTING FROM USE OF THE PEDAL SET WITHOUT SHOES.

Warning – Injuries due to force feedback and repeated movements

Playing with a force feedback racing wheel may cause muscle or joint pain. To avoid any problems:

* Avoid lengthy gaming periods.
* Take 10 to 15 minute breaks after each hour of play.
* If you feel any fatigue or pain in your hands, wrists, arms, feet or legs, stop playing and rest for a few hours before you start playing again.

Warning – Injuries due to force feedback and repeated movements (continued)

* If the symptoms or pain indicated persist when you start playing again, stop playing and consult your doctor.
* Keep out of children's reach.
* During gameplay, always leave both hands correctly positioned on the wheel without completely letting go.
* During gameplay, never place your hands or your fingers under the pedals or anywhere near the pedal set.
* During calibration and gameplay, never place your hand or your arm through the openings in the racing wheel.
* Make sure that the racing wheel's base is properly secured, as per this manual's instructions.

HEAVY PRODUCT

14+

Product to be handled only by users 14 years of age or older

7kg

Be careful not to drop the product on yourself or on anyone else!

ALWAYS

Diagram of hands holding a car steering wheel, enclosed in a circular frame (no text or symbols)

NEVER

Prohibition sign with hand and heart symbols, indicating no protection or exclusion

NEVER

Prohibition sign with crossed rings and a hand holding a device, indicating no use or prohibition of a device.

Warning – Pedal set pinch hazard when playing

* Keep the pedal set out of children's reach.
* During gameplay, never place your fingers on or anywhere near the sides of the pedals.
* During gameplay, never place your fingers on or anywhere near the pedal's rear base.
* During gameplay, never place your fingers on or anywhere near the pedal's front base.

Warning – Pedal set pinch hazard when not playing

* Store the pedal set in a safe place, and keep it out of children's reach.

UPDATING YOUR RACING WHEEL'S FIRMWARE

The firmware included in your racing wheel's base can be updated to a more recent version featuring product enhancements.

To display the firmware version that your racing wheel is currently using and update it if required: on PC, visit http://support.thrustmaster.com. Click Racing Wheels / TMX Force Feedback, then select Firmware and follow the instructions describing the download and installation procedure.

ADJUSTING THE PEDAL INCLINATION

The pedal inclination is adjustable.

The adjustment instructions for each pedal are available at http://support.thrustmaster.com: click Racing Wheels / TMX Force Feedback, then select Manual.

ATTACHING THE RACING WHEEL

Attaching the racing wheel to a table or a desktop

1. Place the racing wheel on a table or any other horizontal, flat and stable surface.

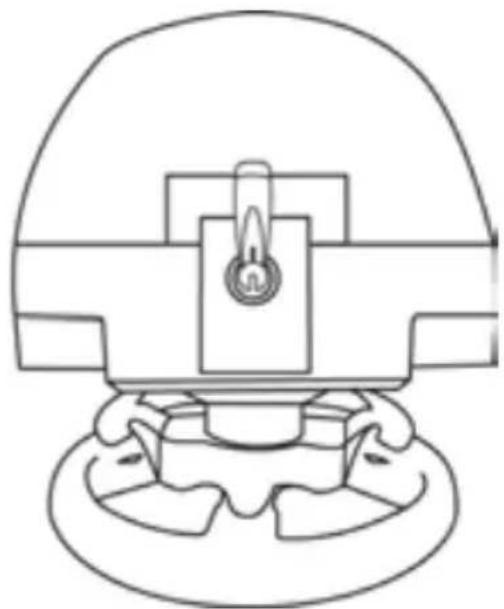

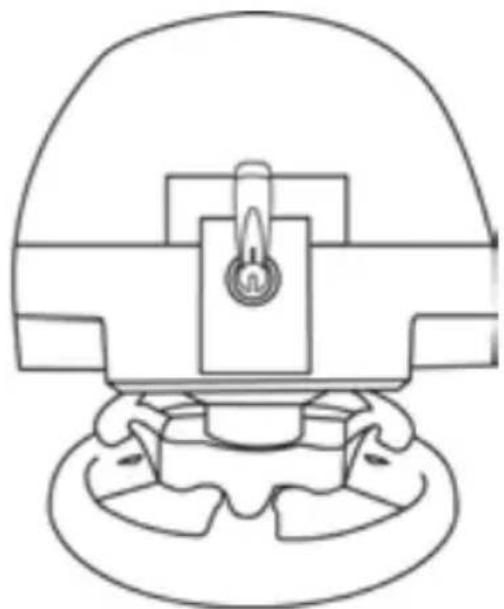

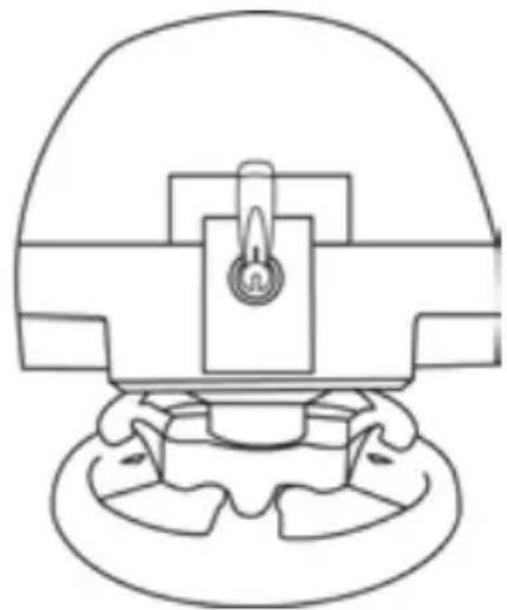

2. Insert the fastening screw (11) in the attachment system (10), then tighten the device by turning the screw counterclockwise, so that it feeds into the large threaded hole (9) located beneath the racing wheel, until the wheel is perfectly stable.

ALWAYS NEVER

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

WARNING: Never tighten the screw alone, without the attachment system in place! (This could damage the racing wheel.)

ATTACHMENT / REMOVAL	DIRECTION
To tighten:Turn the screw anticlockwise
To release:Turn the screw clockwise

Attaching the pedal set to a cockpit

1. Attach the pedal set using the small screw threads located on its underside.
2. Drive two M6 screws (not included) through the cockpit shelf, then feed them into the two small screw threads located on the underside of the pedal set.
   Important: The length of the two M6 screws must not exceed the thickness of the shelf + 10 mm; longer screws could cause damage to internal components located in the pedal set.

Layout diagrams for cockpits are available at http://support.thrustmaster.com: click Racing Wheels / TMX Force Feedback, then select Manual or FAQ.

SETTING UP THE RACING WHEEL FOR XBOX ONE

1. Connect the pedal set to the connector (17) located at the back of the racing wheel's base.
2. Connect the power supply cable to the connector (14) located at the back of the racing wheel's base.
3. Plug the power supply cable into an electrical outlet with the same voltage specifications.
4. Connect the racing wheel's USB connector (15) to one of the console's USB ports.
5. Once your console is powered on, your racing wheel will calibrate itself automatically.

You are now ready to play!

- The list of Xbox One games compatible with the TMX Force Feedback is available at: http://support.thrustmaster.com (in the Racing Wheels/TMX section). This list is updated regularly.

XBOX ONE MAPPING

LB Y X D-PAD VIEW LB A B RB MENU GUIDE VIEW MENU

SETTING UP THE RACING WHEEL FOR PC

1. Go to http://support.thrustmaster.com to download the drivers and the force feedback software for PC. Click Racing Wheels / TMX Force Feedback, then select Drivers.
2. Once the download is complete, launch the installation, and follow the on-screen instructions to connect the wheel's USB plug to your computer and complete the installation.
3. Once the installation is complete, click Finish and restart your computer.
4. Select Start / All Programs / Thrustmaster / FFB Racing Wheel / Control Panel to open the Game Controllers window.

The Game Controllers window displays the racing wheel's name Thrustmaster TMX Racing Wheel with the status OK.

1. Click Properties to configure your wheel in the TMX control panel:

- Test Input tab: allows to test and view the action buttons, directional buttons, wheel and pedals axes, and to adjust the wheel's rotation angle in your PC games.

- Test Forces tab: allows to test 12 force feedback effects.

- Gain Settings tab: allows to adjust the power of the force feedback effects in your PC games.

You are now ready to play!

General notes:

• On PC, click OK to close the Game Controllers window before launching the game.
• On PC, the adjustments made in the Game Controllers window will only be saved on your computer (hence they will have no effect on Xbox One).
• Your wheel's firmware version is displayed in the upper right-hand corner of the TMX Force Feedback control panel tabs.

PC MAPPING

1 2 3 4 6 5 9 D-PAD 7 8 11 12 13

AUTOMATIC RACING WHEEL AND PEDAL SET CALIBRATION

The wheel automatically self-calibrates when you plug the racing wheel into an electrical outlet and connect the racing wheel's USB connector to the Xbox One.

During this phase, the racing wheel will rotate quickly towards the left and the right, covering a 900 degree angle, before stopping at the center.

WARNING:

Never touch the racing wheel during the self-calibration phase!

(This could result in improper calibration and/or personal injuries.)

AUTOMATIC CALIBRATION OF THE PEDAL SET

Never connect the pedal set to the racing wheel's base (or disconnect it from the base) when it is connected to the console or during gameplay (this could result in improper calibration).

Always connect the pedal set before connecting the racing wheel to the console.

Once the racing wheel's calibration is complete and the game has been started, the pedals are automatically calibrated after a few presses.

WARNING:

Never press the pedals during the racing wheel's self-calibration phase or while a game is loading!

(This could result in improper calibration.)

If your racing wheel and/or pedal set do not function correctly, or if they seem to be improperly calibrated:

Power off your console or PC and completely disconnect the racing wheel. Then reconnect all cables (including the power supply cable and the pedal set), and restart your console or PC and your game.

MODE BUTTON AND INDICATOR LIGHT (8)

MODE button for the pedal set

The pedal set included with the TMX Force Feedback features 2 pedals.

When using this pedal set, make sure that the indicator light remains red, or else the gas pedal will not function properly.

The TMX Force Feedback is also compatible with Thrustmaster pedal sets featuring 3 pedals (sold separately); these allow you to electronically swap the accelerator and clutch pedals.

To do so, simply press the MODE button (8) for 2 seconds.

The racing wheel's internal memory stores whether the pedals have been swapped around or not.

GAS AND CLUTCH PEDALS	Color of the MODE indicator light (8)
NORMAL	RED
SWAPPED AROUND GREEN

Other information regarding the MODE button

To learn more about the MODE button and indicator light, please visit http://support.thrustmaster.com. Click Racing Wheels / TMX Force Feedback, then select Manual or FAQ.

HELP FILES AND FAQs (NOT INCLUDED IN THIS MANUAL)

Please visit http://support.thrustmaster.com, click Racing Wheels / TMX Force Feedback, then select Manual or FAQ.

COPYRIGHT

© 2017 Guillemot Corporation S.A. All rights reserved. Thrustmaster® is a registered trademark of Guillemot Corporation S.A. All other trademarks are the property of their respective owners. Illustrations not binding. Contents, designs and specifications are subject to change without notice and may vary from one country to another. Made in China.

Retain this information. Colors and decorations may vary.

This product conforms to all standards regarding children 14 years of age and older. This product is not suitable for use by children less than 14 years of age.

www.thrustmaster.com

C€ FC

JOIN THE THRUSTMASTER® RACING TEAM FOR RACERS

JOIN THE THRUSTMASTER XTEAM FOR RACERS

THRUSTMASTER® TECHNICAL SUPPORT http://support.thrustmaster.com © email telephone
