Frequently Asked Questions - ADP 201 WH WHIRLPOOL

How to install the Whirlpool ADP 201 WH dishwasher?

Install the appliance on a flat and rigid floor. Compensate for irregularities by screwing or unscrewing the front feet. Connect the water inlet hose to a 3/4' threaded water supply (max 60°C) and the drain hose to a pipe at least 2 cm in diameter, placed between 40 and 80 cm from the floor. Plug the power cord into a grounded outlet. Refer to the installation manual for more details.

What washing product to use for this dishwasher?

Use only special dishwasher products (powder, liquid, or tablets). For normally soiled dishes, dose approximately 25 g of powder or 25 ml of liquid, or a tablet. Follow the instructions on the packaging. Do not use hand-washing products. For best results, combine washing product, rinse aid, and regenerating salt.

How to adjust the water softener?

The adjustment is made according to water hardness. Turn on the appliance, then turn it off. Hold the Start/Pause button pressed for 5 seconds until the beep, then turn on again. The program indicator and salt indicator flash. Press the P button to select the level (see hardness table). Turn off to confirm. Fill the salt reservoir (approximately 1 kg) after adjustment.

What to do if the dishwasher does not start?

Check that the water tap is open and the power cord is properly plugged. Make sure the door is fully closed (push until it clicks). Turn off the appliance with the ON/OFF button, wait a minute, then turn on again and reselect the program. If the problem persists, contact after-sales service.

How to clean the dishwasher filters?

The three filters (C, B, A) must be cleaned regularly. Turn the cylindrical filter C counterclockwise to remove it. Press on the fins of the filter cup B to pull it out. Remove the stainless steel filter A. Clean them under running water with a non-metallic brush. Reassemble carefully. Never use the dishwasher without filters.

Why is the dishes not dry after the cycle?

Possible causes: program without drying (e.g., Rapid), lack of rinse aid, inappropriate rinse aid dosage, or plastic/non-stick dishes retaining droplets. Check the rinse aid level and adjust the dispenser (turn device F: higher numbers to improve drying). Use a program with drying (Eco, Intensive, Normal).

How to use the Delayed start option?

After selecting the program and options, press the Delayed start button. The indicator lights up. Press several times to choose 2, 4, or 8 hours. Then press Start/Pause to start the countdown. The program will start automatically at the set time. To cancel, press Delayed start until the indicator turns off.

What to do in case of a water leak?

The dishwasher is equipped with an anti-leak device that cuts off the water supply in case of anomaly. If you notice a leak, immediately close the water tap and unplug the power cord. Check the hose connections and the door seal. If the leak comes from the inlet hose (containing live parts), do not attempt to cut it. Contact after-sales service.

How to maintain the wash arms?

Regularly remove the wash arms to clean clogged nozzles. For the upper arm, unscrew its plastic ring (turn counterclockwise). For the lower arm, push the side tabs and pull upward. Clean with a small non-metallic brush. Reassemble, ensuring the upper arm has the side with more nozzles facing upwards.

Where to find spare parts for the Whirlpool ADP 201 WH?

Spare parts (filters, wash arms, seals, salt reservoir, etc.) are available from authorized Whirlpool after-sales service or specialized websites. To order, provide the model (ADP 201) and serial number (S/N) indicated on the rating plate. Refer to the manual for references.

USER MANUAL ADP 201 WH WHIRLPOOL

Operating instructions DISHWASHER - Contents

Operating instructions, 1

Important Safety Instructions, 2-3

Assistance, 13

Product Data, 14

Installation, 17-18

Description of the appliance, 19

Refined salt and rinse aid, 20

Loading the racks, 21-22

Detergent and dishwasher use, 23

Wash cycles, 24

Special wash cycles and options, 25

Care and maintenance, 26

Troubleshooting, 27

FR

Français

Whirlpool

RO

Română

IMPORTANT SAFETY INSTRUCTIONS

Read the instructions carefully before using, as they include important information on safe installation, use and maintenance. Keep this instruction manual in a safe place for future reference. If the appliance is sold, given away or moved, make sure the manual is kept with the machine.

Remove the appliance from all packaging and make sure it was not damaged during transportation, if it was damaged contact the retailer and do not proceed any further with the installation process.

When using your dishwasher, follow the precautions listed below:

• The appliance must be used to wash domestic crockery in accordance with the instructions in this manual.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the machine exposed to rain and storms.
• Do not store flammable materials in close proximity to the appliance.
• The water in the appliance is not potable.

• Do not use solvents inside the appliance: risk of explosion!

• The door should not be left in the open position since this could present a tripping hazard.

• Do not rest objects on the open door or sit or stand on it since the appliance could trip forward.
• The open appliance door can only support the weight of the loaded rack when pulled out.
• The water supply tap must be shut off and the plug should be removed from the electrical socket at the end of every cycle and before cleaning the appliance for carrying out any maintenance work also disconnect in the event of any malfunction.
• Repairs and technical modifications must be carried out exclusively by a qualified technician.
• When unplugging the appliance always pull the plug from the mains socket. Do not pull on the cable.

• In order to avoid laceration hazard, usage of special gloves is needed during the assembling of the appliance.

• During use, the access to the rear wall should be limited in a sustainable manner such as approaching the device to the wall or furniture board.
• Keep packaging materials out of the reach of Children, packaging materials should not be used as a toy.
• Children must not be allowed to play with the appliance.
• Store the detergent, rinse aid and salt out of the reach of children.
• Appliance is dedicated only for household use.
• Appliance can not be operated until installation process is complete.

GROUNDING INSTRUCTIONS

• This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug.
• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

• Extension cord, adapters and conversion plugs must not be used to connect the appliance to the outlet.

• Improper connection of the equipment-grounding conductor can result in the risk of an electric shock.

• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician.

PROPER USE

• Access to disconnection of the appliance (main plug) shall be ensured after installation.
• When loading items to be washed:

1 - Locate sharp items so that they are not likely to damage the door seal;

2 - WARNING: Knives and other utensils with sharp points must be loaded in the cutlery basket with their points/blades down or placed in a horizontal position with the sharp end facing away from the front of the appliance.

- Use only detergent and rinse additives designed for an automatic dishwasher.

- WARNING: Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open. Check that the detergent receptacle is empty after completion of the wash cycle.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

• During installation, the power supply must not be excessively or dangerously bent or flattened. Do not tamper with controls.
  To dispose of any packaging materials, follow local legislation so that the packagings may be reused.
• Use the dishwasher only for its intended function.
• The appliance is to be connected to the water mains using new hose sets. The old hose-sets should not be reused.
• The maximum number of place settings is shown in the product sheet.

SAFEGUARDING THE ENVIRONMENT

• This appliance has been made of recyclable or re-usable material. Scrapping must be carried out in compliance with local waste disposal regulations. Before scrapping it, make sure to cut off the mains cord so that the appliance cannot be re-used.
• For more detailed information on handling and recycling of this product, contact your local authorities who deal with the separate collection of rubbish or the shop where you bought the appliance.

SCRAPPING OF PACKAGING

The packaging can be 100% recycled as confirmed by the recycling symbol. The various parts of the packaging must not be dispersed in the environment, but must be scrapped in line with local authority regulations.

• The European Directive 2012/19/EU relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of reusing and recycling the materials inside the machine, while preventing potential damage to the atmosphere and public health. The crossed-out dustbin symbol shown on all products reminds the owners of their obligations regarding separated waste collection. For further information relating to the correct disposal of household appliances, owners may contact the relevant public authority or the local appliance dealer.

FR

INFORMATIONS DE SÉCURITÉ IMPORTANTES

Before contacting Assistance:

• Check whether the problem can be resolved using the Troubleshooting guide (see Troubleshooting).
• Restart the programme to check whether the problem has ceased to exist.
• If the problem persists, contact the Authorised Technical Assistance Service.

Never use the services of unauthorised technicians.

Please have the following information to hand:

• The type of malfunction.

• The appliance model (Mod.).

• The serial number (S/N).

This information can be found on the appliance data plate (see Description of the appliance).

FR Service

Product Fiche
Brand	WHIRLPOOL
Model	ADP 201
Rated capacity in standard place settings (1)	10
Energy efficiency class on a scale from A+++ (low consumption) to D (high consumption)	A+
Energy consumption per year in kWh (2)	237
Energy consumption of the standard cleaning cycle in kWh	0.83
Power consumption of the off-mode in W	0.5
Power consumption of the left-on mode in W	5.0
Water consumption per year in litres (3)	2800
Drying efficacy class on a scale from G (low efficacy) to A (high efficacy)	A
Programme time for standard cleaning cycle in minutes	180
The duration of the left-on mode in minutes	12
Noise in dB(A) Re 1pW	51
Built-in model	No
NOTES
1) The information on the label and fiche relates to the standard cleaning cycle, this programme is suitable to clean normally soiled tableware and it is the most efficient programme in terms of combined energy and water consumption. The standard cleaning cycle corresponds to the Eco cycle.
2) Based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption depends on how the appliance is used.
3) Based on 280 standard cleaning cycles. Actual water consumption depends on how the appliance is used.

FR Fiche de produit

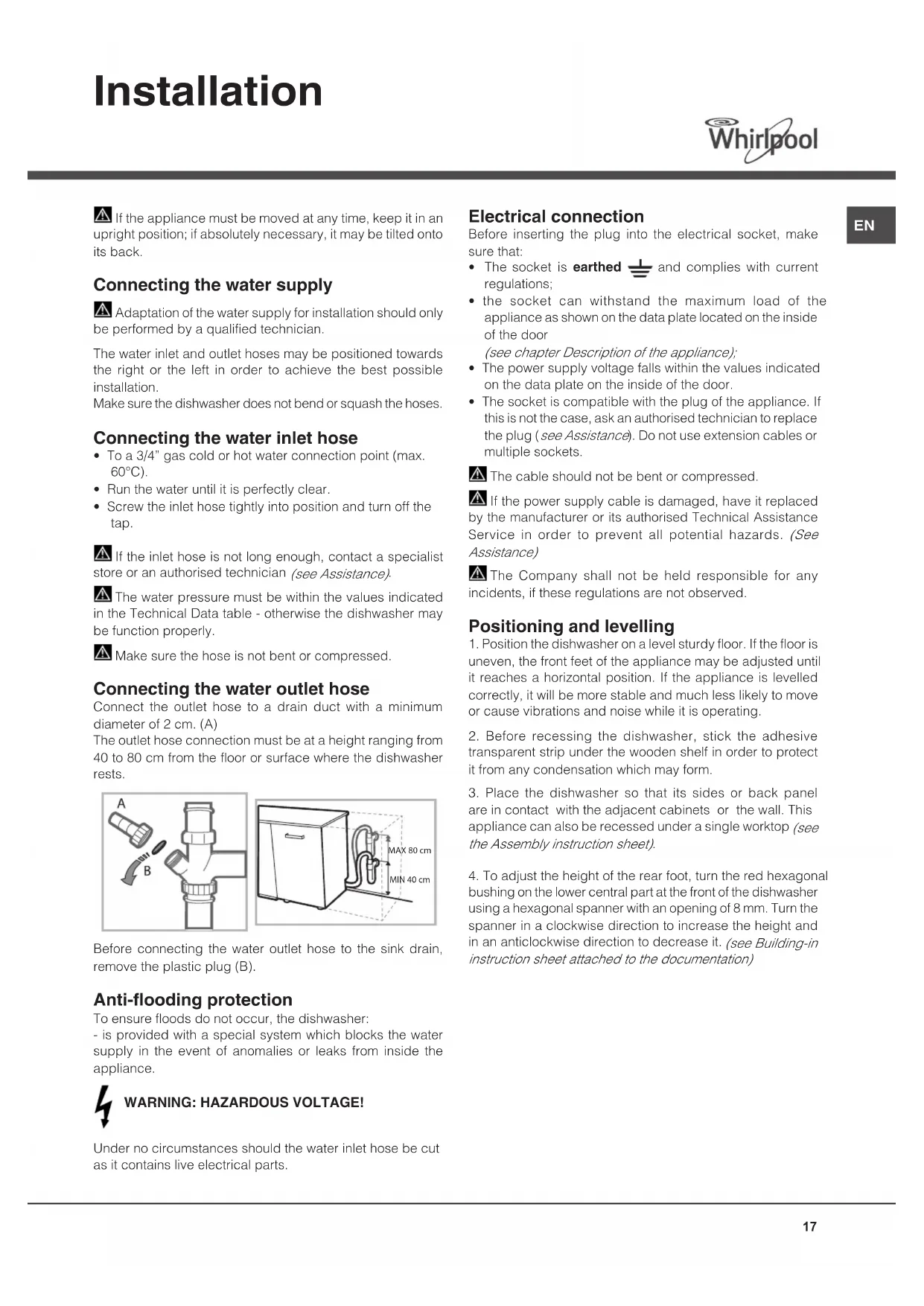

⚠️ If the appliance must be moved at any time, keep it in an upright position; if absolutely necessary, it may be tilted onto its back.

Connecting the water supply

Adaptation of the water supply for installation should only be performed by a qualified technician.

The water inlet and outlet hoses may be positioned towards the right or the left in order to achieve the best possible installation.

Make sure the dishwasher does not bend or squash the hoses.

Connecting the water inlet hose

• To a 3/4" gas cold or hot water connection point (max. 60°C).
• Run the water until it is perfectly clear.
• Screw the inlet hose tightly into position and turn off the tap.
  If the inlet hose is not long enough, contact a specialist store or an authorised technician (see Assistance).
  The water pressure must be within the values indicated in the Technical Data table - otherwise the dishwasher may be function properly.
  Make sure the hose is not bent or compressed.

Connecting the water outlet hose

Connect the outlet hose to a drain duct with a minimum diameter of 2 cm. (A)

The outlet hose connection must be at a height ranging from 40 to 80 cm from the floor or surface where the dishwasher rests.

A B

MAX 80 cm MIN 40 cm

Before connecting the water outlet hose to the sink drain, remove the plastic plug (B).

Anti-flooding protection

To ensure floods do not occur, the dishwasher:

- is provided with a special system which blocks the water supply in the event of anomalies or leaks from inside the appliance.

WARNING: HAZARDOUS VOLTAGE!

Under no circumstances should the water inlet hose be cut as it contains live electrical parts.

Electrical connection

Before inserting the plug into the electrical socket, make sure that:

• The socket is earthed ± and complies with current regulations;
• the socket can withstand the maximum load of the appliance as shown on the data plate located on the inside of the door

(see chapter Description of the appliance);

• The power supply voltage falls within the values indicated on the data plate on the inside of the door.
• The socket is compatible with the plug of the appliance. If this is not the case, ask an authorised technician to replace the plug (see Assistance). Do not use extension cables or multiple sockets.

The cable should not be bent or compressed.

If the power supply cable is damaged, have it replaced by the manufacturer or its authorised Technical Assistance Service in order to prevent all potential hazards. (See Assistance)
The Company shall not be held responsible for any incidents, if these regulations are not observed.

Positioning and levelling

1. Position the dishwasher on a level sturdy floor. If the floor is uneven, the front feet of the appliance may be adjusted until it reaches a horizontal position. If the appliance is levelled correctly, it will be more stable and much less likely to move or cause vibrations and noise while it is operating.
2. Before recessing the dishwasher, stick the adhesive transparent strip under the wooden shelf in order to protect it from any condensation which may form.
3. Place the dishwasher so that its sides or back panel are in contact with the adjacent cabinets or the wall. This appliance can also be recessed under a single worktop (see the Assembly instruction sheet).
4. To adjust the height of the rear foot, turn the red hexagonal bushing on the lower central part at the front of the dishwasher using a hexagonal spanner with an opening of 8 mm. Turn the spanner in a clockwise direction to increase the height and in an anticlockwise direction to decrease it. (see Building-in instruction sheet attached to the documentation)

Advice regarding the first wash cycle

After the installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack (if any).

Water softener settings

Before starting the first wash cycle, set the hardness level of the water from the mains supply. (see chapter Rinse aid and refined salt).

First load the softener tank with water, then introduce about 1 kg of salt. It is perfectly normal for water to flow out.

As soon as this procedure is complete, run a wash cycle.

Only use salt that has been specifically designed for dishwashers.

After the salt has been poured into the machine, the LOW SALT indicator light switches off.

⚠️ If the salt container is not filled, the water softener and the heating element may be damaged as a result.

Technical data
Dimensions	width 45 cmheight 85 cmdepth 60 cm
Capacity 10 standard place-settings
Water supply pressure	0,05 + 1MPa (0.5 + 10 bar)7,25 psi – 145 psi
Power supply voltage See appliance data plate
Total absorbed power See appliance data plate
Fuse See appliance data plate
	This dishwasher conforms to the following European Community Directives:-93/68/EEC (CE Marking)-2006/95/EC (Low Voltage)-2004/108/EC (Electromagnetic Compatibility)-2009/125/EC (Comm. Reg. 1016/2010) (Ecodesign)
	-2010/30/EC (Energy Labelling)-2011/65/EC (RoHS)-2012/19/CE Waste Electrical and Electronic Equipment (WEEE)

The machine has a buzzer/set of tones to inform the user that a command has been implemented: power on, cycle end etc.

The symbols/indicator lights/LEDs on the control panel/display may vary in colour and may have a flashing or fixed light.

Overall view

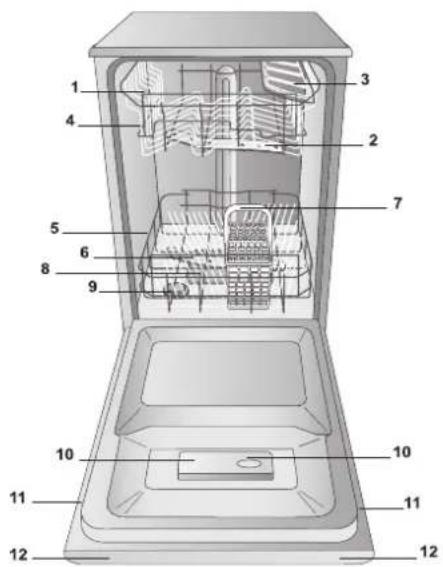

Labeled diagram of a refrigerator interior with numbered components for identification

1. Upper rack
2. Upper spray arm

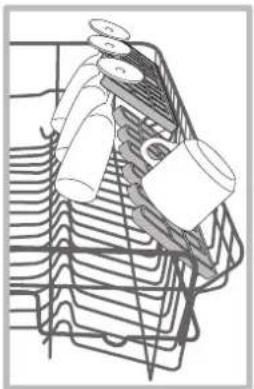

3. Tip-up compartments
4. Rack height adjuster
5. Lower rack
6. Lower spray arm
7. Cutlery basket
8. Washing filter
9. Salt dispenser
10. Detergent and rinse aid dispensers
11. Data plate
12. Control Panel

EN

Control panel

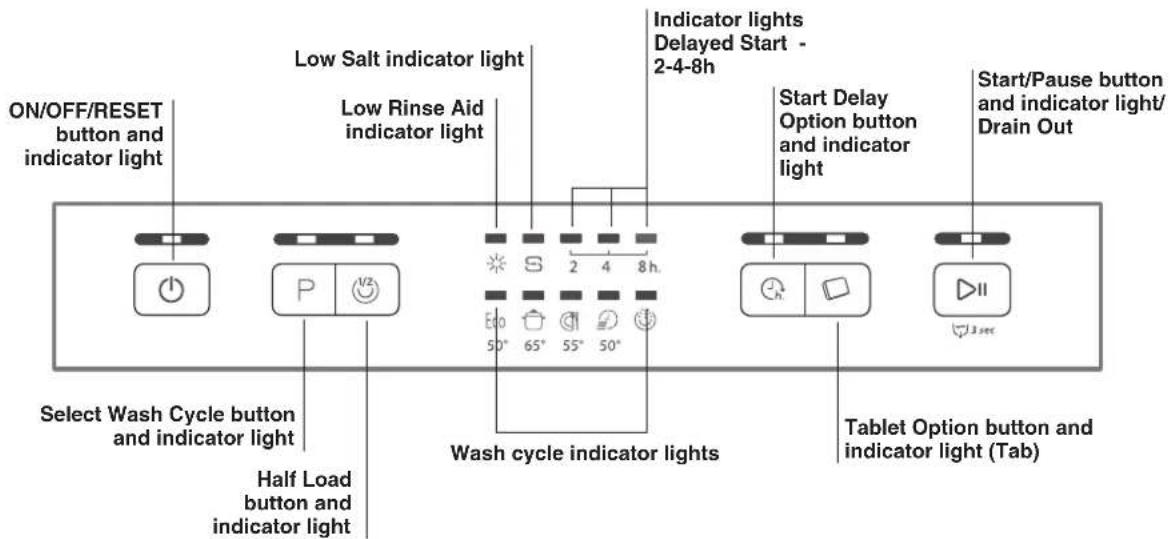

ON/OFF/RESET button and indicator light Low Salt indicator light Low Rinse Aid indicator light Indicator lights Delayed Start - 2-4-8h Start Delay Option button and indicator light Start/Pause button and indicator light/ Drain Out Select Wash Cycle button and indicator light Half Load button and indicator light Wash cycle indicator lights Tablet Option button and indicator light (Tab)

Only use products which have been specifically designed for dishwashers. Do not use table salt or industrial salt. Follow the instructions given on the packaging.

If you are using a multi-function product, we recommend that you add salt in any case, especially if the water is hard or very hard. (Follow the instructions given on the packaging.)

⚠️ If you do not add salt or rinse aid, the LOW SALT and LOW RINSE AID indicator lights will remain lit.

Measuring out the refined salt

The use of salt prevents the formation of LIMESCALE on the dishes and on the machine's functional components.

• It is important that the salt dispenser be never empty.
• It is important to set the water hardness.

The salt dispenser is located in the lower part of the dishwasher (see Description) and should be filled:

• When the LOW RINSE AID indicator light in the control panel is lit;
  • See autonomy in the water hardness table.

Illustration of a hand pouring granular substance into a bowl on a stand, with a separate pie chart nearby (no text or symbols)

1. Remove the lower rack and unscrew the container cap (anticlockwise).
2. Only the first time you do this: fill the water dispenser up to the edge.

3. Position the funnel (see figure) and fill the salt container right up to its edge (approximately 1 kg); it is not unusual for a little water to leak out.

4. Remove the funnel and wipe any salt residue away from the opening; rinse the cap under running water and then screw it on. It is advisable to perform this procedure every time you add salt to the container.

Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash cycle (this could damage the water softener beyond repair).

Whenever you need to add salt, we recommend carrying out the procedure before the washing cycle is started.

Setting the water hardness

For perfect water softener operation, it is essential that the adjustment be based on the water hardness in your house. Ask your local water supplier for this information. The factory setting is for medium water hardness.

• Switch the dishwasher on using the On/Off button.
• Switch it off using the On/Off button ⏻
• Hold down button START/PAUSE ▷II for 5 seconds until you hear a beep.
• Switch it on using the On/Off button ⏻
• The program indicator light of the set level and salt indicator light flash (flashing indicator only).
• Press button P to select the desired hardness level (see hardness table).
• Switch it off using the On/Off button ⏻
• Setting is complete!

Water Hardness Table				Average autonomy salt dispenser with 1 wash cycle per day
level °d	H °fH mmol/l months
1	0 - 6	0 - 10	0 - 17 months
2	6 - 11	11 - 20	1.1 - 2	5 months
3	12 - 17	21 - 30	2.1 - 3	3 months
4	17 - 34	31 - 60	3.1 - 6	2 months
5	34 - 50	61 - 90	6.1 - 9	2/3 weeks
For values between 0°f and 10°f, we do not recommend the use of salt. A setting of 5 may increase cycle duration.

(°dH = hardness measured in German degrees - °f = hardness measured in French degrees - mmol/l = millimoles per litre)

Measuring out the rinse aid

Rinse aid makes dish DRYING easier. The rinse aid dispenser should be filled:

• When the LOW RINSE AID indicator light on the panel/display is lit;
• When the dark optical indicator on the dispenser door "E" becomes transparent.

Diagram of a refrigerator interior with labeled parts E, F, G and a handle mechanism

1. Open the dispenser by turning the cap "G" in an anticlockwise direction.
2. Pour in the rinse aid, making sure it does not overflow from the dispenser. If this happens, clean the spill immediately with a dry cloth.
3. Screw the cap back on.

NEVER pour the rinse aid directly into the tub.

Adjusting the amount of rinse aid

If you are not completely satisfied with the drying results, you can adjust the quantity of rinse aid used. Turn the adjuster "F". A maximum of 4 levels can be set according to the dishwasher model. The factory setting is for a medium level.

• If you see bluish streaks on the dishes, set a low number (1-2).
• If there are drops of water or limescale marks on the dishes, set a high number (3-4).

Tips

Before loading the racks, remove all food residues from the crockery and empty liquids from glasses and containers. No preventive rinsing is needed under running water.

Arrange the crockery so that it is held in place firmly and does not tip over; and arrange the containers with the openings facing downwards and the concave/convex parts placed obliquely, thus allowing the water to reach every surface and flow freely. Make sure that the lids, handles, trays and frying pans do not prevent the spray arms from rotating. Place any small items in the cutlery basket.

Since plastic dishes and non-stick frying pans usually retain more water drops, their drying will be not so good as that of ceramic or stainless-steel dishes.

Lightweight items such as plastic containers should be placed in the upper rack and arranged so that they cannot move.

After loading the appliance, make sure that the spray arms can rotate freely.

Lower rack

The lower rack can hold pans, lids, dishes, salad bowls, cutlery etc. Large plates and lids should ideally be placed at the sides.

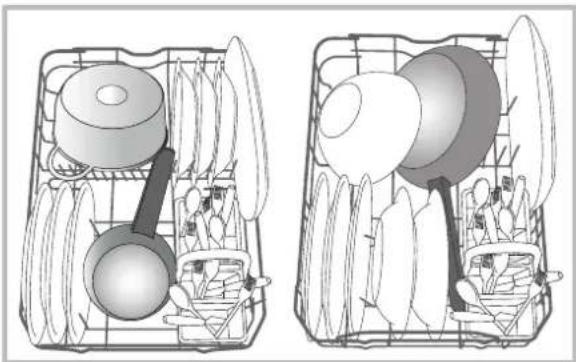

Two technical line drawings of a kitchen sink with cutlery and food items, no text or symbols present.

Very soiled dishes and pans should be placed in the lower rack because in this sector the water sprays are stronger and allow a higher washing performance.

Cutlery basket

The basket is equipped with top grilles for improved cutlery arrangement. The cutlery basket should be positioned only at the front of the lower rack.

Three-step diagram showing a hand using a tool to cut a basket into a grid, with arrows indicating direction of movement (no text or symbols present)

Upper rack

Load this rack with delicate and lightweight crockery such as glasses, cups, saucers and shallow salad bowls.

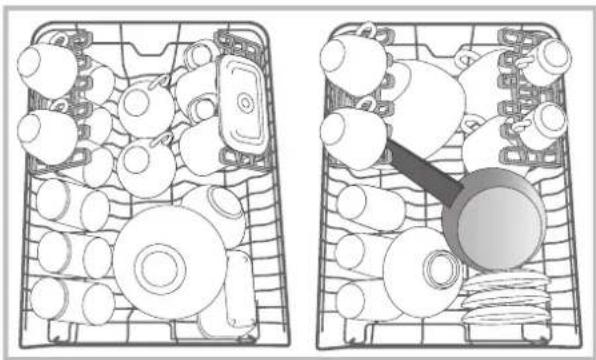

Two identical wireframe diagrams showing a grid of circular objects, one with a magnifying glass overlay (no text or symbols)

Adjustable position tip-up compartments

The side tip-up compartments can be positioned at three different heights to optimize the arrangement of the crockery inside the rack.

Line drawing of a mechanical device with cylindrical components and layered internal structure (no text or symbols)

Wine glasses can be placed safely in the tip-up compartments by inserting the stem of each glass into the corresponding slot.

For optimum drying results incline the tip-up compartments more. To change the inclination, pull up the tip-up compartment, slide it slightly and position it as you wish.

Adjusting the height of the upper rack

The height of the upper rack can be adjusted: high position to place bulky crockery in the lower rack and low position to make the most of the tip-up compartments by creating more space upwards.

It is strongly recommended to never adjust height position when the rack is loaded.

NEVER raise or lower the rack on one side only.

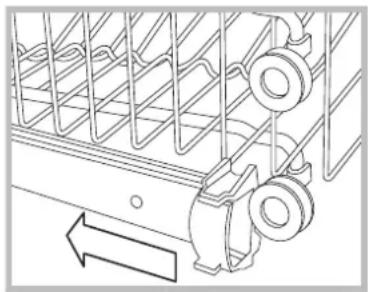

Technical line drawing of a mechanical assembly with gears and a directional arrow (no text or symbols)

Open the left and right guide rail stops and pull out the rack; position it higher or lower as required, slide it along the guide rails until the front wheels are in place and close the stops (see figure).

Unsuitable crockery

• Wooden crockery and cutlery.
• Delicate decorated glasses, artistic handicraft and antique crockery. Their decorations are not resistant.
• Parts in synthetic material which do not withstand high temperatures.

• Copper and tin crockery.

- Crockery soiled with ash, wax, lubrificating grease or ink. The colours of glass decorations and aluminium/silver pieces can change and fade during the washing process. Some types of glass (e.g. crystal objects) can become opaque after a number of wash cycles too.

Damage to glass and crockery

Caused by:

• Type of glass and glass production process.
  • Chemical composition of detergent.
  • Water temperature of rinse cycle.

Tips:

- Only use glasses and porcelain guaranteed by the manufacturer as dishwasher safe.

- Use a delicate detergent suitable for crockery.

- Collect glasses and cutlery from the dishwasher as soon as the wash cycle is over.

Measuring out the detergent

Good washing results also depend on the correct amount of detergent being used. Exceeding the stated amount does not result in a more effective wash and increases environmental pollution.

The amount can be adjusted to the soil level.

In the case of normally soiled items, use approximately either 25g (powder detergent) or 25ml (liquid detergent). If tablets are used, one tablet will be enough.

If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly.

For good washing results also follow the instructions shown on the detergent box.

For further questions please ask the detergent producers.

Open the detergent dispenser using button D and measure out the detergent according to the Table of wash cycles:

- powder or liquid: compartments A (wash detergent) and B (pre-wash detergent)

D A B C

- tablets: when the cycle requires 1 tablet, place it in compartment A and close cover C; when it requires 2 tablets, place the second tablet on the bottom of the appliance.

Remove detergent residues from the edges of the compartment and close cover C until it clicks.

The detergent dispenser

automatically opens up at the right time according to the wash cycle.

If all-in-one detergents are used, we recommend using the TAB option, because it adjusts the cycle so that the best washing and drying results are always achieved.

Only use detergent which has been specifically designed for dishwashers.

DO NOT USE washing up liquid.

Using excessive detergent may result in foam residues remaining in the machine after the cycle has ended.

To achieve the best washing and drying results, the combined use of detergent, rinse aid liquid and refined salt is required.

We recommend using detergents that do not contain phosphates or chlorine, as these products are harmful to the environment.

Starting the dishwasher

1. Press ON-OFF button.
2. Open the door and measure out the detergent. (see detergent information).
3. Load the racks (see Loading the racks) and shut the door.
4. Select the wash cycle in accordance with the type of crockery and its soil level (see Table of wash cycles) by pressing the P button.
5. Select the wash options (see Special wash cycles and options).
6. Start the wash cycle by pressing the START/PAUSE button.
7. The end of the wash cycle is indicated by beeps and by the flashing of the indicator light of the selected wash cycle. Switch off the appliance by pressing the ON/OFF button.
8. Wait a few minutes before removing the crockery in order to avoid burns. Unload the racks, beginning with the lower level.

The machine will switch off automatically during long periods of inactivity in order to minimise electricity consumption.

If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly.

Modifying a wash cycle in progress

If a mistake was made during the wash cycle selection process, it is possible to change the cycle, provided that it has only just begun: by pressing and holding the ON/OFF button, the machine will switch off. Switch the machine back on using the ON/OFF button and select the new wash cycle and any options desired; start the cycle by pressing the START/PAUSE button.

Adding extra crockery

Without switching off the machine, open the door, taking care to avoid the escaping steam, and place the crockery inside the dishwasher. Shut the door and press the START/PAUSE button the cycle will begin from the point at which it was interrupted.

Accidental interruptions

If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. Once the door has been shut or the electricity supply is restored, to start again the cycle from where it was interrupted, press the START/PAUSE button.

Wash-cycle data is measured under laboratory conditions according to European Standard EN 50242. Based on the different conditions of use, the wash-cycle duration and data can change.

Wash cycle	Wash cycle which include drying	Options	Approximate duration of wash cycles h:min.	Water consumption (l/cycle)	Energy consumption (kWh/cycle)
1. Eco Yes Start Delay - Half Load - Tab 03:00	10 0,83
2. Intensive Yes State	Half Load - Tab 02:30 14 1,3
3. Normal Yes Start	Load - Tab 02:00 13,5 1,15
4. Rapid No Start C	00:25 8,5	0,5
5. PreWash	No	Start Delay - Half Load	00:10	4	0,01

Instructions on wash cycle selection and detergent dosage

1. Normally soiled crockery. Standard program, the most efficient in terms of its combined energy and water consumption.
   4 gr/ml** + 21 gr/ml - 1 Tab ( ^** Quantity of pre-washing detergent)
2. Recommended program for heavily soiled crockery, specially suitable for pans and saucepans (not to be used for delicate items). 25 gr/ml – 1 Tab
3. Normally soiled crockery. 4 gr/ml** + 21 gr/ml - 1 Tab
4. Lightly soiled crockery, with no dried-on food. (Ideal for 2 place settings) 21 gr/ml – 1 Tab
5. Crockery to be washed later. No detergent

Standby consumption: Left-on mode consumption: 5 W - Off mode consumption: 0.5 W

Notes:

Optimum performance levels when using the "Rapid" cycles can be achieved by respecting the specified number of place settings.

To reduce consumption even further, only run the dishwasher when it is full.

Note for Test Laboratories: for information on comparative EN testing conditions, please send an email to the following address: [e-mail]

Wash options

If an option is not compatible with the selected wash cycle (see table of wash cycles), the corresponding LED flashes rapidly 3 times and beeps will sound.

Delayed start

It is possible to delay the start time of the wash cycle by 2, 4 or 8 hours:

1. After selecting the desired wash cycle and any other options, press the DELAYED START button. The indicator light will go on.

2. Select the desired delay time by pressing the Delayed Start button repeatedly. The 2 hours, 4 hours and 8 hours indicator lights will go on in succession.

If the Delayed Start button is pressed again, the option is deselected and the indicator light goes off.

1. After the selection process, the countdown will begin if the Start/Pause button is pressed. The selected delay-period indicator light is lit and the Start/Pause button lights up (fixed light).

2. Once this time has elapsed, the DELAYED START indicator light goes off and the wash cycle begins.

To deselect the DELAYED START option, press the START/PAUSE button.

The Start Delay function cannot be set once a wash cycle started.

Tablet option (Tab)

This option optimises washing and drying results.

When using Tablet, press the TABLET button; the corresponding symbol will light up. If the button is pressed again, the option will be deselected.

The "Tablet" option results in a longer wash cycle.

Half Load option

If there are not many dishes to be washed, a half load cycle may be used in order to save water, electricity and detergent. Select the wash cycle and press the HALF LOAD button: the indicator light will illuminate.

Press the HALF LOAD button to deselect this option.

Remember to halve the amount of detergent.

Drain out

To stop and cancel the active cycle, the Drain Out function can be used.

A long press of START/PAUSE button, will activate the DRAIN OUT function. The active cycle will be stopped and the water in the dishwasher will be drained out.

Shutting off the water and electricity supplies

• Turn off the water tap after every wash cycle to avoid leaks.
• Always unplug the appliance when cleaning it and when performing maintenance work.

Cleaning the dishwasher

• The external surfaces of the machine and the control panel can be cleaned using a non-abrasive cloth which has been dampened with water. Do not use solvents or abrasive products.
• Any marks on the inside of the appliance may be removed using a cloth dampened with water and a little vinegar.

Preventing unpleasant odours

• Always keep the door of the appliance ajar in order to avoid moisture from forming and being trapped inside the machine.
• Clean the seals around the door and detergent dispensers regularly using a damp sponge. This will avoid food becoming trapped in the seals, which is the main cause behind the formation of unpleasant odours.

Cleaning the spray arms

Food residue may become encrusted onto the spray arms and block the holes used to spray the water. It is therefore recommended that you check the arms from time to time and clean them with a small non-metallic brush.

The two spray arms may both be removed.

Diagram of a mechanical assembly with a hand holding a tool, showing internal components and motion arrows (no text or labels)

To remove the upper spray arm, turn the plastic locking ring in an anti-clockwise direction. The upper spray arm should be replaced so that the side with the greater number of holes is facing upwards.

Mechanical assembly diagram showing a valve inserted into a housing with a close-up view of the component (no text or symbols visible)

The lower spray arm can be removed by pressing on the side tabs and pulling it upwards.

Cleaning the water inlet hose

If the water hoses are new or have not been used for an extended period of time, let the water run to make sure it is clear and free of impurities before performing the necessary connections. If this precaution is not taken, the water inlet could become blocked and damage the dishwasher.

Clean the water inlet filter at the tap outlet regularly.

• Turn off the water tap.
• Unscrew the end of the water inlet hose, remove the filter and clean it carefully under running water.
• Re-place the filter and screw the water hose back into position.

Cleaning the filters

The filter assembly consists of three filters which remove food residues from the washing water and then recirculate the water. They must be cleaned if you wish to achieve the best results in every wash.

Clean the filters regularly.

The dishwasher must not be used without filters or if the filter is loose.

- After several washes, check the filter assembly and if necessary clean it thoroughly under running water, using a non-metallic brush and following the instructions below:

1. Turn the cylindrical filter C in an anti-clockwise direction and pull it out (fig. 1).
2. Remove the cup filter B by exerting a slight pressure on the side flaps (fig. 2);
3. Slide out the stainless-steel plate filter A. (fig. 3).
4. Inspect the trap and remove any food residues. NEVER

REMOVE the wash-cycle pump protection (black detail) (fig. 4).

Mechanical component diagram showing a rotating lever and adjustment knob (no text or symbols)

A 3

After cleaning the filters, re-place the filter assembly and fix it in position correctly; this is essential for maintaining the efficient operation of the dishwasher.

Leaving the machine unused for extended periods

• Disconnect the appliance from the electricity supply and shut off the water tap.
• Leave the door of the appliance ajar.
• When you return, run a wash cycle when the dishwasher is empty.

Whenever the appliance fails to work, check for a solution from the following list before calling for Assistance.

Problem: Possible causes / Solutions:
The dishwasher does not start or cannot be controlled.	· The water supply tap is not turned on.· Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and reset the wash cycle.· The appliance has not been plugged in properly or another electricity socket should be used.· The dishwasher door has not been closed properly.
The door won't close.	· Make sure that the racks were inserted all the way.· The lock was released. Strongly push the door until a “clacking” noise is heard.
No water drain out of the dishwasher.	· The wash cycle has not finished yet.· The water drain hose is bent (see Installation).· The drain duct is clogged up.· The filter is clogged up with food residues.· Check the height of the drain hose.
The dishwasher makes excessive noise.	· The dishes are rattling against each other or against the spray arms. Place the dishes properly and make sure the spray arms can rotate freely.· Too much foam: the detergent has not been measured out correctly or it is not suitable for use in dishwashers. (See Detergent and dishwasher use.) Do not prewash the dishes by hand.
The dishes and glasses are covered in a white film or limescale deposits.	· No refined salt.· Water hardness adjustment is not suitable: increase the relevant values. (See Refined Salt and Rinse Aid.)· The salt and rinse-aid dispenser cap has not been closed properly.· The rinse aid has been used up or the dosage is too low.
The dishes and glasses are streaked or have a bluish tinge.	· The rinse aid dosage is too high.
The crockery has not been dried properly.	· A wash cycle without a drying programme has been selected.· The rinse aid has been used up. (See Refined Salt and Rinse Aid.)· The rinse aid dispenser setting is not suitable.· The crockery is made from non-stick material or plastic; the presence of water drops is normal.
The dishes are not clean. · The crockery has not been arranged properly.· The spray arms cannot rotate freely, being hindered by the dishes.· The wash cycle is too gentle (see Wash Cycles).· Too much foam: the detergent has not been measured out correctly or it is not suitable for use in dishwashers. (See Detergent and dishwasher use.)· The lid on the rinse aid compartment has not been closed correctly.· The filter is dirty or clogged up (see Care and maintenance.)· The refined salt level is low (See Refined Salt and Rinse Aid.)· Make sure that the height of the dishes is compatible with the rack adjustment.· The holes in the spray arms are clogged up. (See Care and maintenance.)
The dishwasher won't load any water.It is blocked with flashing lights.	· There is no water in the mains supply or the tap is shut off.· The water inlet hose is bent (see Installation).· The filters are clogged up: they need cleaning. (See Care and maintenance.)· The drain duct is clogged up: it needs cleaning.· After checking and cleaning, switch the dishwasher on and off and start a new wash cycle.· If the problem persists, turn off the water tap, remove the plug and call the Service Centre.

Raccordements hydrauliques

Labeled diagram of a refrigerator interior with numbered components for identification

Diagram of a device with labeled parts E, F, and G, showing a tool interacting with a circular component.

Two technical line drawings of a kitchen appliance with cutlery and dish items, no text or symbols present.

Three-step diagram showing a hand using a tool to cut a basket into two different storage compartments (no text or symbols present)

Panier supérieur

Two identical diagrams showing a grid of circular objects and a magnifying glass, with no text or symbols present.

Line drawing of a shopping cart with bags and luggage (no text or symbols)

Technical line drawing of a mechanical assembly with spring-like components and a directional arrow (no text or symbols)

Hand holding a cylindrical object inside a technical diagram with arrows indicating motion or force (no text or symbols)

Mechanical assembly diagram showing a piston and nut assembly with an upward arrow (no text or symbols)

Labeled diagram of a refrigerator interior with numbered parts for identification

Diagram of a kitchen appliance with labeled parts E, F, G and a tool interacting with a bowl containing food

Two technical line drawings of a kitchen sink with cutlery and food items, no text or symbols present.

Three technical diagrams showing a hand using a tool to cut a container into a grid, with arrows indicating direction of movement (no text or symbols present)

Kosz górny

Two identical diagrams showing a grid of kitchen utensils, one with a magnifying glass inspecting the interior (no text or symbols)

Line drawing of a shopping cart filled with items, no text or symbols present

Technical line drawing of a mechanical assembly with gears and a directional arrow (no text or symbols)

Illustration of a hand holding a tool inside a technical setup with no visible text or symbols

Mechanical assembly diagram showing a rotating component with an upward arrow (no text or symbols)

Mechanical assembly diagram showing a rotating component with labeled parts (no text or symbols present)

A 3

Technical diagram of a device with numbered components for identification

Illustration of a hand pouring granular material into a bowl on a stand next to a sliced seed or squash (no text or symbols)

Diagram of a washing machine with labeled parts E, F, and G for cleaning or repair operation

Two technical line drawings of a kitchen appliance with cutouts and dish items (no text or symbols)

Three-step diagram showing a hand using a tool to cut a basket into a grid, with arrows indicating direction of movement (no text or symbols present)

Coşul superior

Two identical wireframe diagrams showing a grid of circular objects, one with a magnifying glass overlay (no text or symbols)

Line drawing of a mechanical device with multiple components and a lock mechanism (no text or symbols)

Technical line drawing of a mechanical assembly with gears and a pulley (no text or symbols)

Consumuri de stand-by: Consum de left-on mode: 5,0 W - consum de off mode: 0,5 W

Illustration of a hand holding a tool with a scroll and arrow, no text or symbols present

Diagram of a mechanical device with a handle and base plate, no visible text or symbols

Labeled diagram of a refrigerator interior with numbered components for identification

Illustration of a hand pouring granular material into a bowl on a stand, with a separate gear-like object nearby (no text or symbols)

Diagram of a refrigerator interior with labeled parts E, F, and G indicating different components

Two technical line drawings of a kitchen appliance with cutouts and a person taking a photo (no text or symbols)

Three-step diagram showing a hand using a tool to cut a basket into three views (no text or symbols present)

Горна кошница

Two identical wireframe diagrams showing a grid of circular objects, one with a magnifying glass and the other with a handle (no text or symbols)

Подвижни рампи

Illustration of a person using a laptop to interact with a keyboard (no text or symbols visible)

Technical line drawing of a mechanical assembly with spring-like components and a directional arrow (no text or symbols)

Illustration of a hand holding a tool interacting with a mechanical device (no text or symbols visible)

Diagram of a mechanical assembly with a hand pressing a component on a base, showing no text or symbols.

Labeled diagram of a refrigerator interior with numbered parts for identification

Illustration of a hand pouring granular material into a bowl on a stand next to a sash (no text or symbols)

Diagram of a device with labeled parts E, F, and G, showing internal components and connections.

Two technical line drawings of a kitchen sink with cutlery and food items, no text or symbols present.

Three-step diagram showing a hand placing a tool into a grid-like container, with arrows indicating process flow (no text or symbols present)

Επάνω καλάθι

Two identical diagrams showing a grid of circular objects inside a container, with one containing a magnifying glass (no text or symbols)

Line drawing of a mechanical device with gears and a handle (no text or symbols)

Technical line drawing of a mechanical assembly with spring-like components and a directional arrow (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Mechanical component diagram showing a hand pressing a button onto a base plate (no text or symbols visible)
