USER MANUAL DO2423 DOMO

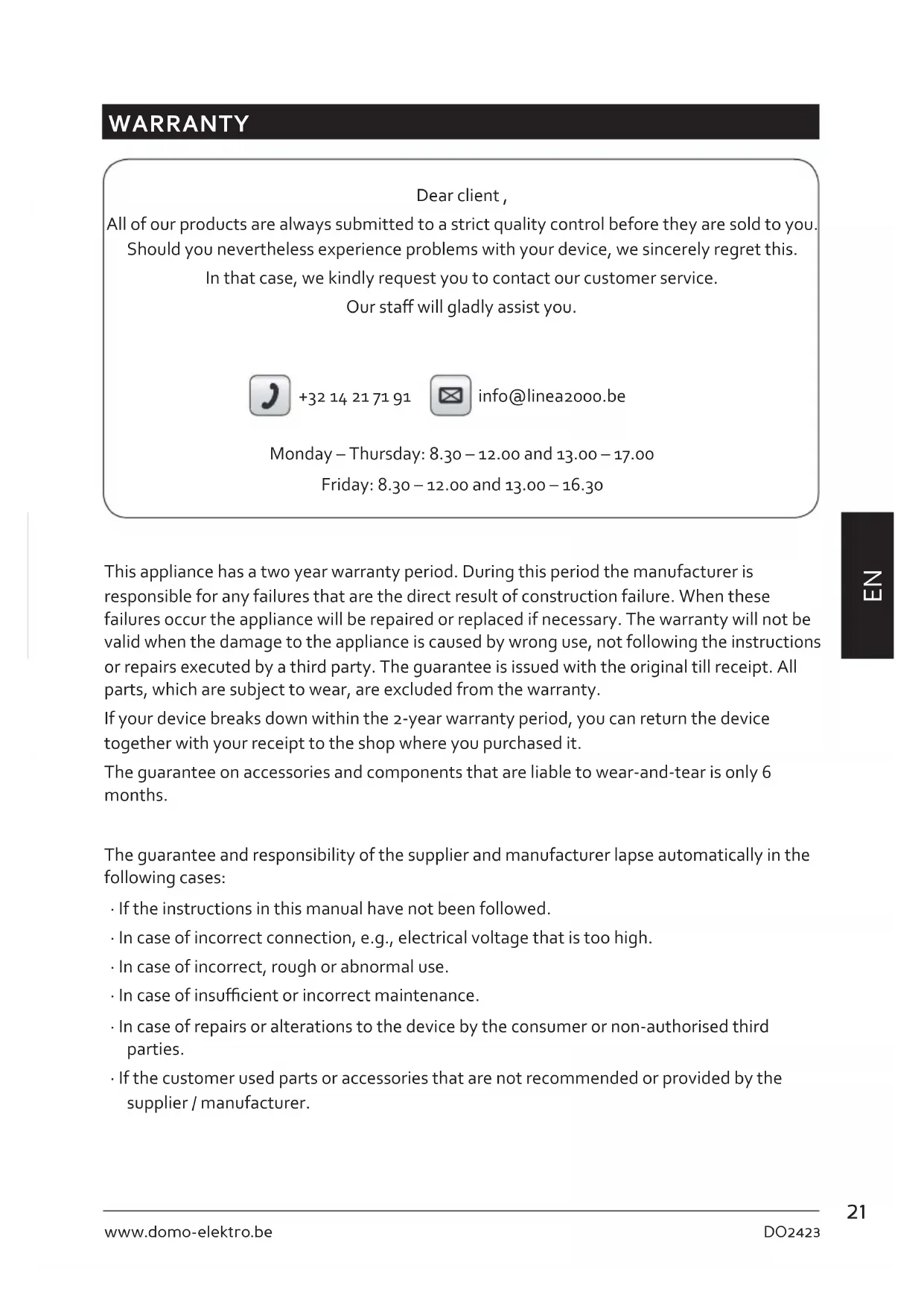

WARRANTY Dear client , All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service. Our sta will gladly assist you. +32 14 21 71 91 info@linea2000.be Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00 Friday: 8.30 – 12.00 and 13.00 – 16.30 This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months. The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.

• In case of incorrect connection, e.g., electrical voltage that is too high.

• In case of incorrect, rough or abnormal use.

• In case of insucient or incorrect maintenance.

• In case of repairs or alterations to the device by the consumer or non-authorised third parties.

• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.22 DO2423

• This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensorly limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

• Children cannot be allowed to play with the appliance.

• Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision.

• Keep the appliance out of reach of children younger than 8 years old.

• This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, oces or other similar professional surroundings

• Hotel or motel rooms and other surroundings with a residential character

• Guest rooms or similar

• Attention: This appliance cannot be used with an external timer or a separate remote control.

• The following basic precautions should always be followed when using an electrical appliance:

• Read all instructions before use.

• Make sure the voltage in your living area corresponds with the one shown on the rating label of the appliance. Also make sure that the wall socket is properly grounded.

• To reduce the risk of re in the oven cavity:

• A. Do not overcook the food.

• B. Remove wire twist-ties from paper or plastic bags before placing bags into the oven.

• C. Do not heat deep frying oil or fat as the temperature of oil cannot be controlled.

• D. After use, wipe the waveguide cover with a damp cloth, followed by a dry cloth to remove any food residues and grease. Built-up grease may overheat and cause smoke or catch re.

• E. If materials inside the oven should smoke or ignite, keep the oven door closed, turn o the oven and disconnect from the power supply.

• G. Close supervision is necessary when using disposable containers made from plastic, paper or other combustible materials.

• To reduce the risk of explosion and sudden boiling:

• A. Do not place sealed containers in the oven. Baby bottles tted with a screw cap or teat are considered to be sealed containers.

• B. When boiling liquid in the oven, use a wide-mouthed container and leave it in23 DO2423 www.domo-elektro.be

the oven for about 20 seconds after the cooking time has nished to avoid delayed eruptive boiling of liquids.

• Never operate the oven if the door is damaged, the oven malfunctions or supply cord is damaged. Return the appliance to the nearest authorised service centre for repair and maintenance. Never try to adjust or repair the oven yourself.

• If the supply cord is damaged it must be replaced by the manufacturer or its service agent or a qualied technician in order to avoid a shock hazard.

• After cooking, the container is very hot. Use gloves to take out the food and avoid steam burns by directing the steam away from the face and hands.

• Carefully remove any packaging by slowly lifting the furthest edge of the dishes cover and microwave plastic wrap. Carefully open popcorn and oven cooking bags away from the face.

• To prevent the turntable from breaking:

• A. Let the turntable cool down before cleaning.

• B. Do not place hot foods or utensils on the cold turntable.

• C. Do not place frozen foods or utensils on the hot turntable.

• Make sure that the utensils do not touch the interior walls of the oven during cooking.

• Do not store food or any other objects inside the oven.

• Do not operate the oven without any liquid or food inside the oven. This would damage the oven.

• This appliance is not intended for use by young children or inrm persons without supervision.

• Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.

• Use of any accessories not recommended by the manufacturer may cause injuries.

• Do not use outdoors.

• Eggs with shell, full hard boiled eggs, potatoes, sausages or chestnuts need to be peeled or pierced before cooking.

• The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.

• When the appliance is not kept clean, the surface of the unit can get damaged and the life span of your appliance will be aected. Accumulated dirt can lead to dangerous situations such as re.

• Save these instructions.

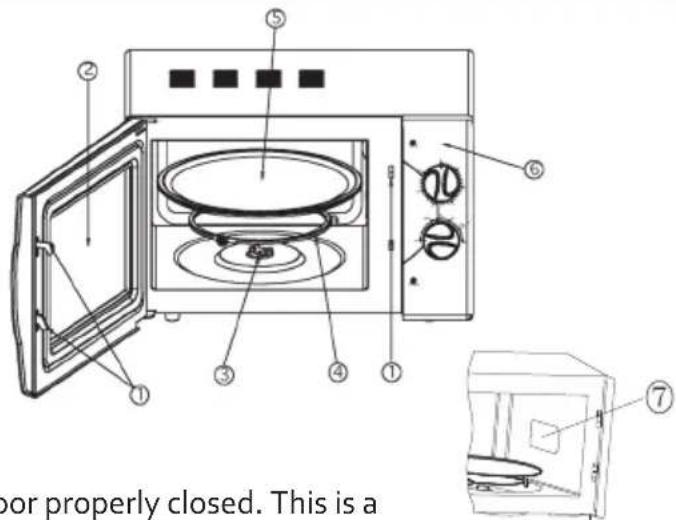

7. Protection cover wave guide - never

remove this cover! Note: The oven cannot be activated without the door properly closed. This is a safety feature, never intend to damage it.

INSTALLATION OF THE MICROWAVE OVEN

To ensure sucient ventilation, the distance of the back of the oven to the wall or cabinet should be at least 10cm, the side of the oven to the wall or cabinet should be at least 20cm and the distance from the top of the oven to the ceiling or cabinet should be at least 20cm. Do not place any objects on top of the oven. The oven should be positioned far from the TV, radio or antenna as picture disturbance or noise may occur. The oven should be installed in such a manner that the plug is accessible. USE UTENSILS GUIDE Material of container Microwave Heat resistant glass Yes Ceramic Yes Normal glass No Heat resistant plastic Yes Normal plastic No Plastic lm Yes Metal dish No

USE OF THE CONTROL PANEL

Timer knob Maximum time is 30 minutes. Waveguide Cover

Function control knob Your microwave oven has 6 dierent power levels:

• High: 100% of the power is used. Can be used for fast cooking.

• M. High: 85% of the power is used.

• Med: 66% of the power is used. For slow cooking.

• M. low: 40% of the power is used.

• Defrost: 37% of the power is used. For defrosting food.

• Low: 17% of the power is used. Can be used for keeping warm. COOKING PROCEDURE

1. Put the plug into the power socket.

2. Place the food on the glass turntable and close the door.

3. Choose the desired power level with the function control knob.

4. Adjust the timer. When you want to use the timer for less than 2 minutes, you rst need

to turn the timer passed 3 minutes and than turn it back to the desired time.

5. The oven will start operating. The cooking can be stopped at any time by opening the

door. When closing the door, the oven will start operating again.

6. A bell signal will be heard when the selected time has passed.

Attention: when you remove the food out of the oven before the signal, make sure to turn the timer to “0”. This prevents the oven from starting to operate again without food in it, which could damage the oven.

7. We recommend to use oven gloves when removing cooked food from the oven.

Remarks when defrosting food: The defrost function is one of the possibilities of your oven. This is safer than defrosting at room temperature, because it will prevent the development of harmful bacteria. Turn the function control knob to the defrost function. Select the time, depending on the frozen food. Defrosting usually takes up more time than normal cooking. Turn over the food at least once during defrosting, to check whether it is done. When you can cut the frozen food with a knife, it is usually defrosted enough.

CLEANING AND MAINTENANCE

The following steps are recommended after each use.

• Never use any scouring pads or aggressive cleaners to clean the oven.

• Remove the plug from the socket and let the oven cool down completely.

• Remove the turning ring and turntable and clean them in warm soapy water.

• Use a soft moist cloth to clean the door, the inside, the ouside and the control panel.

• When oil or soap has been spilled in the microwave oven, this must be cleaned up.26 DO2423

Otherwise smoke can occur during the next use.

• When the inside of the microwave oven has a bad smell, you can put in a cup of water with a bit of lemon in it and let this boil inside the microwave for about 5-7 minutes. This will most likely remove the bad smell.

• Dry all parts thoroughly and place them back into the oven. REPAIR All repairs can only be done by a qualied person. Don’t ever try to repair your microwave yourself. You will risk being exposed to microwaves, which can be hazardous for your health. ENVIRONMENTAL GUIDELINES This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city oce, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.27 DO2423 www.domo-elektro.be
