DO2720 - Microwaves DOMO - Free user manual and instructions

Brand	DOMO
Model	DO2720
Product type	Microwave
Oven capacity	20 L
Output power	700 W
Input power	1050 W
Power supply voltage	230 V, 50 Hz
Turntable diameter	25.5 cm
Dimensions (W × D × H)	44 × 35.9 × 25.9 cm

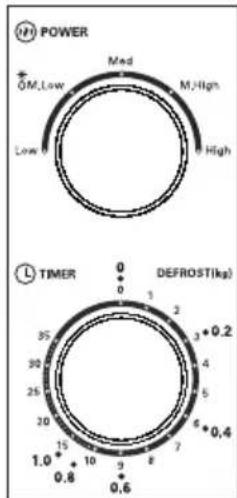

Power levels	5 (Low, M.Low, Med, M.High, High)
Timer	Up to 35 minutes
Defrost function	Yes, by weight
Control type	Rotary knobs
Interior material	Stainless steel
Door	Glass with window and safety lock
Interior lighting	Yes
Turntable	Glass
Warranty	2 years
Maintenance and cleaning	Clean after each use with a damp cloth; do not use abrasive products
Safety	Safety lock, automatic stop when door is opened
Installation	Flat, dry surface, at least 20 cm from sides and 30 cm above

Frequently Asked Questions - DO2720 DOMO

How to use the defrost function?

Turn the power knob to the M.Low (Defrost) position and set the time according to the food weight. Refer to the defrost table in the manual for approximate durations.

What utensils can I use in this microwave?

Use only microwave-safe utensils: heat-resistant glass, ‘microwave safe’ plastic, ceramic without metal. Avoid metal, aluminum, and sealed containers.

What to do if the oven does not start?

Check that the plug is fully inserted into the outlet, the door is properly closed, and the fuse has not blown. Unplug for 10 seconds then plug back in. If the problem persists, contact customer service.

How to clean the microwave interior?

After each use, clean the interior with a slightly damp cloth. For stubborn stains, use a soft sponge with mild detergent. Never use abrasive products or steam cleaners.

Can I use metal containers?

No, metal containers or those with metal parts can cause sparks and damage the oven. Use only microwave-safe materials.

Why is the light dimmer?

At low power, the interior lighting may appear dimmer. This is normal. The light adjusts to the cooking power.

How long can I set on the timer?

The timer can be set up to 35 minutes. Settings are in 1-minute increments up to 10 minutes, then in 5-minute increments.

What to do in case of smoke inside?

Immediately turn off the oven without opening the door and unplug it. Keep the door closed to smother any flames. Never use water.

Can I cook hard-boiled eggs?

No, eggs in their shell or whole hard-boiled eggs can explode in the microwave, even after cooking.

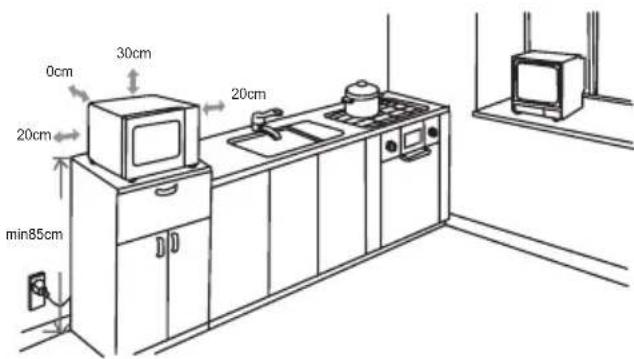

What is the minimum installation height?

The oven must be installed at least 85 cm from the floor, with at least 30 cm of free space above and 20 cm on the sides for proper air circulation.

USER MANUAL DO2720 DOMO

White microwave oven with black lid and wooden handle, no visible text or symbols on main body

DO2720

Handleiding Microgolfoven

Mode d'emploi Four à micro-ondes

Gebrauchsanleitung Mikrowelle

Instruction booklet Microwave oven

Manual de instrucciones Microondas

Istruzioni per l'uso Forno a microonde

Návod k použití Mikrovlnná trouba

Návod na použitie Mikrovlnná rúra

Two black-and-white icons: a triangular warning triangle with an exclamation mark and an open book with stacked pages (no text or symbols)

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

NOMINAAL INGANGSVERMOGEN MICROGOLF 1050 W

NOMINAAL UITGANGSVERMOGEN MICROGOLF 700 W

OVENINHOUD 201

DIAMETER DRAAIPLATEAU 25,5 cm

AFMETINGEN BUITENKANT 44 × 35,9 × 25,9 cm

BEWAAR DEZE INSTRUCTIES OM LATER TE RAADPLEGEN

ONDERDELEN

Simple line drawing of a box with a handle and a label marked '7' (no text or symbols on the diagram itself)

Labeled diagram of a microwave oven with numbered parts for identification

Diagram showing a rotating disc with a circular base and a downward arrow indicating rotation (no text or symbols)

LET OP:

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or recycling.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

⚠ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Simple line drawing of a door with a handle and a numbered label (7) on the right side (no text or symbols in the drawing itself)

Labeled diagram of a microwave oven with numbered parts for identification

AVANT LA PREMIÈRE UTILISATION

INSTALLATION DU PLATEAU TOURNANT

Diagram showing a circular object with internal features and a downward arrow pointing to a small irregular shape (no text or symbols)

ATTENTION:

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

FASSUNGSVERMÖGEN OFEN 20 L

Simple line drawing of a cabinet or enclosure with a handle and label (7), no text or symbols present.

Labeled diagram of a microwave oven showing interior components and open door

Diagram showing a rotating disc with a circular base and a downward arrow indicating rotation (no text or symbols)

INBETRIEBNAHME

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

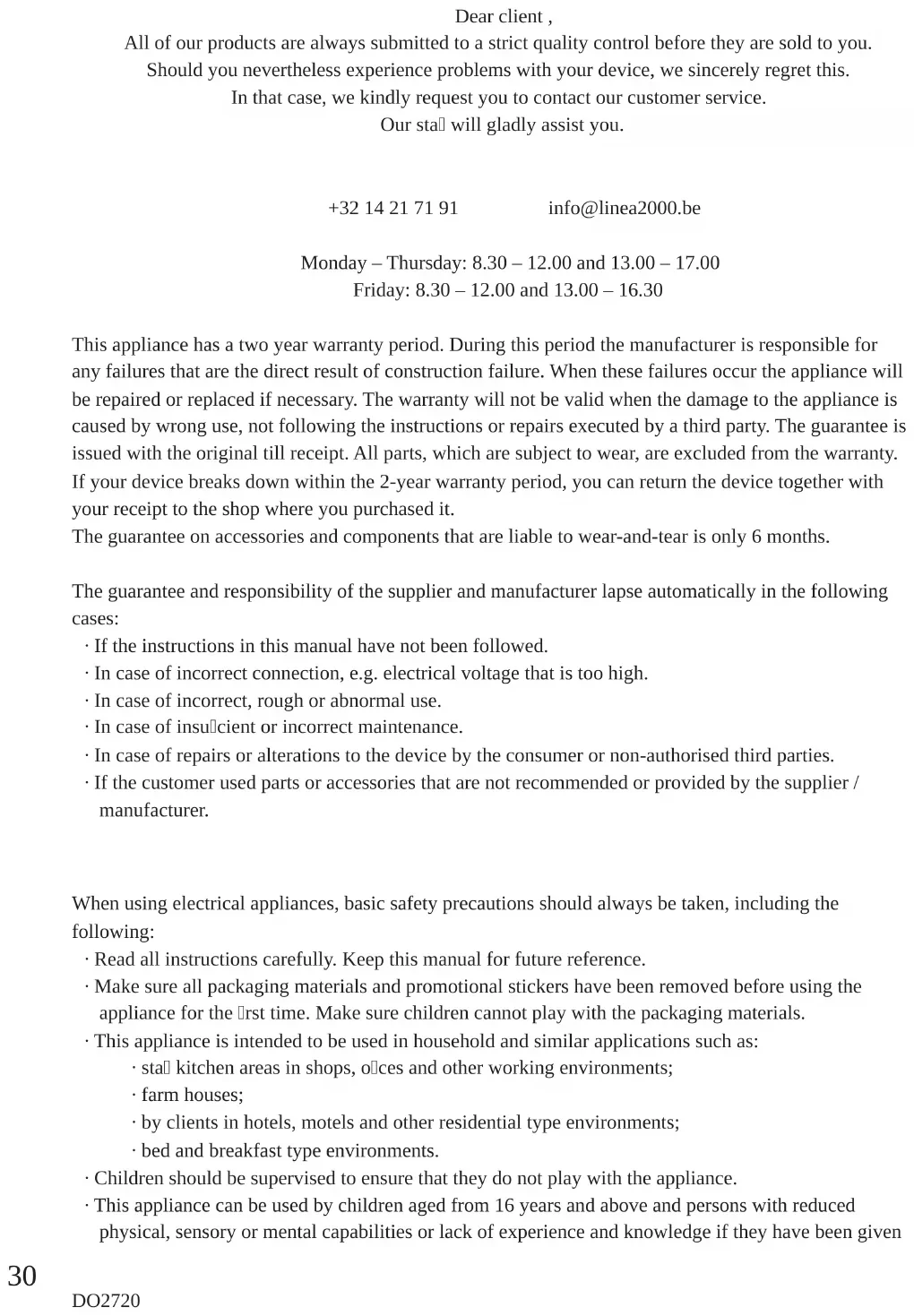

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our sta☐ will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g. electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.

· In case of repairs or alterations to the device by the consumer or non-authorised third parties.

- If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

• sta□ kitchen areas in shops, o□ces and other working environments;
• farm houses;
  · by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

· This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

· All repairs should be carried out by the manufacturer or its aftersales service.

- Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance. To disconnect, turn controls to "OFF" or "o" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

- Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.

- The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- The appliance may not be used with an extension lead or a multiple socket.

- Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

· Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

· Never leave the appliance unattended while it is functioning.

- Do not operate the appliance with wet hands.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCT-SPECIFIC WARNINGS

The appliance can become hot during use. Keep the power cord away from hot parts and don't cover the appliance.

To reduce the risk of fire, electric shock, injury or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

• Warning: Liquids and other foods must not be heated in sealed containers since they can explode.
• WARNING: It is hazardous for anyone other than a competent person to carry out maintenance or repairs involving the removal of a cover that protects from exposure to microwave energy.
• Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

- Only use utensils suitable for use in microwave ovens.

- The oven should be cleaned regularly and any food remainders should be removed.

- When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

- If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

- Do not overcook food.

- Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

- Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

- Install or locate this oven only in accordance with the installation instructions provided.

- Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

- Use this appliance only for its intended uses as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.

- Do not use this oven near water, in a wet basement or near a swimming pool.

- The oven can become hot during use. Keep the cord away from hot parts and surfaces and do not cover the oven.

- Failure to maintain the oven in a clean condition could lead to damaging of the appliance and could possibly result in a hazardous situation.

· The content of feeding bottles and baby food jars always needs to be stirred or shaken. The temperature needs to be checked before consumption, in order to avoid burns.

- Microwave heating of beverages can result in delayed eruptive boiling, therefore take care when handling the container.

· Children should be supervised to ensure that they do not play with the appliance.

· This appliance should not be placed into a cupboard.

- Do not use a steam cleaner to clean the appliance.

• Do not use abrasive cleaners or sharp metal scrapers to clean the oven door glass, since they can scratch the surface, which may result in shattering of the glass.
  · During use the appliance becomes hot. Do not touch any heating elements inside the oven.
  · The door or the outer surface of the appliance may get hot when the appliance is operating.
• The microwave oven is designed to heat food and beverages. Drying food or clothes and heating heat pads, slippers, sponges, damp cloths and the like can lead to risks of injury, ignition or fire.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

• Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
• Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
• WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
• If the appliance is not maintained properly, the appliance could be damaged, which may affect the lifespan of the apparatus and may lead to a dangerous situation.

TO REDUCE THE RISK OF INJURY

• Caution: touching some of the internal components may cause serious personal injury or death.
- Do not disassemble this appliance.
- Improper use of the appliance and the grounding can result in electric shock. Do not turn on the appliance until it is properly installed and grounded.
- This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.
- A short power-supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord.

WHAT MATERIALS CAN BE USED IN THE MICROWAVE OVEN?

In the list below you can find which materials can and can not be used in the microwave oven. If in doubt, or if you can not find the material in the list below, you can test the utensil in question, following the procedure below:

• Fill a microwave-safe container with 1 cup of cold water (250 ml) along with the utensil. Cook on maximum power for 1 minute.
• Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
• CAUTION: Do not exceed the 1 minute cooking time.

Materials that can be used in the microwave oven

• Dinnerware: microwave-safe only. Do not use cracked or chipped dishes.
• Glass jars: always remove the lid. Use only to heat up food until it is just about warm. Most glass jars are not heat-resistant and may break.

• Glassware: heat-resistant oven glass ware only. Make sure there is no metallic elements or parts. Do not use cracked or chipped dishes.

• Oven cooking bags: follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.

• Plastic: microwave-safe only. Follow the manufacturer's instructions. Should be labeled „microwave safe“. Some plastic containers soften, as the food inside gets hot. “Boiling bags” and tightly closed plastic bags should be slit, pierced or vented.
• Plastic wrap: microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
• Thermometers: microwave-safe only.

Materials to be avoided in the microwave oven

· Aluminum tray: may cause arcing. Transfer food into a microwave-safe dish.
· Food carton with metal handle: may cause arcing. Transfer food into a microwave-safe dish.
- Metal or metal-trimmed utensils: metal shields the food from microwave energy. Metal trim may cause arcing.
- Metal twist ties: may cause arcing and could cause a fire in the oven.
· Paper bags: may cause a fire in the oven.
- Plastic foam: plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
· Wood: wood will dry out when used in the microwave oven and may split or crack.

SPECIFICATIONS

MODEL: DO2720 RATED VOLTAGE: \~50 Hz 230 V

NOMINAL INPUT POWER OF MICROWAVE OVEN 1050 W

NOMINAL OUTPUT POWER OF MICROWAVE OVEN 700 W

OVEN CAPACITY: 20 L

TURNTABLE DIAMETER: 25.5 cm

EXTERNAL DIMENSIONS (LXWXH): 44 × 35.9 × 25.9 cm

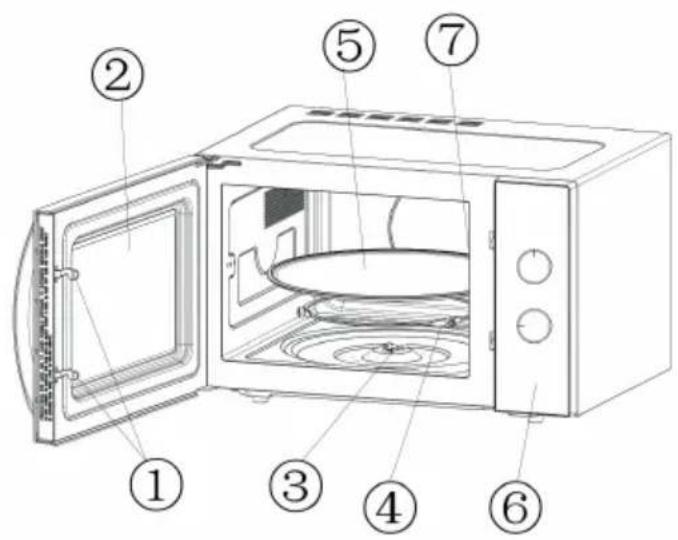

PARTS

1. Safety interlock system
2. Observation window
3. Turntable shaft
4. Turntable ring assembly
5. Glass turntable
6. Control panel
7. Protection cover wave guide - never remove this cover!

Simple line drawing of a cabinet or enclosure with a handle and label (7), no text or symbols present.

Labeled diagram of a microwave oven with numbered parts for identification

BEFORE THE FIRST USE

TURNTABLE INSTALLATION

• First place the turntable ring in the middle of the microwave oven.
• Place the turntable on the ring. Make sure that the middle of the turntable fits into the turntable shaft.

CAUTION:

• Never place the glass tray upside down. The glass tray should never be restricted.
• Both glass tray and turntable ring assembly must always be used during cooking.
  · All food and containers should be placed onto the glass turntable during cooking at all times.
• If the glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center. Or you can order the accessories in our webshop: webshop.domo-elektro.be

Diagram showing a circular object with internal features and a downward arrow pointing to a small irregular shape at the bottom (no text or symbols)

INSTALLATION

• Remove all packaging material and accessories.
• Check the oven for any damage, such as dents or a damaged door. Do not use the oven if it is damaged. Remove the protective film around the machine, this is applied to avoid scratches.
• Choose a place to install the microwave, where there is sufficient open space for the air intake and exhaust. The microwave oven must stand at least 85 cm high.

0cm 30cm 20cm 20cm min85cm 20cm 20cm

Make sure that the left and right side are at least 20 cm from the wall or cupboard. One side of the microwave oven must be completely exposed. The open space above the microwave must be at least 30 cm.

• Place the oven as far as possible away from radio and TV, because the oven may cause reception problems.
• The microwave must be placed in a dry environment, away from heat and humidity, for example gasburners and watertanks.

• Blocking the air intake and exhaust opening can lead to damage.

• Make sure that the timer knob is set to o so that the microwave oven is turned off and plug the plug of your oven into the wall outlet. Be sure to check that the voltage at home is consistent with the voltage indicated on the label on the appliance.

• Warning: Do not place the oven above a stove or other heat producing device. This may damage the machine and void your warranty.
  · The accessible part of your machine may become warm during use.

USE

CONTROL PANEL

With the top knob of the control panel, you can set the desired power by turning the knob to one of the 5 positions (power levels).

With the bottom knob, you can set the cooking time by turning the knob, up to 35 minutes. Each turn of the knob is equal to 1 minute, up to 10 minutes. After that, the turns are always equal to 5 minutes.

Always set the time to o when the machine is not in use.

You can consult the table below as a guideline for settings:

POWER OM, Low Med M, High Low High TIMER 0 DEFROST(kg) 35 30 25 20 15 10 9 8 7 6 5 4 3 2 1 0.2 0.4 0.6 0.8 0.6

Power Output Application
Low 17% 120 W Keep warm, softening ice cream
M. Low (Defrost) 33% 230 W Thawing, softening butter
Med. 55% 385 W Slow cooking: stew, fish,...
M. High 77% 540 W Normal cooking: ride, fish, chicken, meat
High	100%	700 W	Quick cooking: heating up, boiling water, vegetables,...

The table below is an indication for the defrost time for various foods.

Food, weight	Defrost time
Meat 0.1~1 kg	1:30~26:00
Poultry 0.2~1 kg	2:30~22:00
Seafood 0.1~0.9 kg	1:30~14:00

INSTRUCTIONS FOR USE

• Place the food on the glass turntable and close the door. Make sure the food is in a microwave-safe container.
• Choose the correct setting.
• Choose the desired time. If the desired cooking time is less than 15 minutes, then first turn the knob over 15 minutes and turn back the knob to the desired cooking time.
• The microwave oven will automatically start after the time has been set. During cooking you can open the door of the microwave any time. The microwave oven will automatically interrupt its cooking process. Close the door again to continue the cooking cycle.
• When the cooking time is over, a bell signal will sound.
• When you take food out of the microwave oven, make sure that the oven is off by turning the timer button to o. Otherwise, the microwave oven may start to operate empty, which can cause overheating and damage to the microwave oven.

CLEANING AND MAINTENANCE

· Always make sure you remove the plug from the socket before cleaning the appliance.
· Clean the inside of the appliance after every use with a slightly damp cloth.
· Clean the parts like the glass turntable,... in warm water with a mild detergent.
· The door, the lock and the control panel can be cleaned with a slightly damp cloth when dirty.
· Do not immerse the appliance in water.
· Do not use a metal brush or other aggressive cleaning products for the cleaning of the microwave.

PROBLEMS?

If you think that the microwave oven is not functioning properly, first consult the instructions below before contacting a service centre.

PROBLEM POSSIBLE SOLUTION
The microwave oven is causing disruptions to radio or TV.	This is normal. The reception can be disrupted by the operation of the microwave oven.
The light in the oven is dim. When cooking on low power, the light may be less bright in the oven. This is normal.
The oven is started without food in it. The machine operates when empty.	Turn the oven off immediately. The oven may never be used without food in it. This is very dangerous.
The microwave oven does not start. It may be that the plug is not correctly plugged into the outlet. Pull the plug out and after 10 seconds plug it back into the outlet.
The oven does not heat up. Make sure the door is shut properly.
The revolving glass plate makes noise when the oven is in use.	The floor of the oven and the ring on which the revolving glass plate sits may be dirty. Clean the oven according to the instructions.

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Simple line drawing of a computer monitor with a screen and a scroll, labeled with number 7 (no text or symbols on the device itself)

Labeled diagram of a microwave oven with numbered parts for identification

Diagram of a trash bin with crossed and unbroken lines indicating no waste or discharge

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Labeled diagram of a microwave oven with numbered parts for identification

Simple line drawing of a cabinet or storage unit with a handle and label (7), no text or symbols present.

PRIMA DELL'USO

MONTAGGIO DEL PIATTO GIREVOLE

Diagram showing a circular disc with a downward arrow indicating rotation or flow, no text or symbols present.

ATTENZIONE:

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a box with a handle and a circular label (7) on the right, no text or symbols present.

Labeled diagram of a microwave oven with numbered parts for identification

PŘED PRVNÍM POUŽITÍM

INSTALACE OTOČNÝCH ČÁSTÍ

Diagram of a disc with a rotating base and a downward arrow indicating rotation (no text or symbols)

UPOZORNĚNÍ:

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or recycling.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a cabinet or enclosure with a handle and lid, labeled with circled number 7 (no text or symbols on the diagram itself)

Labeled diagram of a microwave oven with numbered parts for identification

PRED PRVÝM POUŽITÍM

INŠTALÁCIA OTOČNÝCH ČASTÍ

Diagram showing a circular disc with a downward arrow indicating rotation or flow, no text or symbols present.

INŠTALÁCIA RÚRY

Two cylindrical white objects with transparent caps, possibly milk or similar beverage (no text or symbols visible)

Three product photos: square tiles, a clear glass coffee maker, and a rectangular container (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
