Product type	Radio with battery charger
Brand	Metabo
Model	Powermaxx RC WildCat
Weight	1.8 kg
Compatible battery pack voltage	10.8 V (Li-Ion, 1.5 to 3.0 Ah, 3-6 cells)
Power supply	13.5 V / 2 A
FM frequency range	87.5 - 108 MHz
AM frequency range	522 - 1620 kHz
Main functions	FM/AM radio, AUX input, integrated battery charger, equalizer, alarm, station presets
Maintenance and cleaning	Clean only with a dry cloth
Safety	Moisture protection, do not expose to water, do not charge non-rechargeable batteries, automatic shut-off in case of overload
Spare parts and repairability	Repairs by specialized personnel with original Metabo parts; lists at www.metabo.com
Optimal storage temperature	10°C to 40°C
Minimum distance from other objects	5 cm
Backup battery	2 AAA batteries (not supplied)
Standards	EN 60335, EN 60065; directives 2006/95/EC, 2004/108/EC, 2009/125/EC, 2011/65/EU

Frequently Asked Questions - Powermaxx RC WildCat METABO

How to start the Powermaxx RC WildCat radio?

Press the on/off button (①) to turn on the radio. Use the MODE button (②) to switch between FM, AM and AUX.

What types of batteries can I charge with this device?

The integrated charger is designed for Metabo Li-Ion 10.8 V battery packs (1.5 to 3.0 Ah, 3-6 cells). Never charge non-rechargeable batteries.

How to adjust the equalizer (bass and treble)?

Press the EQ button (⑤) to access the bass and treble settings, then adjust with the Forward/Back buttons (⑥/⑦).

How to save a radio station?

Tune to the desired station, then press and hold the PRESET button (⑨) until the preset number flashes. Use the Forward/Back buttons to choose a location and confirm by pressing PRESET again.

What to do if the radio does not turn on?

Check that the battery pack is inserted correctly and is not discharged. If using the mains adapter, make sure it is plugged into a working outlet. Also check the AAA batteries of the backup battery.

How to clean the radio?

Use a dry cloth to clean the device. Never use water or liquid products, as they could damage the electronics.

Can I use the radio continuously on mains power?

Yes, you can use the radio plugged into the supplied power supply. Ensure the socket is easily accessible to unplug if necessary.

How to set the time on the radio?

Press and hold the CLOCK button (⑩) until the display flashes. Use the Forward/Back buttons to set the hours, then press CLOCK again for minutes. Confirm by pressing CLOCK.

What to do if a battery pack is in deep discharge?

A battery pack in deep discharge cannot be charged with this radio. Use a separate Metabo LC 40 charger to recharge it.

Where to find spare parts or have the device repaired?

Repairs must be carried out by a specialist with original Metabo parts. Visit the website www.metabo.com for the addresses of representatives and spare parts lists.

USER MANUAL Powermaxx RC WildCat METABO

Exterior view of a metal detector device with visible internal components and a mounted antenna (no text or symbols)

Icon of a person reading a book inside a black circle (no text or symbols)

(D) Originalbetriebsanleitung...... 2
ENG Original instructions.... 8
(F) Notice originale.... 13
NL Oorspronkelijke gebruiksaanwijzing... 19
IT Istruzioni originali.... 24
ES Manual original 29
PT Manual original 34
SV Bruksanvisning i original.... 39
FIN Alkuperäiset ohjeet.... 44
NO Original bruksanvisning 49
① Original brugsanvisning.... 54
POL Instrukcja oryginalna 59
EL Πρωτότυπο οδηγιών χρήσης ...... 65
HU Eredeti használati utasítás.... 71
RU Оригинальное руководство по эксплуатации . 76

Director Product Engineering & Quality Responsible Person for Documentation Metabowerke GmbH, 72622 Nuertingen, Germany

3D mechanical assembly diagram showing a cylindrical component inserted into a housing, with arrows indicating direction (no text or symbols)

Antenne ausrichten:

Diagram of a mechanical component with a rod and arrow indicating motion (no text or symbols)

Akkupack einsetzen:

3D mechanical component with a directional arrow indicating movement or force (no text or symbols visible)

3D rendering of a mechanical device with a power outlet connected to a cable (no visible text or symbols)

3D rendered mechanical device with a label 'elabo' and directional arrows indicating motion or assembly (no readable text beyond branding)

Uhrzeit einstellen:

1 CLOCK 1 sec FM STREED 16:35 300

2 FM STEREO 13:35 FM STEREO 19:35

3 CLOCK FM 19:35

4 FM 19:16 FM 19:54

5 CLOCK 1 sec FM STOCK 19:54

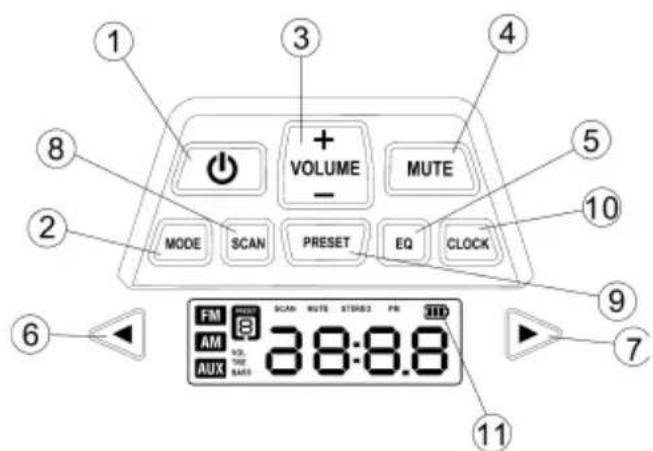

6 Bedienelemente

1 2 3 4 5 6 7 8 VOLUME - MUTE MODE SCAN PRESET EQ CLOCK 9 FM AM AUX SCAN ROUTE START2 PR 38:8.8 11

ON 1 sec OFF

FM 103.6 AM 106.2 MP3 CD 18:48 AUX

MUTE MUTE

EQ FM STEREO TRE 00 + VOLUME - FM STEREO TRE 02 EQ FM STEREO BASS 00

VOLUME - FM STEREO 0.5 SASS EQ FM STEREO 10 3.6

Radiosender suchen:

1 sec 95.3 Auto Seek 96.4 1 sec 96.4 Auto Seek 97.9 SCAN 96.4 96.5 96.6

Diagram showing battery and current direction indicators with arrows pointing right

8 Reparatur

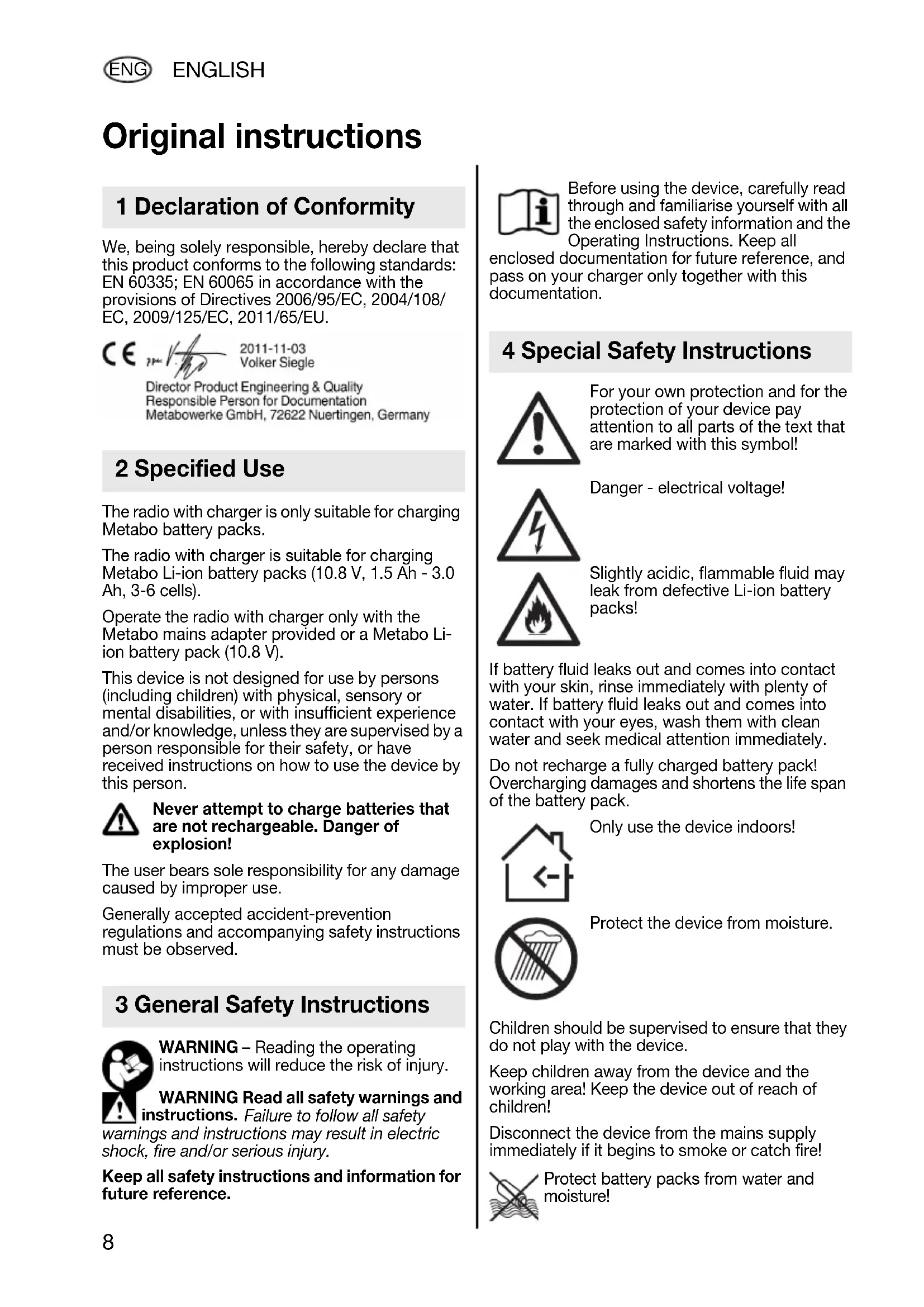

Original instructions

1 Declaration of Conformity

We, being solely responsible, hereby declare that this product conforms to the following standards: EN 60335; EN 60065 in accordance with the provisions of Directives 2006/95/EC, 2004/108/EC, 2009/125/EC, 2011/65/EU.

2011-11-03

Volker Siegle

Director Product Engineering & Quality

Responsible Person for Documentation

Metabowerke GmbH, 72622 Nuertingen, Germany

2 Specified Use

The radio with charger is only suitable for charging Metabo battery packs.

The radio with charger is suitable for charging Metabo Li-ion battery packs (10.8 V, 1.5 Ah - 3.0 Ah, 3-6 cells).

Operate the radio with charger only with the Metabo mains adapter provided or a Metabo Li-ion battery pack (10.8 V).

This device is not designed for use by persons (including children) with physical, sensory or mental disabilities, or with insufficient experience and/or knowledge, unless they are supervised by a person responsible for their safety, or have received instructions on how to use the device by this person.

Never attempt to charge batteries that are not rechargeable. Danger of explosion!

The user bears sole responsibility for any damage caused by improper use.

Generally accepted accident-prevention regulations and accompanying safety instructions must be observed.

3 General Safety Instructions

WARNING – Reading the operating instructions will reduce the risk of injury.

WARNING Read all safety warnings and instructions. Failure to follow all safety

warnings and instructions may result in electric shock, fire and/or serious injury.

Keep all safety instructions and information for future reference.

Before using the device, carefully read through and familiarise yourself with all the enclosed safety information and the Operating Instructions. Keep all enclosed documentation for future reference, and pass on your charger only together with this documentation.

4 Special Safety Instructions

For your own protection and for the protection of your device pay attention to all parts of the text that are marked with this symbol!

Danger - electrical voltage!

Slightly acidic, flammable fluid may leak from defective Li-ion battery packs!

If battery fluid leaks out and comes into contact with your skin, rinse immediately with plenty of water. If battery fluid leaks out and comes into contact with your eyes, wash them with clean water and seek medical attention immediately.

Do not recharge a fully charged battery pack! Overcharging damages and shortens the life span of the battery pack.

Only use the device indoors!

Protect the device from moisture.

Children should be supervised to ensure that they do not play with the device.

Keep children away from the device and the working area! Keep the device out of reach of children!

Disconnect the device from the mains supply immediately if it begins to smoke or catch fire!

Protect battery packs from water and moisture!

Do not use faulty or deformed battery packs!

Do not expose battery packs to open flame!

Do not open battery packs!

Do not touch or short-circuit battery packs!

When not in use, keep batteries away from paper clips, coins, keys, nails, screws or other small metal objects that could bridge the contacts. Short circuits between battery contacts can cause burns or fires.

Protect the battery pack and batteries from heat (including lengthy exposure to direct sunlight), fire, water and moisture. There is a risk of explosion.

Always charge batteries in chargers recommended by the manufacturer. Chargers designed for a specific type of battery may pose a fire hazard when used together with other battery types.

Do not use this device near water.

Clean it using a dry cloth only.

Do not place the radio near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat. Do not expose to open fire.

Only use attachments/accessories specified by the manufacturer.

Disconnect the device from the power supply in storms, before adjustment or repair work and when it will not be used for long periods.

Refer all servicing to qualified service personnel, who must use original spare parts only. Servicing is required when the device has been damaged in any way, such as when a mains adapter is damaged, liquid has been spilled or objects have fallen into the apparatus, the radio has been exposed to rain or moisture, does not operate normally, or has been dropped.

To reduce the risk of fire or electric shock, do not expose this device to rain or moisture.

The apparatus must not be exposed to dripping or splashing and no objects filled with liquids may be placed on the device.

Use only the batteries provided for this purpose in the device. Using other batteries may cause injuries and pose a fire hazard.

Do not operate the device in closed shelves or cabinets without adequate ventilation.

The ideal storage temperature is between 10^ C and 40^ C.

Do not open the device or modify it in any way.

Do not leave an empty rechargeable battery pack in the unplugged radio for longer than 2 weeks. Leaving the pack there for any longer can result in total discharge and damage to the storage cells. Once a battery pack has been totally discharged, you cannot recharge it using this radio. However, you can use the separate charger LC 40 for this purpose.

5 Initial Operation

Before plugging in the device, check to see that the rated mains voltage and mains frequency, as specified on the rating label, match your power supply.

Before initial use, ensure proper ventilation. Minimum distance to other objects is 5 cm. Do not operate the device in closed shelves inets without adequate ventilation.

Use a freely accessible power outlet to ensure fast disconnection from the mains if necessary.

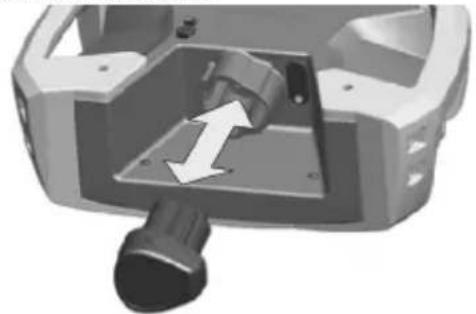

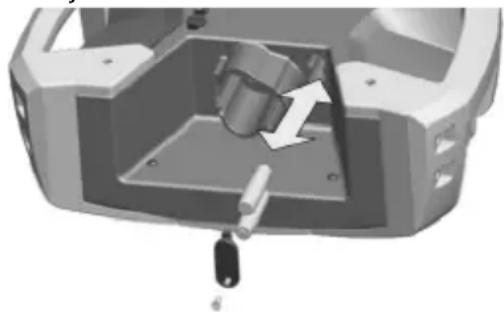

Inserting the buffer batteries (2x AAA):

Ensure the correct polarity (+/-); note the mark in the battery cover.

3D mechanical assembly diagram showing a cylindrical component inserted into a housing, with no visible text or symbols

Aligning the antenna:

Diagram showing a mechanical component with an arrow indicating rotation or movement, no text or symbols present.

Inserting the battery pack:

3D mechanical component with a directional arrow indicating movement or force (no text or symbols visible)

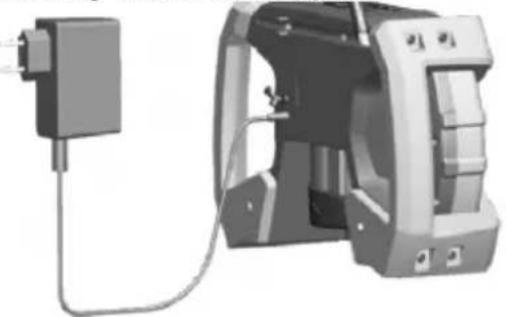

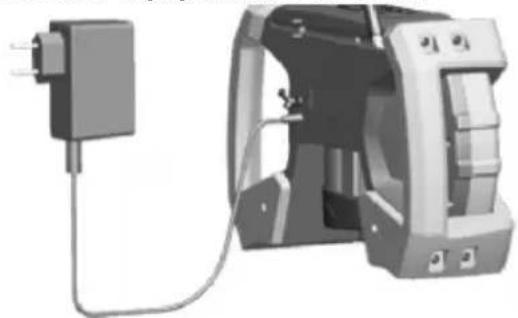

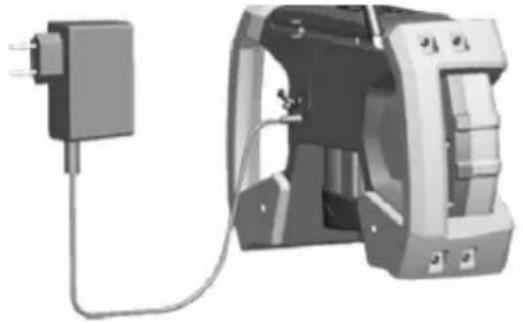

Connecting the mains adapter:

3D rendering of a mechanical device with attached cable and housing (no visible text or symbols)

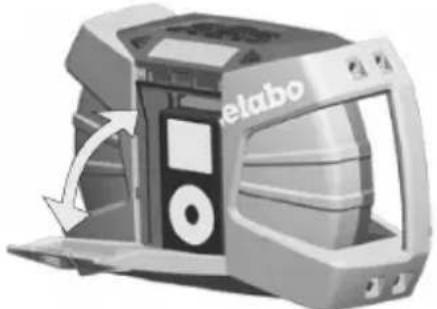

Connecting, switching on and inserting an external audio source (e.g. MP3 player):

3D rendered model of a Delabo printer with internal components and directional arrows indicating motion (no text or symbols on the device itself)

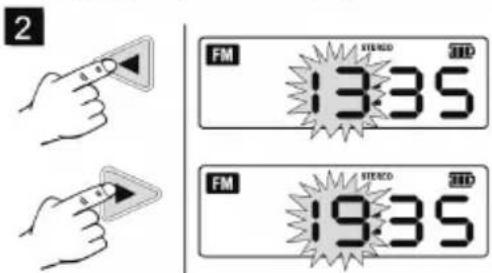

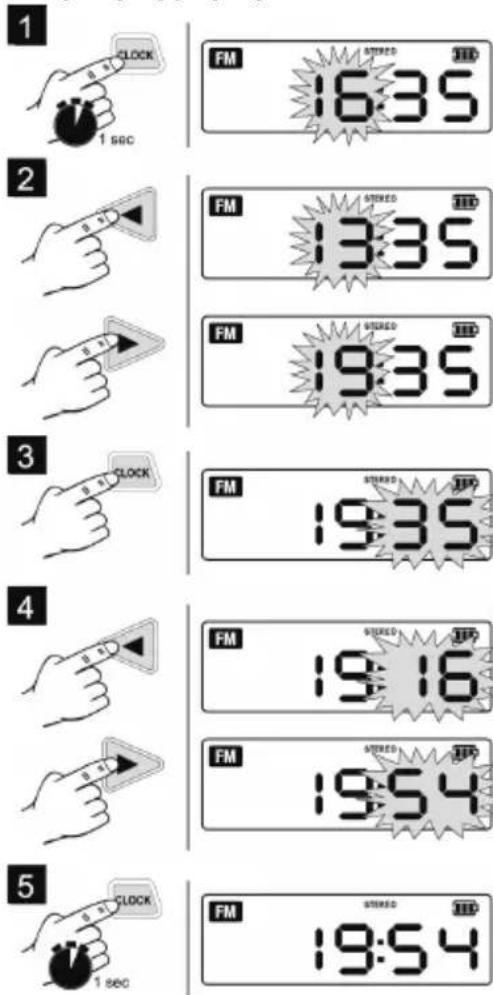

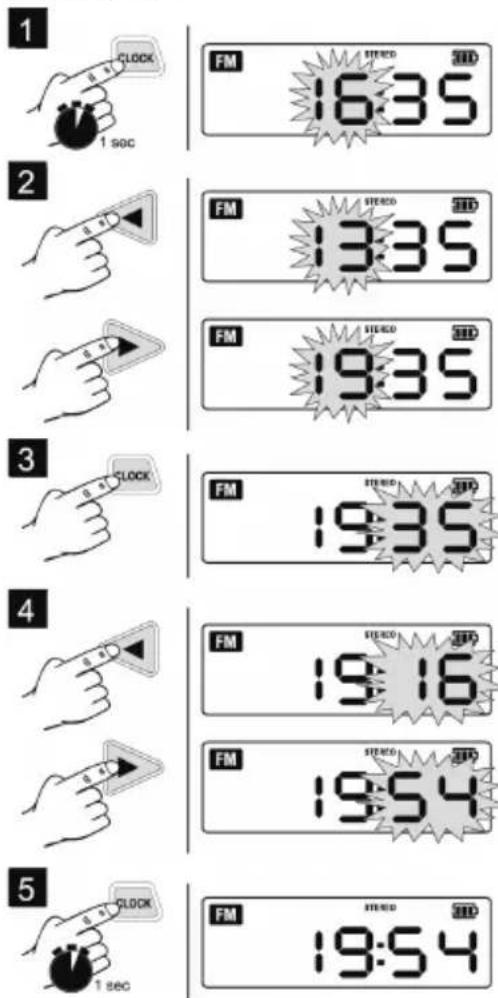

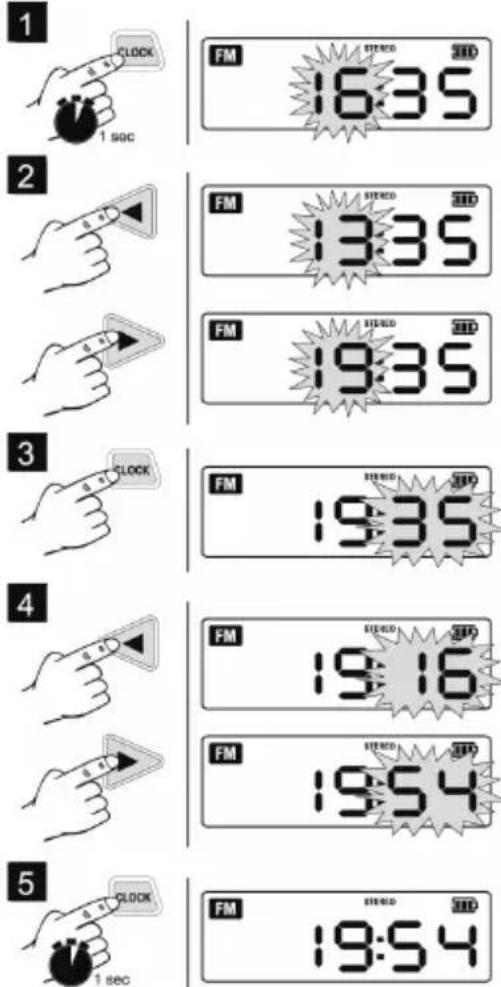

Setting the clock:

1

2

3

4

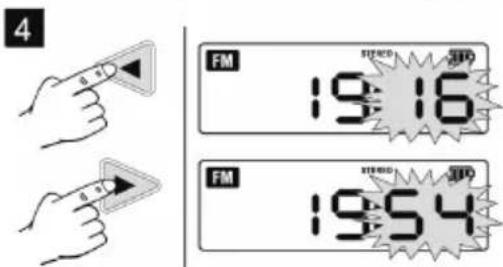

FM 19:16 FM 19:54

5

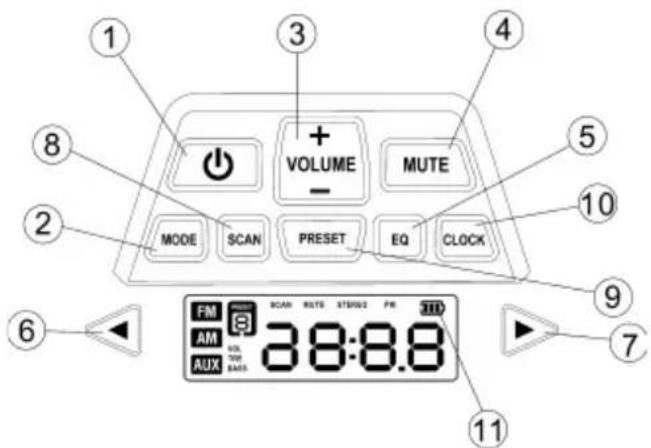

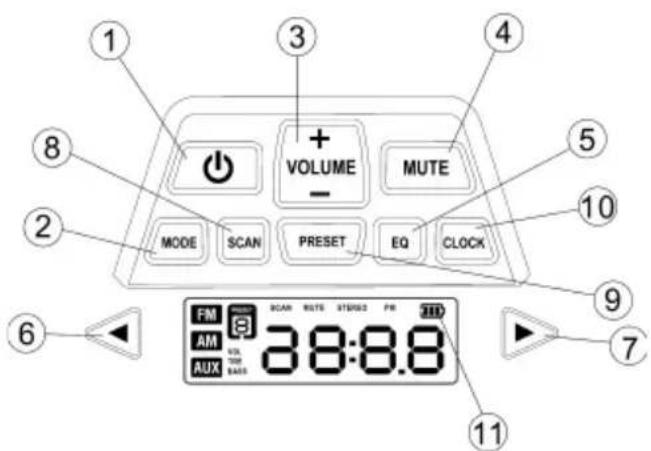

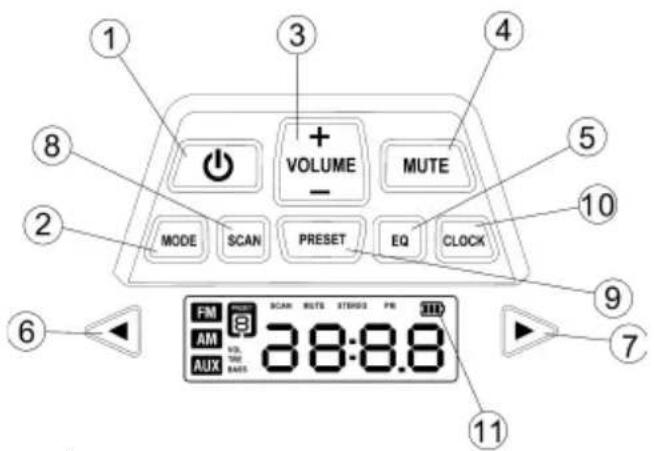

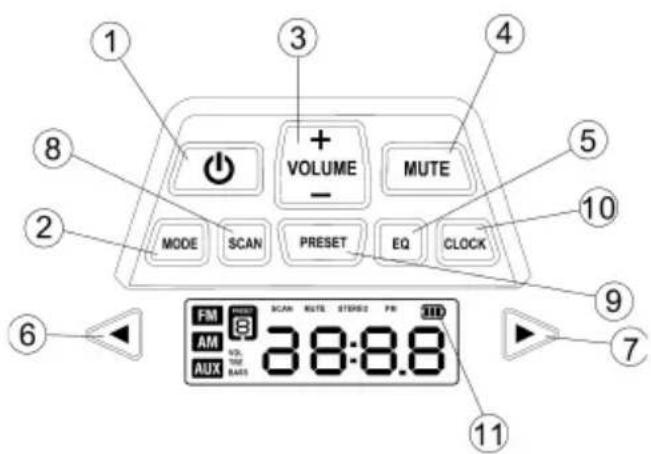

6 Control

1 2 3 4 5 6 7 8 VOLUME - MUTE NODE SCAN PRESET EQ CLOCK 9 10 11 FM AM AUX 38:8.8

1 On/off switch
2 Button for switching between FM,

AM and

AUX (external audio source, e.g. MP3 player)

3 Adjusting the volume
4 M u t e
5 Equalizer (EQ) for adjusting bass and treble
6 "Backwards" button
7 "Forwards" button
8 Channel search button
9 Button for saving radio stations
10 Button for setting the clock
11 Battery pack display

7 Use

Switching on and off (audio mode):

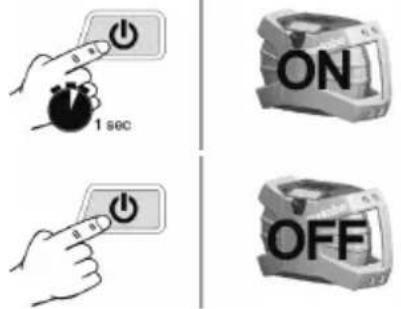

1 sec ON OFF

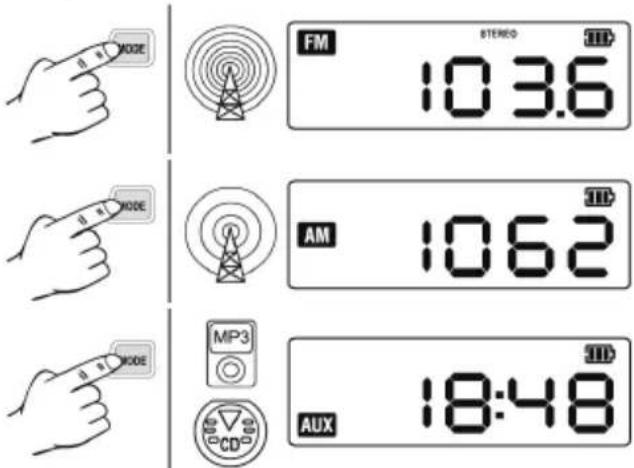

Switching between FM, AM and AUX (external audio source, e.g. MP3 player):

Note: The charging process can impair AM radio reception.

B R MODE FM STEREO 103.6 AM 106.2 MP3 CD AUX 18:48

Adjusting the volume:

+ VOLUME - + VOLUME -

Switching mute on and off:

MUTE MUTE

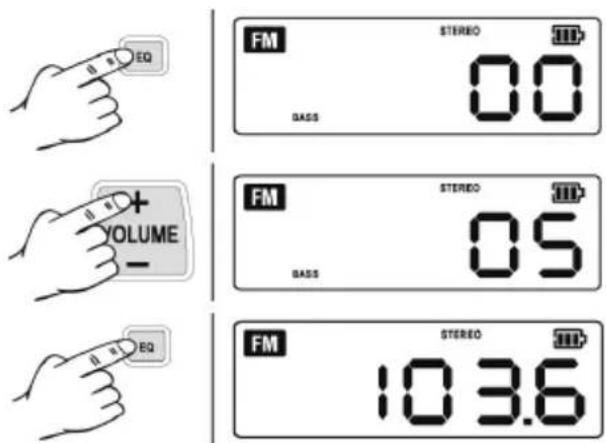

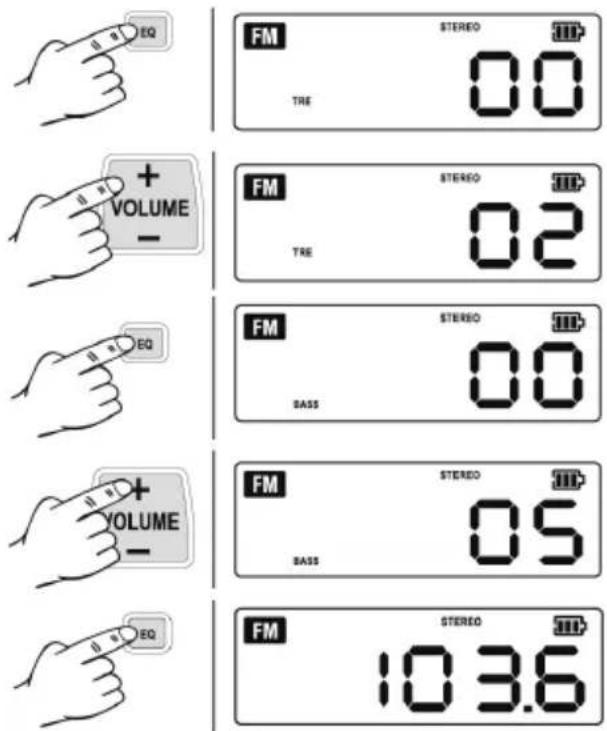

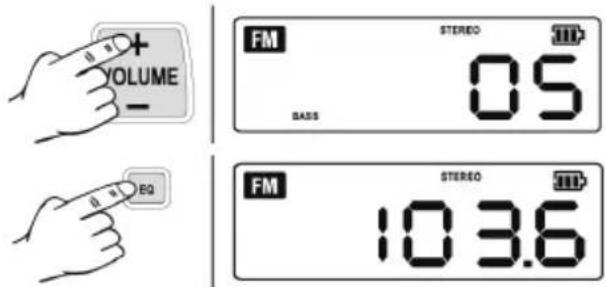

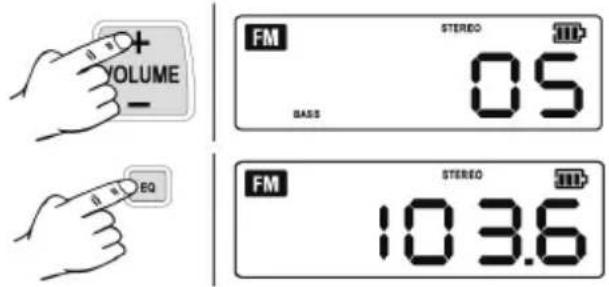

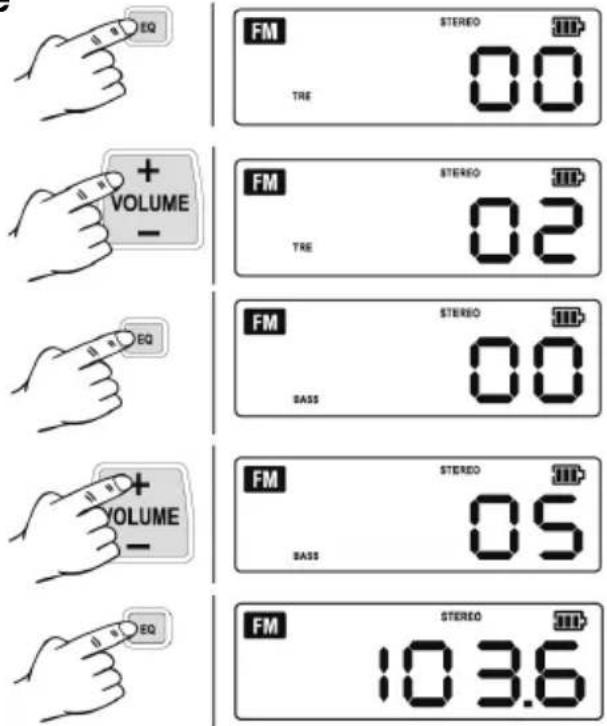

Adjusting the equalizer (bass, treble):

EQ FM STEREO TRE 0.0 + VOLUME - FM STEREO TRE 0.2 EQ FM STEREO BASS 0.0 + VOLUME - FM STEREO BASS 0.5 EQ FM STEREO 10 3.6

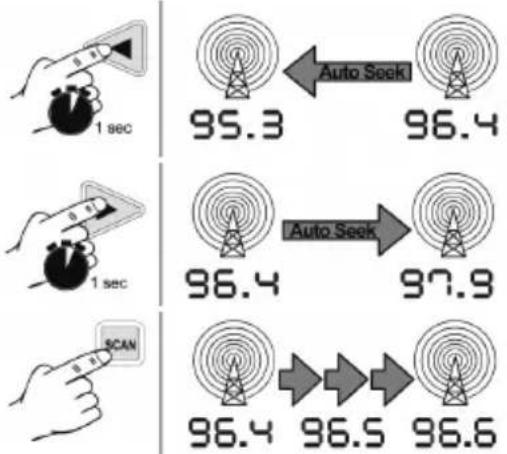

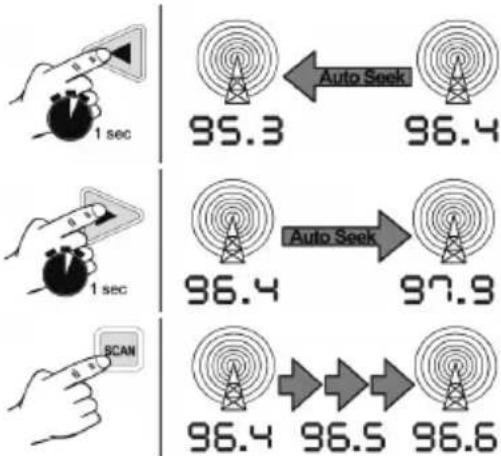

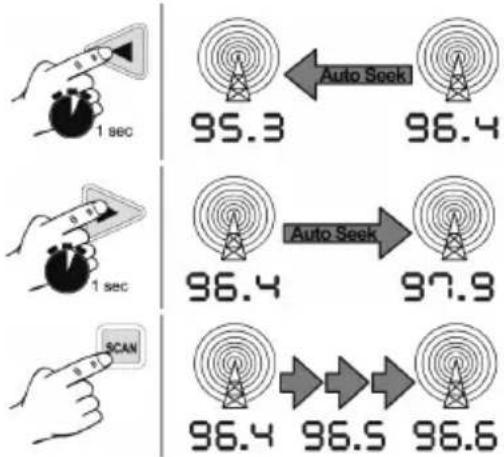

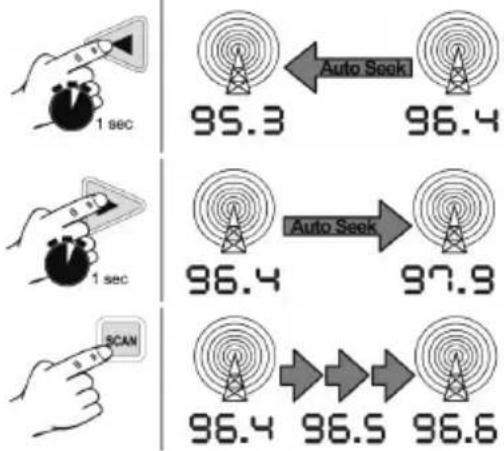

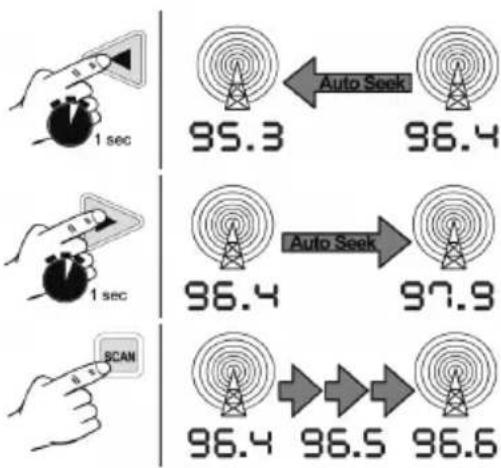

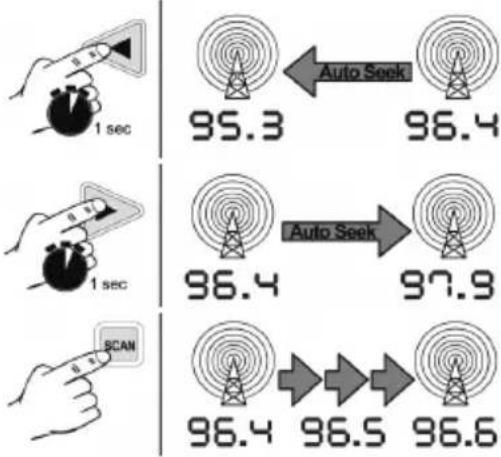

Searching for radio stations:

1 sec 95.3 Auto Seek 96.4 1 sec 96.4 Auto Seek 97.9 SCAN 96.4 96.5 96.6

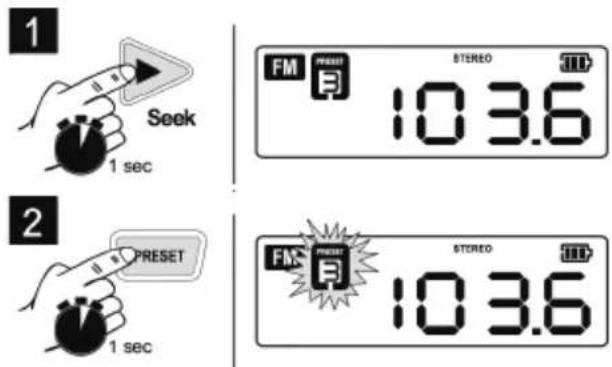

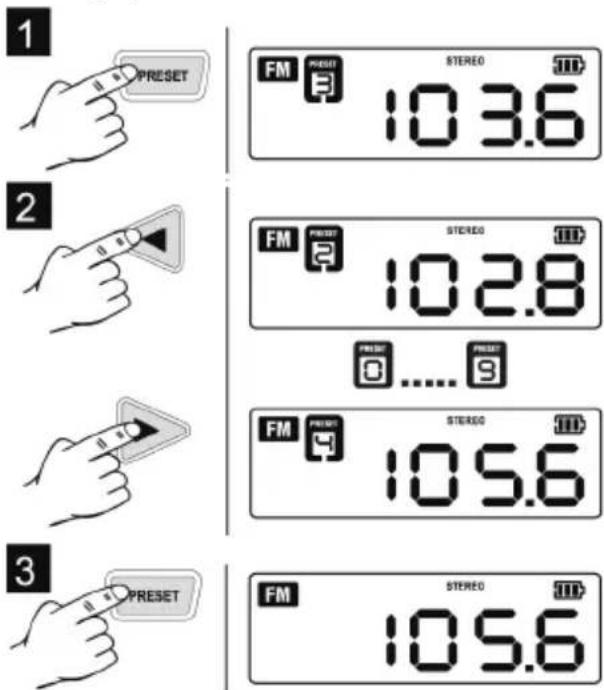

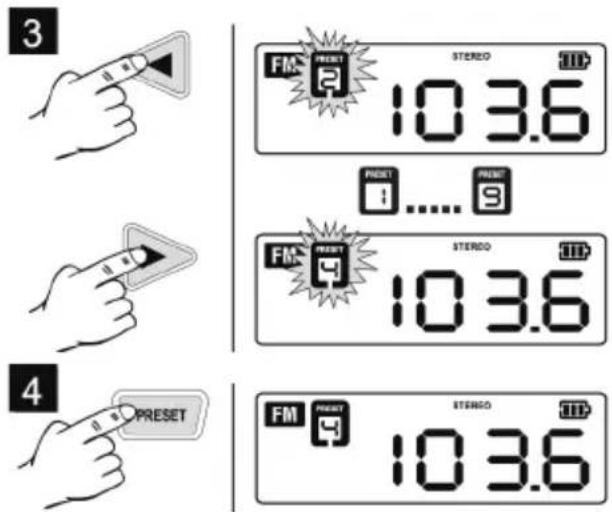

Storing a radio station:

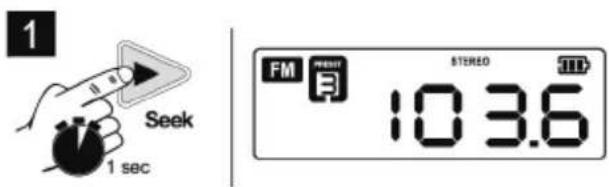

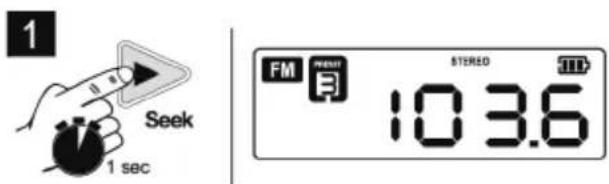

1 Seek 1 sec 2 PRESET 1 sec FM STEREO 10 3.6 FM STEREO 10 3.6

3 FM PRESET STEREO 103.6 PRESET ..... PRESET 4 FM PRESET STEREO 103.6 PRESET ..... STEREO 103.6

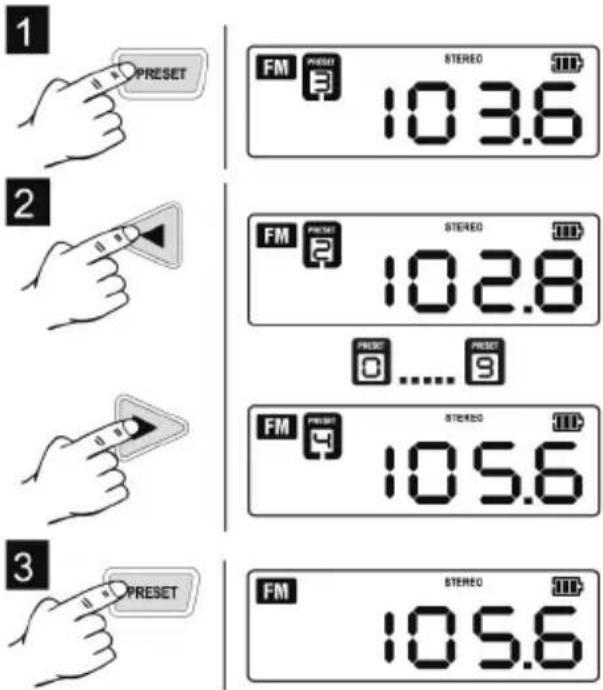

Calling up stored radio stations:

1 PRESET 2 FM PRESET STEREO 103.6 FM PRESET STEREO 102.8 FRESU ..... 9 FM PRESET STEREO 105.6 3 PRESET FM STEREO 105.6

Displaying the battery pack charge level:

100 % 66 % 33 % 0

"Battery pack charging" display:

Diagram showing battery and current indicators with right-pointing arrows indicating progression

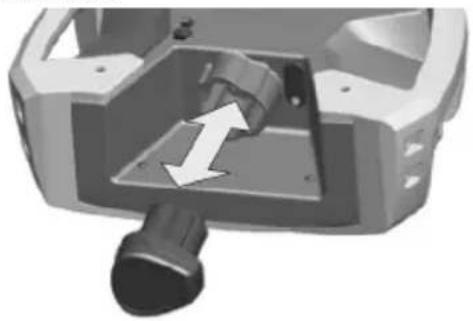

8 Repairs

Repairs must be carried out by qualified electricians only!

If the mains adapter of this device is damaged, it must be replaced with an original Metabo spare part to prevent hazards.

If you have Metabo devices that require repairs, please contact your Metabo service centre. For addresses see www.metabo.com.

You can download spare parts lists from www.metabo.com.

9 Environmental Protection

Worn-out devices and accessories contain large amounts of valuable raw materials and plastics, which can also be recycled.

Only for EU countries: Never dispose of power tools in your household waste! In accordance with European Directive 2002/96/EC on used electronic and electric equipment and its implementation in national legal systems, used power tools must be collected separately and handed in for environmentally compatible recycling.

10 Technical Specifications

Changes due to technological progress reserved.

Voltage ranges of the battery packs= 10.8 V

Weight....= 1.8 kg

FM frequency band ....= 87.5-108 MHz

AM frequency band.....= 522-1620 kHz

Mains adapter output values ..= 13.5 V / 2 A

Notice originale

Director Product Engineering & Quality

Responsible Person for Documentation

Metabowerke GmbH, 72622 Nuertingen, Germany

3D mechanical assembly diagram showing a piston inside a housing with an arrow indicating direction (no text or symbols)

Diagram showing a mechanical component with an arrow indicating rotational motion (no text or symbols)

3D mechanical component with a directional arrow indicating movement or force (no text or symbols visible)

3D rendering of a mechanical device with a power outlet connected to its cable (no text or symbols visible)

3D rendered mechanical device with internal components and a directional arrow indicating rotation (no text or symbols)

2 FM 13:35 FM 19:35

3 CLOCK FM 1935

4 FM 19:16 FM 19:54

5 8 N CLOCK 1 sec FM 19:54

1 sec ON OFF

FM STERED 103.6 AM 106.2 MP3 CD 18:48 AUX

Réglage du volume :

+ VOLUME - + VOLUME -

MUTE MUTE

EQ FM STEREO TRE 00 + VOLUME - FM STEREO TRE 02 EQ FM STEREO SASS 00

VOLUME - FM STEREO 0.5 BASS EQ FM STEREO 103.6

Battery and arrow symbols for current, battery, and battery cells

8 Réparations

Director Product Engineering & Quality

Responsible Person for Documentation

Metabowerke GmbH, 72622 Nuertingen, Germany

WAARSCHUWING – Lees de

WAARSCHUWING Lees alle

3D mechanical assembly diagram showing a cylindrical component inserted into a housing, with a tool inserted (no text or symbols visible)

Antenne richten:

Diagram showing a mechanical component with an arrow indicating rotation or movement, no text or symbols present

Accupack inbrengen:

3D rendering of a mechanical component with a directional arrow indicating movement or force (no text or symbols visible)

Adapter aansluiten:

3D rendering of an electrical enclosure with a power outlet connected to its side panel (no text or symbols visible)

3D rendering of a mechanical device with a circular button and directional arrows indicating motion (no text or symbols)

Tijd instellen:

1 CLOCK 1 sec FM STREED 3.00 16:35

2

FM 13:35 FM 19:35

3

4

FM 19:16 FM 19:54

5

6 Bedieningselementen

1 2 3 4 5 6 7 8 VOLUME - MUTE MODE SCAN PRESET EQ CLOCK 9 FM SCAN ROUTE STRAW 2 PR AM AUX 38:8.8 AUX BATS 10

1 In/uit-schakelaar

1 sec ON OFF

FM STERED 103.6 AM 106.2 MP3 CD AUX 18:48

Geluidsvolume instellen:

+ VOLUME - + VOLUME -

EQ FM STEREO TRE 00 + VOLUME - FM STEREO TRE 02 EQ FM STEREO BASS 00 + VOLUME - FM STEREO BASS 05 EQ FM STEREO 103.6

Radiozender zoeken:

1 sec 95.3 Auto Seek 96.4 1 sec 96.4 Auto Seek 97.9 SCAN 96.4 96.5 96.6

Radiozender opslaan:

1 Seek 1 sec FM STEREO 10:36

2

FM WEIGHT 10:3.6

3

FM PRESORT R STOCKD 10 3.6

FMS 103.6 STUDIO

4

FM PRENT STEREO 10 3.6

FM STEREO 103.6

2

FM PPG STEREO 102.8

FM PRESS 105.6

3

FM STEREO 105.6

Director Product Engineering & Quality

Responsible Person for Documentation

Metabowerke GmbH, 72622 Nuertingen, Germany

2 Utilizzo conforme

3D mechanical assembly diagram showing a component with a tool inserted, no visible text or symbols

Orientare l'antenna:

Diagram showing a mechanical component with a rod and arrow indicating rotation or movement (no text or symbols)

Introdurre le batterie:

3D mechanical component with directional arrow indicating movement or force (no text or symbols)

3D rendering of a mechanical device with a power outlet connected to its side panel (no text or symbols visible)

3D rendering of a Delabo printer case with an arrow indicating rotation or movement (no text or symbols on the device itself)

Impostare l'ora:

1 CLOCK 1.5sec FM 16:35 STOCK 300

2

3

4

5

6 C o m a n d i

1 2 3 4 5 6 7 8 VOLUME MUTE NODE SCAN PRESET EQ CLOCK 9 10 11 FM SCAN MUTE STERED PM AM HOL TIF SAAG 38:8.8

FM MOSI B STEREO 103.6

2

FM PRED STEREO 102.8

FM PREM STOCKED 105.6

3

FM STEREO 105.6

Diagram showing battery and current indicators with right-pointing arrows indicating progression

8 Riparazione

Director Product Engineering & Quality

Responsible Person for Documentation

Metabowerke GmbH, 72622 Nuertingen, Germany

3D mechanical component diagram showing a cylindrical assembly with a tool inserted, no visible text or symbols

Ajustar la antena:

Diagram of a mechanical component with a rod and arrow indicating rotation or movement (no text or symbols)

Colocar baterías:

3D mechanical component with directional arrow indicating movement or force (no text or symbols)

3D rendering of an electrical enclosure with a power outlet connected to its side panel (no text or symbols visible)

3D rendered model of a mechanical device with directional arrows indicating motion or movement (no text or symbols visible)

Ajustar la hora:

1

2

FM 13:35 FM 19:35

3

4

FM 19:16 FM 19:54

5

8:11 1 sec ON OFF

FM 103.6 AM 106.2 MP3 CD AUX 18:48

Ajustar el volumen:

+ VOLUME - + VOLUME -

EQ FM STEREO TRE 0.0 + VOLUME - FM STEREO TRE 0.2 EQ FM STEREO SASS 0.0 + VOLUME - FM STEREO SASS 0.5 EQ FM STEREO 103.6

Buscar radioemisora:

1 sec 95.3 Auto Seek 96.4 1 sec 96.4 Auto Seek 97.9 SCAN 96.4 96.5 96.6

Archivar radioemisora:

FM STEREO 103.6

2

FM PREF STREED 10 3.6

3

FM PRESORT R STOCKD 10 3.6

PICKS 1 .... PENS 9 FM PICKS STUDIO 10 3.6

4

FM PRENT STERSO 10 3.6

FM PDM STEREO 103.6

2

FM PNCM STEREO 102.8

FM PHEM 105.6

3

FM STEREO 105.6

Director Product Engineering & Quality Responsible Person for Documentation Metabowerke GmbH, 72622 Nuertingen, Germany

3D mechanical assembly diagram showing a piston inside a housing with a tool inserted, no visible text or symbols

Regular a antena:

Diagram showing a mechanical component with a rod and arrow indicating rotation or movement (no text or symbols)

3D mechanical component with directional arrow indicating movement or force (no text or symbols)

Conectar o equipamento de rede:

3D rendering of a mechanical device with a power outlet connected to its cable (no text or symbols visible)

3D rendering of a mechanical device with a label 'elabo' and directional arrows indicating motion (no readable text beyond label)

FM 13:35 FM 19:35

3

4

FM 19:16 FM 19:54

5

6 Órgãos de comando

1 2 3 4 5 6 7 8 VOLUME - MUTE NODE SCAN PRESET EQ CLOCK 9 10 FM SCAN MUTE STERED PM AM HOL TEP BASE 38:8.8 11

1 Ligar/desligar

2 Tecla para mudar entre FM (VHF),

AM (MW) e

1 sec ON OFF

Mudar entre FM (VHF), AM (MW) e AUX (fonte de áudio externa, p.ex. leitor MP3):

FM INTERED 103.6 AM 106.2 MP3 CD AUX 18:48

Regular o volume:

+ VOLUME - + VOLUME -

Ligar/desligar Sem-voz

MUTE

MUTE

EQ FM STEREO TRE 00 + VOLUME - FM STEREO TRE 02 EQ FM STEREO BASS 00 + VOLUME - FM STEREO BASS 05 EQ FM STEREO 103.6

1 Seek 1 sec FM MOUNT STENED 103.6

2

FM FROKET M STEREO 10 3.6

3

FMC PREST 10 3.6

FM FIRENT 10 3.6 STERDO

4

FM PRENT 10 3.6

FM MOSI B STEREO 103.6

2

FM PINESE STEREO 102.8

FM 105.6

3

FM STEREO 105.6

Diagram showing battery and current indicators with right-pointing arrows indicating progression

8 Reparações

Director Product Engineering & Quality

Responsible Person for Documentation

Metabowerke GmbH, 72622 Nuertingen, Germany

2 Avsedd användning

3D mechanical component diagram showing internal assembly with a highlighted cylindrical part and mounting base (no text or symbols)

Ställa in antennen:

Diagram showing a mechanical component with a rod and arrow indicating motion direction (no text or symbols)

Sätta i batteriet:

Mechanical component with a directional arrow indicating movement or force (no text or symbols visible)

Ansluta nätdelen:

3D rendering of a mechanical device with a power outlet connected to its side panel (no text or symbols visible)

3D rendering of a Delabo printer case with an arrow indicating motion or assembly (no text or symbols on the device itself)

Ställa klockan:

1 CLOCK 1 sec 2 FM 16:35 3 FM 13:35 4 FM 19:35 5 8:30 8:30 8:30 19:54 1 sec FM STEREO STID FM STEREO STID FM STEREO STID FM STEREO STID FM STEREO STID FM STEREO STID

6 K on t r o l l e r

1 2 3 4 5 6 7 8 VOLUME - MUTE MODE SCAN PRESET EQ CLOCK 9 FM AM AUX 3:8:8.8 10 11

1 PÅ/AV

8 sec 1 sec ON OFF

FM SASS STEREO 05

FM STEREO 103.6

Kanalsökning:

95.3 Auto Seek 96.4

96.4 Auto Seek 97.9

96.4 96.5 96.6

Spara kanal:
1

FM STEREO 103.6

2

FM SPR MP STEREO 10:36

3

FM PRESORT F STEREO 10 3.6

FMD FMD 10:3.6 STUDIO

4

FM PREF STUDIO 103.6

Slå på sparad radiokanal:

Visa laddindikering:

100 %

66 %

33%

0

Laddindikering "Laddar":

8 Reparationer

Director Product Engineering & Quality Responsible Person for Documentation Metabowerke GmbH, 72622 Nuertingen, Germany

3D mechanical assembly diagram showing a piston inside a housing with a tool inserted (no text or symbols visible)

Antennin suuntaus:

Diagram showing a mechanical component with a rod and arrow indicating rotation or movement (no text or symbols)

Akun asennus:

3D mechanical component with a directional arrow indicating movement or force (no text or symbols visible)

3D rendering of a mechanical device with a power outlet connected to a cable (no visible text or symbols)

3D rendering of a Elabo printer device with an arrow indicating rotation or movement (no text or symbols on the device itself)

Kellonajan asetus:
1

2

3

4

FM 19:16 FM 19:54

5

6 Käyttösäätimet

1 2 3 4 5 6 7 8 VOLUME - MUTE NODE SCAN PRESET EQ CLOCK 9 10 FM SCAN MUTE STEREO FM AM HOL TRE BASE 38:8.8 11

Diagram showing battery and current meter symbols with right-pointing arrows indicating direction

8 K or j a u s

Director Product Engineering & Quality

Responsible Person for Documentation

Metabowerke GmbH, 72622 Nuertingen, Germany

3D mechanical assembly diagram showing a component with a tool and directional arrow (no text or symbols)

Stille inn antennen:

Diagram showing a mechanical component with an arrow indicating rotation or movement, no text or symbols present

Sette i batteripakken:

3D mechanical component with a directional arrow indicating movement or force (no text or symbols visible)

3D rendering of a mechanical device with a power outlet connected to its side panel (no text or symbols visible)

3D rendering of a Elabo branded electronic device with a scroll wheel and control panel (no visible text or symbols)

FM SASS STEREO 00 12

FM STEREO 05 SASS

FM STUDIO 103.6

96.4 Auto Seek 97.9

96.4 96.5 96.6

FM STEREO 103.6

2

FM SPR/STEREO 10:36

FM stereo 102.8

FM PRESS STUDIO 105.6

3

FM STEREO 105.6

Indikator for batteripakkens ladetilstand:

Visning "Batteripakken lades":

Diagram showing battery and current indicators with right-pointing arrows indicating progression

8 Reparasjon

Director Product Engineering & Quality Responsible Person for Documentation Metabowerke GmbH, 72622 Nuertingen, Germany

2 T i l t æ n k t f

3D mechanical assembly diagram showing a component with a tool and directional arrow (no text or symbols)

Diagram of a mechanical component with a rod and arrow indicating motion (no text or symbols)

3D mechanical component with a directional arrow indicating movement or force (no text or symbols visible)

3D rendering of a mechanical device with attached cable and housing (no visible text or symbols)

3D rendered model of a Delabo printer with internal components and directional arrows indicating motion (no text or symbols)

FM 19:16 FM 19:54

5

6 Betjeningselementer

1 2 3 4 5 6 7 8 VOLUME - MUTE NODE SCAN PRESET EQ CLOCK 9 10 FM SCAN MUTE STEREO FM AM HOL TRE BARS 38:8.8 11

1 sec ON OFF

FM STEREO 103.6 AM 106.2 MP3 CD AUX 18:48

+ VOLUME - + VOLUME -

MUTE MUTE

Indstilling af equalizer (bas, diskant):

e

EQ FM STEREO TRE 0.0 + VOLUME - FM STEREO TRE 0.2 EQ FM STEREO BASS 0.0 + VOLUME - FM STEREO BASS 0.5 EQ FM STEREO 10 3.6

Diagram showing battery and current indicators with right-pointing arrows indicating progression

8 Reparation

Director Product Engineering & Quality Responsible Person for Documentation Metabowerke GmbH, 72622 Nuertingen, Germany

3D mechanical assembly diagram showing a piston inside a housing with a tool inserted, no visible text or symbols

Ustawianie anteny:

Diagram showing a mechanical component with a rod and directional arrows indicating motion (no text or symbols)

3D mechanical component with a directional arrow indicating a movement or force (no text or symbols visible)

3D rendering of a mechanical device with a power outlet connected to its side panel (no visible text or symbols)

3D rendering of a mechanical device with a digital display and control panel, showing internal components and directional arrows (no readable text or symbols)

Ustawianie godziny:

1

2

3

4

5

6 Element y o

1 2 3 4 5 6 7 8 VOLUME - MUTE MODE SCAN PRESET EQ CLOCK 9 10 FM SCAN ROUTE STENSO PR AM VOL. TWO BATS 38:8.8 11

1 sec ON OFF

FM STERED 103.6 AM 106.2 MP3 CD 18:48 AUX

+ VOLUME - + VOLUME -

MUTE MUTE

EQ FM STEREO TRE 00 + VOLUME - FM STEREO TRE 02 EQ FM STEREO BASS 00

VOLUME - FM STEREO 0.5 BASS EQ FM STEREO 103.6

Pure electrical circuit symbols for battery and current source, no text or labels present

8 Naprawa

Director Product Engineering & Quality

Responsible Person for Documentation

Metabowerke GmbH, 72622 Nuertingen, Germany

3D mechanical assembly diagram showing a piston inside a housing with an arrow indicating motion (no text or symbols)

Diagram of a mechanical component with an arrow indicating rotation or movement, no text or symbols present

3D mechanical component with a directional arrow indicating movement or force (no text or symbols visible)

3D rendering of a mechanical device with a power outlet connected to its cable (no text or symbols visible)

3D rendered model of a mechanical device with a scroll wheel and directional arrow indicating rotation (no text or symbols)

Ρύθμιση της ώρας:

1 CLOCK 1 sec 2 S 2 S 2 S 2 CLOCK 3 S 2 S 2 4 S 2 S 2 5 S 2 S 2 1 sec FM 16:35 FM 13:35 FM 19:35 FM 19:35 FM 19:16 FM 19:54 FM 19:54

FM STERED 103.6 AM 106.2 MP3 CD 18:48 AUX

FM STEREO TRS 00

FM TRE STEREO 02

FM BASS STEREO 00 ID

VOLUME - FM STEREO 0.5 BASS EQ FM STEREO 103.6

Diagram showing battery and current indicators with right-pointing arrows indicating progression

8 E π ι σ κ ε υ ἡ

Director Product Engineering & Quality

Responsible Person for Documentation

Metabowerke GmbH, 72622 Nuertingen, Germany

3D mechanical assembly diagram showing a piston inside a housing with a tool inserted (no text or symbols visible)

Antenna beállítása:

Diagram showing a mechanical component with an arrow indicating rotation or movement, no text or symbols present

3D mechanical component with a curved arrow indicating a directional movement or force (no text or symbols visible)

3D rendering of a mechanical device with a power outlet connected to its side panel (no visible text or symbols)

3D rendered model of a mechanical device with a circular button and directional arrows indicating motion (no text or symbols)

FM 13:35 FM 19:35

3

4

FM 19:16 FM 19:54

5

6 Kezelőszervek

1 2 3 4 5 6 7 8 VOLUME - MUTE MODE SCAN PRESET EQ CLOCK 9 FM SCAN ROUTE STRESS PR AM 38:8.8 AUX 11

FM STERED 103.6 AM 106.2 MP3 CD AUX 18:48

Hangerő beállítása:

+ VOLUME - + VOLUME -

EQ FM STEREO TRE 0.0 + VOLUME - FM STEREO TRE 0.2 EQ FM STEREO BASS 0.0 + VOLUME - FM STEREO BASS 0.5 EQ FM STEREO 103.6

Rádióadó keresése:

1 sec 95.3 Auto Seek 96.4 1 sec 96.4 Auto Seek 97.9 SCAN 96.4 96.5 96.6

Rádióadó tárolása:

1 Seek 1 sec FM PRET STEREO 103.6

2

FM WEIGHT 10:3.6

3

FM PRESORT R STOCKD 10 3.6

FMS 103.6 STUDIO

4

FM PREM 10 3.6

FM STEREO 103.6

2

FM PPGM STEREO 102.8

FM PRESS STOCKD 105.6

3

FM STEREO 105.6

Director Product Engineering & Quality Responsible Person for Documentation Metabowerke GmbH, 72622 Nuertingen, Germany

3D mechanical assembly diagram showing a cylindrical component inserted into a housing, with no visible text or symbols

Diagram of a mechanical component with a rod and arrow indicating rotation or movement (no text or symbols)

3D mechanical component with a directional arrow indicating movement or force (no text or symbols visible)

3D rendering of a mechanical device with a power outlet connected to its side panel (no visible text or symbols)

3D rendering of a Delabo printer case with internal components and directional arrows (no text or symbols)

Настройка времени:

1 CLOCK 1 sec 2 CLOCK 16:35 3 CLOCK 13:35 4 CLOCK 19:35 5 CLOCK 19:16 19:54 19:54

FM 103.6 AM 106.2 MP3 18:48 AUX

+ VOLUME - + VOLUME -

MUTE MUTE

EQ FM STEREO TRE 00 + VOLUME - FM STEREO TRE 02

EQ FM STEREO 0.0 BASS YOLUME - FM STEREO 0.5 BASS EQ FM STEREO 103.6

Поиск радиостанции:

1 sec 95.3 Auto Seek 96.4 1 sec 96.4 Auto Seek 97.9 SCAN 96.4 96.5 96.6

"Metabo Powertools (China) Co. Ltd."

Bldg. 7, 3585 San Lu Road,

Pujiang Industrial Park, Min Hang District, Китай

Импортер в России:
