USER MANUAL Evoke H2 PURE

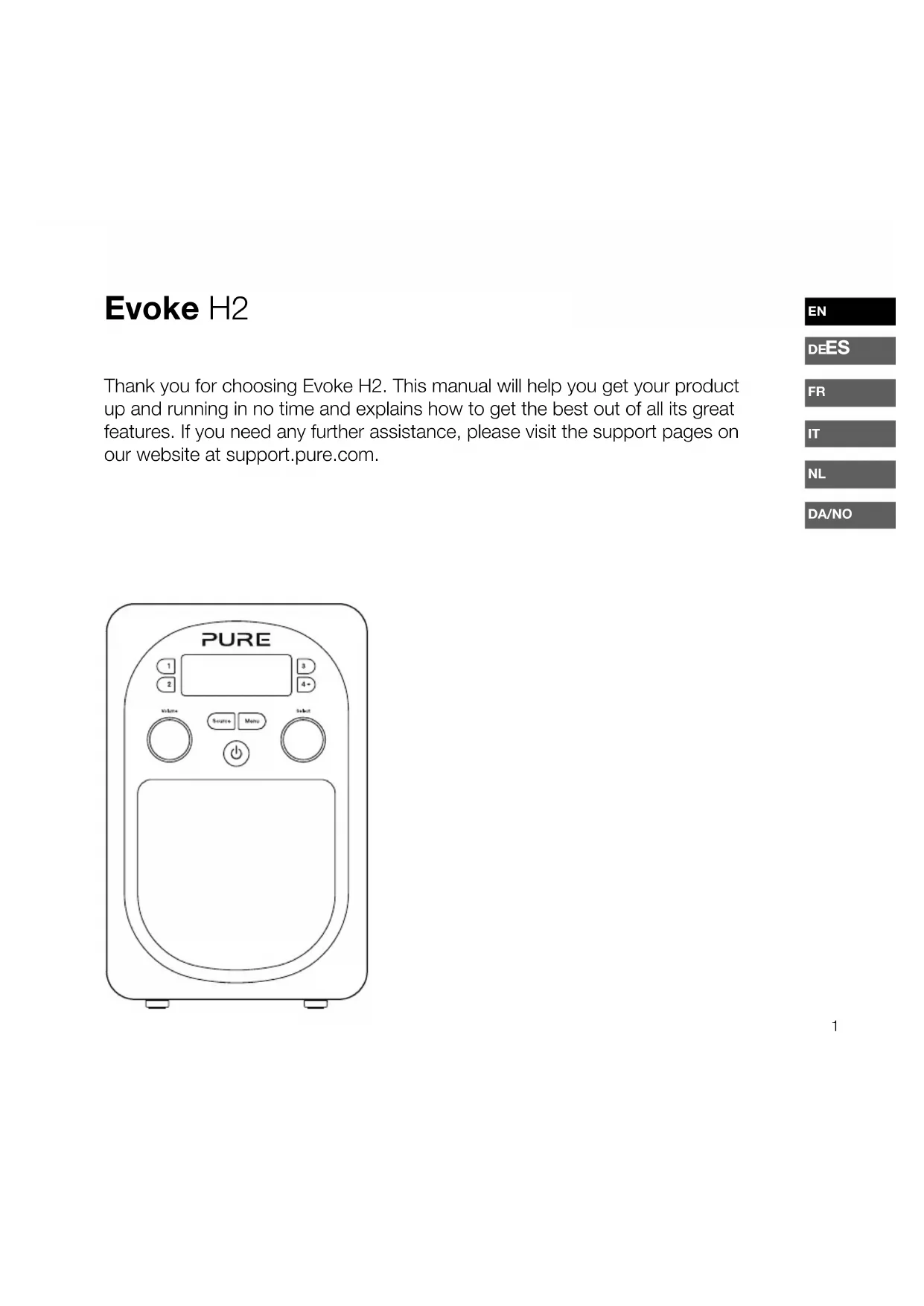

Thank you for choosing Evoke H2. This manual will help you get your product up and running in no time and explains how to get the best out of all its great features. If you need any further assistance, please visit the support pages on our website at support.pure.com. Evoke H22 ChargePAK B1 safety instructions

1. Read the instructions for ChargePAK use in this document.

2. Only use your ChargePAK with original Pure products. Use only the original Pure ChargePAK B1.

3. Store ChargePAK in a cool, dry place at normal room temperature. Remove from devices that will be stored unused for extended periods. 4. Do not puncture, modify, drop, throw, or cause other unnecessary shocks to your ChargePAK. May present a risk of fire, explosion, or chemical burn if mistreated. 5. Do not dispose of ChargePAK in a fire or incinerator, or leave in hot places such as a motor car under direct sunlight. Do not store near oven, stove, or other heat source. 6. Do not connect ChargePAK directly to an electrical source, such as a building outlet or automobile power-point. Do not place into a microwave oven, or any other high-pressure container.

7. Do not immerse ChargePAK in water or otherwise expose it to liquids.

8. Do not short circuit ChargePAK.

9. Do not use or charge a ChargePAK that appears to be leaking, discoloured, rusty, deformed; emitting an odour; or is otherwise abnormal. 10. Do not touch a leaking ChargePAK directly; wear protective material to remove and dispose of it properly immediately.

11. Do not store where children may have access.

12. Dispose of ChargePAK as per normal rechargeable batteries according to the local laws and regulations of your region. Some batteries may be recycled, and may be accepted for disposal at your local recycling centre.

13. Attention should be drawn to the environmental aspects of battery disposal.

1. WARNING: Do not use the included power supply (with model number KSAA0550100W1UV-1 / SW0551000-A01 or SW0551000-AM) to power up another apparatus as this may cause damage. 2. Use only power supplies listed in the user manual/user instructions (supplied by Pure with model number KSAA0550100W1UV-1 / SW0551000-A01 or SW0551000-AM). 3. Fit the mains adapter to an easily accessible socket, located near the radio and ONLY use the mains power adapter supplied. 4. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and objects filled with liquids, such as vases, shall not be placed on apparatus.

5. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

6. WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or similar. 7. WARNING: The direct plug-in adapter is used as a disconnect device, the disconnect device shall remain readily operable.

8. Keep the radio away from heat sources such as radiators, heaters or other appliances that produce heat.

9. Do not expose the unit to direct sunlight.

10. Do not use the radio near water.

11. Avoid objects or liquids getting into the radio.

12. Do not remove screws from or open the radio casing.

13. Always switch the radio off and disconnect it from mains power before inserting or removing a ChargePAK.

14. Should not be immersed in water, used in shower or bathroom if plugged into the mains.

15. The mark label is on the exterior of the bottom of the apparatus.

16. The equipment’s ventilation should not be impeded by covering the ventilation openings with items such as newspaper, tablecloths, curtains etc.

17. No naked flame sources, such as lighted candles, should be placed on the apparatus.

18. Only use the apparatus in places that have a moderate temperature.

Safety instructions and cautions Symbol Description This WARNING symbol is used throughout this manual to indicate a potentially serious risk to your personal safety. Obey all safety notices that accompany this symbol to avoid possible injury or death. This symbol is used on the product to indicate a caution and that instructions should be read before use. This symbol indicates DC voltage. This symbol indicates where the product is switched on or put into standby. Symbols used on this product Note: For information on all the other symbols used on the product, download the Evoke H2 user guide from support.pure.com.3

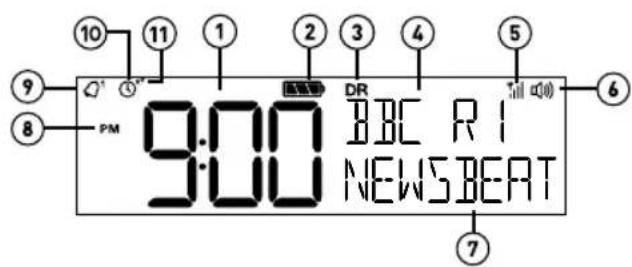

Contents 4 Introduction 4 Front panel controls 4 Display 5 Rear panel 6 Getting started 6 Quick set up 7 Using your Evoke 7 Selecting digital radio 7 Selecting FM radio 7 Pausing and controlling scrolling text 8 Storing and selecting presets 8 To quick-store a station to a preset button (1-3) 8 To store a station to the preset list (1-10) 8 To recall a preset when listening to digital radio or FM radio 9 Setting the alarm and sleep timer 9 Setting the alarm 9 Cancelling a sounding alarm 9 Snoozing a sounding alarm 9 Disabling an alarm 10 Setting the sleep timer 10 Options and settings 10 General settings 11 Digital radio settings 11 FM settings 11 Audio settings 11 Display settings 12 Clock settings 13 Appendix 13 Installing the ChargePAK B1 14 Technical specifications4 PURE LCD PURE LCD Front panel controls Introduction

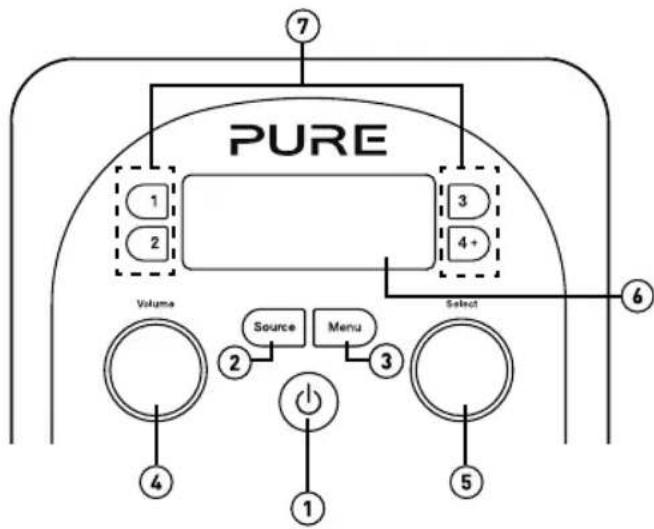

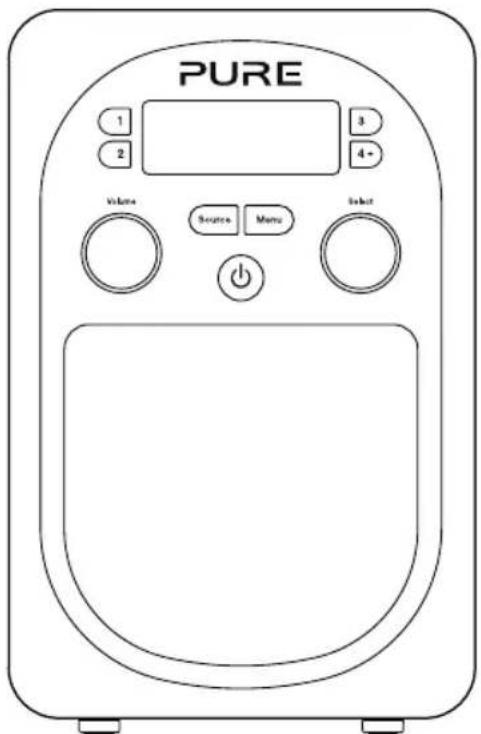

1. Standby: On/standby switch (mains powered) or on/

off switch (ChargePAK powered).2. Source: Press to switch between Digital radio, FM radio and Auxiliary input.3. Menu: Press to access setup options.4. Volume: Turn to adjust volume. Push to mute and un-mute.

5. Select: Turn and press to browse and select radio

stations (see page 7), select and adjust menu options or pause and control scrolling text (see page 7).6. Display: See below for more information on the display options.7. Presets 1 - 4+: Store up to 10 digital or 10 FM radio preset stations. Display 1. Current time.2. ChargePAK indicator.3. Source indicator.4. Displays station name.5. Signal strength.6. Volume/mute indicator.7. Displays date, scrolling text, settings and station information (see page 12).8. AM/PM indicator.9. Alarm set indicator (see page 9).10. Sleep and kitchen timer indicator (see page 10).11. Alarm snooze indicator (see page 9). BBC R1 NEWSBEAT5

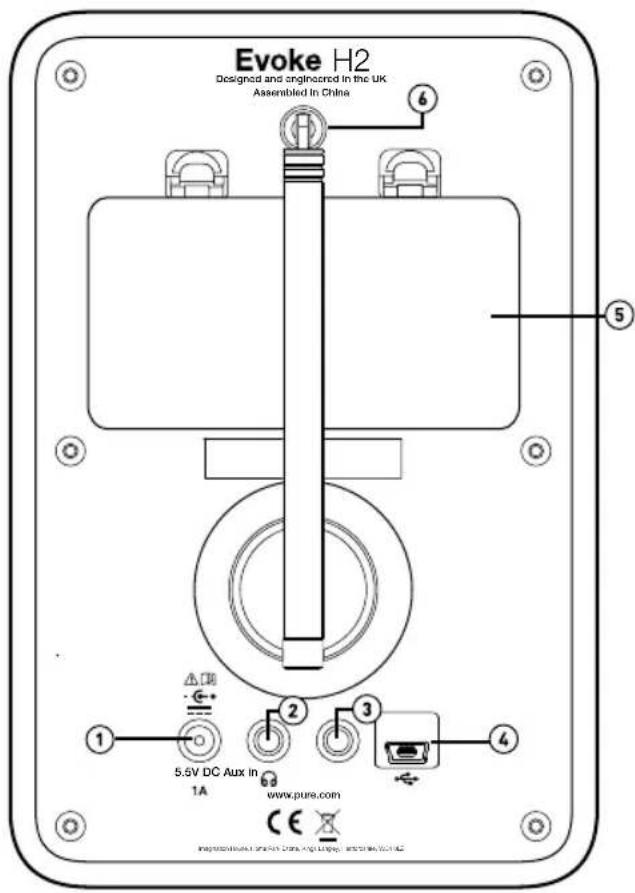

2. 3.5mm stereo headphone socket.

3. 3.5mm auxiliary input connection for an iPod,

4. Mini-B type USB connector for USB software

5. Compartment for ChargePAK B1 rechargeable

battery (sold separately).

Designed and engineered in the UKAssembled in ChinaImagination House, Home Park Estate, Kings Langley, Hertfordshire, WD4 8LZwww.pure.com6 Getting started Note: If you have a ChargePAK B1 rechargeable battery (sold separately) fit it now before plugging Evoke in. See page 13 for more information.

• Unclip the aerial and fully extend it (steps A and B).

• Insert the jack of the supplied mains adapter into the socket on the rear of the radio (C).

• Plug the mains adapter into the mains supply (D) and press the Standby ( ) button. 5.5V DC5.5V DC Aux inImagination House, Home Park Estate, Kings Langley, Hertfordshire, WD4 8LZwww.pure.com Designed and engineered in the UKAssembled in China

Select your language when prompted. Turn the Select dial to select a language (ENGLISH/FRENCH/ GERMAN/ITALIAN/SPANISH) and push to confirm. Wait for the radio to complete an Autotune for all available stations. When the Autotune is complete, a station will be selected.

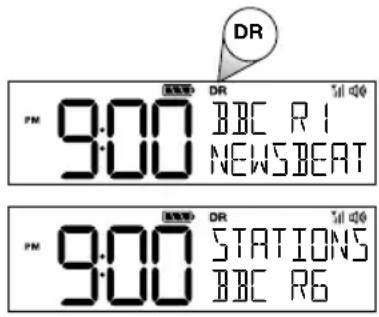

Using your Evoke Selecting digital radio Press Source to switch to digital radio. Changing digital stations

1. Turn the Select dial to the station you want to listen to.

2. Push the Select dial to tune into the station.

Selecting FM radio Press Source to switch to FM radio. Seek tuning Turn and release the Select dial right or left to seek to the next or previous FM radio station that has a strong signal. Manual tuning

1. Change the FM radio tuning mode to ‘MANUAL’ (see page 11).

2. Turn the Select dial right or left to step up or down 0.05 MHz.

Using the auxiliary input 1. Connect the line out or headphone socket of your auxiliary device to the Aux In socket on your Evoke using a suitable cable.2. Press Source to switch to auxiliary input.3. The Auxiliary input screen will display and Evoke will play any audio that is playing on the auxiliary device. Pausing and controlling scrolling text 1. When ‘Scrolling text’ information is displayed in either digital or FM radio, push the Select dial to pause the scrolling text.

2. Turn the Select dial to scroll forwards and backwards through the

text. To exit push the Select dial again.

AUX BBC R1 NEWSBEAT STATIONS BBC R6 88\65 16-6-15 SCANNING 88\65 BBC R2 PICK OF 16-6-15 AUX8 To quick-store a station to a preset button (1-3) Tune to the digital or FM radio station you want to store. Press and hold one of the numbered preset buttons (1 to 3) for two seconds to save the current station as a preset. You can save over existing presets. To store a station to the preset list (1-10)

1. Tune to the digital radio or FM radio station you want to store.

2. Press and release the 4+ button to view the numerical list of stored presets, then

turn the Select dial to choose any preset number between 1 and 10. You can overwrite existing presets.

3. Press and hold the Select dial until you see the ‘PRESET STORED’ message.

To recall a preset when listening to digital radio or FM radio To tune to presets 1 to 3, press the corresponding numbered button on Evoke (1 to 3). To access the full list of presets (from 1 to 10):

1. Press and release the

Select dial right or left to scroll through the list of presets and push the Select dial to tune to the selected preset. Store up to 10 digital and 10 FM radio stations for quick access. Storing and selecting presets BBC R1 NEWSBEAT PRESET

Setting the alarm and sleep timer The alarm in Evoke switches the radio on (if in standby) and tunes to a digital or FM radio station or sounds a tone.Note: The alarm function does not work when Evoke is being powered by the ChargePAK B1. Setting the alarm 1. Press the Menu button.2. Turn and press the Select dial to choose ‘ALARM’.3. Turn and press the Select dial to choose ‘ON’.4. Turn and press the Select dial to set the hour for the alarm. Repeat to set the minutes for the alarm.5. Turn and press the Select dial to specify one of the following alarm repeat options: ‘ONCE’, ‘DAILY’, ‘WEEKDAYS’, ‘WEEKENDS’, ‘SATURDAY’ or ‘SUNDAY’ and press the Select dial to confirm.

6. Turn and press the Select dial to specify ‘FM’, ‘DAB’ or ‘TONE’. If you are

specifying a tone alarm, skip to step 9.7. Turn and press the Select dial to specify which station should be played when the alarm goes off. You have the option of selecting one of your preset stations or you can select ‘LAST USED’ to select the station that you were last listening to.8. Turn and press the Select dial to set the volume that the radio will play at when the alarm sounds.9. The alarm icon will appear on the display to show that the alarm is set. Cancelling a sounding alarm To cancel a sounding tone alarm, press either the Menu

Source button, or push the Select dial. Note: If you have set up your alarm to tune into a radio station, you can only cancel the alarm by pressing the Standby ( ) button. the latest news BBC Radio 2 PMDR ALARM

Disabling an alarm 1. Press the Menu button.2. Turn and press the Select dial to choose ‘ALARM’.3. Turn and press the Select dial to choose ‘OFF’.4. The alarm icon on the display will disappear.10 Setting the sleep timer The sleep timer can be set to switch Evoke off after a period of time. 1. Press the Menu button.

2. Turn and press the Select dial to choose ‘SLEEP’.

3. Turn and press the Select dial to set the timer for up to 90 minutes or choose

‘OFF’ to cancel.4. The sleep timer icon will appear on the display to show that the sleep timer is set. the latest news BBC Radio 2 PMDR SLEEP 30 MINS BBC R1 NEWSBEAT Options and settings General settings Changing the language1. Press the Menu button.2. Turn and press the Select dial to choose ‘SETTINGS’.3. Turn and press the Select dial to choose ‘LANGUAGE’.

4. Turn and press the Select dial to select a menu language from ‘ENGLISH’, ‘FRENCH’, ‘GERMAN’, ‘ITALIAN’ or ’SPANISH’.

Factory resetResetting your Evoke removes all presets, stored stations, alarms and resets all other options to default settings.1. Press the Menu button.2. Turn and press the Select dial to ‘SETTINGS’.3. Turn and press the Select dial to ‘RESET’.

4. Turn and press the Select dial to confirm that you want to reset the Evoke to default settings.

VersionTo display the software version:1. Press the Menu button.2. Turn and press the Select dial to ‘SETTINGS’.3. Turn and press the Select dial to ‘VERSION’.Update Contact Pure technical support (http://support.pure.com) for more information on how to update Evoke to the latest software version.11

Digital radio settings Autotune You can use the autotune function to automatically scan for new digital radio stations and remove inactive ones. Note: Autotune is only available when you have selected ‘Digital’ as the radio source. To carry out an autotune:

1. Press the Menu button.

2. Turn and press the Select dial to choose ‘AUTOTUNE’. The number of stations found will be displayed during the autotune. When the autotune has finished, Evoke will tune to the last station that you were listening to. FM settings FM stereo option You can choose between ‘STEREO’ or ‘MONO’ reception when listening to FM radio. You may want to choose ‘STEREO‘ if listening using headphones. Note: The FM stereo option is only available when you have selected ‘FM’ as the radio source. To change between stereo or mono reception:

1. Press the Menu button.

2. Turn and press the Select dial to choose ‘FM STEREO’.

3. Turn and press the Select dial to choose between ‘STEREO’ or ‘MONO’ FM reception.

FM tuning mode Press the Menu button and turn and press the Select dial to choose ‘TUNE’. Choose from the following two modes: SEEK: When you turn the Select dial, the radio tunes to the next station with a good signal. MANUAL: When you turn the Select dial, the radio tunes up or down the FM radio frequency range by 0.05 MHz. Audio settings To adjust the bass and treble settings:

1. Press the Menu button.

2. Turn and press the Select dial to choose ‘AUDIO’.

Turn and press the Select dial to choose ‘ BASS ’ or ‘ TREBLE

4. Turn and press the Select dial to set the level from ‘-6’ (low) to ‘+6’ (high).

Display settings Changing the backlight brightness level

Menu button and turn and press the Select dial to choose ‘ DISPLAY

Select dial to choose ‘ BACKLIGHT

Select dial to adjust the brightness level when Evoke’s display is ‘ ACTIVE’ or in ‘ STANDBY

Select dial to select ‘ LEVEL

Select dial to set a brightness level between ‘

’ (bright).12 Changing the duration that the backlight is illuminated

Menu button and turn and press the Select dial to choose ‘ DISPLAY

Select dial to choose ‘ BACKLIGHT

Select dial to adjust the duration the backlight is illuminated for when Evoke’s display is ‘ ACTIVE ‘ or in

Select dial to select ‘ DURATION

Select dial to choose one of the following option

ON: The backlight will always be illuminated at your preferred brightness level. TIMED: The backlight will always be illuminated at your preferred brightness level when a button is pressed and then switch off after 7 seconds of inactivity. Changing the information shown on the display

1. Press the Menu button and turn and press the Select dial to choose ‘DISPLAY’.

2. Press Menu and turn and press the Select dial to choose ‘INFORMATION’.

3. Turn and press the Select dial to choose one of the following options:

TEXT: Provided by the broadcaster. STRENGTH: The clear block indicates signal strength for reliable reception. DATE: Displays the current date. QUALITY: (Digital radio only) Signal quality, from ‘0’ (low) to ‘100’ (high). Changing the time format

1. Press the Menu button and turn and press the Select dial to choose ‘CLOCK’.

2. Turn and press the Select dial to choose ‘12/24 HOUR’. Repeat to set the required time format.

Changing the date format

1. Press the Menu button and turn and press the Select dial to choose ‘CLOCK’.

2. Turn and press the Select dial to choose ‘FORMAT’. Repeat to set the required date format.

Clock settings Setting the time and date The time and date on Evoke are automatically set by the FM or digital radio signal. If the time/date does not update automatically, you can manually set it using this option. Note: Any time or date updates received by an FM or a digital broadcast will override manual settings, if clock synchronization is enabled (see the following page for more information). Setting the time and date manually

1. Press the Menu button and turn and press the Select dial to choose ‘CLOCK’.

2. Turn and press the Select dial to choose ‘TIME/DATE’.

3. Turn and press the Select dial to set the hour. Repeat to adjust the minutes.

4. Turn and press the Select dial to set the day of the month. Repeat to set the month and year.13

Designed and engineered in the UKAssembled in China5.5V DC Aux in Imagination House, Home Park Estate, Kings Langley, Hertfordshire, WD4 8LZwww.pure.com5.5V DC Designed and engineered in the UKAssembled in China5.5V DC Aux in

Imagination House, Home Park Estate, Kings Langley, Hertfordshire, WD4 8LZ www.pure.com ChargePAK B1 ChargePAK B1 Designed and engineered in the UK Assembled in China 5.5V DC Aux in

Imagination House, Home Park Estate, Kings Langley, Hertfordshire, WD4 8LZ www.pure.com 5.5V DC Aux in Imagination House, Home Park Estate, Kings Langley, Hertfordshire, WD4 8LZ www.pure.com

Designed and engineered in the UK Assembled in China Clock synchronization options You can select the radio sources that you want to use for setting the time. By default, Evoke uses both the FM and digital radio signals to synchronize the time. To specify the synchronization options:

1. Press the Menu button and turn and press the Select dial to choose ‘CLOCK’.

2. Turn and press the Select dial to choose ‘SYNC TO’.

3. Turn and press the Select dial to choose the required clock synchronization option.

Changing the alarm snooze time

1. Press the Menu button and press the Select dial to choose ‘CLOCK’.

2. Turn and press the Select dial to choose ‘SNOOZE’.

3. Turn and press the Select dial to choose a snooze time between 5 and 59 minutes.

1. Switch Evoke off and disconnect from the mains

2. Open the battery compartment.

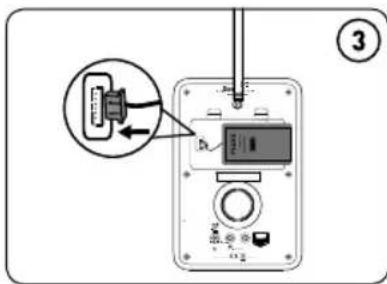

3. Insert the ChargePAK connector plug into the socket

in the compartment. Line up the ridges on the plug with the slots in the socket to ensure correct orientation. Do not force the plug.

4. Insert ChargePAK into the battery compartment, logo

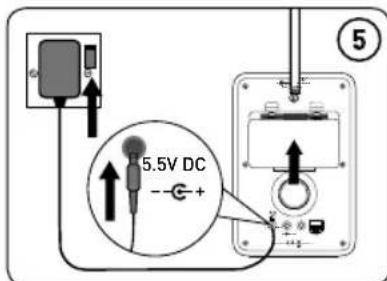

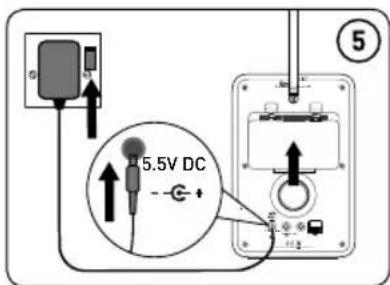

5. Replace the battery cover and connect Evoke to the

6. ChargePAK will begin charging.

Note: If you are charging ChargePAK for the first time or after an extended period of inactivity it is recommended that it is charged for around 24 hours to ensure full battery power. If ChargePAK is flat there may be a slight delay before the battery charging indicator is displayed. Installing the ChargePAK B114 Radio: Digital radio (DAB/DAB+/DMB-R), FM radio 87.5-108 MHz Audio: 1.6W RMS. Full-range 3” drive unit. Input Connectors: 5.5V DC power adaptor socket (230V supplied), Mini USB connector for product updates, 3.5mm Line-in for auxiliary devices Output Connectors: 3.5mm stereo headphone socket. Power: 230V AC to 5.5V (1.0A) DC external power adapter optional ChargePAK B1. Power Consumption: Standby: 0.7W, Active: 1.6W Dimensions: 115 mm wide x 180 mm high x 120 mm deep Approvals: CE marked. Compliant with the EMC, Low Voltage and RoHS Recast Directives (2014/30/EU, 2014/35/ EU and 2011/65/EU) ETSI EN 300 401 compliant. Note: Will be compliant with RED(2014/53/EU) after 12th June 2017 Technical specifications Warranty information Imagination Technologies Limited warrants to the end user that this product will be free from defects in materials and workmanship in the course of normal use for a period of three years from the date of purchase. This guarantee covers breakdowns due to manufacturing or design faults; it does not apply in cases such as accidental damage, however caused, wear and tear, negligence, adjustment, modification or repair not authorised by us. Should you have a problem with your unit please contact your supplier or contact Pure Support at http://support.pure.com. Disclaimer Imagination Technologies Limited makes no representation or warranties with respect to the content of this document and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Further, Imagination Technologies Limited reserves the right to revise this publication and to make changes in it from time to time without obligation of Imagination Technologies Limited to notify any person or organization of such revisions or changes. Trademarks Evoke H2, ChargePAK, Pure, the Pure logo, Imagination Technologies, and the Imagination Technologies logo are trademarks or registered trademarks of Imagination Technologies Limited. Copyright Copyright © 2015 Imagination Technologies Limited. All rights reserved. No part of this publication may be copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language, in any form or by any means, electronic, mechanical, magnetic, manual or otherwise, or disclosed to third parties without the express written permission of Imagination Technologies Limited. Version 3 December 2015. Disposal of Waste Electrical & Electronic Equipment This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to a suitable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local council office, your household waste disposal service or the shop where you purchased the product.Vielen Dank, dass Sie sich für das Evoke H2 entschieden haben. Dieses Handbuch hilft Ihnen, Ihr Produkt in kürzester Zeit in Betrieb zu nehmen. Sie erfahren hier, wie Sie all seine großartigen Funktionen optimal nutzen können. Wenn Sie weitere Hilfe benötigen, besuchen Sie unsere Support-Seiten auf unserer Website unter support.pure.com. Evoke H2
