Reference Premiere RP8000F - Speaker KLIPSCH - Free user manual and instructions

Technical Features	Column speaker, 2-way, with an 8-inch woofer and a 1-inch titanium tweeter.
Frequency Response	32 Hz - 25 kHz.
Impedance	8 Ohms.
Rated Power	150 Watts (continuous power).
Dimensions	105.4 cm x 39.4 cm x 38.1 cm.
Weight	29.5 kg.
Usage	Ideal for home theater systems and high-fidelity music.
Maintenance	Clean with a soft cloth, avoid harsh chemicals.
Safety	Do not expose to excessive moisture, avoid physical shocks.
General Information	Compatible with power amplifiers, elegant wood finish.

Frequently Asked Questions - Reference Premiere RP8000F KLIPSCH

How do I connect my KLIPSCH RP8000F speakers to my amplifier?

Use quality speaker cables to connect the positive and negative terminals of the speakers to the corresponding outputs of your amplifier. Make sure the connections are tight.

What are the dimensions of the KLIPSCH RP8000F?

The dimensions of the KLIPSCH RP8000F are 1,034 mm height, 330 mm width, and 460 mm depth.

How do I adjust the sound of my KLIPSCH RP8000F?

You can adjust the sound via your amplifier or audio receiver. Use the equalizer settings to adjust bass, midrange, and treble according to your preferences.

My KLIPSCH RP8000F speakers are not producing sound, what should I do?

First, check that the amplifier is turned on and the volume is set correctly. Also, ensure that the connection cables are properly plugged in and in good condition.

Are the KLIPSCH RP8000F suitable for use with a home theater system?

Yes, the KLIPSCH RP8000F are designed to deliver excellent audio performance and are perfectly suited for use in a home theater system.

What is the weight of a KLIPSCH RP8000F speaker?

Each KLIPSCH RP8000F speaker weighs approximately 24.5 kg.

Can I use the KLIPSCH RP8000F in a bi-amplified setup?

Yes, the KLIPSCH RP8000F support bi-amplification. Make sure to follow the appropriate connection instructions to take advantage of this feature.

How do I clean my KLIPSCH RP8000F speakers?

Use a soft, dry cloth to wipe the surface. Avoid using harsh chemicals that could damage the finish.

What is the maximum power of the KLIPSCH RP8000F?

The maximum power of the KLIPSCH RP8000F is 600 watts.

Are the KLIPSCH RP8000F compatible with wireless systems?

The KLIPSCH RP8000F are not wireless speakers but can be integrated into a wireless system via an appropriate receiver or transmitter.

USER MANUAL Reference Premiere RP8000F KLIPSCH

1) the standard, the benchmark, the point used for comparison
2) the embodiment of the legendary Klipsch sound

LOUD AND PROUD SINCE 1946

In 1946, Paul W. Klipsch revolutionized the audio industry by creating our proprietary horn technology and the acoustic principles that are the driving force behind our highly acclaimed signature sound. Today, we remain true to PWK's vision and pack the better part of a century's worth of sweat and genius into every product we make. These speakers are the result of our obsession with that aural perfection. Experience the power, detail and emotion of Klipsch Reference Series.

We are the Keepers of the Sound.

ENGLISH

REFERENCE PREMIERE SPEAKERS

RP-8060FA

RP-8000F RP-6000F RP-5000F RP-4000F

RP-600M

RP-500M RP-400M RP-502S RP-402S RP-500SA

RP-504C RP-404C RP-600C RP-500C RP-400C

BEFORE YOU START

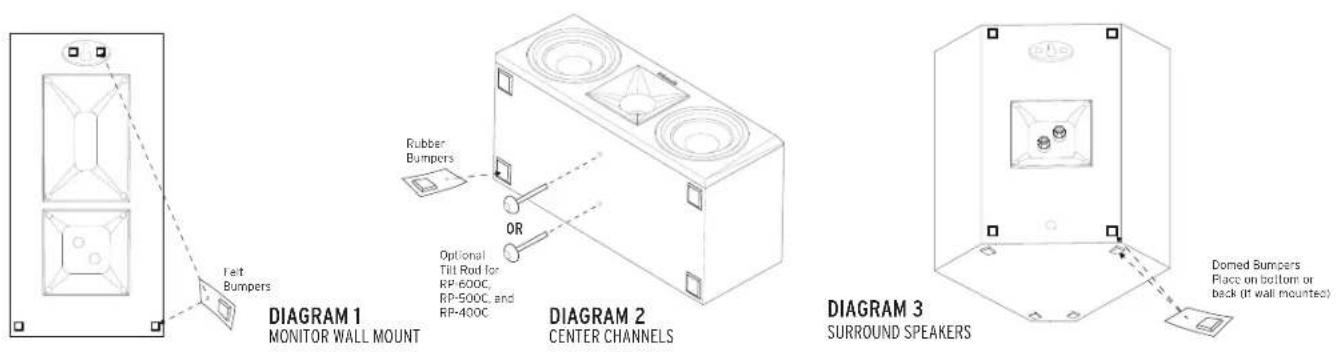

Some Klipsch^® speakers have feet and other accessories that may need to be installed prior to use. Please refer to Diagrams 1, 2, 3 and 4 for installation.

ROOM PLACEMENT

Left and Right Main Channel Speakers - For optimum performance, Klipsch Group, Inc. (KGI) suggests placing your speakers 6 to 15 feet (1.8 to 4.6m) apart. They may also be toed-in slightly for better stereo imaging. The listening position should be about 1 to 1.5 times the distance separating the speakers. Refer to Figures 1 and 3 for connection and placement.

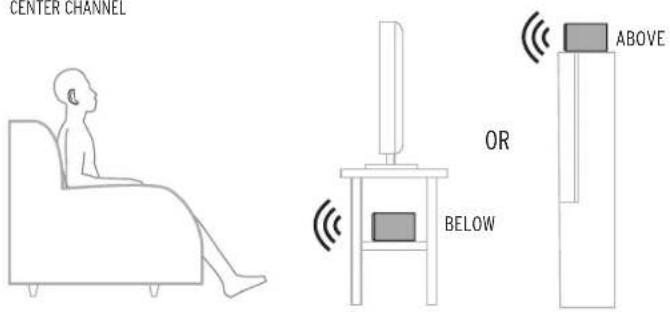

Center Channel Speakers - Center channel speakers are designed to place dialogue and primary sounds so that they appear to come from the video screen. The speakers should therefore be placed as close to the screen as possible, preferably directly on top of or below the screen. Refer to Figures 1, 2 and 3 for connection and placement.

Rear Surround Channel Speakers - Klipsch WDST surround speakers should be placed approximately 2 feet above the listening position. Typically this will be about 5-7 feet above the floor. The surrounds should be placed on the walls directly adjacent to the listening position. Another option would be on the wall behind the listening position. The final surround speaker placement depends on your room's characteristics. They are designed to recreate the sense of space and ambience that many of today's surround sound technologies provide. Refer to Figures 1, 3 and 4 for connection and placement.

CONNECTION

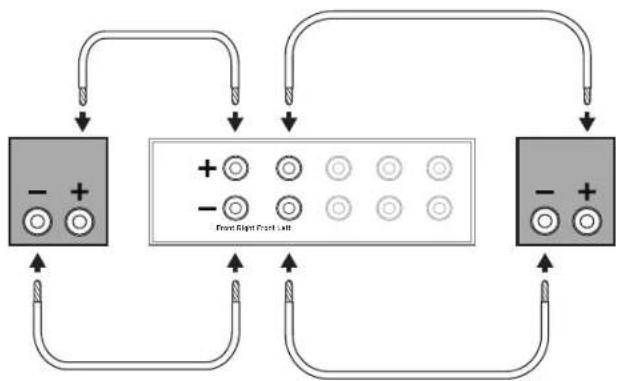

Conventional Connection - Using 16-12 gauge speaker wire, connect the RED "positive" (+) terminal of the LEFT speaker to the RED "positive" (+) terminal of your amplifier's LEFT channel. Connect the BLACK "negative" (-) terminal of the LEFT speaker to the BLACK "negative" (-) terminal of your amplifier's LEFT channel. Repeat this procedure for connecting all remaining speakers to the appropriate amplifier channels. Refer to Figure 3. Make sure that no bare wires from any of the connections touch any other terminals as this could cause a short and damage your equipment.

Reference Premiere models RP-8060FA, RP-8000F, RP-6000F, RP-5000F, RP-4000F and RP-160M are equipped with dual binding posts. If single wire connection is used, the terminal connecting bar should remain in place. If Bi-wire or Bi-amp connection is used, the terminal connecting bar must be removed. Please see your receiver's manual for further instructions.

Amplifier Requirements - Klipsch speakers are highly efficient and will operate easily on a wide variety of amplifiers. All Klipsch speakers are 8-ohm compatible and can be driven to very high levels with low distortion. Due to the high output levels Klipsch speakers are capable of reproducing, exercise caution with the volume control. Excessive volume over long periods can permanently damage your hearing. Overdriving your amplifier could also damage your speakers. Check with your dealer or amplifier manual to make sure your particular amplifier is best suited to your application. We want you listening for a lifetime.

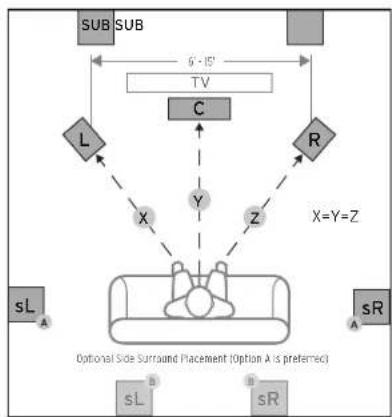

FIGURE1
SPEAKER PLACEMENT IN LISTENING AREA

FIGURE 3
STANDARD CONNECTIONS

FIGURE 2
CENTER CHANNEL

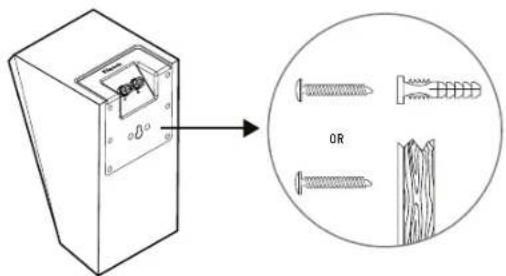

FIGURE 4
WALL MOUNTING

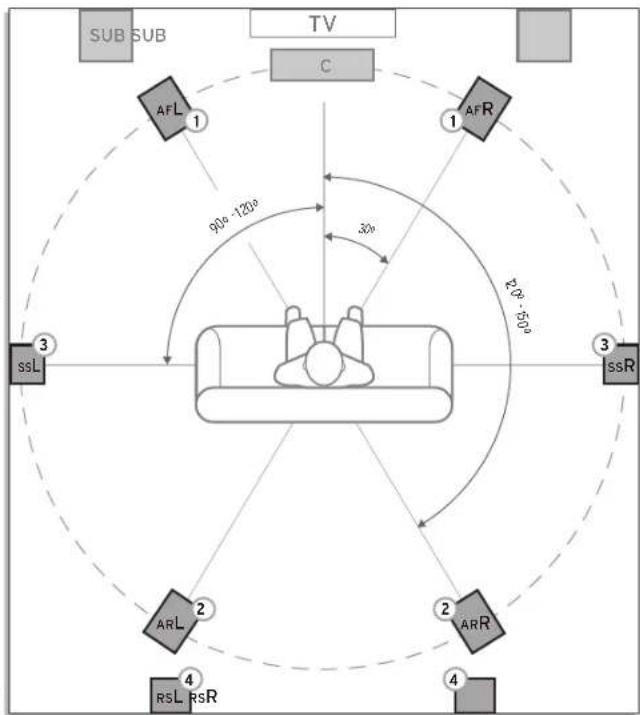

REFERENCE PREMIERE WITH DOLBY ATMOS TECHNOLOGY

RP-500SARP-8060FA

ATMOS FRONT

ATMOS REAR

SIDE SURROUND

REAR SURROUND

SPEAKER PLACEMENT IN LISTENING AREA

REFERENCE PREMIERE WITH DOLBY ATMOS TECHNOLOGY

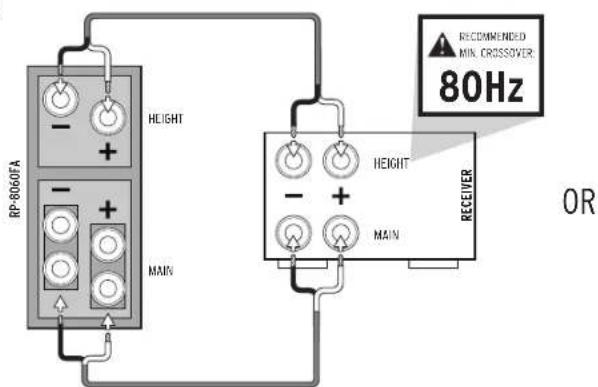

CONNECTIONS

The RP-500SA can be added to any passive loudspeaker setup

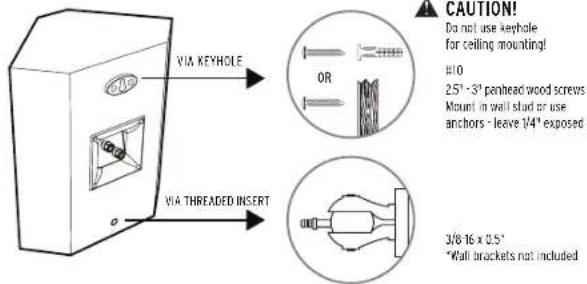

WALL MOUNTINGELEVATION SPEAKER
CAUTION

Do not use keyhole for ceiling mounting
10
25-31 panhead
wool sews
Mound in wall slurt
or use anchors
have 1 / 4 exposed

CARE AND CLEANING

The only thing you should ever need to do to your speakers is dust them occasionally. Never apply any abrasive or solvent-based cleaner or any harsh detergent. You can clean the grilles with the brush attachment of a vacuum cleaner.

PRODUCT REGISTRATION

Register your product online at www.klipsch.com/register
- Keep up-to-date on new products and promotions.
- Your personal information will never be resold.
- This registration information is not used for warranty purposes.

Please retain your receipt for warranty claims.

REFERENCE

Klipsch, Keepers of the Sound

FRANÇAIS

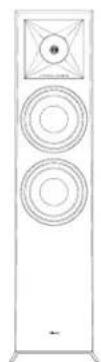

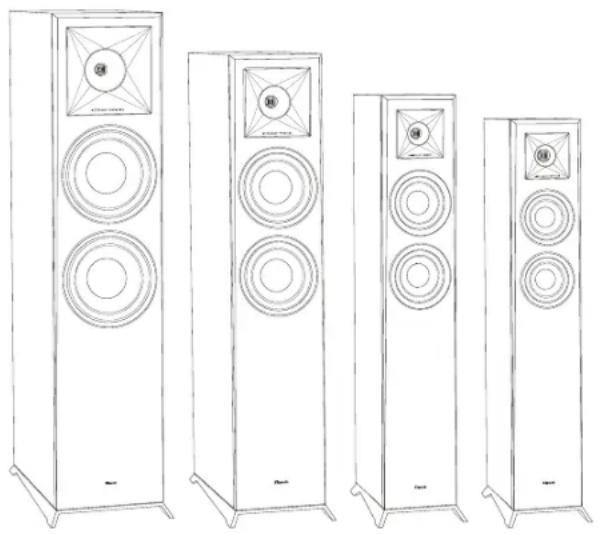

ENCEINTES REFERENCE PREMIERE

RP-8060FA

RP-8000F RP-6000F RP-5000F RP-4000F

RP-600M

RP-500M RP-400M RP-502S RP-402S RP-500SA

RP-504C RP-404C RP-600C RP-500C RP-400C

AVANT DE COMMENCER

We are the Keepers of the Sound.

REFERENCE PREMIERE-LAUTSPRECHER

RP-8060FA

RP-8000F RP-6000F RP-5000F RP-4000F

RP-600M

RP-500M RP-400M RP-502S RP-402S RP-500SA

RP-504C RP-404C RP-600C RP-500C RP-400C

ERSTE SCHRITTE

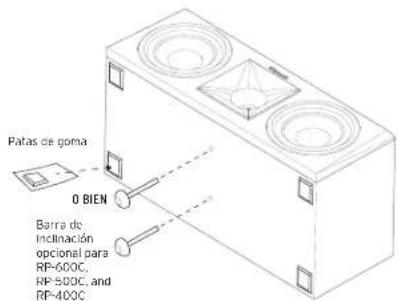

DIAGRAMA 2 CANAL CENTRAL

Somos os Keepers of the Sound.

PORTUGUES

CAIXAS ACUSTICAS REFERENCE PREMIERE

RP-8060FA

RP-8000F RP-6000F RP-5000F RP-4000F

RP-600M

RP-500M RP-400M RP-502S RP-402S RP-500SA

RP-504C RP-404C RP-600C RP-500C RP-400C

ANTES DE COMEÇAR

Klitsch 45,23,10,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92

y 321

Klipsch WDST 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 4

a aalaae aee aae ae aee aee aee aee aee aee

www.klipsch.com/register 1234567890

Klipsch

KEEPERS OF THE SOUND

3502 WOODVIEW TRACE,INDIANAPOLIS, IN, USA

KLIPSCH.COM

DOLBY ATMOST

Manufactured under license from Dolby Laboratories. Dolby, Dolby Almos and the double-D symbol are registered Trademarks of Dolby Laboratories

VC3-180507

1-00-KLIPSCH 02015 KILPSCH GROUP, INC. ALL RIGHTS RESERVED. KILPSCH AND KEEPERS OF THE SOUND ARE REGISTERED TRADEMARKS OF KILPSCH GROUP, INC. IN THE USA AND OTHER COUNTRATES: A WHOLLY-OWNED SUBSIDIARY OF VOXX INTERNATIONAL CORPORATION, MANUFACTURED UNDER LICENSE FROM DOLBY LABORATORIES. DOLBY ATMOS IS A REGISTERED TRADEMARK OF DOLBY LABORATORIES.
