Speaker Type	Column
Frequency Response	38 Hz - 21 kHz
Impedance	8 Ohms
Nominal Power	100 Watts
Maximum Power	400 Watts
Dimensions (HxWxD)	1000 x 200 x 300 mm
Weight	12 kg
Type of Woofer	6.5-inch Woofer
Type of Tweeter	1-inch Aluminum Tweeter
Connectivity	Screw Terminals
Recommended Use	Home theater, music
Maintenance	Clean with a soft cloth, avoid moisture
Safety	Avoid electrical overloads, do not expose to water
Warranty	2 years
Included Accessories	User manual

Frequently Asked Questions - Reference R620F KLIPSCH

How do I connect my KLIPSCH Reference R620F speakers to an amplifier?

To connect your speakers, use quality speaker cables. Connect one end of the cable to the amplifier output and the other end to the corresponding terminal (positive and negative) on the back of the speaker.

What types of cables should I use with the KLIPSCH Reference R620F speakers?

It is recommended to use speaker cables of gauge 16 to 12 to ensure good sound quality. Make sure the cables are of good quality and suitable for the distance of your setup.

How do I properly position my KLIPSCH Reference R620F for better acoustics?

For optimal acoustics, place the speakers at least 30 cm from the back wall and 60 cm from the side walls. Aim them towards the listening area for better stereo effect.

What are the power requirements for the KLIPSCH Reference R620F speakers?

The KLIPSCH Reference R620F have a nominal power of 100 Watts and can handle up to 400 Watts peak power. Make sure your amplifier is compatible with these specifications.

How do I clean my KLIPSCH Reference R620F speakers?

Use a soft, dry cloth to clean the surface of the speakers. Avoid chemical products or cleaning solutions that could damage the finish.

Can the KLIPSCH Reference R620F speakers be used for home theater systems?

Yes, the KLIPSCH Reference R620F are ideal for home theater systems and can be used as front speakers for an immersive audio experience.

What should I do if I do not get sound from my KLIPSCH Reference R620F speakers?

First, check the cable connections to ensure they are properly plugged in. Then test with another amplifier or audio source to identify if the problem is with the speakers or the equipment.

Are the KLIPSCH Reference R620F speakers compatible with wireless systems?

The KLIPSCH Reference R620F are not wireless speakers. However, you can integrate them into a wireless system by using a wireless transmitter connected to your amplifier.

USER MANUAL Reference R620F KLIPSCH

1) the standard, the benchmark, the point used for comparison
2) the embodiment of the legendary Klipsch sound

LOUD AND PROUD SINCE 1946

In 1946, Paul W. Klipsch revolutionized the audio industry by creating our proprietary horn technology and the acoustic principles that are the driving force behind our highly acclaimed signature sound. Today, we remain true to PWK's vision and pack the better part of a century's worth of sweat and genius into every product we make. These speakers are the result of our obsession with that aural perfection. Experience the power, detail and emotion of Klipsch Reference. We are the Keepers of the Sound.

REFERENCE SPEAKERS

R-620F

R-610FR-820F

R-51M

R-41M

R-52C

R-34C

DOLBY ATMOS

R-41SA

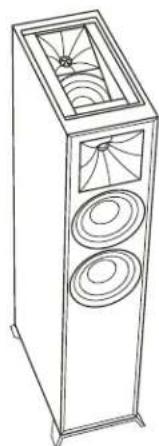

R-625FA

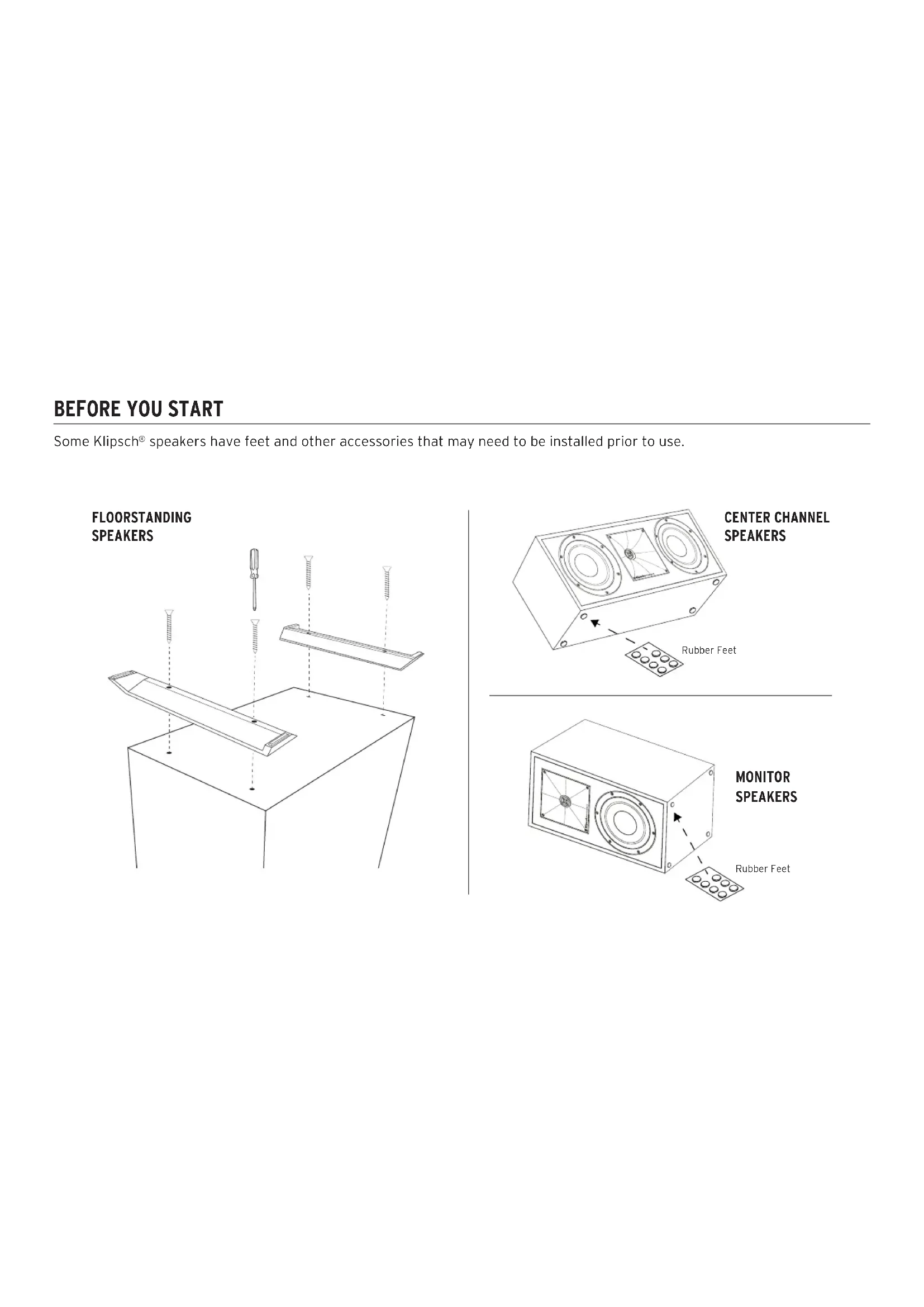

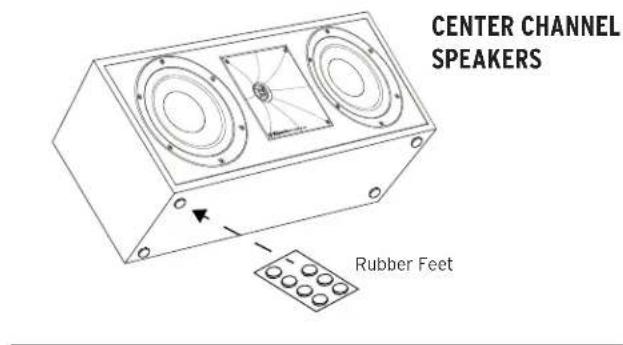

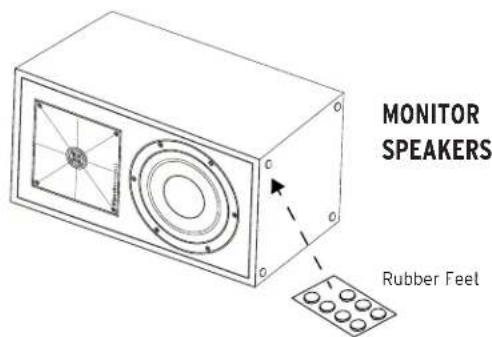

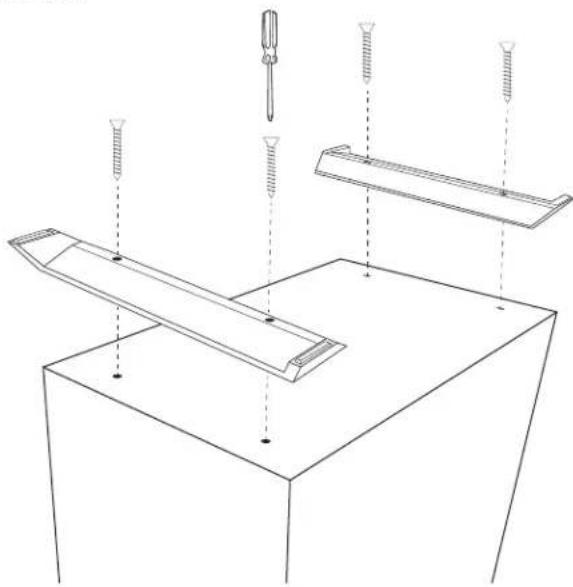

Some Klipsch® speakers have feet and other accessories that may need to be installed prior to use.

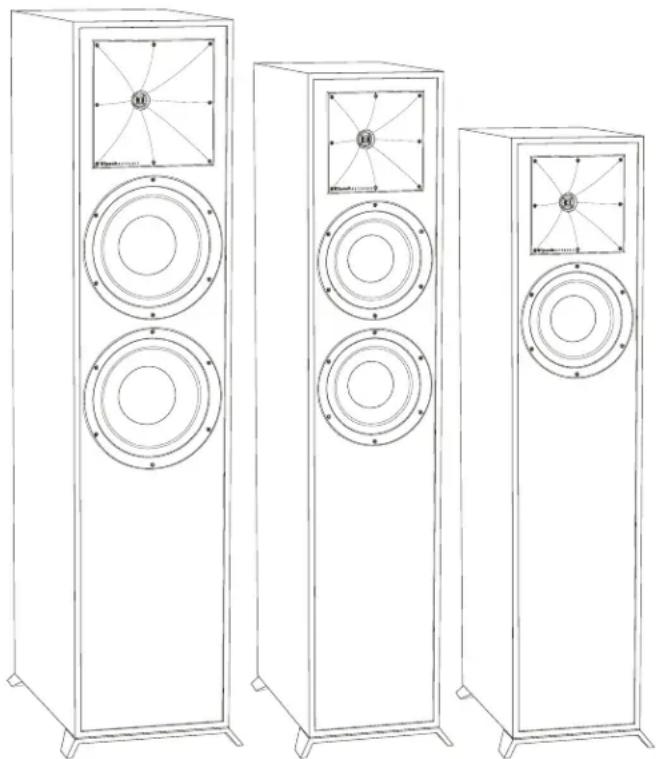

FLOORSTANDING SPEAKERS

ROOM PLACEMENT CONNECTION

Left and Right Main Channel Speakers - For optimum performance, Klipsch Group, Inc. (KGI) suggests placing your speakers 6 to 15 feet (1.8 to 4.6m ) apart. They may also be toed-in slightly for better stereo imaging. The listening position should be about 1 to 1.5 times the distance separating the speakers. Refer to Figures 1 and 3 for connection and placement.

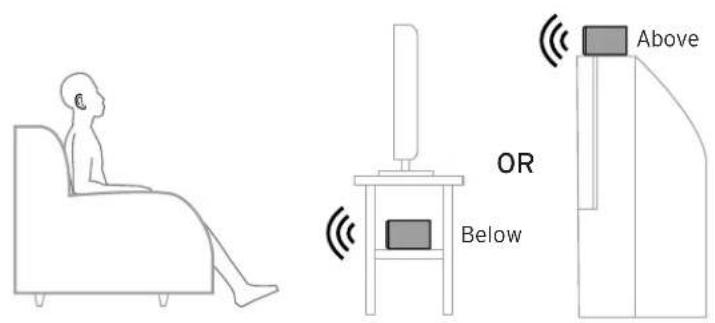

Center Channel Speakers - Center channel speakers are designed to place dialogue and primary sounds so that they appear to come from the video screen. The speakers should therefore be placed as close to the screen as possible, preferably directly on top of or below the screen. Refer to Figures 1, 2 and 3 for connection and placement.

Rear Surround Channel Speakers - Klipsch surround speakers should be placed approximately 2 feet above the listening position. Typically this will be about 5-7 feet above the floor. The surrounds should be placed on the walls directly adjacent to the listening position. Another option would be on the wall behind the listening position. The final surround speaker placement depends on your room's characteristics. They are designed to recreate the sense of space and ambience that many of today's surround sound technologies provide. Refer to Figures 1, 3 and 4 for connection and placement.

Conventional Connection - Using 16-12 gauge speaker wire, connect the RED "positive" (+) terminal of the LEFT speaker to the RED "positive" (+) terminal of your amplifier's LEFT channel. Connect the BLACK "negative" (-) terminal of the LEFT speaker to the BLACK "negative" (-) terminal of your amplifier's LEFT channel.

Repeat the above procedure for connecting all remaining speakers to the appropriate amplifier channels. Refer to Figure 3. Make sure that no bare wires from any of the connections touch any other terminals as this could cause a short and damage your equipment.

Some Klipsch Reference speakers come with dual binding posts that are connected by a metal strip. Do not remove this strip or your speakers will not function correctly. Keep this strip in place and connect your speaker wire to the top set of the binding posts. It is possible to "Bi-wire" a speaker that has two sets of binding posts. Please see your receiver's manual for further instructions.

Amplifier Requirements - Klipsch speakers are highly efficient and will operate easily on a wide variety of amplifiers. All Klipsch speakers are 8-ohm compatible and can be driven to very high levels with low distortion. Due to the high output levels Klipsch speakers are capable of reproducing, exercise caution with the volume control. Excessive volume over long periods can permanently damage your hearing. Overdriving your amplifier could also damage your speakers. Check with your dealer or amplifier manual to make sure your particular amplifier is best suited to your application. We want you listening for a lifetime.

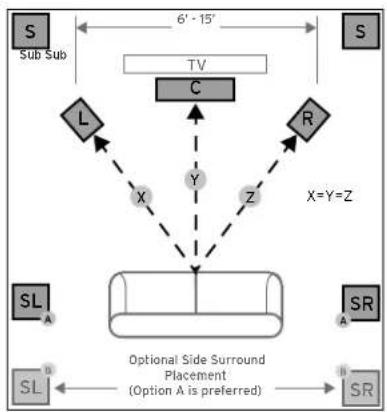

FIGURE 1
SPEAKER PLACEMENT IN LISTENING AREA

FIGURE 2
CENTER CHANNEL

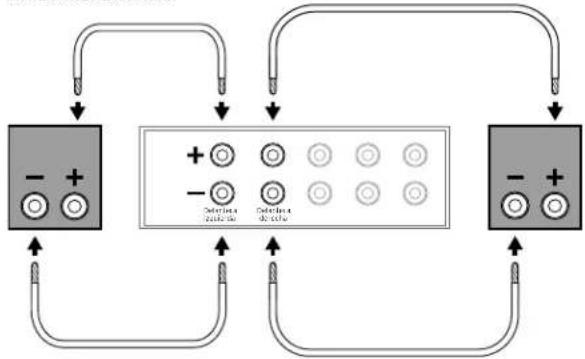

FIGURE 3
STANDARD CONNECTIONS

for ceiling mounting!

10 or #12

2.5" - 3" panhead wood screws
Mount in wall stud or use anchors
leave 1/4" exposed

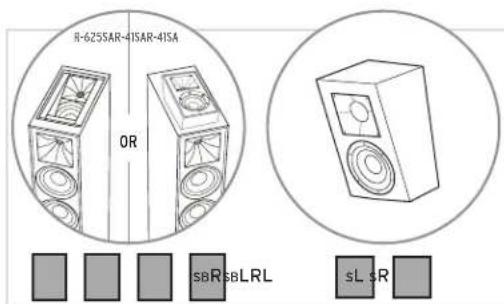

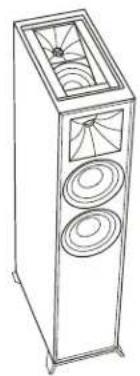

REFERENCE WITH DOLBY ATMOS® TECHNOLOGY

R-41SAR-625FA

1 MANDATORY
2 SECONDARY
3 OPTIONAL

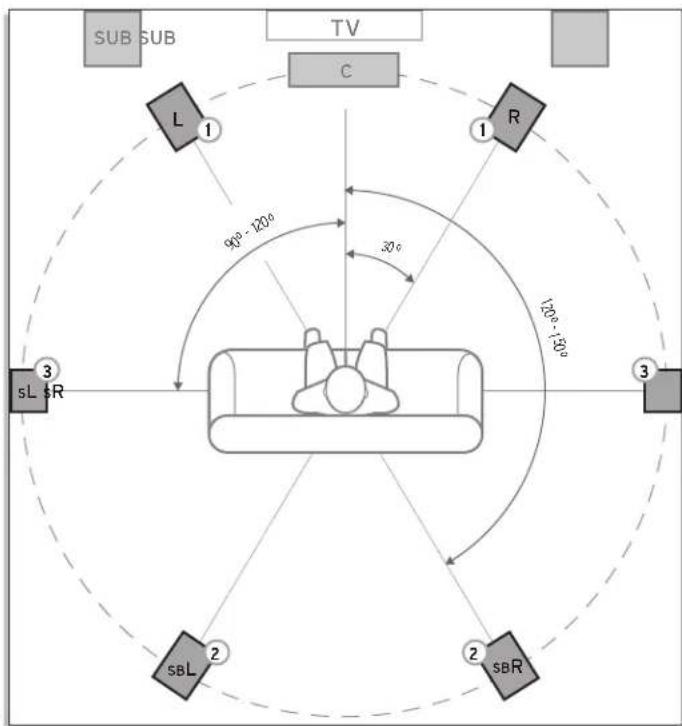

SPEAKER PLACEMENT IN LISTENING AREA

CARE AND CLEANING

The only thing you should ever need to do to your speakers is dust them occasionally. Never apply any abrasive or solvent-based cleaner or any harsh detergent. You can clean the grilles with the brush attachment of a vacuum cleaner.

PRODUCT REGISTRATION

Register your product online at www.klipsch.com/register

• Keep up-to-date on new products and promotions.
• Your personal information will never be resold.
• This registration information is not used for warranty purposes. Please retain your receipt for warranty claims.

REFERENCE

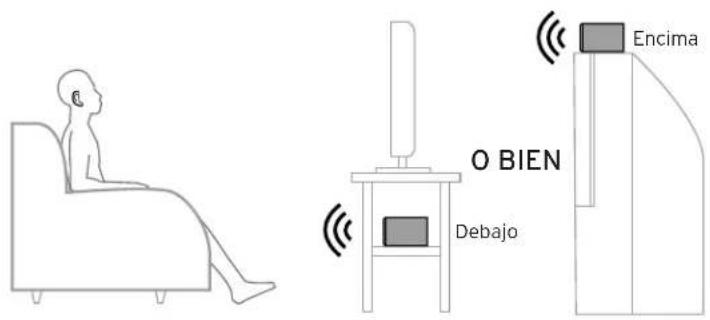

FIGURA 2
CANAL CENTRAL

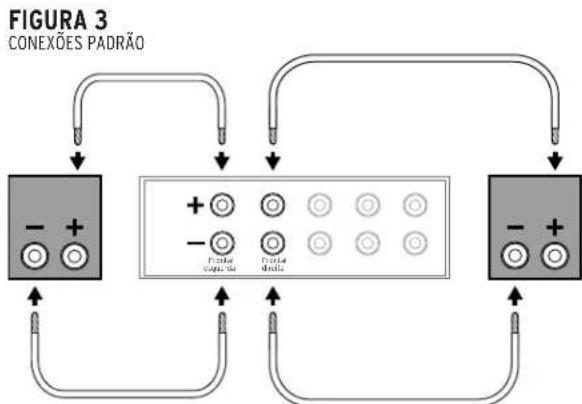

FIGURA 3
CONEXIONES ESTANDAR

FIGURA 4
MONTAJE DE LOS ALTAVOCES SURROUND EN LA PARED

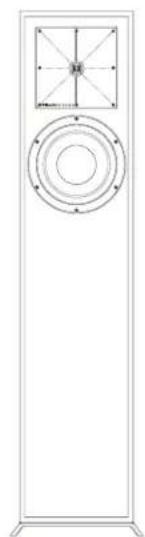

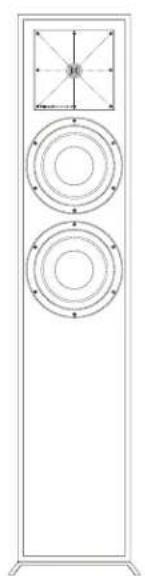

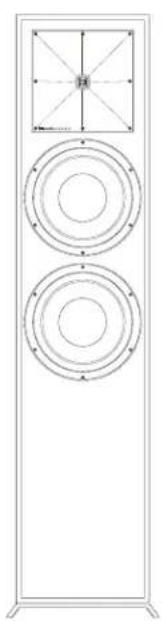

CAIXAS ACUSTICAS REFERENCE

R-620F

R-610FR-820F

R-51M

R-41M

R-52C

R-34C

DOLBY ATMOS

R-41SA

R-625FA

ANTES DE COMEÇAR

FIGURA 2 CANAL CENTRAL

FIGURA 4 INSTALAÇÃO DAS CAIXAS ACUSTICAS SURROUND EM PAREDE

KEEPERS OF THE SOUND

3502 WOODVIEW TRACE,INDIANAPOLIS,IN,USA

KLIPSCH.COM

DOLBY ATMOS

Manufactured under license from Dolby Laboratories, Dolby, Dolby Atmos and the double-D symbol are registered trademarks of Dolby Laboratories.

©2018, Kilpsch Group, Inc. Kilpsch Group, Inc. is a wholly-owned subsidiary of Vox International Corporation.

Kipsch and Keepers of the Sound are Trademarks of Klipsch Group, Inc., registered in the United States and other countries.
