1. General safety regulations

2. Layout and items supplied

6. Working with the chainsaw

9. Cleaning and storing

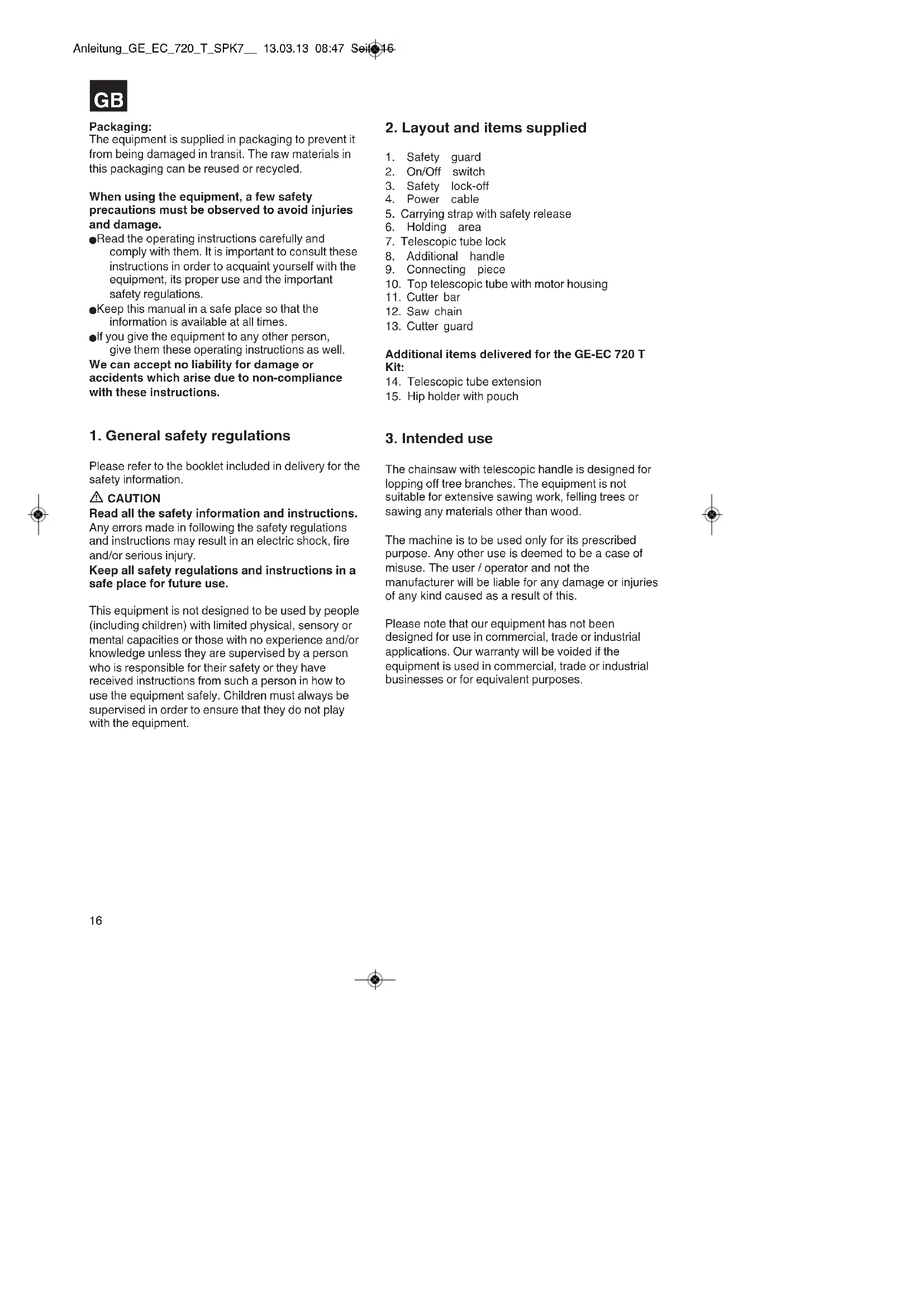

Anleitung_GE_EC_720_T_SPK7__ 13.03.13 08:47 Seite 15Packaging: The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. When using the equipment, a few safety precautions must be observed to avoid injuries and damage. n Read the operating instructions carefully and comply with them. It is important to consult these instructions in order to acquaint yourself with the equipment, its proper use and the important safety regulations. n Keep this manual in a safe place so that the information is available at all times. n If you give the equipment to any other person, give them these operating instructions as well. We can accept no liability for damage or accidents which arise due to non-compliance with these instructions.

1. General safety regulations

Please refer to the booklet included in delivery for the safety information. CAUTION Read all the safety information and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury. Keep all safety regulations and instructions in a safe place for future use. This equipment is not designed to be used by people (including children) with limited physical, sensory or mental capacities or those with no experience and/or knowledge unless they are supervised by a person who is responsible for their safety or they have received instructions from such a person in how to use the equipment safely. Children must always be supervised in order to ensure that they do not play with the equipment.

2. Layout and items supplied

5. Carrying strap with safety release

8. Additional handle

10. Top telescopic tube with motor housing

Additional items delivered for the GE-EC 720 T Kit:

14. Telescopic tube extension

15. Hip holder with pouch

The chainsaw with telescopic handle is designed for lopping off tree branches. The equipment is not suitable for extensive sawing work, felling trees or sawing any materials other than wood. The machine is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this. Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

Anleitung_GE_EC_720_T_SPK7__ 13.03.13 08:47 Seite 164. Assembly Important! Do not connect the chainsaw to the power supply until it has been fully assembled and the chain tension has been adjusted. Always wear protective gloves when working on the chainsaw to protect yourself against injury. Carefully unpack all parts and check that they are complete (Fig. 1).

4.1 Assembling the telescopic tube (Fig. 2)

Slide the upper telescopic tube into the connecting piece. Ensure that the spring-loaded bolt (Item L) latches into the relevant hole (Item M) in the connecting piece. Then tighten the star screw (F).

4.2 Assembly of the cutter rail and the saw chain

n Undo the fixing screw (C) of the chain wheel cover (Fig. 3). n Take off the chain wheel cover. n Lay the chain as shown in the groove which runs around the cutter rail (Fig. 4/Item A). n Insert the cutter rail and chain as shown in the mounting in the chainsaw (Fig. 5). At the same time guide the chain around the chain wheel (Fig. 5/Item B). n Attach the chain wheel cover (Fig. 6/Item C) and fasten it hand-tight with the fastening screw. Important! Do not fully tighten the fastening screw until after you have adjusted the chain tension (see

4.3 Tensioning the saw chain

Important! Always disconnect the mains plug before performing any checks or adjustments. Always wear protective gloves when working on the chainsaw to protect yourself against injury. n Undo the fixing screw of the chain wheel cover a few turns (Fig. 3). n Adjust the chain tension with the chain tensioning screw (Fig. 7/Item D). Turning the screw clockwise increases the chain tension, turning it counter- clockwise decreases the chain tension. The saw chain is correctly tensioned if it can be lifted approx. 2 mm in the middle of the cutter rail (Fig. 8). n Secure the fixing screw (C) of the chain wheel cover (Fig. 6). Important! All the chain links must lie properly in the guide groove of the cutter bar. Notes on tensioning the chain: The saw chain must be properly tensioned to ensure safe operation. You can tell that the chain tension is perfect if the saw chain can be lifted by around 2 mm in the middle of the cutter rail. As the saw chain heats up during cutting and thus changes in length, check the chain tension no less than every 10 minutes and adjust it again as required. This applies in particular to new saw chains. When you have finished working slacken the chain again, as the chain will shorten when it cools down. This will prevent the chain from being damaged.

4.4 Saw chain lubrication

Important! Always disconnect the mains plug before performing any checks or adjustments. Always wear protective gloves when working on the chainsaw to protect yourself against injury. Important! Never operate the chain if it is not lubricated with saw chain oil. Use of the chainsaw without saw chain oil or if the oil level is below the viewing window will result in damage to the chainsaw! Important! Be aware of the temperature conditions: different lubricants with completely different viscosities are required at different ambient temperatures. At lower temperatures you will need low viscosity oils in order to achieve a sufficient lubricating film. However, if the same low viscosity oil is used during the summer it will become even thinner due to the ambient temperatures alone, and as a result the lubricating film could break down, causing the chain to overheat and become damaged. In addition, the chain oil would burn and produce unnecessary pollutants. Filling the oil tank (Fig. 9-10): n Place the chainsaw on a flat surface. n Clean the area around the oil tank cover (Item 21) and then clean the oil tank cover. n Fill the tank (Item 20) with saw chain oil. In the process, make sure that no dirt enters the tank, as this could cause the oil nozzle to become blocked. n Close the oil tank cover (Item 21).

4.5 Adjusting the additional handle (Fig. 11)

(a) Setting the tilt of the additional handle Open (a) the lock (F). Set the desired tilt of the additional handle (8). Close (b) the lock (F). b) Shifting the additional handle Open (a) the lock (F) and slide the additional handle (8) into the required position. Close (b) the lock (F).

Anleitung_GE_EC_720_T_SPK7__ 13.03.13 08:47 Seite 174.6 Extending the telescopic tube (only GE-EC 720 T Kit) n Open the safety guard (Fig. 12/Item 1) n Note the position of the guide groove (Fig. 12/ Item R) and insert the telescopic tube extension (14) into the mount. n To lock the telescopic tube extension, turn it clockwise through 90° until you hear a „click“ (Fig. 13). n To remove the telescopic tube extension, turn the lock wheel (Fig. 14/Item S) to the rear while simultaneously turning the telescopic extension counter-clockwise through 90° (Fig. 14). Close the mount with the safety guard. Note: Use the telescopic tube extension only in combination with the hip holder (Fig. 1/Item 15, see

Important! Always use the shoulder strap when working with the equipment. Switch off the equipment before you take off the shoulder strap (risk of injury).

2. Slip the shoulder strap over your shoulder.

3. Adjust the length of the shoulder strap so that the

strap attachment is at waist level. Note: The shoulder strap is equipped with a safety release (Fig. 15 / Item U) with which you can quickly detach the shoulder strap from the machine, e.g. in case of danger. To operate the safety release (U), pull it downwards.

5.2 Putting on the hip holder with pouch (Fig. 16)

(only GE-EC 720 T Kit) To use the telescopic tube extension safely you need the hip holder with pouch. Place the hip holder around your hips and adjust it so that it is firmly seated. You can rest the telescopic tube extension in the pouch.

2. Pull out the top telescopic tube until it reaches the

required working height.

3. Close (b) the telescopic tube lock (7) again.

5.4 Connecting to the power supply

n Connect the power cable to a suitable extension cable. Make sure that the extension cable is designed for the power rating of the chainsaw. n Secure the extension cable as shown in Fig. 18 to protect it against pulling forces and accidental disconnection. n Connect the extension cable to a professionally installed safety mains outlet with ground contact. We recommend using a cable with a bright and highly visible color, e.g. red or yellow. This will reduce the risk of accidentally damaging it with the chainsaw.

Switching on n Hold the chainsaw by the handles with both hands (thumbs under the additional handle). n Slide the safety lock-off (Fig. 19/Item 3) to the front and hold. n To switch on the chainsaw, press the On/Off switch (Fig. 19/Item 2). You can then release the safety lock-off. Switching off Release the On/Off switch (Fig. 19/Item 2). Always disconnect the mains plug when you stop working, even if it is only for a short time.

6. Working with the chainsaw

Preparations To ensure that you can work safely, check the following points before every use: Condition of the chainsaw Inspect the chainsaw before the start of work for damage to the housing, the power cable, the saw chain and the cutter rail. Never use a chainsaw which is obviously damaged. Oil container Fill level of the oil container. Even while working, keep checking that sufficient oil is in the system. To avoid damaging the chainsaw, never run the saw if there is no oil in the system or if the oil drops below the “min” mark. On average, a single filling will last around 10 minutes depending on the number of pauses in cutting and the loads involved. Saw chain Tension of the saw chain, condition of the cutting ele- ments. The sharper the chainsaw, the easier and more controllable it is to operate the chainsaw. The same also applies to the chain tension. Also while working you should check the chain tension no less than every 10 minutes in order to increase your safety. New saw chains in particular often tend to expand

Anleitung_GE_EC_720_T_SPK7__ 13.03.13 08:47 Seite 18more. Safety clothing Always wear appropriate tight-fitting safety clothing like special trousers which protect against cuts, protective gloves and safety shoes. Hearing protection and protective goggles. Wear a protective helmet with integral face and hearing protection. This will offer protection against falling branches and any branches if they spring back. Safe working n To ensure that you can work in safety you must use the equipment at a working angle of max. 60°. n Never stand under the branch you want to saw. n Use special caution when working with branches under tension and splintered wood. n Possible risk of injury caused by falling branches and catapulting pieces of wood. n When the equipment is in operation keep other persons and animals away from the danger zone. n The equipment is not protected from electric shock through contact with high-voltage cables. Keep a minimum distance of 10 m from live cables. Electric shock can cause fatal injury. n When working on slopes always stand to the upper or left or right side of the branch you wish to cut. n Hold the equipment as close as possible to your body. This will help you to keep your balance. Cutting techniques n When removing branches, hold the equipment at an angle of max. 60° to the horizontal to avoid being hit by a falling branch (Fig. 22). n Start with the bottom branches on the tree. This will make it easier for the cut branches to drop. n After completing a cut, the weight of the saw will abruptly increase for the operator as the saw is no longer supported by the branch. This can result in you losing control over the saw. n Remove the saw from the cut only with the saw chain still running. This will prevent the saw from getting jammed. n Never cut with the tip of the saw. n Never cut into the bulging branch collar. This will prevent the tree from healing. Sawing off smaller branches (Fig. 20): Place the contact surface of the saw onto the branch. This will prevent the saw from making jerky movements when you begin a cut. Exerting slight pressure, guide the saw from the top to the bottom through the branch. Sawing off larger and longer branches (Fig. 21): Carry out a relief cut when working on larger branches. Start by sawing through 1/3 of the branch diameter (a) from the bottom to the top with the top side of the cutter rail. Then saw towards the first cut (b) from the top to the bottom with the bottom side of the cutter rail. Saw off longer branches in several steps to keep control over the impact location. Kick-back! The term “kickback” describes what happens when the running chainsaw suddenly kicks upward and backward. Usually, this is caused by contact between the tip of the cutter rail and the workpiece or the saw chain becoming trapped. In the event of kickback, large forces occur suddenly and violently. As a result, the chainsaw usually reacts uncontrollably. This can often result in very serious injuries to the worker or persons in the vicinity. The risk of kickback is at its greatest when the saw is positioned for a cut in the region of the tip of the cutter rail, as the leverage effect is greatest there. It is therefore safest to position the saw as flat as possible. Important! n Make sure that the chain tension is always correctly adjusted. n Only use a chainsaw if it is in perfect working order. n Only work with a saw chain that has been properly sharpened in accordance with the instructions. n Never cut with the upper edge or the tip of the cutter rail. n Always hold the chainsaw firmly with both hands. Cutting wood which is under tension Special care is required when cutting wood which is under tension. Wood which is under tension from which it is released by cutting may in some cases react completely unpredictably and uncontrollably. In the worst case this could result in extremely severe or even fatal injuries. This type of work must only be performed by persons who have been specially trained.

Weight with cutter rail and chain: 4.3 kg Chain: Oregon 90JG033X, 90PX033X, 91P033X Cutter rail: Oregon 084LNEA041, 080NDEA041 Protection class: II / 쏾 Sound and vibration Sound and vibration values were measured in accordance with EN 11680-1.

sound power level measured 104.7 dB(A)

sound power level guaranteed 106 dB(A) Wear ear-muffs. The impact of noise can cause damage to hearing. Total vibration values (vector sum of three directions) determined in accordance with EN 11680-1. Handle under load Vibration emission value ah = 1.537 m/s

Warning! The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specified value in exceptional circumstances. The specified vibration value can be used to compare the equipment with other electric power tools. The specified vibration value can be used for initial assessment of a harmful effect. Reduce noise generation and vibration to a minimum! n Use only equipment that is in perfect condition. n Maintain and clean the equipment regularly. n Adopt your way of working to the equipment. n Do not overload the equipment. n Have the equipment checked if necessary. n Switch off the equipment when not in use. n Wear gloves.

8.1 Replacing the saw chain and cutter rail

The cutter rail needs to be replaced if the guide groove of the cutter rail is worn; Proceed as described in the section “Assembly of the cutter rail and the saw chain”. Note: Use the „Oregon 084LNEA041“ cutter bar only in combination with the „Oregon 90JG033X“ or „90PX033X“ saw chain, and the „Oregon 080NDEA041“ cutter bar only in combination with the „Oregon 91P033X“ saw chain.

8.2 Checking the automatic chain lubrication

You should check the operation of the automatic chain lubrication system on a regular basis in order to guard against overheating and the associated damage to the cutter rail and the saw chain. To do this, point the tip of the cutter rail towards a smooth surface (board, section of a cut tree) and allow the chainsaw to run. If an increasing oil trace becomes evident during this process then the automatic chain lubrication system is working properly. If no clear oil trace is evident then please refer to the corresponding instructions in “Troubleshooting”. If the information contained there still fails to remedy the situation then please contact our service department or another similarly qualified workshop. Important! Do not actually touch the surface with the tip of the cutter rail when performing this test. Keep a safe distance (approx. 20 cm).

8.3 Sharpening the saw chain

Effective working with the chainsaw is only possible if the saw chain is in good condition and sharp. This also reduces the risk of kickback. The saw chain can be re-sharpened by any dealer. Do not attempt to sharpen the saw chain yourself unless you have the necessary special tools and experience.

Anleitung_GE_EC_720_T_SPK7__ 13.03.13 08:47 Seite 209. Cleaning and storing n Regularly clean the clamping mechanism by blowing it out with compressed air or cleaning it with a brush. Do not use tools for cleaning. n Keep the handles free of grease so that you can maintain a firm grip. n Clean the equipment as required with a damp cloth and, if necessary, mild washing up liquid. n If the chainsaw is not to be used for an extended period of time then you should remove the chain oil from the tank. Briefly immerse the saw chain and the cutter rail in an oil bath and then wrap them in oil paper. Important! n Always disconnect the mains plug before cleaning the chainsaw. n Never immerse the unit in water or other liquids in order to clean it. n Store the chainsaw in a safe and dry place out of the reach of children.

10. Notes on environmental

protection / disposal The equipment must be properly disposed of when it reaches the end of its service life. Cut off the power cable to prevent it being used by mistake. The equipment must not be disposed of as domestic waste. Instead, in the interests of the environment it should be disposed of via a designated recycling or disposal point for electrical equipment. Please contact your local authorities for information about proper disposal of the equipment in your area. Packaging materials and worn accessory parts should also be disposed of at the designated recycling or disposal points.

11. Ordering spare parts

Please provide the following information on all orders for spare parts: n Model/type of the equipment n Article number of the equipment n ID number of the equipment n Part number of the required spare part For our latest prices and information please go to www.isc-gmbh.info

Caution! Before troubleshooting, switch off the equipment and disconnect the mains plug. The table below contains a list of fault symptoms and explains what you can do to remedy the problem if your equipment fails to work properly. If the problem still persists after working through the list then please contact your nearest service workshop.

Cause Fault Remedy Chainsaw does not work at all No power supply Defective mains outlet Power extension cable damaged Defective fuse Check the power supply Try an alternative source of electrical power, replace if necessary Check the cable and replace as required Replace the fuse Chainsaw operates intermittently Power cable damaged Loose connection (external) Loose connection (internal) ON/OFF switch defective Consult a specialist workshop Consult a specialist workshop Consult a specialist workshop Consult a specialist workshop Saw chain dry No oil in the tank Oil tank cap breather blocked Oil outlet blocked Fill up with oil Clean the oil tank cap Clear the oil outlet Chain/guide rail hot No oil in the tank Oil tank cap breather blocked Oil outlet blocked Blunt chain Fill up with oil Clean the oil tank cap Clear the oil outlet Re-sharpen or replace the chain Chainsaw juddering, vibrating or not sawing properly Chain tension too loose Blunt chain Worn chain Saw teeth pointing in the wrong direction Adjust the chain tension Re-sharpen or replace the chain Replace the chain Reinstall the saw chain with the teeth facing in the correct direction Anleitung_GE_EC_720_T_SPK7__ 13.03.13 08:47 Seite 22Sommaire
