USER MANUAL ROBUSTO BORETTI
Congratulations on the purchase of your new barbecue. We are convinced that you, with your passion for barbecuing and the outdoor lifestyle, will transform an average summer evening into a beautiful buona sera and your garden into a giardino.
Squadra Boretti
Read this manual carefully and keep it safe!
This manual contains specific instructions for your safety, for the assembly, operation and the maintenance of your barbecue. Use the barbecue only as directed in this manual. Common sense and caution during use are an absolute must!
Contents
1 General safety guidelines 3
2 Parts list. 5
3 Assembly drawings 6
4 Use of your barbecue 11
5 Maintenance of your barbecue. 14
6 Environmental guide, Conditions of warranty & Contact info 17
Important safety information
Read this manual carefully and keep it safe!
1 General safety guidelines
Before use, first carefully read all the information contained in this manual.
- Never let children and pets come in the vicinity of this barbecue.
- This barbecue may never be used by children, people with mental impairments or people who are under the influence of mind expanding substances and/or medication.
- Always maintain as much distance as possible when lighting and operating this barbecue.
- Change the gas cylinder far away from any source of ignition.
- The gasbottle can be placed underneath the barbecue. This does not comply for a table model barbecue.
Take care that the gashose does not fold during installation of the gasregulator.
- The supplied gasregulator should be used. If a new gasregulator is installed, take care that is complies with the EN 16129. The gaspressure must be the same as stated on the ratinglabel on the barbecue.
- Ensure that the gas valve on the gas bottle is within reach, so you can turn off the gas supply to the barbecue.
- Extinguish all flames and DO NOT SMOKE while opening the gas valve and lighting the barbecue.
- This barbecue will get extremely hot, extreme care and attention is required during its operation.
- If you smell gas, check if all fuel connections are tightened securely before use. If the gas smell persists, turn off the gas valve and contact your sales outlet directly.
- Keep flammable and/or inflammable substances, gasses, liquids and materials away from the barbecue at all times and never let them come into direct contact with the barbecue.
- Omitting and/or incorrectly following the instructions, precautions, safety guidelines, warnings and dangers that are contained in this manual can lead to fire or explosions, to material damage and may also cause physical injury or death.
- Exclusively for household use and exclusively intended for the preparation of food.
1.1 Assembly
- Assemble the barbecue according to the assembly drawing as contained in this manual.
- Incorrect assembly or not following the correct order of assembly, as demonstrated in the drawing, can lead to very serious situations.
Always take care and be precise during assembly.
All parts must be assembled as shown in the assembly drawing. If a part is missing and/or you doubt the correctness of the assembly, immediately contact your sales outlet. - Never repair or replace parts of this equipment yourself unless this is expressly mentioned in this manual.
Never connect a damaged gas hose to the equipment. This can lead to fire.
In the event that the equipment is fitted with a plug, this will be an earthed main plug to protect you from electric shocks. The plug must be connected to a suitable, earthed, socket. NEVER remove the metal plates from the plug.
1.2 Place of use
- Only use the barbecue out of doors (outside) and in a well-ventilated space. Never use the barbecue inside or in any (partly) enclosed space. Toxic fumes may build up and these can cause serious physical injury or death.
- Never use the barbecue on a flammable or inflammable surface.
- Only use the barbecue on a hard, straight and stable surface that can take the weight.
- Keep a distance of at least 3 metres between the barbecue and all flammable and/or inflammable materials (wood, plastic, foliage etc.), when the barbecue is in use.
Always keep the barbecue away from petrol and/or other flammable or inflammable liquids, flammable gases, flammable fumes or areas where you suspect these may be present. - Never use the barbecue under strong wind conditions.
- Ensure that the main burner(s) and the infra-red burner at the back are NEVER switched on at the same time. This can lead to the lid of the barbecue warping or buckling.
The barbecue becomes extremely hot, never move it during or shortly after use. - Most of the Boretti barbecues have wheels which makes them easy to move. Take care when moving the barbecue across uneven terrain; otherwise the wheels may get damaged.
- Do not use the roasting spit in the event of rain.
| 1. Body frame | 2. Left side table | 3. Right side table |
| 4. Side burner | 5. Pan stand side burner | 6. Indication ring |
| 7. Control buttons | 8. Cooking grill | 9. Grill plate |
| 10. Grill motor holder | 11. Warming rack | 12. Gas regulator |
| 13. Flame tamers 4x | 14. M6 nut 2x M6 ring 2x M6x12 screw 2x | 15. M4 nut 2x M4 ring 2x M4x8 screw 4x |
Step 1 - Mounting the left side table (nr. 2)

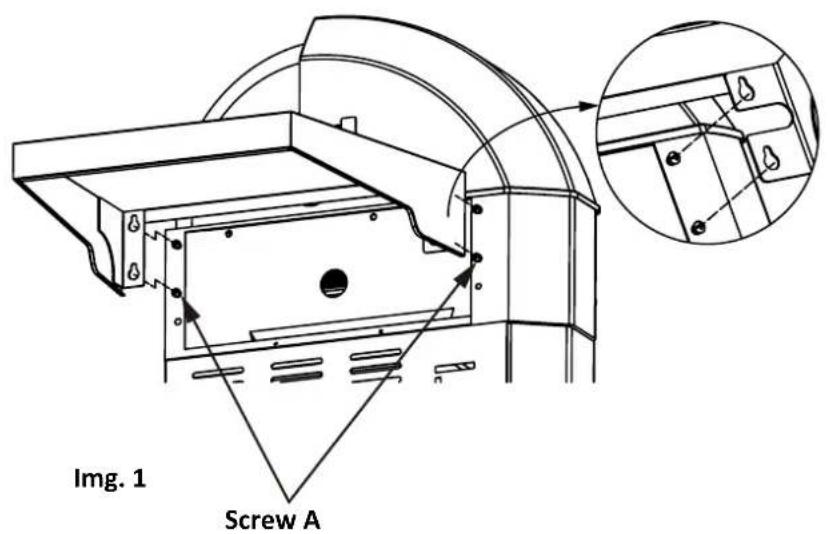

Loosen the screws (A) in the frame as indicated in image 1.

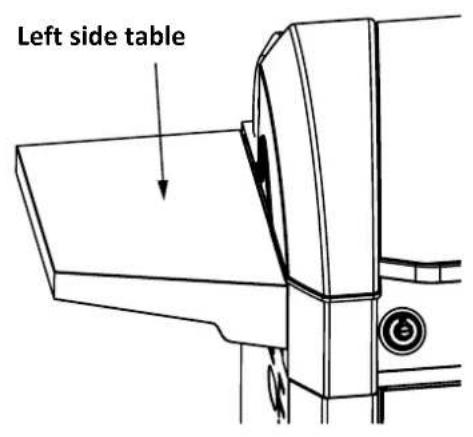

Link the left side table (nr.2) to the frame and refasten the screws.
Step 2 - Mounting the right side table (nr.3)

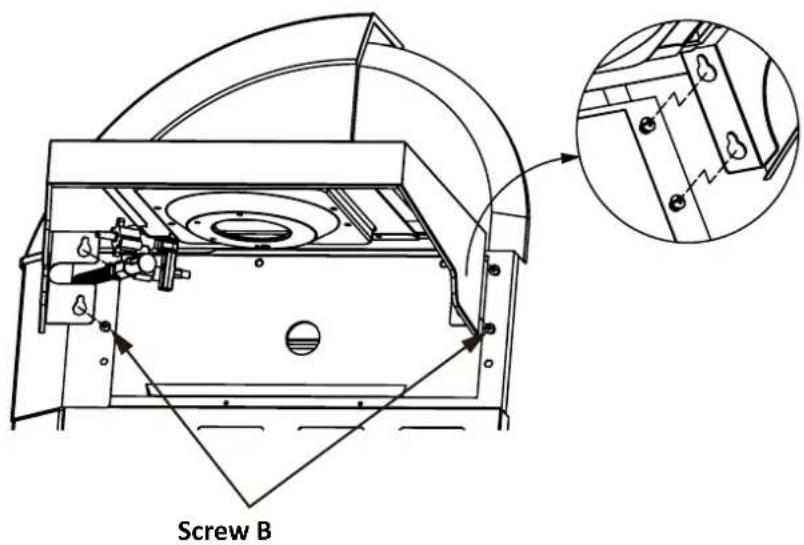

Loosen the screws (B) in the frame as indicated in image 2.
Link the right side table (nr.3) to the frame and refasten the screws.
Img.2
Step 3
Slide the gas valve through the opening on the front of the side table.
Fasten the indication ring to the gas valve by means of the 2x M4x8 screws supplied.
Step 4

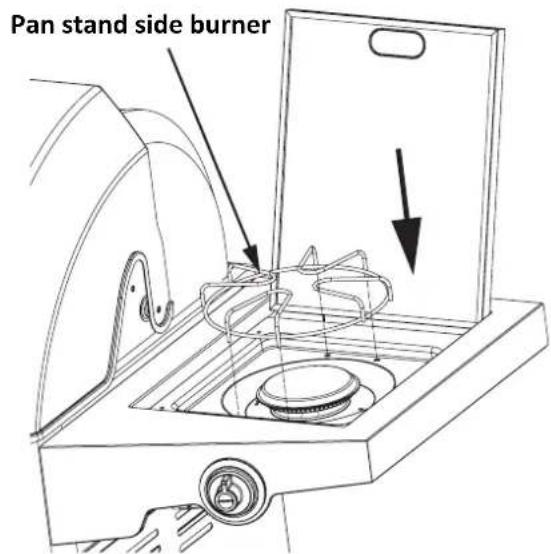

Position the side burner from the top and angle the burner in such a way that the tube connects to the gas valve (the connection is not air tight). Then fasten the side burner with two M4x8 screws, two M4 rings and two M4 nuts. Check that the burner is firmly secured to the side table. Afterwards place pan stand on the side burner in the corresponding holes.
Step 5
Remove the polystyrene from the burners and place the flame tamers [nr.5] on the ledge just above the burners.
Step 6

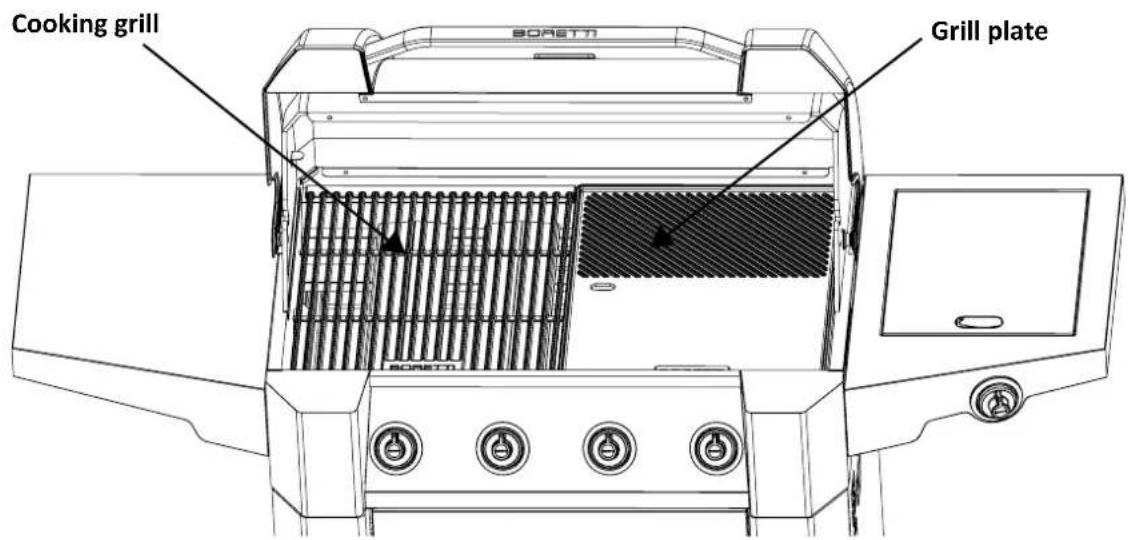

Place the cooking grill and the grill plate [nr.6 & 7] on the upper edge of the BBQ.
Step 7
Loosen the screw and the nut of the motor holder [nr.8] and mount the holder onto the frame as shown in image 10.
Img. 10
Step 8

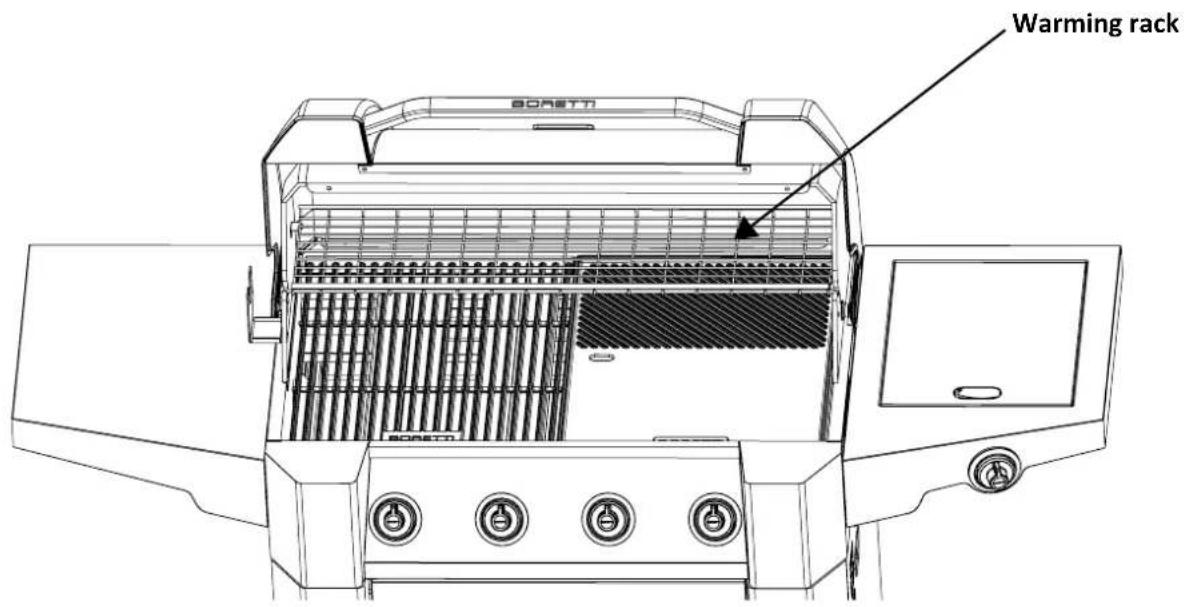

The warming rack [nr.9] is made to slot into the two holes in the back of the BBQ.
Step 9
Fix the gas hose [nr.10] to the connection on the BBQ and on the other end to the side burner as shown in image 12. Tighten the hose with a wrench and then perform a leak test, as described in the following section. This is necessary before you can start using the Robusto.
Img. 12
4 Use of your barbecue
4.1 General information
Even though all gas connections on the barbecue are tested for leakages before transport, a complete test must be carried out at the assembly site. During transport or assembly, parts of the barbecue may have been moved. It is also possible that the gas pressure on the equipment is too high. Regularly inspect the entire system for leaks and check the system immediately in the event that you smell gas.
4.2 Gas leak test
Always carry out a gas leak test before use of the barbecue and when the barbecue has not been used for some time.
- Extinguish any open fires (DO NOT SMOKE when testing for leaks).
- Never carry out this gas leak test near open flames.
- Make a soapy solution made up from equal parts of water and liquid soap or gentle washing-up liquid
-
Follow the steps below:
-
Turn the control knobs of the burners to off.
- Remove the battery from the electronic ignition.
- Open the gas bottle.
- Apply the soapy solution to all connections of the gas supply. If no soap bubbles are formed, there is no gas leak. If soap bubbles start to form on a connection, this indicates a leak. In the event that you detect a leak, turn the gas supply off immediately, tighten the leaking connections firmly, open the gas bottle again and repeat steps 1 through to 4.
- Turn the gas supply off.
- Turn the control knobs of the burners on for 10 seconds to let the pressure escape from the hose and then turn the control knobs to off again.
- Remove the soapy solution from the connections of the equipment with cold water and rub dry with a cloth. Check all gas supply connections before every use and do the same when the gas bottle is being connected to the gas pressure regulator.
It is recommended that you check the gas hose for leaks every year, even if the gas bottle has never been disconnected from the equipment.
- Note: Ensure that you test all loose connections (including the side burner) and, if required, tighten them again when you are testing the equipment for leaks. Even a small leak in the system can result in a dangerous situation.
-
Note: These days, most gas bottles are fitted with a mechanism that detects leaks inside the container. When the gas is being released too quickly, this mechanism cuts off the gas supply. A leak can severely restrict the gas supply which will make it difficult to light the barbecue.
Note: If you are unable to close off a gas leak, then turn off the gas supply and contact your sales outlet. Even a small leak can cause a fire.
Note: If, after several attempts, you are unable to light the barbecue, then contact your sales outlet. -
Note: Ensure that the control knobs are in the "OFF" position when you are not using the equipment.
4.3 Lighting the barbecue
- Check the general conditions of the burners (see 0). If you are in doubt about the condition of the burners, then contact your sales outlet.
- Ensure that the barbecue is placed on a level surface.
- Keep the cooking area clean and free from petrol and/or other flammable and/or inflammable substances, flammable gasses or flammable fumes.
- Ensure that nothing is blocking the burners and ventilation.
- Do not use aluminium foil in the enamel burner tray or around the flame distributors.
- Ensure there is sufficient ventilation for the gas bottle.
WARNING:
- Do not light the barbecue if you can smell gas!
- Check the gas hose for cracks or wear and tear (see: GAS LEAK TEST).
- Keep your face and body as far away from the barbecue as possible when lighting it.
4.4 Lighting the burners with an electronic igniter
- Ensure that all knobs are in the "OFF" position.
Always open the lid before you light the barbecue. - Open the gas supply.
O NOTE: when opening the gas bottle, turn the valve SLOWLY two (2) whole turns to get the right gas supply.
- Press and turn one of the control knobs to the "HIGH" setting. You will hear a crackling noise. It may be necessary to keep the igniter depressed for about 10 seconds.
Note: if the burner does not light after 10 seconds, turn the knob back to the "OFF" position and wait 1 minute before you try again. - Repeat the above steps also for the other burners.
Note: On some models, as well as the control knob, a separate ignition knob also needs to be pressed.
4.5 Lighting the burners with a match extender (if provided)
If the electronic igniter does not manage to light the burners, it is also possible to light the burners with the aid of a match.
- Put the match in the extension piece, if the barbecue is supplied with a match extender.
- Keep your face as far away as possible from the barbecue and point the extended match through the openings in the grille toward the burner.
- Place the match close to the burner openings and turn the control knob to the "HIGH" position.
Note: If, after several attempts, you are still not able to light the barbecue, please contact your sales outlet.
4.6 Lighting the side burner with the electronic igniter
Press and turn the control knob to the "HIGH" position. You will hear a crackling noise.
It may be necessary to keep the igniter depressed for about 10 seconds.
- If the burner does not light after 10 seconds, turn the know back to the "OFF" position and wait 1 minute before trying again.
4.7 Lighting the side burner with matches
If the electronic igniter does not manage to light the burner, it is also possible to light the burner with the aid of a match.
- Put the match in the extension piece, if the barbecue is supplied with a match extender.
- Keep your face as far away as possible from the barbecue and point the (extended) match at the burner openings.
- Press and turn the control knob to the "HIGH" position.
Note: If, after several attempts, you are still not able to light the barbecue, please contact your sales outlet.
4.8 Storage
After using your barbecue, close the gas supply and let the equipment cool down.
- Remove the gas bottle.
- Store the barbecue in a well-ventilated space and keep children away from the equipment.
- Do not place any easily flammable materials under the barbecue.
- If you are storing the barbecue outside, then use a cover to protect your barbecue from the elements. In the event of outside storage, remove the cover regularly to prevent excessive condensation from forming (which may lead to oxidation) on the metal components.
- Let the barbecue cool down before placing the cover over it or trying to move the equipment.
4.9 Use
- The barbecue becomes extremely hot, use heat resistant gloves when using the barbecue. Do not touch the barbecue without the correct protection.
- Use suitable barbecue utensils to prepare food on the barbecue.
5 Maintenance of your barbecue
Important: NEVER leave the barbecue outside without covering it. Rainwater could collect in the barbecue, the frame or the grease receptacle. If the grease receptacle has not been cleaned after use and the barbecue is uncovered, the tray can fill with water, which will cause water and grease to pour into the frame. We recommend that you clean the grease receptacle after every use.
5.1 Cleaning
Do not use any abrasive cleaning fluids on the barbecue. These can cause scratches or damage to the surface of the equipment.
- Warm the barbecue up by lighting the main burners on their highest setting and shutting the lid. Do not turn on the infra-red burner(s)!
- Let the barbecue warm up for about 10 minutes to 250 degrees (Celsius).
- Turn the burners off and let the machine cool down before you start cleaning.
- Clean the racks and baking trays with a suitable cleaning brush (Available from the Boretti Web shop).
- Remove the baking racks and the baking tray.
- Brush charred (food) remains towards the grease receptacle.
- Remove the grease receptacle and clean this with warm water and detergent.
- Use warm water and detergent to clean the outside of the barbecue.
- Dry the barbecue with a soft, clean cloth.
5.2 Grease receptacle
The grease receptacle must be cleaned regularly to avoid a build-up of dirt and remnants.
Note: ensure that the grease receptacle has cooled down before you clean it.
5.3 Grill racks
The grill racks can be cleaned immediately after cooking, once the barbecue has been switched off, with the use of an appropriate cleaning brush. Cleaning the grill racks by using water and a degreaser heightens the chance of oxidation/rust. You can counteract this by coating the grill racks with some olive oil after cleaning.
5.4 Stainless-steel
After the first time of use, parts of the barbecue may become discoloured by the intense heat that comes from the burners. This is normal.
Purchase a cleaning product for stainless steel and use this when brushing the metal down. It may be possible for grease spots to fall on the stainless-steel parts and get burnt on, which may cause some parts to look worn. Use a cleaning product that is not abrasive together with a cleaning product for stainless steel, to remove the grease.
5.5 Changing the battery on the ignition (if present)
Turn the knob on the ignition loose and remove the AA battery. Put a new AA battery in place.
5.6 Enamel parts
Some of the parts on the barbecue have an enamel coating. Enamel is a glass-based product and is very durable and resistant to wear. However, it is not resistant to shocks and knocks, which may cause hairline cracks. The hairline cracks can lead to small pieces of enamel breaking off, which leads to rust forming. The performance of your barbecue will not be affected by the broken off pieces or hairline cracks. No claims can be made regarding damages to the enamel in the cooking area after use.
5.7 Ventilation
The burners can only function properly if the heat they produce can escape as well. If this is not possible, then the burners may not get enough oxygen, which may cause backfiring, especially if the burners are set to "HIGH". If this happens regularly, it may cause the burners to develop cracks. For this reason, there are ventilation openings around the barbecue. These allow the hot air to escape. Always ensure that there is sufficient space around the cooking area (the racks will allow sufficient space). Never cover the ventilation openings with aluminium foil or other materials that can impede the airflow. NEVER allow the cooking surface to be completely covered, for instance by a large pan or by completely filling it with grill trays.
5.8 Replacing the gas hose
The gas hose should be replaced every two years. Rubber gas hoses can dry out which may result in gas leaks.
5.9 Burners
It is normal for rust (oxidation) to form around the burners. Food remnants must be removed regularly. This can be done by means of a barbecue cleaning brush. Burners must periodically be removed for inspection and cleaning, in particular after a period of non-use/storage. The burners must be checked for their general condition and to ensure that the openings are not blocked. The burners can be cleaned with the use of a brush. When removing the burners, make sure that you do not damage the gas valve and the ignition electrode.
An opening has been placed intentionally in the first part of the burner to ensure that enough oxygen can be supplied to form a flammable mixture. This means you will see a small opening, just where the gas valve connects to the burner. No gas will leak from this.
5.10 Spiders and insects
Spiders and insects can make their nest inside the burners of the barbecue, which may cause gas to flow from the front of the burner. This is a dangerous situation that can cause a fire behind the operation panel. This will damage the barbecue, which will then no longer be safe to use. Therefore, we recommend that you check the barbecue at least once a year for spiders, insects and nests (particularly after long storage periods). You can do this by dismantling the burner tubes and blowing through them or brushing them clean.
If, for whatever reason, you want to dispose of your gas barbecue, please take the following guidelines into account:
- Deliver the barbecue to the authorised local company for the collection of surplus household equipment. Contact your local council to find out where these collection points are located.
- This barbecue features the mark that complies with the European guidelines 2002/96EG relating to disposal of equipment. This guideline decides the standard for the collection and recycling of disposed equipment which apply to the whole European Union territory.
For barbecue accessories, warranty, service conditions and other questions we refer you to www.boretti.com
You can also send questions and suggestions to info@boretti.com
Boretti BV
Abberdaan 114
1046 AA Amsterdam
Notice d'emploi
★FR
ROBUSTO
Avant-propos
Injector size Main burners: 0.93
Side burner: 0.92
| Country | Categor y | Gas type | Pressure (mbar) | WARNING |
| AL | I3+ Butan 28-30 | |||
| I3B/P Butan 30/30 | ||||
| I3+ Propan 37 | Körkohet një rregullues tjeter i presionit të gazit. | |||
| BE | I3+ Butaàn 28-30 | |||
| I3+ Propaan 37 II faudra適用er un détendeur approprié. | ||||
| BG | I3B/P 6ytáh 30/30 | |||
| CY | I3+ βoutávio 28-30 | |||
| I3B/P Boutávio | 30/30 | |||
| I3+ προτávio 37 | Απατείται αλλος ρυθμιστής πίεοης αερίου. | |||
| CZ | I3+ Butan 28-30 | |||
| I3+ Propan 37 | Vyžaduje se jiný regulátor tlaku plynu. | |||
| DK | I3B/P Butan 30/30 | |||
| EE | I3B/P Butaani 30/30 | |||
| ES | I3+ Butano | 28-30 | ||
| I3+ Propano | 37 | Se nécessitaOTHER REGULADOR DE PRESION DE GAS. | ||
| FI | I3B/P Butaani 30/30 | |||
| FR | I3+ Butane 28-30 | |||
| I3+ Propane 37 II faudra適用er un détendeur approprié. | ||||
| GB | I3+ Butane 28-30 | |||
| I3+ Propane 37 | Other gas pressure regulator required. | |||
| GR | I3+ βoutávio 28-30 | |||
| I3B/P Boutávio 30/30 | ||||
| I3+ προτávio 37 | Απατείται αλλος ρυθμιστής πίεοης αερίου. | |||
| HR | I3B/P Butan 30/30 | |||
| HU | I3B/P Butángáz 30/30 | |||
| IE | I3+ Butane 28-30 | |||
| I3+ Propane 37 | Other gas pressure regulator required. | |||
| IS | I3B/P Butan 30/30 | |||
| IT | I3+ Butano 28-30 | |||
| I3+ Propano 37 | È nécessario un'alto regolatore della pressione del gas. | |||
| LT | I3+ Butanas 28-30 | |||
| I3B/P Butanas 30/30 | ||||
| I3+ Propano 37 | BūtinasKitas duju slègio regullatorius. | |||
| LV | I3B/P Butāns 30/30 | |||
| MK | I3+ 6ytáh 28-30 | |||
| I3B/P 6ytáh 30/30 | ||||
| I3+ προτán 37 | Ποτρέben e εργr perugnalator 3a πριτicosk na rac. | |||
| MT | I3B/P Butan 30/30 | |||
| NL | I3B/P Butaan 30/30 | |||
| NO | I3B/P Butan 30/30 | |||
| PT | I3+ Butano 28-30 | |||
| I3B/P Butano 30/30 | ||||
| I3+ Propano 37 | Outro regulator de pressão de gás necessário. | |||
| RO | I3B/P Butan 30/30 | |||
| SE | I3B/P Butan 30/30 | |||
| SI | I3+ Butan 28-30 | |||
| I3B/P Butan 30/30 | ||||
| I3+ Propan 37 | Zahtevan je drug regulator za tlak plina. | |||
| TR | I3+ Butan 28-30 | |||
| I3B/P Butan 30/30 | ||||
| I3+ Propan 37 | Farkl gaz basincı regulatörü gereklidir. |
