USER MANUAL KWR930BT JVC

For customer Use:Enter below the Model No. and Serial No. which are located on the top or bottom of the cabinet. Retain this information for future reference.Model No. Serial No. KW-X830BTS / KW-SX83BTS

KW-R935BTS/KW-R930BTS: CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser product safety. JVC KENWOOD Corporation 2967-3, ISHIKAWA-MACHI,

HACHIOJI-SHI, TOKYO, JAPAN

THIS PRODUCT COMPLIES WITH DHHS RULES 21CFR SUBCHAPTER J IN EFFECT AT DATE OF MANUFACTURE. Location : Top Plate FCC WARNING This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. FCC NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

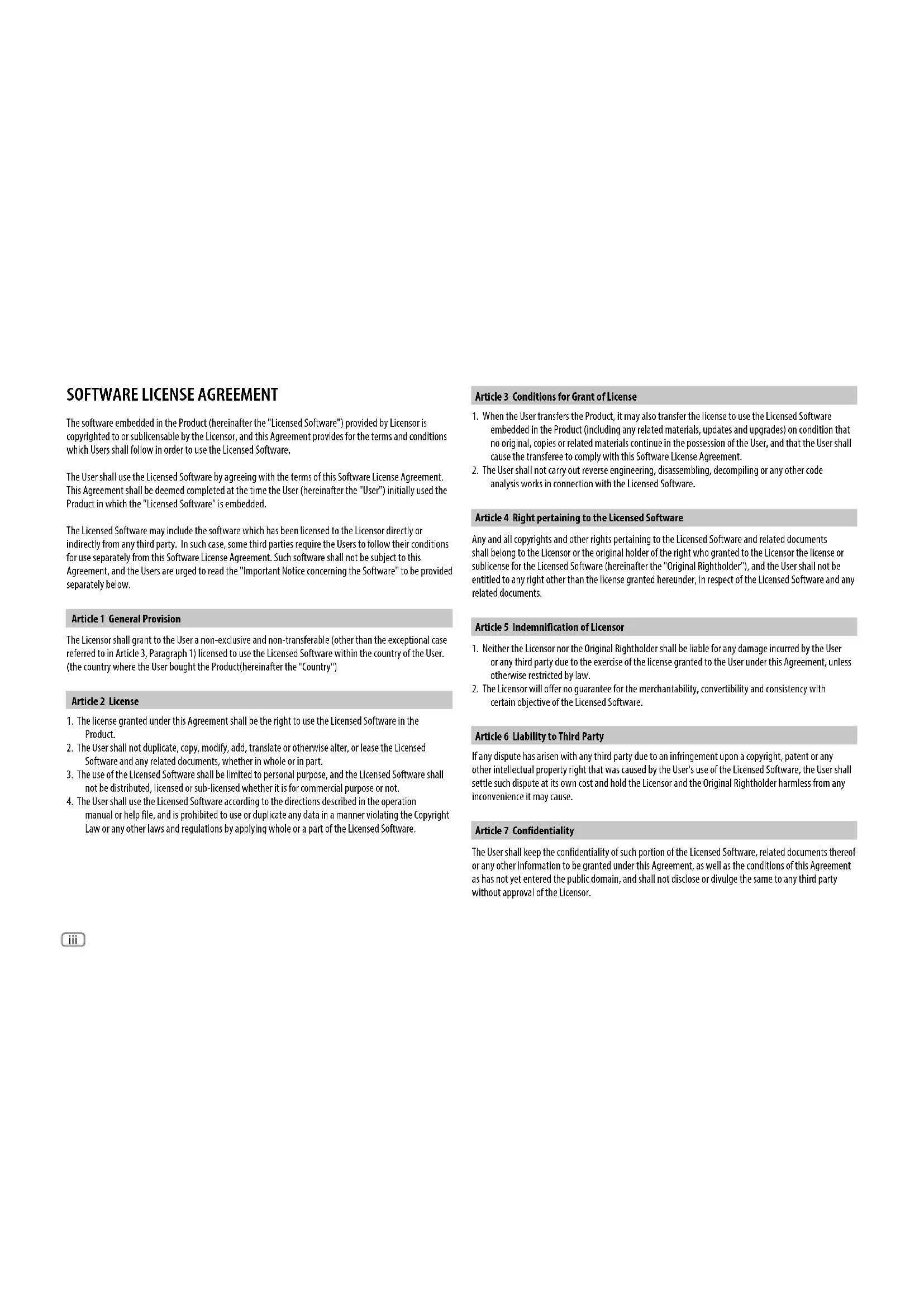

The software embedded in the Product (hereinafter the "Licensed Software") provided by Licensor is copyrighted to or sublicensable by the Licensor, and this Agreement provides for the terms and conditions which Users shall follow in order to use the Licensed Software. The User shall use the Licensed Software by agreeing with the terms of this Software License Agreement. This Agreement shall be deemed completed at the time the User (hereinafter the "User") initially used the Product in which the "Licensed Software" is embedded. The Licensed Software may include the software which has been licensed to the Licensor directly or indirectly from any third party. In such case, some third parties require the Users to follow their conditions for use separately from this Software License Agreement. Such software shall not be subject to this Agreement, and the Users are urged to read the "Important Notice concerning the Software" to be provided separately below. Article 1 General Provision The Licensor shall grant to the User a non-exclusive and non-transferable (other than the exceptional case referred to in Article 3, Paragraph 1) licensed to use the Licensed Software within the country of the User. (the country where the User bought the Product(hereinafter the "Country") Article 2 License

1. The license granted under this Agreement shall be the right to use the Licensed Software in the

Software and any related documents, whether in whole or in part.

3. The use of the Licensed Software shall be limited to personal purpose, and the Licensed Software shall

not be distributed, licensed or sub-licensed whether it is for commercial purpose or not.

4. The User shall use the Licensed Software according to the directions described in the operation

manual or help file, and is prohibited to use or duplicate any data in a manner violating the Copyright Law or any other laws and regulations by applying whole or a part of the Licensed Software. Article 3 Conditions for Grant of License

1. When the User transfers the Product, it may also transfer the license to use the Licensed Software

embedded in the Product (including any related materials, updates and upgrades) on condition that no original, copies or related materials continue in the possession of the User, and that the User shall cause the transferee to comply with this Software License Agreement.

2. The User shall not carry out reverse engineering, disassembling, decompiling or any other code

analysis works in connection with the Licensed Software. Article 4 Right pertaining to the Licensed Software Any and all copyrights and other rights pertaining to the Licensed Software and related documents shall belong to the Licensor or the original holder of the right who granted to the Licensor the license or sublicense for the Licensed Software (hereinafter the "Original Rightholder"), and the User shall not be entitled to any right other than the license granted hereunder, in respect of the Licensed Software and any related documents. Article 5 Indemnification of Licensor

1. Neither the Licensor nor the Original Rightholder shall be liable for any damage incurred by the User

or any third party due to the exercise of the license granted to the User under this Agreement, unless otherwise restricted by law.

2. The Licensor will offer no guarantee for the merchantability, convertibility and consistency with

certain objective of the Licensed Software. Article 6 Liability to Third Party If any dispute has arisen with any third party due to an infringement upon a copyright, patent or any other intellectual property right that was caused by the User's use of the Licensed Software, the User shall settle such dispute at its own cost and hold the Licensor and the Original Rightholder harmless from any inconvenience it may cause. Article 7 Confidentiality The User shall keep the confidentiality of such portion of the Licensed Software, related documents thereof or any other information to be granted under this Agreement, as well as the conditions of this Agreement as has not yet entered the public domain, and shall not disclose or divulge the same to any third party without approval of the Licensor. JS_JVC_KW_R935BTS_K_C.indd iiiJS_JVC_KW_R935BTS_K_C.indd iii 6/30/2017 11:29:04 AM6/30/2017 11:29:04 AMData Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm)

Article 8 Termination In case the User falls under any of the events described in the following items, the Licensor may immediately terminate this Agreement or claim that the User compensates for the damage incurred by the Licensor due to such event: (1) when the User violated any provision of this Agreement; or (2) when a petition has been filed against the User for an attachment, provisional attachment, provisional disposition or any other compulsory execution. Article 9 Destruction of the Licensed Software If this Agreement is terminated pursuant to the provision of Article 8, the User shall destroy the Licensed Software, any related documents and copies thereof within two (2) weeks from such date of termination. Article 10 Protection of Copyright 1. The copyright and all the other intellectual property rights relating to the Licensed Software shall belong to the Licensor and the Original Rightholder, and in no event shall they be under the ownership of the User. 2. The User shall, whenever it uses the Licensed Software, comply with any laws relating to the copyright and other intellectual property rights. Article 11 Export Restriction 1. It is prohibited to export the Licensed Software and any related documents outside the country of the User (including transmission thereof outside the country of the User via Internet of other communication tools). 2. The User shall understand that the Licensed Software shall be subject to the export restrictions adopted by the country of User and any other countries. 3. The User shall agree that the software will be subject to any and all applicable international and domestic laws (including the export control regulation of the country of User and any other countries, and any restrictions concerning the end-users, the use by end-users and importing countries to be provided by the country of User and any other countries, and any other governmental authorities). Article 12 Miscellaneous 1. In the event any part of this Agreement is invalidated by operation of law, the residual provisions shall continue in force. 2. Matters not stipulated in this Agreement or any ambiguity or question raised in the construction of this Agreement shall be provided or settled upon good-faith consultation between the Licensor and the User. 3. The Licensor and the User hereby agree that this Agreement is governed by the laws of Japan, and any dispute arising from, and relating to the rights and obligations under, this Agreement shall be submitted to the exclusive jurisdiction of the Tokyo District Court for its first instance. Important Notice concerning the Software -jansson Copyright (c) 2009-2012 Petri Lehtinen <petri@digip.org> Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. JS_JVC_KW_R935BTS_K_C.indd ivJS_JVC_KW_R935BTS_K_C.indd iv 6/30/2017 11:29:04 AM6/30/2017 11:29:04 AMENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm)

• To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warning and Caution in this manual.

• Please keep the manual in a safe and accessible place for future reference. WARNING

Do not operate any function that takes your attention away from safe driving.

Do not ingest the battery, Chemical Burn Hazard The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. Caution Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.

• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level. General:

• Avoid using the external device if it might hinder safe driving.

• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.

• Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit.

KW-R930BTS : If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.

• Depending on the types of cars, the antenna will automatically extend when you turn on the unit with the antenna control wire connected ( 39) . Turn off the unit when parking at a low ceiling area. Remote control (RM-RK52):

• Do not leave the remote control in hot places such as on the dashboard.

• The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or equivalent type.

• The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like. BEFORE USE 2 BASICS 3 GETTING STARTED 4 1 Cancel the demonstration 2 Set the clock and date 3 Set the basic settings RADIO 5 CD/USB/iPod/ANDROID 7 Pandora® 9 iHeartRadio® 10 Spotify 11 SiriusXM® Radio 12 BLUETOOTH® 15 AUX 23 AUDIO SETTINGS 23 DISPLAY SETTINGS 29 REFERENCES 30 Maintenance More information TROUBLESHOOTING 33 SPECIFICATIONS 36 INSTALLATION/ CONNECTION 37 How to read this manual

• Operations are explained mainly using buttons on the faceplate of KW-R935BTS

• English indications are used for the purpose of explanation. You can select the display language from the menu. ( 5)

[XX] indicates the selected items.

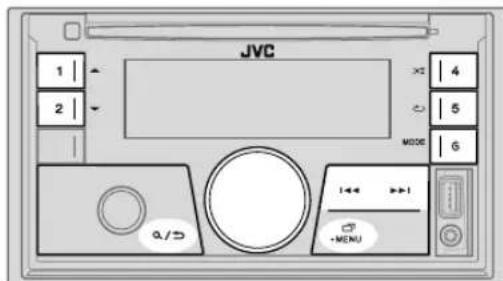

BASICS To On the faceplate On the remote control Turn on the power Press .

• Press and hold to turn off the power. ( Not available ) Adjust the volume Turn the volume knob. Press or .

• Press and hold to continuously increase the volume to 15. Press the volume knob to mute the sound or pause playback.

• Press again to cancel. The volume level returns to the previous level before muting or pause. Press to mute the sound or pause playback.

• Press again to cancel. The volume level returns to the previous level before muting or pause. Select a source

• Press , then turn the volume knob within 2 seconds. Press SOURCE repeatedly. Change the display information Press repeatedly. ( 32) ( Not available ) Remote control (RM-RK52) This unit can be remotely controlled with an optionally purchased remote control. Volume knob Display window Eject button and loading slot Faceplate KW-R935BTS: USB cable from the rear of the unit How to reset How to replace the battery Pull out the insulation sheet when using for the first time. Remote sensor (Do not expose to bright sunlight.) JS_JVC_KW_R935BTS_K_EN_7.indd 3JS_JVC_KW_R935BTS_K_EN_7.indd 3 7/4/2017 2:45:16 PM7/4/2017 2:45:16 PMENGLISH

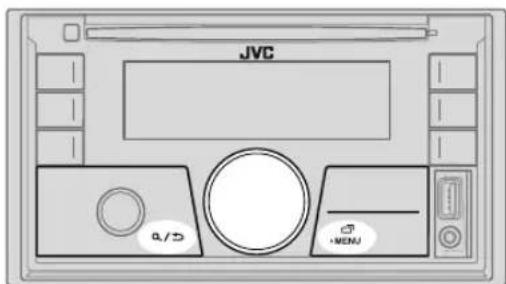

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) GETTING STARTED Cancel the demonstration When you turn on the power for the first time (or [FACTORY RESET] is set

), the display shows: “CANCEL DEMO” “PRESS” “VOLUME KNOB” 1 Press the volume knob. [YES] is selected for the initial setup. 2 Press the volume knob again. “DEMO OFF” appears. Set the clock and date

Set the basic settings

Press and hold . 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press to exit. To return to the previous setting item, press

SYSTEM KEY BEEP (Not applicable when 3-way crossover is selected.)

Not displayed when the corresponding source is selected.

:Cancels (upgrading is not activated). For details on how to update the firmware, visit <http://www.jvc.net/cs/car/>. FACTORY RESET YES :Resets the settings to default (except the stored station).;

:The clock time is automatically set using the Clock Time (CT) data in FM Radio Broadcast Data System signal.; OFF :Cancels. CLOCK DISPLAY

:The clock time is shown on the display even when the unit is turned off.; OFF :Cancels. ENGLISH Select the display language for menu and music information if applicable. By default, ENGLISH is selected. ESPANOL RADIO “STEREO” lights up when receiving an FM stereo broadcast with sufficient signal strength. Search for a station

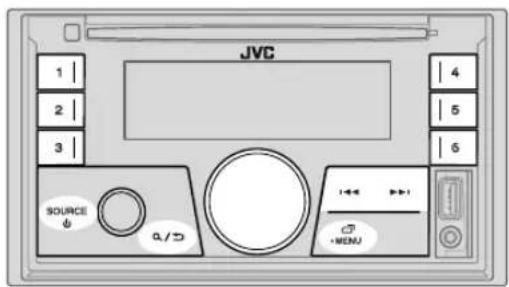

Press repeatedly to select FM or AM. 2 Press (or press on the remote control) to search for a station automatically. (or) Press and hold (or press and hold on the remote control) until “M” flashes, then press repeatedly to search for a station manually. Settings in memory You can store up to 18 stations for FM and 6 stations for AM. Store a station While listening to a station.... Press and hold one of the number buttons (1 to 6). (or) 1 Press and hold the volume knob until “PRESETMODE” flashes. 2 Turn the volume knob to select a preset number, then press the knob. The preset number flashes and “MEMORY” appears. GETTING STARTED JS_JVC_KW_R935BTS_K_EN_7.indd 5JS_JVC_KW_R935BTS_K_EN_7.indd 5 7/4/2017 2:45:21 PM7/4/2017 2:45:21 PMENGLISH

Press and hold . 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press to exit. To return to the previous setting item, press

TUNER SETTING RADIO TIMER Turns on the radio at a specific time regardless of the current source.

OFF :Select how often the timer will be turned on.

(for AM):Select the preset station.

” lights up when complete. Radio Timer will not activate for the following cases.

• The unit is turned off.

[OFF] is selected for [AM SRC]

[SOURCE SELECT] after Radio Timer for AM is selected. ( 4) RADIO SSM SSM 01–06

SSM 13–18 :Automatically presets up to 18 stations for FM. “SSM” stops flashing when the first 6 stations are stored. Select SSM 07–12

SSM 13–18 to store the following 12 stations.

:Increases the tuner selectivity to reduce interference noises from adjacent FM stations. (Stereo effect may be lost.); WIDE :Subjects to interference noises from adjacent FM stations, but sound quality will not be degraded and the stereo effect will remain.

:Improves the FM reception, but the stereo effect will be lost.; OFF :Cancels.

Select a PTY code (see below). If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in.

Selectable only when SiriusXM Vehicle Tuner is connected. ( 12)

[WEEKLY] is selected in step

Only for FM source. PTY code NEWS

CLASSICL (classical), R & B (rhythm and blues),

(soft rhythm and blues), LANGUAGE

REL MUSC (religious music), REL TALK (religious talk), PERSNLTY (personality), PUBLIC

HABL ESP (Spanish talk), MUSC ESP (Spanish music), HIP HOP

Press and hold . Press and hold

Press repeatedly. TRACK REPEAT

Press repeatedly. ALL RANDOM

Do not leave the cable inside the car when not using.

When connecting an Android device, “Press [VIEW] to install JVC MUSIC PLAY APP” is shown. Follow the instructions to install the application. You can also install the latest version of JVC MUSIC PLAY application on your Android device before connecting. For more information, visit <http://www.jvc.net/cs/car/>.

For ANDROID: Applicable only when [AUTO MODE] is selected. ( 8)

For CD: Only for MP3/WMA/AAC files. This does not work for iPod/ANDROID.

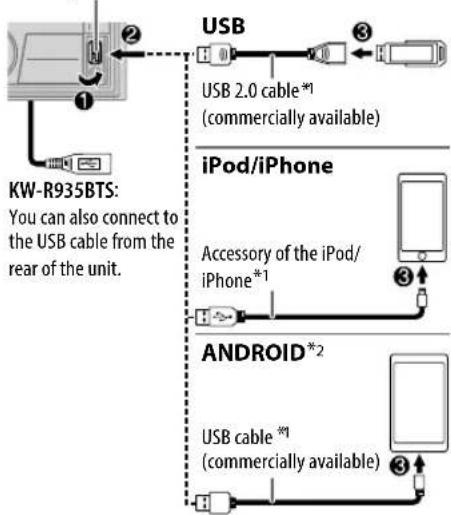

[AUTO MODE] is selected. ( 8) Start playback The source changes automatically and playback starts.

(commercially available) Accessory of the iPod/ iPhone

You can also connect to the USB cable from the rear of the unit. Selectable source:

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Select control mode While in iPodFRONT/iPodREAR/iPodUSB source, press repeatedly. HEAD MODE : Control iPod from this unit. IPHONE MODE : Control iPod using the iPod itself. However, you can still play/pause or file skip from this unit. While in ANDROIDFRONT/ANDROIDREAR/ANDROID source, press repeatedly. AUTO MODE : Control Android device from this unit via JVC MUSIC PLAY application installed in the Android device. AUDIO MODE : Control Android device using the Android device itself via other media player applications installed in the Android device. However, you can still play/pause or file skip from this unit. Select music drive While in USBFRONT/USBREAR/USB source, press repeatedly. Stored songs in the following drive will be played back.

• Selected internal or external memory of a smartphone (Mass Storage Class).

• Selected drive of a multiple drives device. Settings to use JVC Remote application JVC Remote application is designed to control the JVC car receiver’s operations from the iPhone/iPod (via USB input terminal). Preparation: Install the latest version of JVC Remote application on your device before connecting. For more information, visit <http://www.jvc.net/cs/car/>. You can make the settings in the same way as connection via Bluetooth. ( 21) Select a file from a folder/list For iPod/ANDROID, applicable only when [HEAD MODE]

selected. 1 Press . 2 Turn the volume knob to select a folder/list, then press the knob. 3 Turn the volume knob to select a file, then press the knob. Quick search (applicable only for CD, USB FRONT, USB REAR, USB, ANDROID FRONT, ANDROID REAR and ANDROID source) If you have many files, you can search through them quickly. Turn the volume knob quickly to browse through the list quickly. Alphabet search (applicable only for iPod FRONT, iPod REAR, iPod USB, ANDROID FRONT, ANDROID REAR and ANDROID source) You can search for a file according to the first character. For iPodFRONT/iPodREAR/iPodUSB source Press or turn the volume knob quickly to select the desired character (A to Z, 0to9, OTHERS).

• Select “OTHERS” if the first character is other than AtoZ, 0to9. For ANDROIDFRONT/ANDROIDREAR/ANDROID source 1 Press to enter character search. 2 Turn the volume knob to select the desired character. ^A^: Upper case letters (A to Z) _A_: Lower case letters (a to z) -0-: Numbers (0 to 9) -OTHERS-: Character other than AtoZ, 0to9 3 Press the volume knob to start searching.

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Pandora® Preparation: Install the latest version of the Pandora application on your device (iPhone/iPod touch), then create an account and log in to Pandora.

• Select [ON] for [PANDORA SRC]

Open the Pandora application on your device. 2 Connect your device to the USB input terminal. 3 Press repeatedly to select PANDORA FRONT/ PANDORAREAR/PANDORA. Broadcast starts automatically. To On the faceplate On the remote control Playback/pause Press the volume knob. Press

Skip a track Press T. Press I. Thumbs up or thumbs down*

Do not leave the cable inside the car when not using.

If thumbs down is selected, the current track is skipped. Create and store a new station

[FROM ARTIST] , then press the knob. A new station is created based on the current song or artist. 4 Press and hold one of the number buttons (3, 4, 5 or 6) to store. To select a stored station: Press one of the number buttons (3, 4, 5 or 6). Search for a registered station

According to the registered date [A-Z]

By alphabetical order 3 Turn the volume knob to select the desired station, then press the knob. To cancel, press and hold

Bookmark current song information Press and hold the volume knob. “BOOKMARKED” appears and the information is stored to your device.

• The bookmark is available on your Pandora account but not on this unit. USB input terminal and/or Accessory of the iPod/iPhone*

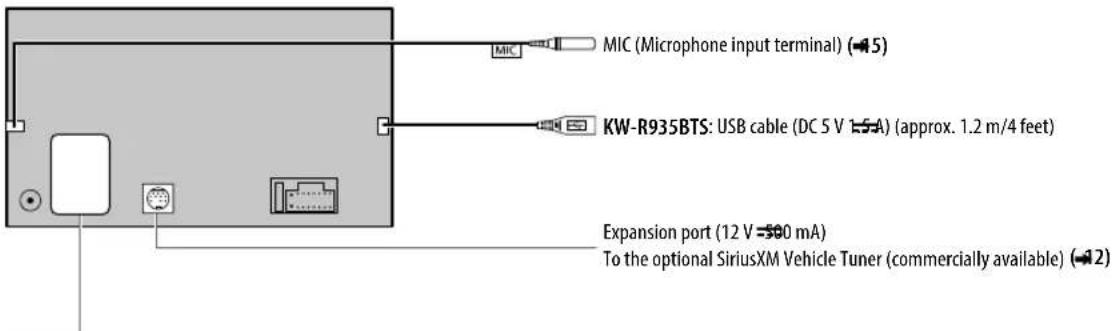

KW-R935BTS : You can also connect to the USB cable from the rear of the unit. JS_JVC_KW_R935BTS_K_EN_7.indd 9JS_JVC_KW_R935BTS_K_EN_7.indd 9 7/4/2017 2:45:25 PM7/4/2017 2:45:25 PMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) iHeartRadio® Preparation: Install the latest version of iHeartAuto application on your device (iPhone/iPod touch), then create an account and log in to iHeartRadio.

• Select [ON] for [IHEART SRC]

• Do not leave the cable inside the car when not using. To On the faceplate On the remote control Playback/pause Press the volume knob. Press

Skip a track for custom station Press T. Press I. Thumbs up or thumbs down Press . Press . Create a new/ custom station Press and hold the volume knob. ( Not available ) Scan for live station 1 Press 3 to start scanning. 2 Press 3 again to listen to the station. ( Not available ) Search and store a station

Press . 2 Turn the volume knob to select a category, then press the knob. 3 Turn the volume knob to select the desired station, then press the knob. When a city list appears, you can search cities in alphabetical order by turning the volume knob quickly. To cancel, press and hold

To store a station: Press and hold one of the number buttons (4, 5 or 6). To select a stored station: Press one of the number buttons (4, 5 or 6). USB input terminal Accessory of the iPod/iPhone* KW-R935BTS : You can also connect to the USB cable from the rear of the unit. and/or JS_JVC_KW_R935BTS_K_EN_7.indd 10JS_JVC_KW_R935BTS_K_EN_7.indd 10 7/4/2017 2:45:26 PM7/4/2017 2:45:26 PMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Spotify Preparation: Install the latest version of the Spotify application on your device (iPhone/ iPod touch), then create an account and log in to Spotify.

• Select [ON] for [SPOTIFY SRC]

Open the Spotify application on your device. 2 Connect your device to the USB input terminal. 3 Press repeatedly to select SPOTIFYFRONT/ SPOTIFYREAR/SPOTIFY. Broadcast starts automatically

• Do not leave the cable inside the car when not using. To On the faceplate On the remote control Playback/pause Press the volume knob. Press

Skip a track Press S

Press . Press . Start radio Press and hold 6. ( Not available ) To On the faceplate On the remote control Repeat play

Press repeatedly. ALL REPEAT

REPEAT OFF ( Not available ) Random play

Available for premium account users only.

This feature is available for tracks in Radio only. If thumbs down is selected, the current track is skipped.

Available for tracks in Playlists only. Save favorite song information While listening to the Radio on Spotify... Press and hold the volume knob. “SAVED” appears and the information is stored to “Your Music” or “Your Library” on your Spotify account. To unsave, repeat the same procedure. “REMOVED” appears and the information is removed from “Your Music” or “Your Library” on your Spotify account. Search for a song or station

Press . 2 Turn the volume knob to select a list type, then press the knob. The list types displayed differ depending on the information sent from Spotify. 3 Turn the volume knob to select the desired song or station, then press the knob. You can browse through the list quickly by turning the volume knob quickly. To cancel, press and hold

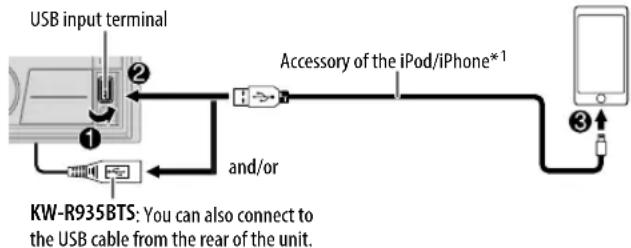

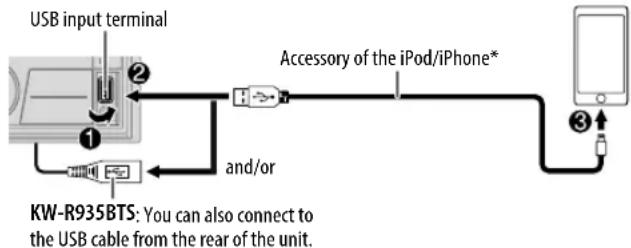

USB input terminal Accessory of the iPod/iPhone* KW-R935BTS : You can also connect to the USB cable from the rear of the unit. and/or JS_JVC_KW_R935BTS_K_EN_7.indd 11JS_JVC_KW_R935BTS_K_EN_7.indd 11 7/4/2017 2:45:27 PM7/4/2017 2:45:27 PMENGLISH

Press repeatedly to select SIRIUSXM. 2 Press .

” lights up. 3 Turn the volume knob to select a CATEGORY, then press the knob. 4 Turn the volume knob to select a category from the list, then press the knob. If “ALL CHANNEL” is selected, all the available channels will be shown. 5 Turn the volume knob to select a channel, then press the knob. (or) Press to search for a channel manually.

• Pressing and holding changes the channel rapidly. If a locked channel or a mature channel is selected, a pass code input screen appears. Enter the pass code to receive the channel. ( 14) Settings in memory You can store up to 18 channels. Store a channel While listening to a channel.... Press and hold one of the number buttons (1 to 6). (or) 1 Press and hold the volume knob until “PRESETMODE” flashes. 2 Turn the volume knob to select a preset number, then press the knob. The preset number flashes and “MEMORY” appears. Select a stored channel Press one of the number buttons (1to6). (or) 1 Press . 2 Turn the volume knob to select PRESET, then press the knob. 3 Turn the volume knob to select a preset number, then press the knob. (or) Press on the remote control. Only SiriusXM® brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required. For more information, visit <www.siriusxm.com>. Preparation: 1 Connect the optional SiriusXM Vehicle Tuner (commercially available). 2 Check your Radio ID for activation. The SiriusXM Radio ID is required for activation and can be found by tuning to Channel 0 as well as on the label found on the SiriusXM Vehicle Tuner and its packaging. The Radio ID does not include the letters I, O, S or F. 3 Activate the subscription. For users in the U.S.A.: Online: Go to <www.siriusxm.com> Phone: Call 1-866-635-2349 For users in Canada: Online: Go to <www.siriusxm.ca/activatexm> Phone: Call 1-877-438-9677 4 Press repeatedly to select SIRIUSXM to start updating. Antenna Expansion port on the rear panel SiriusXM Vehicle Tuner JS_JVC_KW_R935BTS_K_EN_7.indd 12JS_JVC_KW_R935BTS_K_EN_7.indd 12 7/4/2017 2:45:28 PM7/4/2017 2:45:28 PMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Using SiriusXM tuner models later than SXV200: This unit can assign a maximum of 18 SmartFavorites channels. Initially, all preset channels are assigned as SmartFavorites.

” appears at the last character of the channel name for the SmartFavorites channels. When you select a SmartFavorite channel, you can rewind and replay up to 30 minutes of any of the missed news, talk, sports or music content.

• Playback starts from the beginning of the song if [TUNE START] is set

” is removed from the last character. Reassign SmartFavorites channels Repeat steps 1 to 3 of cancelling SmartFavorites channels.

” appears at the last character. SiriusXM Replay™ While listening to a channel.... 1 Press the volume knob.

” lights up and the unit memorizes this paused position. 2 Press the volume knob to start Replay. Replay starts from the paused position in step

Rewind/Fast-forward Press and hold

Go to Live and exit Replay Press and hold the volume knob. Press and hold

1 Press . 2 Turn the volume knob to select LIVE, then press the knob. SmartFavorites and TuneStart™ User preset channels are initially assigned as the SmartFavorites channels. SmartFavorite channel is available with SXV200 or later SiriusXM tuner models. The SiriusXM Vehicle Tuner automatically buffers the broadcast audio content of the SmartFavorites channels in the background. Using SXV200: This unit can assign a maximum of 6 SmartFavorites channels. If you try to assign the 7th channel, an error beep tone will be heard. Initially, preset channels 1 to 6 are assigned as SmartFavorites. SiriusXM® Radio JS_JVC_KW_R935BTS_K_EN_7.indd 13JS_JVC_KW_R935BTS_K_EN_7.indd 13 7/4/2017 2:45:29 PM7/4/2017 2:45:29 PMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) TuneScan™ You can get a short preview of the songs that you have missed on each of your SmartFavorites music channels or currently tuned music channel. 1 Press . 2 Turn the volume knob to select TUNE SCAN, then press the knob. Scanning start for the first 6 seconds of the recorded music contents.

• To listen to the current song, press the volume knob to stop scanning. The unit continues playing the current song.

• To cancel scanning, press and hold the volume knob. Playback returns to the channel before you entered TuneScan. SiriusXM settings

Press and hold . 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press to exit. To return to the previous setting item, press

Press to move to the entry position.

to enter the current pass code. (Initial pass code is 0000.)

Press the volume knob to confirm. CODE SET

Press to move to the entry position.

to enter a new 4-digit pass code.

Press the volume knob to confirm.

to reconfirm the pass code.

• Make a note of the new pass code to enter channel lock settings for next time.

LOCK SETTING MATURE CH

:Selects the SiriusXM-defined lock setting.; USER DEFINED :Selects the individual channels the user wants to lock.; OFF :Cancels. CHANNEL EDIT

Turn the volume knob to select a channel you want to lock, then press the knob. “L” appears in front of the channel number.

Press and hold to exit. CHANNEL CLEAR

YES :Clears all the locked channels.;

:All qualified music channels in the SmartFavorites will start playback from the beginning of the song.; OFF :Cancels. SIGNAL LEVEL Shows the strength ( NO SIGNAL

STRONG ) of the current received signal. BUFFER USAGE Shows the memory usage (

100% ) for Replay buffer.

:Resets stored channel and lock setting to default.;

Displayed only when [USER DEFINED] is selected.

Available only if the connected SiriusXM Vehicle Tuner is SXV200 or later that supports SmartFavorites. SiriusXM® Radio JS_JVC_KW_R935BTS_K_EN_7.indd 14JS_JVC_KW_R935BTS_K_EN_7.indd 14 7/4/2017 2:45:31 PM7/4/2017 2:45:31 PMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Pair and connect a Bluetooth device for the first time

• For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching. 3 Perform (A) or (B) depending on what appears on the display. For some Bluetooth devices, pairing sequence may vary from the steps described below. (A) “[Device Name]”

“XXXXXX” “VOL–YES” “BACK–NO”

“XXXXXX” is a 6-digit passkey randomly generated during each pairing. Ensure that the passkeys appear on the unit and Bluetooth device are the same. Press the volume knob to confirm the passkey. Operate the Bluetooth device to confirm the passkey. (B) “[Device Name]”

Press the volume knob to start pairing.

• If “PAIRING” “PIN 0000” scrolls on the display, enter the PIN code “0000” into the Bluetooth device. You can change to a desired PIN code before pairing. ( 19)

• If only “PAIRING” appears, operate the Bluetooth device to confirm pairing. “PAIRING COMPLETED” appears when pairing is completed and “ ” will light up when the Bluetooth connection is established.

• This unit supports Secure Simple Pairing (SSP).

• Up to five devices can be registered (paired) in total.

• Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit. To delete the paired device,

• A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time. However, while in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices. (

• Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually.

• Refer to the instruction manual of the Bluetooth device for more information. BLUETOOTH® BLUETOOTH — Connection Supported Bluetooth profiles – Hands-Free Profile (HFP) – Advanced Audio Distribution Profile (A2DP) – Audio/Video Remote Control Profile (AVRCP) – Serial Port Profile (SPP) – Phonebook Access Profile (PBAP) Supported Bluetooth codecs – Sub Band Codec (SBC) – Advanced Audio Coding (AAC) Connect the microphone Adjust the microphone angle Secure using cord clamps (not supplied) if necessary. MIC (microphone input terminal) Microphone (supplied) Rear panel JS_JVC_KW_R935BTS_K_EN_7.indd 15JS_JVC_KW_R935BTS_K_EN_7.indd 15 7/4/2017 2:45:31 PM7/4/2017 2:45:31 PMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Auto Pairing When you connect iPhone/iPod touch/ Android device to the USB input terminal, pairing request (via Bluetooth) is automatically activated. Press the volume knob to pair once you have confirmed the device name. Automatic pairing request is activated only if: – Bluetooth function of the connected device is turned on.

( 19) – JVC MUSIC PLAY application is installed on the Android device ( 7) and [AUTO MODE]

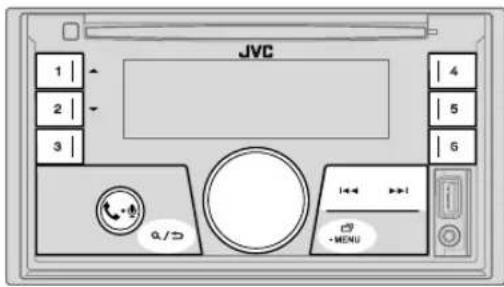

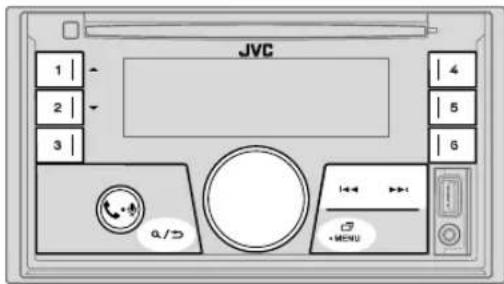

BLUETOOTH — Mobile phone Receive a call When there is an incoming call:

• The buttons will blink in the color you have selected in [RING COLOR]

• The unit answers the call automatically if [AUTO ANSWER] is set to a selected time. ( 17) During a call:

• The buttons stop blinking and illuminate in the color you have selected in [RING COLOR]

• If you turn off the unit, the Bluetooth connection is disconnected. The following operations may differ or not available depending on the connected phone. To On the faceplate On the remote control First incoming call... Answer a call Press or the volume knob. Press

Reject a call Press and hold or the volume knob. Press and hold

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) To On the faceplate On the remote control While talking on the first incoming call... Answer another incoming call and hold the current call Press or the volume knob. ( Not available ) Reject another incoming call Press and hold

the volume knob. ( Not available ) While having two active calls... End current call and activate held call Press and hold

Swap between the current call and held call Press

Turn the volume knob during a call. Press

during a call. Switch between hands-free and private talk modes

Press during a call. ( Not available )

This adjustment will not affect the volume of the other sources.

Press and hold to continuously increase the volume to 15.

Operations may vary according to the connected Bluetooth device. Improve the voice quality While talking on the phone.... 1 Press and hold . 2 Turn the volume knob to select an item

see the following table

, then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press to exit. To return to the previous setting item, press

LEVEL –04 ):The sensitivity of the microphone increases as the number increased.

LEVEL 00 ):Adjust the noise reduction level until the least noise is being heard during a phone conversation.

LEVEL 00 ):Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation. Make the settings for receiving a call

Press to enter Bluetooth mode. 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. To return to the previous setting item, press

30 SEC :The unit answers incoming call automatically in the selected time (in seconds).; OFF :Cancels.

COLOR 08 ): Selects the light color for the buttons as notification when there is an incoming call and during a call.; OFF :Cancels. BATT/SIGNAL

AUTO :Shows the strength of the battery and signal when the unit detects a Bluetooth device and the Bluetooth device is connected.; OFF :Cancels.

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Make a call You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature. 1 Press to enter Bluetooth mode. “(First device name)” appears.

• If two Bluetooth phones are connected, press again to switch to another phone. “(Second device name)” appears. 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. To return to the previous setting item, press

RECENT CALL (Applicable only if the phone supports PBAP.)

• “<” indicates call received, “>“ indicates call made, “M” indicates call missed.

• “NO HISTORY” appears if there is no recorded call history or call number.

Press the volume knob to call. PHONEBOOK (Applicable only if the phone supports PBAP.)

Press to select the desired letter (A to Z, 0to9, and OTHERS).

• “OTHERS” appears if the first character is other than Ato Z, 0 to 9.

• The phonebook of the connected phone is automatically transferred to the unit when pairing.

• This unit can display only non-accent letters. (Accent letters such as “Ú” is showns as “U”.) DIAL NUMBER

Turn the volume knob to select a number (0 to 9) or character ( , #, +).

Press to move the entry position. Repeat steps

until you finish entering the phone number.

Press the volume knob to call. VOICE Speak the name of the contact you want to call or the voice command to control the phone functions. ( Make a call using voice recognition) BLUETOOTH® Make a call using voice recognition

Press and hold to activate the connected phone. 2 Speak the name of the contact you want to call or the voice command to control the phone functions.

• Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details.

• This unit also supports the intelligent personal assistant function of iPhone. Settings in memory Store a contact in memory You can store up to 6 contacts into the number buttons (1 to 6). 1 Press to enter Bluetooth mode. 2 Turn the volume knob to select [RECENT CALL]

[DIAL NUMBER] , then press the knob. 3 Turn the volume knob to select a contact or enter a phone number. If a contact is selected, press the volume knob to show the phone number. 4 Press and hold one of the number buttons (1 to 6). “MEMORY P(selected preset number)” appears when the contact is stored. To erase a contact from the preset memory, select [DIAL NUMBER] in step 2 and store a blank number. Make a call from memory

Press to enter Bluetooth mode. 2 Press one of the number buttons (1 to 6). 3 Press the volume knob to call. “NO PRESET” appears if there is no contact stored. JS_JVC_KW_R935BTS_K_EN_7.indd 18JS_JVC_KW_R935BTS_K_EN_7.indd 18 7/4/2017 2:45:37 PM7/4/2017 2:45:37 PMENGLISH

see the following table

, then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press to exit. To return to the previous setting item, press

• Selects the phone or audio device to connect or disconnect.

” appears in front of the device name when connected.

” appears in front of the current playback audio device. AUDIO SELECT

Turn the volume knob to select a device to delete, then press the knob.

Turn the volume knob to select [YES]

Press to move the entry position. Repeat steps

until you finish entering the PIN code.

Press the volume knob to confirm. RECONNECT ON :The unit automatically reconnect when the last connected Bluetooth device is within range.; OFF :Cancels.

:The unit automatically pair supported Bluetooth device (iPhone/iPod touch/Android device) when it is connected through USB input terminal.Depending on the operating system of the connected device, this function may not work. ; OFF :Cancels. INITIALIZE YES :Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.).;

:Cancels. INFORMATION MY

ADDRESS : Shows address of this unit.

You can only connect a maximum of two Bluetooth phones and one Bluetooth audio device at any time. BLUETOOTH® Bluetooth compatibility check mode You can check the connectivity of the supported profile between the Bluetooth device and the unit.

• Make sure there is no Bluetooth device paired. 1 Press and hold . “BLUETOOTH” “CHECK MODE” appears.

“SEARCH NOW USING PHONE”

“PIN IS 0000” scrolls on the display. 2 Search and select “KW-R9 BTS”/ “KW-X8 BTS”/“KW-SX8 BTS” on the Bluetooth device within 3minutes. 3 Perform (A), (B) or (C) depending on what appears on the display. (A) “PAIRING” “XXXXXX” (6-digit passkey): Ensure that the same passkey appears on the unit and Bluetooth device, then operate the Bluetooth device to confirm the passkey. (B) “PAIRING” “PIN IS 0000”: Enter “0000” on the Bluetooth device. (C) “PAIRING”: Operate the Bluetooth device to confirm pairing. After pairing is successful, “PAIRING OK” “[Device Name]” appears and Bluetooth compatibility check starts. If “CONNECT NOW USING PHONE” appears, operate the Bluetooth device to allow phonebook access to continue. “TESTING” flashes on the display. JS_JVC_KW_R935BTS_K_EN_7.indd 19JS_JVC_KW_R935BTS_K_EN_7.indd 19 7/4/2017 2:45:38 PM7/4/2017 2:45:38 PMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) The connectivity result flashes on the display. “PAIRING OK” and/or “HANDS-FREE OK”*

Compatible with Hands-Free Profile (HFP)

Compatible with Phonebook Access Profile (PBAP) After 30 seconds, “PAIRING DELETED” appears to indicate that pairing has been deleted, and the unit exits check mode.

• To cancel, press and hold to turn off the power, then turn on the power again. BLUETOOTH® BLUETOOTH — Audio Audio player via Bluetooth

Press repeatedly to select BTAUDIO (or press SOURCE on the remote control).

• Pressing enters BT AUDIO directly. 2 Operate the Bluetooth audio player to start playback. To On the faceplate On the remote control Playback/pause Press the volume knob. Press

Select group or folder Press . Press . Reverse skip/Forward skip Press

Reverse/Fast-forward Press and hold

Repeat play Press repeatedly. TRACK REPEAT

REPEAT OFF ( Not available ) Random play Press repeatedly. GROUP RANDOM

RANDOM OFF ( Not available ) Select a file from a folder/ list Refer to “Select a file from a folder/list” on page 8. ( Not available ) While in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices. JS_JVC_KW_R935BTS_K_EN_7.indd 20JS_JVC_KW_R935BTS_K_EN_7.indd 20 7/4/2017 2:45:39 PM7/4/2017 2:45:39 PMENGLISH

:Cancels. If IOS is selected, select iPod BT source (or iPod USB if your iPhone/iPod is connected via USB input terminal) to activate the application.

• The connectivity of the application will be interrupted or disconnected if: – You change from iPod BT source to any playback source connected via the USB input terminal. – You change from iPod USB source to iPod BT source. ANDROID YES :Selects Android smartphone to use the application via Bluetooth.;

Selects the Android smartphone to use from the list. STATUS Shows the status of the selected device. IOS CONNECTED : You are able to use the application using the iPhone/iPod connected via Bluetooth or USB input terminal.

: No IOS device is connected to use the application. ANDROID CONNECTED : You are able to use the application using the Android smartphone connected via Bluetooth.

ANDROID NOT CONNECTED

: No Android device is connected to use the application.

[SELECT] is set to [YES]

BLUETOOTH® To On the faceplate On the remote control Switch between connected Bluetooth audio devices Press 6.

• Pressing the “Play” key on the connected device itself also causes switching of sound output from the device. Operations and display indications may differ according to their availability on the connected device. Settings to use JVC Remote application JVC Remote application is designed to control the JVC car receiver’s operations from iPhone/iPod (via Bluetooth or via USB input terminal) or Android smartphone (via Bluetooth). Preparation: Install the latest version of JVC Remote application on your device before connecting. For more information, visit <http://www.jvc.net/cs/car/>. 1 Press and hold . 2 Turn the volume knob to select an item

see the following table

then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press to exit. To return to the previous setting item, press

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Listen to iPhone/iPod via Bluetooth You can listen to the songs on the iPhone/iPod via Bluetooth on this unit. Press repeatedly to select iPodBT.

• You can operate the iPod/iPhone in the same way as iPod/iPhone via USB input terminal. ( 7)

• If you plug in an iPhone/iPod to the USB input terminal while listening to iPodBT source, the source automatically change to iPodUSB. Press to select iPodBT if the device is still connected via Bluetooth. Internet radio via Bluetooth You can listen to internet radio (Pandora, iHeartRadio and Spotify) on the iPhone/iPod touch/Android device via Bluetooth on this unit.

• Make sure the USB input terminal is not connected to any device. Listen to Pandora Preparation: Select [ON] for [PANDORA SRC]

( 4) 1 Open the Pandora application on your device. 2 Connect your device via Bluetooth connection. ( 15) 3 Press repeatedly to select PANDORA (for iPhone/iPod) or PANDORA BT (for Android device). The source switches and broadcast starts automatically.

• You can operate Pandora in the same way as Pandora via USB input terminal. ( 9) BLUETOOTH® Listen to iHeartRadio Preparation: Select [ON] for [IHEART SRC]

( 4) 1 Open the iHeartAuto application on your device. 2 Connect your device via Bluetooth connection. ( 15) 3 Press repeatedly to select IHEARTRADIO. The source switches and broadcast starts automatically.

• You can operate iHeartRadio in the same way as iHeartRadio via USB input terminal. ( 10) Listen to Spotify Preparation: Select [ON] for [SPOTIFY SRC]

( 4) 1 Open the Spotify application on your device. 2 Connect your device via Bluetooth connection. ( 15) 3 Press repeatedly to select SPOTIFY (for iPhone/iPod) or SPOTIFY BT (for Android device). The source switches and broadcast starts automatically.

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Use a portable audio player

Connect a portable audio player (commercially available). 2 Select [ON] for [BUILT-IN AUX]

( 4) 3 Press repeatedly to select AUX. 4 Turn on the portable audio player and start playback. Use a 3-core plug head stereo mini plug for optimum audio output. 3.5mm (1/8") stereo mini plug with “L” shaped connector (commercially available) Portable audio player Auxiliary input jack AUX AUDIO SETTINGS Select a preset equalizer directly Press repeatedly. (or) Press , then turn the volume knob within 5seconds. Preset equalizer

DRVN 1 ) boosts specific frequencies in the audio signal to reduce the noise heard from outside the car or running noise of the tyres. Store your own sound settings

Press and hold to enter EASY EQ setting. 2 Turn the volume knob to select an item, then press the knob. Refer to [EASY EQ] for setting ( 24) and the result is stored to [USER]

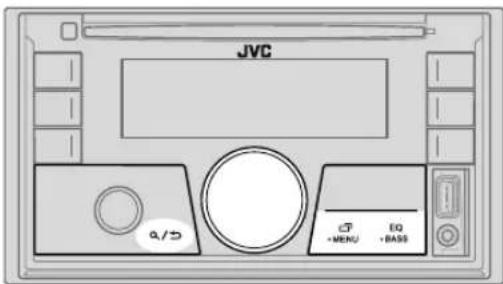

Press and hold . 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press to exit. To return to the previous setting item, press

EQ SETTING PRESET EQ Select a preset equalizer suitable to the music genre.

• Select [USER] to use the settings made in [EASY EQ]

CLASSICAL EASY EQ Adjust your own sound settings.

• The settings are stored to [USER]

• The settings made may affect the current settings of [PRO EQ]

PRO EQ Adjust your own sound settings.

• The settings are stored to [USER]

• The settings made may affect the current settings of [EASY EQ]

LEVEL +09 (LEVEL 00) : Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.)

Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.) Q FACTOR 1.35

LEVEL 02 :Boosts low or high frequencies to produce a well- balanced sound at low volume.; OFF :Cancels.

(Not applicable when 3-way crossover is selected.) SUB.W 00

SUB.W +03 ):Adjusts the output level of the subwoofer connected via speaker lead. ( 39, 40) PRE-OUT SUB.W –50

SUB.W 00 ):Adjusts the output level of the subwoofer connected to the lineout terminals (SW or REAR/SW) through an external amplifier. ( 39, 40) SUBWOOFER SET

POSITION 00 ):Adjusts the front and rear speaker output balance. BALANCE

POSITION 00 ):Adjusts the left and right speaker output balance. VOLUME

LEVEL 00 ):Preset the initial volume level of each source (compared to the FM volume level). Before adjustment, select the source you want to adjust. AMP

POWER :Limits the maximum volume level to 25. (Select if the maximum power of each speaker is less than 50W to prevent damaging the speakers.); HIGH POWER :The maximum volume level is 35. SPK/PRE

OUT (Not applicable when 3-way crossover is selected.) Depending on the speaker connection method, select the appropriate setting to get the desired output. ( 26, Speaker output settings) SPEAKER SIZE Depending on the crossover type you have selected (

TYPE] ), 2-way crossover or 3-way crossover setting items will be shown. ( 26, Crossover settings) By default, 2-way crossover type is selected.

DTA SETTINGS For settings, 28, Digital Time Alignment settings

avoid the sudden increase or decrease of the output level. 2-WAY (Displayed only when [3-WAY] is selected.) YES :Selects two way crossover type.;

:Cancels. 3-WAY (Displayed only when [2-WAY] is selected.) YES :Selects three way crossover type.;

LEVEL3 : Virtually makes the sound more realistic.; OFF :Cancels.

HIGH : Virtually adjust the sound position heard from the speakers.; OFF :Cancels.

:Boosts the frequency to reduce the noise heard from outside the car or running noise of the tyres.; OFF :Cancels. K2 TECHNOLOGY (Not applicable for TUNER source, SIRIUS XM source and AUX source.)

:Improve the sound quality of compressed music.; OFF :Cancels.

Displayed only when [SUBWOOFER SET] is set to [ON]

For 2-way crossover: Displayed only when

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Crossover settings Below are the available setting items for 2-way crossover and 3-way crossover. Caution Select a crossover type according to how the speakers are connected. ( 39, 40) If you select a wrong type:

• The speakers may damage.

• The output sound level may be extremely high or low. SPEAKER SIZE Selects according to the connected speaker size for optimum performance.

The frequency and slope settings are automatically set for the crossover of the selected speaker.

When 2-way crossover is selected, if [NONE] is selected for [TWEETER]

[REAR] and [SUBWOOFER] for [SPEAKER SIZE] , the [X ‘ OVER] setting of the selected speaker is not available.

When 3-way crossover is selected, if [NONE] is selected for [WOOFER]

[SPEAKER SIZE] , the [X ‘ OVER] setting of [WOOFER] is not available. X ‘ OVER (crossover)

[LPF FRQ] : Adjusts the crossover frequency for the selected speakers (high pass filter or low pass filter).

[THROUGH] is selected, all signals are sent to the selected speakers.

[LPF SLOPE]: Adjusts the crossover slope. Selectable only if a setting other than [THROUGH] is selected for the crossover frequency.

[PHASE]: Selects the phase of the speaker output to be in line with the other speaker output.

Adjusts the output volume of the selected speaker. Speaker output settings

(Applicable only if [X ' OVER TYPE ] is set to [2-WAY]) ( 25) Select the output setting for the speakers [ SPK/PRE OUT], based on the speaker connection method. Connection via lineout terminals For connections through an external amplifier. ( 39, 40) Setting on

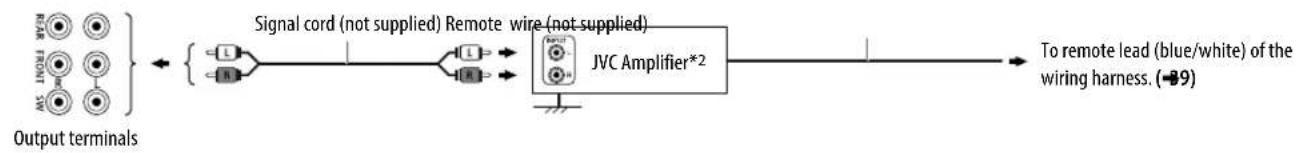

Audio signal through lineout terminal

Front speakers output L (left): Subwoofer output R (right): (Mute) Subwoofer output Connection via speaker leads For connections without using an external amplifier. However, with this settings you can also enjoy the subwoofer output. ( 39) Setting on

Audio signal through rear speaker lead L (left) R (right) REAR/REAR Rear speakers output Rear speakers output

[120HZ] is selected in [SUBWOOFER LPF] and [THROUGH] is not available.

[POSITION R02] is selected in [FADER] and selectable range is [POSITION R15]

NONE (not connected) REAR

NONE (not connected) SUBWOOFER

NONE (not connected)

NONE (not connected)

THROUGH HPF SLOPE –06DB

is set to [REAR/REAR]

Displayed only when [SUBWOOFER SET] is set to [ON]

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) AUDIO SETTINGS Digital Time Alignment settings Digital Time Alignment sets the delay time of the speaker output to create a more suitable environment for your vehicle.

• For more information, Determining the value for [DISTANCE] and [GAIN] of [DTA SETTINGS]

[FRONT ALL] is displayed only when

20.01FT :Fine adjust the distance to compensate. GAIN

0DB :Fine adjust the output volume of the selected speaker.

:Cancels. CAR SETTINGS Identify your car type and rear speaker location in order to make the adjustment for [DTA SETTINGS]

MINIVAN(LONG) :Selects the type of vehicle.; OFF: Not compensating. R-SP LOCATION

Selects the location of the rear speakers in your vehicle to calculate the furthest distance from the listening position selected (reference point).

REAR DECK :Selectable only when [CAR TYPE] is selected

selected as [MINIVAN]

Determining the value for [DISTANCE] and [GAIN] of [DTA SETTINGS] If you specify the distance from the center of the currently set listening position to every speaker, the delay time will be automatically computed and set.

Determine the center of the currently set listening position as the reference point.

Measure the distances from the reference point to the speakers.

Calculate the differences between the distance of the furthest speaker (rear speaker) and other speakers.

Set the [DISTANCE] calculated in step

for individual speakers.

Adjust [GAIN] for individual speakers. Example: When [FRONT ALL] is selected as the listening position

Before making an adjustment, select the speaker: When 2-way crossover is selected: FRONT LEFT

[REAR RIGHT] and [SUBWOOFER] is selectable only if a setting other than [NONE] is selected for [REAR] and [SUBWOOFER]

( 27) When 3-way crossover is selected: TWEETER LEFT

[WOOFER] is selectable only if a setting other than [NONE] is selected for [WOOFER]

is set to [2-WAY] ( 25) and if a setting other than [NONE] is selected for [ REAR ] of [SPEAKER SIZE]

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) DISPLAY SETTINGS Zone identification for brightness setting 1 Press and hold . 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/ activated or follow the instructions stated on the selected item. 4 Press to exit. To return to the previous setting item, press

DISPLAY DIMMER Dim the illumination. OFF :Dimmer is turned off. Brightness changes to [DAY] setting.

:Dimmer is turned on. Brightness changes to [NIGHT] setting. ( [BRIGHTNESS]) DIMMER TIME :Set the dimmer on and off time.

DIMMER AUTO :Dimmer turns on and off automatically when you turn off or on the car headlights.

BRIGHTNESS Set the brightness for day and night separately.

NIGHT :Select day or night.

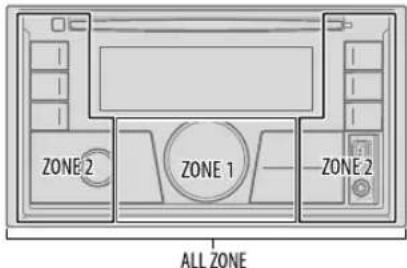

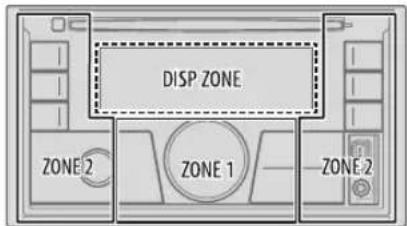

see illustration on the left column

see illustration on the left column

Select a color for the selected zone.

USER : The color you have created for [DAY COLOR]

[NIGHT COLOR] is shown.

COLOR FLOW03 : Color changes at different speeds.

RELAX : The selected color pattern is shown.

(Selectable only when [ALL ZONE] is selected in step

The illumination control wire connection is required. ( 39)

If one of these color pattern is selected, the [ZONE 1] and [ZONE 2] illumination colors will change to the default colors. Zone identification for color setting JS_JVC_KW_R935BTS_K_EN_7.indd 29JS_JVC_KW_R935BTS_K_EN_7.indd 29 7/4/2017 2:45:47 PM7/4/2017 2:45:47 PMENGLISH

BLUE :Select a primary color.

:Select the level. Repeat steps

for all the primary colors.

• Your setting is stored to [USER]

[DAY COLOR] is changed by turning on or off your car’s headlight. NIGHT COLOR COLOR GUIDE

:Changes the button illumination when settings are performed on menu and list search.; OFF :Cancels. REFERENCES Maintenance Cleaning the unit Wipe off dirt on the faceplate with a dry silicone or soft cloth. Handling discs:

• Do not touch the recording surface of the disc.

• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.

• Do not use any accessories for the disc.

• Clean from the center of the disc and move outward.

• Clean the disc with a dry silicone or soft cloth. Do not use any solvents.

• When removing discs from this unit, pull them out horizontally.

• Remove burrs from the center hole and disc edge before inserting a disc. More information For: – Latest firmware updates and latest compatible item list – JVC original application – Any other latest information Visit <http://www.jvc.net/cs/car/>. General

• This unit can only play the following CDs:

DualDisc playback: The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product cannot be recommended.

• Playable USB device file system: FAT12, FAT16, FAT32 Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device. The AAC (.m4a) file in a CD encoded by iTunes cannot be played on this unit. Unplayable discs

• Discs that are not round.

• Discs with coloring on the recording surface or discs that are dirty.

• Recordable/ReWritable discs that have not been finalized.

• 8cm CD. Attempting to insert using an adapter may cause malfunction. About USB devices

• You cannot connect a USB device via a USB hub.

• Connecting a cable whose total length is longer than 5m may result in abnormal playback.

• This unit cannot recognize a USB device whose rating is other than 5V and exceeds 1.5A. About iPod/iPhone

• Via USB input terminal: Made for – iPod touch (5th and 6th generation) – iPod nano (7th generation) – iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus

• Via Bluetooth: Made for – iPod touch (5th and 6th generation) – iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus

• It is not possible to browse video files on the “Videos” menu in [HEAD MODE]

• The song order displayed on the selection menu of this unit may differ from that of the iPod/ iPhone.

• Depending on the version of the operating system of the iPod/iPhone, some functions may not operate on this unit. About Android device

• This unit supports Android OS 4.1 and above.

• Some Android devices (with OS4.1 and above) may not fully support Android Open Accessory (AOA)2.0.

• If the Android device supports both mass storage class device and AOA2.0, this unit always playback via AOA2.0 as priority. About Pandora

• Pandora is only available in certain countries. For more information, visit <http://www.pandora.com/legal>.

• Because Pandora is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired, or some or all of the services may become unavailable.

• Some functions of Pandora cannot be operated from this unit.

• For issues using the application, please contact Pandora at pandora-support@pandora.com. About iHeartRadio

• iHeartRadio® is a third-party service, therefore the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.

• Some iHeartRadio® functionality cannot be operated from this unit. About Spotify

• Spotify application supports: – iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus (iOS 8 or above) – iPod touch (5th and 6th generation) – Android OS 4.0.3 or above

• Spotify is a third party service, therefore the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.

• Some functions of Spotify cannot be operated from this unit.

• Depending on the Bluetooth version of the device, some Bluetooth devices may not be able to connect to this unit.

• This unit may not work with some Bluetooth devices.

• Signal conditions vary, depending on the surroundings. Change the display information Each time you press , the display information changes.

• If the information is unavailable or not recorded, “NO TEXT”, “NO NAME”, or other information (eg. station name) appears or display will be blank. Source name Display information

(back to the beginning) (For FM Radio Broadcast Data System stations only) Station name (PS)/Program type (PTY) (Date/Clock)

(back to the beginning)

(For CD-DA) (Applicable only for KW-R935BTS

Track title (Artist) Track title (Disc name) Track title (Date/Clock)

Track title (Artist) with music synchronisation*

Song title (Artist) with music synchronisation*

[AUTO MODE] is selected ( 8)

Song title (Artist) Song title (Album name) Song title (Date/Clock)

Song title (Artist) with music synchronisation*

Shared/Radio (Date/Clock)

Song title (Artist) Song title (Album name) Song title (Date/Clock)

Song title (Artist) Song title (Date/Clock)

(back to the beginning) SPOTIFY FRONT/

Song title (Artist) Song title (Album name) Song title (Date/Clock)

(back to the beginning) BT AUDIO Song title (Artist) Song title (Album name) Song title (Date/Clock)

Song title (Artist) with music synchronisation*

(back to the beginning) AUX AUX (Date/Clock)

(back to the beginning)

Battery and signal strength of the Bluetooth device will be shown if [BATT/SIGNAL] is set

The illumination colors of the buttons change and synchronise with the music. JS_JVC_KW_R935BTS_K_EN_7.indd 32JS_JVC_KW_R935BTS_K_EN_7.indd 32 7/4/2017 2:45:48 PM7/4/2017 2:45:48 PMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Symptom Remedy General Sound cannot be heard. • Adjust the volume to the optimum level.

• Check the cords and connections.

“MISWIRING CHECK WIRING

THEN PWR ON” appears. Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again. “PROTECTING SEND SERVICE” appears. Send the unit to the nearest service center. Source cannot be selected. Check the [SOURCE SELECT] setting. ( 4) Radio

• Radio reception is poor.

• Static noise while listening to the radio. Connect the antenna firmly. CD/USB/iPod Disc cannot be ejected. Press and hold to forcibly eject the disc. Be careful not to drop the disc when it is ejected. “IN DISC” appears. Make sure nothing is blocking the loading slot when you eject the disc. “PLEASE EJECT” appears. Press , then insert the disc correctly. Playback order is not as intended. The playback order is determined by the file name (USB) or the order in which files were recorded (disc). Elapsed playing time is not correct. This depends on the recording process earlier. “NOT SUPPORT” appears and track skips. Check whether the track is a playable format. ( 31) “READING” keeps flashing. • Do not use too many hierarchical levels and folders.

• Reload the disc or reattach the USB device. TROUBLESHOOTING Symptom Remedy CD/USB/iPod “UNSUPPORTED DEVICE” appears.

Check whether the connected device is compatible with this unit and ensure the file systems are in supported formats

• Reattach the device. “UNRESPONSIVE DEVICE” appears. Make sure the device is not malfunction and reattach the device.

SUPPORTED” appears. This unit cannot support a USB device connected via a USB hub. “CANNOT PLAY” appears. Connect a USB device that contains playable audio files.

• The source does not change to “USB” when you connect a USB device while listening to another source.

• “USB ERROR” appears The USB port is drawing more power than the design limit. Turn the power off and unplug the USB device. Then, turn on the power and reattach the USB device. If this does not solve the problem, turn the power off and on (or reset the unit) before replacing with another USB device. The iPod/iPhone does not turn on or does not work.

• Check the connection between this unit and iPod/ iPhone.

• Disconnect and reset the iPod/iPhone using hard reset. “LOADING” appears when you enter search mode by pressing

This unit is still preparing the iPod/iPhone music list. It may take some time to load, try again later. Correct characters are not displayed.

• This unit can only display uppercase letters, numbers, and a limited number of symbols.

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) TROUBLESHOOTING Symptom Remedy Pandora “STATIONLMT” The number of registered stations has reached its limit. Retry after deleting unnecessary stations from your device. “UPGRADEAPP” Make sure you have installed the latest version of the Pandora application on your device. “CONNECT ERR” Communication is unstable. “RATING ERR” Registration of thumbs up/thumbs down has failed due to insufficient network connectivity. “THUMBS N/A” Registration of thumbs up/thumbs down is not allowed. “LICENSE ERR” You try to access from a country which Pandora is not deliverable. iHeartRadio Station cannot be selected. If “Explicit Content” in [Account Settings] is checked in the web version of iHeartRADIO, custom stations become unavailable. “NOT CONNCTD” Link to the application is impossible. Spotify “DISCONNECTED” USB is disconnected from the head unit. Please make sure the device is connected properly through USB. “CONNECTING” • Connected via USB input terminal: The device is connecting to the head unit. Please wait.

• Connected via Bluetooth: The Bluetooth is disconnected. Please check Bluetooth connection and make sure both the device and unit are paired and connected. “CHECK APP” The Spotify application is not connected properly, or user is not login. End the Spotify application and restart, then log in to your Spotify account. SiriusXM® Radio “CHLOCKED LOCK CODE?” The selected channel is locked. Enter the correct pass code to unlock. ( 14) “CHANUNSUB” The selected channel is unsubscribed. Call 1-866-635-2349 in the U.S.A. or 1-877-438-9677 in Canada to subscribe. Symptom Remedy ANDROID

• Sound cannot be heard during playback.

• Sound output only from the Android device.

• Reconnect the Android device.

• If in [AUDIO MODE] , launch any media player application on the Android device and start playback.

• If in [AUDIO MODE] , relaunch the current media player application or use another media player application.

• Restart the Android device.

• If this does not solve the problem, the connected Android device is unable to route the audio signal to unit. ( 31) Cannot playback at [AUTO MODE]

• Make sure JVC MUSIC PLAY APP is installed on the Android device. ( 7)

• Reconnect the Android device and select the appropriate control mode. ( 8)

• If this does not solve the problem, the connected Android device does not support [AUTO MODE]

( 31) “NO DEVICE” or “READING” keeps flashing.

• Switch off the developer options on the Android device.

• Reconnect the Android device.

• If this does not solve the problem, the connected Android device does not support [AUTO MODE]

( 31) Playback is intermittent or sound skips. Turn off the power saving mode on the Android device. “CANNOT PLAY” • Make sure Android device contains playable audio files.

• Reconnect the Android device.

• Restart the Android device. Pandora “ADDERROR” New station creation is unsuccessful. “CHKDEVICE” Check the Pandora application on your device. “NOSKIPS” The skip limit has been reached. “NOSTATIONS” No stations are found. JS_JVC_KW_R935BTS_K_EN_7.indd 34JS_JVC_KW_R935BTS_K_EN_7.indd 34 7/4/2017 2:45:57 PM7/4/2017 2:45:57 PMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Symptom Remedy Bluetooth® Sound is being interrupted or skipped during playback of a Bluetooth audio player.

• Reduce the distance between the unit and the Bluetooth audio player.

• Turn off, then turn on the unit and try to connect again.

• Other Bluetooth devices might be trying to connect to the unit. The connected Bluetooth audio player cannot be controlled.

• Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP). (Refer to the instructions of your audio player.)

• Disconnect and connect the Bluetooth player again. “PLEASE WAIT” The unit is preparing to use the Bluetooth function. If the message does not disappear, turn off and turn on the unit, then connect the device again. “NOT SUPPORT” The connected phone does not support Voice Recognition feature. “ERROR” Try the operation again. If “ERROR” appears again, check if the device supports the function you have tried. “H/W ERROR” Reset the unit and try the operation again. If “H/W ERROR” appears again, consult your nearest service center. “SWITCHING NG” The connected phones might not support phone switching feature. If you have any troubles, try the following: 1 Check TROUBLESHOOTING 2 Reset the unit ( 3) 3 Contact (USA only) Call: 1-800-252-5722 ( or ) visit: <http://www.jvc.com> TROUBLESHOOTING Symptom Remedy SiriusXM® Radio “CHUNAVAIL” The selected channel is unavailable. For more information about the SiriusXM channel lineup, visit <www.siriusxm.com>. “CHECKANTENNA” Check that the antenna and its connection are in good condition. “CHECKTUNER” Make sure the SiriusXM Vehicle Tuner is connected to the unit. “NOSIGNAL” Make sure the antenna is mounted outside the vehicle. “SUBSCRIPTION UPDATED

CONTINUE.” Your subscription is updated. Press the volume knob to continue. “CODE ERROR” Make sure you have entered the correct pass code. ( 14) “NO CONTENT” There is insufficient content to start TuneScan. “SCAN CANCEL” TuneScan has been aborted. Bluetooth® No Bluetooth device is detected.

• Search from the Bluetooth device again.

• Reset the unit. ( 3) Pairing cannot be made. • Make sure you have entered the same PIN code to both the unit and Bluetooth device.

• Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. ( 15) Echo or noise occurs. • Adjust the microphone unit’s position. ( 15)

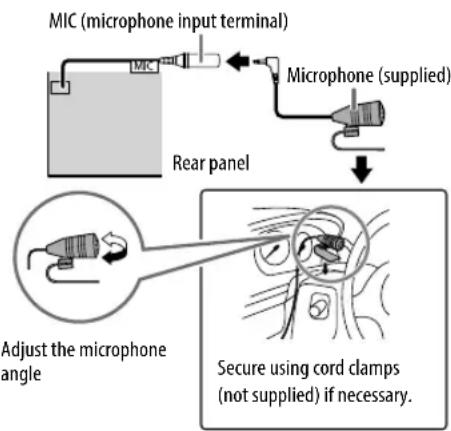

• Check the [ECHO CANCEL] setting. ( 17) Phone sound quality is poor.

• Reduce the distance between the unit and the Bluetooth device.

• Move the car to a place where you can get a better signal reception. JS_JVC_KW_R935BTS_K_EN_7.indd 35JS_JVC_KW_R935BTS_K_EN_7.indd 35 7/4/2017 2:45:57 PM7/4/2017 2:45:57 PMENGLISH

Laser Diode GaAIAs Digital Filter (D/A) 8 times over sampling Spindle Speed 500 rpm — 200 rpm (CLV) Wow & Flutter Below measurable limit Frequency Response (±1dB) 20 Hz — 20 kHz Total Harmonic Distortion (1 kHz) 0.01 % Signal-to-Noise Ratio (1 kHz) 105 dB Dynamic Range 90 dB Channel Separation 85 dB MP3 Decode Compliant with MPEG-1/2 Audio Layer-3 WMA Decode Compliant with Windows Media Audio AAC Decode AAC-LC “.aac” files USB USB Standard USB1.1, USB2.0 (Full speed) Compatible Devices Mass storage class File System FAT12/16/32 Maximum Supply Current DC5V 1.5A Digital Filter (D/A) Converter 24 Bit Frequency Response (±1dB) 20 Hz — 20 kHz Signal-to-Noise Ratio (1 kHz) 105 dB Dynamic Range 90 dB Channel Separation 85 dB MP3 Decode Compliant with MPEG-1/2 Audio Layer-3 WMA Decode Compliant with Windows Media Audio AAC Decode AAC-LC “.aac”, “.m4a” files WAV Decode Linear-PCM FLAC Decode FLAC file, up to 24bit/96kHz Bluetooth Version Bluetooth 3.0 Frequency Range 2.402 GHz — 2.480 GHz Output Power +4 dBm (MAX), 0 dBm (AVE) Power Class 2 Maximum Communication Range Line of sight approx. 10 m (32.8 ft) Pairing SSP (Secure Simple Pairing) Profile HFP1.6 (Hands-Free Profile) A2DP (Advanced Audio Distribution Profile) AVRCP1.5 (Audio/Video Remote Control Profile) PBAP (Phonebook Access Profile) SPP (Serial Port Profile) JS_JVC_KW_R935BTS_K_EN_7.indd 36JS_JVC_KW_R935BTS_K_EN_7.indd 36 7/4/2017 2:45:58 PM7/4/2017 2:45:58 PMENGLISH

• The unit can only be used with a 12V DC power supply, negative ground.

• Disconnect the battery’s negative terminal before wiring and mounting.

• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.

• To prevent short circuit: – Insulate unconnected wires with vinyl tape. – Be sure to ground this unit to the car’s chassis again after installation. – Secure the wires with cable clamps and wrap vinyl tape around the wires that comes into contact with metal parts to protect the wires. Caution

• For safety’s sake, leave wiring and mounting to professionals. Consult the car audio dealer.

• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.

• Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.

• Connect speakers with a maximum power of more than 50W. If the maximum power of the speakers is lower than 50W, change the [AMP GAIN] setting to avoid damaging the speakers. ( 25)

• Mount the unit at an angle of less than 30º.

• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle’s fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.

• Keep all cables away from heat dissipate metal parts.

• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.

• If the fuse blows, first make sure the wires are not touching car’s chassis, then replace the old fuse with one that has the same rating. INSTALLATION/CONNECTION Auxiliary Frequency Response (±3dB) 20Hz—20kHz Input Maximum Voltage 1000mV Input Impedance 30kΩ Audio Maximum Output Power 50W×4 or 50W×2 + 50W×1 (Subwoofer = 4Ω) Full Bandwidth Power (at less than 1% THD) 22W×4 Speaker Impedance 4Ω—8Ω Preout Level/Load KW-R935BTS: 4000mV/10kΩ load KW-R930BTS

(3.1lbs) KW-R930BTS: 1.3k

(3.0lbs) KW-X830BTS/KW-SX83BTS: 0.9k

Remove the key from the ignition switch, then disconnect the terminal of the car battery.

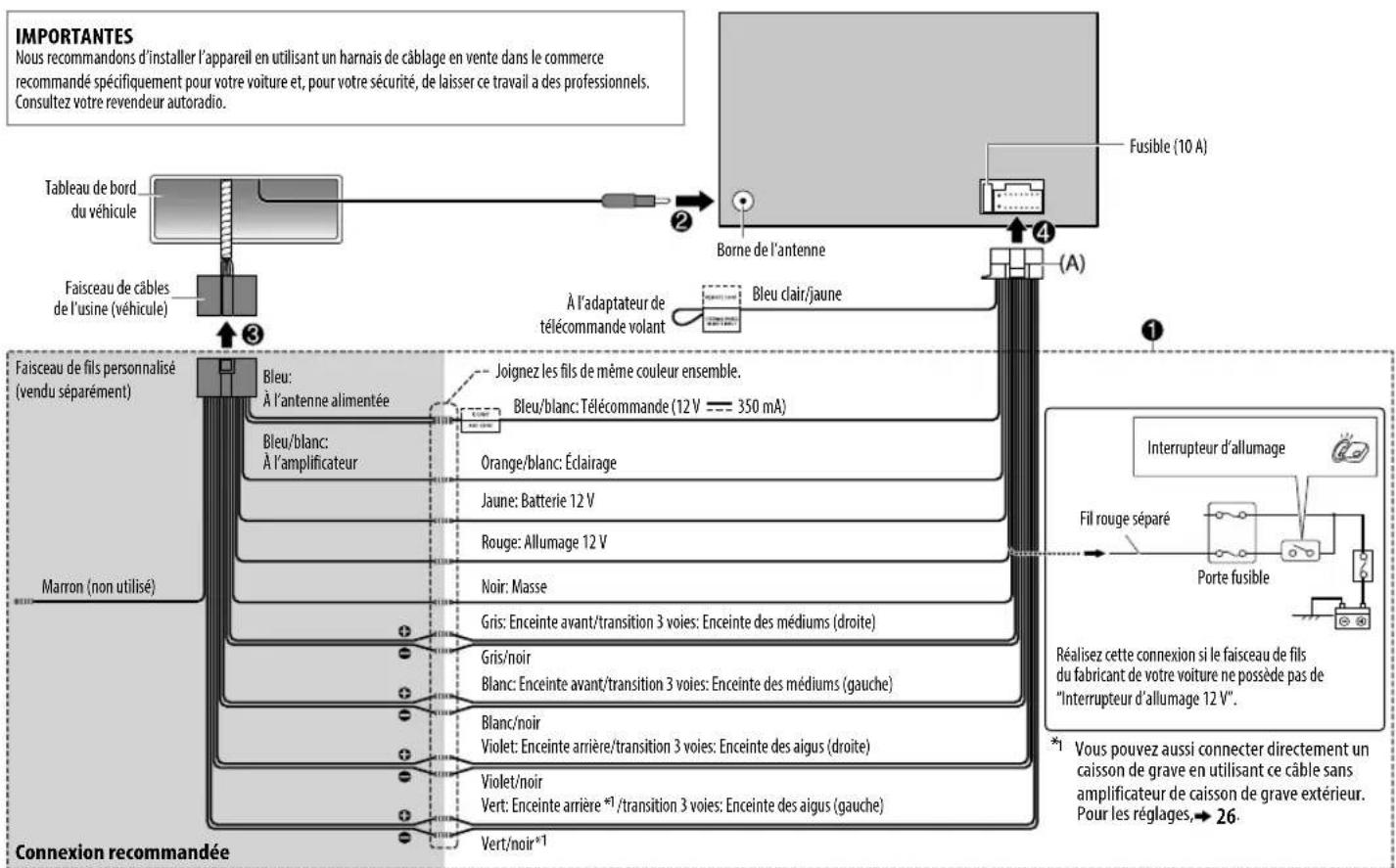

Connect the wires properly. See Wiring connection. ( 39)

Install the unit to your car. See Installing the unit (in-dash mounting).

Connect the terminal of the car battery.

Press to turn on the power.

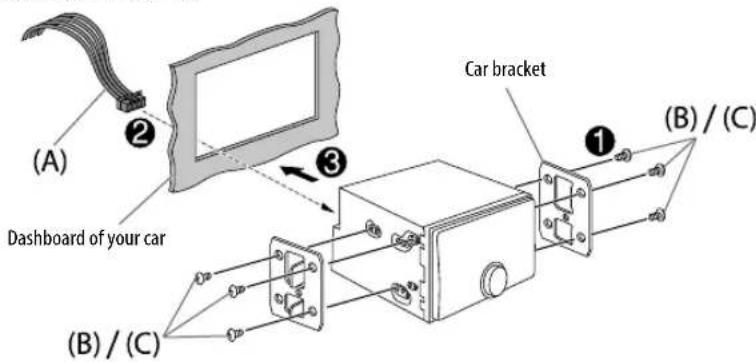

Reset the unit. ( 3) Use only the specified screws. Using wrong screws might damage the unit. INSTALLATION/CONNECTION Installing the unit (in-dash mounting) Install onto the car brackets using the supplied screws (B)

(C) . The screw holes differ depending on the model of the cars. Do the required wiring. (

Dashboard of your car Car bracket (A) Wiring harness (B) Flat head screw M5 × 8mm (M5 × 3/8") (C) Round head screw M5 × 8mm (M5 × 3/8") JS_JVC_KW_R935BTS_K_EN_7.indd 38JS_JVC_KW_R935BTS_K_EN_7.indd 38 7/4/2017 2:45:59 PM7/4/2017 2:45:59 PMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Car fuse block Ignition switch Light blue/yellow Blue/white: To amplifier Blue: To power antenna Make this connection if your vehicle factory wiring harness does not have “12V ignition switch” wire. Separate red wire Wiring connection To the steering wheel remote control adapter Fuse (10A) Antenna terminal Factory wiring harness (vehicle) Black: Ground Yellow: Battery 12V White: Front speaker/3-way crossover: Mid range speaker (left) White/black Gray: Front speaker/3-way crossover: Mid range speaker (right) Gray/black Purple: Rear speaker/3-way crossover: Tweeter (right) Purple/black Join the same color wires together. Red: Ignition 12V Orange/white: Illumination Blue/white: Remote (12 V 350mA) Brown (not used) Green: Rear speaker *

/3-way crossover: Tweeter (left) Green/black *

You can also connect a subwoofer speaker directly using this lead without an external subwoofer amplifier. For setting,

Custom wiring harness (separately purchased) Vehicle dashboard Recommended connection INSTALLATION/CONNECTION IMPORTANT We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer. JS_JVC_KW_R935BTS_K_EN_7.indd 39JS_JVC_KW_R935BTS_K_EN_7.indd 39 7/4/2017 2:46:00 PM7/4/2017 2:46:00 PMENGLISH

THROUGH HPF SLOPE –06DB

“MISWIRING CHECK WIRING THEN

THROUGH HPF SLOPE –06DB

(3,1lbs) KW-R930BTS: 1,3k

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

• iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

• Lightning is a trademark of Apple Inc.

• Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.

• iHeartRadio® and iHeartAuto™ are trademarks owned by iHeartMedia, Inc. All uses are authorized under license.

• Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.

• SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB.

• Android is trademark of Google Inc.

• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners. libFLAC Copyright (C) 2000-2009 Josh Coalson Copyright (C) 2011-2013 Xiph.Org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: - Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. - Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. - Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. JS_JVC_KW_R935BTS_K_C.indd 1JS_JVC_KW_R935BTS_K_C.indd 1 6/30/2017 11:29:04 AM6/30/2017 11:29:04 AM
