JC462 - Kitchen scales Joycare - Free user manual and instructions

Product type	Electronic kitchen scale
Brand	Joycare
Model	JC462
Maximum capacity	5000 g
Accuracy (division)	1 g
Units of measurement	g, lb, oz, ml
Platform material	Tempered glass
Display	Large dial
Power supply	Solar energy with backup battery
Functions	On/off, tare, unit selection, auto-off, overload indicator
Battery type	Not specified (probably 1 button battery)
Cleaning	Damp cloth, do not immerse, no chemicals
Maintenance	Do not open, repair by authorized technician
Warranty	3 years (excluding breakage, improper use, unauthorized repair)
Standards	CE, WEEE directive 2002/96/EC
Usage	Household use only
Overload indicator	Displays "EEEE" beyond 10 kg
Negative tare	Yes, reset to zero by pressing ON/TARE

Frequently Asked Questions - JC462 Joycare

How to turn the scale on and off?

Press the ON/TARE button once to turn on. To turn off, hold the same button until it turns off.

How to use the tare function?

Place an empty container on the scale, then press ON/TARE. The screen displays "Tare" and "0 g". Then add your ingredients to weigh only their weight.

How to change the unit of measurement?

Press the UNIT button to switch from g to lb, oz or ml. The selected unit is displayed on the screen.

What to do if the scale displays "EEEE"?

This indicates an overload. Immediately remove the excess weight to avoid damaging the scale. The maximum capacity is 5000 g.

How to clean the scale?

Use a damp cloth to clean the platform and the housing. Never use chemical detergents and never immerse the scale in water.

Does the scale work without batteries?

Yes, the scale is powered by solar energy. For optimal operation, place it in a well-lit area. An internal backup battery may be present for low light situations.

How to replace the battery?

The scale uses a backup battery. To replace it, open the battery compartment located under the device. Observe the indicated polarity. If the scale is not used for a long time, remove the battery to avoid leakage.

What is the accuracy of the scale?

The scale has a capacity of 5000 g with a division of 1 g, offering excellent precision for cooking.

Can the scale weigh liquids?

Yes, you can weigh liquids using a suitable container. Select the ml unit for liquids. Use the tare function to compensate for the container weight.

What to do if the scale does not turn on?

Make sure the scale is placed in a sufficiently lit area. If the problem persists, check the backup battery. If necessary, contact an authorized service for repair.

USER MANUAL JC462 Joycare

Thanks for having chosen the JOYCARE electronic kitchen scale, an accurate tool for a daily use in your kitchen. In order to ensure the correct usage of the scale, it is advisable to read carefully this instruction manual. It is also advisable to save this manual for a future use.

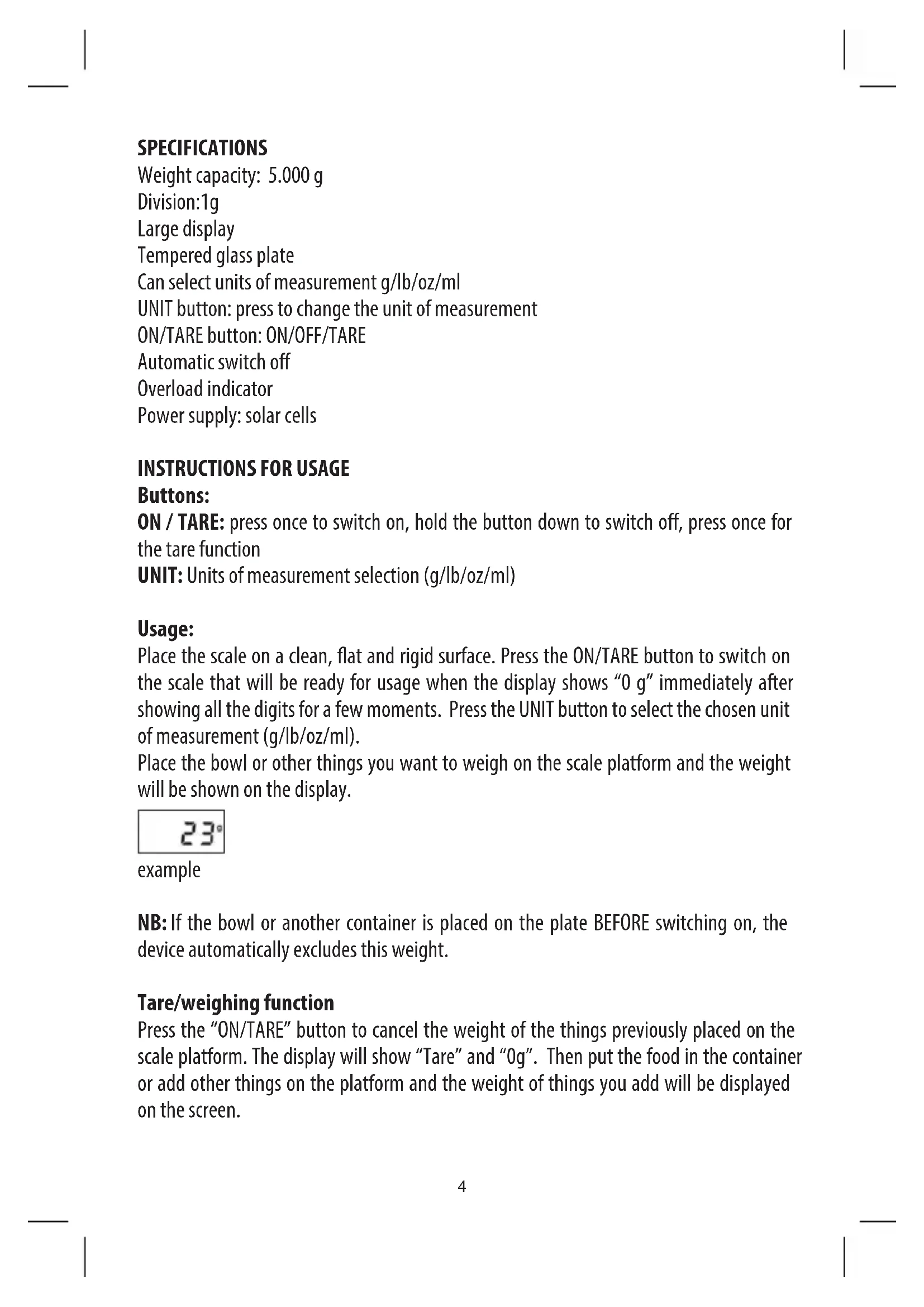

SPECIFICATIONS

Weight capacity: 5.000 g

Division:1g

Large display

Tempered glass plate

Can select units of measurement g/lb/oz/ml

UNIT button: press to change the unit of measurement

ON/TARE button: ON/OFF/TARE

Automatic switch off

Overload indicator

Power supply: solar cells

INSTRUCTIONS FOR USAGE

Buttons:

ON / TARE: press once to switch on, hold the button down to switch off, press once for the tare function

UNIT: Units of measurement selection (g/lb/oz/ml)

Usage:

Place the scale on a clean, flat and rigid surface. Press the ON/TARE button to switch on the scale that will be ready for usage when the display shows "0 g" immediately after showing all the digits for a few moments. Press the UNIT button to select the chosen unit of measurement (g/lb/oz/ml).

Place the bowl or other things you want to weigh on the scale platform and the weight will be shown on the display.

example

NB: If the bowl or another container is placed on the plate BEFORE switching on, the device automatically excludes this weight.

Tare/weighing function

Press the "ON/TARE" button to cancel the weight of the things previously placed on the scale platform. The display will show "Tare" and "0g". Then put the food in the container or add other things on the platform and the weight of things you add will be displayed on the screen.

example

Hold the ON/TARE button down to switch the scale off, if you do not want to wait for the automatic switch off function.

Negative tare

The tare is displayed as a negative number, when all the weight is removed from the device (including the container). Press the button ON / TARE: again to reset the product.

Overload indicator

When the weight exceeds the scale capacity (5 kg), the display shows: "EEEE". Remove the excessive weight immediately in order to avoid product damages.

Warnings:

Always select an area with adequate natural or artificial light before using the solar kitchen scale.

Do not expose it to direct sunlight to avoid possible damages.

MAINTENANCE AND CARE

Place always the product on a flat and stable surface. Please clean the appliance with a damp and soft cloth avoiding any water seepage inside the scale. Do not use chemical detergents. Never deep the product into water. Avoid shaking, dropping or shocking the scale. This is a precision instrument and must be handled with care. Never try to repair the scale by yourself but always address to specialized centers; otherwise, the warranty will be not valid anymore. It is advisable to store the scale in a clean place. Dust, dirt, moisture, vibration, air currents, can all cause an adverse effect on the reliability and accuracy of your scale. When the unit is not used for a long period of time, it is advisable to remove battery, as their leaking can damage the appliance. When the scale is switched off, never place or lay any objects on it.

ATTENTION

Use this product only for its intended purpose, as described in this instruction manual such as an electronic scale for domestic use only. Any other use should be considered improper and dangerous.

Packaging components (plastic bags, cardboard, polystyrene etc.) must be kept out of the reach of children as they have the potential to be dangerous and their disposal should

be carried out according to the current regulations. During the weighing procedure, food must come in contact only with special container, suitable for this purpose. These scales should not be used to weigh objects or substances in commercial transactions, to produce medicines, to calculate tolls, tariffs, taxes, premiums, fines, remunerations, indemnities or fees of a similar kind determined by weight.

The product is made conforming with all the applicable European regulations.

DISPOSAL

The device (including its removable parts and accessories) must not be disposed of together with municipal waste at the end of its life, but in compliance with European Directive 2002/96/EC. Since it must be handled separately from household waste, either carry it to a separately-collected waste disposal centre for electrical and electronic appliances or give it back to the retailer on purchasing a new device with the same purpose. Any infringement will be severely prosecuted.

The batteries used in this device must be disposed of in the special bins at the end of their life.

Specifications and designs are based on the latest information available at the time of printing and subject to change without notice.

F

BALANCE DE CUISINE

Joycare S.p.A., a company with a sole shareholder, offers a period of 3 year warranty after the date of purchase. The warranty does not cover damage caused by accidental breakage, transportation, incorrect maintenance or cleaning, misuse, tampering or repairs carried out by non authorised third parties. The following is also excluded: damage caused by incorrect product installation, and damage caused by wear and tear, obviously including parts subject to wear and tear. In order to obtain the replacement/repair of products under warranty in cases other than those mentioned above, but which are instead caused by manufacturing defects, please contact your local importer/distributor. Goods that are not held to be in good condition because of the aforesaid causes must be accompanied by this certificate, duly filled-in, as well as a receipt for the goods (invoices and transport documents) and purchasing documentation.

Please keep the original packaging of the product.

F: CARTE DE GARANTIE
