TM2463 - Egg cooker Tomado - Free user manual and instructions

Product type	Egg cooker
Brand	Tomado
Model	TM2463
Capacity	1 to 7 eggs
Power supply	220-240 V ~ 50/60 Hz
Power	350-500 W (estimated)
Dimensions (approx.)	20 x 15 x 15 cm
Weight (approx.)	0.5 kg
Base material	Plastic, stainless steel heating element
Control type	On/off button with indicator light
Included accessories	Graduated measuring cup, egg piercer, egg tray
Automatic shut-off function	Yes (with audible signal)
Care and cleaning	Clean with a damp cloth; do not immerse, do not put in dishwasher
Safety	Do not open during boiling; direct steam away from handle; do not leave unattended
Warranty	2 years
Standards	CE, WEEE

Frequently Asked Questions - TM2463 Tomado

How much water should be used for hard-boiled eggs?

Use the supplied graduated measuring cup. The water level determines the doneness: for hard-boiled eggs, fill up to the corresponding mark (usually the highest mark). Refer to the cooking table in the manual.

How to pierce the eggs with the egg piercer?

Use the flat part of the piercer located on the handle of the egg tray. Gently prick the large end of the egg to prevent it from bursting during cooking.

Can I cook fewer than 7 eggs at the same time?

Yes, the appliance can cook 1 to 7 eggs. Simply adjust the amount of water according to the number of eggs, following the graduations on the measuring cup.

How to know when the eggs are cooked?

The appliance emits an audible signal when the water has evaporated and the eggs are ready. The indicator light also turns off.

Can I use tap water?

Yes, tap water is suitable. However, if you have very hard water, regular descaling is advised to avoid limescale buildup.

How to clean the egg cooker?

Unplug the appliance and let it cool down. Clean the base with a damp cloth. The egg tray and measuring cup can be washed by hand. Never immerse the base in water.

What to do if the appliance does not turn on?

Check that the appliance is properly plugged in and that the power outlet works. If the button is pressed but the indicator light does not come on, contact customer service.

The lid is hot, is this normal?

Yes, the lid becomes hot during cooking. Use the handle and direct steam backward to avoid burns. Keep the appliance out of reach of children.

Can I repair the appliance myself?

No, in case of malfunction, contact a Tomado authorized repairer. Do not open the appliance yourself, as this would void the warranty.

How to descale the appliance?

Use a mixture of water and white vinegar (50/50) in the cooking chamber. Run the appliance without eggs. Then rinse several times with clean water.

USER MANUAL TM2463 Tomado

Congratulations and thank you for purchasing this high quality product. Please read the user instructions carefully so that you will be able to make the best possible use of your product. This manual includes all the necessary instructions and advice for using, cleaning and maintaining the appliance. If you follow these instructions you will be guaranteed of excellent results and will benefit from your product to the full. It will also save you time and prevent problems.

We hope you will have a great deal of pleasure from using your product!

SAFETY INSTRUCTIONS

General Information

• By ignoring the safety instructions the manufacturer can not be hold responsible for the damage.
  If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never move the appliance by pulling the cord and make sure the cord can not become entangled.
• The appliance must be placed on a stable, level surface.
  The user must not leave the device unattended while it is connected to the supply.
  This appliance is only to be used for household purposes and only for the purpose it is made for.
• This appliance shall not be used by children from

0 year to 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.

To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
- This appliance is intended to be used in household and similar applications such as: - Staff kitchen areas in shops, offices and other working environments.
- By clients in hotels, motels and other residential type environments.
Bed and breakfast type environments.
Farm houses.
Children shall not play with the appliance.
- This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
- Do not remove the lid while the water is boiling.
To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
- Surface may get hot during use.
- Caution: Avoid injuries from the egg pricker.
WARNING: Position the lid so that steam is directed away from the handle.

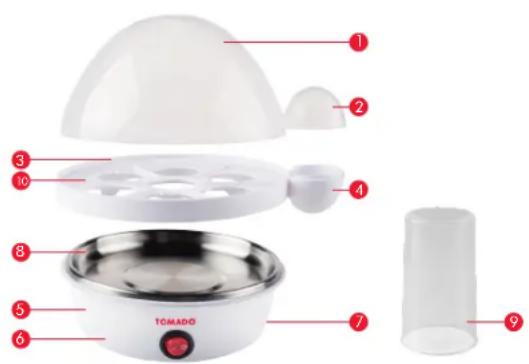

PARTS DESCRIPTION

1. Lid with hole
2. Lid handle
3. Egg tray
4. Egg tray handle
5. Base
6. On/off switch with power indicator light
7. Power cord
8. Stainless steel cooking element
9. Measuring cup
10. Eggpricker

BEFORE THE FIRST USE

• Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.
• Place the device on a flat stable surface and ensure a minimum of 10cm free space around the device. This device is not suitable for installation in a cabinet or for outside use.
• Before using your appliance for the first time, wipe off all removable parts with a damp cloth. Never use abrasive products.
• Put the power cable into the socket. (Note: Make sure the voltage which is indicated on the device matches the local voltage before connecting the device. Voltage 220V-240V 50/60Hz)

USE

• The egg cooker allows you to boil between 1 and 7 eggs at the same time. Whether the eggs are boiled 'soft', 'medium' or 'hard' depends on the amount of water you add.
• Use the measuring cup to get the amount of cold water required.
• Fill the top of the egg cooker with the water.
• Pierce the blunt end of the eggs with the piercer (on the egg tray)
• Place the eggs into the holder and put it with the lid on top unto the egg cooker.
• Connect the plug to wall outlet and press the power button.

TOMADO

Instruction manual TM-2463

The eggs are being boiled now.
- A buzzer signals when the eggs are ready.
- Carefully lift the lid. Remove the egg-holder together with the eggs from the appliance and rinse them under cold tap water.
- You can serve the eggs now.

CLEANING AND MAINTENANCE

• Before cleaning, unplug the appliance and wait for the appliance to cool down.
• Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the device.
• Never immerse the electrical device in water or any other liquid. The device is not dishwasher proof.

TOMADO

Warranty regulations

We would like to congratulate you on buying an appliance from the TOMADO product range.

Warranty regulations

TOMADO provides a 2-year warranty for all defects caused by hidden deficiencies which render the appliance useless for normal operation.
The warranty runs from the date of purchase; we advise you to carefully save your receipt.
- Within the warranty period any defects in production or material will be resolved free of charge, by means of reparation, replacement of parts or replacement of the appliance as a whole.
- The warranty certificate has to be filled in by the sales person at the moment of purchase.
- Repairs will only be made under warranty in case it can proven (by means of a filled in warranty card and the receipt) that the day the complaint is filed falls into the warranty period.
- The warranty does not apply when defects or damages result from an accident, misuse, negligence (e.g. incorrect cleansing), or when repairs of alterations have been executed outside the authorized TOMADO service centre (excl. disassembling, as stated in the instruction manual).
- The warranty does not cover any defects arising when the appliance is connected to the wrong outlet voltage, not following the guidelines in the instruction manual and usual wear and tear.
The warranty does not cover any defects arising from the lack of frequent descaling of appliances, whatever type of water has been used (especially for steam irons, coffee machines and water boilers).

TOMADO cannot be held responsible for any material damage or personal accident resulting from connecting the appliance in breach of the locally applicable safety regulations and technical standards (for instance an inferior AC outlet). The warranty under no circumstances grants the right for any compensation.
- All other claims, including damages, are excluded unless the Law states otherwise.
- Other warranty regulations than the warranty regulations stated above are not applicable.

Service

For more information you can write to the following address (postage paid):

TOMADO Consumenservice

Antwoordnummer 19016

NL-1000VC Amsterdam

The Netherlands

What do you do in case your appliance does not work?

When your appliance shows defects, you can refer to your salesperson. Your salesperson will make sure any defect will be repaired as soon as possible.

Repairs outside the warranty period

You can always hand in your appliance to have it repaired outside the warranty period. This will of course not be free of charge.

TOMADO

m = 311 ;
m = 311

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring that the product correctly as waste is processed, it helps you may have adverse consequences for the environment and human health.

DIRECTIVES POUR LA PROTECTION DE L'ENVIRONMENT
